yellobrik Quick
Reference
yellobrik ®
®
OTT 1812-1
Dual Channel 3G SDI to Fiber Transmitter
WARNING
LASER RADIATION
Do not view directly with
optical instruments
CLASS 1M LASER PRODUCT
Technical Specifications
SDI
Input
2 x SDI video on 75 Ohm BNC connectors
SMPTE 424M, SMPTE 292M, SMPTE 259M
Multi-standard operation from 270Mbit/s to 3Gbit/s
Multirate reclocking 270Mbit/s - 1.5Gbit/s - 3Gbit/s
Return Loss: >15dB up to 1.5GHz ; >10dB up to 3GHz
Automatic cable EQ
260m @ 1.5Gbit/s ; 150m @ 3Gbit/s (Belden 1694A cable)
Optical
Outputs
2 x ber optic outputs
Duplexs (Singlemode) using LC/PC Connectors
SMPTE 297M - 2006
Wavelength 1310nm (each channel)
Optical power -5.5dBm to +0.5dBm (each channel)
2x TX data active LEDs on side of module
Max. distance 10km (6.2 miles) @ 3Gbit/s (Singlemode)
Power +12V DC @ 1.9W nominal - (power supply included)
(supports 7 - 24V DC input range)
Power LED on side of module
WARNING: Module laser is active as
soon as power is connected,
regardless of LED indication
TX1 Data
Active
TX2 Data
Active
Power
DC Power Input
LC Fiber Optic
Output
SDI Video
Input 2
SDI Video
Input 1
12V 0V
О
Power
WARNING
CLASS 1
Laser Product
TX2 TX1
Dual SDI to Fiber
Transmitter
LYNXTechnik AG
IN
1IN
2
3G
10km

Connections

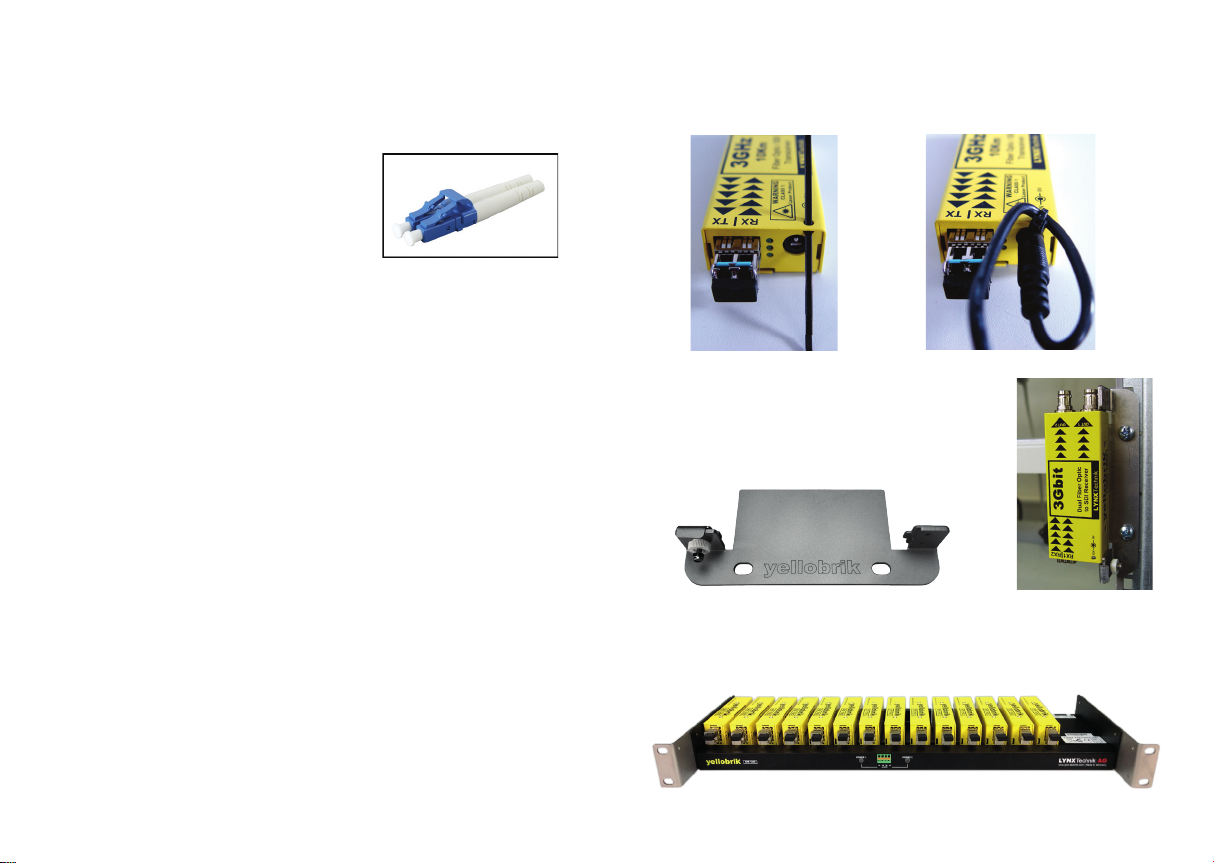

The SDI video input is connected to the 75 Ohm BNC connections (up to
3G). The ber connection is LC Duplex SMF (Singlemode). An example
of the LC connector shown below (ber Optic cable and LC connectors
are not supplied).
Use the included dust plug to protect the optical connection from dust.
Operation
The OTT 1812-1 supports any SDI video signal from 270Mbit/s to 3Gbit/s.
Maximum distance is 10km (6.2 miles). Data transmission activity is
indicated by the TX LEDs on the side of the module.
T he module has two identical (and fully independent) channels.
Operation is fully automatic. For reception, the received SDI format is
detected automatically and provided on the SDI input connection (up
to 3G). The module supports hot swapping and hot plugging of
connections. No user settings are provided for this module.
Note: If TX LED is OFF this indicates no SDI input is present, or the input signal is
not valid.
Power
The module requires a clean 12V DC (7-24V DC) power source. An LED is
provided to conrm power is connected. A 12V DC power supply is
included with the module. If you are applying your own power source,
please provide a clean 7-24V DC power source. Power consumption
information can be found in the technical specications table.
Note: OTT 1812-1 is identical in terms of mounting and securing
Note: The module is designed for use with SMF
(Singlemode) ber cable. While it is possible to
use Multimode cable, performance (distance) is
greatly degraded and not guaranteed.
Optional Mounting Brackets
The optional RFR 1001 mounting brackets can be
used to permanently mount the modules on any
at surface or on 19‘‘ rack rails.
Power Lead Strain Relief
The modules have a small hole in the case located above the power
connection to prevent the power lead being accidentally pulled out.
Use the supplied tie-wrap and secure the lead as shown below.
The optional RFR 1000-1 rack mount can be used to permanently
mount up to 14 yellobrik modules. In addition, the RFR 1000-1 can
provide full power redundancy for all mounted yellobriks.
