Instructions for installation and use DIAMOND Gas 550V-DV-850V-DV-1150V
INSTRUCTIONS FOR INSTALLATION AND USE

Instructions for installation and use DIAMOND Gas 550V-DV-850V-DV-1150V
VERY IMPORTANT
INSTALLATION INSTRUCTIONS
FOR THE M-DESIGNG GAS
FIREPLACES
THE SUPPLIER TAKES NO RESPONSBILITY FOR ANY
POSSIBLE DAMAGE, POOR WORKINGAPPLIANCES AND
ACCIDENT AS A RESULT OF INCORRECT
INSTALLATION
MAINTENANCE GAS FIREPLACE M-DESIGN
THE M-DESIGN GAS FIREPLACES MUST BE
CHECKED EVERY 2 YEARS AND GET A
MAINTENANCE. THIS IS ALSO TO MAINTAIN YOUR
WARRANTY. IF THIS WILL BE NOT
OBSERVED, THE WARRANTY FELL.
YOU CAN RELY ON M-DESIGN TO MAKE THIS CHECK
FOR YOU, OR YOU CAN DO THIS BY YOURSELF AND
FOLLOW THE METHOD BELOW.

3
Instructions for installation and use DIAMOND Gas 550V-DV-850V-DV-1150V
SUMMARY
1. GENERAL REMARKS........................................................... 5
2. CONNECTION...................................................................... 5
3. INSTALLING THE FIREPLACE .............................................. 6
3.1.1 Positioning the fireplace............................................... 6
3.1.2 Nearbox (Gasunit)........................................................ 7
3.1.3 The Gas connection .................................................... 8
3.1.4 Electrical connection.................................................... 9
3.1.5 Modification natural gaz to propane............................. 9
4. INSTALLING THE CHIMNEY ................................................ 10-13
5. FLAME ADJUSTMENT SETTINGS........................................ 13-14
6. INSULATION AND FINISHING .............................................. 14
7. CONVECTION CURRENT..................................................... 15-18
8. MOUNTING A 3 SIDED FRAME............................................ 19
9. POSITIONING THE LOGS .................................................... 20-25
10. FIRST-TIME USE ................................................................ 26
11. SAFETY, ADVICE AND MAINTENANCE.............................. 26
12. GUARANTEE...................................................................... 27
13. REMOTE CONTROL ..........................................................
28-30
14. 4-SIDED FRAME (FINISHING EXAMPLES)......................... 31-33
15. DRAWINGS........................................................................ 34-38
16. IDENTIFICATION BOARDS ................................................. 39-40
17. CE CERTIFICATION............................................................ 41-43

4
Instructions for installation and use DIAMOND Gas 550V-DV-850V-DV-1150V

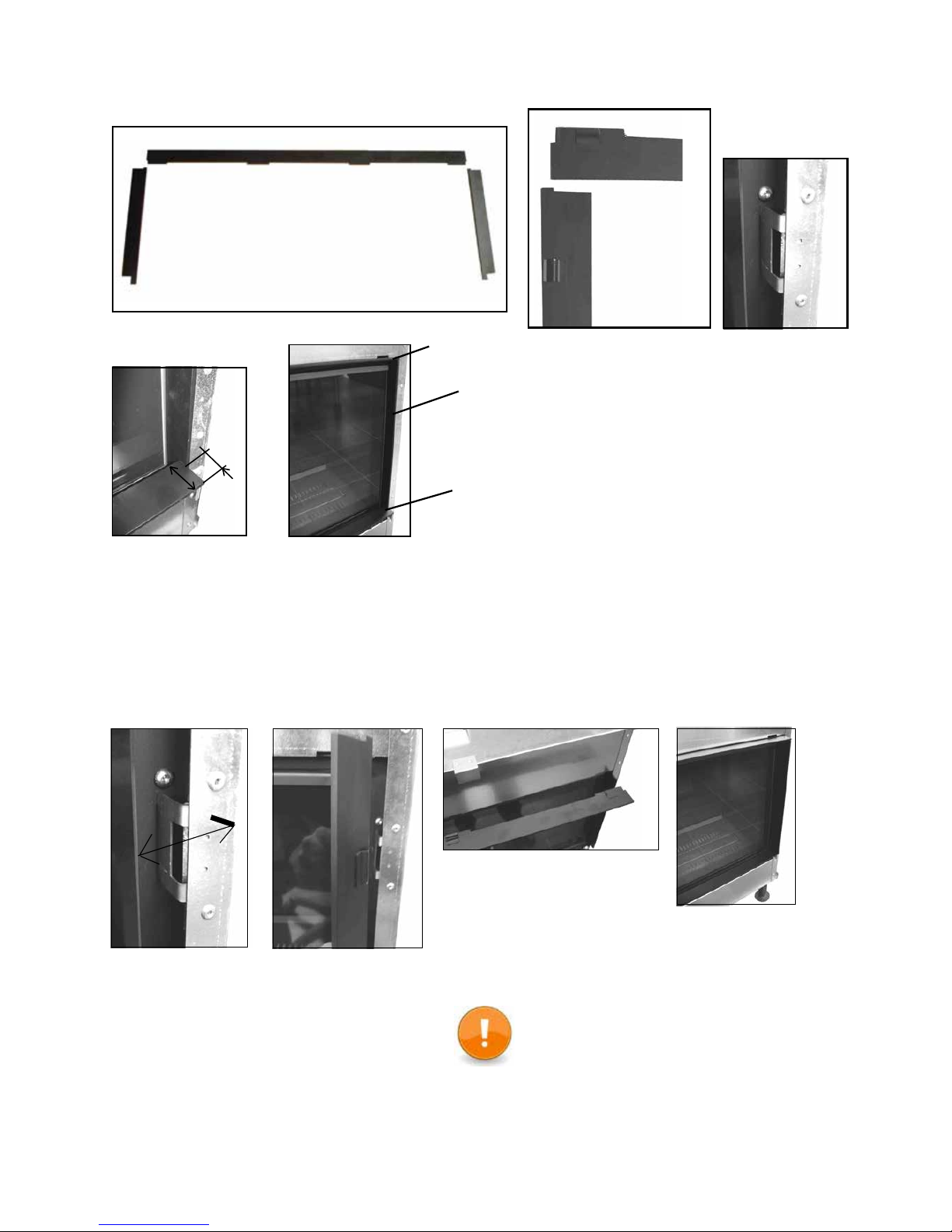

OPEN EN CLOSE THE DOOR
For initial setup, you need to clean the window and clear the fireplace of
any dust and grease that is left behind. This is also the only maintenance
action that may be performed on the device by the user.
Thanks to a patented system, the door can be easily opened at an angle of 45° to allow a user-
friendly cleaning of the window
To close, push the door gently (but not to soft) against the hooks. Make sure that all
hooks are hooked
CLOSING
OPEN
Above the glass (below the upper frame) hooks are provided (left, right and center).
Push it upwards with your fingers. the window can now be opened.

5
Instructions for installation and use DIAMOND Gas 550V-DV-850V-DV-1150V
1. General remarks
This is an appliance using the closed combustion system, designed for the atmosphere
and comfort of your living-room. It constitutes an efficient source of heat and gives the
impression of a real fire.
The balanced flue appliances are based on the principle of natural extraction from the
firebox, which eliminates flue gas outside and brings in air (oxygen) from outside the
house which is necessary for combustion of the gas. It uses to this effect two concen-
tric pipes. The internal pipe ensures the elimination of burned gases and the external
pipe brings in combustion air. The advantage of this principle is that the equipment
works independently of the atmosphere which predominates in the house.
2. Connection
This appliance must be connected by an approved installer in accordance with the
most recent
regulations in force. On the basis of your order specifications, this appliance is designed
for natural or propane gas.
Read the instructions before installing and using this appliance. Before installing the
appliance, please check the local regulations about this type of appliance (identification
of the type of gas, etc.) and check that the furnace is adapted to your means of instal-
lationt.
It is imperative that the installer sees to the following:
•The appliance must be subject to an air tightness test of the gas and elimination of flue
gases.
•The concentric pipe, if already available, must be working correctly.
•The running of the control valve, lighting of the pilot light, the main burner and the
thermocouple must all be checked.
This appliance has been programmed and factory sealed. The sealed parts cannot be
modified. The appliance may therefore also be installed in airtight accommodation and
accommodation equipped with mechanical ventilation. It constitutes ambient heating
even in accommodation equipped with a closed ventilation system.
The appliance must be connected to the type of gas mentioned
on the appliance. Never connect a propane burner to natural gas
or vice versa!

6
A min = 3,5 cm
B = 19 cm
C min = 22.5 cm
Instructions for installation and use DIAMOND Gas 550V-DV-850V-DV-1150V
3. Installing the replace
After having checked the appliance, you are ready to install your appliance. This is
done as follows

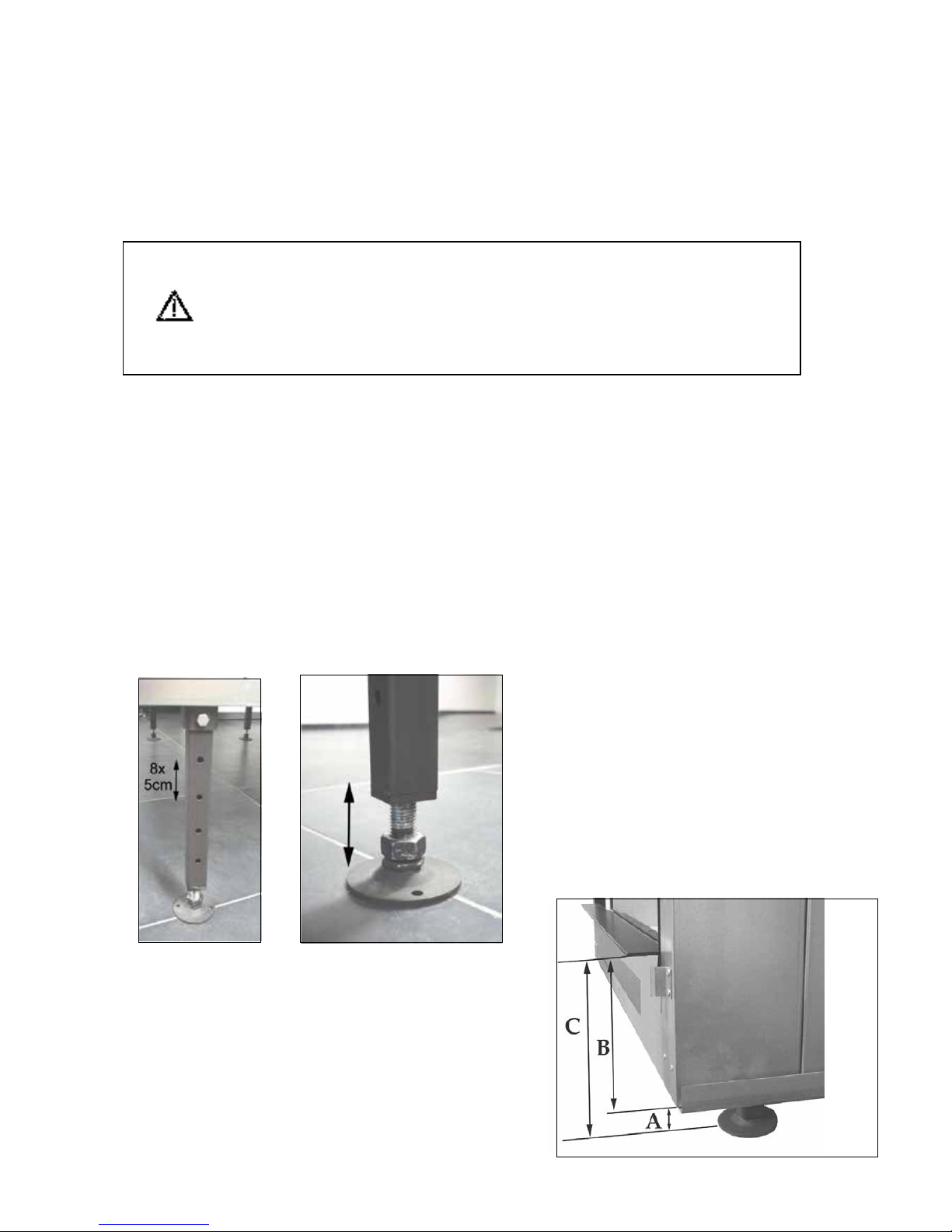

3.1.1 Positioning the appliance
Place the appliance on a stable surface using the adjustable feet. Adjust the height of
the appliance turning the bolt ( pic 1 )
The appliance must not be placed directly on the oor as
you need to allow natural convection. The appertures for the
air supply (IN) is situated underneath the appliances
Regulating the height of the appliance :
This can be made in two ways.
A regulation by 5 cm ( pic. 1 ) and a fine regulation by screw ( pic.2 ).
The minimum height as from ground to the bottom of the appliance is 3,5 cm ( A min ).
The minimum height “C min” will be 22.5 cm, measured as from the ground to 4th side
frame ( pic.3 ).
The maximum height as from the ground to the 4th side frame is 45 cm for LUNA DH and
max 35cm for Luna CL/CR/DC
pic. 1 pic. 2
Pic 3

to second burner or side burner
7
Instructions for installation and use DIAMOND Gas 550V-DV-850V-DV-1150V

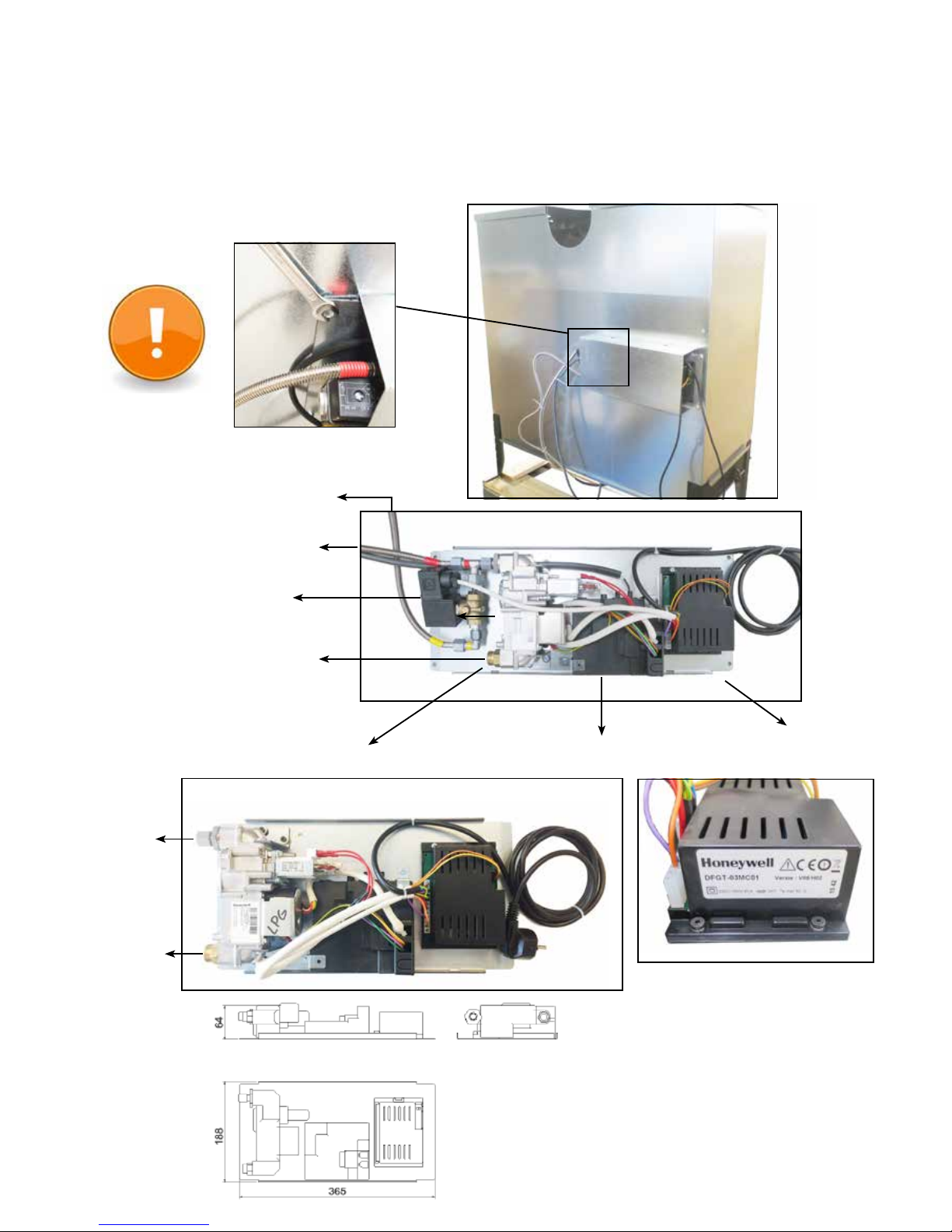

For safety reasons, The gasbattery or “NEARBOX” is fixed with screws at the rear of the unit
during transport .
THE UNIT CANNOT BE INSTALLED WITH THIS NEARBOX FIXED AT THE REAR, IT IS MAN-
DATORY TO UNSCREW THE BATTERY FROM THE REAR PRIOR TO INSTALLATION .
unscrew 4 screws in the corners
(key 8)
gas connection1/2”
reciever
DFGT-03MC01 V09
Transmitter burner S4965C3029
Gas valva
VK4105ME5004
3.1.2 Nearbox (gasunit)
gas connection1/2”
to main burner
Electro magnet ventil 1 or 2 burners
NEARBOX FOR 1 BURNER
NEARBOX FOR 2 BURNERS
to main burner
(455 2 burners)

GAS SUPPLY TO SIDE BURNER OR SECOND
BURNER (YELLOW)
220V
NEARBOX
Connection Gas 1/2” (provide tap)
8
Instructions for installation and use DIAMOND Gas 550V-DV-850V-DV-1150V
Opening provided in wall
for maintenance
Cable to ionistation pin
GAS SUPPLY TO MAIN BURNER ( RED)
flexible for GAS
True Vision is provided with
a direct ignition , no starting
pilot

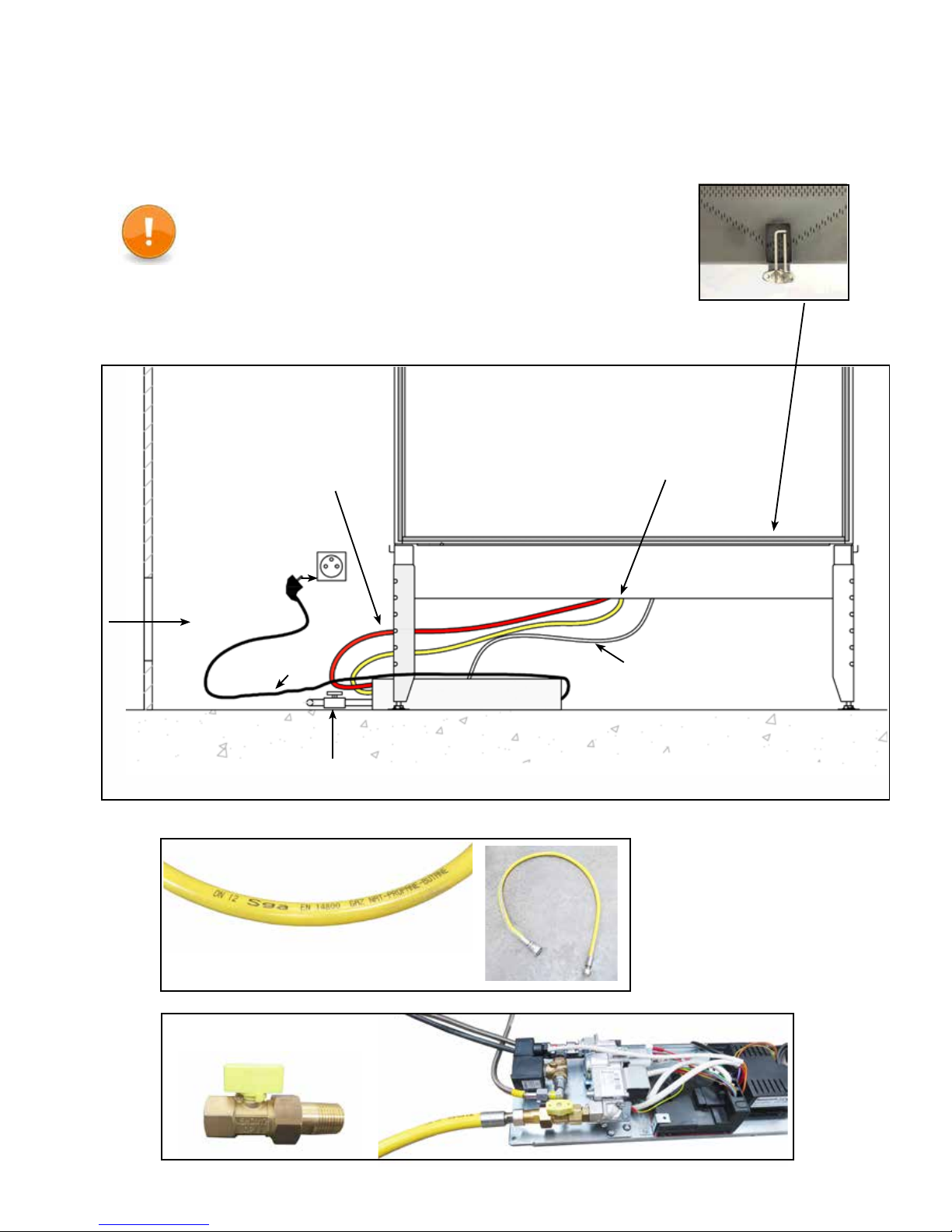

3.1.3 The Gas connection
Valve 1/2”
After the “NEARBOX” has removed from the of the back of the fire, you can place it loosely on the
ground in proximity to the opening provided in the wall of mantelpiece. The device is always con-
nected with an approved gas tap 1/2, and preferably with a yellow gasflexible that is reachable at all
times. Provide the mantelpiece with a door so that the valve and the electrical connection is easily
accessible.
ATTENTION : DO NOT PLACE ANY DECORATION ON THE DIRECT IGNITION PIN
(be carefull to stay out of the little rectangular zone with the dcoration)

9
Instructions for installation and use DIAMOND Gas 550V-DV-850V-DV-1150V
3.1.4 Electrical connection
These appliances are equipped with a radiographic remote control, making an earthened 220V
socket necessary.
You should bear in mind that the appliance must be connected to all
electrical supplies for the purposes of service.
It’s obligatory to connect an earth current.
3.1.5 Modication natural gaz to propane
Modification of the fireplace can only be done by the manufacturer or an approved installer. A
new signal plate is provided.

10
Instructions for installation and use DIAMOND Gas 550V-DV-850V-DV-1150V
Picture 1: ROOF EXIT (C31)
The concentric ue duct should not be reduced to 150/100 for all True Vision.
Picture 1
4. Installing the chimney
Install the concentric flue duct as indicated by ONTOP - METALOTERM. The only authorised pipes are
ONTOP Metaloterm™. ONTOP-METALOTERM tested our appliances with their conduct and we only
guarantee a good working of the appliance with those. Between the external wall of the pipe and the wall
or the ceiling, you should allow for a clearance of at least 50mm and protection that is suitable against
temperatures of around 130°C. The passage of the front panel cowl in the external wall must be filled in
using silicone mastic.
This is recommended with a roof exit ≥ 3m
This is recommanded with a roof exit ≤ 3 m
Ø 150/100
Appliance C (min) C (max) Postion air inlet
850V / 550V 3 m 18m 2
850DV/550DV/1150V 3 m 18m 2
Ø 200/130
Appliance C (min) C (max) Position air inlet
850V / 550V 2 m 10m 2
850DV / 550DV/1150V 2 m 9m 2

*
USDHC13 or
USDHC10
*
11
Instructions for installation and use DIAMOND Gas 550V-DV-850V-DV-1150V
Picture 2: ROOF EXIT VIA EXISTING CHIMNEY (C91S)
It is obligatory to use the termination set USSAN
with positioning.
flex 130mm
or 100mm
This USSAN piece must be sealed at the
roof!
Picture 2
Tab 2
Ø 150 (min) / Ø 100
Appliance C (min) C (max) Position air inlet
850V / 550V 3 m 18m 3
850DV / 550DV / 1150V 3 m 17m 3
Ø200(min) / Ø 130
Appliance C (min) C (max) Position air inlet
850V / 550V 2 m 10m 3
850DV / 550DV / 1150V 2 m 9m 3

12
Usvk13
reduction 200/130 to 150/100
Instructions for installation and use DIAMOND Gas 550V-DV-850V-DV-1150V
Picture 3: WALL EXIT (C11)
IMPORTANT:Be carefull every horizontal part does not have a negative in
clination in direction of the outlet. It is even better, when possible to
have a little inclination of 2 or 3 degrees ascending to avoid rain and
condenstation in the tube. Install wall outlet like g 1
Picture 3
Picture 4
Picture 5
Ø 150/100
With reduction usvk13 on appliance (Pic 3 )
Appliance A (min) B (min) B (max) Position air inlet
850V
550V
1,25m
0,75m
Wall Exit A+0,5m 4
850DV
550DV
1,25m
0,75m
Wall Exit A 4
11 5 0 V 1,25m Wall Exit A 4
(A) ø 200/130 in combinatie met / combiné
avec (b) ø 150/100
With reduction usvk13 placed horizontaly after curve 90° ( Pic. 4 )
Appliance A (min)
Ø 200/130
B (min)
Ø 150/100
B (max)
Ø 150/100
Position air inlet
850V
550V
1m
0,75m
Wall Exit A+ ”USVK13” +4m 4
850DV
550DV
1m
0,75m
Wall Exit A+ ”USVK13” +3m 4
11 5 0 V 1m Wall Exit A+ ”USVK13” +3m 4
ø 200/130 (pic.5)
Appliance A (min) B (min) B (max) Position air inlet
850V
550V
1m
0,75m
Wall Exit A+8m 3
850DV
550DV
1m
0,75m
Wall Exit A+7m 3
1150V 1m Wall Exit A+7m 3

13
1
2
3
4
Detail A
position 1 = Min
position 4 = Max
A
Instructions for installation and use DIAMOND Gas 550V-DV-850V-DV-1150V

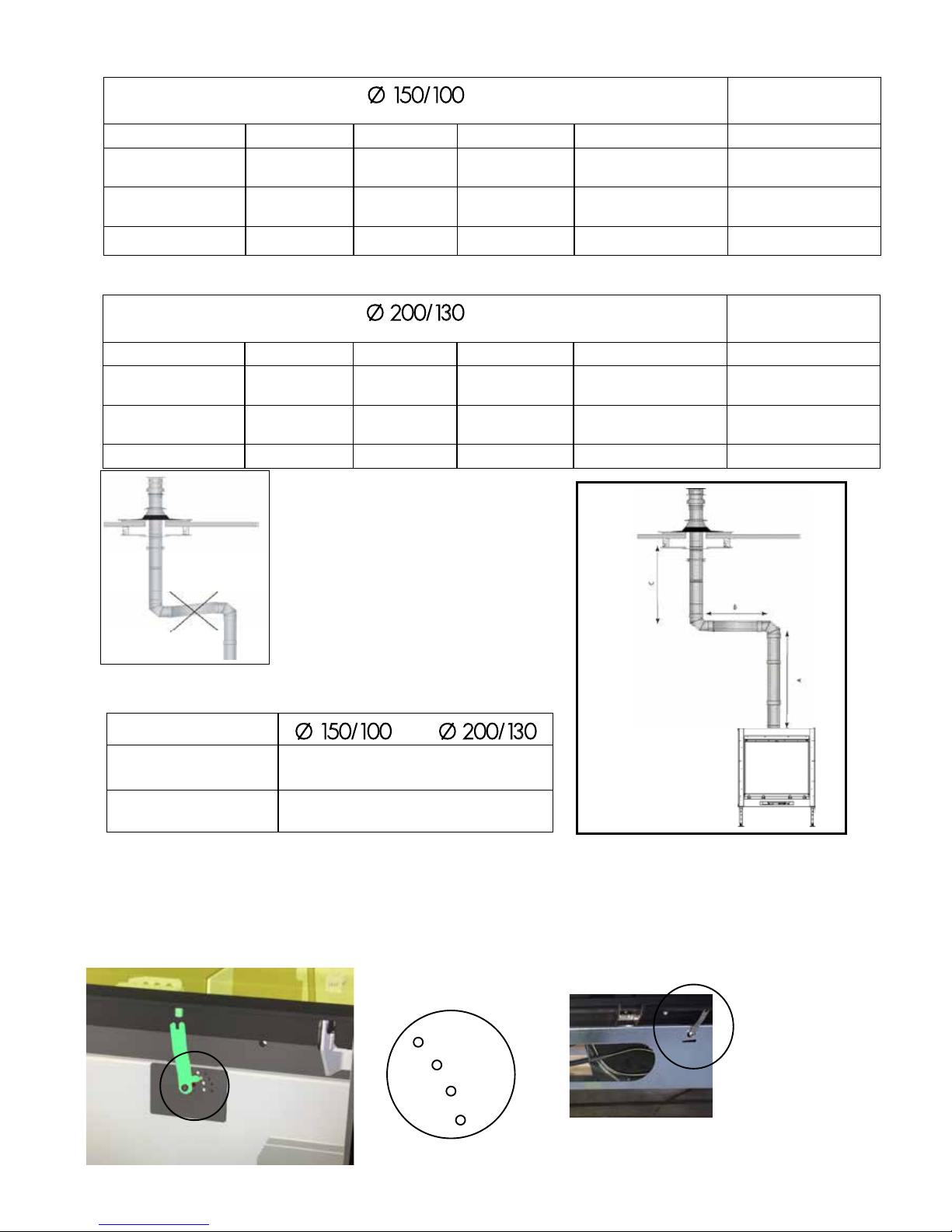

Picture 4: ROOF EXIT WITH BEND
Appliance Ø 150/100 en/ et Ø 200/130
850V / 850DV / 1150V
550V / 550DV
for each 90° bend subtract 1m horizontally
or add 1m vertically
850V / 850DV / 1150V
550V / 550DV
for each 45°/30°/15° bend subtract 0,5m
horizontally or add 0,5 m vertically
Ø 150/100
With reduction on the appliance
Appliance A (min) B (max) C (min) (A+B+C )max Position air inlet
850V
550V
1,25 m
0,75m
A+C B-A 16 m 4
850DV
550DV
1,25 m
0,75m
(A+C) -0,5m B-A 15 m 4
1150 V 1,25 m (A+C) -0,5m B-A 15 m 4
Ø 200/130
Without reduction
Appliance A (min) B (max) C (min) (A+B+C )max Position air inlet
850V
550V
1,25 m
0,75 m
(A+C) + 7m B-A-9m 20m 4
850DV
550DV
1,25 m
0,75 m
(A+C) + 6m B-A-8m 19 m 4
1150 V 1,25 m (A+C) + 6m B-A-8m 19 m 4
5. Flame adjustment settings
After installing the fireplace correctly on the concentric tube or chimney system, you must make a
flame adjustment according to the draft (see pagess 9-13 with setting 1-2-3-4).
Flames settings
Caution: if the vertical part is 3 m
longer than the horizontal part, the air
inlet position lever must be set to 3

14
B
A
min. 5 mm
Instructions for installation and use DIAMOND Gas 550V-DV-850V-DV-1150V
6. Insulation and nishing
Once installation is complete, the appliance can be fitted. Before doing so, check the
tightness of the gas pipe one more time. Light the appliance and check that it is wor-
king: check the tightness of the gas pipe and the smoke pipe. Once you have checked
everything, you can perform the final insulating and finishing operations.
The built-in part of the appliance tends to be very warm. Please check that the ap-
pliance is not too narrowly fitted and that there is adequate space for the elimination
of hot air. For insulation of the appliance, we advise you to use M Design insulating
plates. You are advised against using any other insulation product. Inflammable mate-
rials as well may not be used for the finishing.
Please , follow this instruction. The appliance can overheat if you do not
follow these instructions. Errorcode F02 will appear !
Masonry must be raised around the replace. Due to the expansion
of the replace during combustion, a gap of at least 5 mm must be
provided at the front of the replace and 4 cm on each side of the
appliance. The masonry must not rest on the replace. THE FIRE-
PLACE MUST BE FREE. Always leave 2 mm clearance between the
inner frame and the masonry.
A very essential point when setting up the Luna
Gold is that the distance has to be respected
inbetween fireplace and the finishing material for
the mantlepiece such as marble, gipsum,...
For this, a small bended metal sheet that is provi-
ded on the fireplace ( pic.1 ) , is to be used as the
minimal reference for the distance. The finishing
can only go as far as this metal sheet (pic.2 ).
Don’t remove this ( pic.3 ) ! This allows you to
take out the 4th side frame and to let the airflow
in the mantelpiece for natural convection
Pic1 Pic2 Pic3
Air inlet Flame setting
B
A
Adjustable air diffusion for ame setting
Air inlet Flame setting
Adjustable air diffusion for ame setting

15
Instructions for installation and use DIAMOND Gas 550V-DV-850V-DV-1150V
7. Convenction current
It is MANDATORY to equip the fireplace with a convection kit consisting of inlets and
outlets which are connected to stretchable hoses from 3m to 5m.
In this way is created a circualtion and evacuation of the heat by convection.
This is very important to avoid overheating in the firebox casing and also to distribute
the air hot air in the room or in another adjacent room (office, kitchen, ...)
This system directs the heat inside the room using hoses (150mm dia.). It is neces-
sary to open minimum 2 hot air outlets. For the installation of these ducts, limit their
lengths, avoid as much as possible elbows and changes of direction, because the
losses of speed generated, decrease the efficiency of the air outlets at the end of
travel. We advise you to install the hot air grilles at the same height to have the same
heat provided. M-Design has developed hot air and ambient air outlet grilles available
from your dealer (see page 16).
Outlet grids have two or four hose connections (2/4 hoses on 1 grid!).
The air inlet grilles (not to be connected with a hose) must be placed as low as
possible at the bottom of the fireplace.
Please, follow this instructions. The appliance can overheat if you not apply
those instructions. Errorcode F02 will appear!
ATTENTION : A house is never completely 100 % dustfree, heating applian-
ces and warmth circulation create dust particles. During the periods where
you are not using the fireplace, dust is accumulated in the flexible pipe and
and the grills
This could cause a problem with a smell, so we would certainly advise you
to clear the flexible and air inlets and outlets using a vacuum cleaner regu-
larly. The smell caused by these dust particles will disappear after you have
used the fireplace again a few times. (This phenomenon is very common
and can be compared to the gray traces appearing above your radiators.)
Optionally you can order design metal lids to cover the inlets and outlets
during the summertime .

16
2xØ150 13
126
126 200
200 550
350
1223
82
64
72
268
114 44
488 484
82
22
484 488
484
82
9292
44 115
70
82
269
281
465
2xØ150
64
13
495 Ext.
82
489
82
2xØ150
13
64
82
115
44
70
269
9292281
499
479 Int. 473 Int.
499
22
488
499
465
481
3,5 3,5
489
5 5
489
Instructions for installation and use DIAMOND Gas 550V-DV-850V-DV-1150V

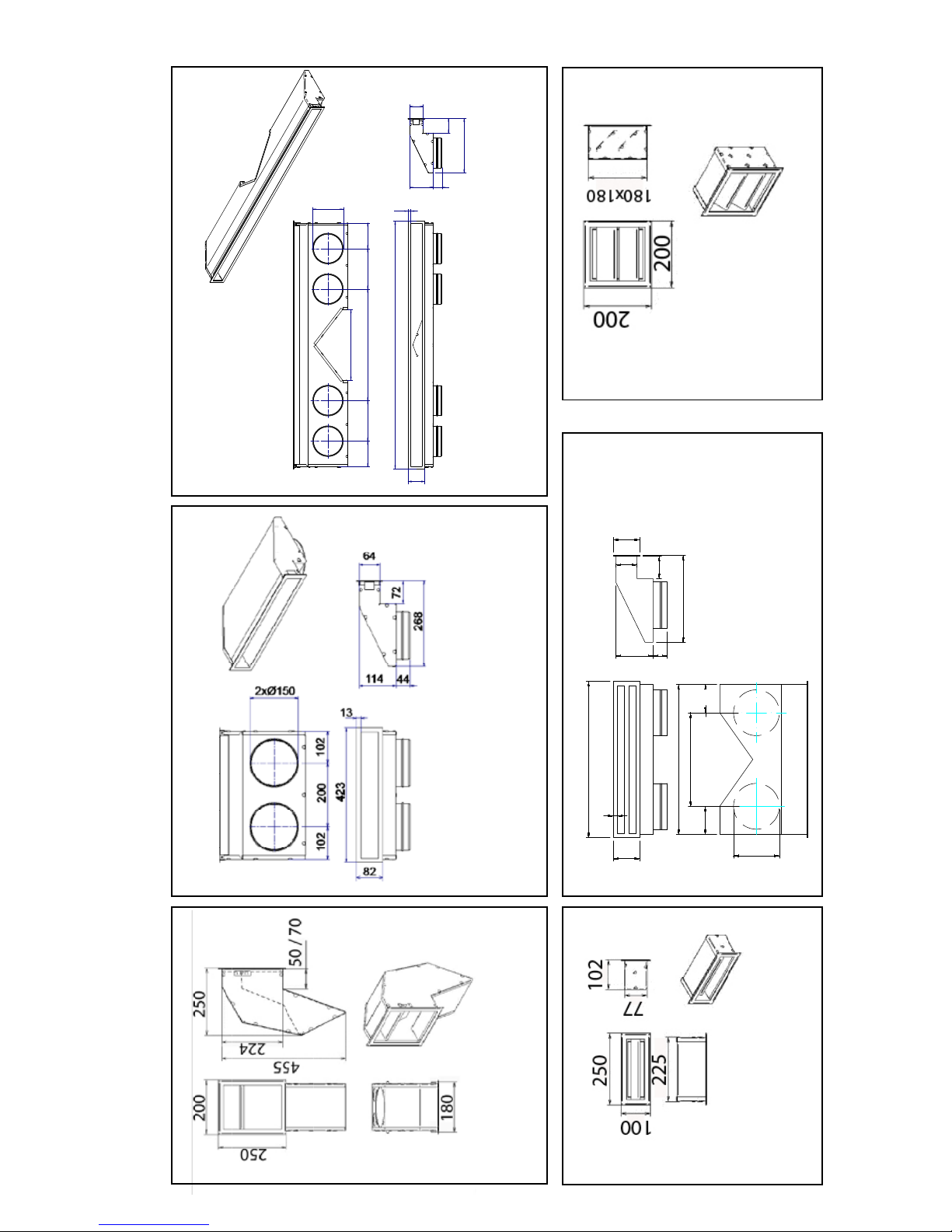

Design grid (outlet) with 2 connections
Inlet grid convection air 2dm3Inlet grid convection air 4dm²
Design gridl (outlet) with 2 connections Design grid (outlet) with 4 connections
Design grid (outlet) with 2 connections for frontal installation (see page 17)
7. Technical data for outlet and inlet grids

17
Mirror
Masonry Masonry
Mirror
Main
Outlet
Mirror
Masonry
Masonry Mirror
1
2
1
82
484
82
4 81
488
DRL 2 (488x82)
Instructions for installation and use DIAMOND Gas 550V-DV-850V-DV-1150V

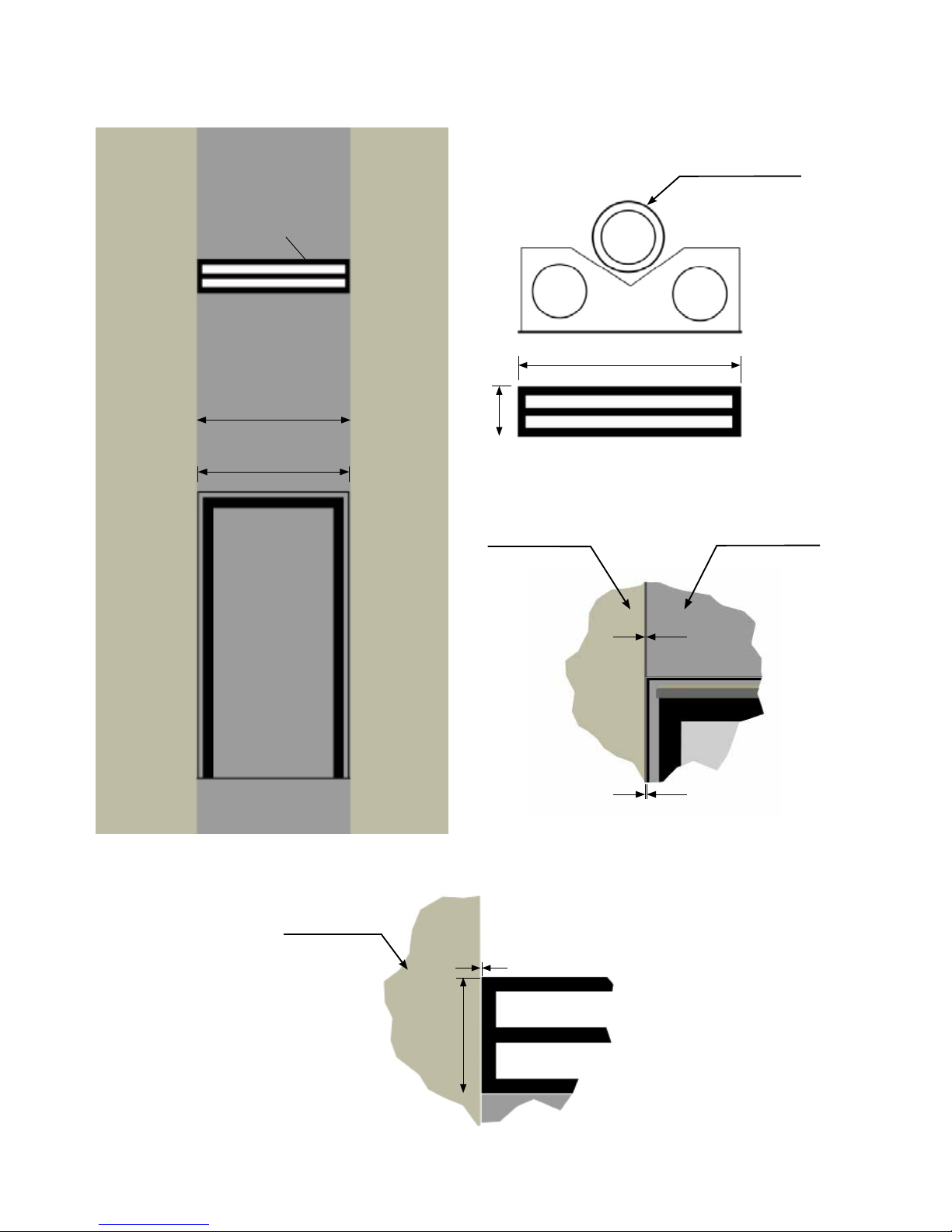

Design grid (outlet) with 2 connections for frontal installation

18
Instructions for installation and use DIAMOND Gas 550V-DV-850V-DV-1150V

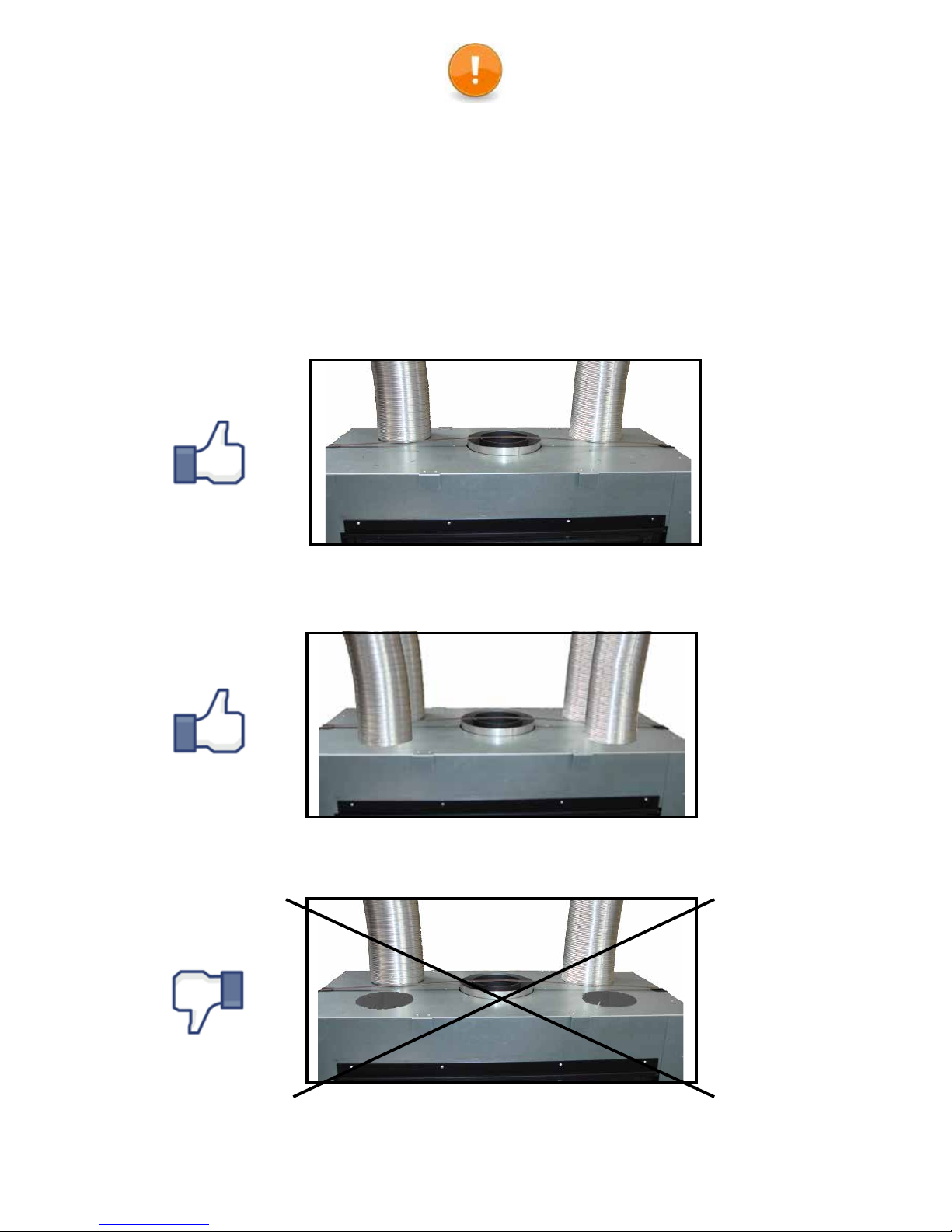

You have to connect at least two appertures situated at the top of the appliance.
The appliance may not be placed directly on the floor, without the feet. This is to
allow natural convection. The appertures for the air supply are situated underneath
the aplliance. Every opening you make must be connected with a flexible tube dia
150MM
(see pic below). This will avoid the heating of the electronic part of the appliance.
In this case you will have errorcode F02.

19
Instructions for installation and use DIAMOND Gas 550V-DV-850V-DV-1150V
picture 1
3 sided frame
2,5 cm
3,5 cm
4 sided frame
side frame
upper frame
picture 2
picture 3 picture 4
picture 5
picture 6
8. Mounting a 3 sided frame
Fireplace is delivered standard with 4sided frame 3,5cm, an upper and 2 sideframes ( see pic. 2 )
Before mounting the 3 sided frame, remove 4 sided frame ( lower piece ) by lift it carefully up.
Pull out the upper frame and in second way the left and right sideframes. Take the left and right
side of the 3 sided frame ( 3,5 - 7 or 10 cm ) and slide them in the notches ( see pic 4). When those
are placed in a good way, you can adjust the position to the left and to the right and from the the
front to the rear. In this way you can make the frame a good fit to the surrounding. Mount the upper
frame ( pic 5 ) and lastly the 4 sided frame ( pic 6 )
Attention : Pleas pay attention to leave approx 2 mm inbetween
the frame and the finishing material (heat=expansion)

20
Instructions for installation and use DIAMOND Gas 550V-DV-850V-DV-1150V
9. Positioning the logs, diamond, sapphire and white pebbles
Put the little imitation coal pieces on the burner and here and there between the
Put the big imitation coal pieces around the burner.
Please check that the pilot light is switched off and that the appliance has cooled
down.
• Move the window to the front by pulling it. The window tips open at 45°.
• Arrange the materials supplied. In accordance with your order you will have either
a set of logs, diamond, sapphire or white pebbles. There is an adequate supply of
materials . Our appliance is approved with these materials, so please do not use
other products. Other decorative products are prohibited in our appliances. Please
do not change the delivered quantities
Attention:
Do not put anything on the ignition pin.
To arrange the logs respect the order as follows.
One bag of liite pebbles is delivred with the set. First place de little
pebbles on the burner. Place the big pebbles around the
little pebbles and be carefull to not place big pebbles directly on the
burner.
ATTENTION WHEN USING THE BIG WHITE PEBBLES
