M Design TRUE VISION RUSTICA M Guide

TRUE
ISION
RUSTICA
V-2020-01
Distributor/Manufacturer
M-Design Benelux BVBA
B-8210 Zedelgem - Belgium
INSTRUCTIONS FOR INSTALLATION
For de Installer
CLOSED GASFIREPLACES

Instrucons for installaon - True Vision Rusca English 2
1. General remarks ........................................................................................... 3
2. Connecon ................................................................................................... 3
3. Installang the replace ............................................................................... 4
3.1. Posionning the replace ...................................................................... 4
3.2. The gasunit............................................................................................. 5
3.3. The gas connecon ................................................................................ 6
3.4. Electrical connecon.............................................................................. 6
3.5. Modicaon natural gas to propane (or inverse) .................................. 6
4. Installing the chimney) ................................................................................. 7
4.1. Roof exit (C31)........................................................................................ 7
4.2. Roof exit via exisng chimney (C91) ...................................................... 8
5. Isolaon et nion ....................................................................................... 9
6. Convecon.................................................................................................... 9
7. Contrucon of interior in briquees ........................................................ 10-11
8. Mounng of the window.......................................................................... 12-13
9. Mounng lng box ...............................................................................14-15-16
10. Woodset ................................................................................................. 17-24
11. Dimensions ............................................................................................. 25-26
12. Spare parts................................................................................................. 27

Instrucons for installaon - True Vision Rusca English 3
1. General remarks
This is an appliance using the closed combuson system, designed for the atmosphere and
comfort of your living-room. It constutes an ecient source of heat and gives the impres-
sion of a real re.
The balanced ue appliances are based on the principle of natural extracon from the -
rebox, which eliminates ue gas outside and brings in air (oxygen) from outside the house
which is necessary for combuson of the gas. It uses to this eect two concentric pipes.
The internal pipe ensures the eliminaon of burned gases and the external pipe brings in
combuson air. The advantage of this principle is that the equipment works independently
of the atmosphere which predominates in the house.
2. Connecon
This appliance must be connected by an approved installer in accordance with the most
recent
regulaons in force. On the basis of your order specicaons, this appliance is designed for
natural or propane gas.
Read the instrucons before installing and using this appliance. Before installing the appli-
ance, please check the local regulaons about this type of appliance (idencaon of the
type of gas, etc.) and check that the furnace is adapted to your means of installaont.
The device is supplied with a concentric outlet of Ø200 / Ø130 as standard.
If due to circumstances (chimney conguraon) an output of Ø200 / Ø150 is required, this
can be specied when ordering.
It is imperave that the installer sees to the following:
• The appliance must be subject to an air ghtness test of the gas and eliminaon of ue
gases.
• The concentric pipe, if already available, must be working correctly.
• The running of the control valve, lighng of the pilot light, the main burner and the
thermocouple must all be checked.
This appliance has been programmed and factory sealed. The sealed parts cannot be modi-
ed. The appliance may therefore also be installed in airght accommodaon and accom-
modaon equipped with mechanical venlaon. It constutes ambient heang even in
accommodaon equipped with a closed venlaon system.
The appliance must be connected to the type of gas menoned on
the appliance. Never connect a propane burner to natural gas or vice
versa!

Type A(mm) B(mm) C(mm)
Rustica M 850-995 800-1100 1311
Rustica L 1000-1175 800-1100 1461
Rustica XL 1180-1360 800-1100 1611
Instrucons for installaon - True Vision Rusca English 4
3. INSTALLATING THE FIREPLACE3. INSTALLATING THE FIREPLACE
Aer having checked the appliance, you are ready to install your
3.1. POSITIONNING THE FIREPALCE3.1. POSITIONNING THE FIREPALCE
Place the appliance on a stable surface using the adjustable feet. Adjust the height of the
appliance turning the bolt.
The appliance must not be placed directly on the oor as you need to allow air circulaon
underneath the appliances. Minimum height to oor = 21mm
Never place the replace directly against the wall. The wall part against which the ap-
pliance is placed shall be made of a re-resistant material. If this is not the case, a re
resistant insulaon board of at least 12 mm must be provided with a free space of 2 cm
between the wall-wall insulaon board and its appliance.

B
A
B
A
Instrucons for installaon - True Vision Rusca English 5
For safety reasons, The gasbaery or “NEARBOX” is furnished in a box with the replace
3.2. THE GASUNIT
to second burner or side burner
to main burner
Electro magnet ventil 1 or 2 burners
gas connection1/2”
Gas valva
VK4105ME5004
Transmitter burner
reciever
DFGT-03MC01 V09
Dimensions gasunit : 455 x 188 x Height 64mm

230V
Connection Gas 1/2” (provide tap)
Cable to ionistation pin
NEARBOX
flexible for GAS Valve 1/2”
Instrucons for installaon - True Vision Rusca English 6
3.3. The Gas connecon
Aer the “NEARBOX” has removed from the of the back of the re, you can place it loosely
on the ground in proximity to the opening provided in the wall of mantelpiece. The device
is always connected with an approved gas tap 1/2, and preferably with a yellow gasexible
that is reachable at all mes. Provide the mantelpiece with a door so that the valve and the
electrical connecon is easily accessible.
True Vision is provided with
a direct ignition , no starting
pilot
GAS SUPPLY TO SIDE BURNER OR SECOND
BURNER (YELLOW)
GAS SUPPLY TO MAIN BURNER ( RED)
Opening provided in wall
for maintenance
3.4. Electrical connecon
These appliances are equipped with a radiographic remote control, making an earthened 220V
socket necessary. You should bear in mind that the appliance must be connected to all
electrical supplies for the purposes of service. It’s obligatory to connect an earth current.
3.1.5 Modicaon natural gaz to propane
Modicaon of the replace can only be done by the manufacturer or an approved in-
staller. A new signal plate is provided.

C
C
USDVC13+USAB
USSR
USLS
USCP
USKB
USMB
US 100/50/25
USR
USDP
C min = 2m
C max = 8m
C min = 2m
C max = 8m
C
C
2x 45°
Instrucons for installaon - True Vision Rusca English 7
CAUTION: The concentric ue duct should not be reduced !!
4. Installing the chimney
Install the concentric ue duct as indicated by ONTOP - METALOTERM. The only authorised
pipes are ONTOP Metaloterm™. ONTOP-METALOTERM tested our appliances with their
conduct and we only guarantee a good working of the appliance with those. Between the
external wall of the pipe and the wall or the ceiling, you should allow for a clearance of at
least 50mm and protecon that is suitable against temperatures of around 130°C. The
passage of the front panel cowl in the external wall must be lled in using silicone masc.
4.1. ROOF EXIT (C31)
CAUTION: Installing de Rusca is only allowed with roof exit. Never
install the Rusca with wall exit !!
One direction change of 2x45° is tolerated.
Never use 90° bends and horizontal
sections.

C
C
USDVC13
USSAN 13
USKB
US 100/50/25
Ø200/Ø130
USSAN 13
C min = 2m
C max = 9m
Instrucons for installaon - True Vision Rusca English 8
4.2. ROOF EXIT VIA EXISTING CHIMNEY (C91S)
seal hermetically on the
chimney
seal hermetically on the
chimney
USSAN 13 sanitaon kit: required when connecng to an exisng chemney.
This one must be hermecally sealed to the ceiling and the USSAN13 on the top of the
chimney must also be hermecally sealed at the exit.
CAUTION: It is imperave to sweep the chimney and clean it from dust and soot. The
replace funcons as an air inlet and if the replace is not clean, it will cause unpleasant
odors.

Instrucons for installaon - True Vision Rusca English 9
Now that installaon is complete, the unit can be built in.
Before starng work, rst check the gas ghtness.
Start the replace and check its operaon, the ghtness of the gas pipes and the exit of the
combuson gases. If these are in order, you can start the insulaon and nishing work. The
integrated part of the chimney becomes very hot. Therefore, make sure that the replace
is not too narrow, but that there is enough room to extract hot air.
Masonry should be erected around the replace with a minimum distance of 4 cm between
the replace and the nish. It is forbidden to put bricks or any other material on the re-
place. IT MUST BE TOTALLY DETACHED FROM ALL MATERIALS.
5. INSLATION AND FINISHING
6. CONVECTION
When installing the replace, a hot air outlet must be placed at the top le and right of the
cabinet to dissipate heat in the area where the replace is located.
This is important for cooling the chimney in the chimney. There are no exibles to install
with True Vision Rusca.
Do not isolate the device! Do not use glass wool or rock or other types of insulang materi-
als (PVC, plaster, foam, ...). These cause fading and also annoying odors via the convecon
outlets. Never leave rubbish near the replace in the area where it is built in!!

Instrucons for installaon - True Vision Rusca English 10

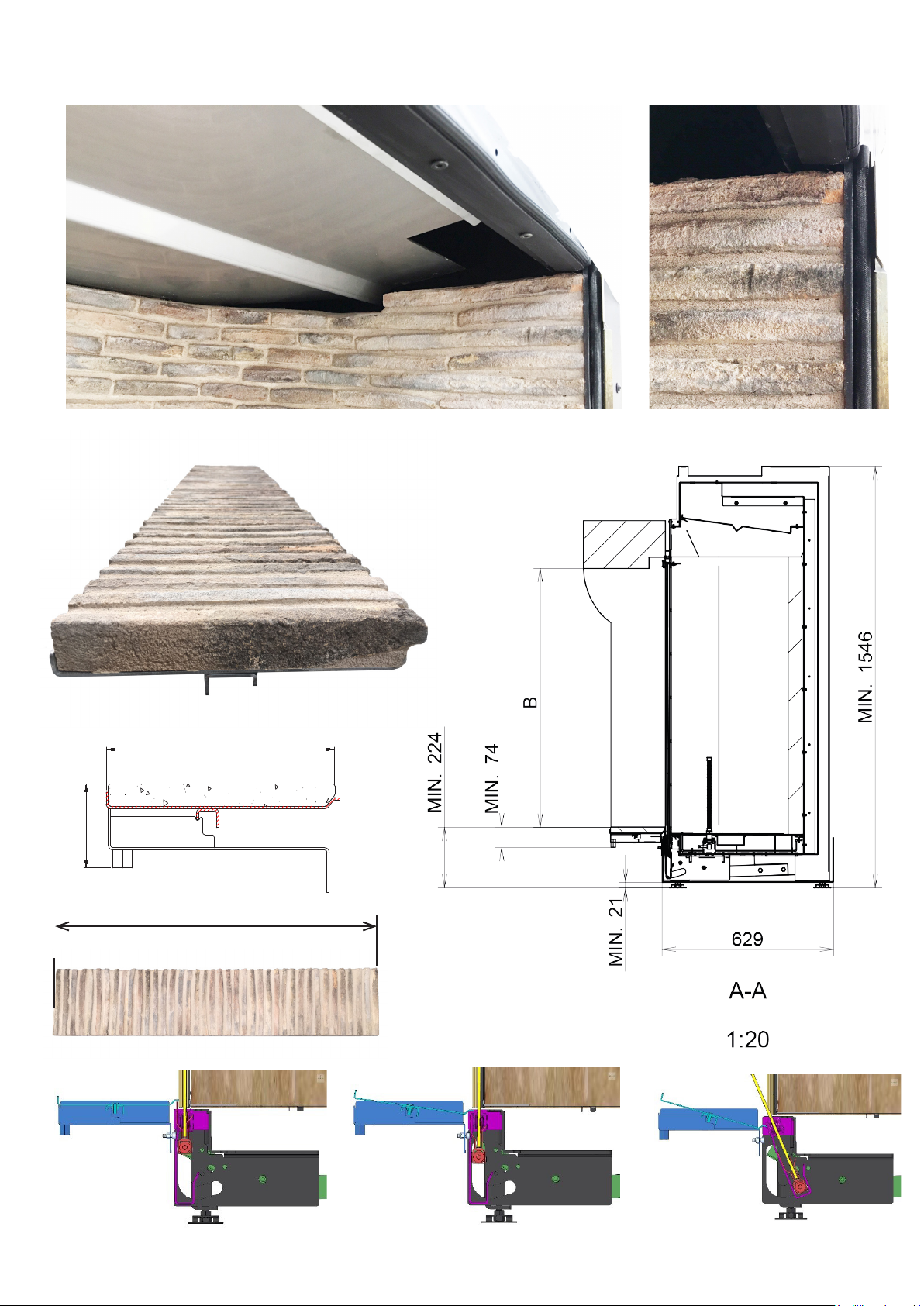

7. CONSTRUCTION OF INTERIOR IN BRIQUETTES
The interior of the Rusca is rectangular, so you have two soluons, either to build your
interior briquees in a straight way or rounded in the corners reminiscent of the style of
old replaces.
The briqueng must imperavely circumvent the central plate (red zone) to allow access to
the burners and hearth.
The pivong front plate (blue area) must also remain free to maintain its mobility. Build the
cladding accordingly on top.
Use a high temperature resistant material

202
Min. 75
A
Instrucons for installaon - True Vision Rusca English 11
Finish against bae and side prole
Tilng box nishing (4th removable side)

1
1
2
1
Instrucons for installaon - True Vision Rusca English 12
8. MUNTING THE WINDOW
To protect the glass from breakage, it is supplied separately with the replace.
We recommend that you mount the window once the unit is fully installed and boxed.
Similarly, do not mount the window unl you have nished the interior with the
briquee decoraon.

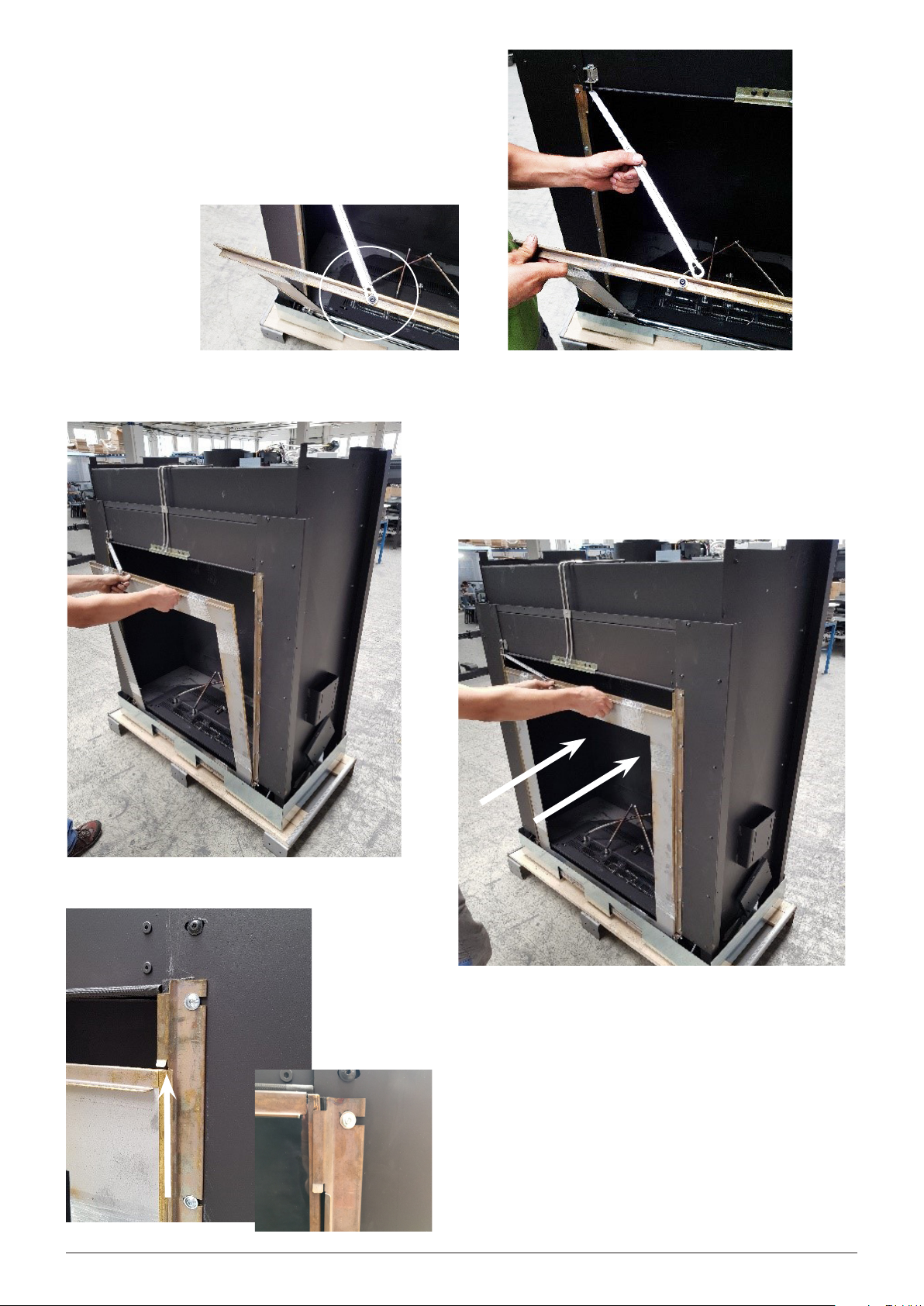

1. The door must be slid into the casters
on the le and right.
2. Push the door in the proles, down

1
2
3
Instrucons for installaon - True Vision Rusca English 13
2. Push the door against the replace.
3. The door goes up automacally
and will be locked once she takes
posion behind the folded prole.
Keep the door open as much
as possible and aach the
support according to photo
1. Close the door by pushing it down and
toward the replace at the same me

1
2
3
Instrucons for installaon - True Vision Rusca English 14
9. ASSEMBLY OF THE TILtING BOX
Warning: do not install the box on a replace already equipped with a window or door
with window.
If you want to put a strip of bricks in front of the -
replace, you need to install a lng box beforehand.
Without this device, the glass will break with
opening the door
The box is a free opon and must be
requested when ordering
Parts delivered with the lng box::
1. black proled sheet
2. lng plate
3. Box
4. Nuts ans screws

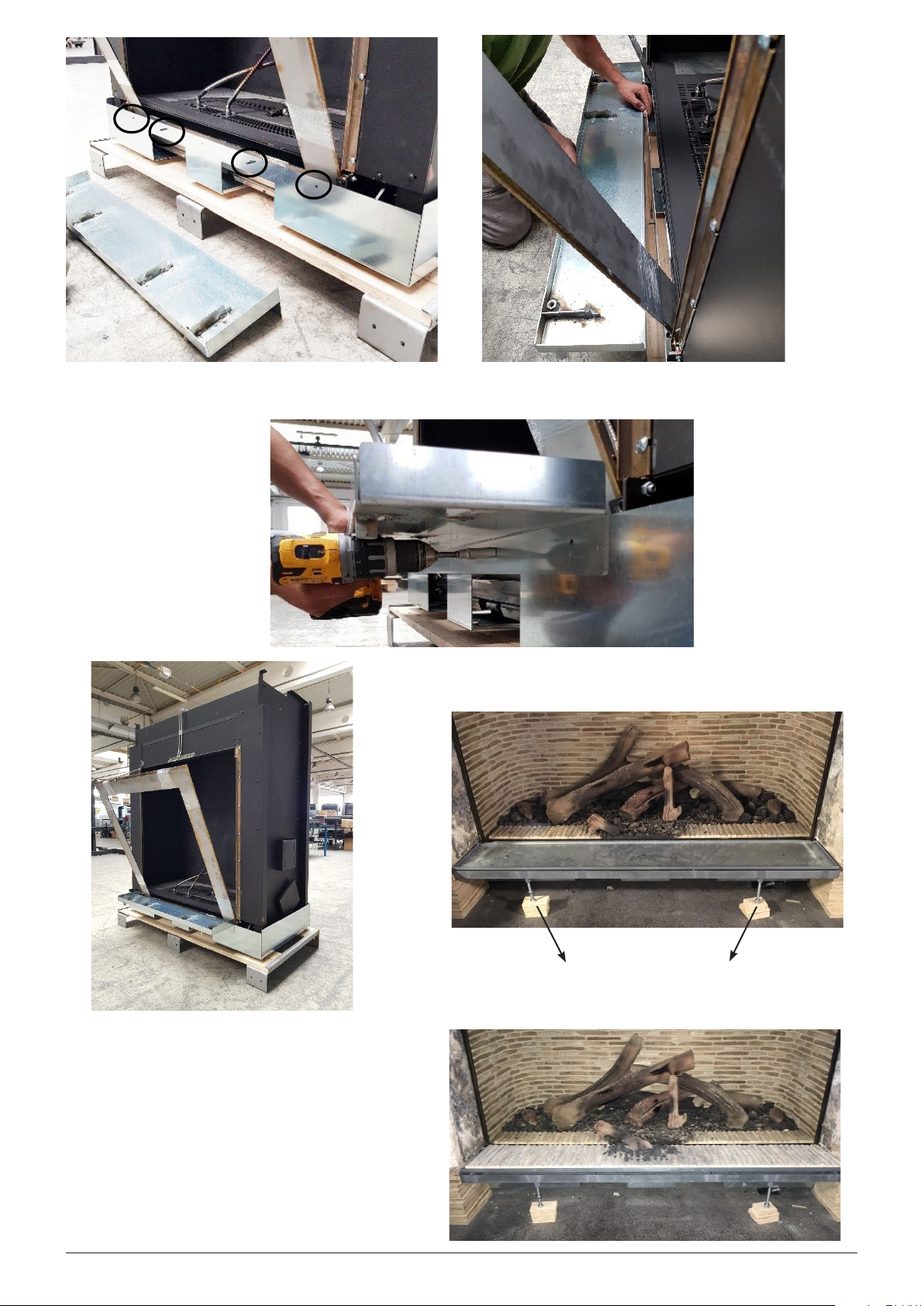

Deposit the proled sheet in the replace according to the photo

Instrucons for installaon - True Vision Rusca English 15
Use the bolts and nuts (supplied with the replace) to aach the box to the replace.
Use the long bolts (supplied with the replace) to
level the box with the oor

Instrucons for installaon - True Vision Rusca English 16

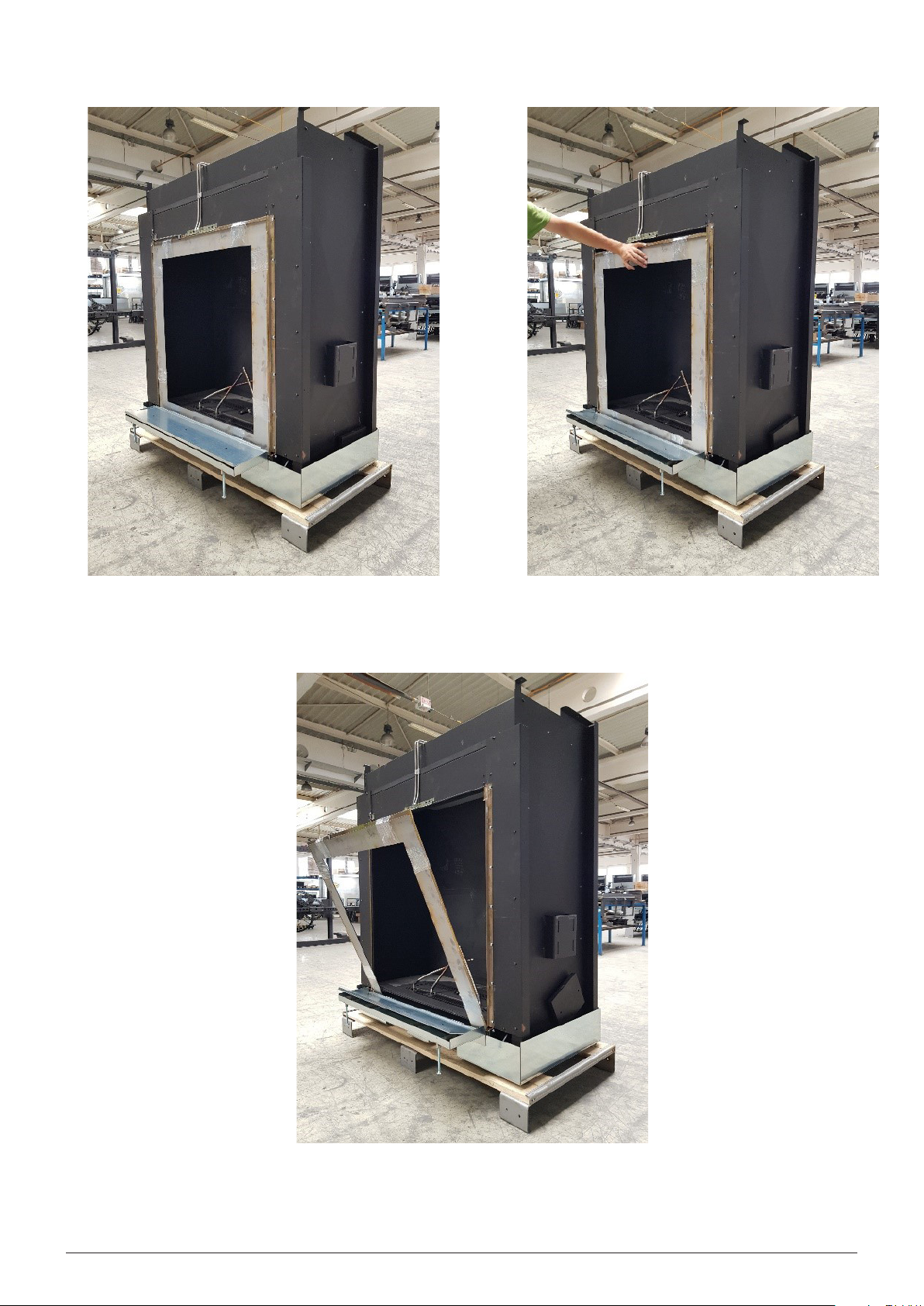

Important: check the operaon of the lng box
Closed door: horizontal lng plate At the opening of the door, the lng pla-
te is inclined
Door fully open: the lng plate must be
slanted as in the picture

12
3
4
5
6
8
7
11
9
10
SET H3 : XL, L, M
Instrucons for installaon - True Vision Rusca English 17
Angel’s hair
(unex glow) glass wool (black)
+ 5 packets Imitation coal
10. WOODSET TRUE VISION RUSTICA
WARNING:
Do not put anything on the ignition stem and in the
rectangular area. In case the fire is not burning in first
ignition after arranging of logs set, please open the
window on the device and check if the electrode is clear and
also the rectangular area around electrode is clear too.
Subsequently after check repeat the ignition with opened window. When the fire
burns evenly over the entire length of burners included secondary burners, the
door can be closed. Repeat ignition one more time with closed window.
log with hole log with hole

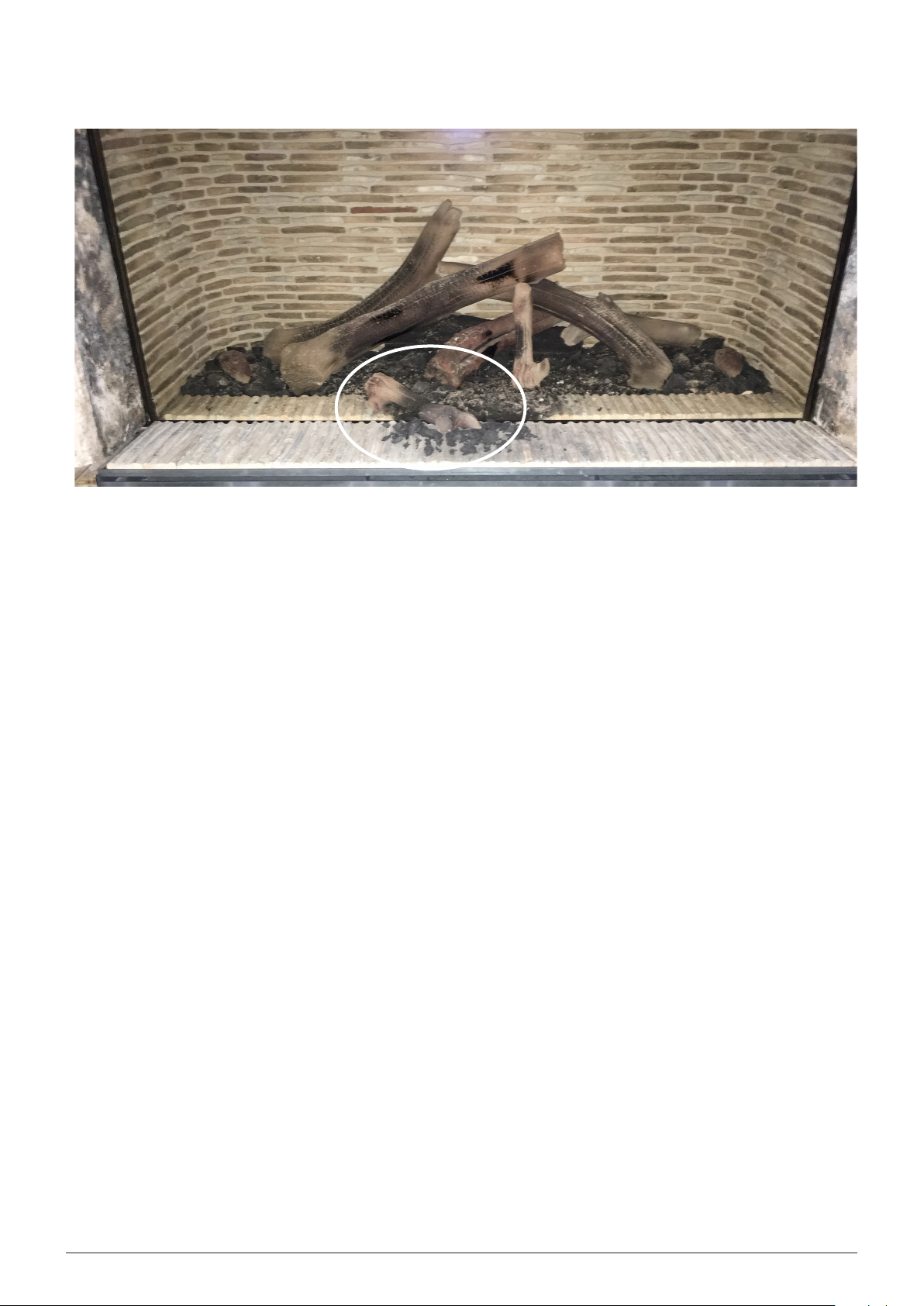

Lay a part of the imitation coal according to the photo. block 1
The “angel’s hair ” must be disentangled in length and deposit along the
length of the burner according to the picture above.
log with hole
log = same as 3, without hole

22
33
44
55
66
7788
Instrucons for installaon - True Vision Rusca English 18
Slide block 2 (with hole) on the exible burner Slide block 3 (with hole) on the exible burner
Slide block 4 (with hole) on the exible burner Lay imioaon coal as in the picture
Put the glass wool on the “angel’s hair” block 5
block 6 block 7 and 8

99
1010
Instrucons for installaon - True Vision Rusca English 19
block 9 (behind the window) and block 10 in front of the window
(outside the fireplace)

2
1
3
1
4
56
gat/trou/hole
gat/trou/hole
3 pakjes imitaekolen / 3 sachets immitaon charbon /
3 bags of charcoal immitaon / 3 Beutel Holzkohleimitaon
SET H1 : SMALL
Instrucons for installaon - True Vision Rusca English 20
