V E R Y I M P O R T A N T
INSTALLATION
INSTRUCTIONS FOR THE
M - D E S I G N
GAS FIREPLACES
THE SUPPLIER TAKES NO
RESPONSBILITY FOR ANY
POSSIBLE DAMAGE, POOR WORKING
APPLIANCES AND ACCIDENT AS A
RESULT OF INCORRECT INSTALLATION

INSTRUCTION FOR INSTALLATION AND USE - LUNA 700-1000-1150-1300-1600-1900H GOLD - GAS
3
SUMMARY
1. GENERAL REMARKS.............................................................. 5
2. CONNECTION .......................................................................... 5
3. INSTALLING THE FIREPLACE............................................. 6
3.1.1 Positioning the replace .................................................. 6
3.1.2 Gas connection .................................................................. 7
3.1.3 Electrical connection ........................................................ 7
4. INSTALLING THE CHIMNEY .............................................. 8-13
5. INSULATION AND FINISHING........................................... 13
6. CONVECTION CURRENT...................................................... 14-15-16
7. MOUNTING A 3 SIDED FRAME .......................................... 17

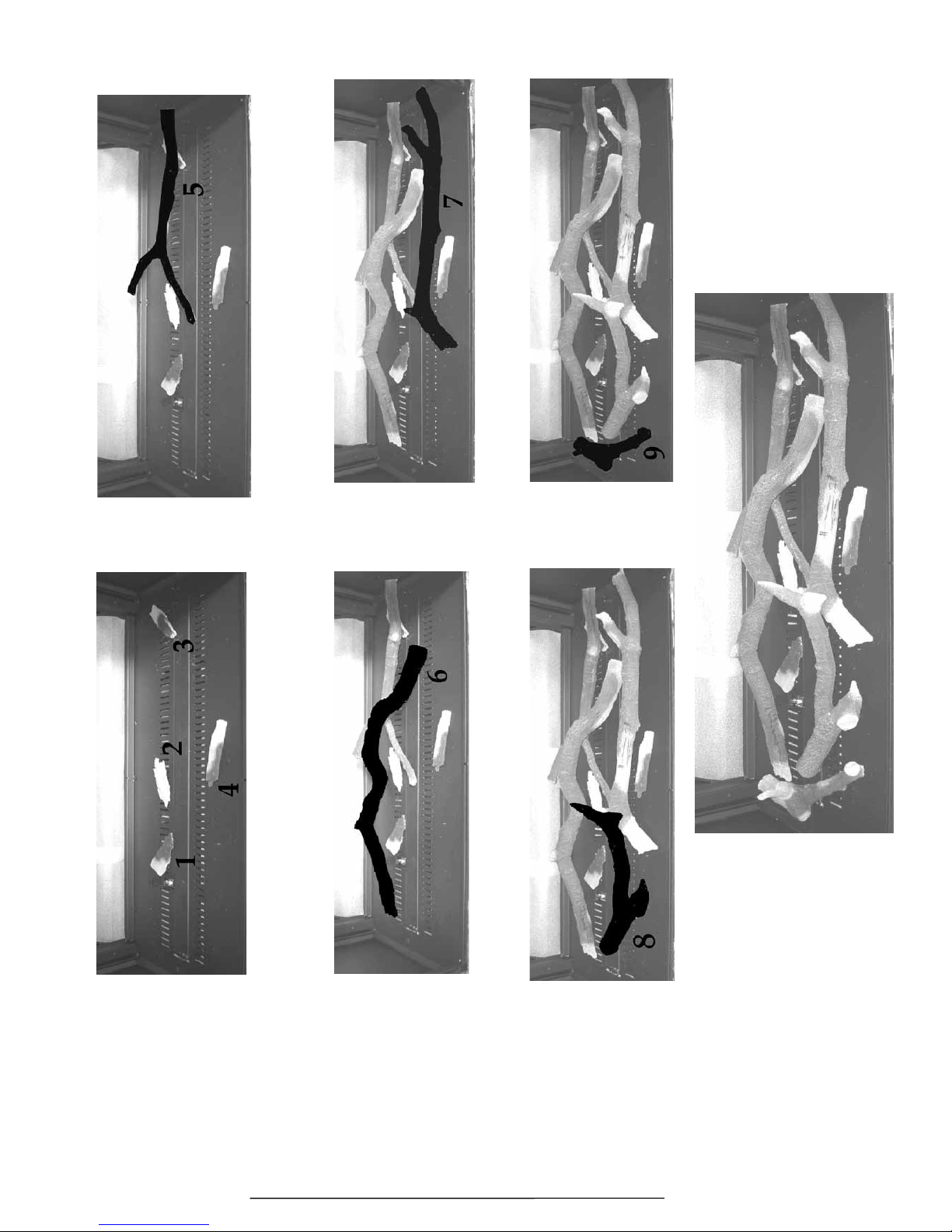

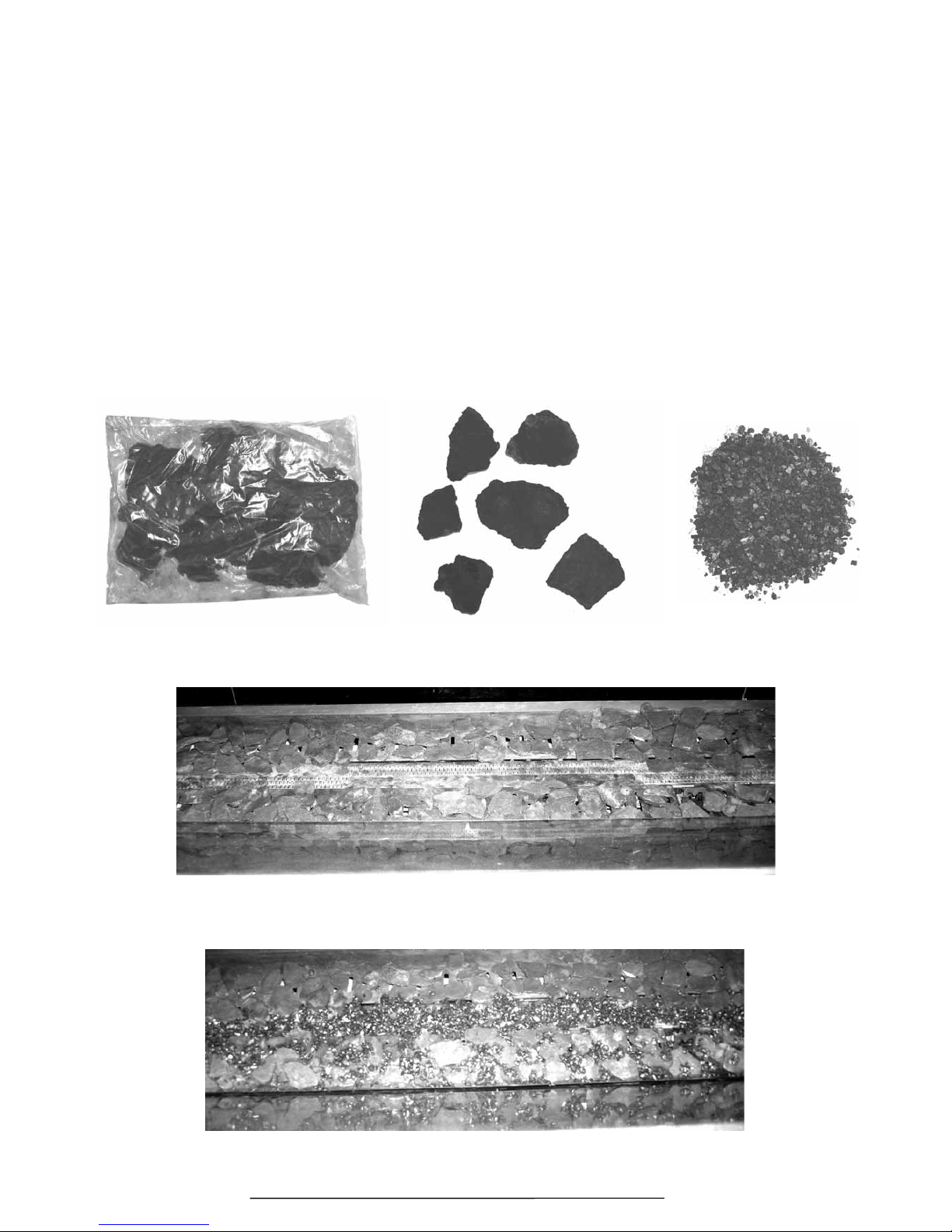

8. POSITIONING THE LOGS, DIAMOND, SAPPHIRE AND WHITE PEBBLES 18
1000H ............................................................................................ 19-20
1150H ............................................................................................ 21-22
1300H ............................................................................................ 23-24
1600H ............................................................................................ 25-26
9. FIRST-TIME USE....................................................................... 27
10. SAFETY, ADVICE AND MAINTENANCE ........................ 27
11. STARTPILOT............................................................................ 28
12. USIGN THE MANUAL CONTROL .................................... 28
13. SPECIFICATION SHEET ....................................................... 29-30-31-32
DRAWINGS.............................................................................. 33-38
EXAMPLE OF INSTALLATION ........................................... 39-40-41
14. SPARE PARTS .......................................................................... 42
15. GUARANTEE ........................................................................... 43
16. CE CERTIFICATION .............................................................. 44

INSTRUCTION FOR INSTALLATION AND USE - LUNA 700-1000-1150-1300-1600-1900H GOLD - GAS
4
OPEN
CLOSING
KEY
IF SOME DUST OR WASTE IS SEEN ON THE WINDOW
( INSIDE AND OUTSIDE ), CLEAN THIS BEFORE THE
FIRST USE OF THE FIREPLACE. CLEANING THE WIN-
DOW IS THE ONLY MAINTENANCE ACTION THAT CAN
BE DONE BY THE CONSUMER
OPEN AND CLOSE THE DOOR

INSTRUCTION FOR INSTALLATION AND USE - LUNA 700-1000-1150-1300-1600-1900H GOLD - GAS
5
1. GENERAL REMARKS
This is a moulding of the closed combustion system, designed for the atmosphere and comfort of
your living-room. It constitutes an ecient source of heat and gives the impression of a real chim-
ney re.
The gas with air-vent furnaces are based on the principle of natural extraction from the furnace,
which eliminates ue gas outside and brings in air (oxygen) from outside the house which is neces-
sary for combustion of the gas. It uses to this eect two concentric pipes. The internal pipe ensures
the elimination of burned gases and the external pipe brings in combustion air. The advantage of
this principle is that the equipment works independently of the atmosphere which predominates
in the house.
2. CONNECTION
This appliance must be connected by an approved installer in accordance with the most recent
regulations in force. On the basis of your order specications, this appliance is designed for natural
or propane gas.
Read the instructions before installing and using this appliance. Before installing the furnace, please
check the local regulations about this type of furnace (identication of the type of gas, etc.) and
check that the furnace is adapted to your means of installation.
CAUTION: The furnace must be connected to the type of gas mentioned on the appliance. Never
connect a propane burner to natural gas or vice versa!
It is imperative that the installer sees to the following:
• The appliance must be subject to a water tightness test of the gas and elimination of ue
gases.
• The concentric pipe, if already available, must be working correctly.
• The running of the control valve, lighting of the pilot light, the main burner and the
thermocouple must all be checked.
This appliance has been programmed and factory sealed. The sealed parts cannot be modied. The
appliance may therefore also be installed in watertight accommodation and accommodation equip-
ped with mechanical ventilation. It constitutes ambient heating even in accommodation equipped
with a closed ventilation system.

INSTRUCTION FOR INSTALLATION AND USE - LUNA 700-1000-1150-1300-1600-1900H GOLD - GAS
6
3. INSTALLING THE FIREPLACE
After having checked the appliance, you ready to install your appliance.
This is done as follows
3.1.1 POSITIONING THE FIREPLACE

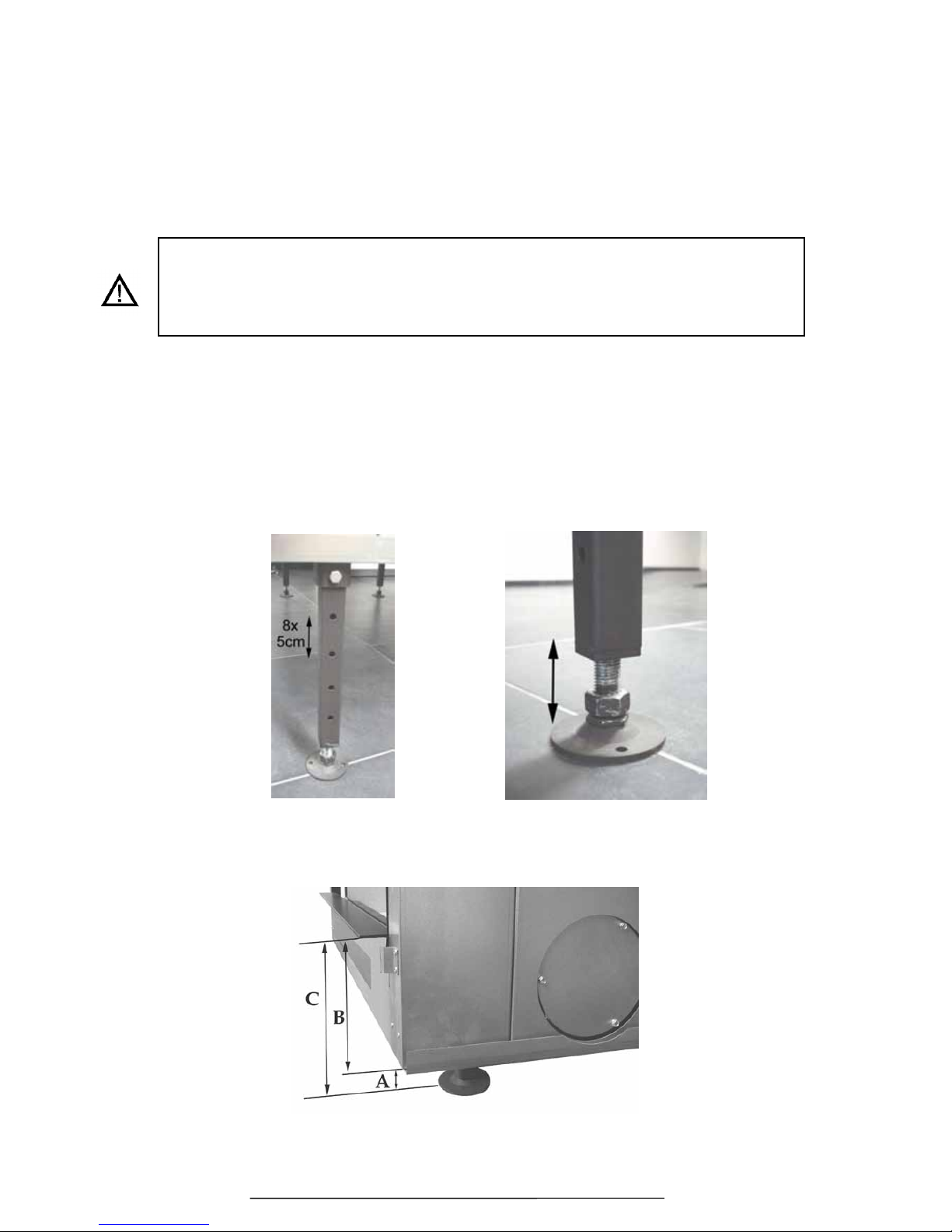

Place the replace on a stable surface using the adjustable feet. Adjust the height of the replace
by turning the bolt ( pic 1 )
pic. 1 pic. 2
A min = 3,5 cm
B = 14,5 cm
C min = 18 cm
The stove may not be placed direct ont the oor to allow natural convection.
The appertures for the air supply ( IN ) is situated underneath the appliances.
Regulating the height of the appliance :
This can be made in two ways.
A regulation by 8 times 5 cm ( pic. 1 ) and a ne regulation by screw ( pic.2 ).
The minimal height as from ground to the 4th side frame is 3,5 cm ( A min ).
The minimal height “C min” will be 18 cm, measured as from the ground to 4th side frame ( pic.3 ).
The maximal height as from the ground to the 4th side frame is 45 cm.
pic. 3

INSTRUCTION FOR INSTALLATION AND USE - LUNA 700-1000-1150-1300-1600-1900H GOLD - GAS
7
4. INSTALLING THE CHIMNEY
Install the concentric ue duct as indicated by ONTOP - METALOTERM. The only authorised pipes
are ONTOP Metaloterm™.
ONTOP-METALOTERM tested our replace with their conduct and we only garantee a good
working of the replace with those.
Between the external wall of the pipe and the wall or the ceiling, you should anticipate for an
interstice of at least 50mm and protection that is suitable against temperatures of around 130°C.
The passage of the front panel cowl in the external wall must be lled in using silicone mastic.
3.1.3 ELECTRICAL CONNECTION
These appliances are equiped with a radiographic remote control, making an earthened 220V
socket necessary. You should bear in mind that the appliance must be connectes from all
electrical supply for thurpose of service.
ITS OBLIGATORY TO CONNECT AN EARTH CURRENT.
3.1.2 GAS CONNECTION
The appliances are standard delivered with a 1/2” gas solded connection ( g. 1 ). It is always
located at the left-hand side of the appliance. Make sure nothing remains in the gas lines,
since this may easely lead to blockage. An approved gas valve should always be connected to
the appliance, wich must be accesible at all time .

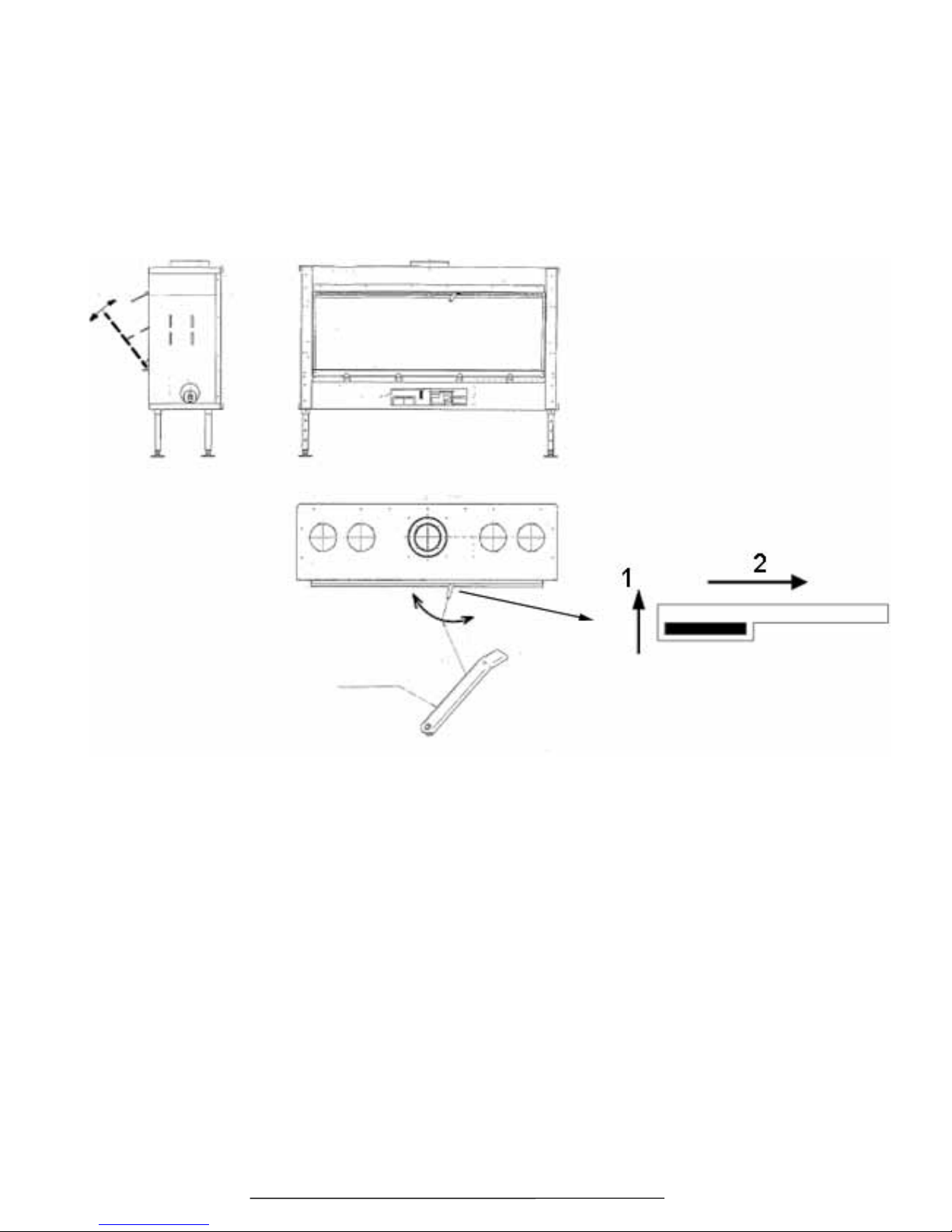

For this you can use a acces door ( pic. 1 next page ). This access door is also used to have
access at the potentiometer (manual controller) and electrical supply.
valve
pic.1
min. Ø18mm
(3/4”)
Ø12mm
g.1

INSTRUCTION FOR INSTALLATION AND USE - LUNA 700-1000-1150-1300-1600-1900H GOLD - GAS
8

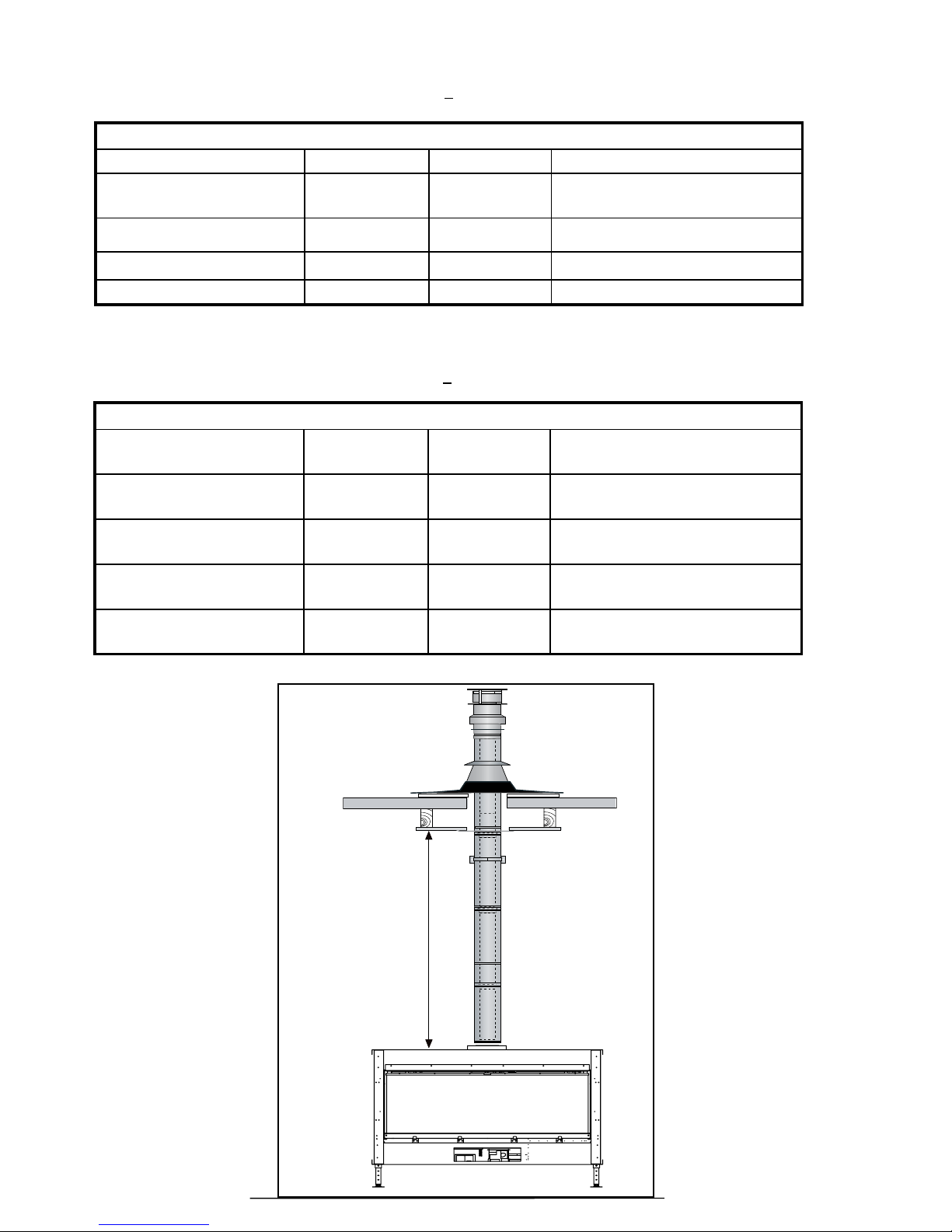

PIC. 1 ROOF EXIT ( C31 )
TAB. 2 This is recommanded with a roof exit < 3m
TAB. 1 This is recommanded with a roof exit > 3m
Ø 150/100
Appliance C (min) C (max) Restriction HR+ (as from 4m)
700 H / 1000 H 3 m 18m Ø 60
as from 2 m : Ø 75
1150 H 3 m 18m Ø 60
1300 H 3 m 18m Ø 60
1600 H / 1900 H 3 m 20m Ø 75
Ø 200/130
Appliance C (min) C (max) Restriction HR+ (as from 3m)
700 H / 1000 H 2 m 10m Ø 60
as from 2 m : Ø 75
1150 H 2 m 10m Ø 60
as from 2 m : Ø 75
1300 H 2 m 10m Ø 60
as from 2 m : Ø 75
1600 H / 1900 H 2 m 12m Ø 75
as from 2 m : Ø 75
PIC. 1
C

INSTRUCTION FOR INSTALLATION AND USE - LUNA 700-1000-1150-1300-1600-1900H GOLD - GAS
9
PIC. 2 ROOF EXIT VIA EXISTING CHIMNEY (C91)
TAB. 1
TAB. 2
It is obligatory to use the sanitation set USSAN with placing.
Ø 150 (min) / Ø 100
Appliance C (min) C (max) Restriction HR+ (as from 4m)
700 H / 1000 H 3 m 18m Ø 60
1150 H 3 m 18m Ø 60
1300 H 3 m 18m Ø 60
1600 H / 1900 H 3 m 20m Ø 75
Ø200(min) / Ø 130
Appliance C (min) C (max) Restriction HR+ (as from 3m)
700 H / 1000 H 2 m 10m Ø 60
1150 H 2 m 10m Ø 60
1300 H 2 m 10m Ø 60
1600 H / 1900 H 2 m 12m Ø 75
PIC. 2
This USSAN piece must be saeled at the roof.
*
*
or
or

INSTRUCTION FOR INSTALLATION AND USE - LUNA 700-1000-1150-1300-1600-1900H GOLD - GAS
10

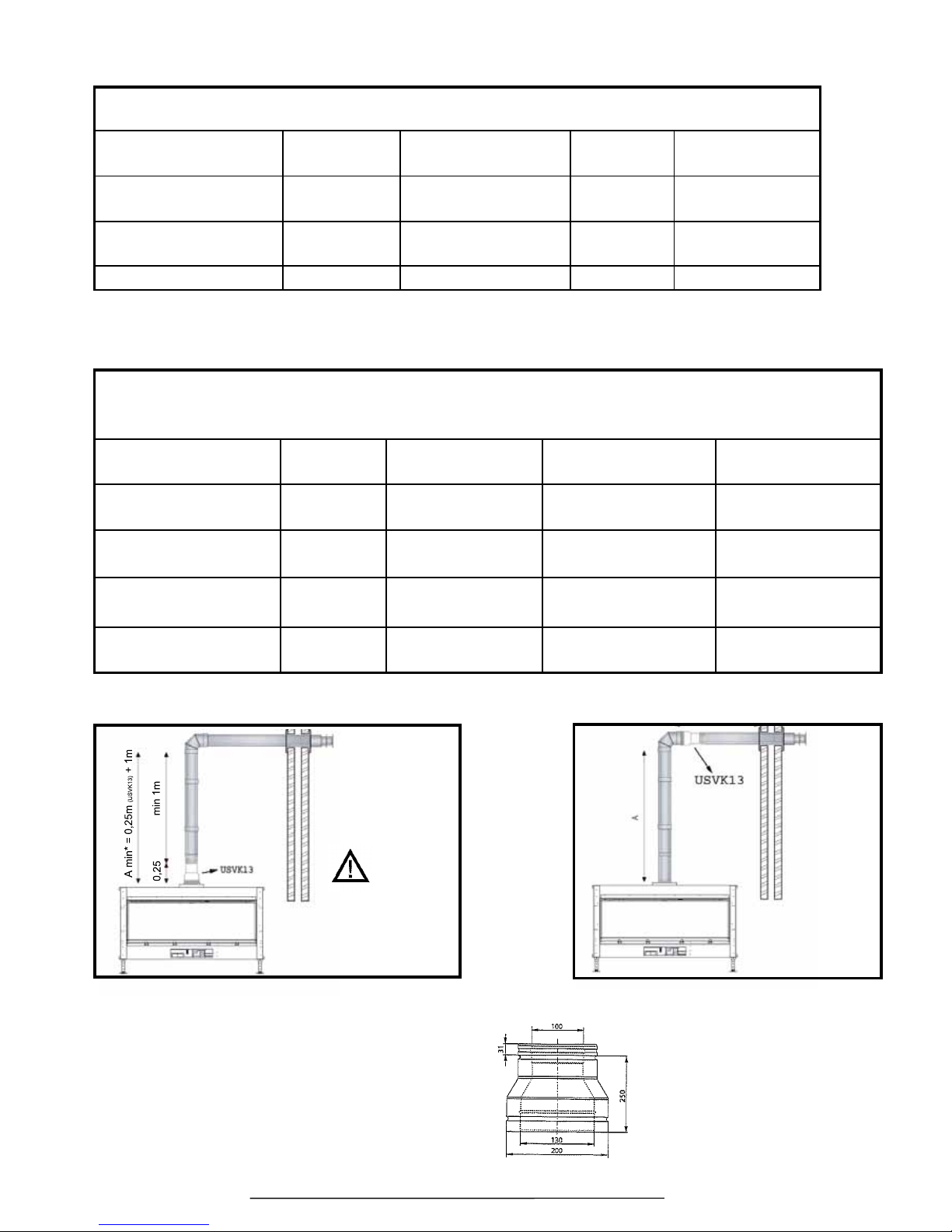

Pic. 3 WALL EXIT (C11)
PIC. 4 WALL EXIT (C11)
Ø 150/100
WITH REDUCTION USVK13 ON THE APPLIANCE (FIG. 3 )
Appliance A (min) B (min) B (max) Restriction HR+
700 H /1000 H 1,25*m wall exit =A+1m Ø 75
1150 H 1,25*m wall exit =A+0,5m Ø 75
1300 H 1,25*m wall exit = A Ø 75
(A) Ø 200/130 in combination with (B) Ø 150/100
WITH REDUCTION USVK13 AFTER 90° CURVE ON HORIZONTAL PART ( FIG. 4 )
Appliance A (min)
Ø 200/130
B (min)
Ø 150/100
B (max)
Ø 150/100
Restriction HR+
700 H / 1000 H 1,25m wall exit A+ ”USVK13” +6m Horiz. < 2m : Ø 75
1150 H 1,25m wall exit A+ ”USVK13” +5m Horiz. < 2m : Ø 75
1300 H 1,25m wall exit A+ ”USVK13” +3,5m Horiz. < 1m : Ø 75
1600 H 1,25m wall exit A+ ”USVK13” +1m ----------
USVK13
REDUCTION 200/130 →150/100
0,25 min 1m
A min* = 0,25m
(USVK13)
+ 1m
PIC. 3
Not suitable for
1600 DH/CL/CR/DC
and 1900H
PIC. 4
Not suitable for
1900H

INSTRUCTION FOR INSTALLATION AND USE - LUNA 700-1000-1150-1300-1600-1900H GOLD - GAS
11
Ø 200/130
Appliance A (min) B (min) Restriction HR+ B (max)
700 / 1000 H 1 m wall exit Ø 70 A+8m
1150 H 1 m wall exit Ø 75 A+7m
1300 H 1 m wall exit Ø 75 A+6m
1600 H 1 m wall exit Ø 90 A+4m
1900 H 1m wall exit Ø 90 A + 2m

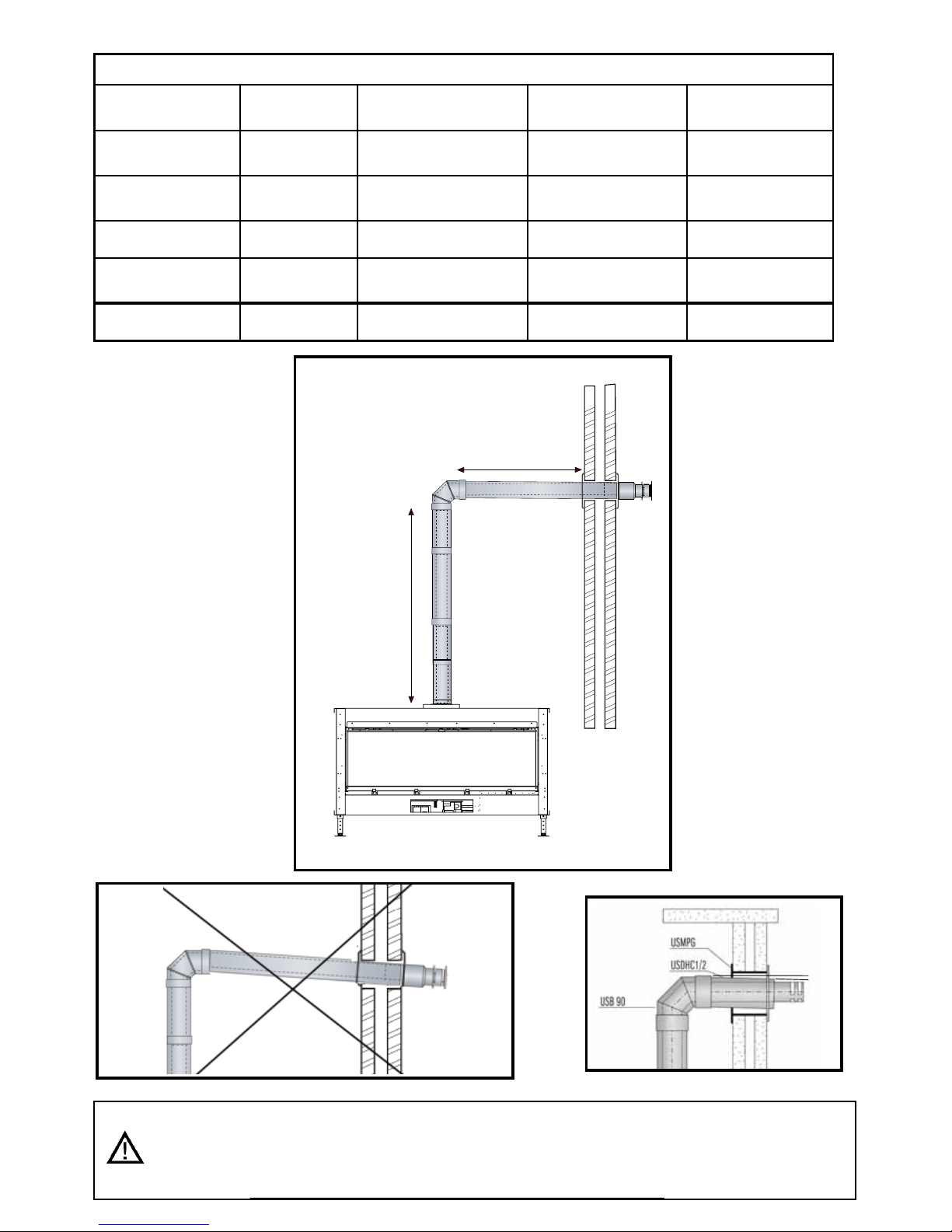

IMPORTANT : BE CAREFULL EVERY HORIZONTAL PART DOES NOT HAVE AN
NEGATIVE INCLINATION (pic.5) IN DIRECTION OF OUTLET. IT IS EVEN BETTER, WHEN
POSSIBLE, TO HAVE A LITTLE INCLINATION OF 2 OR 3 DEGREES ASCENDING.
ONLY THE OUTLET MUST BE INSTALLED LIKE PIC. 6 ( TO AVOID RAIN DROPS IN TUBE )
A
B
Pic.5
3°
Pic. 6

INSTRUCTION FOR INSTALLATION AND USE - LUNA 700-1000-1150-1300-1600-1900H GOLD - GAS
12

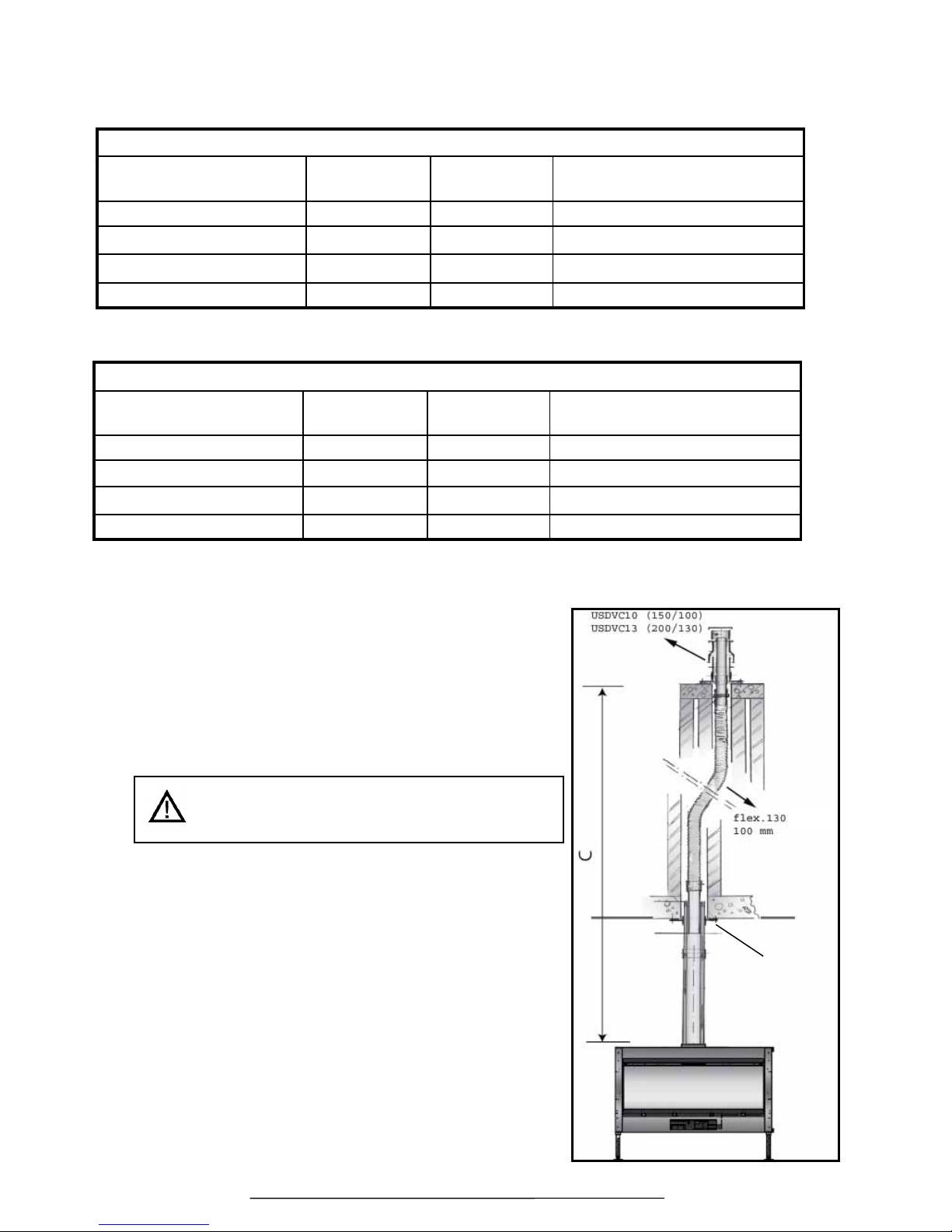

Pic. 5 ROOF EXIT with 90° bends
CAUTION : if the vertical lenght is over 3 meter longer than the horizontal lenght, you will
need to place a reduction ring of Ø 60.
Appliance Ø 150/100 and Ø 200/130
700H / 1000H / 1150H
1300H / 1600H /1900H
for each 90° bend substract 1 m horizontaly or add 1 m verticaly.
700H/ 1000H / 1150H
1300H / 1600H/1900H
for each 45° / 30° / 15° bend substract 0,5 m horizontaly or add 0,5 m
verticaly.
Pic. 5 ROOF EXIT with 90° bends
Ø 150/100
WITH REDUCTION USVK13 ON APPLIANCE
Aplliance A (min) B (max) C (min) (A+B+C )max
700/1000 H 1,25* m A+C+0,5m B-A-0,5m 18m
1150 H 1,25* m A+C+0,5 B-A-0,5 17m
1300 H 1,25* m A+C B-A 16m
1600 H 1,25* m A+C-0,5m B-A+0,5m 16m
1900 H 1,25*m A+C-1m B-A+1m 14m
Ø 200/130
without reduction
Appliance A (min) B (max) C (min) (A+B+C )max
700H / 1000 H 1 m (A+C) + 8m B-A-9m 20m
1150 H 1 m (A+C) + 7m B-A-8m 19m
1300 H 1 m (A+C) + 6m B-A-7m 18m
1600 H 1 m (A+C) + 3m B-A-4m 18m
1900 H 1 m (A+C)+1m B-A-2m 16m
WITH REDUCTION USVK13
oN APPLIANCE

INSTRUCTION FOR INSTALLATION AND USE - LUNA 700-1000-1150-1300-1600-1900H GOLD - GAS
13
See page 37,38 and 39 for further
information about installation
pic. 1 pic. 2 pic. 3
REFERENTIAL DISTANCES IN REGARDS TO FINISHING THE MANTLEPIECE
A very essential point when seing up the Luna Gold is that the distance has to be respected inbet-
ween replace and the nishing material for the mantlepiece such as marble, gipsum,...
For this, a small bended metal sheet that is provided ont the replace ( pic.1 ) , is to be used as the
minimal reference for the distance. The nishing can only ga oas far as this meteal sheet ( pic.2 ).
Don’t remove this ( pic.3 ) ! This allows you to take out the 4th side frame and to let the airow in
the mantelpiece for natural convection.
5. INSULATION AND FINISHING
Once installation is complete, the appliance can be ed. Before doing so, check the tightness of the
gas pipe one more time. Light the appliance and check that it is working: check the tightness of the
gas pipe and the smoke pipe. Once you have checked everything, you can perform the nal insula-
ting and nishing operations.
The built-in part of the furnace tends to be very warm. Please check that the furnace is not too nar-
rowly ed and that there is adequate space for the elimination of hot air. For insulation of the
furnace, we advise you to use M Design insulating plates. You are advised against using any other
insulation product. Inammable materials as well may not be used for the nishing.
min. 5 mm
Please , follow this instruction. The appliance can overheat if you not apply those instructions.
Errorcode F02 will appear !
The masonry must be raised around the furnace. Because of the expansion of the furnace
during combustion, an interstice of at least 5 mm must be provided on frontside and 4cm on
each side of the appliance. The masonry must not lean against the furnace.
THE APPLIANCE MUST BE SET FREE .
Please pay aention to leave approx. 2 mm inbetween the nishing frame and maconry
( see p.17 , mounting a 3-sided frame, and see page 37,38 and 39 for further information about
installation

INSTRUCTION FOR INSTALLATION AND USE - LUNA 700-1000-1150-1300-1600-1900H GOLD - GAS
14
The enclosure of the furnace must be provided with ventilation grills or openings allowing for the
elimination of heat by convection. It is possible to have a convection kit ed with the furnace. This
system directs the heat inside the room by means of exible tubes ( dia. 150 mm).
It is obligatory to open at least 2 hot air vents ( for the LUNA 1600 you must open 4) at the top of the
appliance.
For the purposes of the installation of these ducts it is best to go vertically upwards rst for at least 1m
and then to change direction, making a rather wide bend and avoid using a ue terminal grid with
a small clearance because the speed loss that this causes reduces the eciency of the hot air vents.
Place all the ings that you use at the same lengths and angles if possible, otherwise it is possible
that some grids give o more heat than others and, seeing that a hot air pipe functions in a manner
similar to a chimney, the one that is hot rst has the most draught and therefore becomes hot even
more quickly.
Note: a circulation of hot air requires that no under-pressure be created in the room. A grid that is
near the oor (pic 2) sees to it that cold air can be drawn in.
M-design has developed its ideal hot air grids which have many advantages (pic. 1 & 2) and for the
elimination of hot air and the entry of warm air we advise you to use those Design grills made by
M-Design.
The appertures for the air supply “IN” (pic.2) is situated underneath the appliances. The stove may
not be placed direct ont the oor to allow natural convection.
To simplify the mounting of the grids you can use the corner prole (a) wich is furnished with the
grid. This prole is can be mounted on the side of the grid (two lile wholes en screws are provided).
.
6. CONVECTION CURRENT
Please , follow this instruction. The appliance can overheat if you not apply those instructi-
ons. Errorcode F02 will appear !
OUT
pic. 1
(a)
INLET
pic. 2

INSTRUCTION FOR INSTALLATION AND USE - LUNA 700-1000-1150-1300-1600-1900H GOLD - GAS
15

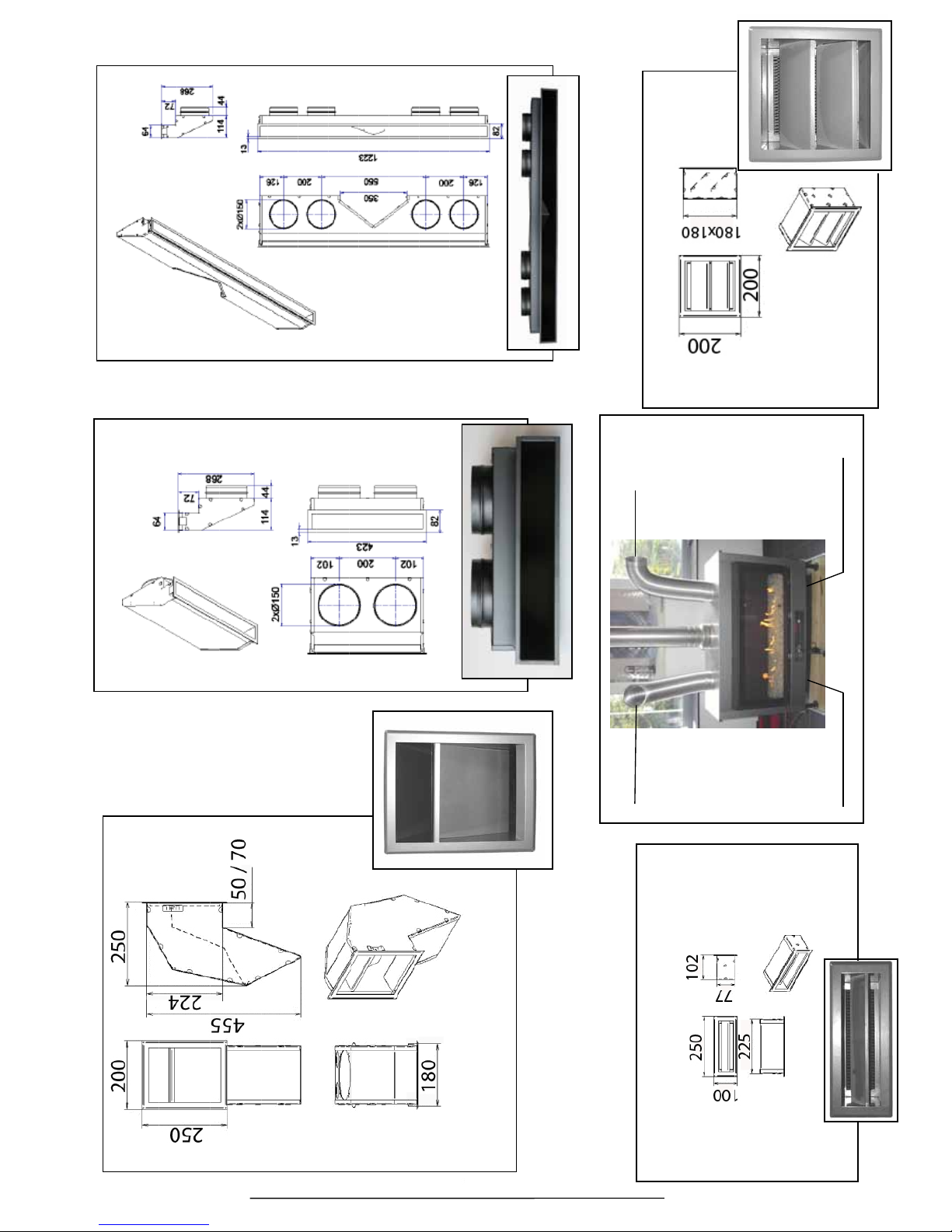

Design Grid ( outlet ) with 2 connections
OUTLET CONVECTION
INLET CONVECTION
OUTLET CONVECTION
Inlet Grid convection air Inlet Grid convection air
Design Grid ( outlet ) with 2 connections
2 dm² 4 dm²
Design Grid ( outlet ) with 4 connections
OR OR
INLET CONVECTION
Pic.3

INSTRUCTION FOR INSTALLATION AND USE - LUNA 700-1000-1150-1300-1600-1900H GOLD - GAS
16
YOU HAVE TO CONNECT AT LEAST TWO APPERTURES SITUATED AT THE TOP OF THE
APPLIANCE.
FOR THE LUNA 1600, YOU MUST CONNECT 4 APPERTURES.
THE STOVE MAY NOT BE PLACED DIRECT ON THE STOVE MAY NOT BE PLACED DIRECT ON THE
FLOOR, WTHOUT THE FEETS. THIS TO ALLOW NATURAL CONVECTION. THE APPERTURES FOR
THE AIR SUPPLY ARE SITUATED UNDERNEATH THE APLLIANCE.

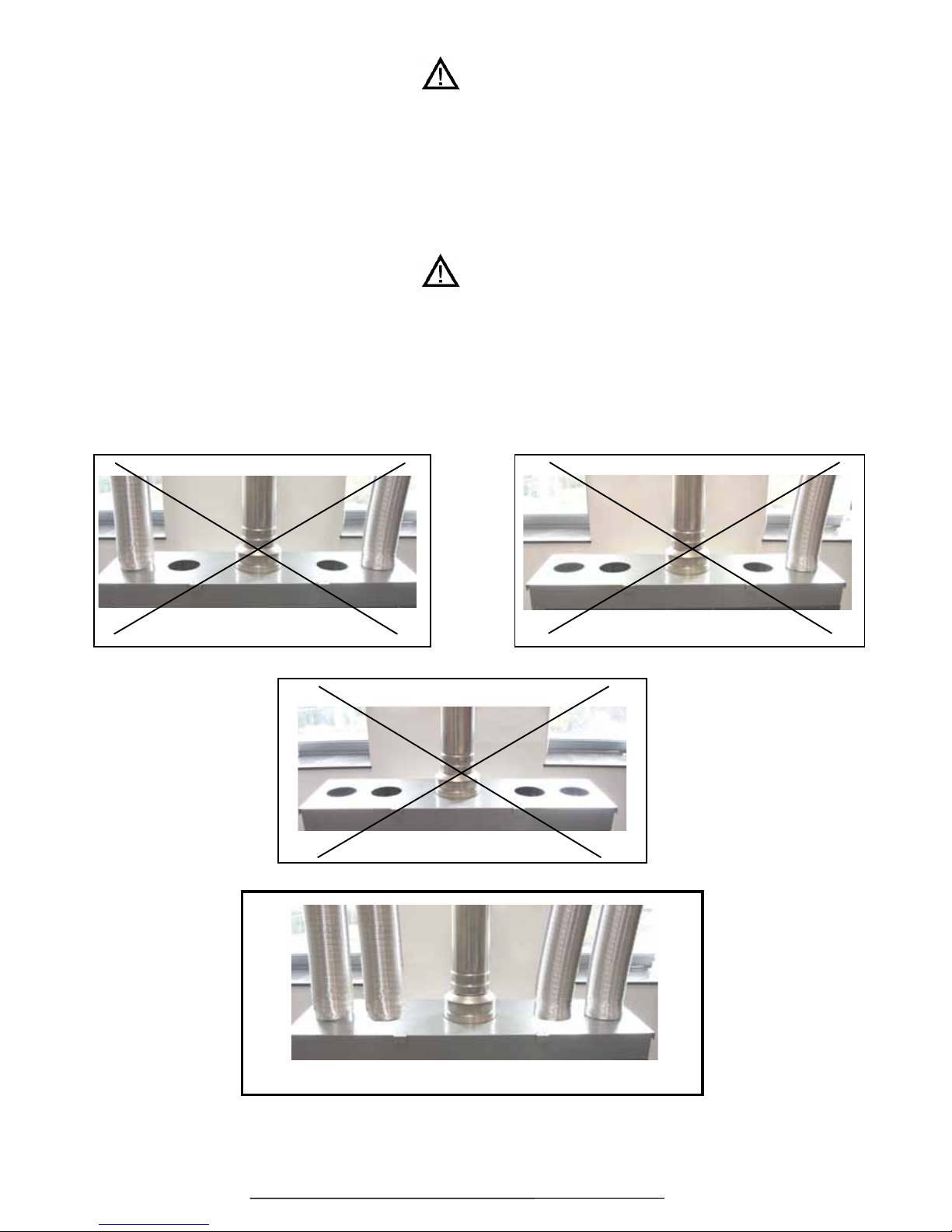

EVERY OPENING YOU MAKE MUST BE CONNECTED WITH A FLEXIBLE TUBE dia.150MM (see pic.
below). THIS WILL AVOID THE HEATING OF THE ELECTRONIC PART OF THEAPPLIANCE.
IN OTHER CASE YOU WILL HAVE ERRORCODE F02.
GOOD

INSTRUCTION FOR INSTALLATION AND USE - LUNA 700-1000-1150-1300-1600-1900H GOLD - GAS
17
7. MOUNTING A 3-SIDED FRAME
PLEASE PAY ATTENTION TO LEAVE APPROX 2 MM INBETWEEN THE FRAME AND
THE FINISHING MATERIAL ( HEAT = EXPANSION)
pic 1
3-sided frame
2,25cm
4 sided frame
(lower piece)
sideframe
upper frame
pic 3 pic 4 pic 5 pic 6
Fireplace is delivered standard with 4sided frame 3,5cm, an upper and 2
sideframes ( see pic. 2 )
Before mounting the 3 sided frame, remove 4 sided frame ( lower piece ) by lift it carefully up. Pull out the
upper frame and in second way the left and right sideframes. Take the left and right side of the 3 sided frame
( 3,5 - 7 or 10 cm ) and slide them in the notches ( see pic 4 ). When those are placed in a good way, you can
adjust the position to the left en to the right and from the the front to the rear. At this way you can make the
frame good surrounding. Mount the upper frame ( pic 5 ) and at last the 4 sided frame ( pic 6 )
pic 2

INSTRUCTION FOR INSTALLATION AND USE - LUNA 700-1000-1150-1300-1600-1900H GOLD - GAS
18
Put the big imitation coal pieces around the burner.
Put the lile imitation coal peices on the burner and here and there bet-
ween the big coal pieces.
8. PUTTING IN PLACE THE LOGS, DIAMOND, SAPPHIRE AND WHITE STONES
• Please check that the pilot light is switched o and that the furnace has cooled down.
• Move the window to the front by pulling it. The window tips open at 45°.
• Arrange the materials supplied. In accordance with your order you will have either a set of
logs, diamond, sapphire or white pebbles. There is an adequate supply of materials . Our appliance
is approved with these materials, so please do not use other products. Other decorative products
are prohibited in our appliances. Please do not change the delivered quantities.
ARRANGING THE SET OF LOGS
Caution: do not put anything on the pilot light. To arrange the logs respect the order as follows.

INSTRUCTION FOR INSTALLATION AND USE - LUNA 700-1000-1150-1300-1600-1900H GOLD - GAS
19
12
3456
789
5
6
7
8
912
4
3
LUNA 1000 H GAS

INSTRUCTION FOR INSTALLATION AND USE - LUNA 700-1000-1150-1300-1600-1900H GOLD - GAS
20
LUNA 1000 H GAS
