MTI UL1 UNIVERSAL DOOR LOCK PRODUCT MANUAL

MOUNTING TEMPLATE Print or Photocopy at 100% to assist in placing the Door/Drawer Lock.

DOOR/DRAWER LOCK PARTS

Door Drawer Lock Body

Strike Plate

Battery

x4 x2 x2

Screw Kit

Keys not included. See Page 6.

MTI UL1 UNIVERSAL DOOR LOCK PRODUCT MANUAL

BATTERY INSTALLATION

Battery Caution

Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions.

Remove batteries of uninstalled locks before storing.

MTI UL1 UNIVERSAL DOOR LOCK PRODUCT MANUAL

1 2

3a 3b

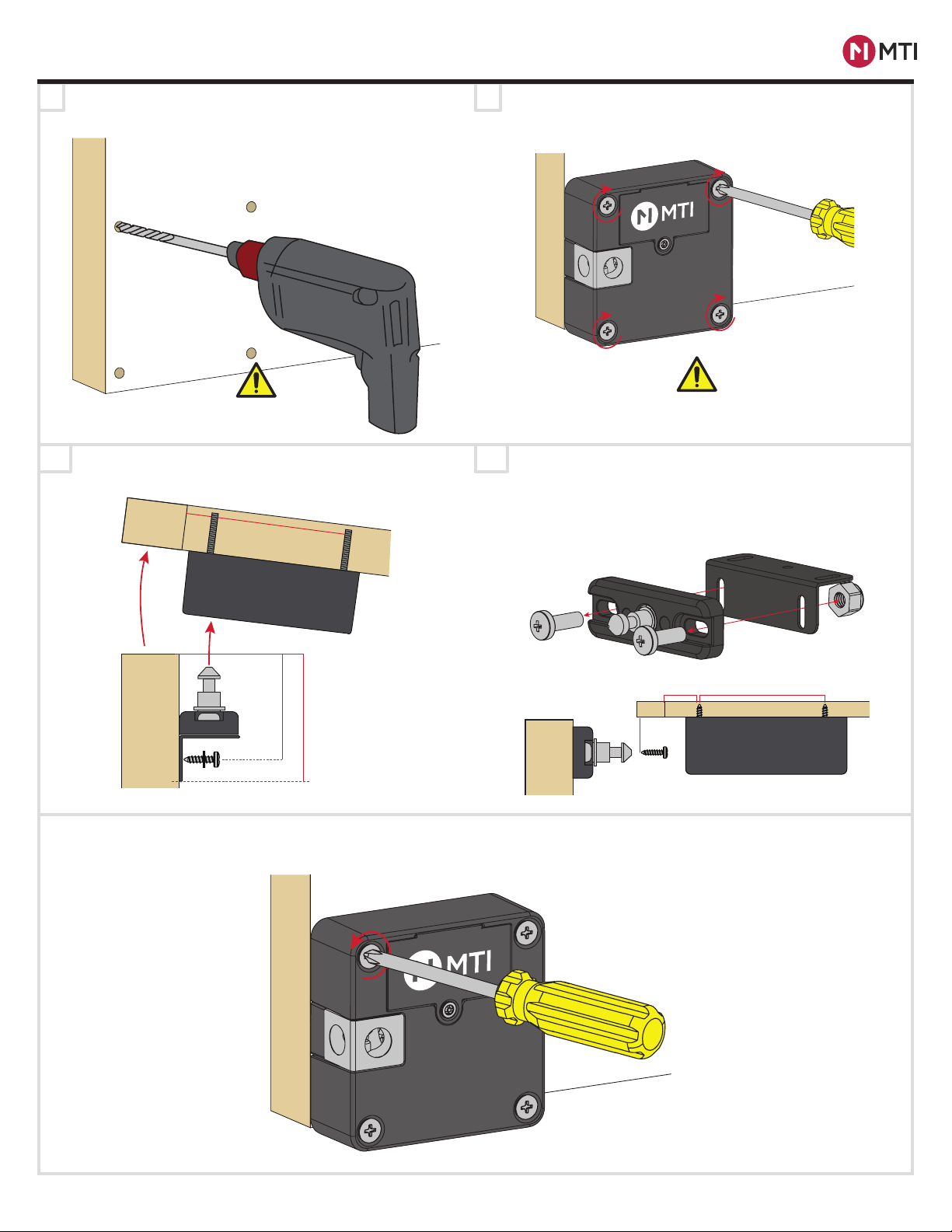

DOOR/DRAWER INSTALLATION

Lock

48mm

Latch

42mm

50mm

48mm13.8

Space devices at least 4” apart. Only use hand tools to install lock. Use of

power tools can damage the ﬁxture.

Note: If the lock emits a slow, low beep tone, then the motor is stuck due to overtightening the mounting screws. Slowly un-

screw the screw to the left of the battery door (when the MTI logo is right-side-up) one-quarter turn at a time until the motor

can spin, opening the lock.

Drill pilot holes for the lock mounting screws. See page 1

for a mounting template to assist in placement.

See diagram below for placement on a swinging cabinet

door:

For sliding doors, the 90° bracket can be removed from

the latch (using the #2 Phillips Screwdriver and the

9/32” socket) and hard mounted to a ﬁxture with wood

screws. See diagram below for placement on a sliding

cabinet door:

Line up the holes on the lock with the pilot holes in the

ﬁxture and secure into place with a Phillips-head screw-

driver.

MTI UL1 UNIVERSAL DOOR LOCK PRODUCT MANUAL

321

KEY REGISTRATION

KEY SETS (SOLD SEPARATELY)

USING THE DRAWER/DOOR LOCKS

Key Starter Set –

185-00459

AUTHORIZATION

Connect Card -

401-00008

User Key Bulk (x5) Pack -

185-00460

Swipe Authorization card again to

close enrollment mode. Enrollment

mode times out after 3 minutes of no

activity. Lock will emit 4 fast beeps

when enrollment has timed out.

Swipe each User card to lock. A

double beep tone indicates a card is

now enrolled. Repeat for each user

card, up to 250 user cards. If a card

fails to be recognized, the lock will

emit 4 fast beeps.

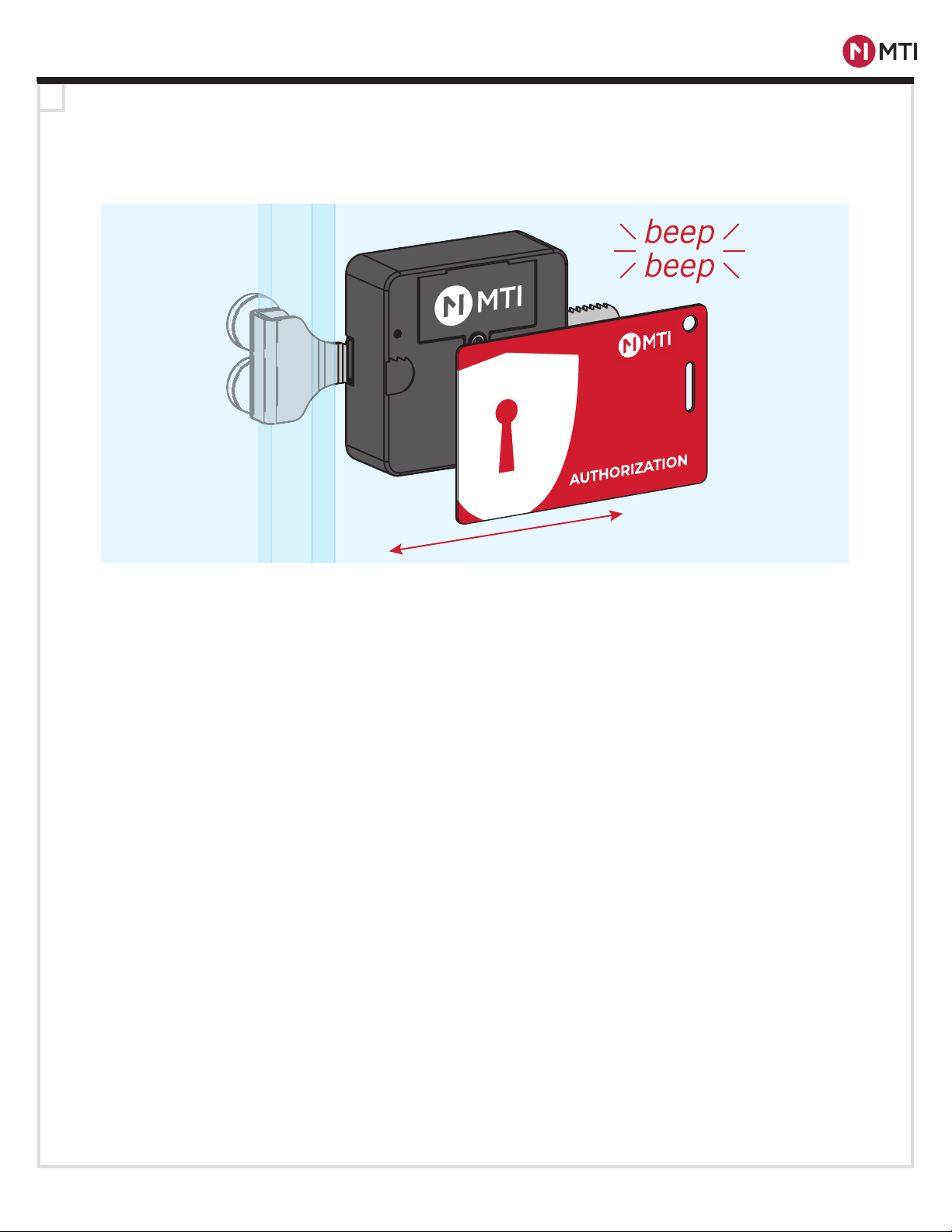

Swipe Authorization card to enter

enrollment mode. You will hear

a double beep tone, indicating

enrollment mode has been entered.

After programming the locks (see page 6 for initial setup), place the

User Card within 30 mm of where the lock is placed. One you hear a

click, open the door or drawer. Close door or drawer to relock.

Self-closing hinges may prevent proper

function of the door/drawer lock.

Place Sticker on door front where the lock is situated so

there is a marked spot to tap your user card.

MTI UL1 UNIVERSAL DOOR LOCK PRODUCT MANUAL

DELETING KEYS

Hold Authorization card to lock for 10 seconds. You will hear an initial double beep upon initial hold, and then a

conﬁrmation double beep conﬁrming successful deletion. Lock will automatically enter key enrollment mode and at least

one user key is must be added or the lock will delete the Auth card and return to default mode

MTI UL1 UNIVERSAL DOOR LOCK PRODUCT MANUAL

FCC Statement

FCC ID: 2AA2X-1500011824

Model: Door Lock

FCC STATEMENT

This device complies with Part 15 of the FCC Rules.

Caution: If any changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority to operate the

equipment.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference

received, including interference that may cause undesired operation.

The grantee is not responsible for any changes or modiﬁcations not expressly approved by the party responsible for compliance. Such modiﬁcations could

void the user’s authority to operate the equipment.

The RF Exposure Compliance distance is 20 millimeters.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

ISED Certiﬁcation Number: 24439-1500011824

Model: Door Lock

ISED Statement

This device complies with Innovation, Science and Economic Development Canada licence-exempt RSS standard(s). Operation is subject to the following

two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause

undesired operation of the device.

CAN ICES-3(B)/NMB-3(B)

Le présent appareil est conforme aux CNR Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence.

L’exploitation est autorisée aux deux conditions suivantes:

(1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage

est susceptible de compromettre le fomctionnement du dispositif.

CAN ICES-3(B)/NMB-3(B)

The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain

Canadian information on RF exposure and compliance.

Le dispositif rencontre l’exemption des limites courantes d’évaluation dans la section 2.5 de RSS 102 et la conformité à l’exposition de RSS-102 rf,

utilisateurs peut obtenir l’information canadienne sur l’exposition et la conformité de rf.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated

with a minimum distance of 20 millimeters between the radiator and your body.

Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu’aucune autre antenne ou émetteur. Cet équipement devrait être installé et

actionné avec une distance minimum de 20 millimètres entre le radiateur et votre corps.

Technical Data

Operating frequency 125KHz , 2.4GHz : 2405- 2480MHz

Operating temperature: 0º C to 40º C - 41°-95°F

Max power : 125KHz <42dBuA/m at 10m, 2.4GHz < 20 dBm

Correct Disposal of Product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent harm to the environment or

human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To dispose of used devices

contact MTI Global Services Contact Center at 503-648-6500 or contact local recycling company for proper recycling instructions for electronic devices.
