  9. MAC TOOLS MB133UC User manual

MAC TOOLS MB133UC User manual

MUC133UC, -BK, -BL 1 03/21/14
MB133UC, -BK, -BL
3 DRAWER UTILITY CART
ASSEMBLY INSTRUCTIONS

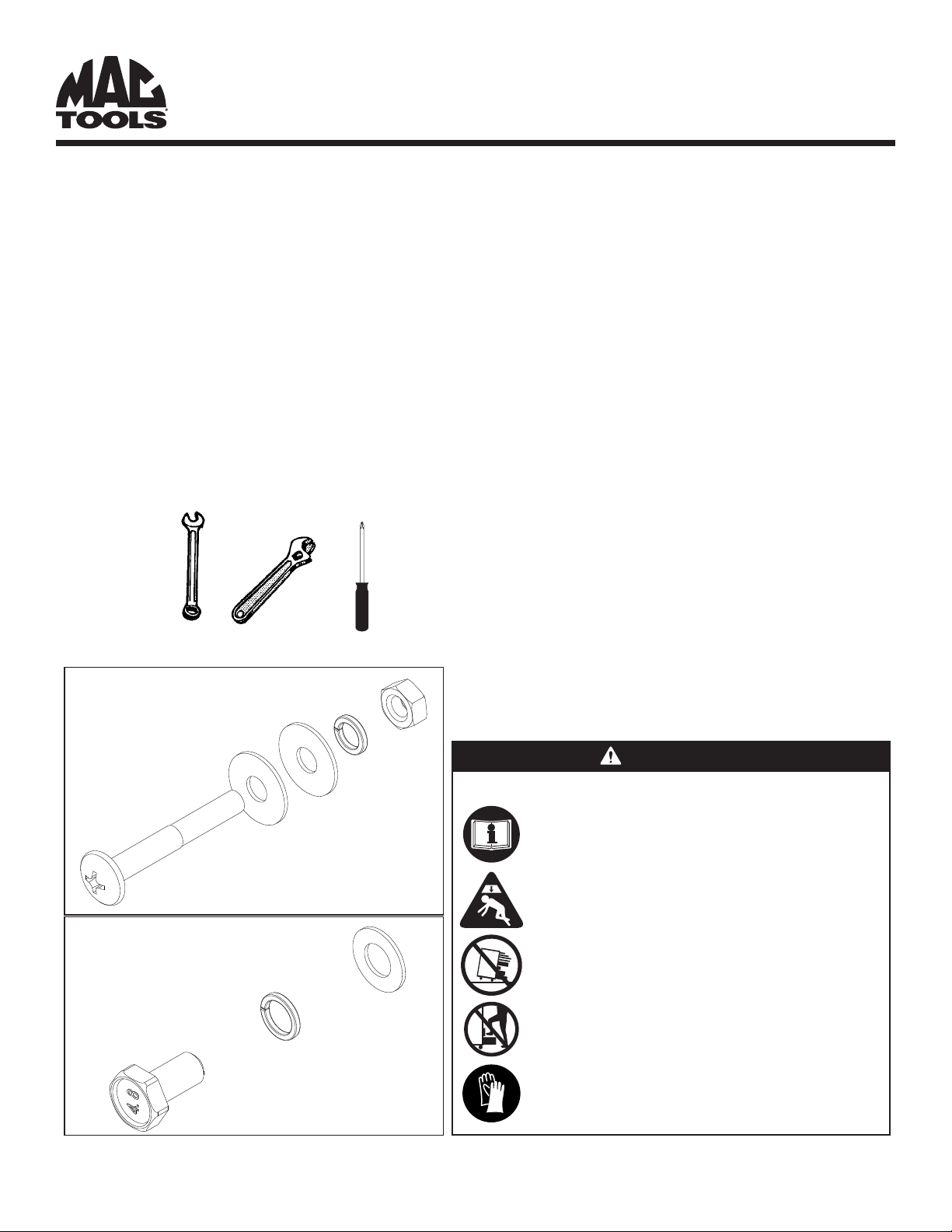

Step 1 Place the Locking Top and Drawer Unit (#1) on its back. Carefully open the Locking Top and lay it back against the ground.
Step 2 Slide chrome legs (#2) into square holes in corners of Locking Top (#1) until bolt holes are aligned at top of legs.
Step 3 Insert two bolts with two flat washers into the aligned holes in handle, locking top, and legs. Fasten nuts using flat washers and
lock washers. Repeat this procedure for other corners using bolts (All hardware included in #13).
Step 4 Slide bottom tray (#3) onto legs and fasten as in Step 3.
Step 5 Mounting casters: Put the four casters in place. The two locking casters (Part #16) should be on one side of the cart and the
two non locking casters (Part #15) should be on the other (Left or right side NOT front or Back). Using the 16 bolts and 32
washers, located in Caster Hardware Kit Part #17, completely tighten the casters to the bottom tray using a 13mm socket and
14mm combination wrench for the bolt head. (Note: Bolt head should be on the inside of the bottom shelf.)
Step 6 Return cart to upright position.
Step 7 Using the screws included with #21, install drawer handles by aligning pre-drilled holes in drawers with slots in handle.
Tighten all screws securely.
10 mm
or
#3
Phillips
Bolt Kit (#17) included for
attaching casters to
MB133UC cart:
Bolt Kit (#13) included for
attaching legs to
MB133UC cart:
qty. (16)
qty. (16)
qty. (16)
qty. (12)
qty. (12)
qty. (12)
qty. (12)
qty. (12)
• CartLoadLimit350LBS
•TopCompartmentLoadLimit150LBS
• DrawerLoadLimit(each)50LBS
•BottomShelfLoadLimit150LBS
• ReadandfollowallinstructionsinUser'sManual
• Donotloadcartsbeyondratedcapacity
• Locklidanddrawersbeforemoving
• Applybrakeonlockingcastersanytimecartisinplace
• Unitscantiporfallcausingdamageorpersonalinjury
• Donotopenmorethanoneloadeddraweratatime
• Donotstandonorstepindrawers
• Keepchildrenawayfromunit
• Weargloveswhenliftingedges
• Thisproductmaycontainoneormorechemicals 
 knowntotheStateofCaliforniatocausecancerand 
 birthdefectsorotherreproductiveharm.Wash hands
thoroughly after handling.
• Failuretoheedthesewarningsmayresultinpersonal 
 injuryand/orpropertydamage
WARNING
MUC133UC, -BK, -BL 2 03/21/14
MB133UC, -BK, -BL
3 DRAWER UTILITY CART
MUC133UC, -BK, -BL 3 03/21/14
MB133UC, -BK, -BL
3 DRAWER UTILITY CART
Also Available:
RS8006HDLB Black Drawer Handle with Hardware
RSETUC5LK Drawer Liner Kit For Top Tray, Bottom Tray, and Drawer.
Item Parts No Parts Name Qty
1 Locking Top Tray and Drawer Unit 1
2 RS13302 Leg 2
3 MBS133UC Bottom Tray Red 1
MBS133UCBK Bottom Tray Black 1
MBS133UCBL Bottom Tray Blue 1
5 MBD133UC1 3" Drawer Red 1
MBD133UC1BK 3" Drawer Black 1
MBD133UC1BL 3" Drawer Blue 1
6 MBD133UC2 4-1/2" Drawer Red 2
MBD133UC2BK 4-1/2" Drawer Black 2
MBD133UC2BL 4-1/2" Drawer Blue 2
7 RS13307 Lock Bar, Lever, Cover Red 1
RS13307BK Lock Bar, Lever, Cover Black 1
RS13307BL Lock Bar, Lever, Cover Blue 1
11 RS8002BR Bracket Assembly 2
12 RS8008LK D Lock With Keys 1
13 RS13313 M6 Bolt Kit (Bolt, Large Washer{2},
Spring Washer, Nut) 1 set
15 RS323UCNLC 5" x 1-1/2" Non-Locking Caster 2
16 RS323UCLC 5" x 1-1/2" Locking Caster 2
17 RS13317 M8 Bolt Kit For Casters (Bolt,
Flat Washer, Spring Washer {16} 1 set
21 RS8006HDL Chrome Drawer Handle with Hardware 3
22 RSRBSLIDEC2 Clip-on Roller Bearing Ball Slides 3 pair
