MAC TOOLS UC4222DTF-BK User manual

UC4222DTF-BK/ UC4222DTF-BL/ UC4222DTF-LG/ UC4222DTF-OR/ UC4222DTF-RD 1 REV: 02/13/19
ASSEMBLY INSTRUCTIONS
9
FIG. 1
Mount the push handle (#9) to the same side of the
cart as the locking casters, using the four bolts
provided.
• Lock lid and drawers before moving. • Apply brake on locking casters anytime cart
is in place. • Do not pull cart. Push from handle on end to move. • Units can tip or fall
causing damage or personal injury. • Cart is designed to roll easily on flat surfaces
and should not be used on uneven or inclined surfaces. • Do not open more than one
loaded drawer at a time. • Do not stand on or step in drawers. • Keep children away
from unit. • Wear gloves when lifting edges. • Before connecting to a power supply,
always check to make sure the power supply corresponds to the voltage required on
the product. • Fully insert plug to reduce the risk of electric shock. • Always unplug
when not in use. • Disconnect power before installing or servicing. • Do not try to plug
in unit or product when hands are wet or damp, or if standing on a wet or damp surface
or in water. • Never attempt to pick up unit or plugged in product that should fall in
standing water. • This unit is not waterproof and is intended for general use indoors.
• Do not use in potentially dangerous locations, such as flammable or explosive
atmospheres. • Keep cord away from heat, oil, sharp edges or moving parts. • Failure
to heed these warnings may result in personal injury and/or property damage.
WARNING
Read and understand all instructions. Failure to follow all instructions listed below, may
result in electric shock, fire, explosion and/or serious personal injury. It is the responsibility
of the owner to make sure all personnel read this manual prior to using the tool. It is also the
responsibility of the tool owner to keep this manual intact and in a convenient location for all
to see and read. If the manual or product labels are lost or not legible, contact Mac Tools for
replacements. If the operator is not fluent in English, the product and safety instructions shall
be read and discussed with the operator in the operator's native language by the purchaser/
owner or his designee, making sure that the operator comprehends its contents.
SERVICE CART WEIGHT CAPACITY
Maximum Total Net Load ........................... 750 LBS
Top Lid of Cart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 LBS
Top Compartment of Cart ........................... 150 LBS
3" Drawer ................................... 100 LBS each
4" Drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 LBS each
7" Drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 LBS each
PLEASE NOTE: Loading cart beyond rated capacity may cause structural
damage to the cart as well as personal and /or property damage. Please
educate your customers to the dangers of overloading. Do not attempt to
push cart with items on the top lid.
WARNING
Fig 1.
UC4222DTF-BK/UC4222DTF-BL
UC4222DTF-LG/UC4222DTF-OR
UC4222DTF-RD
-BK, -BL, -LG, -OR, -RD
DELUXE 42"7 DRAWER CART
WARNING: Cancer and Reproductive Harm –
www.P65Warnings.ca.gov.

UC4222DTF-BK/ UC4222DTF-BL/ UC4222DTF-LG/ UC4222DTF-OR/ UC4222DTF-RD 2 REV: 02/13/19
TROUBLESHOOTING

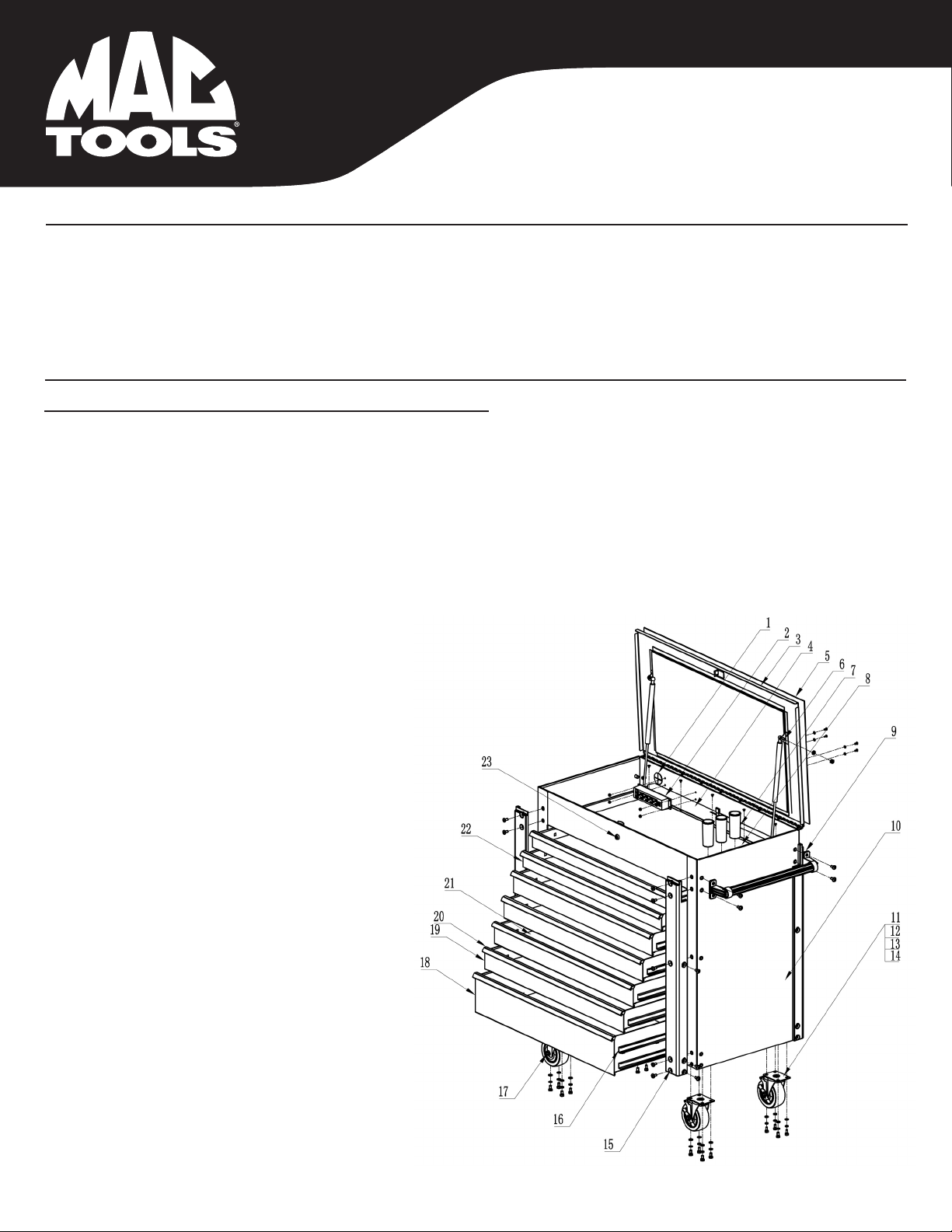

PARTS LIST AND PARTS DRAWING
Item No.Part No. No. Req'd Description
1 RS327RCP 1 Cord Rubber Protector
2 RS327PSK 1 Power Strip Kit
3 MB427LIDR 1 Lid - Red
MB427LIDBK 1 Lid - Black
MB427LIDBL 1 Lid - Blue
MB427LIDLG 1 Lid - Lime Green
MB427LIDOR 1 Lid - Orange
4 RS427LMR 1 Lock Mechanism - Red
RS427LMBK 1 Lock Mechanism - Black
RS427LMBL 1 Lock Mechanism - Blue
RS427LMLG 1 Lock Mechanism - Lime Green
RS427LMOR 1 Lock Mechanism - Orange
5 RS427TML 1 PVC Top Mat
6 RS427GPC 2 Gas Piston - Chrome
RS427GPBK 2 Gas Piston - Black
7 RS190UCPBT 3 Pry Bar Holder
8 ** 1 PVC Liner for Top Compartment
9 RS327PHKS 1 Push Handle w/Hardware - Silver
RS327PHKBK 1 Push Handle w/Hardware - Black
10 1 Cart Frame
11 RSSWLCSBK 2 5"x2" Swivel Locking Caster - Black
RSSWLCS 2 5"x2" Swivel Locking Caster - Chrome Plated
12 * 16 Spacer (8.5x1.5)
13 * 16 Spring Spacer (8.5x1.5)
14 * 16 Hex Screw (M8x16)
15 RS403UCLB 1 Safety Bumper (4pc Set)
16 RS32718RBS 8 Roller Bearing Slides (18") (pair)
17 RSSWCSBK 2 5"x2" Swivel Non-Locking Caster - Black
RSSWCS 2 5"x2" Swivel Non-Locking Caster - Chrome Plated
18 MB4277DR 1 7" Drawer - Red
MB4277DBK 1 7" Drawer - Black
MB4277DBL 1 7" Drawer - Blue
MB4277DLG 1 7" Drawer - Lime Green
MB4277DOR 1 7" Drawer - Orange
19 MB4274DR 4 4" Drawer - Red
MB4274DBK 4 4" Drawer - Black
MB4274DBL 4 4" Drawer - Blue
MB4274DLG 4 4" Drawer - Lime Green
MB4274DOR 4 4" Drawer - Orange
20 RS427ADPBK 7 Alum Drawer Pull - Black
RS427ADPS 7 Alum Drawer Pull - Silver
21 ** 7 PVC Drawer Liners
22 MB4273DR 2 3" Drawer - Red
MB4273DBK 2 3" Drawer - Black
MB4273DBL 2 3" Drawer - Blue
MB4273DLG 2 3" Drawer - Lime Green
MB4273DOR 2 3" Drawer - Orange
23 RS327LKBK 1 Lock with Keys- Black
RS327LKS 1 Lock with Keys - Silver
Only item number's identified by part number are available separately.
Also Available:
RSMB427UCFDPLK Product Label Kit
* RS89UCCB Caster Hardware Kit Chrome (16 each hex bolts M8x16,
spring washers, flat washers)
RS89UCCBBK Caster Hardware Kit Black (16 each hex bolts M8x16,
spring washers, flat washers)
** RS4278LK 8pc PVC Liner Kit (incl #8 & #21)
UC4222DTF-BK/UC4222DTF-BL
UC4222DTF-LG/UC4222DTF-OR
UC4222DTF-RD
-BK, -BL, -LG, -OR, -RD
DELUXE 42"7 DRAWER CART
Problem: Drawers appear not to fit, do not slide in accurately and bump the cart sides.
Solution: The roller bearing slides must be fully engaged into the mounting slots on all drawers. They potentially could fall out of position in shipment or
during assembly. Remove the drawer that is out of position. The drawer is removed by the two clips on the roller bearing slides.
Simply push the roller bearing slide back down into position.
Insert the drawer back onto the roller bearing slides.
