MAC 6000 User manual

MANUAL
MAC 6000
2106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • [phone]

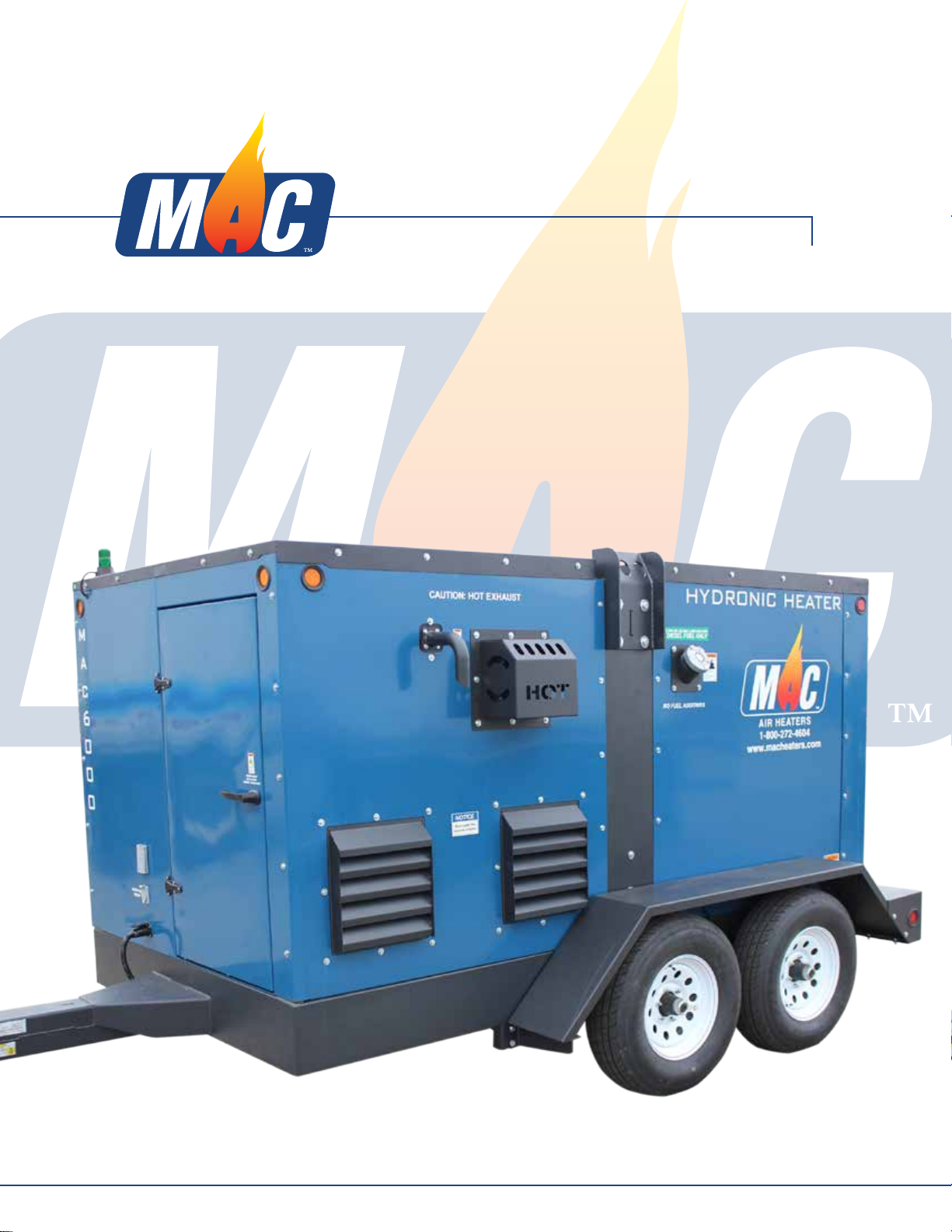

MAC 6000 Hydronic Heater
2106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • [phone]
Pictures
7' 11"
6' 5 "
FRONT
4'
10' 11"
LEFT SIDE
15'
RIGHT SIDE
8'7"
1'
REAR
REV ECO ZONE DESCRIPTION DATE BY APPD
D
C
B
A
A
B
C
D
4
5
6
7
8
6
5
4
3
2
1
B
3010001
X .1
XX .04
XXX .010
CL
2106 East Indiana Avenue - Bismarck, ND 58504
Office: 701-427-5831 - FAX [phone]
www.macheaters.com
SolidWorks DATA
INTERPRET DRAWING PER ANSI Y14.5 - 1998
ANSI INCH
FRACTION:
1/16
ANGLES: 1
FILLETS / RADII .06
THIS PRINT, THE EXCLUSIVE PROPERTY OF MAC, Inc., IS CONFIDENTIAL, TO BE USED ONLY
FOR THE PURPOSE FOR WHICH IT IS LOANED, RETURNED ON REQUEST, AND IS NOT TO BE
COPIED OR REPRODUCED WITHOUT WRITTEN PERMISSION.
DIMENSIONAL TOLERANCES UNLESS OTHERWISE SPECIFIED
DRAWN
DESIGNED
APPROVED
MAC, Inc.
PART NUMBER REV
WEIGHT: 289459324650869.19000000 SCALE: 1:4
CL 4/29/2013
4/29/2013
MAC 6000 Ground Heater
SHEET 1 OF 1
REF
FINISH:
MATERIAL: MILD STEEL
SURAFACE AREA:
THIRD ANGLE
PROJECTION
3010001

MAC 6000 Hydronic Heater
2106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • [phone]
Table of Contents
MAC 6000 - Specifications ........................................................1
MAC 6000 - Standard Features.....................................................2
MAC 6000 - Options .............................................................2
MAC 6000 - General Information....................................................3
MAC, Inc.Warranty ..............................................................4
General Trailering Information ......................................................6
Safe Trailer Towing Guidelines......................................................7
Make regular stops to confirm......................................................8
Wheel chock user guidelines.......................................................8
Warnings and Cautions...........................................................9
Informational Decals ............................................................12
Instructional Decals.............................................................14
Warning Decals................................................................16
Pre-Start Checklist .............................................................19
Typical Hose Layout.............................................................20
Start/Stop Procedure............................................................22
Adjusting Heater Output .........................................................23
Replacement Parts and Filters ....................................................24
Single Axle Parts - Trailer version ..................................................25
Isuzu Diesel Engine.............................................................58
Generator ...................................................................123
Riello Burner .................................................................150
Service and Maintenance Record.................................................167
Notes.......................................................................170
Quick Reference Service/Maintenance Guide........................................172

12106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • [phone]
MAC 6000 Hydronic Heater
Specifications
MAC 6000
2106 East Indiana Ave., Bismarck, ND 58504, U.S.A. www.macheaters.com +1.800.272.4604
Page 7
MAC 6000 –SPECIFICATIONS
Imperial Metric
Heating Power Gross Input: 630,000 BTU/Hour 185 kW/Hour
Combustion Efficiency: 86% 86%
Engine/Genset(Isuzu): 10 hp/8 kW 7.46 kW/ 8 kW
Hose Length: 3,000 ft
6 x 500 ft
25 - 45 psi
915 m
172 - 310 kPa
1,500 GPH 5,678 LPH
225 US Gallons 852 Liters
4.5 GPH + 0.65 GPH 17 LPH + 2.46 LPH
w/genset w/genset
65° - 185° F 18° - 85° C
186 IN x 96 IN x 92 IN 4,724 mm x 2,438 mm x 2,337 mm
3,466 kg (dry)
7,640 lbs (dry)
10,440 lbs (wet) 4,736 kg (wet)
2-5/16 IN Ball hitch coupler
Powder coat
Powder coat
Hose Pressure:
HTF Flow Rate:
Fuel Capacity:
Fuel Rate:
Operating Temperature:
Dimensions (L x W x H):
Weight:
Hitch (Trailer Mounted):
Finish-Interior
Finish-Exterior
Construction: Fabricated steel, fully enclosed, with forklift tubes
and crane lifting points
Run Time:
Hose Rewind:
56 hrs @ 75%
78 hrs @ 50%
AC motor
Fuel: #1 Diesel (below 32o F/0o C), #2 Diesel
Engine Controls: PLC based operation
Heat Transfer Fluid (HTF): Propylene Glycol - JEFFCOOL P155
6 x 153 m

22106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • [phone]
MAC 6000 Hydronic Heater
Standard Features and Options
MAC 6000
2106 East Indiana Ave., Bismarck, ND 58504, U.S.A. www.macheaters.com +1.800.272.4604
Page 8
MAC 6000 -STANDARD FEATURES
Trailer mounted-6,000 lb tandem leaf spring axles
16”, 6-Lug wheels and tires
2-5/16 IN Ball hitch-4 position adjustable height
Electric trailer brakes
Stop, turn and tail lights
DOT Approved
Lift jacks
“D” Ring tie downs
Engine Block Heater
Secondary fluid containment, 110% containment
Non-toxic HTF - Propylene glycol - JEFFCOOL P155
Low operating pressures
Lockable access doors
Powder coat finish
Heavy gauge welded steel
Fork lift tubes
Crane lifting points
LED lights in rear access door
MAC 6000 - OPTIONS
Pintle hitch-4 position adjustable height-(optional trailer hitch)
Spare tire and mount
Custom paint colors
Insulated curing/thawing blankets
Emergency stop
Global Positioning System (GPS)
Work light packages
Exterior LED work lights (flood or spot)
Hazardous Environment Options
LEL Monitor – 75 harmful/explosive gas detection

32106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • [phone]
General Information
MAC 6000 Hydronic Heater

4
MAC 6000 Hydronic Heater
2106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • [phone]
Warranty
MAC 6000
2106 East Indiana Ave., Bismarck, ND 58504, U.S.A. www.macheaters.com +1.800.272.4604
Page 10
MAC, Inc. WARRANTY
ONE (1) YEAR LIMITED WARRANTY
MAC, Inc. warrants to the original purchaser of the equipment, that all workmanship and
materials utilized in the construction of the equipment by MAC, Inc. will be free from
substantial defects in material and workmanship for a period of one (1) year from the
date of purchase.
In addition to the above warranty, these components have an extended warranty period
beyond one (1) year.
Isuzu Engine 12 months*, unlimited hours**
100% Parts/100% Labor
12-24 months*, 200 hours**
100% Parts/100% Labor
* Whichever occurs first.
** Coverage for all electrical, fuel system and turbocharger components is limited to
2yrs/1000 hours, whichever occurs first.
Note: In the absence of a functional hour meter, the engine will be deemed to be in use for
8 hours per calendar day commencing from the start of the warranty period.
MeccAlte generator Two (2) years from delivery date to MAC, Inc.
Rear Overhead door Two (2) years from shipment to customer
This warranty extends only to the original purchaser of MAC, Inc’s equipment and is not
transferable to any other parties. MAC, Inc. does not assume responsibility for any
promises, warranties, or representations beyond those expressed in the written
document.
MAC, Inc.’s obligations and understandings in this warranty are limited to the repair or
replacement, at its option, of any defective products manufactured by MAC, Inc, and in
no event shall MAC, Inc. be liable for any consequential, indirect, or incidental costs or
damages, including loss of use or any other damages of any type arising out of such
defective parts or products.
Some States in the U.S.A. do not allow exclusion or limitation of incidental or
consequential damages or implied warranties. In addition you may have other rights
which vary from state to state. Any items of this warranty which conflict with the laws of
our state are deemed amended by the law of your state.

52106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • [phone]
Warranty (cont.)
MAC 6000 Hydronic Heater
MAC 6000
2106 East Indiana Ave., Bismarck, ND 58504, U.S.A. www.macheaters.com +1.800.272.4604
Page 11
MAC, Inc. WARRANTY - (continued)
In the event that you believe any product manufactured by MAC, Inc. has a defect or
malfunction or failure to conform to this written warranty, you should contact MAC, Inc.
at its Bismarck, ND address:
MAC, Inc.
2106 East Indiana Ave.
Bismarck, ND U.S.A. 58504
+1.800.272.4604
www.macheaters.com
Follow this procedure for warranty:
1. Contact MAC, Inc. at +1.800.272.4604
2. Ask to speak to a service representative
3. Have the following information ready when you call
a. Original purchaser’s company name
b. Model number of your equipment
c. Serial number of your equipment
d. Purchase date of your equipment
4. Defective product may need to be returned to MAC, Inc. with the freight prepaid.
Take appropriate precautions against damage during shipping.
5. Supply the following information with the returned product
a. Name, address, contact person and telephone number of the original
purchaser of the equipment and indicate the date of purchase.
b. Serial number and model number defective part is attached
MAC, Inc. will replace or repair any defective products within a reasonable period of
time and return them to you. If MAC, Inc. determines there is no failure to this limited
warranty, you will be notified to retrieve your product from the service facility. MAC, Inc.
assumes no responsibility for merchandise not retrieved within thirty (30) days of
notification to the original purchaser or owner of the product.
This warranty has been drafted to comply with Federal legislation and rules
promulgated by the Federal Trade Commission.
You have additional legal rights in addition to those set forth in this written limited
warranty.

62106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • [phone]
MAC 6000 Hydronic Heater
GeneralTrailering Information
MAC 6000
2106 East Indiana Ave., Bismarck, ND 58504, U.S.A. www.macheaters.com +1.800.272.4604
Page 12
GENERAL TRAILERING INFORMATION
Driving a vehicle with a trailer in tow is vastly different from driving the same
vehicle without a trailer in tow. It takes longer to get up to speed. You need
more room to turn and pass, and more distance to stop when towing a trailer.
You are responsible for keeping your vehicle and trailer in control, and for all
damage that is caused if you lose control of your vehicle and trailer.
It is critical that the trailer be securely coupled to the hitch and that the safety
chains are correctly attached. Uncoupling while towing may result in death or
serious injury.
If the trailer comes loose from the hitch for any reason, we have provided safety
chains so that control of the trailer can be maintained.
Your trailer is equipped with a breakaway brake system that will apply the brakes
on your trailer if your trailer comes loose from the hitch. The safety chains and
breakaway brake system must be in good condition and properly rigged to be
effective. The breakaway brake system must not be used as a substitute for a
parking brake or wheel chocking.
Be sure your hitch and tow vehicle are rated for the Gross Vehicle Weight Rating
(GVWR) of your trailer.
Maximum towing speed 45 mph.
Be sure tires are inflated to pressure indicated on tire size and air pressure ID tag
before towing. Improper inflation can result in a blowout and loss of control,
which can lead to death or serious injury.
Be sure lug nuts are tight before each tow.
Be sure that the electric brakes and all of the lights on your trailer are functioning
properly before each tow.
Altering your trailer can damage essential safety items. DO NOT alter your
trailer.

72106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • [phone]
SafeTrailerTowing Guidelines
MAC 6000 Hydronic Heater
MAC 6000
2106 East Indiana Ave., Bismarck, ND 58504, U.S.A. www.macheaters.com +1.800.272.4604
Page 13
SAFE TRAILER TOWING GUIDELINES
Before towing, check coupling, safety chains, safety brake, tires, wheels and
lights.
Check the breakaway battery. Make sure it is fully charged.
Check the wheel lug nuts or bolts for tightness. 85-95 ft. /lbs.
Check coupler tightness after towing 50 miles (80km).
Adjust the brake controller to engage the trailer brakes before the tow vehicle
brakes.
Use your mirrors to verify that you have enough room to change lanes or pull into
traffic.
Use your turn signals well in advance.
Allow plenty of stopping distance for your trailer and tow vehicle.
Do not drive faster than the conditions will allow.
Allow plenty of room for passing. A rule of thumb is that passing distance with a
trailer is 4 times the passing distance without a trailer.
Use lower gears for climbing and descending grades.
Do not ride the brakes while descending grades; this can cause overheating and
potential brake failure.
Slow down for bumps in the road. Take your foot off the brake pedal when
crossing the bump.
Slow down prior to entering a curve; maintain a constant safe speed that allows
you to remain in control of your trailer. The towing vehicle will then remain in
control of the trailer.
Do not apply the tow vehicle brakes to correct extreme trailer swaying.
Continued pulling of the trailer, and even slight acceleration, or carefully applying
the trailer brakes (using the electronic brake controller) will provide a stabilizing
force.

8
MAC 6000 Hydronic Heater
2106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • [phone]
SafeTrailerTowing Guidelines (cont.)
MAC 6000
2106 East Indiana Ave., Bismarck, ND 58504, U.S.A. www.macheaters.com +1.800.272.4604
Page 14
SAFE TRAILER TOWING GUIDELINES –(continued)
Make regular stops to confirm
The coupler is secure to the hitch and is locked.
Electrical connections are made.
There is appropriate slack in the safety chains.
There is appropriate slack in the breakaway switch pull-pin cable.
The tires are inflated to proper air pressure and no damage or unusual wear to
tread or sidewalls.
The trailer and doors are secure, latched and in good condition.
Wheel chock user guidelines
Improper use may result in product failure.
Select wheel chock according to the equipment type and size.
Always use in pairs and on firm surfaces.
Chock in direction of grade.
Chock both sides of wheel if direction of grade is undetermined.
Use only after parking brake is applied and tested.
Center chocks snugly and squarely against tread of each wheel.
Always test chocks to insure they meet requirements.
Do not drive over wheel chocks.
For more trailering information check out:
US Department of Transportation, National Highway Traffic Safety
Administration website at:
http://www.nhtsa.gov/Cars/Problems/Equipment/towing/index.htm

9
MAC 6000 Hydronic Heater
2106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • [phone]
Warnings and Cautions
MAC 6000
2106 East Indiana Ave., Bismarck, ND 58504, U.S.A. www.macheaters.com +1.800.272.4604
Page 15
WARNINGS AND CAUTIONS
The MAC 6000 Hydronic surface heater is designed and built for sustained reliable heat
production in industrial, severe operating conditions and environments. The MAC 6000
is built to withstand rough and frequent handling.
The sub-frame has forklift access at either side with crane lifting points on top for lifting
and “D” ring tie-downs for transporting. The total enclosure design protects the
operating components allowing all-weather storage or operations. All options
incorporate integrated control and safety systems to insure reliable operations.
MAC, Inc. offers training services to help you learn how to properly operate and
maintain your unit. Contact MAC, Inc. at +1.800.272.4604
WARNINGS AND CAUTIONS LISTED IN THIS MANUAL MUST BE FOLLOWED!
REMEMBER
SAFETY FIRST!! OPERATOR MUST READ AND UNDERSTAND ALL
OPERATING INSTRUCTIONS, WARNINGS, AND CAUTIONS BEFORE
OPERATING HEATER.
WARNING!
IMPROPER OPERATION OF THIS EQUIPMENT CAN CAUSE SERIOUS INJURY OR DEATH.
READ OPERATION MANUAL SUPPLIED WITH THIS EQUIPMENT BEFORE OPERATING OR
SERVICING.
DO NOT OPERATE WHILE TRANSPORTING.
MAKE SURE UNIT IS PROPERLY SECURED WITH WHEEL CHOCKS AND ON LEVEL
GROUND TO PREVENT SHIFTING OR ROLLING.
HEARING PROTECTION REQUIRED WHEN OPERATING THIS MACHINE.
ADEQUATE AIRFLOW TO THE HEATER IS MANDATORY FOR SAFE RELIABLE
OPERATION. DO NOT COVER UNIT OR RESTRICT PROPER AIR FLOW.
KEEP AIR INTAKE FREE AND CLEAR OF DEBRIS.
HEATER SHOULD NOT BE LEFT UNATTENDED DURING OPERATION.
SHUT ENGINE OFF BEFORE CHECKING FLUID LEVELS.
ALL SAFETY GUARDS MUST BE IN PLACE DURING OPERATION.
FOLLOW LOCKOUT PROCEDURE BEFORE SERVICING.
MOVING PARTS CAN CRUSH AND CUT.
HOT PRESSURIZED FLUID. DO NOT OPEN DOORS WHILE MACHINE IS RUNNING.
DOORS MUST REMAIN CLOSED DURING OPERATION.
JACKS ARE INTENDED FOR LEVELING AND STABILIZING ONLY.
DURING OPERATION, INTERNAL COMPONENTS CAN BECOME BURN HAZARDS.
DO NOT TOUCH. ALLOW TIME TO COOL BEFORE SERVICING.
FIRE FROM FLAMABLE FUEL CAN CAUSE SERIOUS INJURY OR DEATH.
NO SMOKING, SPARKS OR OPEN FLAME DURING FUELING OR WASHDOWN.
DO NOT ATTEMPT TO SERVICE ANY PART OF THIS MACHINE WHILE IN OPERATION.
DO NOT ATTEMPT TO DISCONNECT OR REMOVE HOSES DURING OPERATION.
The MAC6000 operates at atmospheric pressure and is not a prssurized boiler.
Boiler regulations do not apply to this product.
The MAC6000 operates at atmospheric pressure and is not considered a
pressurized boiler. Boiler regulations do not apply to this product.

10
MAC 6000 Hydronic Heater
Lifting Instructions
2106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • [phone]
• The MAC 6000 is equipped with crane lift points.
Never attempt to lift machine by any other points.
• Always use properly rated lifting equipment.
Lift points are only approved for use with a double leg sling.
• Always inspect lift points and lifting equipment for damage prior to lifting.
• Minimum sling-to-load angle is 60°.
• Select the appropriate lift point for most level lifting.
• Never attempt to lift the machine while in operation.
Crane Lifting Requirements
Crane Lifting Instructions
1. a.) To lift the machine using a double leg sling, attach one leg to each side
of the machine using the appropriate equipment (e.g. shackles, hooks).
b.) Select the appropriate lift eyes for balanced and level lifting.
2. Begin lifting the machine and verify the machine is stable and level.
Adjust lift eyes as necessary.
3. Lift the machine.

11
MAC 6000 Hydronic Heater
Notes
2106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • [phone]

12
MAC 6000 Hydronic Heater
2106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • [phone]
Informational Decals
MAC 6000
2106 East Indiana Ave., Bismarck, ND 58504, U.S.A. www.macheaters.com +1.800.272.4604
Page 16
INFORMATIONAL DECALS –Provide you important information about
your MAC heater allowing for ease in servicing, ordering parts and/or
warranty questions.
1 2 3 4
Located inside the right hand front control panel door
1 Serial #, Model # and VIN # ID tag
2 Tire size and air pressure ID tag
3 VIN #, Date of manufacture, GVWR, tire and rim size ID tag
4 MAC decal – To order parts call +1.800.272.4604 or www.macheaterparts.com
1
1 Model number decal – Located outside on the front right corner and the left rear
corner of the heater.

13
MAC 6000 Hydronic Heater
2106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • [phone]
Informational Decals (cont.)
MAC 6000
2106 East Indiana Ave., Bismarck, ND 58504, U.S.A. www.macheaters.com +1.800.272.4604
Page 17
INFORMATIONAL DECALS –(continued)
1 2 3
1 Model number decal
2 Crane lifting points
3 Low or ultra-low sulfur DIESEL FUEL ONLY
NO ADDITIVES
1 2 3
Located on the front trailer/heater tongue
1 Trailer/heater front lift jack
2
3
Tire size and air pressure ID tag
VIN #, date of manufacture, GVWR, tire and rim size ID tag

14
MAC 6000 Hydronic Heater
2106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • [phone]
Instructional Decals
MAC 6000
2106 East Indiana Ave., Bismarck, ND 58504, U.S.A. www.macheaters.com +1.800.272.4604
Page 18
INSTRUCTIONAL DECALS –Provide important information to the operator on
the proper operating requirements.
1 2 3
1 Crane lifting points
2 “D” ring tie downs during transportation
Fork lift pockets
3 MAC Heaters – Engine/heater control panel

15
MAC 6000 Hydronic Heater
2106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • [phone]
Instructional Decals (cont.)
MAC 6000
2106 East Indiana Ave., Bismarck, ND 58504, U.S.A. www.macheaters.com +1.800.272.4604
Page 19
INSTRUCTIONAL DECALS –(continued)
1 2 3 4
1 Notice – Do NOT operate while transporting
2 Doors must be closed during operation
3 Notice – Keep air intake free and clear of debris
4 Caution: Hot Exhaust – Both engine and burner

16
MAC 6000 Hydronic Heater
2106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • [phone]
Warning Decals
MAC 6000
2106 East Indiana Ave., Bismarck, ND 58504, U.S.A. www.macheaters.com +1.800.272.4604
Page 20
WARNING DECALS –Provide important information and warnings to
ensure the safety of the operator and the machine.
1 2 3
1 WARNING – Improper operation of this equipment can cause serious injury or
death. Read operation and maintenance manual and safety manual supplied
with this equipment before operating or servicing.
2 WARNING – Wheel Lugnuts May Become Loose
Tighten wheel lugnuts to factory specifications after first 50 miles. Retighten periodically
thereafter.
3 WARNING – Burn Hazard. Do NOT touch. Allow to cool before servicing.
During operation, internal components are a burn hazard.

17
MAC 6000 Hydronic Heater
2106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • [phone]
Warning Decals (cont.)
MAC 6000
2106 East Indiana Ave., Bismarck, ND 58504, U.S.A. www.macheaters.com +1.800.272.4604
Page 21
WARNING DECALS - (continued)
1 2 3 4 5
1 Doors must be closed during operation
2 WARNING – Burn Hazard. Do NOT touch. Allow to cool before servicing.
During operation, internal components are a burn hazard.
3 Notice – Keep air intake free and clear of debris
4 CAUTION: HOT EXHAUST – Both engine and burner
5 WARNING – Fire from flammable fuel can cause serious injury or death.
No smoking, sparks or open flame during fueling or wash-down.
