Macnica Mpression 12G-SDI FMC Card User manual

2017/10/13 © 2017 Macnica, Inc.
http://www.m-pression.com
Getting Started
12G-SDI FMC Card
Revision
B
2017/10/13

12G-SDI FMC Card
2Getting Started - 12G-SDI FMC Card
©Macnica, Inc.
© 2017 Macnica, Inc.
Disclaimer
The information in this document (hereinafter called “Information”) is subject to change without notice.
Macnica Inc. (Developer) makes no warranty of any kind regarding this document, or of any liability arising out
of the application or use of information in this document, and assumes no responsibility for any errors that may
appear in this document.
This document is distributed without any charge and reselling or copying without written authorization by
Developer is restricted.
IN NO EVENT WILL DEVELOPER BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT, EXEMPLARY,
SPECIAL, OR INCIDENTAL DAMAGES, INCLUDING ANY LOST DATA AND LOST PROFITS, ARISING
FROM OR RELATING TO YOUR USE OF THE INFORMATION, EVEN IF YOU HAVE BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES. THE TOTAL CUMULATIVE LIABILITY OF DEVELOPER IN
CONNECTION WITH YOUR USE OF THE INFORMATION IN THIS DOCUMENT, WHETHER IN
CONTRACT OR TORT OR OTHERWISE, WILL IN NO EVENT EXCEED THE AMOUNT OF FEES PAID BY
YOU TO DEVELOPER HEREUNDER FOR USE OF THE INFORMATION. YOU ACKNOWLEDGE THAT
THE FEES, IF ANY, REFLECT THE ALLOCATION OF RISK SET FORTH IN THIS AGREEMENT AND
THAT DEVELOPER WOULD NOT MAKE AVAILABLE THE INFORMATION TO YOU WITHOUT THESE
LIMITATIONS OF LIABILITY.
The Information is not intended for use in the development of on-line control equipment in hazardous
environments requiring failsafe controls, such as in the operation of nuclear facilities, aircraft
navigation or communications systems, air traffic control, life support, or weapons systems
(“High-Risk Applications”). Developer specifically disclaims any express or implied warranties of
fitness for such High-Risk Applications. You represent that use of the Information in such High-Risk
Applications is fully at your risk.

12G-SDI FMC Card
Getting Started - 12G-SDI FMC Card 3
© Macnica, Inc.
Contents
1. Read This First ________________________________________________________________ 4
1.1 Important Information............................................................................................................... 4
1.2 Developer Information............................................................................................................... 5
1.3 Inquiries ..................................................................................................................................... 5
2. For Ensuring Safe Use __________________________________________________________ 6
2.1 Legend ....................................................................................................................................... 6
2.2 Cautions ..................................................................................................................................... 6
3. Introduction _________________________________________________________________ 9
3.1 About This Document ................................................................................................................ 9
3.2 Required Hardware and Software.............................................................................................. 9
3.3 Related Materials....................................................................................................................... 9
4. Overview ___________________________________________________________________ 10
4.1 Hardware Configuration .......................................................................................................... 10
4.1.1 Hardware & Design Configuration .................................................................................................11
5. Hardware Setup _____________________________________________________________ 12
6. Procedure to Implement Reference Design ________________________________________ 13
7. Document Revision History ____________________________________________________ 15

12G-SDI FMC Card
4Getting Started - 12G-SDI FMC Card
©Macnica, Inc.
1. Read This First
1.1 Important Information
READ FIRST:
Before using this card, be sure to read this Getting Started manual.
Keep this Getting Started manual so you can refer to it when necessary.
You should sufficiently understand the card’s configuration before you use it.
Card Application:
This card is an FPGA Mezzanine Connector (hereafter FMC) daughter card that can be
connected to and used with any FMC that complies with FMC standard. Combining with an
FPGA evaluation board (hereafter Evaluation board), this card supports the development
and verification of software and hardware for 12G-SDI I/O interfaces. Use this card correctly
in line with the application.
People Who Are Expected to Use This Card:
Only people who carefully read and understood this manual and the Reference Manual
should use this card. You need a fundamental understanding of FPGA, logic circuits,
electronic circuits, and micro-computers to use this card.
Precautions When Using This Card:
This card is a development support card used for the purpose of your hardware and software
development and evaluation. This card cannot be used in your mass production products.
Furthermore, when you want to use the card’s sample designs for your products, please be
sure to confirm if it withstands practical use at your own risk by doing necessary and
sufficient tests and evaluations.
Macnica Incorporated (hereafter Macnica Inc.) has no liability for any results arising from
the use of the card.
Macnica Inc. will attempt to provide either free or paid support to handle repair of faults or
workarounds for faults with the card. This does not mean, however, that Macnica Inc.
guarantees to provide a workaround or fix under all circumstances.
Macnica Inc. cannot anticipate every possible circumstance that might involve a potential
hazard. The warnings and precautions in this Getting Started manual and on the card are
therefore not all-inclusive. You are responsible for using the card correctly and safely.
Even if there are faults with devices that are mounted on the card, Macnica Inc. will not
replace it with a fault-fixed device.
Each interface is not guaranteed to connect with all products.
The card will not be replaced if you damaged or modified the card.
The card uses lead-free parts.
The rights to the trademarks and registered trademarks of the vendors noted in this manual
belong to their respective vendors.

12G-SDI FMC Card
Getting Started - 12G-SDI FMC Card 5
© Macnica, Inc.
Improvement Policy:
Macnica Inc. pursues a policy of continuous improvement in design, performance, and safety
of the product.
Macnica Inc. reserves the right to change, wholly or partially, specifications, designs, this
Getting Started manual, and other documentation at any time, without prior notice to
customers.
Warranty:
Macnica Inc. offers to exchange this card free of charge only in case of initial malfunction
noticed by you within 30 days from the delivery.
Macnica Inc. cannot exchange cards in cases where the malfunction is caused by the
following reasons:
(1) Misuse, abuse of the card or use under abnormal conditions
(2) Remodeling or repair
(3) A fire, earthquake, fall or other accidents
Figures:
Some figures in this manual may differ from your purchased card.
1.2 Developer Information
The Developer of this card is:
Macnica Inc.
1-6-3 Shin-Yokohama, Kouhoku-ku, Yokohama, 222-8561 JAPAN
1.3 Inquiries
In case you have any inquiries about the use of this card, please contact sales office you purchased or
make inquiries through the contact form on the following web site.
Inquiries page:
http://www.m-pression.com/contact/inquiry
Inquiries to:
Macnica Inc.
Sales and Planning Advanced Technology
1-5-5 Shin-Yokohama, Kouhoku-ku, Yokohama, 222-8563 JAPAN
TEL: [phone]

12G-SDI FMC Card
6Getting Started - 12G-SDI FMC Card
©Macnica, Inc.
2. For Ensuring Safe Use
Be sure to follow the instructions given in this Manual which are intended to prevent harm to the
user and others as well as material damage.
2.1 Legend
Danger
Indicates an imminent hazardous situation which if not avoided will result in
death or serious injury.
Warning
Indicates a potentially hazardous situation which if not avoided could result in
death or serious injury.
Caution
Indicates a potentially hazardous situation which if not avoided may result in
minor or moderate injury or in property damage.
2.2 Cautions
Danger
If an AC adapter is needed, be sure to use the AC adapter provided in the
package or one that meets the specifications described in this manual.
Using an AC adapter not meeting the specifications described in this manual
may cause the card to emit heat, explode, or ignite.
Warning
Do not apply strong impacts or blows to the card.
Doing so may cause the card to emit heat, explode, or ignite, or the equipment in
the card to fail or malfunction. This may also cause fire.
Do not put this card or the AC adapter in cooking appliances such as microwave
ovens, or high-pressure containers. Doing so might cause this card or AC
adapter to emit heat, explode, ignite, or emit smoke, or its parts to break or
warp.
Do not cover or wrap this card that is in use with cloth or other materials that
are likely to allow heat to build up inside the wrapping.
This will cause heat to build up inside the wrapping which may cause this card
to ignite or malfunction.
When disposing of this card, do not dispose of it along with general household
waste.
Throwing this card into fire may cause it to explode. Dispose of this card
following the laws, regulations, and ordinances governing waste disposal.
Do not pull the power supply cable with excessive force or place heavy items on
it.
Do not damage, break, bundle, or tamper with the power supply cable.
Damaged parts of the power supply cable might cause a short circuit resulting
in fire or accidents involving electrical shock.
Do not plug or unplug the power plug with wet or moist hands.
This might cause injuries or equipment malfunctions or failures due to
electrical shock.

12G-SDI FMC Card
Getting Started - 12G-SDI FMC Card 7
© Macnica, Inc.
Warning
(Continued from
previous page)
Plug the power plug securely into the outlet.
If the power plug is not securely plugged into the outlet, it may cause accidents
involving electrical shock or fire due to heat emitted.
Do not connect many electrical cords to a single socket or connect an AC adapter
to an outlet that is not rated for the specified voltage.
Doing so may cause the equipment to malfunction or fail, or lead to accidents
involving electrical shock or fire due to heat emitted.
Periodically remove any dust accumulated on the power plug and around the
outlet (socket).
Do not use a power plug with dust accumulated on it because doing so will lead
to insulation failure due to moisture which may lead to fire.
Remove any dust on the power plug and around the outlet with a dry cloth.
Do not place any containers, such as cups or vases, filled with water or other
liquids on the card.
If the card is exposed to water or other liquids, it will cause a malfunction or
electric shock. If you spilled water or other liquid on this card, immediately stop
using the card, turn off the power, and unplug the power plug. If you have any
requests for repairs or technical consultation, please contact sales office you
purchased or Mpression inquiry URL.
Keep the card and accessories out of the reach of children. Failure to do so may
lead to injuries.
Caution
Do not place the card on unstable places such as shaky stands or tilted
locations.
Doing so may cause injuries or cause this card to malfunction if the card should
fall.
Do not attempt to use or leave the card in places subject to strong direct
sunlight or other places subject to high temperatures such as in cars in hot
weather.
Doing so might cause the card to emit heat, break, ignite, run out of control,
warp, or malfunction. Also, some parts of the equipment might emit heat,
causing burn injuries.
Do not use the card in places subject to extremely high or low temperatures or
severe temperature changes.
Doing so may cause the card to fail or to malfunction. Always be sure to use the
card within a temperature range of 5°C to 35°C and a humidity range of 0% to
85%.
Unplug the power supply when doing maintenance on equipment in which the
card is embedded.
Failure to do so may lead to accidents involving electrical shock.
Do not place the card in locations where excessive force might be applied to it.
Doing so may cause the printed circuit board to warp, leading to breakage of the
printed circuit board, missing parts or malfunctioning parts.

12G-SDI FMC Card
8Getting Started - 12G-SDI FMC Card
©Macnica, Inc.
Caution
(Continued from
previous page)
When using the card together with expansion boards or other peripheral
equipment, be sure to carefully read each of their manuals and to use them
correctly.
Developer does not guarantee the operation of specific expansion boards or
peripheral devices when used in conjunction with this card unless they are
specifically mentioned in this Manual or their successful operation with this
card has been confirmed in separate documents.
Turn off the power switch when moving or connecting the card.
Failure to do so may cause this card to fail or lead to accidents involving
electrical shock.
Do not clean this card by using a rag containing chemicals such as benzine or
thinner.
Doing so could degrade the card. When using a chemically treated cloth, comply
with its directions and warnings.
Do not immediately turn on the power if you find that moisture has condensed
onto this card after removing it from the box.
Condensation may form if the card is cold when moved from the box into a warm
room.
Turning on the power while there is moisture on the card may cause it to
malfunction or shorten the service life of the parts.
Allow the card to reach room temperature when you first take it out of the box.
If condensation or moisture has occurred on this card, first wait for the moisture
to fully evaporate before installing or connecting the card to other equipment.
Operation of the card cannot be guaranteed if it has been disassembled,
dismantled, altered, modified, or rebuilt.

12G-SDI FMC Card
Getting Started - 12G-SDI FMC Card 9
© Macnica, Inc.
3. Introduction
3.1 About This Document
This manual describes how to use the reference design used by our 12G-SDI FMC Card (hereafter
FMC card).
3.2 Required Hardware and Software
Hardware
12G-SDI signal generator (e.g. Blackmagic Design’s Teranex Express)
Monitor or analyzer that supports 12G-SDI input (e.g. Blackmagic Design’s SmartView 4K)
Arria 10 GX FPGA Development Kit (board/AC adapter/micro-USB cable)
BNC cable: 2
FMC card (card/jumper caps 2 pcs.)
Software
Quartus Prime Standard Ver. 16.0 Update 2 (Intel FPGA programming software)
Reference design (You can download the documents and designs from the URL written in the
Packing list. )
3.3 Related Materials
Materials provided by Macnica: Title (document number)
12G-SDI FMC Card Schematic (DATA_000070)
12G-SDI FMC Card Reference Manual (DCMT_000331)
Materials from Intel (document number)
Multi Rate Up to 12G SDI II Reference Design for Arria 10 Devices ( AN768 )
SDI II IP Core User Guide ( UG-01125 )
Materials from Blackmagic Design
Teranex Express Manual
SmartView 4K Manual

12G-SDI FMC Card
10 Getting Started - 12G-SDI FMC Card
©Macnica, Inc.
4. Overview
4.1 Hardware Configuration

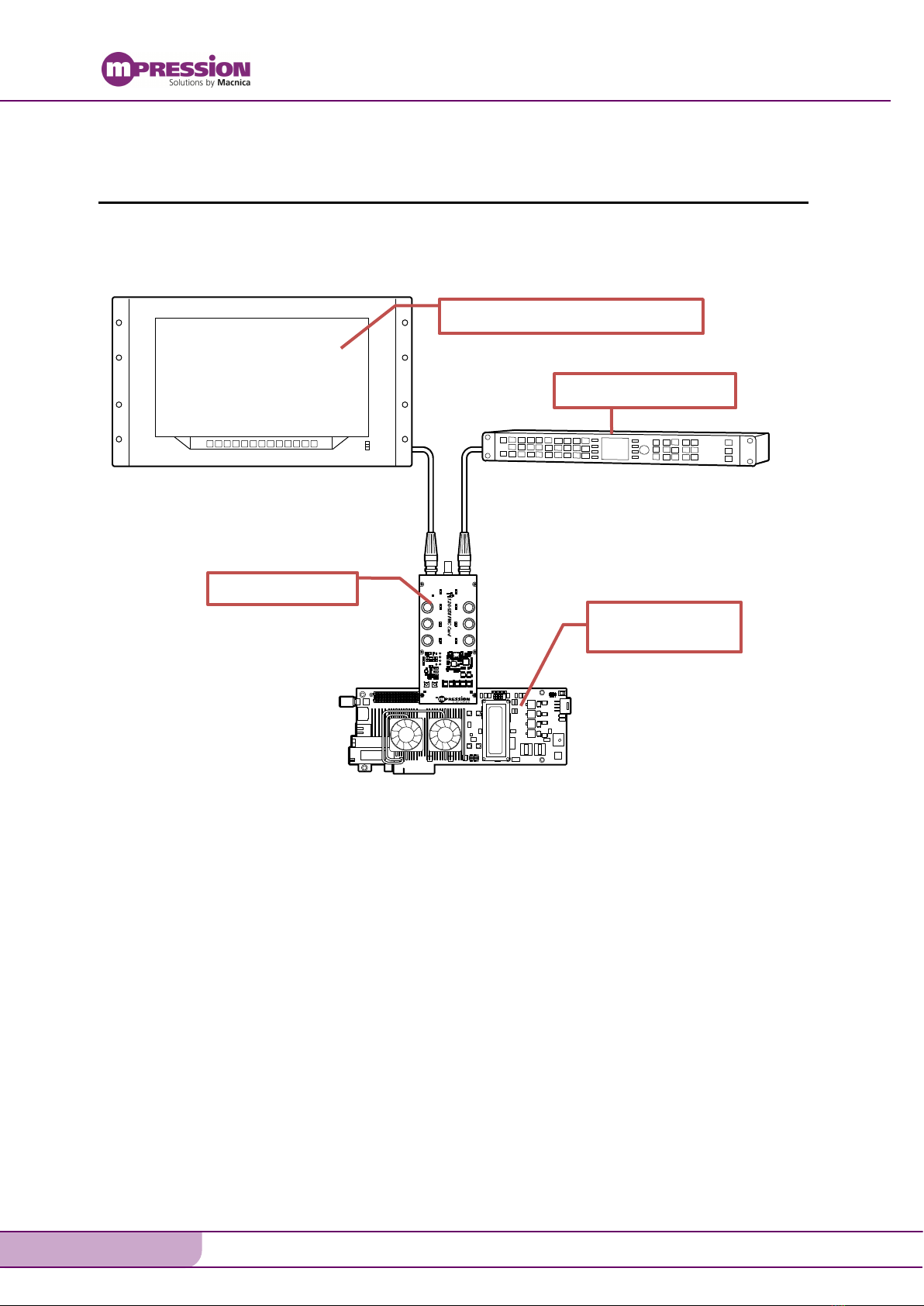

Figure 4-1 shows a hardware configuration for implementing a reference design.
Figure 4-1. Hardware Configuration
Monitor that supports 12G-SDI input
12G-SDI signal generator
12G-SDI FMC Card
Arria 10 GX FPGA
Development board

12G-SDI FMC Card
Getting Started - 12G-SDI FMC Card 11
© Macnica, Inc.
4.1.1 Hardware & Design Configuration
Figure 4-2 shows the internal configuration of the reference design.
Figure 4-2. Hardware Design Configuration
12G-SDI Monitor
( e.g. SmartView 4k )
12G-SDI
Pattern Generator
( e.g. Teranex Express )

12G-SDI FMC Card
12 Getting Started - 12G-SDI FMC Card
©Macnica, Inc.
5. Hardware Setup
The following shows the procedure for setting up the hardware.
1. Attach a jumper cap to JP2-2 and JP2-3 on the FMC card.
2. Attach a jumper cap to JP4-2 and JP4-3 on the FMC card.
3. Connect the FMC card to FMC Port B (J2) on the Arria 10 GX FPGA Development Board.
4. Connect the AC adaptor provided to the 12-V DC input (J13).
5. Set the DIP switches (SW3, SW4, SW5, and SW6) on the Arria 10 GX FPGA Development Board
as shown in Figure 5-1.
6. Use a BNC cable to connect the 12G-SDI signal generator’s output terminal to CN8 on the FMC
card.
7. Use a BNC cable to connect the 12G-SDI monitor’s input terminal to CN4 on the FMC card.
Figure 5-1. Arria 10 GX FPGA Development Board DIP Settings
(The ■ indicates the side to which the switch has been slid)

12G-SDI FMC Card
Getting Started - 12G-SDI FMC Card 13
© Macnica, Inc.
6. Procedure to Implement Reference
Design
The following shows the procedure for implementing the reference design.
1. Use Quartus Prime to un-compress the reference design in a project.
2. Compile the developed project and generate a programming file.
3. Write the programming file that you generated to the FPGA.
4. Press the CPU_RESET push button on the Arria 10 GX FPGA Development Board one time.
5. Refer to Figure 6-1 and Table 6-1 to confirm the status of the LEDs on the FMC card and the
Arria 10 GX FPGA Development Board.

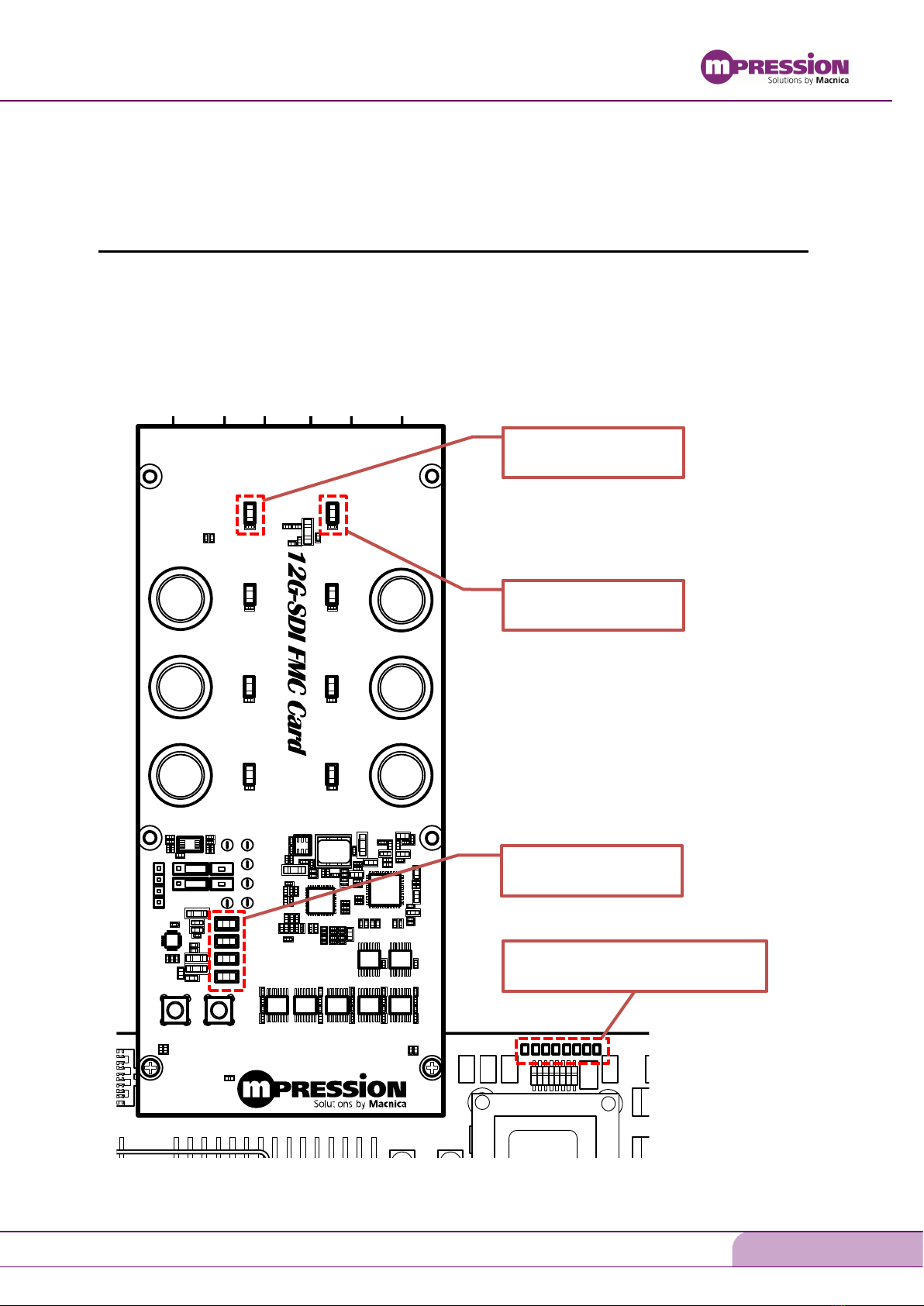

Figure 6-1. Positions to Confirm LEDs
D1-4
( 12G-SDI FMC Card )
D9
( 12G-SDI FMC Card )
D3-D10
( Arria 10 GX Development board )
D5
( 12G-SDI FMC Card )

12G-SDI FMC Card
14 Getting Started - 12G-SDI FMC Card
©Macnica, Inc.
Table 6-1. LED Statuses
Board/card
Part
location
Function
silk
Status
Remarks
Arria 10 GX FPGA
Development board
D3
-
Flashing
The heartbeat of TX0 clock
D4
-
Flashing
The heartbeat of RX0 recovered
clock
D5
-
Lit
Frame lock for channel 0
D6
-
Lit
TRS locked for channel 0
D7
-
Off
CRC error on Chroma/Luma for
channel 0
D8-D10
-
-
RX signal standard for
channel0:
“0”:OFF, “1”:ON
• SD: [D8, D9, D10] = “000”
• HD: [D8, D9, D10] = “001”
• 3Gb: [D8, D9, D10] = “010”
• 3Ga: [D8, D9, D10] = “011”
• 6Gb: [D8, D9, D10] = “100”
• 6Ga: [D8, D9, D10] = “101”
• 12Gb: [D8, D9, D10] = “110”
• 12Ga: [D8, D9, D10] = “111”
12G-SDI FMC Card
D1
FMC_1p8v
Lit
D2
FMC_3p3v
Lit
D3
FMC_12p0v
Lit
D4
2p5v
Lit
D5
TX0_LOCK
Lit
U1 (LMH1218) lock
D6
TX1_LOCK
Off
D7
TX2_LOCK
Off
D8
TX3_LOCK
Off
D9
RX0_LOCK
Lit
U5 (LMH1219) lock
D10
RX1_LOCK
Off
D11
RX2_LOCK
Off
D12
RX3_LOCK
Off

12G-SDI FMC Card
Getting Started - 12G-SDI FMC Card 15
© Macnica, Inc.
7. Document Revision History
Date
Revision
Changes
February 2, 2017
A
First Edition
October 13, 2017
B
Updated design download URL.

