MadBoy U-REMIX 2 User manual

OWNER’S MANUAL
BLUETOOTH KARAOKE MIXER WITH
WIRELESS MICROPHONES
U-REMIX 2
WWW.MADBOY-AUDIO.COM
ENGLISH
MIC 1 MIC 2
ECHO MIC 1 MIC 2 TONE MUSIC
U-REMIX 2
POWER
RF1 AF1 RF2 AF2

Table of Contents
Safety Instructions .......................................................................................................................
Getting Started
Features ...................................................................................................................................
Connectors ..............................................................................................................................
What’s in the Box .....................................................................................................................
Receiver
Front Panel ..............................................................................................................................
Back Panel ...............................................................................................................................
Wireless Microphone ...................................................................................................................
Connecting the Receiver
Basic Operation Instructions ....................................................................................................
Connecting the AV Source
Connecting the Bluetooth device ...........................................................................................
Connecting the Audio to the Analog RCA Input .....................................................................
Connecting the Audio System and Television ..........................................................................
Basic Connection Example ......................................................................................................
Connecting a Wired Microphone .............................................................................................
Connecting as a Wireless Receiver .........................................................................................
Technical Specifications ..............................................................................................................
3
4
4
5
6
6
7
8
8
8
8
9
9
10
11
WWW.MADBOY-AUDIO.COM
2

WWW.MADBOY-AUDIO.COM
Safety Instructions
3
1. Read instructions: All safety and operating instructions should be read before installation.
2. Keep instructions: Safety and operating instruction should be retained for future reference.
3. Heed warnings: Warnings on the apparatus and in the operating instruction should be adhered to.
4. Follow instructions: All operating instructions should be followed.
5. Accessories: Only use accessories specified by the manufacturer.
6. Water and moisture: Do not use this apparatus near water.
7. Ventilation: Do not block any ventilation openings.
8. Heat: Do not install near heat sources such as radiators or other apparatus that produces heat.
9. Protect power cord: Power cord should be placed so that it is not likely to be walked on or pinched
by items placed upon it. Do not use the apparatus if power cord is damaged.
10. Cleaning: Unplug power cord before cleaning. Do not use liquid cleaners or aerosol cleaners. Use
a damp cloth for cleaning.
11. Nonuse periods: Unplug the power cord if apparatus is left unused for a long period of time.
12. Objects and liquids: Care should be taken so that object do not fall and liquids are not spilled into
the enclosure through the openings.
13. Damage requiring service: The apparatus should be serviced by qualified service personnel
when:
A. Objects has fallen inside enclosure.
B. The apparatus has exposed to rain or moisture.
C. The apparatus has been dropped or enclosure is damaged.
D. The apparatus do not operate normally.
14. Servicing: Refer all servicing to the qualified service personnel.
15. Warranty: Warranty service should be done by qualified service personnel authorized by Madboy
Audio International Oy. Warranty is invalidated if a warranty seal has been altered, removed or
defaced or inadequate repair work performed by end user or any non-authorized repair center.
Warning!
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Getting Started
Features:
ŸBluetooth karaoke mixer with wireless microphones
ŸTwo wireless microphones
ŸBluetooth 4.2 audio interface for streaming music from a mobile device
ŸExternal antennas for extended wireless range
ŸTwo microphone inputs for connecting wired microphones
ŸAnalog RCA input for connecting an audio source
ŸAnalog RCA output for connecting an amplifier or active speakers
ŸVolume control for music
ŸIndividual volume controls for microphones
ŸTone and echo level controls for microphones
ŸSupport for 12V automotive power outlet to use mixer in busses/campers/boats with adapter*
Connectors:
ŸInputs:
§Two unbalanced 1/4" TS jacks (microphones)
§Bluetooth audio input (music)
§RCA stereo input (music)
ŸOutputs:
§RCA stereo output (music + microphones)
§Mono 1/4" TS jack output (music + microphones)
WWW.MADBOY-AUDIO.COM
4
*DC jack (5.5/2.1 mm) to automotive power outlet adapter sold separately

WWW.MADBOY-AUDIO.COM
5
Getting Started
What’s in the Box:
MI C 1 MI C 2
EC HO MIC 1 MIC 2 TONE MU SIC
U-RE MI X 2
PO WER
RF 1 AF1 RF 2 AF2
U-REMIX 2 (1) WIRELESS MICROPHONES (2)
RCA CABLE (2)
UNBALANCED
1/4" TS PLUG CABLE (1)
1/8" TRS PLUG - RCA CABLE (1)
AA BATTERY (4)
POWER ADAPTER (1)
OWNER’S MANUAL
WIREL ESS MI CROPHON E SYSTEM W ITH MIXER
U-REMIX 2
WWW.MADBOY-AUDIO.COM
ENGLISH
MIC 1 MIC 2
ECHO MIC 1 MIC 2 TONE MUSIC
U-REM IX 2
POWER
RF1 AF1 RF2 AF2
OWNER’S MANUAL (1)

Receiver
1 2 3
1. POWER: Press this switch to turn the power ON or OFF.
2. ECHO: For adjusting echo for microphones.
3. MIC 1: For adjusting volume of the microphone 1.
4. STATUS LIGHTS: RF1 light turns on when wireless microphone 1 is connected to the receiver.
AF1 light turns on when audio signal is detected on wireless microphone 1.
5. POWER LIGHT: Indicates that the system is turned on.
6. STATUS LIGHTS: RF2 light turns on when wireless microphone 2 is connected to the receiver.
AF2 light turns on when audio signal is detected on wireless microphone 2.
7. MIC 2: For adjusting volume of the microphone 2.
8. TONE: For adjusting tone for microphones. Turn clockwise to increase treble and decrease bass
frequencies. Turn counterclockwise to increase bass and decrease treble frequencies. Set to
center position for neutral tone.
9. MUSIC: For adjusting volume of the music.
10. MIC 1 / MIC 2: Unbalanced 1/4" microphone input for a wired microphone. Use unbalanced 1/4"
TS plug cable to connect the microphone.
456
MIC 1 MIC 2
ECHO MIC 1 MIC 2 TONE MUSIC
U-REMIX 2
POWER
RF1 AF1 RF2 AF2
78 9 10
WWW.MADBOY-AUDIO.COM
6
LRVIDEO
IN
OUT
MONO OUT
DC 18 V,
500 mA ANT. AANT. B
MODEL: U-REMIX 2
WWW.MADBOY-AUDIO.COM
SERIAL NO.:
POWER
INPUT
12 3 45
1. ANT. B: Antenna for bluetooth and wireless microphone 2.
2. IN / OUT: IN for connecting AV source using RCA cable. OUT for connecting amplifier or active
speakers and TV using RCA cable.
3. MONO OUT: Unbalanced 1/4 TS jack output for audio (music + microphones).
4. POWER INPUT: Connect power adapter here. Can be also powered by automotive power outlet
(cigarette lighter) in busses/boats/campers. DC jack (5.5/2.1 mm) to automotive power outlet
adapter sold separately.
5. ANT. A: Antenna for wireless microphone 1.
Front Panel
Back Panel

WWW.MADBOY-AUDIO.COM
7
1
U-REMIX 2
2
3
4
Functions
1. CAPSULE: Replaceable capsule.
2. POWER INDICATOR: Light blink once when the microphone is turned on. If light turns on during
operation, battery level is low. If battery is low, wireless microphone signal degrades which may cause
dropout or complete signal loss. Please replace with new batteries immediately.
3. SWITCH: Turn the microphone on/off or mute the microphone sound. Please do not leave switch
to mute position for long time to save the battery.
4. BATTERY COVER: Battery compartment for two 1.5 V AA batteries. Remove batteries if the
microphone is not used for long time. Microphone frequency marked on the sticker on the battery
compartment.
Please handle the wireless microphone with care.
Warranty does not cover damage caused by
accidental misuse of the product.
Operation
1. Open battery cover. Install two AA batteries and
close the cover. Pay attention to the correct polarity.
2. Turn on the microphone by sliding power switch to
”ON” position. Power indicator will blink once and
then turns off. This indicates normal operation.
3. Receiver’s RF indicator should turn on now to
indicate connection between the wireless
microphone and receiver.
4. If power indicator light turns on during operation,
battery level is low. Please replace with new
batteries immediately.
5. Turn off the microphone by sliding power switch to
”OFF” position.
Note! Please do not leave the switch to mute position
after you have finished singing. Battery will be drained
empty over time.
Wireless Microphone

Basic operation instructions
1. Connect the receiver to audio/video source, speaker and TV.
2. Connect the power adapter to the receiver and turn on the receiver.
3. Turn on a wireless microphone. RF indicator light on a receiver turns on.
4. Turn on your audio/video source, speaker and TV.
5. Adjust music volume to desired level.
6. Adjust tone, echo and microphone volume to desired level.
7. Now you are ready to sing!
Connecting the Receiver
WWW.MADBOY-AUDIO.COM
8
Connecting the AV Source
You can play music either from RCA input or using Bluetooth mobile device. Audio from RCA input
and Bluetooth audio is mixed together. Stop the playback from analog audio source while you are
using bluetooth audio interface.
Video can be connected from AV source using analog RCA cable (yellow). Video input and output on
the receiver is a passthrough. You can also connect video output of AV source directly to video input of
TV.
Connecting the Bluetooth device
1. Turn on Bluetooth on your mobile device and search for bluetooth devices.
2. Select ”U-REMIX 2" on the bluetooth device list. No password required.
3. Once connected, you can play music on your mobile device.
Connecting the audio to the analog RCA input
You can connect audio to the RCA input connectors on the back panel using RCA cable if your audio
source has RCA output. In case your audio source (Smart-TV, computer) has 1/8" headphone output,
use 1/8" TRS plug - RCA cable to connect the audio to the U-Remix 2.
Connecting the Audio System and Television
You can connect audio to your audio system using RCA output on the back panel. Both RCA output
and mono output have the final mix of music and microphones.
Video can be connected to television using RCA cable (yellow).

WWW.MADBOY-AUDIO.COM
9
V
AUDIO SOURCE
LRVIDEO
IN
OUT
MONO OUT
DC 18 V,
500 mA ANT. AANT. B
MODEL: U-REMIX 2
WWW.MADBOY-AUDIO.COM
SERIAL NO.:
POWER
INPUT
R
L
Connecting the Receiver
V
LRVIDEO
IN
OUT
MONO OUT
DC 18 V,
500 mA ANT. AANT. B
MODEL: U-REMIX 2
WWW.MADBOY-AUDIO.COM
SERIAL NO.:
POWER
INPUT
R
L
R
L
V
AMPLIFIER /
ACTIVE SPEAKERS
TV
UNBALANCED
MICROPHONE CABLE
(XLR FEMALE - 1/4" TS PLUG)
MIC 1 MIC 2
Connecting a Wired Microphone
Wired microphone can be connected to the front panel using unbalanced microphone cable. Both
wired and wireless microphones can be used same time.
sleeve =
ground / shield
tip =
signal
tip
sleeve
Unbalanced
1/4" TS plug
Basic Connection Example

WWW.MADBOY-AUDIO.COM
10
Connecting the Receiver

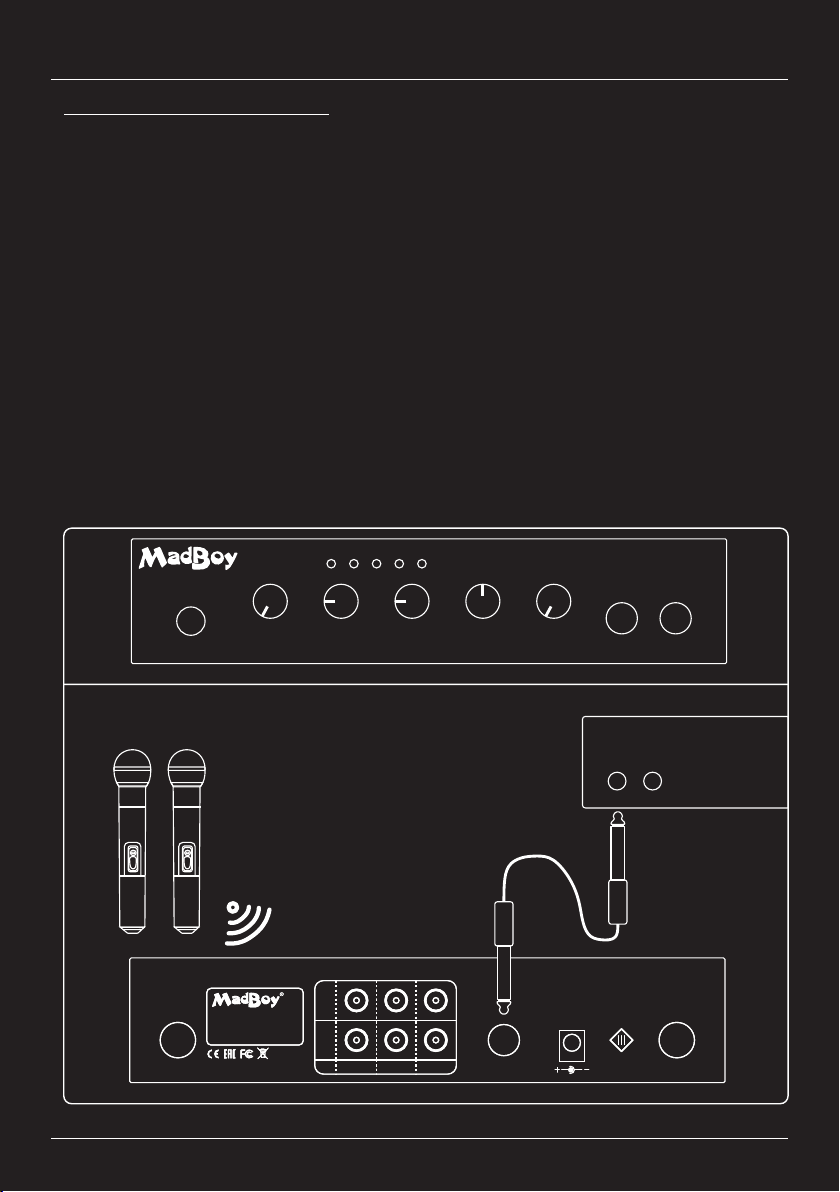

Connecting as a Wireless Receiver
You can also connect U-REMIX 2 to the microphone input of your mixer or mixing amplifier and use U-
REMIX 2 only as a wireless microphone receiver. Follow the instructions below.
Instructions:
1. Turn the power off to the U-REMIX 2 and your mixer or mixing amplifier.
2. Unpair Bluetooth device with your U-REMIX 2 and remove RCA audio cables from the input of U-
REMIX 2.
3. Adjust ECHO and MUSIC to minimum position and TONE to center position on the front panel of
U-REMIX-2. Check the correct positions on the picture below.
4. Set microphone volumes (MIC 1 / MIC 2) to 1/4 position from the maximum level on the front panel
of U-REMIX 2. Do not set volume over the 1/4 position. Too high signal level makes microphone
sound to clip in the input of the mixer or mixing amplifier. Check the correct positions on the picture
below.
5. Connect unbalanced 1/4" plug cable from the mono output of U-REMIX 2 to microphone input of
your mixer or mixing amplifier.
6. Turn the power on to the U-REMIX 2 and your mixer or mixing amplifier.
7. Turn on a wireless microphone and adjust microphone volume, equalizator and effect to desired
level from your mixer or mixing amplifier. If microphone sound is distorted, decrease microphone
volume on the front panel of U-REMIX 2.
LRVIDEO
IN
OUT
MONO OUT
DC 18 V,
500 mA ANT. AANT. B
MODEL: U-REMIX 2
WWW.MADBOY-AUDIO.COM
SERIAL NO.:
POWER
INPUT
LRVIDEO
IN
OUT
MONO OUT
DC 18 V,
500 mA ANT. AANT. B
MODEL: U-REMIX 2
WWW.MADBOY-AUDIO.COM
SERIAL NO.:
POWER
INPUT
MIXER / MIXING AMPLIFIER
MIC 1 MIC 2
MIC 1 MIC 2
ECHO MIC 1 MIC 2 TONE MUSIC
U-REMIX 2
POWER
RF1 AF1 RF2 AF2
