madebyzen GLO EW9630 User manual

GLO

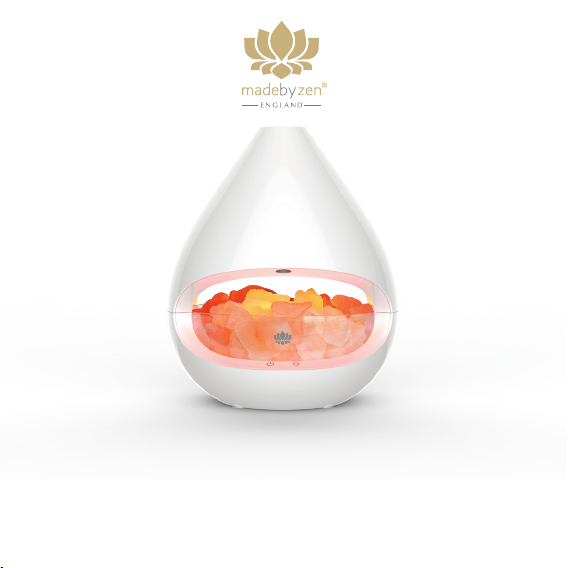

Aroma Diffuser and Himalayan Salt Lamp
Create a relaxing ambience with a warm
crystalline glow and cool scented mist.

Congratulations on purchasing your madebyzen®Glo Aroma Diffuser &
Himalayan Salt Lamp. Please keep this manual to help you get the most
out of your Glo and for maintenance.
TABLE OF CONTENTS:
A. ABOUT THE GLO
B. TECHNICAL SPECIFICATION
C. OPERATING INSTRUCTIONS
D. FEATURES
E. MAINTENANCE
F. TROUBLESHOOTING
G. WARRANTY

ABOUT THE GLO
Enjoy the benefits of aromatherapy, hydration and Himalayan pink salt
therapy with the madebyzen®Glo Aroma Diffuser.
Achieving the perfect balance of aesthetics, simplicity and functionality,
Glo combines aromatherapy with the calming effects of Himalayan pink
salt. It creates an inviting space and a serene atmosphere for relaxing or
socialising.
Traditionally mined from the foothills of the Himalayan mountains, our
authentic salt rocks create a wonderfully soothing pink glow that can
promote deep relaxation and boost your mood.
Using state of the art technology and modern design, Glo will add a
touch of luxury to any home. Adding your favourite fragrance or
essential oil ensures that the humidifying mist is beautifully scented and
completes your relaxation ritual.
A
Himalayan Salts may release
negative ions when warmed by
the bulb which could aid sleep
and relaxation
Suitable for use with any
essential or fragrance oils
(madebyzen®oils
recommended).
Warm ambient lighting with
five light intensity levels to
help you relax
Sleep mode (can be used
without the light feature)

Product name: Glo Aroma Diffuser and Himalayan Salt Lamp
Model No.: EW9630 Input voltage: AC: 100-240V, 50/60Hz DC: 24V
Water tank volume: 160ml Power Rating: 20W
Dimensions: 187x175x219mm Weight (without salt crystals): 2.1KG
Coverage Area: 15㎡Bulb: G4 halogen lamp 24V,10W
AC/DC adaptor: Input 100-240V, 50/60Hz. Output DC24V, 750mA
TECHNICAL SPECIFICATIONS
A. Outer Cover
B. Inner Cover
C. Water Tank
D. Salt Container
E. Bulb
F. Bulb Holder
G. Mist Button
H. Contact Point
I. Light Button
B
A
B
C
D
H
I
E
FG
Accessories Included:
Adaptor
Bulb x2
Measuring cup
Himalayan Salt Crystals

1. Keep the Aroma Diffuser in a clear space to allow the mist to freely spread and
away from appliances especially those sensitive to water to avoid unnecessary
accidents.
2. Place the Aroma Diffuser on a flat surface, at least 60 cm away from the floor and
at least 10 cm away from the wall. DO NOT place the Aroma Diffuser on wooden or
polished furniture that may be damaged by water moisture.
3. Always unplug the Aroma Diffuser from the mains electrical supply when cleaning
or filling with water. Always use the power adaptor supplied. Ensure the cable is
secure to avoid tripping or knocking over the Aroma Diffuser. If the power adaptor
is damaged, it must be replaced with a suitable adaptor provided by the
manufacturer or its agent. Alternatively, a new adaptor can be purchased from your
retailer.
4. Use a suitable measuring cup to fill the water into the water tank. Never attempt
to fill water under a running tap or whilst plugged in. Do not fill the water beyond
the Max water level line. If overfilled, carefully remove the excess water from the
water tank, ensure that water does not enter the air vent hole.
5. The Aroma Diffuser must be kept out of reach from children and pets to avoid
risk of injury. Children should be supervised at all times to ensure they do not play
with the appliance or touch the Himalayan Salt crystals (which may become hot).
6. The Himalayan Salts are not for consumption.
7. The Aroma Diffuser is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
8. The Aroma Diffuser must be cleaned after each use and should always be kept
clean and dry when not in use. Never leave stagnant oil and water in the tank for
prolonged periods.
9. The Himalayan Salt crystals should be removed and stored into a sealed plastic
bag, when not being used for long periods of time. This will prolong the life of the
salt crystals.
IMPORTANT NOTES BEFORE USE: 10. Never attempt to disassemble or repair the product as this may void your
warranty and create a shock hazard. Contact your retailer if your Aroma Diffuser
develops a fault.
11. In case of any abnormal observations such as smoke, peculiar smells or noise,
stop using the device immediately and contact your retailer from where you
purchased the Aroma Diffuser. Never wrap the adaptor or diffuser with cloth or
paper, as blocking the ventilation could increase the fire risk.
12. Always handle the Aroma Diffuser with care - accidental damage is not covered
under the warranty.
13. Always use water at room temperature and only use fresh, clean water from a
reliable source. Do not fill the water tank with other chemicals or liquids other than
water and a few drops of essential or fragrance oils.
14. Always plug the DC jack into the DC socket on the diffuser before plugging the
adaptor into the mains.
15. Do not remove the covers during operation.
16. NEVER touch the ultrasonic ceramic disc while the diffuser is plugged in as this
could cause serious injury.
Do not touch the Himalayan salt crystals during normal operation as they may
become hot.
17. Do not immerse the unit in water or other liquids and do not attempt to clean in
a dishwasher.
18. The Aroma Diffuser needs to be topped up with water to operate. The
Himalayan Salt Lamp can be used independently to the aroma diffuser.
19. DO NOT touch the bulb or central part of the unit when the unit is powered or
when the lamp is still hot.
20. Unplug adaptor when you replace the bulb. Keep your hands clean and dry
when you replace the bulb. Make sure bulb is clean after it is installed.
21. Keep water away from the Contact Point. If any water accidentally spills onto the
Contact Point, carefully remove with a dry tissue.

1. Keep the Aroma Diffuser in a clear space to allow the mist to freely spread and
away from appliances especially those sensitive to water to avoid unnecessary
accidents.
2. Place the Aroma Diffuser on a flat surface, at least 60 cm away from the floor and
at least 10 cm away from the wall. DO NOT place the Aroma Diffuser on wooden or
polished furniture that may be damaged by water moisture.
3. Always unplug the Aroma Diffuser from the mains electrical supply when cleaning
or filling with water. Always use the power adaptor supplied. Ensure the cable is
secure to avoid tripping or knocking over the Aroma Diffuser. If the power adaptor
is damaged, it must be replaced with a suitable adaptor provided by the
manufacturer or its agent. Alternatively, a new adaptor can be purchased from your
retailer.
4. Use a suitable measuring cup to fill the water into the water tank. Never attempt
to fill water under a running tap or whilst plugged in. Do not fill the water beyond
the Max water level line. If overfilled, carefully remove the excess water from the
water tank, ensure that water does not enter the air vent hole.
5. The Aroma Diffuser must be kept out of reach from children and pets to avoid
risk of injury. Children should be supervised at all times to ensure they do not play
with the appliance or touch the Himalayan Salt crystals (which may become hot).
6. The Himalayan Salts are not for consumption.
7. The Aroma Diffuser is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
8. The Aroma Diffuser must be cleaned after each use and should always be kept
clean and dry when not in use. Never leave stagnant oil and water in the tank for
prolonged periods.
9. The Himalayan Salt crystals should be removed and stored into a sealed plastic
bag, when not being used for long periods of time. This will prolong the life of the
salt crystals.
10. Never attempt to disassemble or repair the product as this may void your
warranty and create a shock hazard. Contact your retailer if your Aroma Diffuser
develops a fault.
11. In case of any abnormal observations such as smoke, peculiar smells or noise,
stop using the device immediately and contact your retailer from where you
purchased the Aroma Diffuser. Never wrap the adaptor or diffuser with cloth or
paper, as blocking the ventilation could increase the fire risk.
12. Always handle the Aroma Diffuser with care - accidental damage is not covered
under the warranty.
13. Always use water at room temperature and only use fresh, clean water from a
reliable source. Do not fill the water tank with other chemicals or liquids other than
water and a few drops of essential or fragrance oils.
14. Always plug the DC jack into the DC socket on the diffuser before plugging the
adaptor into the mains.
15. Do not remove the covers during operation.
16. NEVER touch the ultrasonic ceramic disc while the diffuser is plugged in as this
could cause serious injury.
Do not touch the Himalayan salt crystals during normal operation as they may
become hot.
17. Do not immerse the unit in water or other liquids and do not attempt to clean in
a dishwasher.
18. The Aroma Diffuser needs to be topped up with water to operate. The
Himalayan Salt Lamp can be used independently to the aroma diffuser.
19. DO NOT touch the bulb or central part of the unit when the unit is powered or
when the lamp is still hot.
20. Unplug adaptor when you replace the bulb. Keep your hands clean and dry
when you replace the bulb. Make sure bulb is clean after it is installed.
21. Keep water away from the Contact Point. If any water accidentally spills onto the
Contact Point, carefully remove with a dry tissue.

3. Place the salt crystals provided
into the Salt Container and then
replace the Water Tank, Inner
Cover & Outer Cover.
4. When Replacing the Outer Cover,
ensure that you position in the
correct direction. The “MAX” mark
inside the water tank should be to the
rear of the diffuser and ensure the
Contact Point is securely connected.
OPERATING INSTRUCTIONS
Setting Up Your Diffuser
2. Plug bulb pins into the small holes
on bulb base (ether way round). Then
replace the Salt Container.
1. Take off the Outer Cover, Inner
Cover, Water Tank & Salt
Container and install the bulb.
C
“MAX” Mark

3. Using a suitable measuring cup,
add water into the Water Tank.
DO NOT fill the water beyond the
MAX level mark. The diffuser will
not work if filled beyond the MAX
level mark.
4. Then add 3-5 drops of your
favourite fragrance or essential oil
(madebyzen®oils recommended).
OPERATING INSTRUCTIONS
Using Your Diffuser
2. Remove the Inner Cover
1. Remove the Outer Cover
C

7. Connect the DC jack into the
diffuser then plug the adaptor
to the mains power supply
8. Switch the unit on (see
Settings on next page)
6. Replace the Outer Cover
5. Replace the Inner Cover

SETTINGS
Your Glo Diffuser comes with touch sensitive switches for ease of use:
You will hear a soft beep each time the button is pressed.
Aroma Diffuser:
Power : Touch the button once to turn on the Aroma Diffuser.
Touch the for the second time to switch off the Aroma Diffuser.
Himalayan Salt Lamp:
Light : The Himalayan salt lamp operates independently to the
Aroma Diffuser function.
There are 5 levels of light intensity at each touch.
Touch the button repeatedly to increase the lamp intensity of the
Himalayan salt lamp.
The sixth touch of the button will switch off the Himalayan Salt
Lamp.
You will hear a soft beep each time the button is pressed.
NOTE: The Aroma Diffuser will switch off automatically when the water
level runs low (indicated by a soft beep). However, the Himalayan salt
lamp needs to be turned off manually, by pressing the six times.

The Glo Aroma Diffuser provides a revolutionary way to fragrance
your surroundings. It works by creating high frequency vibrations that
breaks down the water and oil into minute particles, which are then
effectively diffused into the immediate surroundings.
The Himalayan Salt Lamp uses a low energy halogen bulb to create a
warm glow to the salt crystals, creating a relaxing ambience to your
living space. Small amounts of minerals contained within the salt gives
it its pink colour, often described as natural ionisers.
• Aroma Diffuser
• Mini Humidifier
• Himalayan Salt Lamp
• Quiet operation
• Auto shut-off when water runs low, for additional safety
(aroma diffuser only)
• Easy to clean and use.
FEATURESD

MAINTENANCE
1. Switch off the Aroma Diffuser & Himalayan Salt Lamp.
2. Remove the inner and outer Covers and empty the water tank away
from the air vent.
3. Wipe clean with a soft, damp cloth to remove any remaining oil film
from the water tank.
4. Use a cotton bud to wipe the ceramic disc for stubborn oil build up (use
sanitary alcohol on a cotton bud if required).
Caution: Always switch off the Aroma Diffuser and disconnect the power
source from electrical outlet before cleaning.
Always keep your Aroma Diffuser clean and dry when not in use. Never
leave stagnant oil and water inside the water tank for prolonged periods.
If the aroma diffuser stops generating mist (or generates little mist), clean
the ceramic disc as indicated above.
Accidental Leakage: In the event of the diffuser being knocked over
during use, please follow the steps below to avoid malfunction:
• Unplug the Unit from the mains and remove the inner and outer covers.
• Pour out any remaining water from the water tank.
• Shake the diffuser gently to drain any water from inside, then allow 24
hours for the diffuser to dry thoroughly in a well-ventilated area.
E

1. Turn the Aroma Diffuser off and
unplug the unit from the electrical
outlet. Then lift off the outer cover,
inner cover and water tank.
IMPORTANT INSTRUCTIONS RECOMMENDED AFTER EACH USE:
2. Drain and rinse the water tank
(away from the vent hole) and
clean thoroughly to remove any
sediment and dirt. Wipe clean
and dry with a clean soft cloth or
clean tissue.

Problem
No Mist or
mist
volume
significantly
reduced.
Unit will
not switch
on
Possible Cause
Contact Points not making
contact.
Water is lower than the
water level sensor.
Water is exceeding the
Max water level line.
There may be a build-up of
oil on the ceramic disc.
Mist outlet is blocked.
Water may have entered to
the internal structure.
Power supply is not
connected.
The power cable may not
be connected properly.
Solution
Align the water tank correctly to the Contact Point
and check there is no water on the contacts.
Refill the tank with ordinary tap water. Take care
not to fill past the Max water level line.
Carefully pour out excess water from the tank,
away from the air outlet.
Clean the ceramic disc with water and a clean cloth.
Clean the mist outlet by thoroughly cleaning the
inside of the cover with clean water.
Follow the instruction for ‘Accidental Leakage’
above.
Plug in the power adaptor and DC Jack and press
the on/off button.
Disconnect the cable and try connecting properly.
TROUBLESHOOTING
F
The cover is not positioned
correctly.
Water moisture has built
up inside the cover.
The unit has been tipped
or knocked over.
The temperature is low or
there is high humidity.
The light is intermittent.
The light does
not come on.
Remove the cover and replace correctly to allow
the mist to flow correctly.
Remove the cover and dry off excess water from
the inside of the cover.
Follow the ‘accidental leakage’ instructions.
Under these conditions the mist can sometimes
condense into water droplets.
Disconnect and reconnect the adaptor.
Re-install the bulb. Replace the bulb.
Remove and re-install bulb.
If the problem persists, replace the bulb.

Possible Cause
Contact Points not making
contact.
Water is lower than the
water level sensor.
Water is exceeding the
Max water level line.
There may be a build-up of
oil on the ceramic disc.
Mist outlet is blocked.
Water may have entered to
the internal structure.
Power supply is not
connected.
The power cable may not
be connected properly.
Solution
Align the water tank correctly to the Contact Point
and check there is no water on the contacts.
Refill the tank with ordinary tap water. Take care
not to fill past the Max water level line.
Carefully pour out excess water from the tank,
away from the air outlet.
Clean the ceramic disc with water and a clean cloth.
Clean the mist outlet by thoroughly cleaning the
inside of the cover with clean water.
Follow the instruction for ‘Accidental Leakage’
above.
Plug in the power adaptor and DC Jack and press
the on/off button.
Disconnect the cable and try connecting properly.
The intensity and amount of mist may vary, but this is not unusual and should
not be considered as a fault. Factors that may affect this include water type,
humidity, temperature, air currents etc.
TROUBLESHOOTING
F
Water is
leaking
from the
unit
No light
The cover is not positioned
correctly.
Water moisture has built
up inside the cover.
The unit has been tipped
or knocked over.
The temperature is low or
there is high humidity.
The light is intermittent.
The light does
not come on.
Remove the cover and replace correctly to allow
the mist to flow correctly.
Remove the cover and dry off excess water from
the inside of the cover.
Follow the ‘accidental leakage’ instructions.
Under these conditions the mist can sometimes
condense into water droplets.
Disconnect and reconnect the adaptor.
Re-install the bulb. Replace the bulb.
Remove and re-install bulb.
If the problem persists, replace the bulb.

IMPORTANT!
madebyzen® Ultrasonic Aroma Diffusers comply with the WEEE
Directive (Waste from Electrical and Electronic Equipment
Directive) 2012/19/EU.
This product carries a 12 month warranty for proper use in accordance with
this manual against any manufacturing defects. Accidental damage is not
covered under the warranty.
The warranty period is 12 months from the date of purchase. In case of any
problems arising during the warranty period, please contact your retailer for
maintenance or claims.
Proof of purchase will be required, so it is vital that you keep your receipt of
purchase safely with this manual.
Corrosive oils such as Citronella may cause damage to the unit if left in the
water reservoir. This type of damage is not covered under the warranty.
This Aroma Diffuser must be cleaned after each use.
WARRANTY
G
When the Glo Aroma Diffuser reaches the end of its working life, it should
not be disposed of in the normal waste stream, but at an appropriate
collection point for the recycling of electrical products.
Caring for our planet is important to us, so please help us by disposing of Glo
correctly. Thank you.
