madebyzen Nomad User manual

NOMAD
Rechargeable Aroma Diffuser with
a soft ambient light band

Congratulations on purchasing your MADE BY ZEN®Nomad Aroma
Diffuser. Please keep this manual to help you get the most out of your
Nomad and for maintenance.
TABLE OF CONTENTS:
A. ABOUT THE NOMAD
B. TECHNICAL SPECIFICATION
C. OPERATING INSTRUCTIONS
D. FEATURES
E. MAINTENANCE
F. TROUBLESHOOTING
G. WARRANTY

A - ABOUT THE NOMAD
Slim, sleek, and powerful, the Nomad Aroma Diffuser releases a soothing
aromatherapy mist to instantly scent your surroundings. Super versatile,
simply charge, twist and move the Nomad to any room to give a boost of
fragrance and serenity. Rechargeable for up to 4+ hours, the Nomad is perfect
for your desk, bedside table, soothing bath time, placed next to your workout
space or even on the go in your car.
Thank you for purchasing the MADE BY ZEN® Nomad Aroma Diffuser.
Rechargeable
Compact size, ideal for travel, gym, office, home or car
Ambient light band
Intelligent memory: during operation simply twist and top up with
your favourite oils in under a minute and the Nomad will intelligently
return to its previous setting
Suitable for use with any essential or fragrance oils (MADE BY ZEN®
oils recommended)

Model Name: Nomad Aroma Diffuser
Model No: EWX148
Product Size: Φ70 x 155.5mm
Voltage: DC 5V (3.7V Lithium Ion Battery)
Power: 10W
Adaptor: 5V/2A USB
Water Capacity: 50ml
Run Time: 3.5hours
B - TECHNICAL SPECIFICATIONS
01. Mist Outlet
02. Cover
03. Water Tank
04. Air Inlet
05. Power Button
06. Indication Light
07. USB Type C socket
08. Intelligent Sensors
09. Max Water level line
10. Drainage Direction
11. Ceramic Disc
12. USB cable
13. USB adaptor (not included,
can be purchased separately)
1
2
3
4
5
6
7
8
9
10
Inside of
Cover
11
12 13

IMPORTANT NOTES BEFORE
The Aroma Diffuser MUST be cleaned before and after each use. When stored the unit
should always be kept clean and dry. NEVER leave stagnant oil and water in the water
tank for any prolonged period.
Whilst using your diffuser, you MUST clean the water tank every 3 days:
Micro-organisms that may be present in the water or in the environment
where the appliance is used or stored, can develop in the water
reservoir, and expelled into the air when next used causing very serious
health risks. To prevent this the water tank MUST be cleaned properly
every 3 days.
Der Aromadiffuser MUSS vor und nach jeder Verwendung gereinigt werden. Das Gerät
sollte immer in einem sauberen und trockenen Zustand gelagert werden. Lassen Sie NIE
über einen längeren Zeitraum Öl und Wasser im Wassertank stehen.
Während der Verwendung Ihres Diffusers MÜSSEN Sie den Wassertank alle drei Tagen
reinigen: Eventuell im Wasser oder der Umgebung, in der das Gerät verwendet
bzw. gelagert wird, vorhandene Mikroorganismen können sich im
Wassertank weiterentwickeln, bei der nächsten Verwendung in die Luft
austreten und somit äußerst ernsthafte Gesundheitsrisiken hervorrufen.
Zur Vermeidung dessen MUSS der Wassertank alle drei Tage ordentlich
gereinigt werden.

1. The Nomad must always be used with the USB cable provided (as other USB cables are not
compatible with this product). Insert only into a 5V/2A power source. You can also use the cable
provided with a 5V/2A USB adaptor, which can be purchased separately.
2. The Nomad Ultrasonic Diffuser is not suitable to be charged in a vehicle. Please note the
Nomad operates with a 3.7V lithium ion rechargeable battery, many vehicle operate at 12V,
which will damage the diffuser.
3. Place the Aroma Diffuser on a flat surface, at least 60cm away from the floor and at least 10cm
away from the wall. DO NOT place the Aroma Diffuser on wooden or polished furniture that
may be damaged by water moisture.
4. Always unplug the Aroma Diffuser from the electrical supply when cleaning or filling with
water. Always use the power adaptor supplied. Ensure the cable is secure to avoid tripping or
knocking over the Aroma Diffuser. If the power adaptor is damaged, it must be replaced with a
suitable adaptor provided by the manufacturer or its agent. Alternatively, a new adaptor can be
purchased from your retailer.
5. Use a suitable measuring cup to fill the water into the water tank. Never attempt to fill water
under a running tap or whilst plugged in. Do not fill the water beyond the max water level line.
If overfilled, carefully remove the excess water from the tank in the ‘drainage direction’ as shown
by the arrow and away from the vent hole.
6. The Aroma Diffuser must be kept out of reach from children and pets to avoid risk of injury.
Children should be supervised at all times to ensure they do not play with the appliance.
7. The Aroma Diffuser is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person responsible
for their safety.
8. Keep the Aroma Diffuser in a clear space to allow the mist to freely spread and away from
appliances especially those sensitive to water to avoid unnecessary accidents.
9. The Aroma Diffuser must be cleaned after each use and should always be kept clean and dry
when not in use. Never leave stagnant oil and water in the water tank for prolonged periods.

10. Never attempt to disassemble your Aroma Diffuser or repair the product, as this will void
your warranty and create a shock hazard. Contact your retailer if an internal inspection is
required.
11. In case of abnormal observations such as smoke, peculiar smells or noise, stop using the
Aroma Diffuser immediately and contact the retailer from where you purchased it. Never wrap
the aroma diffuser or adaptor with cloth or paper as blocking ventilation could increase the risk
of fire.
12. Always handle the Aroma Diffuser with care – accidental damage is not covered under the
warranty.
13. Always use water at room temperature and use only fresh, clean water from a reliable
source. Do not fill the water tank with other chemicals or liquids other than water and a few
drops of fragrance or essential oils.
14. Never touch the water within the water tank when the diffuser is in operation as the water
may become warm. It is perfectly normal for the water temperature to increase over time.
Especially if it has been running for a few hours. This is caused by the energy created from the
vibrating disc. The water should not exceed 40°c but for some models it can increase to 50°c
(+/- 5°c). However, as the mist dissipates from the mist outlet, the water temperature cools
rapidly due to the large surface area of each droplet, hence the mist is referred to as a ‘cool
mist’.
15. Always plug the adaptor into the DC jack before plugging into the mains.
16. NEVER touch the ultrasonic ceramic disc while the diffuser is plugged in as this could cause
serious injury.
17. Do not touch, plug or unplug the aroma diffuser with wet hands.
18. Do not immerse the unit in water or other liquids and do not attempt to clean in a
dishwasher.
19. Keep away from open flames, extended exposure may create risk of explosion. Store at
room temperature.
20. Always check with your airline before travelling with Nomad on an aircraft.

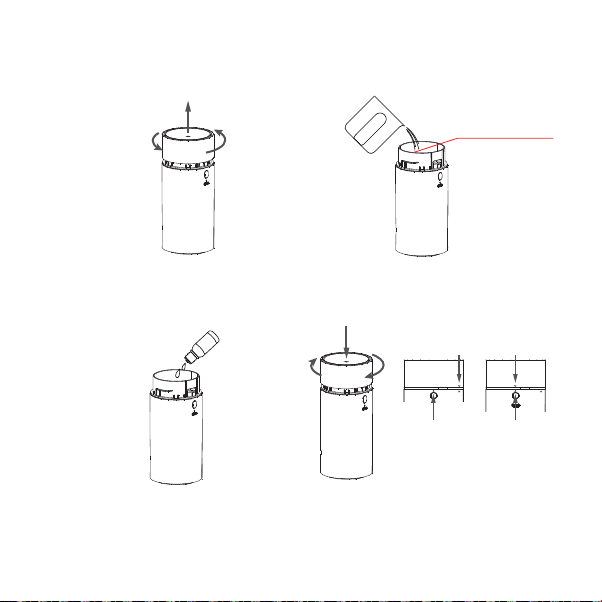

3. Add 3-5 drops of your favourite
Fragrance or Essential Oil into the
water (MADE BY ZEN®oils
recommended).
4. Replace the cover by twisting
clockwise (to the left) to secure the lid
in place.
2. Add water to the water tank with a
suitable measuring cup until the
water reaches the max. water level
line.
1. Place the diffuser on a firm and flat
surface, in upright direction. Twist
the cover anti-clockwise (to the right)
to remove.
C - OPERATING INSTRUCTIONS
DO NOT EXCEED
MAX WATER LINE
When locked the arrow
and pad lock icons
will line up as shown in
the second image
UNLOCKED LOCKED

> Press once the ambient light will switch on and the diffuser will begin to
mist. When the water level runs low the Nomad will switch off automatically.
> Press twice the ambient light will switch off but the diffuser will continue
to mist. When the water level runs low the Nomad will switch off
automatically.
> Press three times to turn off the mist function.
Intelligent memory function
The Nomad will automatically shut off if the cover is removed during
operation, if replaced within 1 minute the Nomad will continue to operate
at its previous setting.
NOTE: At any point, hold and press the power button for 2 seconds to turn
the Nomad off.
BUTTON FUNCTIONS

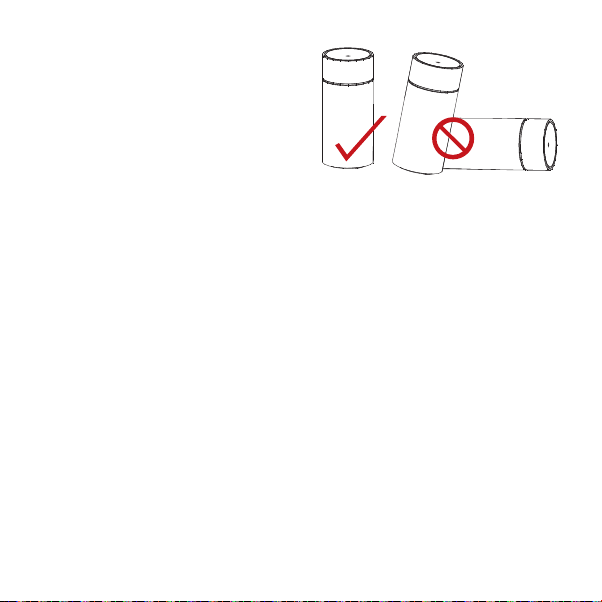

Note: Do not lean or move or attempt
to empty or refill the diffuser during
operation. Always use in an upright
position, never place the diffuser
down horizontally when in use or
when the water tank contains liquid.

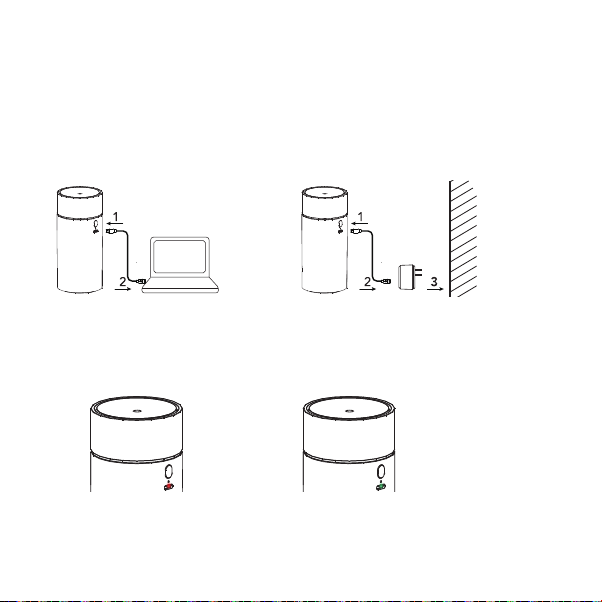

CHARGING
The indication light will flash red to indicate the unit needs to be charged.
3. The indication light will turn green
to indicate the unit is fully charged
(time to fully charge approx. 3.5 hours)
2. Once connected properly
the indication light will
turn red to indicate that the
unit is being charged.
Note: The Nomad operates most efficiently with a 5V/2A cable/adaptor.
The Nomad can be used with a 5V/1A cable/adaptor but this will increase
the charge time.
1. Plug the cable into the DC Jack before connecting to the USB power
point or 5V/2A adaptor (not included).

The Nomad Ultrasonic Aroma Diffuser provides a revolutionary way to
fragrance your surroundings. It works by creating high frequency
vibrations that breaks down the water and oil into minute particles which
are then effectively diffused into the immediate surroundings.
- Rechargeable, compact, on the go solution
- Aroma Diffuser: Can be used with ambient lighting or without the light,
ideal for night time use
- Intelligent memory: During operation simply twist and top up with your
favourite oils in under a minute and the Nomad will intelligently return to
its previous setting.
- Mini humidifier
- Quiet operation
- Auto-shut off when water runs out for an additional safety
- Easy to clean and use
D - FEATURES

3. Use a clean swab or cloth to clean
the unit. Please ensure no dust or dirt
is obstructing the air inlet on the base
of the unit.
2. Empty water via the water
drainage side, opposite the air inlet.
1. Twist the cover anti-clockwise
(to the right) to remove.
E - MAINTENANCE
Please ensure the unit is switched off and not connected to the power source.
DO NOT EMPTY WATER
FROM THE SIDE OF THE
AIR INLET AS WATER
MAY ENTER INTO THE UNIT.

Caution: Always switch off the unit and disconnect the cable from the power
source before cleaning.
Always keep your Aroma Diffuser clean and dry when not in use.
Never leave stagnant oil and water inside the tank for prolonged periods. If the
aroma diffuser stops generating mist (or generates little mist), clean the
ceramic disc as indicated above. For stubborn oil build up, use sanitary alcohol
on a cotton bud if required.
For stubborn oil build up, use sanitary alcohol on a cotton bud if required.
If the Aroma Diffuser does not generate mist (or generates little mist), clean the
ceramic disc.
When cleaning, always take extra care to ensure water does not enter DC Jack
power port. Allow the unit to dry thoroughly as advised below if water
accidentally enters the electrical port.
Accidental Leakage: In the event of the aroma diffuser being knocked over
during use, please follow the steps below to avoid malfunction.
• Unplug the diffuser from the mains and remove the cover carefully.
• Pour out any remaining water from the tank.
• Shake the diffuser gently to drain any water from inside, then leave for 24
hours for the diffuser to dry thoroughly in a well-ventilated area.

The intensity and amount of mist may vary, but this is not unusual and should not be considered
as a fault. Factors that may affect this include water type, humidity, temperature, air currents etc.
Problem
When switched on
the unit powers off
No mist or mist
volume significantly
reduced
Unit will not switch
on
Water is leaking
from the unit
Possible Cause
The unit will not work without
water
Water is lower than the water
level sensor.
Water is exceeding the max
water level line.
There may be a build-up of oil
on the ceramic disc.
Mist outlet is blocked.
There is insufficient water in the
reservoir.
The units charging (indicator
light will flash red)
The power cable may not be
connected properly.
Water may have entered the
internal structure.
The cover is not positioned
correctly.
The unit has been tipped or
knocked over.
The temperature is low and/or
there is high humidity.
Solution
Fill the water tank with ordinary tap water. Take care
not to fill past the max water level line.
Refill the water tank with ordinary tap water. Take care
not to fill past the max water level line.
Carefully pour out excess water in the direction of the
Water Discharge Indicator arrow, away from the vent
hole.
Clean the ceramic disc with water and a clean cloth.
Clean the mist outlet by thoroughly cleaning the inside
of the cover with clean water.
Carefully fill the reservoir with water to the Max Water
Level. Do not overfill.
Plug the USB cable into a 5V/2A power source to
charge the unit, using the cable provided. A red light
will indicate that the unit is charging.
Disconnect the cable and try connecting properly. A
red light will indicate that the unit is charging.
Follow the instructions for ‘Accidental Leakage’ above
and try to operate the unit again.
Remove the cover and replace correctly, allowing the
mist to release correctly.
Follow the instructions for ‘Accidental Leakage’ above
and try to operate the unit again.
Under these conditions, mist can sometimes condense
into water droplets.
F - TROUBLESHOOTING

IMPORTANT!
MADE BY ZEN®Ultrasonic Aroma Diffusers comply with the WEEE
Directive (Waste from Electrical and Electronic Equipment
Directive) 2012/19/EU.
When the Nomad Aroma Diffuser reaches the end of its working life, it
should not be disposed of in the normal waste stream, but at an appropriate
collection point for the recycling of electrical products.
Caring for our planet is important to us, so please help us by disposing of
Nomad correctly. Thank you.
This product carries a 12-month warranty for proper use in accordance with
this manual against any manufacturing defects. Accidental damage is not
covered under the warranty.
The warranty period is 12 months from the date of purchase. In case of any
problems arising during the warranty period, please contact your retailer for
maintenance or claims. Proof of purchase will be required, so it is vital that
you keep your receipt of purchase with this safety manual.
Corrosive oils such as Citronella may cause damage to the unit if left in the
water tank. This type of damage is not covered under the warranty. This
Aroma Diffuser must be cleaned after each use.
G - WARRANTY

MADEBYZEN.COM
