Magicfx CO2JET II User manual

PRODUCT CODE : MFX1101
VERSION : 1.0
DATE : 14.12.2012

User documentation MAGICFX® CO2 Jet
Page 1
1. CONGRATULATIONS!
You have bought a great new product from MAGICFX®.
MAGIC FX is a Dutch manufacturer of professional special effects machines and equipment. We have
been experts in special effects since our establishment in 1995. All our products are made under the
brand name MAGICFX® which by now has acquired a great reputation on account of its quality and
reliability. All products are made in accordance with the European Machinery Directive. MAGIC FX
manages the entire production process in-house, from the design stages and prototyping to
production. In short, we cover everything from concept to ready-to-use product.
Moreover, MAGIC FX is Europe's largest supplier of high-quality and fireproof confetti products and
streamers. Thanks to our very large stock levels, we can deliver quickly and at low prices.
MAGICFX® is used by special effects professionals all over the world and our products are distributed
through a dealer network which covers more than 80 countries.
Congratulations and enjoy your purchase!

Version 1.0
Page 2
2. CE MARKING
PLEASE NOTE:
We presume that you, your employees and others who use or come
into contact with the machine are familiar with how the machine must
be dealt with. This includes the correct use, maintenance and repair of
the machine as described in this user manual. This also means that the
employees are familiar with the use of machines through training or
experience.
DANGER WARNING:
Only use the CO2 Jet in accordance with the regulations and
instructions in this manual. Consult MAGIC FX in case of doubt.
Disclaimers:
MAGIC FX B.V. excludes liability for unsafe situations, accidents and damage that are the result of:
- Disregard for the warnings or regulations as set out on the CO2 Jet or in this documentation.
- Use for other purposes or under other circumstances than those set out in this documentation.
- Alterations to the CO2 Jet. This also includes the use of replacement parts other than the original
ones.
- Insufficient maintenance.
- Unauthorised removal of safety caps and/or safeguards.
- Incompetent operation of the machine.
MAGIC FX B.V. is not liable for any consequential loss in the event of a CO2 Jet breakdown.
© Copyright 2012
All rights are reserved. Nothing from this manual may be duplicated, or kept in an automated data file,
or made public, or in any form or manner, whether electronically, mechanically, by photocopying, by
incorporation, or in any other manner duplicated without the permission of MAGIC FX B.V.
MAGIC FX at all times retains the right to make alterations without the direct knowledge of the client.
The contents of this user manual can also be changed.
Please contact the technical department of your supplier for extra information with regard to, for
example, maintenance and repair. This user manual has been drawn up with the utmost care. MAGIC
FX cannot be held responsible for any mistakes made in this publication or for any consequences
thereof.

User documentation MAGICFX® CO2 Jet
Page 3
3. DECLARATION OF CONFORMITY
DECLARATION OF CONFORMITY
(according to Annex II.1.A of the Machinery Directive)
Concerning the Machinery Directive.
We; MAGIC FX B.V.
Schouwrooij 27
5281 RE Boxtel
The Netherlands
State under personal responsibility:
We are the manufacturer of the product:
MFX1101 - MAGICFX®CO2 Jet
to which this statement relates and which is in accordance with the provisions of the following
Directive(s):
- Machinery Directive 2006/42/EC
- Low Voltage Directive 2006/95/EC
- EMC Directive 2004/108/EG
- Pressure Equipment Directive 97/23/EC
The following harmonising standards have been applied:
- NEN-EN-ISO 12100
- NEN-EN-ISO 60204-1
Place : Boxtel
Date : 18-10-2012
Name: MAGIC FX
Director: B. Veroude

Version 1.0
Page 4
4. FOREWORD
This manual describes the MAGICFX® CO2 Jet. The information in this manual is important for the
proper and safe functioning of the CO2 Jet. If you are not familiar with the installation, operation,
preventative maintenance etc. of the CO2 Jet then please read this user manual carefully from
beginning to end. MAGIC FX also insists that all new users (operators, installers, maintenance
workers and cleaners) receive a training course in which this user manual can serve as a starting
point.
MAGIC FX advises that the original of this user manual, including appendices, is kept at a safe and
central place. It is best that another original or copy is kept close to the CO2 Jet at the workplace.
If you are familiar with these matters, then you can use this manual as a work of reference.
The following standard markings are used in this manual for drawing attention to certain subjects or
actions.
TIP:
Gives you suggestions and advice regarding easier or more
convenient ways to carry out certain tasks.
PLEASE NOTE:
A comment with additional information: alerts you to certain problems.
CAUTION:
The machine can be damaged if you do not follow the procedures
carefully.
DANGER WARNING:
You can get (seriously) hurt if you do not carefully carry out the
procedures.

User documentation MAGICFX® CO2 Jet
Page 5
CONTENTS
1. CONGRATULATIONS!.................................................................................... 1
2. CE MARKING................................................................................................... 2
3. DECLARATION OF CONFORMITY................................................................. 3
4. FOREWORD .................................................................................................... 4
5. INTRODUCTION .............................................................................................. 6
5.1 DESCRIPTION AND APPLICATION OF THE CO2 JET ....................................................... 6
5.2 NECESSARY ACCESSORIES............................................................................................... 6
6. SAFETY ........................................................................................................... 7
6.1 INTRODUCTION..................................................................................................................... 7
6.2 GENERAL SAFETY RULES................................................................................................... 7
6.3 WARNINGS............................................................................................................................. 7
7. PARTS ............................................................................................................. 9
8. ACCESSORIES.............................................................................................. 10
9. PREPARATIONS ........................................................................................... 10
10. INSTALLATION ............................................................................................. 11
11. USAGE........................................................................................................... 14
12. SWITCHING OFF........................................................................................... 15
13. TROUBLESHOOTING ................................................................................... 16
14. TECHNISCHE SPECIFICATIES .................................................................... 16
15. MAINTENANCE ............................................................................................. 16
16. GUARANTEE................................................................................................. 16
17. NOTES ........................................................................................................... 17

Version 1.0
Page 6
5. INTRODUCTION
5.1 DESCRIPTION AND APPLICATION OF THE CO2 JET
The CO2 Jet is intended to electronically blow white smoke plumes of CO2from a distance. As soon
as the CO2 leaves the cylinder through the CO2 Jet’s secured high-pressure hoses, it converts into
gas. This formation of gas is accompanied by a strong hissing sound and a solid white plume of
smoke will be visible. The length of this plume is on average 8 metres. This depends on the air
humidity: in case of a high degree of air humidity, the smoke plume will be larger and in case of a low
degree of air humidity it will be smaller.
The CO2 Jet must be connected to a carbon dioxide (CO2) bottle with dip pipe.
The CO2 Jet is not suitable for other gases than those described above.
Any use other than that described above will exclude your supplier from any liability.

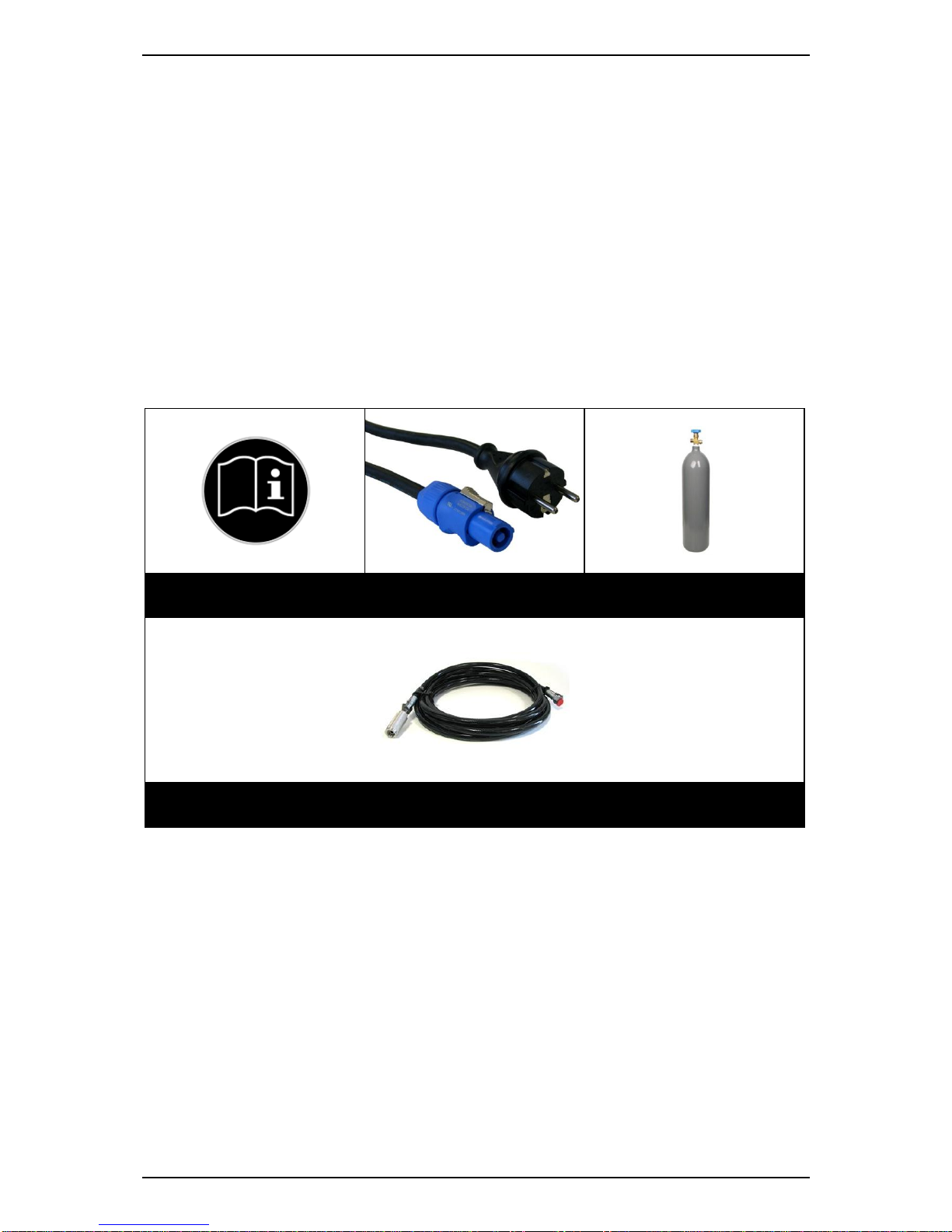

5.2 NECESSARY ACCESSORIES
The following parts belong to the CO2 Jet:
Table 5.1
Manual
MFX0308 –Shuko –powerCON
cable 1.5m
CO2Bottle (with dip pipe)
High pressure hose 3/8

User documentation MAGICFX® CO2 Jet
Page 7
6. SAFETY
6.1 INTRODUCTION
The CO2 Jet has been designed and constructed in such a manner that it can be used safely. This
applies to the use, the circumstances and the regulations as described in this documentation. Reading
this documentation and following the instructions are therefore necessary for everyone who is
authorised to work with the CO2 Jet.
The CO2 Jet must be placed and used in surroundings that preferably:
- Have a reasonably stable temperature of between 0 and 30ºC.
- Have a relative humidity degree of no more than 75%.
- Are reasonably free of dust, corrosive gases and high concentrations of organic vapours.
- Are not situated in the vicinity of a source of vibration.
6.2 GENERAL SAFETY RULES
-Only use the CO2 Jet if there are no people, animals or other objects in the direction of the output
within the output distance. The shooting direction is the direction in which the output pipe on the
CO2 Jet is pointed. The output distance depends on the humidity in the air.
- Make sure that children, unauthorised people and animals do not obtain access to the CO2 Jet!
- Safety devices may not be removed or disabled.
- All required safety devices must be in good condition and function properly.
- Ensure sufficient lighting of the surroundings.
- Keep the workplace clean.
- Only authorised persons may carry out work with the CO2 Jet.
-
6.3 WARNINGS
Warning texts have been attached to the CO2 Jet. With regard to these the following rules apply:
- These texts may not be removed or damaged. The operator must regularly check if this is the
case.
- The operator must ensure that the texts are and remain clearly visible and legible.
DANGER WARNING:
One must replace texts or signs if these are absent, damaged or
illegible.

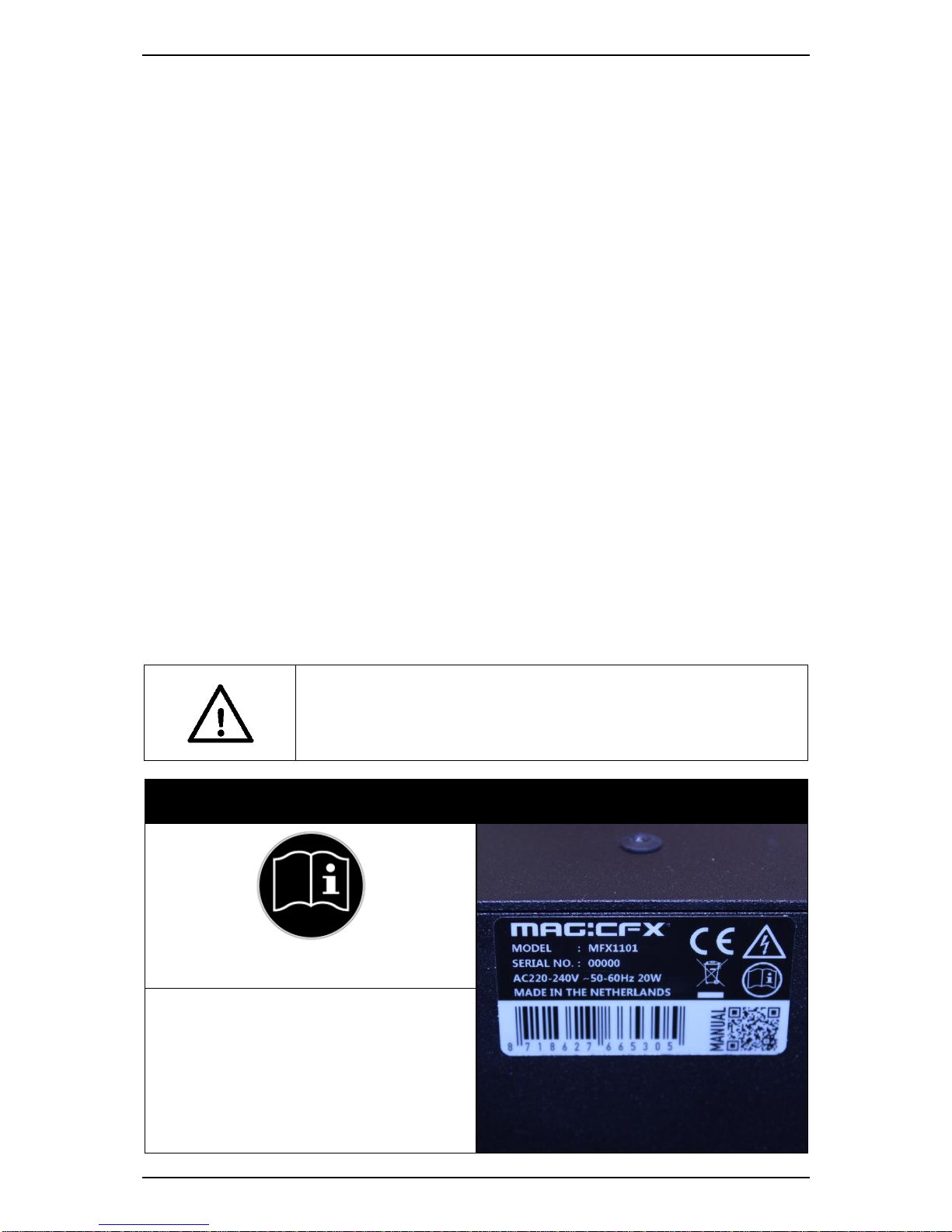

Sign and explanation
PIC 616 Follow the instructions
The operator must be told that he/she may only
operate the CO2 Jet after reading the user
manual.
A warning is given for this by means of the
command sign of PIC 616. This sign should be
attached to the type sign. See also the photo.

Version 1.0
Page 8
Sign and explanation
PIC 323 Low temperatures
In case of low temperatures a low temperature
warning must be issued by means of warning
sign 323.
This is attached to the top of the CO2 Jet.
Sign and explanation
PIC 307 High voltage
A warning must be given about the machine’s
high voltage by using the caution sign PIC 307.
This sign must be attached to the CO2 Jet. See
also the added photo.

User documentation MAGICFX® CO2 Jet
Page 9
7. PARTS
1. powerCON input
2. powerCON output
3. LED indicator
4. CO2 input
5. CO2 output
1
2
3
4
5
