Magicfx STADIUMSHOT III Operating manual

®
STADIUMSHOT III.
USER AND INSTALLATION MANUAL
CONFETTI & STREAMER FX PART01839 rev 01-01
ENGLISH

DISCLAIMER
WARNING Read this manual carefully before installing and/or using this
product. Failure to read the manual and to follow the printed
instructions may lead to personal injury and/or damage to the
product.
© 2020 MAGICFX®
All rights reserved.
Nothing from this publication may be copied, reproduced and/or published by
means of printing, photocopying or by any other means, without the prior written
approval of MAGIC FX.

TRADEMARKS
Any brand names mentioned in this manual are registered trademarks of their
respective owners.
LIABILITY
MAGIC FX accepts no liability for claims from third parties arising from unauthorised
use, use other than that stated in this manual, and use other than in accordance with
the General Conditions registered at the Chamber of Commerce.
We further refer to the General Conditions. These are available on request, free of
charge.
Although considerable care has been taken to ensure a correct and comprehensive
description of all relevant components, the manual may nonetheless contain errors
and inaccuracies.
Should you detect any errors or inaccuracies in the manual, we would be grateful if
you would inform us. This helps us to further improve our documentation.
2 MAGICFX®STADIUMSHOT III —User and Installation Manual

MAGICFX®STADIUMSHOT III —User and Installation Manual 3
TABLE OF CONTENTS
Disclaimer 2
Trademarks 2
Liability 2
Foreword 4
Language 4
Revision table 4
1 Meet the MAGICFX®STADIUMSHOT III! 5
1.1 Main parts 6
1.2 Technical data 7
  
1.4 DMX control 8
1.5 Display panel 8
1.6 RDM capability 11
1.7 Accessories 12
1.8 Input & Output 13
2 Shoot safely! 14
2.1 General safety rules 14
2.2 Transport 14
2.3 Compressed air 15
2.4 Outdoor use 15
2.5 Rigging 15
2.6 Noise level 15
2.7 Safety symbols 16
2.8 Precautions for operation 16
3 Let’s shoot! 18
3.1 Install the machine 18
3.2 Connect the machine 24
3.3 Setup multiple machines in a sequence 26
3.4 Fill with confetti and/or streamers 27
3.5 Fill with pressurized air 28
3.6 Shoot with DMX or pyro 29
3.7 Clean up 31
4 Maintenance 34
4.1 Cleaning 34
  
5 Troubleshooting 37
6 Correct disposal 38
7 EC Declaration of Conformity 39

FOREWORD
Congratulations! You have bought a great new product from MAGIC FX.
This manual contains all information required for the intended use of the equipment.
Deviation from the described intended use can result in a hazardous situation and/or
property damage.
This manual includes notes and warnings on safe operation of the equipment. These
notes and warnings are accompanied by the following icons. Read them attentively!
DANGER Indicates a hazardous situation that, if not avoided, will result in
death or serious injury. This signal word is to be limited to the most
extreme situations.
WARNING Indicates a hazardous situation that, if not avoided, could result
in death or serious injury.
CAUTION Indicates a hazardous situation that, if not avoided, could result
in minor or moderate injury.
NOTICE Indicates information considered important, but not hazard-
related (e.g. messages relating to property damage).
LANGUAGE
This document contains the original instructions in English. In case you require other
languages please contact MAGIC FX.
REVISION TABLE
Doc nr Revision Date Description Author Approved
PART01839 01-00 05-03-2020 Initial release CSK PVDW
PART01839 01-01 02-10-2020 Accessories NvE LL
4 MAGICFX®STADIUMSHOT III —User and Installation Manual

MAGICFX®STADIUMSHOT III —User and Installation Manual 5
1 MEET THE MAGICFX®STADIUMSHOT III!
The MAGICFX®
streamers into the air. The MAGICFX®STADIUMSHOT III is intended for outdoor use. At

results in the confetti or streamers leaving the output pipe at high velocity into the air
up to 40 metres far*.
The machine is equipped with an onboard compressor to pressurize the air tank. The

When the machine is loaded with MAGICFX®CONFETTI or STREAMERS, a single push
on the physical button on the MAGICFX®STADIUMSHOT III will charge the air tank to

any reason the pressure drops, and cannot be compensated, the system will block
the shot for safety reasons.
* The output distance depends on input material, air pressure and environmental
conditions.
The MAGICFX®
• with DMX and RDM;
• with an external low voltage pyro controller input (24 V);
• with a safety arm system;
• in sequence with multiple machines.

6 MAGICFX®STADIUMSHOT III —User and Installation Manual
1.1 MAIN PARTS
VALVE ACTIVATION
LED
COMPRESSOR
ON/OFF BUTTON
INDEX PLUNGER
TOP COVER
OUTPUT PIPE
STRAP PLATE
REMOVABLE HANDLE
WITH AIRFILTER
BRAKE
COUPLING WITH
LOCKING CLAMPS
PRESSURE GAUGE
DMX INPUT & OUTPUT
(5-POLE)
FX WARNING LED
POWER INPUT & OUTPUT
(100-250 VAC) FX-ARM CONTROLLER
INPUT & OUTPUT
SCREEN & BUTTONS
VENT VALVE
PYRO INPUT (24 VDC)
Main parts

MAGICFX®STADIUMSHOT III —User and Installation Manual 7

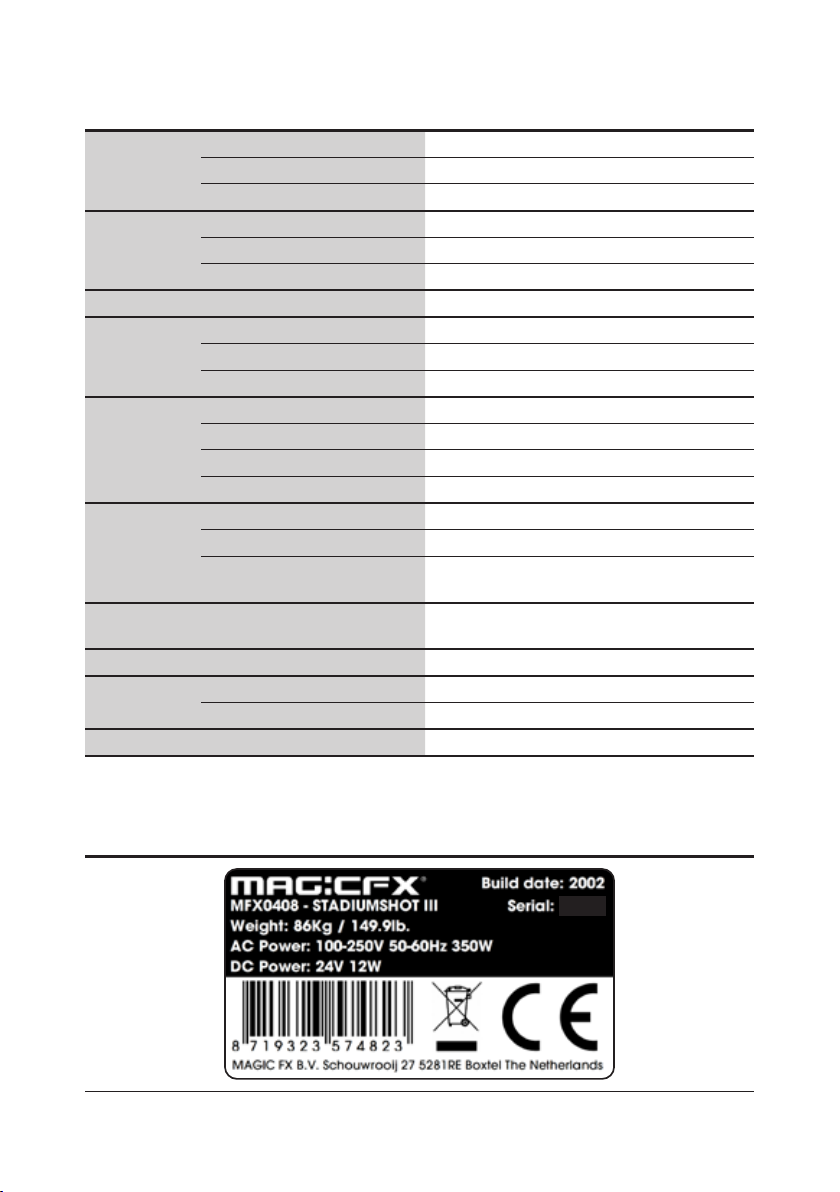

1.2 TECHNICAL DATA
Product Product Name MAGICFX®STADIUMSHOT III
Product Code MFX0408
Product Type CONFETTI & STREAMER FX
Main
Dimensions
Length 600 mm 23.6 in
Width 400 mm 15.8 in
Height 870 mm 34.3 in
Weight Weight 86 kg 189.6 lb
Environment Minimum Temperature -10 °C 14 °F
Maximum Temperature 70 °C 158 °F
Humidity (Relative) 20 % to 90 % (non condensing)
Electrical Voltage Input (Vac) 100 – 250 Vac
Voltage Frequency 50 – 60 Hz
Power Consumption (Vac) 350 W
Power Connector (Vac) Neutrik®powerCON TRUE1 (in & out)
Controlling Control Options DMX / 24 Vdc
Control Protocols DMX512-A (ANSI E1.11) RDM (ANSI E1.20)
Control Connectors Neutrik®5-pole male / female XLR /
4 mm banana socket
Safety
controlling
Control Connectors Neutrik®male / female etherCON
  On Device & RDM
Pressure
tank
Maximum Pressure 8 bar 116 psi
Volume 10.9 L 2.9 gal
Usage Consumable(s) MAGICFX® CONFETTI & STREAMERS
Technical data
1.3 PRODUCT IDENTIFICATION
Type plate
1

8 MAGICFX®STADIUMSHOT III —User and Installation Manual

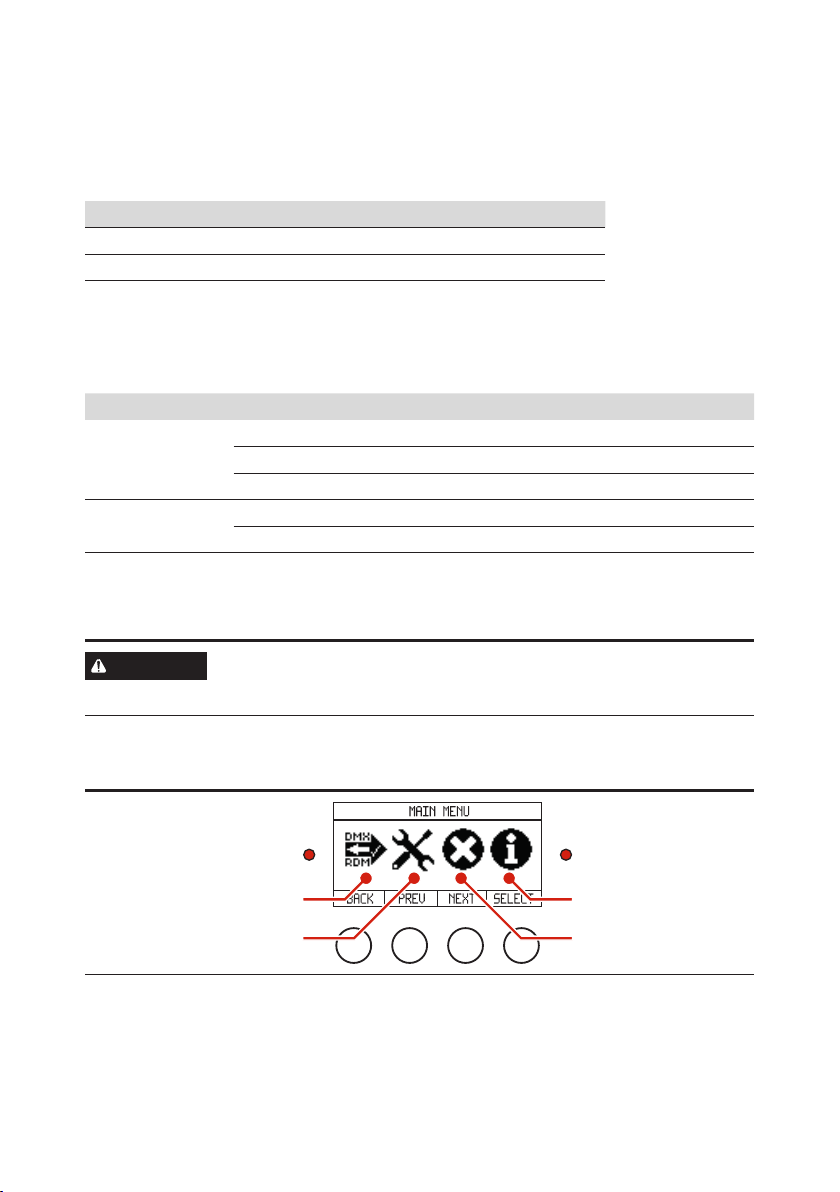

1.4 DMX CONTROL
The MAGICFX®STADIUMSHOT III is controlled with 1 enable adress and 1 operational
address.
DMX Address Address range
Enable address 1 – 512
Start address (Trigger) 1 – 512
DMX addresses
The enable address cannot be the same as the operational address. Operating of

DMX Address DMX Value (decimal) Result
Enable address
0 99 Device disabled
100 154 Device enabled
155 255 Device disabled
Start address
(Trigger)
0 199 No output
200 255 Fire
Operation of the DMX addresses
When you link multiple machines with DMX, we advise you to use the same enable
address for all machines.
CAUTION 
unit in the control sequence. Using a DMX Terminator improves
signal reliability.
1.5 DISPLAY PANEL
INFORMATION
ERROR HISTORYCONFIGURATION
DMX/RDM SETTINGS
Display panel
The display panel is located on the backside of the MAGICFX®STADIUMSHOT III.
Check the following menu structure for all options in the menu. Use the buttons for

hand LED continuously lights red when an error is present.

MAGICFX®STADIUMSHOT III —User and Installation Manual 9
Main Menu
DMX Start Address (1–512)
DMX Enable Address (1–512)
DMX Footprint
Lock/Unlock Controller
Reset Errors
Configuration Display Dimmer (ON/OFF)
Factory Defaults (YES/NO)
Pressure (4-8 Bar)
Display Dimmer (ON/OFF)
Output Distance (0-255)
Unique ID (HHHHHHHHHHHH)
Bootloader CRC
Serial Number (DDDDD)
Build Date
Soware Version
Soware CRC
Uptime (DDDD:HH:MM:SS)
Effect Time (DDDD:HH:MM:SS)
Status Display
DMX Start Address (1–512)
DMX Enable Address (1–512)
DMX Footprint
Lock/Unlock Controller
Reset Errors
DMX/RDM Settings
RDM (ON/OFF)
Error History Type (Alarm/Error)
Output Distance (0-255)
Unique ID (HHHHHHHHHHHH)
Bootloader CRC
Serial Number (DDDDD)
Build Date
Soware Version
Soware CRC
Uptime (DDDD:HH:MM:SS)
Shots Fired (XXXX)
Pump time (DDDD:HH:MM:SS)
Information
Shots Fired (XXXX)

10 MAGICFX®STADIUMSHOT III —User and Installation Manual
Menu function Explanation
Lock/Unlock
Controller
Holding the Lock button for more than 5 seconds will “lock” the
display functions. Meaning buttons will not respond. This to avoid
accidental change of parameters via display.To unlock, hold the
Unlock button for more than 5 seconds.
Reset Errors
In case there is a locking error present, this button will reset the
appliance. If the fault does not persist, the locking error will not
reappear.
DMX Start
Address (1-512)
Setting the DMX start address. DMX Enable Address (1-512)
Setting the DMX Enable Address. DMX Footprint This parameter
indicates the DMX footprint, in other words the amount of
sequential channels used by the appliance. This does not
include the enable channel.
 
Pressure
(4-8 Bar) Use this function to set the pressure between 4 and 8 bar.
Pyro Input

Use this function to switch between the powered control modes
DMX and pyro.
Display Dimmer



Factory Defaults
(Yes/No) Restores the appliance factory default settings.
Type
(Alarm/Error)
Toggle between the occurred locking error (Alarm) list, and
blocking error (Error) list. Locking errors need intervention by
user, although they are “auto-reset” 3 times before the appliance
remains in error until reset by user. Blocking errors clear when the
triggering fault disappears. 16 locked, and 16 blocked errors are
logged. Top of the list shows the last occurring error.
Serial Number
(DDDDD) Appliance serial number as also printed on the appliance label.
Unique ID
(HHHHHHHHHHHH)
UID number as the appliance appears in the RDM device list

 
 
Bootloader CRC 
Build Date 
Up-Time

Time counter which indicates how long the appliance has been
powered in total.
Shots Fired 
Pump Time

Time counter which indicates how long the pump has been on
in total.
Menu functions

MAGICFX®STADIUMSHOT III —User and Installation Manual 11
1.6 RDM CAPABILITY
Remote Device Management Protocol (RDM) is an enhancement of the DMX512

while DMX512 takes care of the default controlling. For RDM you will need a RDM
compatible controller. The following RDM parameters are supported by the
MAGICFX®STADIUMSHOT III.
Parameter ID Discovery GET SET
DISC_UNIQUE_BRANCH X
DISC_MUTE X
DISC_UN_MUTE X
DEVICE_INFO X
SUPPORTED_PARAMETERS X
SOFTWARE_VERSION_LABEL X
DEVICE_MODEL_DESCRIPTION X
MANUFACTURER_LABEL X
SLOT_DESCRIPTION X
SENSOR_DEFINTION X
SENSOR_VALUE X
DMX_START_ADDRESS X X
IDENTIFY_DEVICE X X
DEVICE_LABEL X X
FACTORY_DEFAULTS X X
RESET_DEVICE X
RDM parameters

for the latest information and updates.

12 MAGICFX®STADIUMSHOT III —User and Installation Manual
1.7 ACCESSORIES
Code Product Included
MFX0404 COMPRESSION CAPS TAPE 50 m X 50 mm
MFX0407 25 CAPS + 25 CORES FOR MAGICFX®STADIUMSHOT
MFX0423 STADIUMSHOT III SECURE STRAP
MFX0424 STADIUMSHOT III RAIN COVER
MFX3220 MAGICFX® FX-ARM CONTROLLER
MFX0313 Schuko to Neutrik®powerCON TRUE1 - cable 1.5 m
Accessories
Please contact MAGIC FX for additional possibilities.
MAIN PARTS MAGICFX® 
POWER INPUT
(100  250 VAC)
ARM CONTROLLER
OUTPUT
E-STOP RESET
BUTTON
E-STOP
BUTTON
ARM/DISARM
SAFETY KEY
Main parts MAGICFX®FX-ARM CONTROLLER
NOTICE Without the MAGICFX®FX-ARM CONTROLLER it is not possible to
operate the MAGICFX®STADIUMSHOT III.

MAGICFX®STADIUMSHOT III —User and Installation Manual 13
1.8 INPUT & OUTPUT
®confetti or
streamers. The maximum load per shot depends on the type of input material. The
output distance depends on the type of input material and the load.
Consumable Amount Max. Output
distance Min. Pressure
MAGICFX®PAPER CONFETTI 2 kg 20 m  4 bar 58 psi
MAGICFX®METALLIC CONFETTI 3 kg 20 m  4 bar 58 psi
MAGICFX®STREAMERS 20 m x 5 cm 8 Polybags 40 m  8 bar 116 psi
MAGICFX®STREAMERS 20 m x 2.5 cm 9 Polybags 40 m  8 bar 116 psi
MAGICFX®STREAMERS 10 m x 5 cm 15 Polybags 35 m  8 bar 116 psi
MAGICFX®STREAMERS 10 m x 2.5 cm 18 Polybags 35 m  8 bar 116 psi
MAGICFX®STREAMERS 10 m x 1.5 cm 20 Polybags 35 m  8 bar 116 psi
Projectile types and related loads and output
WARNING Always shoot streamers at a minimum of 8 bar pressure to unfold
them completely. Shooting streamers at a lower pressure can
lead to death or serious injury.
WARNING Using any other objects other then MAGICFX® CONFETTI or
STREAMERS or other approved MAGICFX® consumables can lead
to death or serious injury.
NOTICE 
distance. The given values are estimated values.

14 MAGICFX®STADIUMSHOT III —User and Installation Manual
2 SHOOT SAFELY!
The machine has been designed and constructed in such a manner that it can be
used safely. This applies to the use, the circumstances and the regulations as
described in this documentation. Reading this documentation and following the
instructions are therefore necessary for everyone who is authorised to work with the
machine.

• Have a stable temperature of between -10 and 70 °C.
• Have a relative humidity degree between 20 % and 90 % (non condensing).
• Are free of dust, corrosive gases and high concentrations of organic vapours.
• Are not situated in the vicinity of a source of vibration.
2.1 GENERAL SAFETY RULES
• Only authorised persons may carry out work with the MAGICFX®STADIUMSHOT
III.
• Do not use the MAGICFX®STADIUMSHOT III if there are people or animals in the
direct output.
• Do not use the MAGICFX®STADIUMSHOT III if alterations have been made
other than by or on behalf of MAGICFX®.
• Make sure that children, unauthorised people and animals do not obtain
access to the MAGICFX®STADIUMSHOT III.
• Make sure there are no freestanding objects or objects that can be damaged
by the machine within the output distance.
• Make sure that streamers and/or confetti cannot come into contact with
high-voltage lines/power pylons, as this can result in electrocution.
• Do not connect more units to a single electrical circuit than the installed fuse
is able to handle. (Calculate the summed load with the electrical data from
Chapter 1)
• Do not remove any safeguards, safety caps and safety symbols.
• All required safety devices must be in good condition and function properly.
• 
• Keep the workplace clean.
2.2 TRANSPORT
• Check the pressure level on the tank pressure meter before every transport. If
necessary depressurize the system by opening the vent valve.
WARNING Do not transport or move the MAGICFX®STADIUMSHOT III when
the tank is pressurized. Transporting or moving the machine when
pressurized can result in death or serious injury.

MAGICFX®STADIUMSHOT III —User and Installation Manual 15
2.3 COMPRESSED AIR
• 

Carefully read the manual of the compressor before use.
• Never leave the tank pressurized for more than 15 minutes.
• The machine is equipped with a pressure relief valve that automatically
depressurizes the system when the maximum allowed pressure of 8 bar is
exceeded. Nevertheless regularly check the tank pressure meter to make sure
the pressure in the tank is stable and does not exceed 8 bar. If necessary
depressurize the system by opening the ventilation valve.
2.4 OUTDOOR USE
The MAGICFX®STADIUMSHOT III is designed for outdoor use.
WARNING The MAGICFX®STADIUMSHOT III can be used indoors in large
event halls and arenas. Please refer to page 17.
2.5 RIGGING
Please follow the European and national guidelines for safe rigging and trussing.
2.6 NOISE LEVEL
The environmental noise level as measured at the ear is greater than 70 dB(A). This
level of noise is only reached during the short instances that the output is active.
Always wear hearing protection when you are within 5 metres of the machine during
operation.

16 MAGICFX®STADIUMSHOT III —User and Installation Manual
2.7 SAFETY SYMBOLS
Symbol Meaning
Read the manual carefully before use!

Safety symbols
2.8 PRECAUTIONS FOR OPERATION
WARNING Using a damaged or an improper installed machine can lead to
death, serious injury or property damage. Always inspect the
machine thoroughly before operation.
WARNING Unauthorized operation of the machine can lead to death,
serious injury or property damage. Never leave the machine and
the power switch unattended when the machine is ready for use.
WARNING Do not use the MAGICFX®STADIUMSHOT III if alterations have
been made other than by or on behalf of MAGICFX®.
DANGER Make sure that streamers and/or confetti cannot come into
contact with high-voltage lines/power pylons, as this can result in
electrocution.
WARNING Missing or obscured safety symbols on the machine can lead to
death, serious injury or property damage. Make sure all safety
symbols are correctly in place and visible, see Section 2.7.
CAUTION Always install the output pipe before operating the machine.

MAGICFX®STADIUMSHOT III —User and Installation Manual 17
WARNING Make sure there are no objects near the output that can be
damaged or overthrown by the MAGICFX®STADIUMSHOT III.
DANGER Always keep the output zone as shown in the image below clear
of all people, animals and objects. Not doing so results in death
or serious injury.
WARNING Always create a safety zone around the machine with a radius of
5 meters / 16.5 feet. Make sure unauthorized personnel, animals
and objects are clear of this area. Not doing so can result in
death or serious injury.
5 m / 16.5 ft
40 m / 131 ft.
45˚
Confetti Streamers
20 m / 66 ft.
45˚

18 MAGICFX®STADIUMSHOT III —User and Installation Manual
3 LET’S SHOOT!

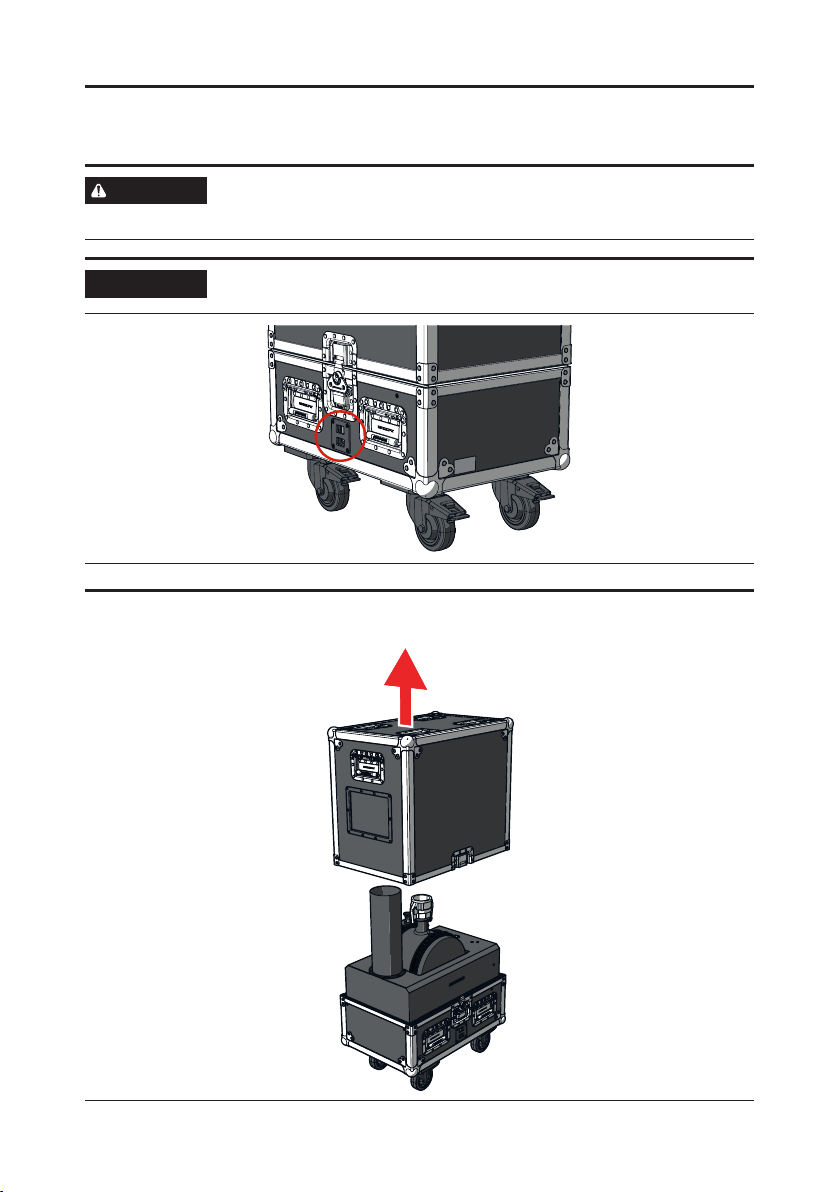

3.1 INSTALL THE MACHINE
1 Bring the cased machine to the desired location.
2 

MAGICFX®STADIUMSHOT III —User and Installation Manual 19
3 
the machine and prevent it from moving.
WARNING 
and suited surface. Not doing so can result in death or serious
injury.
NOTICE 
may break down.
4 

20 MAGICFX®STADIUMSHOT III —User and Installation Manual
5 Remove the output pipe.
6 Pull the locking clamps downwards to unlock and rotate them upwards.
