Magicfx SUPERBLASTER Operating manual

SUPERBLASTER &
SUPERBLASTER XL.
PART00512
rev 01-00
CONFETTI FX
USER AND INSTALLATION MANUAL
ENGLISH

2 MAGICFX® SUPERBLASTER & SUPERBLASTER XL —User and Installation Manual
DISCLAIMER
WARNING Read this manual carefully before installing and/or using this
product. Failure to read the manual and to follow the printed
instructions may lead to personal injury and/or damage to the
product.
© 2019 MAGICFX®
All rights reserved.
Nothing from this publication may be copied, reproduced and/or published by
means of printing, photocopying or by any other means, without the prior written
approval of MAGIC FX.
MAGIC FX reserves the right to modify specications stated in this manual.
TRADEMARKS
Any brand names mentioned in this manual are registered trademarks of their
respective owners.
LIABILITY
MAGIC FX accepts no liability for claims from third parties arising from unauthorised
use, use other than that stated in this manual, and use other than in accordance with
the General Conditions registered at the Chamber of Commerce.
We further refer to the General Conditions. These are available on request, free of
charge.
Although considerable care has been taken to ensure a correct and comprehensive
description of all relevant components, the manual may nonetheless contain errors
and inaccuracies.
Should you detect any errors or inaccuracies in the manual, we would be grateful if
you would inform us. This helps us to further improve our documentation.

MAGICFX® SUPERBLASTER & SUPERBLASTER XL —User and Installation Manual 3
TABLE OF CONTENTS
Disclaimer 2
Trademarks 2
Liability 2
Foreword 4
Language 4
Revision table 4
1 Meet the MAGICFX®SUPERBLASTER (XL)! 5
1.1 Main parts 5
1.2 Technical data 6
1.3 Accessories 6
1.4 Productidentication 7
1.5 Confetti 7
2 Blast safely! 8
2.1 General safety rules 8
2.2 CO28
2.3 Indoor use 9
2.4 Rigging 9
2.5 Noise level 9
2.6 Safety symbols 9
2.7 Precautionsforoperation 10
3 Let’s blast! 11
3.1 Install the machine 11
3.2 Fill with confetti and blast 18
3.3 Replace a CO2cylinder 20
3.4 Clean up 23
4 Troubleshooting 27
5 Maintenance 27
6 Correctdisposal 27
7 ECDeclarationofConformity 28
7.1 SUPERBLASTER 28
7.2 SUPERBLASTERXL 29

4 MAGICFX® SUPERBLASTER & SUPERBLASTER XL —User and Installation Manual
FOREWORD
Congratulations! You have bought a great new product from MAGIC FX.
This manual contains all information required for the intended use of the equipment.
Deviation from the described intended use can result in a hazardous situation and/or
property damage.
This manual includes notes and warnings on safe operation of the equipment. These
notes and warnings are accompanied by the following icons. Read them attentively!
DANGER Indicates a hazardous situation that, if not avoided, will result in
death or serious injury. This signal word is to be limited to the most
extreme situations.
WARNING Indicates a hazardous situation that, if not avoided, could result
in death or serious injury.
CAUTION Indicates a hazardous situation that, if not avoided, could result
in minor or moderate injury.
NOTICE Indicates information considered important, but not hazard-
related (e.g. messages relating to property damage).
LANGUAGE
This document contains the original instructions in English. In case you require other
languages please contact MAGIC FX.
REVISION TABLE
Document nr Revision Date Description Authored by Checked by
PART00512 01-00 26-3-2019 Initial release TFR TVA

MAGICFX® SUPERBLASTER & SUPERBLASTER XL —User and Installation Manual 5
1 MEET THE MAGICFX®SUPERBLASTER(XL)!
The MAGICFX®SUPERBLASTER and the MAGICFX® SUPERBLASTER XL are special eects
machines that blow confetti into the air.
Type Capacity Maximum shooting distance
MAGICFX®SUPERBLASTER 3-5kgs per minute 15m
MAGICFX®SUPERBLASTER XL 10-15kgs per minute 25m
Capacity and shooting distance
The MAGICFX®SUPERBLASTER (XL) is equipped with a CO2powered woofer. CO2is
blown into the woofer through small holes. This creates a Venturi eect that
continuously draws the confetti from the hopper, out of the woofer and into the air.
The eect is accompanied by a strong hissing sound. If liquid CO2is applied, a white
plume of smoke will be visible.
The CO2 supply is controlled by hand with the CO2 valve. To keep the eect going the
operator must continuously ll the hopper with confetti.
1.1 MAIN PARTS
WOOFER
HOPPER
FLIGHTCASE
CO2INPUT
CO2VALVE
Main parts

6 MAGICFX® SUPERBLASTER & SUPERBLASTER XL —User and Installation Manual
1.2 TECHNICAL DATA
Product Product Name MAGICFX®
SUPER BLASTER
MAGICFX®
SUPER BLASTER XL
Product Code MFX0801 MFX0802
Product Type CONFETTI & STREAMER FX
Main
Dimensions
Length (mm/in.) 540 21.3 661 26
Width (mm/in.) 280 11 385 15.2
Height (mm/in.) 1040 40.9 1373 54.1
Weight Empty weight (kg/lb.) 34 75 55 121.3
Environment Minimum Temperature (ºC/ºF) -20 -4 -20 -4
Maximum Temperature (ºC/ºF) 70 158 70 158
Humidity (Relative) 20% to 90% (non condensing)
Controlling Control Options Manual
Usage Consumable(s) Confetti
Propellant Liquid or Gaseous CO2
Propellant Connector 0.25L/s 0.5L/s
Technical data
1.3 ACCESSORIES
Code Product Included
MFX1114 CO₂ High Pressure Hose 3/8 Male - Female, 1.25M
MFX1105 CO₂ High Pressure Hose 3/8 Male - Female, 2M
MFX1106 CO₂ High Pressure Hose 3/8 Male - Female, 3M x
MFX1108 CO₂ High Pressure Hose 3/8 Male - Female, 10M
MFX1109 CO₂ High Pressure Hose 3/8 Male - Female, 15M
MFX1110 CO₂ 90 Degrees Connector 3/8
MFX1103 CO₂ Bottle to Hose Connector x
MFX1115 CO₂ Bottle to Hose Connector 90 Degrees
Accessories
Please contact MAGIC FX for additional possibilities.

MAGICFX® SUPERBLASTER & SUPERBLASTER XL —User and Installation Manual7
1.4 PRODUCT IDENTIFICATION
Type plate
1.5 CONFETTI
The MAGICFX® SUPERBLASTER (XL) can be set in 4 dierent angles between 42° and
90°. The output height and output distance depend on the type of confetti and the
set angle. The maximum load per blast also depends on the type of confetti. Check
the following table.
Type of confetti Max. load per blast Output distance
Metallic confetti 20 kg 25M
Paper confetti 10 kg 25M
Snow or Powder confetti 5 kg 25M
Confetti types and related loads and output
NOTICE Wind and other weather circumstances will inuence the output
height and output distance of the confetti. The given values are
estimated values.

8 MAGICFX® SUPERBLASTER & SUPERBLASTER XL —User and Installation Manual
2 BLAST SAFELY!
The MAGICFX®SUPERBLASTER (XL) has been designed and constructed in such a
manner that it can be used safely. This applies to the use, the circumstances and the
regulations as described in this documentation. Reading this documentation and
following the instructions are therefore necessary for everyone who works with the
MAGICFX®SUPERBLASTER (XL).
The MAGICFX®SUPERBLASTER (XL) must be used in surroundings that:
• Have a stable temperature of between -20 and 70°C.
• Have a relative humidity degree between 20% and 90% (non condensing).
• Are free of dust, corrosive gases and high concentrations of organic vapours.
• Are not situated in the vicinity of a source of vibration.
2.1 GENERAL SAFETY RULES
• Only authorised persons may work with the MAGICFX®SUPERBLASTER (XL).
• Do not use the MAGICFX®SUPERBLASTER (XL) if there are people or animals in
the direct output.
• Make sure that children, unauthorised people and animals do not obtain
access to the MAGICFX®SUPERBLASTER (XL).
• Do not remove any safeguards, safety caps and safety symbols.
• All required safety devices must be in good condition and function properly.
• Ensure sucient lighting of the surroundings.
• Keep the workplace clean.
2.2 CO2
The MAGICFX®SUPERBLASTER (XL) uses liquid or gaseous CO2as input. The application
of CO2involves serious risks. Make sure that you are well informed on these risks
before installation and/or operation. Always use approved CO2cylinders, hoses and
connections. Always consult your CO2supplier for regulations and instructions on safe
installation and use.
MAGIC FX is not liable for unsafe situations, accidents and damage that are the result
of incorrect working with CO2gas and CO2cylinders.
WARNING Inadequate installation and/or operation of a CO2powered
machine and CO2cylinders can lead to death or serious injury.
Always follow the instructions from this manual, from your CO2
supplier and from local authorities.

MAGICFX® SUPERBLASTER & SUPERBLASTER XL —User and Installation Manual 9
2.3 INDOOR USE
The MAGICFX®SUPERBLASTER (XL) is designed for outdoor use and use in well-
ventilated indoor spaces. When used indoors, make sure you take the necessary
preparations. These preparations could include, but are not limited to:
• Consulting your CO2supplier.
• Calculating the reduction of oxygen for the indoor space.
• Checking the location for spots where CO2could accumulate and taking
preventive actions.
• Installing CO2monitoring devices that will warn for hazardous CO2levels.
DANGER Do not use the MAGICFX®SUPERBLASTER (XL) in poorly ventilated
conned spaces. Exposure to high levels of CO2gas can cause
symptoms like headache, nausea, loss of consciousness or even
death.
2.4 RIGGING
Please follow the European and national guidelines for safe rigging and trussing.
2.5 NOISE LEVEL
The environmental noise level as measured at the ear is 97 dB(A). This level of noise is
only reached during the short instances that the CO2output is active. Therefore
hearing protection is not necessary.
WARNING Do not operate the MAGICFX®SUPERBLASTER (XL) close to yourself
or to others for a long period of time. If you experience any
hearing loss or ringing in the ears, you should immediately stop
using the unit.
2.6 SAFETY SYMBOLS
Symbol Meaning Position
Read the manual carefully before use! Front of the machine
Safety symbols

10  MAGICFX®SUPERBLASTER&SUPERBLASTERXL —User and Installation Manual
2.7 PRECAUTIONS FOR OPERATION
WARNING Using a damaged or an improper installed machine can lead to
death, serious injury or property damage. Always inspect the
machine thoroughly before operation.
WARNING Missing or obscured safety symbols on the machine can lead to
death, serious injury or property damage. Make sure all safety
symbols are correctly in place and visible, see Section 2.6.
CAUTION A missing or loose-tted woofer can lead to injury. Make sure that
the woofer is correctly in place and secured.
WARNING Make sure there are no objects near the output that can be
damaged or overthrown by the MAGICFX®SUPERBLASTER (XL).
WARNING Always create a safety zone with a distance of 3 m around the
MAGICFX®SUPERBLASTER (XL).
3 m
top view

MAGICFX® SUPERBLASTER & SUPERBLASTER XL —User and Installation Manual 11
3 LET’S BLAST!
3.1 INSTALL THE MACHINE
1 Bring the cased MAGICFX®SUPERBLASTER (XL) to the desired location.

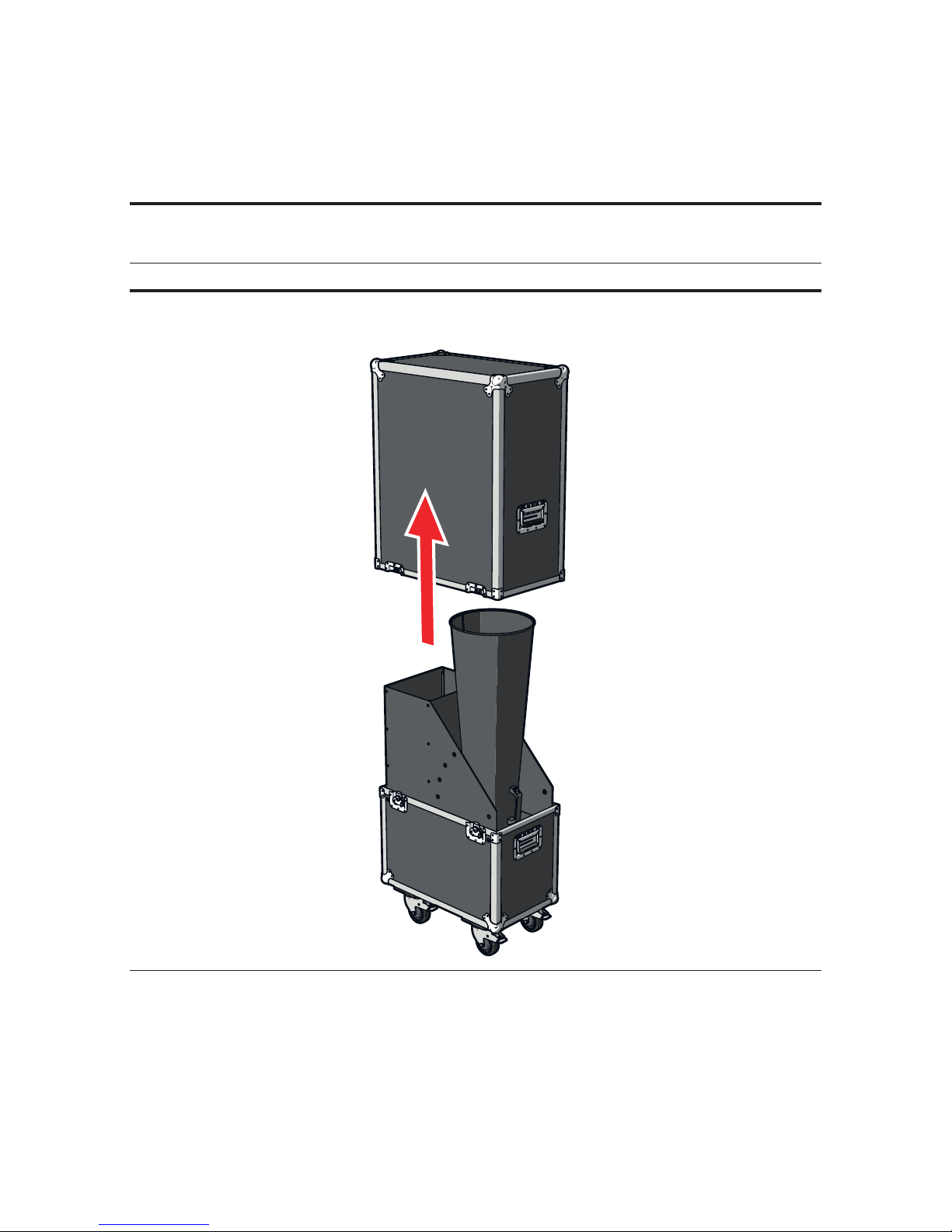

2 Unlock and remove the top cover.

12 MAGICFX® SUPERBLASTER & SUPERBLASTER XL —User and Installation Manual
3 Take all parts out of the case:
1
3
6 5 47
2

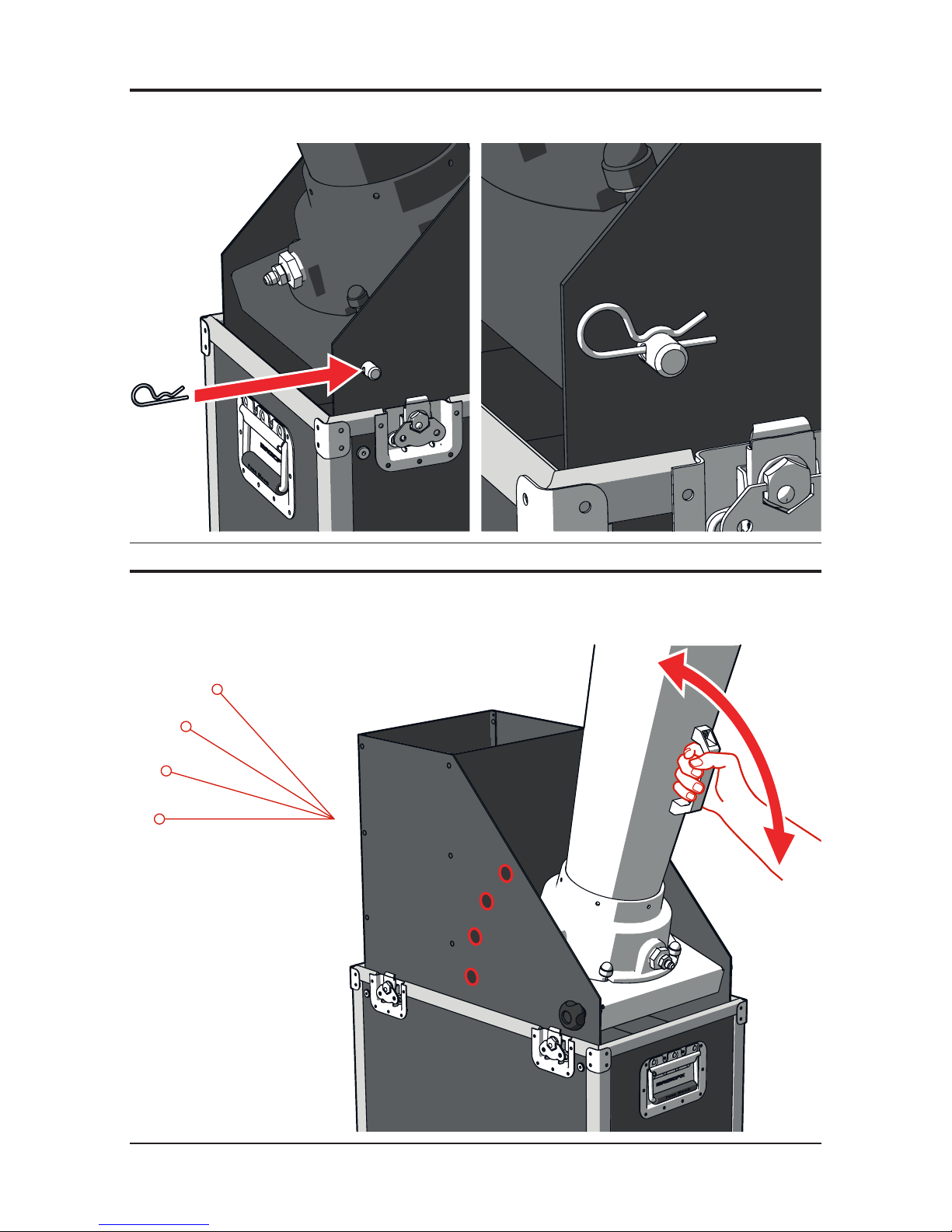

4 Place and hold the woofer in the case and insert a pin through the front
pinholes. Make sure that the CO2input of the woofer is positioned at the front.
1. Woofer
2. Woofer pin clip (2 pcs)
3. Woofer pin (2 pcs)
4. CO₂ Bottle to Hose Connector
5. CO2valve
6. CO₂ hose 3/8 male - female (3m)
7. Adjustable wrench

MAGICFX® SUPERBLASTER & SUPERBLASTER XL —User and Installation Manual 13
5 Secure the pin with a clip.
6 Set the angle of the woofer by aligning the back pinhole with one of the four
predened holes in the case.
0º
16
º
32º
48º

14 MAGICFX® SUPERBLASTER & SUPERBLASTER XL —User and Installation Manual
7Insert the second pin through the back pinholes to secure the position of the
woofer.
8 Secure the pin with a clip.

MAGICFX® SUPERBLASTER & SUPERBLASTER XL —User and Installation Manual 15
9 Position the machine and set the brakes.
10 Take the necessary safety precautions, see Section 2.7.
11 Connect the CO2valve to the CO2input of the woofer and tighten the nut with
the adjustable wrench.

16 MAGICFX® SUPERBLASTER & SUPERBLASTER XL —User and Installation Manual
12 Connect the CO2hose to the CO2valve.
13 Make sure that the CO2valve is in CLOSED position.

MAGICFX® SUPERBLASTER & SUPERBLASTER XL —User and Installation Manual17

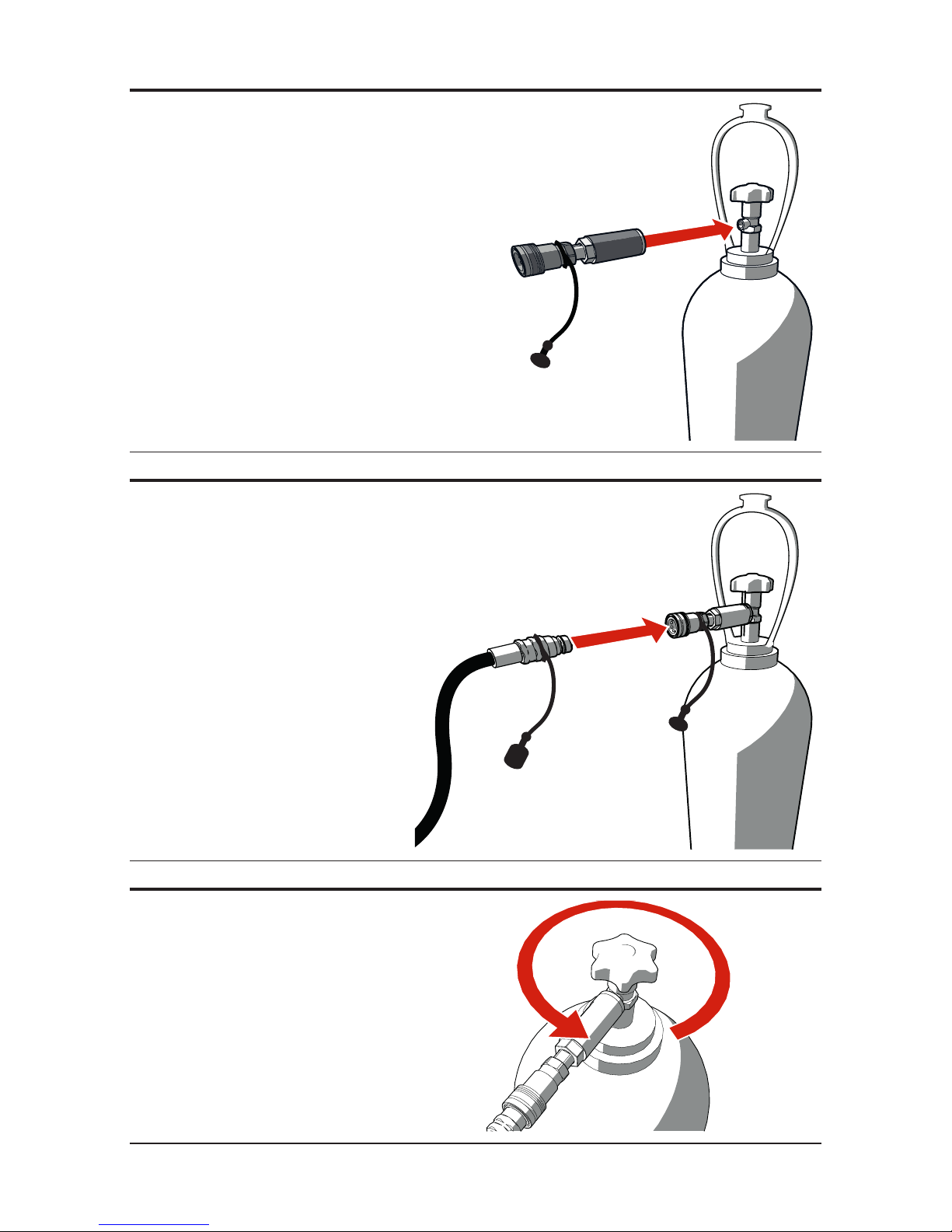

14 Connect the CO₂ Bottle to
Hose Connector to a CO2
cylinder.
15 Connect the CO2hose to the
CO₂ Bottle to Hose
Connector on the CO2
cylinder.
16 Open the CO2cylinder.

18 MAGICFX® SUPERBLASTER & SUPERBLASTER XL —User and Installation Manual

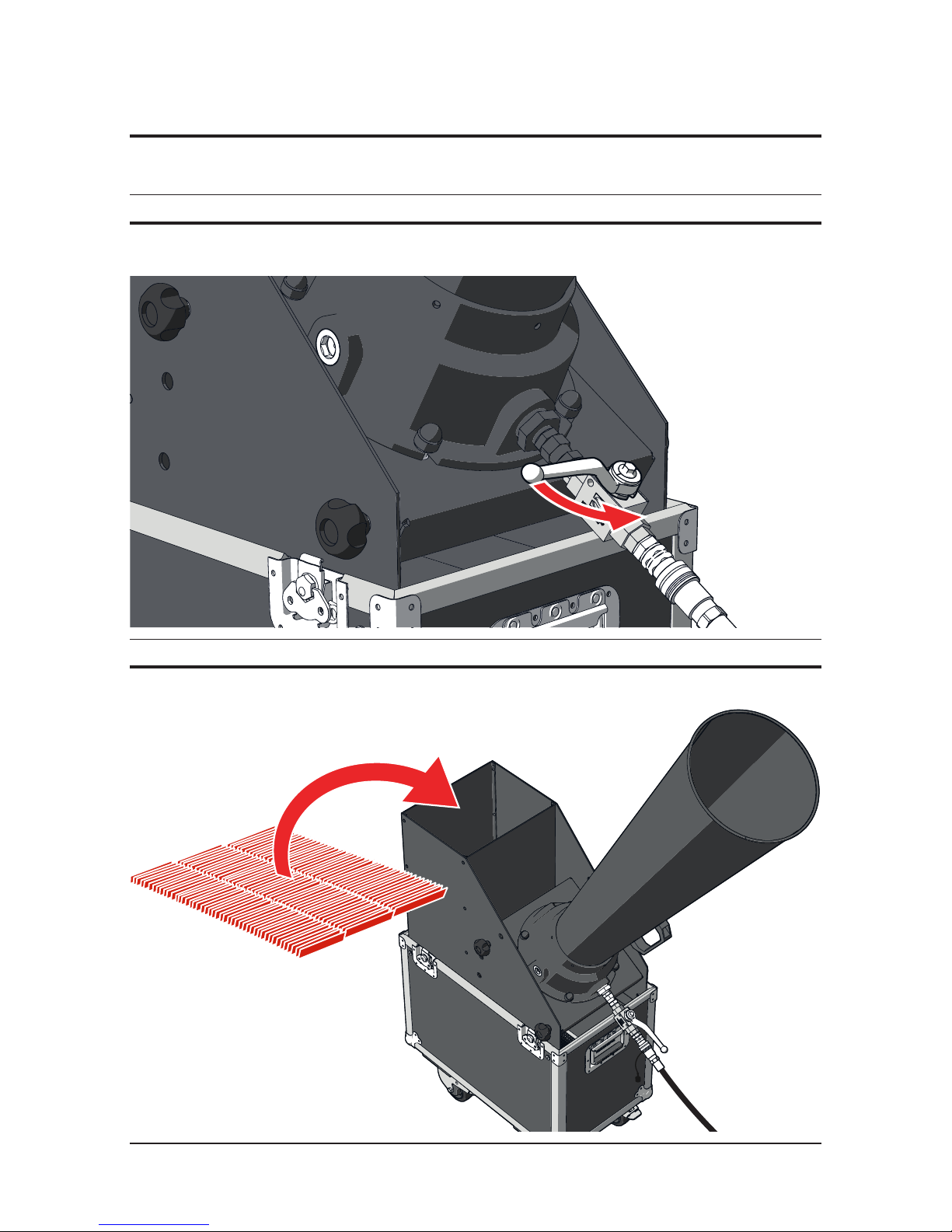

3.2 FILL WITH CONFETTI AND BLAST
1 Make sure that the prescribed safety zone is free from persons and objects.
2 When it’s time to blast, move the manual CO2valve in OPEN position.
3 Keep lling the hopper with confetti by hand.

MAGICFX® SUPERBLASTER & SUPERBLASTER XL —User and Installation Manual 19

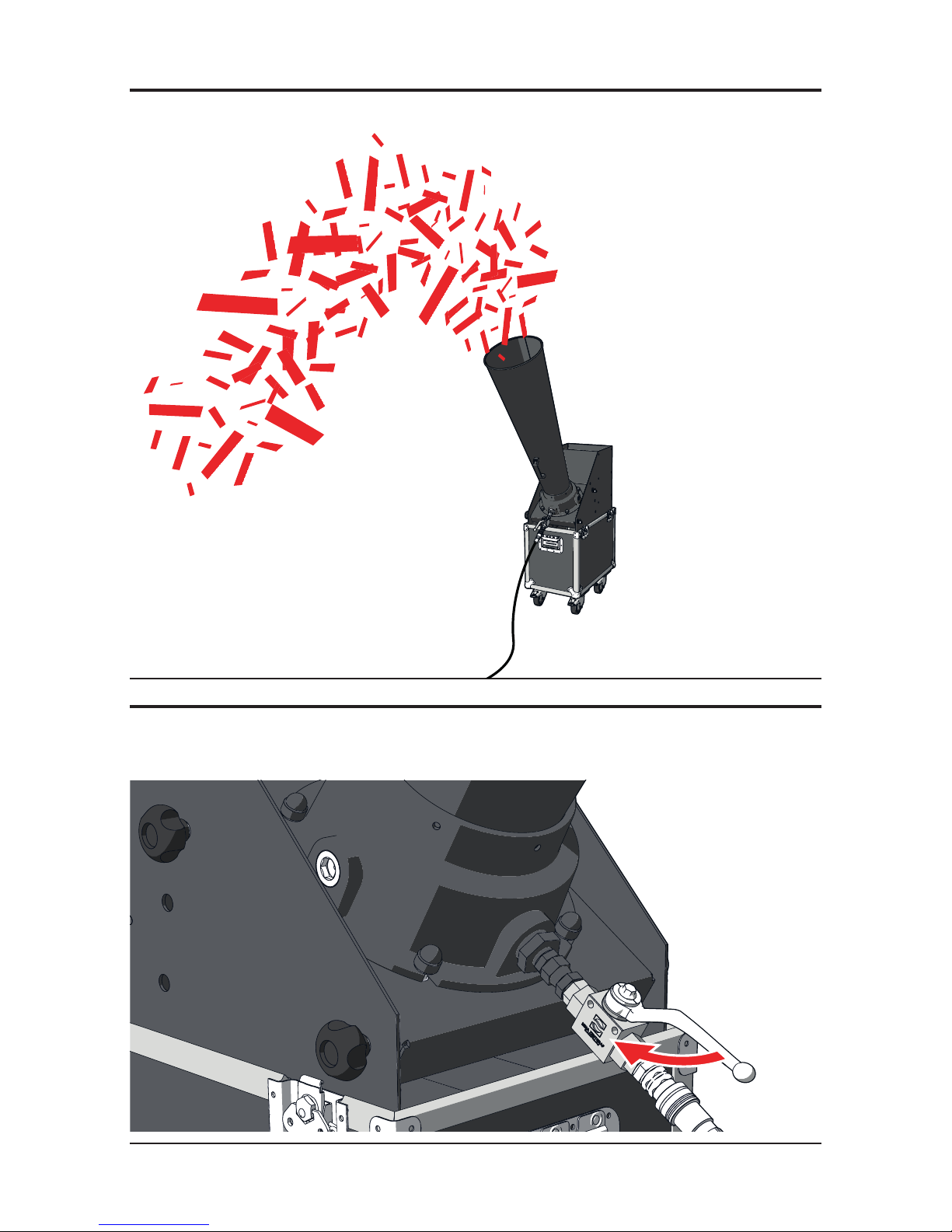

4 Enjoy the view!
5 When you are nished with blasting confetti, move the manual CO2valve back
in CLOSED position.

20  MAGICFX®SUPERBLASTER&SUPERBLASTERXL —User and Installation Manual
3.3 REPLACE A CO2CYLINDER

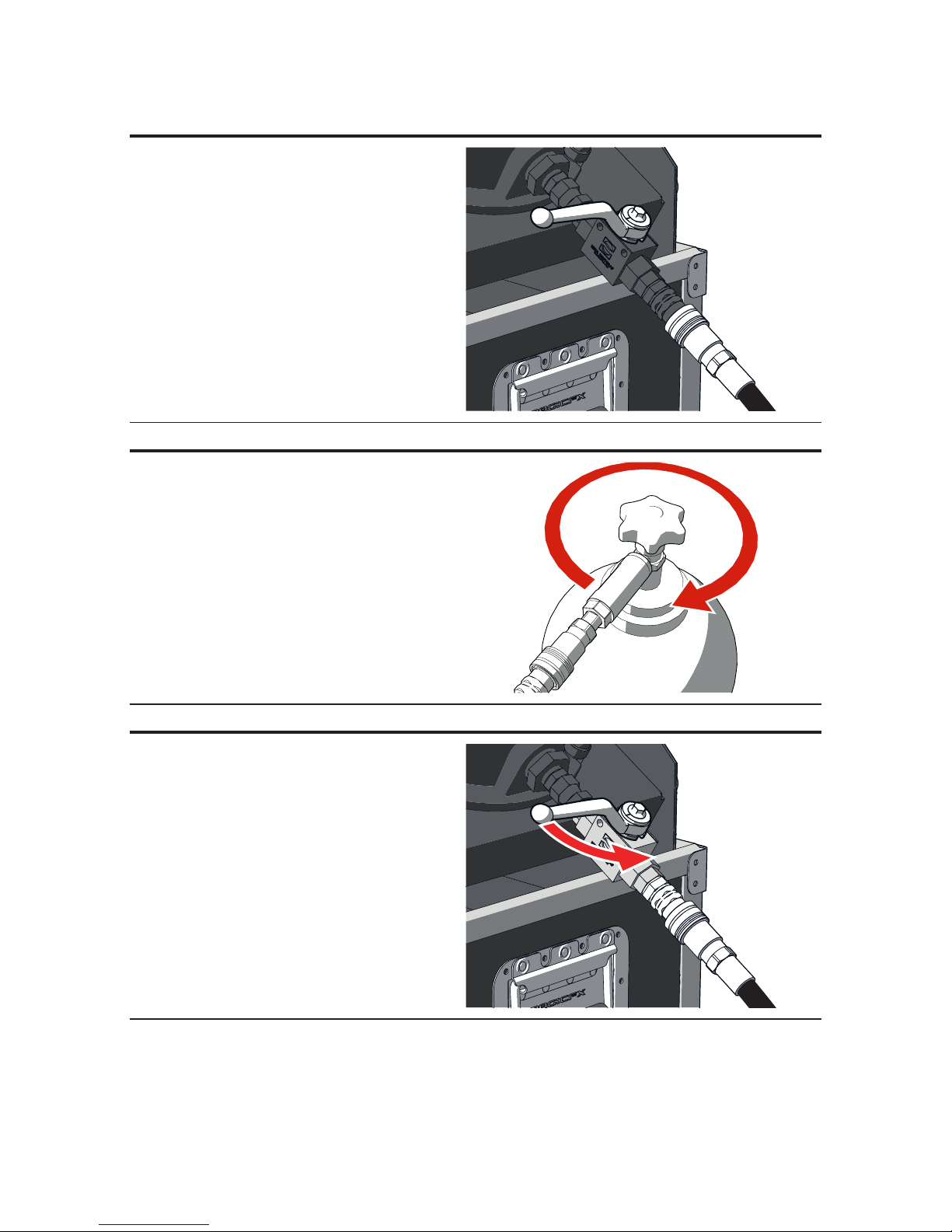

1 Make sure that the CO2valve is in
CLOSED position.
2 Close the connected CO2cylinder.
3 Move the manual CO2valve in
OPEN position to release the
pressure from the system.
