Magicfx PSYCO2JET Operating manual

PSYCO2JET.
®
CO2 FX
PART01127
rev 01-01
USER AND INSTALLATION MANUAL
ENGLISH

2 MAGICFX®PSYCO2JET —User and Installation Manual
DISCLAIMER
WARNING Read this manual carefully before installing and/or using this
product. Failure to read the manual and to follow the printed
instructions may lead to personal injury and/or damage to the
product.
© 2019 MAGICFX®
All rights reserved.
Nothing from this publication may be copied, reproduced and/or published by
means of printing, photocopying or by any other means, without the prior written
approval of MAGIC FX.
MAGIC FX reserves the right to modify specications stated in this manual.
TRADEMARKS
Any brand names mentioned in this manual are registered trademarks of their
respective owners.
LIABILITY
MAGIC FX accepts no liability for claims from third parties arising from unauthorised
use, use other than that stated in this manual, and use other than in accordance with
the General Conditions registered at the Chamber of Commerce.
We further refer to the General Conditions. These are available on request, free of
charge.
Although considerable care has been taken to ensure a correct and comprehensive
description of all relevant components, the manual may nonetheless contain errors
and inaccuracies.
Should you detect any errors or inaccuracies in the manual, we would be grateful if
you would inform us. This helps us to further improve our documentation.

MAGICFX®PSYCO2JET —User and Installation Manual 3
TABLE OF CONTENTS
Disclaimer 2
Trademarks 2
Liability 2
Foreword 4
Language 4
Revision table 4
1 Meet the MAGICFX®PSYCO2JET! 5
1.1 Main parts 5
1.2 Technical data 6
1.3 Productidentication 6
1.4 Accessories 7
1.5 Display panel 7
1.6 RAW MODE 9
1.7 PRESET Mode 10
1.8 RDM capability 14
2 Blast safely! 16
2.1 General safety rules 16
2.2 CO216
2.3 Indoor use 17
2.4 Rigging 17
2.5 Noise level 17
2.6 Safety symbols 18
2.7 Precautions for operation 18
3 Let’s blast! 20
3.1 Install the machine 20
3.2 Mount on a truss 23
3.4 Connect DMX and power 26
3.5 Setup multiple machines in a sequence 27
3.6 Connect CO228
3.7 Blast with DMX 30
3.8 Replace a CO2cylinder 31
3.9 Clean up 34
4 Maintenance 36
5 Troubleshooting 36
6 Correct disposal 36
7 EC Declaration of Conformity 37

4 MAGICFX®PSYCO2JET —User and Installation Manual
FOREWORD
Congratulations! You have bought a great new product from MAGIC FX.
This manual contains all information required for the intended use of the equipment.
Deviation from the described intended use can result in a hazardous situation and/or
property damage.
This manual includes notes and warnings on safe operation of the equipment. These
notes and warnings are accompanied by the following icons. Read them attentively!
DANGER Indicates a hazardous situation that, if not avoided, will result in
death or serious injury. This signal word is to be limited to the most
extreme situations.
WARNING Indicates a hazardous situation that, if not avoided, could result
in death or serious injury.
CAUTION Indicates a hazardous situation that, if not avoided, could result
in minor or moderate injury.
NOTICE Indicates information considered important, but not hazard-
related (e.g. messages relating to property damage).
LANGUAGE
This document contains the original instructions in English. In case you require other
languages please contact MAGIC FX.
REVISION TABLE
Doc nr Revision Date Description Author Approved
PART01127 01-00 13-2-2017 Initial release TFR TVA
PART01127 01-01 1-8-2019 A4 to A5 format TFR TVA

MAGICFX®PSYCO2JET —User and Installation Manual 5
1 MEET THE MAGICFX®PSYCO2JET!
The MAGICFX® PSYCO2JET is a special eects machine that blasts CO2into the air.
The MAGICFX®PSYCO2JET is equipped with a CO2powered rotating nozzle. A solenoid
valve controls the supply of liquid CO2to the nozzle. From the nozzle, the CO2escapes
through the output pipe. A blast of escaping CO2is accompanied by a strong hissing
sound and a white plume of smoke will be visible from the output pipe. The nozzle
with output pipe is mounted on a180° rotatable pipe, driven by an electric motor. By
blasting and varying the output direction the MAGICFX®PSYCO2JET delivers
spectacular eects.
The MAGICFX® PSYCO2JET is outtted for operation:
• with DMX and optionally RDM;
• in RAW mode or in PRESET mode;
• in sequence with multiple machines.
The MAGICFX®PSYCO2JET is mounted on a truss or on stage.
1.1 MAIN PARTS
FX LED INDICATOR
OUTPUT PIPE
CO2INPUT
DMX INPUT & OUTPUT
(5-POLE)
DISPLAY AND BUTTONS
POWER INPUT & OUTPUT
(100  250 Vac)
SAFETY EYE
FRONT SIDE
as seen by the audience in most cases
BACK SIDE
with display, buttons and connections
Main parts
All operational tasks and soware presets are oriented as if one is facing the front
side of the unit.

6 MAGICFX®PSYCO2JET —User and Installation Manual
1.2 TECHNICAL DATA
Product Product Name MAGICFX®PSYCO2JET
Product Code MFX1117
Product Type CO2FX
Main
Dimensions
Length 330 mm 13 in
Width 250 mm 9.8 in
Height 165 mm 6.5 in
Weight Weight 8.2 kg 18.1 lb
Package Length 480 mm 18.9 in
Width 350 mm 13.8 in
Height 270 mm 10.6 in
Packaged weight 9 kg 19.8 lb
Environment Minimum Temperature -10 °C 14 °F
Maximum Temperature 50 °C 122 °F
Humidity (Relative) 20 % to 90 % (non condensing)
IEC 60529 (IP) Rating IP23
Electrical Voltage Input 100 – 250 Vac
Voltage Frequency 50 – 60 Hz
Power Consumption 35 W
Power Connector Neutrik®powerCON TRUE1 (in&out)
Controlling Control Options DMX
Control Protocols DMX512-A (ANSI E1.11)
RDM (ANSI E1.20)
Control Connectors Neutrik®5 pole male / female XLR
Conguring Congure Options On Device & RDM
Usage Propellant Liquid CO2
Propellant Connector CO2Quick Connector 3/8”
Propellant Consumption 0.5 L/s
Technical data
1.3 PRODUCT IDENTIFICATION
Type plate

MAGICFX®PSYCO2JET —User and Installation Manual 7
1.4 ACCESSORIES
Code Product Included
MFX1114 CO₂ High Pressure Hose 3/8 Male - Female, 1.25 m
MFX1105 CO₂ High Pressure Hose 3/8 Male - Female, 2 m
MFX1106 CO₂ High Pressure Hose 3/8 Male - Female, 3 m
MFX1108 CO₂ High Pressure Hose 3/8 Male - Female, 10 m
MFX1109 CO₂ High Pressure Hose 3/8 Male - Female, 15 m
MFX1110 CO₂ 90 Degrees Connector 3/8
MFX1103 CO₂ Bottle to Hose Connector
MFX1115 CO₂ Bottle to Hose Connector 90 Degrees
MFX0313 Schuko to Neutrik®powerCON TRUE1 - cable 1.5 m X
Accessories
Please contact MAGIC FX for additional possibilities.

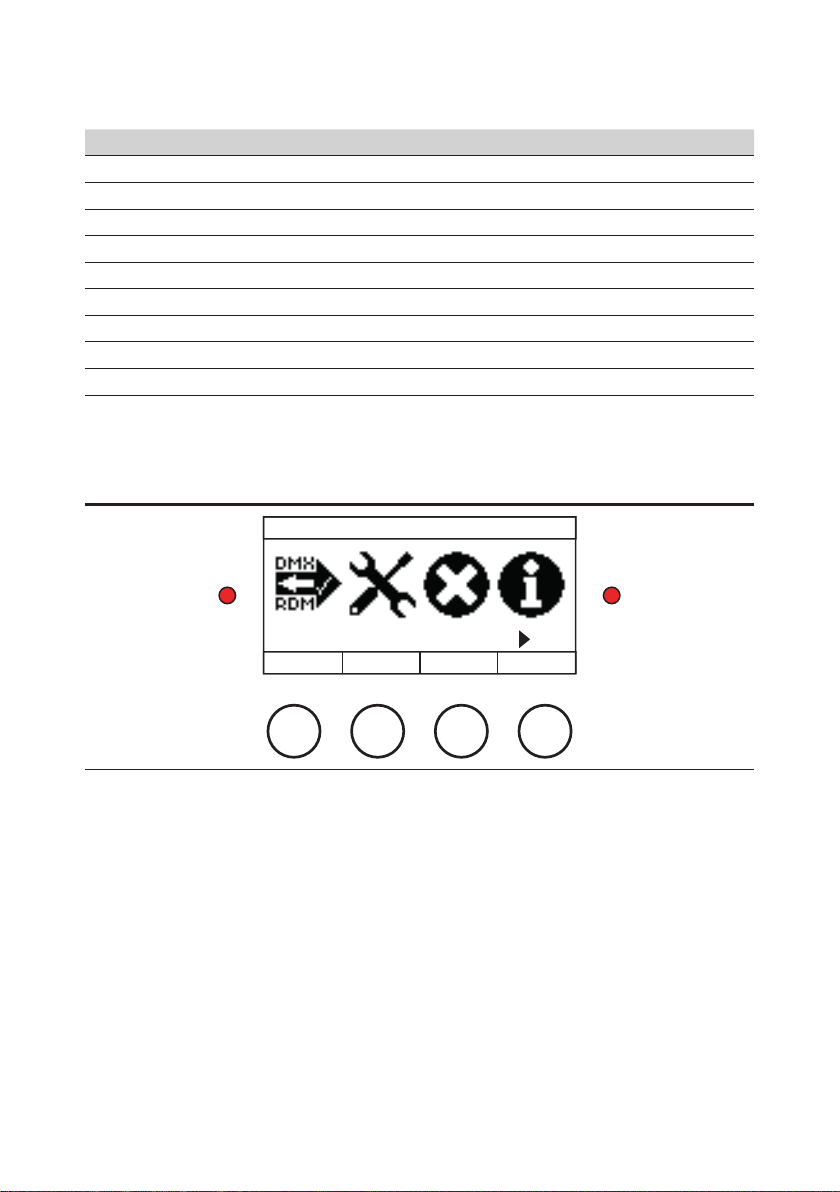

1.5 DISPLAY PANEL
MAIN MENU
DMX/RDM SETTINGS
BACK PREV NEXT
SELECT
Display panel
The display panel is located on the backside of the MAGICFX®PSYCO2JET. Check the
following menu structure for all options in the menu. Use the buttons for navigation
and selection. The le-hand LED blinks red when DMX is active. The right-hand LED
continuously lights red when an error is present.

8 MAGICFX®PSYCO2JET —User and Installation Manual
Idle Display
Main Menu
DMX Start Address (1 – 512)
DMX Safety Address (1 – 512)
DMX Footprint (Fixed)
Control Mode (RAW/PRESET)
Unique ID
Bootloader CRC
Serial Number
Build Date
Lock/Unlock Controller
(press and hold for 5 seconds)
Reset Errors
DMX/RDM Settings
Error History
Configuration
Information
RDM (ON/OFF)
Nozzle Mirror Function (ON/OFF)
Nozzle Block Le (140 – 255)
Nozzle Calibration (-5 – 5)
Nozzle Block Right (0 – 116)
Output When Blocked (ON/OFF)
Type (Alarm/Error)
Soware Version
Soware CRC
Uptime (DDDD:HH:MM:SS)
Effect Time (DDDD:HH:MM:SS)
Display Dimmer (ON/OFF)
(dims aer 30 seconds of button inactivity)
Factory Defaults (YES/NO)
Display Flip (ON/OFF)
Menu structure

MAGICFX®PSYCO2JET —User and Installation Manual 9
1.6 RAW MODE
In RAW mode, the operator controls the output of the MAGICFX®PSYCO2JET directly.
With DMX the operator controls the following variables:
• The angle of the rotating nozzle and output pipe, see gure
• The speed of rotation
• The output (CO2valve open or closed)
RAW mode is selected from the operator menu. Check Section 1.5 for the menu
structure.

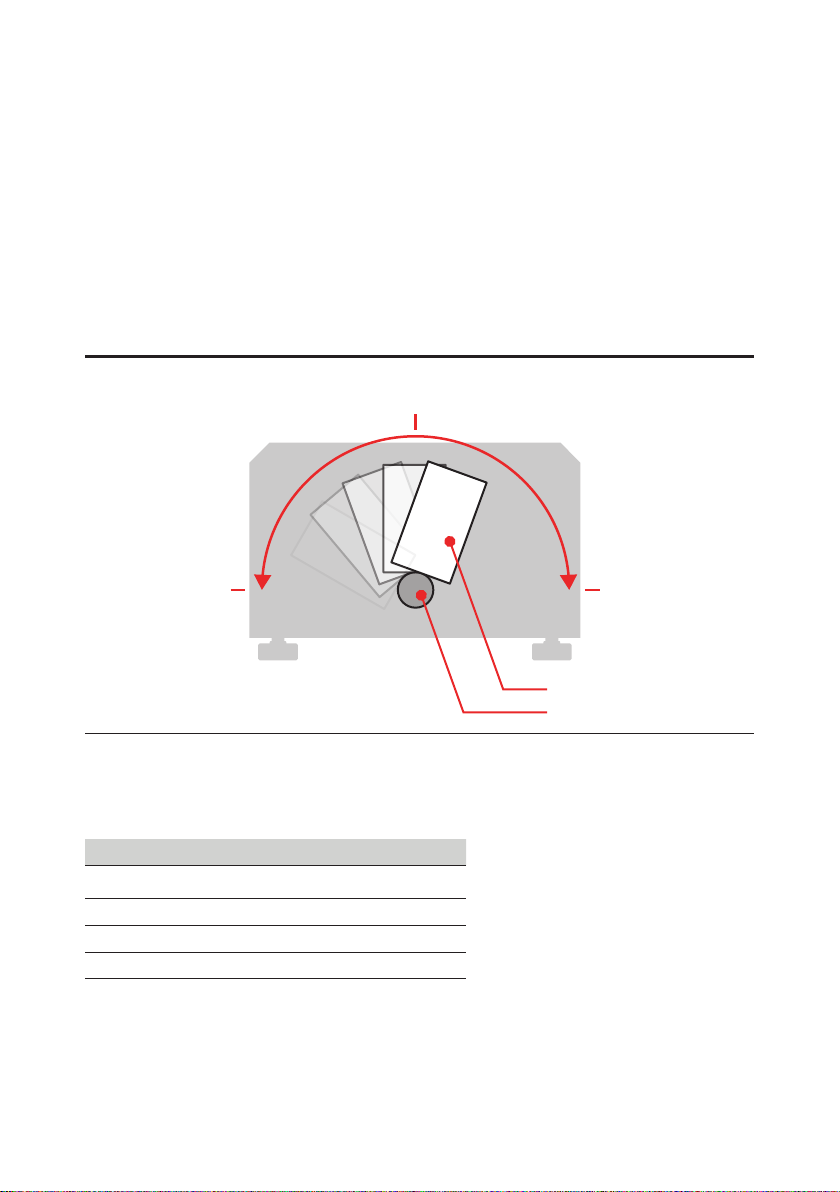

0°
+90°-90°
OUTPUT PIPE
ROTATING NOZZLE
Output angle when facing the front side of the unit
In RAW mode the MAGICFX®PSYCO2JET is controlled with 1 safety address and 3
operational addresses.
DMX Address Address range
Safety address 1 – 512
Start address (Angle) 1 – 510
Start address + 1 (Speed) 2 – 511
Start address + 2 (Output) 3 – 512
DMX addresses in RAW mode
The Safety address cannot be the same as one of the operational addresses.

10 MAGICFX®PSYCO2JET —User and Installation Manual
Operating of the addresses in RAW mode results in the following:
DMX Address DMX Value (decimal) Result
Safety address
0 99 Device disabled
100 155 Device enabled
156 255 Device test mode (CO2
output is disabled)
Start address (Angle)
0 126 -90° to -0.7°
127 128 Center position
129 255 +0.7° to +90°
Start address + 1 (Speed) 0 255 Minimal speed -> Full
speed
Start address + 2 (Output) 0 199 Valve o
200 255 Valve on
Operation of the DMX addresses in RAW mode
When you link multiple machines with DMX, we advise you to use the same Safety
address for all machines.
CAUTION Always plug in a DMX Terminator into the DMX output of the nal
unit in the control sequence. Using a DMX Terminator improves
signal reliability.
1.7 PRESET MODE
In PRESET mode, the operator controls the output of the MAGICFX®PSYCO2JET with the
help of one of the preprogrammed presets. With DMX the operator controls the
following variables:
• The selected preset
• The speed of rotation of the output pipe
• The directions of the output pipe
• The ´Go´ mode:
• OFF (No movement)
• Continuous (The preset is repeated continuously)
• Step in preset (Step by step)
PRESET mode is selected from the operator menu. Check Section 1.5 for the menu
structure.
The MAGICFX®PSYCO2JET is programmed with 10 presets. Each preset is a unique
sequence of pulses and/or sweeps of CO2, see gures.

MAGICFX®PSYCO2JET —User and Installation Manual 11
8P
RESET NUMBER
SWEEP
PULSE
LONG PULSE
0°
-90° +90°
-45° +45°
2
12
0°
-90° +90°
-45° +45°
5
1
2
3
4
5
0°
-90° +90°
-45° +45°
1
1
0°
-90° +90°
-45° +45°
3
1
2
3
0°
-90° +90°
-45° +45°
4
1
2 3
4
SEQUENCE NUMBER
(LEFT DIRECTION)
3
MOVEMENT OF NOZZLE

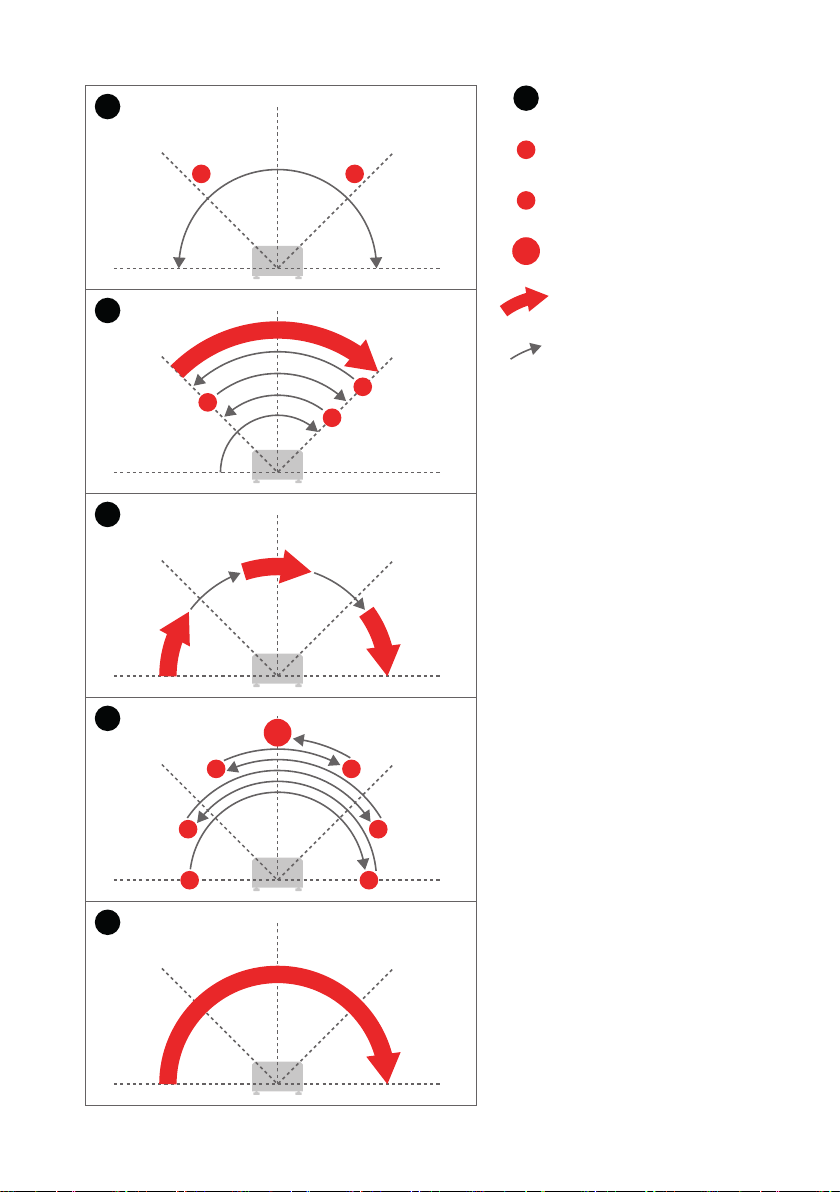

Presets sequences 1–5 when facing
the front side of the unit

12 MAGICFX®PSYCO2JET —User and Installation Manual
0°
-90° +90°
-45° +45°
10
8P
RESET NUMBER
SWEEP
PULSE
LONG PULSE
0°
-90° +90°
-45° +45°
R
A
N
D
O
M
6
0°
-90° +90°
-45° +45°
8
1
2
3
SEQUENCE NUMBER
(LEFT DIRECTION)
3
0°
-90° +90°
-45° +45°
9
5 6
7
1
34
2
MOVEMENT OF NOZZLE
0°
-90° +90°
-45° +45°
7
4
1
2
3
Presets sequences 6–10 when facing
the front side of the unit

MAGICFX®PSYCO2JET —User and Installation Manual 13
In PRESET mode the MAGICFX®PSYCO2JET is controlled with 1 safety address and 4
operational addresses.
DMX Address Address range
Safety address 1 – 512
Start address (Preset) 1 – 509
Start address + 1 (Speed) 2 – 510
Start address + 2 (Direction) 3 – 511
Start address + 3 (Go) 4 – 512
DMX addresses in PRESET mode
The Safety address cannot be the same as one of the operational addresses.
Operating of the addresses in PRESET mode results in the following:
DMX Address DMX Value (decimal) Result
Safety address 0 99 Device disabled
100 155 Device enabled
156 255 Device test mode (CO2 output is
disabled)
Start address
(Preset)
0 24 #1: Single pulse straight up (0°)
25 49 #2: 2 pulses distributed over 180° (-45°
+45°)
50 74 #3: 3 pulses distributed over 180° (-90°,
0°, +90°)
75 99 #4: 4 pulses distributed over 180° (-90°,
-30°, +30°, +90°)
100 124 #5: 5 pulses distributed over 180° (-90°,
-45°, 0°, +45°, +90°)
125 149 #6: Random pulses over 180°
150 174 #7: Pulse at +45°, pulse at -45°, pulse
at +45°, sweep from -45° back to +45°
175 199 #8: Three sweeps over 180° (-90° to
-54°, -18° to +18° and +54° to +90°)
200 224 #9: Pulse at -90°, pulse at +90°, pulse
at -60°, pulse at +60°, pulse at -30°,
pulse at +30°, long pulse at 0°
225 255 #10: Sweep over 180°
Start address + 1
(Speed)
0 255 Minimal speed -> Full speed

14 MAGICFX®PSYCO2JET —User and Installation Manual
DMX Address DMX Value (decimal) Result
Start address + 2
(Direction)
0 63 Le Preset repeatedly starts
from the le
64 127 Le
Bounce
Preset repeatedly starts
from the le and returns
mirrored from the right
128 191 Right
Bounce
Preset repeatedly starts
mirrored from the right
and returns from the le
192 255 Right Preset repeatedly starts
from the right
Start address + 3
(Go)
0 199 O
200 249 Continuous mode
250 255 Step in preset
Operation of the DMX addresses in RAW mode
When you link multiple machines with DMX, we advise you to use the same Safety
address for all machines.
CAUTION Always plug in a DMX Terminator into the DMX output of the nal
unit in the control sequence. Using a DMX Terminator improves
signal reliability.
1.8 RDM CAPABILITY
Remote Device Management Protocol (RDM) is an enhancement of the DMX512
communication protocol. RDM can be used for conguration and status monitoring
while DMX512 takes care of the default controlling.
For RDM you will need a RDM compatible controller. The following RDM parameters
are supported by the MAGICFX®PSYCO2JET.
Parameter ID Discovery GET SET
DISC_UNIQUE_BRANCH X
DISC_MUTE X
DISC_UN_MUTE X
DEVICE_INFO X
SUPPORTED_PARAMETERS X
SOFTWARE_VERSION_LABEL X
DEVICE_MODEL_DESCRIPTION X
MANUFACTURER_LABEL X
SLOT_DESCRIPTION X

MAGICFX®PSYCO2JET —User and Installation Manual 15
Parameter ID Discovery GET SET
DMX_PERSONALITY_DESCRIPTION X
DMX_START_ADDRESS X X
IDENTIFY_DEVICE X X
DEVICE_LABEL X X
FACTORY_DEFAULTS X X
DMX_PERSONALITY X X
DISPLAY_INVERT X X
PAN_INVERT X X
RESET_DEVICE X
RDM parameters
RDM parameters are subject of change due to soware updates. Contact MAGIC FX
for the latest information and updates.

16 MAGICFX®PSYCO2JET —User and Installation Manual
2 BLAST SAFELY!
The MAGICFX®PSYCO2JET has been designed and constructed in such a manner
that it can be used safely. This applies to the use, the circumstances and the
regulations as described in this documentation. Reading this documentation and
following the instructions are therefore necessary for everyone who is authorised to
work with the MAGICFX®PSYCO2JET.
The MAGICFX® PSYCO2JET must be used in surroundings that:
• Have a stable temperature of between -10 and 50°C.
• Have a relative humidity degree between 20% and 90% (non condensing).
• Are free of dust, corrosive gases and high concentrations of organic vapours.
• Are not situated in the vicinity of a source of vibration.
2.1 GENERAL SAFETY RULES
• Only authorised persons may carry out work with the MAGICFX®PSYCO2JET.
• Do not use the MAGICFX®PSYCO2JET if there are people or animals in the
direct output.
• Make sure that children, unauthorised people and animals do not obtain
access to the MAGICFX®PSYCO2JET.
• Make sure there are no freestanding objects or objects that can be damaged
by the MAGICFX®PSYCO2JET within the output distance.
• Do not use the MAGICFX®PSYCO2JET without a Controller, Dimmer or DMX
Pack.
• Do not connect more units to a single electrical circuit than the installed fuse
is able to handle. (Calculate the summed load with the electrical data from
Chapter 1)
• Do not remove any safeguards, safety caps and safety symbols.
• All required safety devices must be in good condition and function properly.
• Ensure sucient lighting of the surroundings.
• Keep the workplace clean.
2.2 CO2
The MAGICFX®PSYCO2JET uses liquid CO2as input. The application of CO2involves
serious risks. Make sure that you are well informed on these risks before installation
and/or operation. Always use approved CO2cylinders, hoses and connections.
Always consult your CO2supplier for regulations and instructions on safe installation
and use.
MAGIC FX is not liable for unsafe situations, accidents and damage that are the result
of incorrect working with CO2and CO2cylinders.

MAGICFX®PSYCO2JET —User and Installation Manual 17
WARNING Inadequate installation and/or operation of a CO2powered
machine and CO2cylinders can lead to death or serious injury.
Always follow the instructions from this manual, from your CO2
supplier and from local authorities.
2.3 INDOOR USE
The MAGICFX®PSYCO2JET is designed for outdoor use and use in well-ventilated
indoor spaces. When used indoors, make sure you take the necessary preparations.
These preparations could include, but are not limited to:
• Consulting your CO2supplier.
• Calculating the reduction of oxygen for the indoor space.
• Checking the location for spots where CO2could accumulate and taking
preventive actions.
• Installing CO2monitoring devices that will warn for hazardous CO2levels.
DANGER Do not use the MAGICFX®PSYCO2JET in poorly ventilated
conned spaces. Exposure to high levels of CO2gas can cause
symptoms like headache, nausea, loss of consciousness or even
death.
2.4 RIGGING
Please follow the European and national guidelines for safe rigging and trussing.
2.5 NOISE LEVEL
The environmental noise level as measured at the ear is 118 dB(A). This level of noise
is only reached during the short instances that the CO2output is active. Therefore
hearing protection is not necessary.
WARNING Do not operate the MAGICFX®PSYCO2JET close to yourself or to
others for a long period of time. If you experience any hearing
loss or ringing in the ears, you should immediately stop using the
unit.

18 MAGICFX®PSYCO2JET —User and Installation Manual
2.6 SAFETY SYMBOLS
Symbol Meaning Position
Read the manual carefully
before use!
Bottom of the machine
Safety symbols
2.7 PRECAUTIONS FOR OPERATION
WARNING Using a damaged or an improper installed machine can lead to
death, serious injury or property damage. Always inspect the
machine thoroughly before operation.
WARNING A poorly mounted machine will come loose when the machine
blasts CO2. This can lead to death, serious injury and/or property
damage. Always inspect if the machine is mounted rmly and
correctly as according to the instructions in this manual.
WARNING Missing or obscured safety symbols on the machine can lead to
death, serious injury or property damage. Make sure all safety
symbols are correctly in place and visible, see Section 2.6.
WARNING Make sure there are no objects near the output that can be
damaged or overthrown by the MAGICFX®PSYCO2JET.
WARNING Always create a safety zone around the MAGICFX®PSYCO2JET
and its output according to the following pictures (stage
mounted and truss mounted).

MAGICFX®PSYCO2JET —User and Installation Manual 19
4 m
15˚
4 m
4 m
15˚
Safety zone for stage mounted units
4 m
15˚
4 m
4 m
15˚
Safety zone for truss mounted units

20 MAGICFX®PSYCO2JET —User and Installation Manual
3 LET’S BLAST!
3.1 INSTALL THE MACHINE
1 Flip the MAGICFX®PSYCO2JET upside down.
2 Loosen the rubber foots and rotate each stage bracket outwards.
1
2
