Magicfx CO2LAUNCHER Operating manual

CO2LAUNCHER.
®
CO2 FX PART01743
rev 01-00
USER AND INSTALLATION MANUAL
ENGLISH

2 MAGICFX®CO2LAUNCHER —User and Installation Manual
DISCLAIMER
WARNING Read this manual carefully before installing and/or using this
product. Failure to read the manual and to follow the printed
instructions may lead to personal injury and/or damage to the
product.
© 2019 MAGICFX®
All rights reserved.
Nothing from this publication may be copied, reproduced and/or published by
means of printing, photocopying or by any other means, without the prior written
approval of MAGIC FX.
MAGIC FX reserves the right to modify specications stated in this manual.
TRADEMARKS
Any brand names mentioned in this manual are registered trademarks of their
respective owners.
LIABILITY
MAGIC FX accepts no liability for claims from third parties arising from unauthorised
use, use other than that stated in this manual, and use other than in accordance with
the General Conditions registered at the Chamber of Commerce.
We further refer to the General Conditions. These are available on request, free of
charge.
Although considerable care has been taken to ensure a correct and comprehensive
description of all relevant components, the manual may nonetheless contain errors
and inaccuracies.
Should you detect any errors or inaccuracies in the manual, we would be grateful if
you would inform us. This helps us to further improve our documentation.

MAGICFX®CO2LAUNCHER —User and Installation Manual 3
TABLE OF CONTENTS
Disclaimer 2
Trademarks 2
Liability 2
Foreword 4
Language 4
Revision table 4
1 Meet the MAGICFX®CO2LAUNCHER! 5
1.1 Main parts 5
  
  
1.4 Accessories 7
1.5 Projectiles 7
2 Shoot safely! 8
2.1 General safety rules 8
2.2 CO28
2.3 Indoor use 9
2.4 Noise level 9
2.5 Safety symbols 9
  
3 Let’s shoot! 11
3.1 (De)attach the shoulder strap 11
3.2 Connect CO211
3.3 (Re)load with textiles 13
  
3.5 Shoot 17
  
4 Troubleshooting 22
5 Maintenance 22
  
7 Declaration of Conformity 23

4 MAGICFX®CO2LAUNCHER —User and Installation Manual
FOREWORD
Congratulations! You have bought a great new product from MAGIC FX.
This manual contains all information required for the intended use of the equipment.
Deviation from the described intended use can result in a hazardous situation and/or
property damage.
This manual includes notes and warnings on safe operation of the equipment. These
notes and warnings are accompanied by the following icons. Read them attentively!
DANGER Indicates a hazardous situation that, if not avoided, will result in
death or serious injury. This signal word is to be limited to the most
extreme situations.
WARNING Indicates a hazardous situation that, if not avoided, could result
in death or serious injury.
CAUTION Indicates a hazardous situation that, if not avoided, could result
in minor or moderate injury.
NOTICE Indicates information considered important, but not hazard-
related (e.g. messages relating to property damage).
LANGUAGE
This document contains the original instructions in English. In case you require other
languages please contact MAGIC FX.
REVISION TABLE
Doc nr Revision Date Description Author Approved
PART01743 01-00 10-10-2019 Initial release CSK WBO

MAGICFX®CO2LAUNCHER —User and Installation Manual 5
1 MEET THE MAGICFX®CO2LAUNCHER!
The MAGICFX®CO2LAUNCHER is a handheld gun-shaped device for safe shooting of
CO2, confetti, streamers or T-shirts into the air.
Before operation the MAGICFX®CO2LAUNCHER needs to be connected to a CO2
cylinder. When the user squeezes the handle, the CO2is released from the barrel. The
shot is accompanied by a strong hissing sound and a white plume of smoke will be
visible from the barrel. Depending on the barrel content; confetti, streamers or a
T-shirt will leave the barrel.
NOTICE Visibility of the CO2 eect can vary due to air humidity. The output
will be more visible when there is high absolute air humidity.
1.1 MAIN PARTS
HAND SUPPORT
RELOAD TUBE
UNLOCK BUTTON
SHOULDER STRAP MOUNTING
SHOULDER STRAP MOUNTING
TRIGGER
CO
2
INPUT
SAFETY CATCH
Main parts

  ®CO2LAUNCHER —User and Installation Manual
1.2 PRODUCT IDENTIFICATION
Type plate
1.3 TECHNICAL DATA
Product Product Name MAGICFX®CO2LAUNCHER
Product Code MFX1170
Product Type CO2 FX
Main
Dimensions
Length 640 mm 25.1 in
Width 107 mm 4.2 in
Height 271 mm 10.7 in
Weight Empty weight 4,2 kg 9.3 lb
Environment Minimum Temperature -15 °C 5 °F
Maximum Temperature 100 °C 212 °F
Humidity (Relative) 20% to 90% (non condensing)
IEC 60529 (IP) Rating IP12
Controlling Control Options Manual
Technical data

MAGICFX®CO2LAUNCHER —User and Installation Manual 7
1.4 ACCESSORIES
Code Product Included
MFX1171 MAGICFX®CO2LAUNCHER LAUNCHING TUBE 1x
MFX1172 MAGICFX®CO2LAUNCHER LIFTING CORE
MFX1173 MAGICFX®CO2LAUNCHER CAP STICKER
MFX3317 Case for MAGICFX®CO2LAUNCHER
MFX1114 CO₂ High Pressure Hose 3/8 Male - Female, 1.25 m
MFX1105 CO₂ High Pressure Hose 3/8 Male - Female, 2 m
MFX1106 CO₂ High Pressure Hose 3/8 Male - Female, 3 m
MFX1121 CO2 High Pressure Hose 3/8 Male - Female, 5 m
MFX1108 CO₂ High Pressure Hose 3/8 Male - Female, 10 m
MFX1109 CO₂ High Pressure Hose 3/8 Male - Female, 15 m
MFX1122 CO2 High Pressure Hose 3/8 Male - Female, 20 m
MFX1110 CO₂ 90 Degrees Connector 3/8
MFX1103 CO₂ Bottle to Hose Connector
MFX1115 CO₂ Bottle to Hose Connector 90 Degrees
Accessories
Please contact MAGIC FX for additional possibilities.
1.5 PROJECTILES
The MAGICFX®CO2LAUNCHER can shoot confetti, streamers and T-shirts. The
maximum output distance per shot depends on the speed the trigger is pulled and
the type of projectile. Check the following table.
Type of projectile Max. load per tube Output distance
Metallic confetti 0,5 kg 12 m
Paper confetti 0,35 kg 12 m
Streamers 3 polybags 20 m
T-shirt 1 pc. 30 m
Projectile types and related loads and output
NOTICE Wind and other weather circumstances will inuence the output
height and output distance of the confetti. The given values are
estimated values.

8 MAGICFX®CO2LAUNCHER —User and Installation Manual
2 SHOOT SAFELY!
The MAGICFX®CO2LAUNCHER has been designed and constructed in such a manner
that it can be used safely. This applies to the use, the circumstances and the
regulations as described in this documentation. Reading this documentation and
following the instructions are therefore necessary for everyone who works with the
MAGICFX®CO2LAUNCHER.
The MAGICFX®CO2LAUNCHER must be used in surroundings that:
• Have a stable temperature of between -15 and 100 °C.
• Have a relative humidity degree between 20% and 90% (non condensing).
• Are free of dust, corrosive gases and high concentrations of organic vapours.
• Are not situated in the vicinity of a source of vibration.
2.1 GENERAL SAFETY RULES
• Only authorised people may work with the MAGICFX®CO2LAUNCHER.
• Do not use the MAGICFX®CO2LAUNCHER if there are people or animals in the
direct output.
• Make sure that children, unauthorised people and animals do not obtain
access to the MAGICFX®CO2LAUNCHER.
• Do not remove any safeguards, safety caps and safety symbols.
• All required safety devices must be in good condition and function properly.
• Ensure sucient lighting of the surroundings.
• Keep the workplace clean.
2.2 CO2
The MAGICFX®CO2LAUNCHER uses liquid or gaseous CO2as input. The application of
CO2involves serious risks. Make sure that you are well informed on these risks before
installation and/or operation. Always use approved CO2cylinders, hoses and
connectors. Always consult your CO2supplier for regulations and instructions on safe
installation and use.
MAGIC FX is not liable for unsafe situations, accidents and damage that are the result
of incorrect working with CO2gas and CO2cylinders.
WARNING Inadequate installation and/or operation of a CO2powered
machine and CO2cylinders can lead to death or serious injury.
Always follow the instructions from this manual, from your CO2
supplier and from local authorities.

MAGICFX®CO2LAUNCHER —User and Installation Manual 9
2.3 INDOOR USE
The MAGICFX®CO2LAUNCHER is designed for outdoor use and use in well-ventilated
indoor spaces. When used indoors, make sure you take the necessary preparations.
These preparations could include, but are not limited to:
• Consulting your CO2supplier.
• Calculating the reduction of oxygen for the indoor space.
• Checking the location for spots where CO2could accumulate and taking
preventive actions.
• Installing CO2monitoring devices that will warn for hazardous CO2levels.
DANGER Do not use the MAGICFX®CO2LAUNCHER in poorly ventilated
conned spaces. Exposure to high levels of CO2gas can cause
symptoms like headache, nausea, loss of consciousness or even
death.
2.4 NOISE LEVEL
The environmental noise level measured at 1 m (39.4 in) from the product is 110
dB(A). This level of noise is only reached during the short shooting instances.
Therefore hearing protection is not necessary.
WARNING Do not operate the MAGICFX®CO2LAUNCHER close to yourself or
to others for a long period of time. If you experience any hearing
loss or ringing in the ears, you should immediately stop using the
unit.

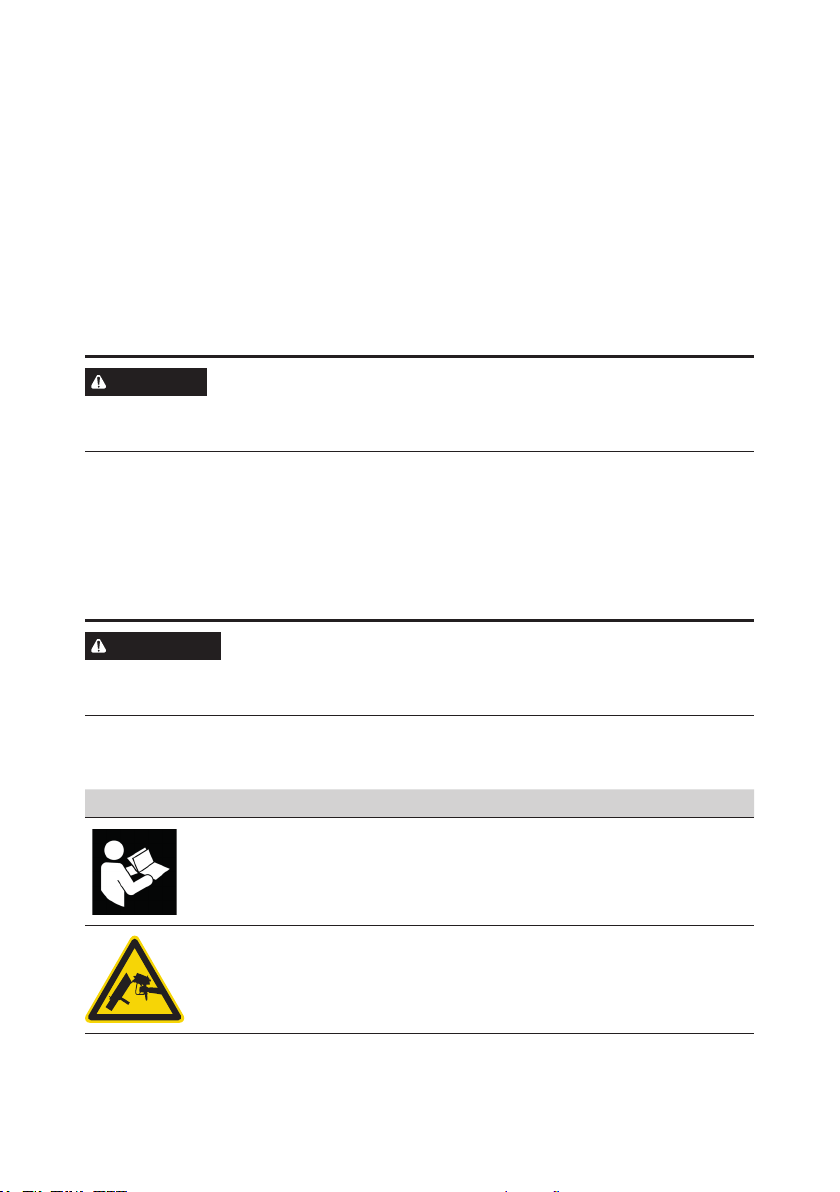

2.5 SAFETY SYMBOLS
Symbol Meaning Position
Read the manual carefully before use! Back of the launcher
Do not trigger when opened! Top of the launcher
Safety symbols

  ®CO2LAUNCHER —User and Installation Manual
 PRECAUTIONS FOR OPERATION
WARNING Using a damaged launcher can lead to serious injury and property
damage. Always inspect the launcher thoroughly before operation.
WARNING Do not trigger the launcher when opened. Triggering the launcher
when opened causes a signicant higher reactive force. This also
results in the CO2leaving the launcher in an undesirable way. This
can lead to serious injuries.
WARNING Always hold the launcher rmly with two hands while in a stable
standing position. When red a reactive force is produced, causing
a backlash vibration. This can lead to injuries when the launcher is
released from the hands unintentionally or when the backlash
causes the user to lose balance.
WARNING Missing or obscured safety symbols on the machine can lead to
death or serious injury. Make sure all safety symbols are correctly
in place, see section 2.5.
NOTICE During operation electrostatic discharge can occur when the
machine is touched. Prevent the discomfort of a possible static
shock by wearing gloves.

MAGICFX®CO2LAUNCHER —User and Installation Manual 11
3 LET’S SHOOT!
3.1 
1 Attach the shoulder strap to the
shoulder strap mounting holes on
the launcher.
Make sure the shoulder strap is
secured properly, the launcher can
fall otherwise.
2 Deattach the shoulder strap by removing the shoulder strap out of the shoulder
strap mounting holes.
3.2 CONNECT CO2

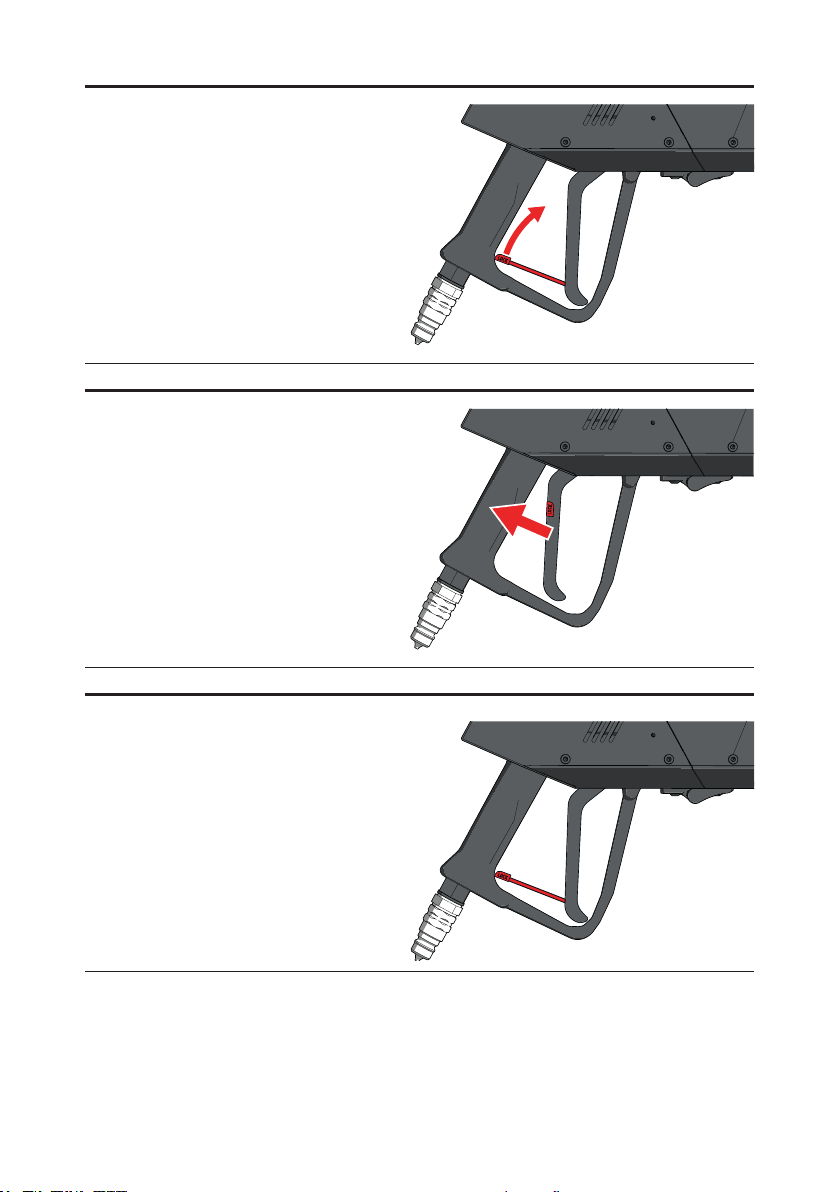

1 Make sure that the safety catch is in locking position.

12 MAGICFX®CO2LAUNCHER —User and Installation Manual
2 Connect the CO2hose to the CO2quick connector.
3 Connect the CO₂ Bottle to
Hose Connector to a CO2
cylinder.
4 Connect the CO2hose to the
CO₂ Bottle to Hose
Connector on the CO2
cylinder.

MAGICFX®CO2LAUNCHER —User and Installation Manual 13

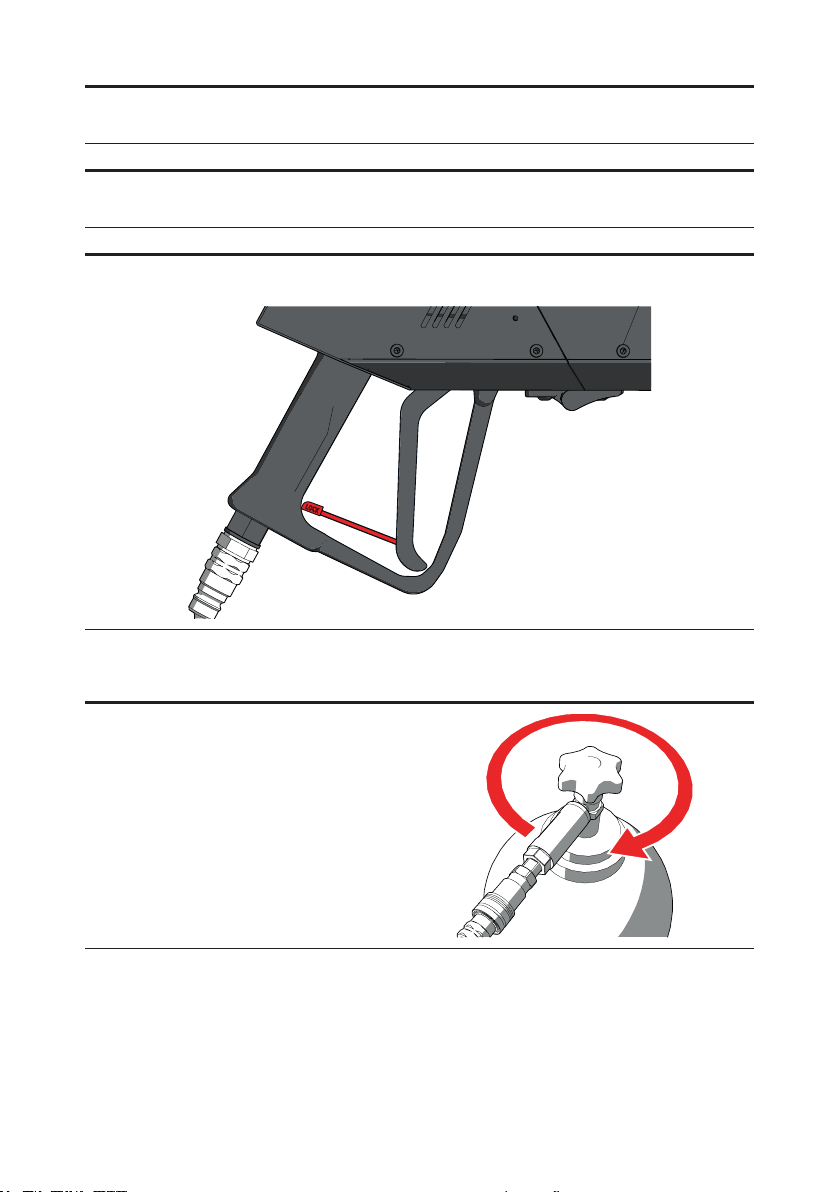

5 Open the CO2cylinder.
3.3 
WARNING Filling the tube with products than otherwise specied, can cause
serious injury or death.
1 Push the unlock button to open the launcher.

14 MAGICFX®CO2LAUNCHER —User and Installation Manual

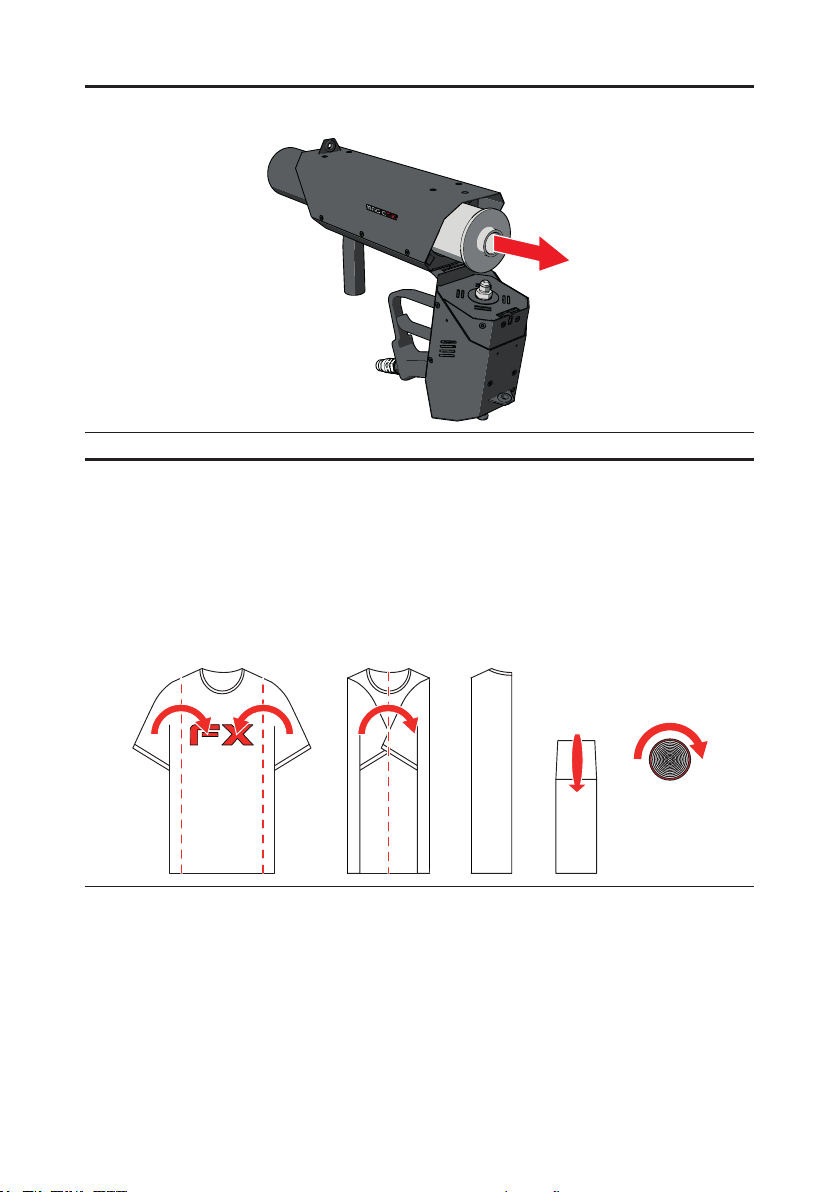

2 Remove the tube from the barrel.
3 Make sure to fold T-shirts correctly before shooting.
1. Fold the sides of the T-shirt to the center.
2. Fold the T-shirt in half.
3. Lay the T-shirt at.
4. Start rolling the T-shirt from the neck into a light roll.
When done, pull the opposite side to ensure the tightness of the roll.
5. Fixate the roll by using rubber bands.
1. 2. 3. 4. 5.

MAGICFX®CO2LAUNCHER —User and Installation Manual 15
4 Fill the tube with so and safe textiles like t-shirts, scarfs or ags.
NOTICE You can use the launcher with and empty tube. When the tube is
empty, CO2 will shoot in the air and a white plume of smoke will
be visible.
NOTICE Place the empty tube in the launcher if you want to use the
launcher only for a CO2 eect.
5 Place the tube in the barrel.
Close the launcher.
WARNING Make sure to completely close the launcher. Failure to do so
could lead to injury.

  ®CO2LAUNCHER —User and Installation Manual
3.4 
1 Remove the tube from the barrel, see Section 3.2, steps 1 and 2.
2 Place a liing core in the bottom of the
tube.
Make sure the liing core lies at and
closes o the hole in the tube!
3 Fill the tube with confetti and/or streamers. The maximum dimensions of the
streamers may be 5 m x 0,85 cm or 10 m x 1,5 cm.

MAGICFX®CO2LAUNCHER —User and Installation Manual 17
4 Place an end sticker on top of the tube.
5 Place the tube in the barrel and close the launcher, see Section 3.2, step 5 and 6.
3.5 SHOOT
1 Carefully walk to the desired shooting position.
2 Unlock the safety catch.

18 MAGICFX®CO2LAUNCHER —User and Installation Manual
3 Firmly hold with two hands and aim above the audience.
Make sure there are no persons or animals in the direct output of the
MAGICFX® CO2LAUNCHER.
4 When it’s time to shoot, squeeze the handle.
NOTICE The faster you squeeze the handle, the faster the projectile exits
the launcher.

MAGICFX®CO2LAUNCHER —User and Installation Manual 19
5 Enjoy the view.
Release the handle to stop shooting.
7 Place the safety catch back in locking position.
 CLEAN UP
1 Close the connected CO2cylinder.

  ®CO2LAUNCHER —User and Installation Manual
2 Unlock the safety catch.
3 Squeeze the handle to release the
remaining pressure.
4 Place the safety catch back in
locking position.
