Magtrol TORQUE 10 User manual
TORQUE 10
b www.magtrol.com
While every precaution has been exercised in the compilation of this document to
ensure the accuracy of its contents, Magtrol, Inc. assumes no responsibility for errors
or omissions.
Additionally, no liability is assumed for any damages that may result from the use of
the information contained within this publication.
COPYRIGHT
Copyright ©2013-2023 Magtrol, Inc. All rights reserved.
Copying or reproduction of all or any part of the contents of this manual without the
express permission of Magtrol is strictly prohibited.
TRADEMARKS
National Instruments™, LabVIEW™and NI-DAQmx™are trademarks of National
Instruments Corporation.
PURCHASE RECORD
Please record all model numbers and serial numbers of your Magtrol equipment,
along with the general purchase information. The model number and serial number
can be found on either a silver identification plate or white label affixed to each unit.
Refer to these numbers whenever you communicate with a Magtrol representative
about this equipment.
Model Number: _____________________________
Serial Number: _____________________________
Purchase Date: _____________________________
Purchased From: _____________________________
2nd English Edition | July 2023
TORQUE 10 SAFETY PRECAUTIONS
www.magtrol.com c
SAFETY PRECAUTIONS
WARNING! IN ORDER TO MINIMIZE RISKS, IT IS OF UTMOST
IMPORTANCE TO RESPECT THE CURRENT SAFETY STANDARDS
WHEN PLANNING, CONFIGURING AND OPERATING THE MAGTROL
SPECIFIC HARDWARE AND SOFTWARE
CAUTION! OPERATE THE SPECIFIC DEVICES WITH GREAT.
CAUTION! THE HARDWARE MAY BE IRREVERSIBLY DAMAGED IF
IMPACTED MECHANICALLY (FALL), CHEMICALLY (ACIDS) OR
THERMALLY (HOT AIR, VAPOR).
1. Make sure that all Magtrol electronic products are earth-grounded, to guarantee
personal safety and proper operation.
2. Check line voltage before operating electronic equipment.
Make sure that all rotating parts are equipped with appropriate safety guards.
3. Periodically check all connections and attachments.
4. Always wear protective glasses when working close to rotating elements.
5. Never wear necktie or baggy clothes when standing close to rotating elements.
6. Never stand too close or bend over the rotating drive chain.
QUALIFIED PERSONNEL
Persons in charge of installing and operating the MAGTROL Hardware and Software must
have read and understood this user manual, paying extra close attention to all safety-related
information.
The Software TORQUE 10 is designed to control the TS 100 Series, Model 3411 Torque
Display Unit and Model 3410 Torque Display Unit, which are a high-precision products
integrating the most recent measurement techniques. The Hardware in rotation can give rise
to residual dangers if used and manipulated in a non-compliant way by unqualified personnel.
TORQUE 10 TABLE OF CONTENTS
www.magtrol.com i
TABLE OF CONTENTS
SAFETY PRECAUTIONS c
TABLE OF CONTENTS i
PREFACE iii
1. INTRODUCTION 1
1.1 ABOUT TORQUE 10 1
1.2 SYSTEM REQUIRMENTS 1
1.3 SOFTWARE FEATURES 1
1.3.1 New Features of TORQUE 10 1
1.3.2 Other Features 1
2. SOFTWARE INSTALLATION 3
2.1 INSTALLATION PROCEDURE 3
3. DRIVER INSTALLATION 5
3.1 TS 1XX SERIE DRIVER 5
3.2 MODEL 3411 DRIVER 5

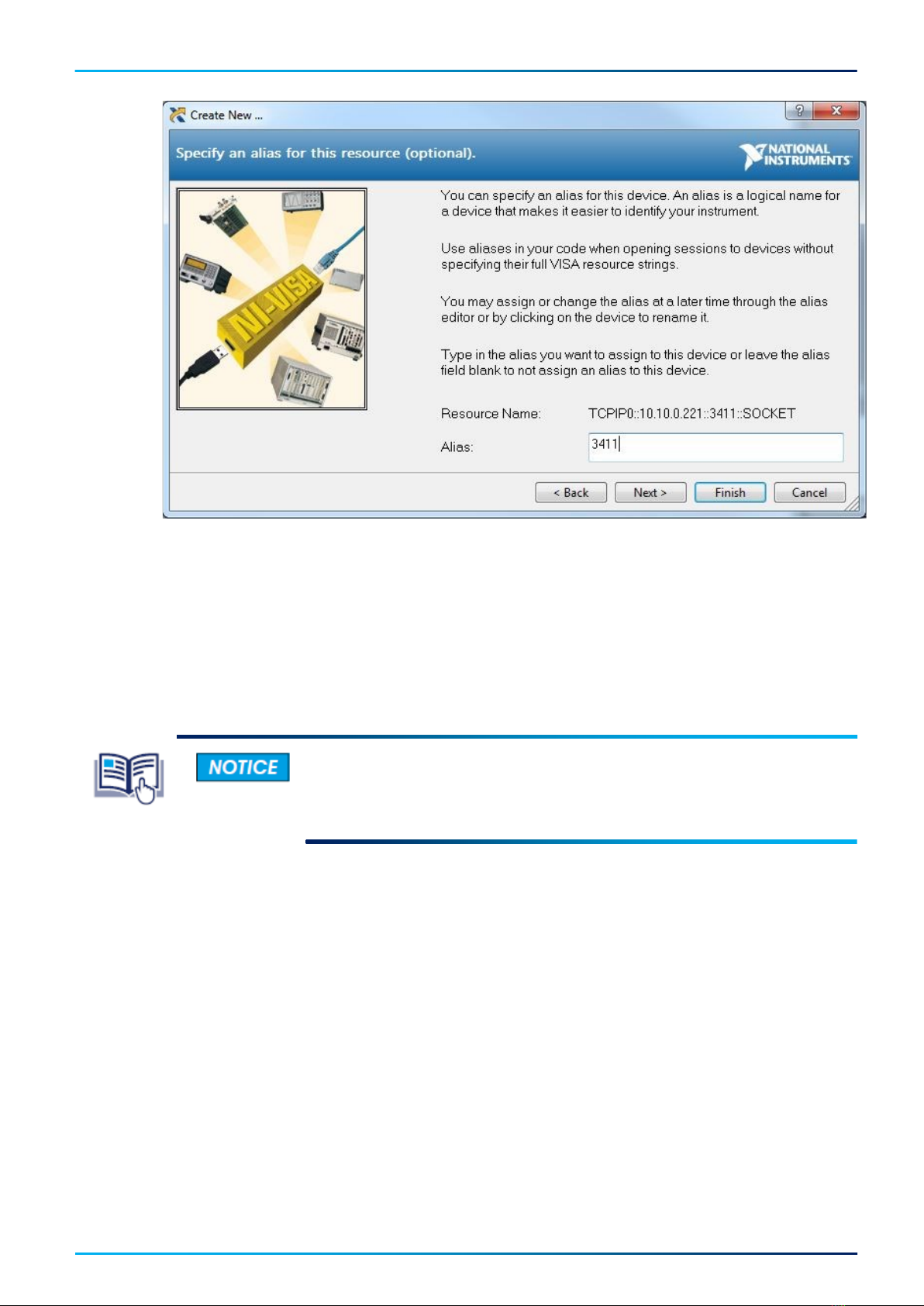

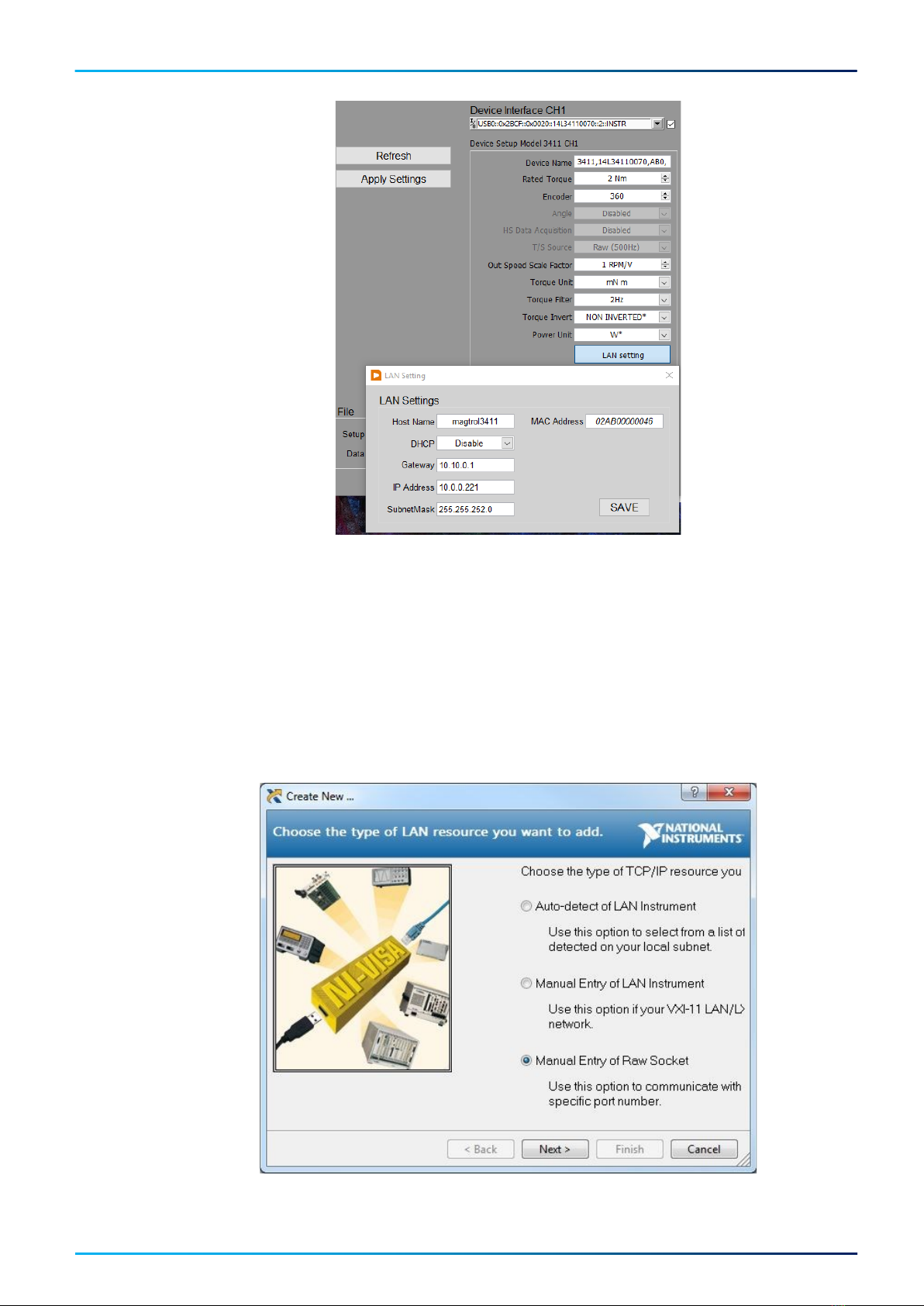

3.2.1 LAN Configuration 6
3.3 MODEL 3410 DRIVER 8
4. TORQUE 10 EXECUTATION 9

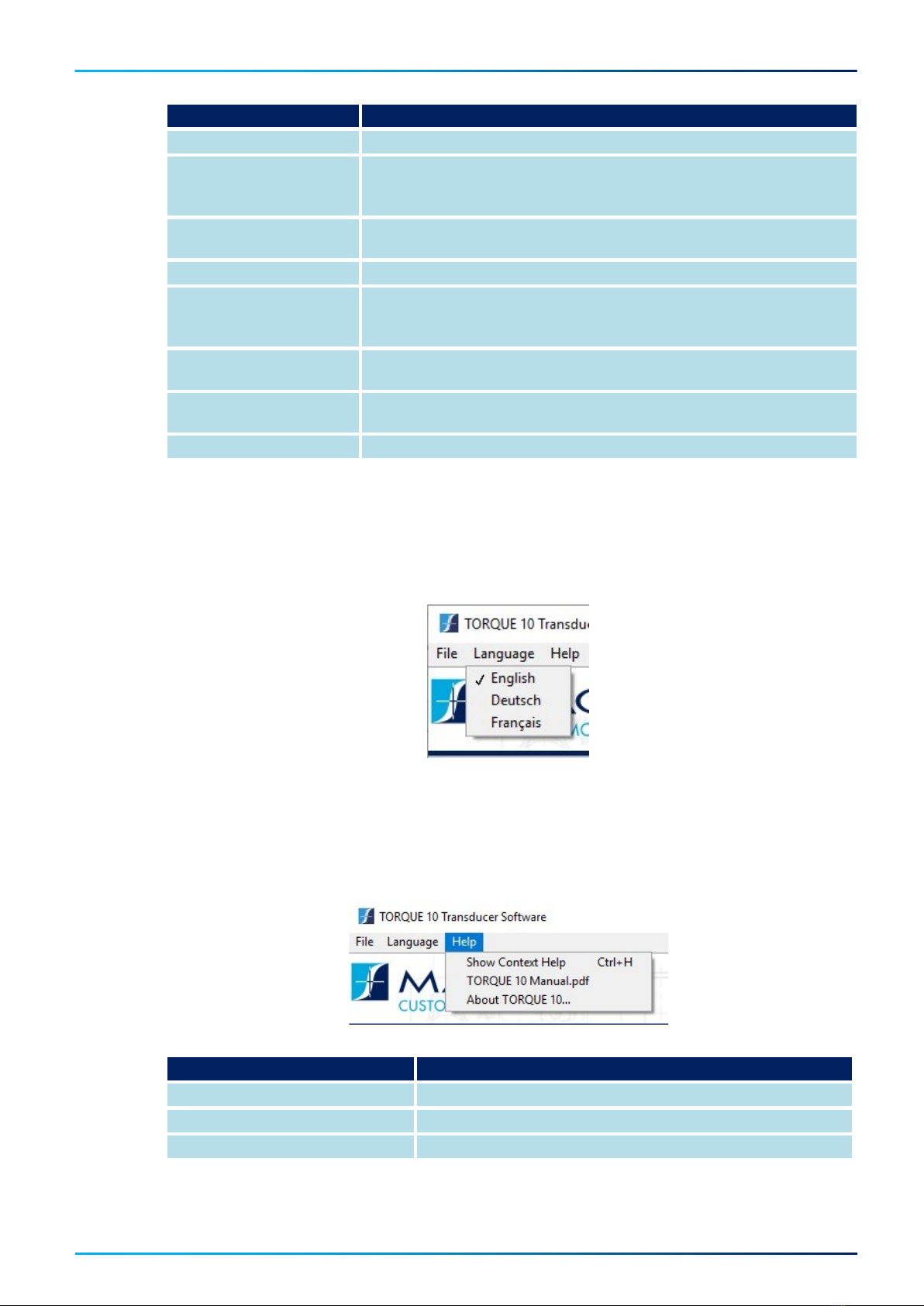

4.1 MENU 9
4.1.1 File menu 9
4.1.2 Language menu 10
4.1.3 Help menu 10
5. SETUP CONFIGURATION 11
5.1 DEVICE INTERFACE 12
5.2 TS 1XX SETUP 13
5.3 3411 SETUP 14
5.3.1 3411 LAN Setting 15
5.4 3410 SETUP 16
5.5 INSTRUMENTS SETUP COMPATIBILITY 17
5.6 SENSOR INPUT (TEMPERATURE) 18
5.7 FILE 19
6. DISPLAY CONFIGURATION 21
6.1 FLAG PART 21
6.2 SELECTED 21
7. TEST FUNCTION 23
7.1 RUN TEST “NORMAL” TWO CHANNELS 25
7.1.1 Result of acquisition 25
7.2 RUN TEST “NORMAL” SINGLE CHANNEL 26
TORQUE 10 PREFACE
www.magtrol.com iii
PREFACE
PURPOSE OF THIS MANUAL
This manual contains information required for installation and general use of Magtrol’s
TORQUE 10 Software. To achieve maximum capability and ensure proper use, please read
this manual in its entirety before operating. Keep the manual in a safe place for quick
reference whenever a question should arise.
WHO SHOULD USE THIS MANUAL
This manual is intended for those operators in need of a software program to complement
their Magtrol test equipment setup. The setup may include any of the following Magtrol
products:
•TS 100 series IN-LINE Torque Sensors
•Model 3411 Torque Display
•Model 3410 Torque Display
MANUAL ORGANIZATION
This section gives an overview of the structure of the manual and the information contained
within it. Some information has been deliberately repeated in different sections of the
document to minimize cross referencing and to facilitate understanding through reiteration.
The structure of the manual is as follows:
Chapter 1: INTRODUCTION -Contains the general information.
Chapter 2: SOFTWARE INSTALLATION - Provides information needed for the
installation of the TORQUE 10 software.
Chapter 3: DRIVER INSTALLATION –Provides the method to install the driver needs for
the communication with the TS 100 Series or 3410/3411 Torque Display
Model.
Chapter 4: TORQUE 10 EXECUTATION - User interface for selecting language and
menu access of TORQUE 10.
Chapter 5: SETUP CONFIGURATION - User interface to select and set up parameters
for testing instruments and analog hardware being utilized in the test
configuration.
Chapter 6: DISPLAY CONFIGURATION - User interface to select and set up parameters
for testing instruments and analog/ input hardware being utilized in the test
configuration.
Chapter 7: TEST FUNCTION - User interface while the test is in progress.
Chapter 8: DATA DISPLAY - Displays data in a tabular format and allows data saving and
printing.
Chapter 9: GRAPH DISPLAY - Displays a multi-plot graph and allows user selection of
axis parameters and printing options
Chapter 10: CREATING TASK - Provides step-by-step instructions for setting up analog
input tasks for Temperature acquisition.
PREFACE TORQUE 10
iv www.magtrol.com
CONVENTIONS USED IN THIS MANUAL
The following symbols and type styles may be used in this manual to highlight certain parts
of the text:
INDICATES INFORMATION CONSIDERED IMPORTANT BUT NOT HAZARD RELATED.
THIS IS INTENDED TO DRAW THE OPERATOR’S ATTENTION TO COMPLEMENTARY
INFORMATION OR ADVICE RELATING TO THE SUBJECT BEING TREATED. IT INTRODUCES
INFORMATION ENABLING THE CORRECT AND OPTIMAL FUNCTION OF THE PRODUCT.
INDICATES A HAZARDOUS SITUATION THAT, IF NOT AVOIDED, COULD RESULT IN MINOR OR
MODERATE INJURY.
THIS IS ALSO USED TO DRAW THE OPERATOR’S ATTENTION TO INFORMATION,
DIRECTIVES, PROCEDURES, ETC. WHICH, IF IGNORED, MAY RESULT IN DAMAGE TO THE
MATERIAL BEING USED. THE ASSOCIATED TEXT DESCRIBES THE NECESSARY
PRECAUTIONS TO TAKE AND THE CONSEQUENCES THAT MAY ARISE IF THESE
PRECAUTIONS ARE IGNORED.
INDICATES A HAZARDOUS SITUATION THAT, IF NOT AVOIDED, COULD RESULT IN DEATH
OR SERIOUS INJURY.
THIS INTRODUCES DIRECTIVES, PROCEDURES, PRECAUTIONARY MEASURES, ETC. WHICH
MUST BE EXECUTED OR FOLLOWED WITH THE UTMOST CARE AND ATTENTION, OTHER-
WISE THE PERSONAL SAFETY OF THE OPERATOR OR THIRD-PARTY MAY BE AT RISK. THE
READER MUST ABSOLUTELY TAKE NOTE OF THE ACCOMPANYING TEXT, AND ACT UPON
IT, BEFORE PROCEEDING FURTHER.
INDICATES A HAZARDOUS SITUATION THAT, IF NOT AVOIDED, WILL RESULT IN DEATH OR
SERIOUS INJURY. THE SIGNAL WORD «DANGER» IS TO BE LIMITED TO THE MOST EXTREME
SITUATIONS.
THIS INTRODUCES DIRECTIVES, PROCEDURES, PRECAUTIONARY MEASURES, ETC. WHICH
MUST BE EXECUTED OR FOLLOWED WITH THE UTMOST CARE AND ATTENTION,
OTHERWISE THE PERSONAL SAFETY OF THE OPERATOR OR THIRD-PARTY MAY BE AT
RISK. THE READER MUST ABSOLUTELY TAKE NOTE OF THE ACCOMPANYING TEXT, AND
ACT UPON IT, BEFORE PROCEEDING FURTHER.
The safety symbol may subsequently vary depending on the source of the hazard. Below are examples:
Figure 1 Various safety pictograms according to ISO 7010
TORQUE 10 INTRODUCTION
www.magtrol.com 1
1. INTRODUCTION
1.1 ABOUT TORQUE 10
Magtrol’s TORQUE 10 is a program designed for use with Windows® 7 SP1/10/11 operating
systems for PC-based data acquisition. Used in conjunction with Magtrol’s Torque Sensors
or Display Equipment, TORQUE 10 is equipped to interface and measure mechanical
parameter of device under test.
The data generated can be stored, displayed and printed in tabular or graphic formats, and
is easily imported into a spreadsheet.
Magtrol can also make custom modifications to the software to meet your specific
requirement.
1.2 SYSTEM REQUIRMENTS
Minimum Recommended:
•Personal computer with Intel i3 Processor (or equivalent, i5 recommended)
•Microsoft® 7SP1/10/11 (32-bit or 64-Bit Operating system)
•4 GB of RAM
•4 GB of available hard drive space
•VGA color monitor with minimum screen resolution 1024 x 768
•A USB interface for TS Series and Model 3411. LAN can be also used for Model 3411.
the Model 3410 require a RS-232 interface.
1.3 SOFTWARE FEATURES
1.3.1 NEW FEATURES OF TORQUE 10
•Dual Channel functionality is available to test gearbox, with Mechanical efficiency
parameter.
•TS 100 Series High Speed acquisition 10kSamples for 1 second for post analysis.
1.3.2 OTHER FEATURES
•Graphical User Interface has user friendly tabbed pages for quick navigation
•TS 100 Series, MODEL 3411 TORQUE Display and MODEL 3410 TORQUE Display
support.
•Supports the optional Analog Input for Thermocouple measurement.
•Options selected by menu at the top of windows
•Export Data to Excel sheet functionality
•Export Graph image to clipboard or file.
•Customizable the sampling of acquisition.
•Save/Load Setup function
•Save/Load Data function
TORQUE 10 SOFTWARE INSTALLATION
www.magtrol.com 3
2. SOFTWARE INSTALLATION
2.1 INSTALLATION PROCEDURE
Plug the USB flash memory or insert the TORQUE 10 DVD-Rom disk into your target
computer’s DVD drive. The installer package can be downloaded from the Magtrol Internet
Site.
https://www.magtrol.com/software-downloads/
Installation listing:
•TORQUE 10 files
•LabVIEW™Runtime 2020
•NI-DAQmx Runtime 20.1
•NI-Serial Runtime 20.0
•NI-VISA Runtime 20.0
Navigate inside the USB flash drive / DVD-Rom under TORQUE 10 folder.
Then Run install.exe.
Figure 2 Run Setup Windows
Use Explorer to find the intsall.exe file on the disk. Double-click this file to begin the
installation process.
If security is enabled, allow Windows to install this program.
The default installation folders for TORQUE 10 and the required drivers appear in the next
window
CAUTION! YOU MAY CHANGE THESE IF NECESSARY BUT DO NOT
INSTALL TORQUE 10 IN THE WINDOWS PROGRAM FILES (X86)
FOLDER.
SOFTWARE INSTALLATION TORQUE 10
4 www.magtrol.com

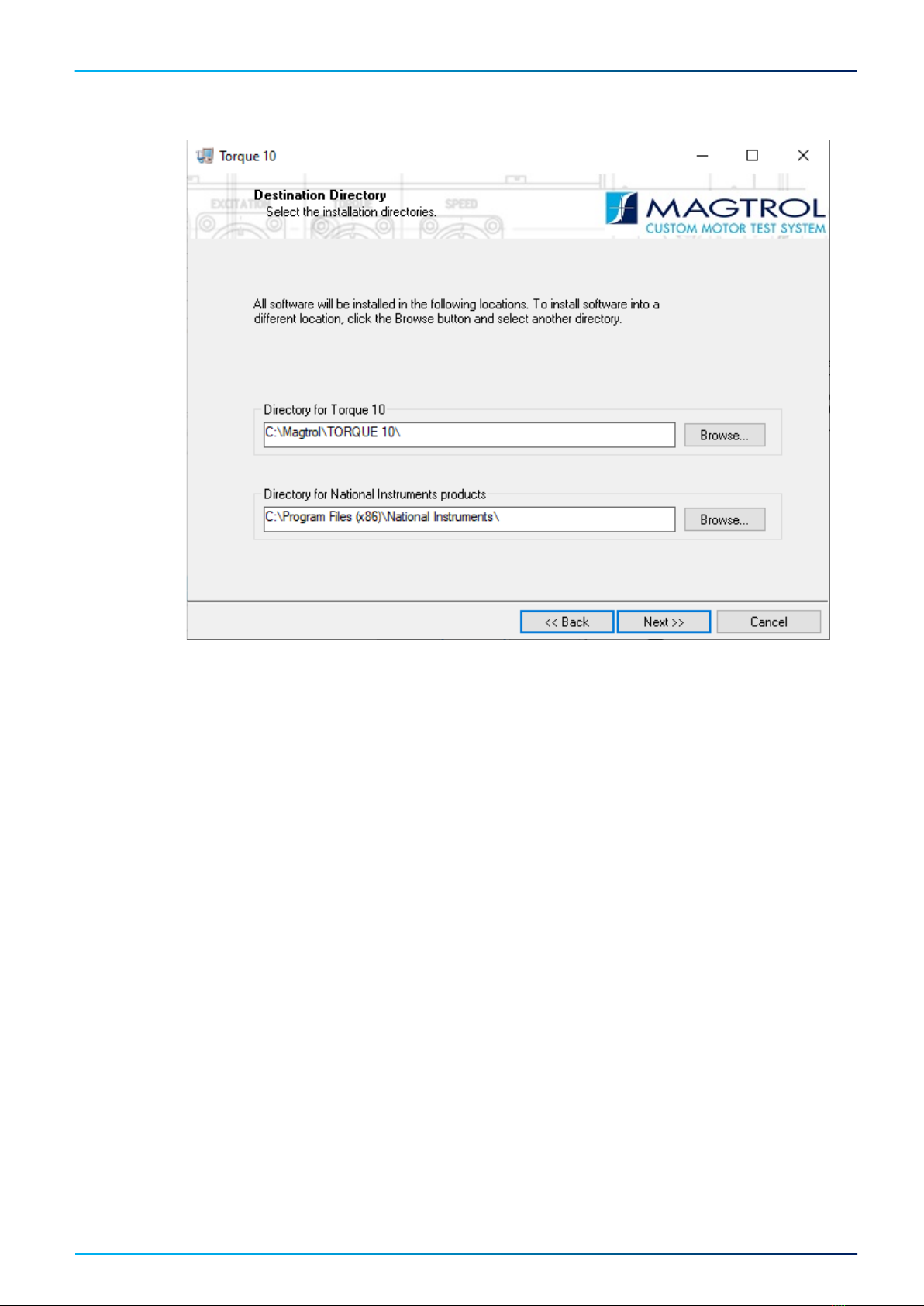

Figure 3 Destination Directory Window
This process can take several minutes to an hour depending upon the computer being used.
Please plan accordingly.
When all programs are installed, the following window will appear. Click Finish to complete
the installation.
TORQUE 10 DRIVER INSTALLATION
www.magtrol.com 5
3. DRIVER INSTALLATION
3.1 TS 1XX SERIE DRIVER
The TS can be controlled in USB (TMC) interface or COM (CDC) interface.
TORQUE 10 supports the USB (TMC) interface for TS 100 Series.
The COMx could be used, but not recommended.
The USB interface doesn’t require any specific driver except the basic
installation delivered with the TS 100 Series

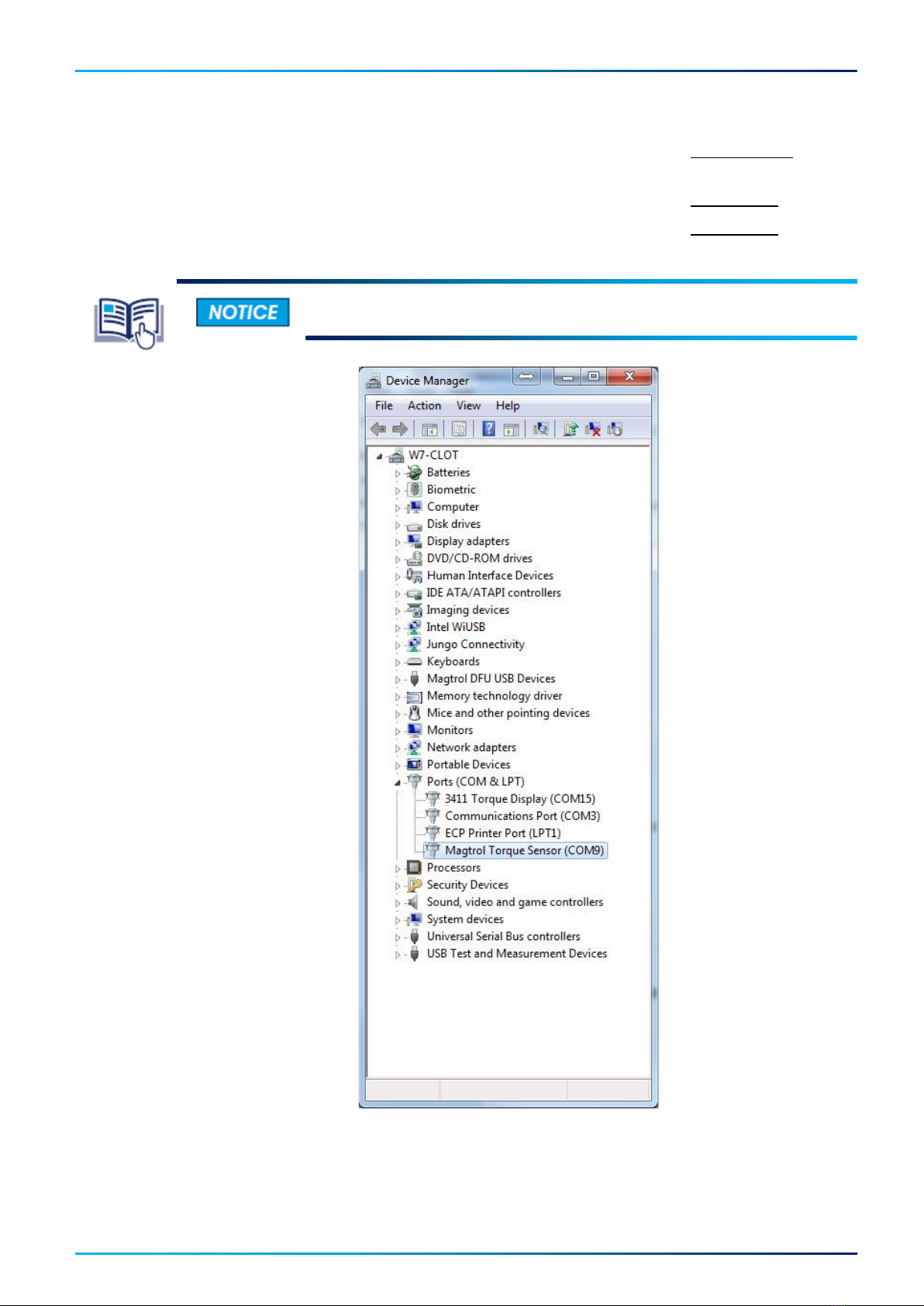

The COM driver could be installed from the DVD or USB flash
➔\DRIVERS\TS Series\
TorqueSensor.x64.msi ➔64-bit operating system.
TorqueSensor.x86.msi ➔32-bit operating system.
Double-click on the correspondent driver.
3.2 MODEL 3411 DRIVER
The MODEL 3411 can be controlled in USB (TMC) interface or COMx (CDC) interface.
TORQUE 10 supports the USB (TMC) interface for Model 3411.
The COMx could be used, but not recommended.
The USB interface doesn’t require any specific driver except the basic
installation delivered with the MODEL 3411
The COM driver could be installed from the DVD or USB flash
➔\DRIVERS\3411\
Depending on the 3411 firmware select the driver corresponding.
Select x64 or x86 depending on operating system.
LAN interface is also available but the configuration of LAN setting must
be done via USB interface before configurate LAN connection via NI MAX
DRIVER INSTALLATION TORQUE 10
6 www.magtrol.com
Figure 4 3411 LAN Settings
3.2.1 LAN CONFIGURATION
Run NI MAX.exe from National Instruments software tools
Open Devices and Interfaces
Right click on Network Devices, select Create New VISA TCP/IP Resource
Select Manual Entry of RAW Socket
Figure 5 NI MAX
Press Next
DRIVER INSTALLATION TORQUE 10
8 www.magtrol.com
Figure 8 NI MAX TCP/IP Alias name
Then Press Finish.
If you have some problem to configure correctly the LAN, please ask your IT service to have
some help.
3.3 MODEL 3410 DRIVER
No specific driver requested. This MODEL 3410 has a true RS-232 interface.
RS-232 cable Female-Female 1:1 SUB-D 9 poles
An USB to RS-232 converter can be used if the computer hasn’t a RS-
232 native port.
TORQUE 10 EXECUTATION TORQUE 10
10 www.magtrol.com
CONTROL
FUNCTION
Load setup
Press to load a specific Setup file.
Save Setup [Ctrl+S]
Press to save the current configuration in current filename. If the
current filename is empty, a dialog windows opens to select the
filename to save. The shortcut Ctrl+S is the same function
Save Setup as …
Press to save the current configuration in specific filename. The
filename and path will be use when press “Save Setup”
Load Data
Press to load a specific data file.
Save Data
Press to save the current data in current data filename. If the
current filename is empty, a dialog windows opens to select the
filename to save.
Save Data as …
Press to save the current data in specific filename. The filename
and path will be use when press “Save Data”
Export to Excel
Press to export directly current data in Excel application. This
function requires to have Excel 2010 or higher.
Print
Press to print the Data or Graph
Depending of the function or position in the program, some of the menu can be disable and
greyed.
4.1.2 LANGUAGE MENU
Figure 11 Language Menu
Language menu allow the user to select the language used throughout the program. The
current language is a flag.
4.1.3 HELP MENU
Figure 12 Help Menu
CONTROL
FUNCTION
Show Context Help Ctrl+H
Enable or disable the context help
TORQUE 10 Manual.pdf
Load the manual to Acrobat Reader.
About TORQUE 10…
Show information’s about this software
SETUP CONFIGURATION TORQUE 10
12 www.magtrol.com
5.1 DEVICE INTERFACE
TS Series: USB0::0x2BCF::0x0030::C-0052::2::INSTR ➔Chapter TS 1xx Setup
3411: USB0::0x2BCF::0x0020::14L34110070::2::INSTR
or LAN ➔Chapter 3411 Setup
3410: COMx ➔Chapter 3410 Setup
To know the COMx port select, go to Device Manager windows
Figure 14 Device Manager
TS Series = Magtrol Torque Sensor
3411 Torque Display = 3411
Table of contents
Other Magtrol Measuring Instrument manuals
Magtrol
Magtrol 5100 User manual
Magtrol
Magtrol HD Series User manual
Magtrol
Magtrol 7500 SERIES User manual
Magtrol
Magtrol HD-106 User manual
Magtrol
Magtrol 6510e User manual
Magtrol
Magtrol WB Series User manual
Magtrol
Magtrol 6530 User manual
Magtrol
Magtrol HD-106-1 User manual
Magtrol
Magtrol LMU 212 User manual
