1 Introduction
This section offers you important information about:
▪the intended use of the device
▪indications and contraindications of use
▪essential performance
▪features and benefits
▪a description of the device
1.1 General
This operation manual is for the touchTymp MI 26 and MI 36 versions. If sections or
parts of sections of this operation manual apply only to certain versions of the device,
they are marked with "MI 26" or "MI 36 ". This operation manual is meant to make it as
easy as possible for the operator to become familiar with the operation and functions
of the touchTymp when performing Immittance tests. If you have questions or
suggestions for further improvements, please, do not hesitate to contact MAICO.
1.2 Intended Use Statement
The touchTymp Tympanometer is used to obtain information on medical conditions
affecting the middle ear and to assess hearing.
The touchTymp Tympanometer with Audiometry intended to be used for the
identification of hearing loss and the factors that contribute to the occurrence of the
hearing loss in the age range of children to adults. Output and specificity of this type
of device are based on the test characteristics defined by the user, and may vary
depending on environmental and operating conditions. Testing for hearing loss using
this type of audiometer requires interaction with the patient.
Indications of Use Statement
The touchTymp Tympanometer is an electroacoustic test instrument that produces
controlled levels of test tones and signals intended for use in conducting screening or
diagnostic middle ear function or hearing evaluations. It features Tympanometry, Acoustic
Reflex and Audiometry toassist in the diagnosis of possible otologic disorders.
The touchTymp Tympanometer is intended to be used by an audiologist, ENT, hearing
healthcare professionals, or other trained technicians in a hospital, clinic, healthcare facility
or other suitable quiet environment asdefined in ANSI S3.1 / ISO 8253-1 or equivalent.

Operation Manual touchTymp MI 26 and MI 36 Version
8511780 Rev. 4
5
30/06/2021
1.3 Contraindications of Use
Tympanometry and Acoustical Reflex testing should not be performed on patients
with one of the following symptoms without a medical doctor’s approval:
•Recent stapedectomy or other middle ear surgery
•Discharging ear
•Acute external auditory canal trauma
•Discomfort (e.g. severe otitis externa)
•Occlusion of the external auditory canal
•Presence of tinnitus, hyperacusis or other sensitivity to loud sounds may
contraindicate testing when high intensity stimuli are used
Visual inspection for obvious structural abnormalities of the external ear structure and
positioning as well as the external ear canal should be performed before testing.
Audiometry testing should not be performed if the patient is too young, sick or
uncooperative to perform the tasks.
1.4 Features and Benefits of the touchTymp
1.4.1 General Information About the touchTymp
The touchTymp is available as a version with or without a printer. The touchTymp gives
you the benefit of:
•Full touchscreen operation
•Screening Immittance test battery –MI 26 version (i.e. Tympanometry, Acoustic
Reflex Tests)
•Diagnostic Immittance test battery –MI 36 version (i.e. Tympanometry, Acoustic
Reflex, Reflex Decay, Eustachian Tube Function)
•Optional high frequency probe tone
•Optional RaceCar animation
•Multiple transducer options for contralateral reflex testing
•Automatic test function in Immittance modules
•Included test cavities for quick and easy calibration verification
•Air Conduction pure tone audiometry –MI 26 version
•Bone Conduction pure tone audiometry –MI 26 (with bone conduction upgrade)
and MI 36 version
•Print directly from device with built-in printer
•Automatic printing cability with placement of probe in holder

Operation Manual touchTymp MI 26 and MI 36 Version
8511780 Rev. 4
6
30/06/2021
1.4.2 Licenses
The touchTymp comes with some optional measurements which can be activated by
entering a license key. In the settings (see section 5.6.19) this key can be added.
The following functions are available:
•Tympanometry 1000 Hz (all versions)
•Acoustic Reflexes Contra (MI 26 version only, included in MI 36 version)
•Audiometry Bone Conduction incl. Masking (MI 26 version only, included in
MI 36 version)
•RaceCar (all versions)
•PC Connection (all versions, for connection with MAICO Sessions)
It might appear that the touchTymp already contains licenses due to the version you
ordered (e.g. if ordered touchTymp MI 26 version comes with a probe tone of 1000 Hz
for Tympanometry and Acoustic Reflexes).
NOTE: Each license key is specific for the serial number of your device.
In case you want to purchase another license, please, contact MAICO or your local
distributor to determine eligibility.
1.4.3 Printing Options
Printing test results from the touchTymp are accomplished in a variety of ways:
•Use the build-in printer to directly print results.
•TransfertouchTymp testdataintothePC-softwareandprintresultsonyourPC-printer.
1.5 Description
1.5.1 General
The touchTymp is designed for Immittance testing as Tympanometry and Acoustic
Reflex (i.e. Ipsilateral and Contralateral) testing (MI 26 and MI 36 version).
MI 36 version also includes Reflex Decay and Eustachian Tube Function (ETF) tests.
MI 26 and MI 36 also include Audiometry functions:
•Air Conduction (all versions)
•BoneConduction incl.Masking(extraLicensesforMI26,includedinMI36version)
The functions are described in detail in the following sections.
1.5.2 Tympanometry
Tympanometry is the objective measurement of middle ear mobility (compliance
1
)
and pressure
2
within the middle ear system (Figure 1). During the test, a low-pitched
probe tone (226 Hz) is presented to the ear canal by means of the hand-held probe.
This tone is used to measure the change in compliance in the middle ear system while
1
Compliance is measured with respect to an equivalent volume of air, with the scientific quantity milliliter (ml).
2
Air pressure is measured in deca-Pascals (daPa).

Operation Manual touchTymp MI 26 and MI 36 Version
8511780 Rev. 4
7
30/06/2021
the air pressure is varied automatically from a positive value (i.e. +200 daPa) to a
negative value (i.e. -400 daPa max).
Figure 1
Maximum compliance of the middle ear system occurs, when the pressure in the
middle ear cavity is equal to the pressure in the external auditory canal. This is the
highest peak of the curve as it is recorded on the chart. The position of the peak on the
horizontal axis and on the vertical axis of the chart will provide diagnostic information
regarding the function of the middle ear system. Gradient calculations are reported as
the Tympanogram width at half of peak compliance expressed in daPa. A normative
box is available on both the display and printout to aid in diagnosis.
NOTE: 1 mmho ≙1 ml for 226 Hz probe tone
1.5.3 Acoustic Reflex
An Acoustic Reflex, or contraction of the stapedial muscle, occurs under normal
conditions when a sufficiently intense sound is presented to the auditory pathway. This
contraction of the muscle causes a stiffening of the ossicular chain which changes the
compliance of the middle ear system. As in Tympanometry, a probe tone is used to
measure this change in compliance.
When the stimulus presentation and measurement are made in the same ear by means
of the probe, this acoustical reflex is referred to as an Ipsilateral Acoustic Reflex.
When the stimulus presentation ismade in the opposite ear ofwhere themeasurement
is made, this acoustical reflex is referred to as a Contralateral Acoustic Reflex.
For best results, this reflex measurement is automatically conducted at the air pressure
value where the compliance peak occurred during the Tympanometric test. Stimulus
tones of varying intensities at 500 Hz, 1000 Hz, 2000 Hz or 4000 Hz are presented as
short bursts. If a change in compliance greater than the selected value is detected, a
reflex is considered present. Because this is an extremely small compliance change,
any movement of the probe during the test may produce an artifact (false response).
The test result is recorded as Pass/No Response (NR), and in graphical form.
If the Tympanometric results display any abnormal findings, the results of the
Acoustic Reflex testing may be inconclusive and should be interpreted with care.
Theoretically, a compliance peak is necessary to observe a reflex at peak pressure.

Operation Manual touchTymp MI 26 and MI 36 Version
8511780 Rev. 4
8
30/06/2021
1.5.4 Acoustic Reflex Decay (MI 36 Version Only)
Acoustic reflex decay, also known as adaptation, is the measurement of the acoustic
reflex response during sustained stimulus presentation. Ipsilateral and Contralateral
Reflex Decay can be performed.
1.5.5 Eustachian Tube Dysfunction (ETF) (MI 36 Version Only)
The Eustachian tube connects the middle ear with the nasopharynx. Its function is to
equalize pressure between the middle ear and the atmosphere.
The Eustachian tube test canbe used to determine ifthe Eustachian tube is functioning
properly in patients.
•ETF Intact: performed on patients with normal tympanic membrane (TM).
•ETF Perforated: determines if the patient can open his/her Eustachian tube when
the TM is perforated or an open PE-tube is in place.
1.5.6 Air Conduction Testing
Hearing threshold levels can be determined by presenting test signals to the test
subject with the included headphones (Air Conduction –AC). The purpose of AC
audiometry is to establish the hearing sensitivity at various frequencies. The test can
specify the AC loss but cannot distinguish between a conductive versus a
sensorineural abnormality.
1.5.7BoneConduction Testing(MI26Version–ExtraLicense,MI36Version–Included)
Hearing threshold levels can be determined by presenting test signals to the test
subject with the included bone conductor (Bone Conduction –BC). The purpose of
BC audiometry is to establish the hearing sensitivity at various frequencies. The test
can specify the BC loss in combination with AC loss it can distinguish between
conductive versus a sensorineural abnormality.
1.5.8Masking(MI26Version–ExtraBoneConductionLicense,MI36Version–Included)
Masking is required if there is a notable threshold difference between the left and right
ears. It is possible for sound to be transmitted to both ears via bone conduction while
testing the poorer ear. This is called “crossover”.
Crossover occurs often while testing bone conduction, but it can also occur during air
conduction testing. Relevant to crossover is the sound level received by the opposite
ear. The difference between the original test signal in the test ear and the received
signal in the opposite ear is called “interaural attenuation”.
For Bone Conduction measurements the interaural attenuation is 0 dB to 15 dB.
Bone Conduction crossover is therefore possible even with a slight difference in
hearing loss between ears.

Operation Manual touchTymp MI 26 and MI 36 Version
8511780 Rev. 4
9
30/06/2021
2 For Your Safety
This section offers you important information about:
▪how to read the operation manual
▪where to spend special attention
▪the customer responsibility
▪the explanation of all regulatory symbols used
▪important cautions and warnings that have to be considered during
the whole time handling and operating your device
2.1 How to Read this Operation Manual
This Operation Manual contains information pertinent to the use of the MAICO device
system including safety information as well as maintenance and cleaning
recommendations.
READ THIS ENTIRE OPERATION MANUAL BEFORE
ATTEMPTING TO USE THIS SYSTEM!
Use this device only as described in this manual.
All images and screenshots are only examples and may differ in
appearance from the actual device settings.
In this manual, the following two labels identify potentially dangerous or destructive
conditions and procedures:
The WARNING label identifies conditions or practices that
may present danger to the patient and/or user.
The CAUTION label identifies conditions or practices that
could result in damage to the equipment
NOTE: Notes help you identify areas of possible confusion and avoid potential problems
during system operation.
WARNING
CAUTION

Operation Manual touchTymp MI 26 and MI 36 Version
8511780 Rev. 4
10
30/06/2021
2.2 Customer Responsibility
All safety precautions given in this operation manual must be observed at all times.
Failure to observe these precautions could result in damage to the equipment and
injury to the operator or subject.
The employer should instruct each employee in the recognition and avoidance of
unsafe conditions and the regulations applicable to his or her work environment to
control or eliminate any hazards or other exposure to illness or injury.
It is understood that safety rules within individual organizations vary. If a conflict exists
between the material contained in this manual and the rules of the organization using
this device, the more stringent rules should take precedence.
This product and its components will perform reliably only
when operated and maintained in accordance with the
instructions contained in this manual, accompanying labels,
and/or inserts. A defective product shouldnot be used. Make
sure all connections to external accessories are snug and
secured properly. Parts which may be broken or missing or
are visibly worn, distorted, or contaminated should be
replaced immediately with clean, genuine replacement parts
manufactured by or available from MAICO.
NOTE: Customer responsibility includes proper maintenance and cleaning of the
device (see sections 3.2 and 3.3). Breach of the customer responsibility can lead to
limitations of Manufacturer’s Liability and Warranty (see sections 2.3 and 3.1).
NOTE: In the unlikely case of a serious incident, inform MAICO as well as the
competent authority in the country where the user is established.
2.3 Manufacturer’s Liability
Usage of the device in a way deviant from the intended use will lead to a limitation or
termination of the manufacturer’s liability in case of damage. Improper use includes
disregarding the operation manual, the operation of the device by underqualified
personnel as well as making unauthorized alterations on the device.
WARNING

Operation Manual touchTymp MI 26 and MI 36 Version
8511780 Rev. 4
11
30/06/2021
2.4 Regulatory Symbols

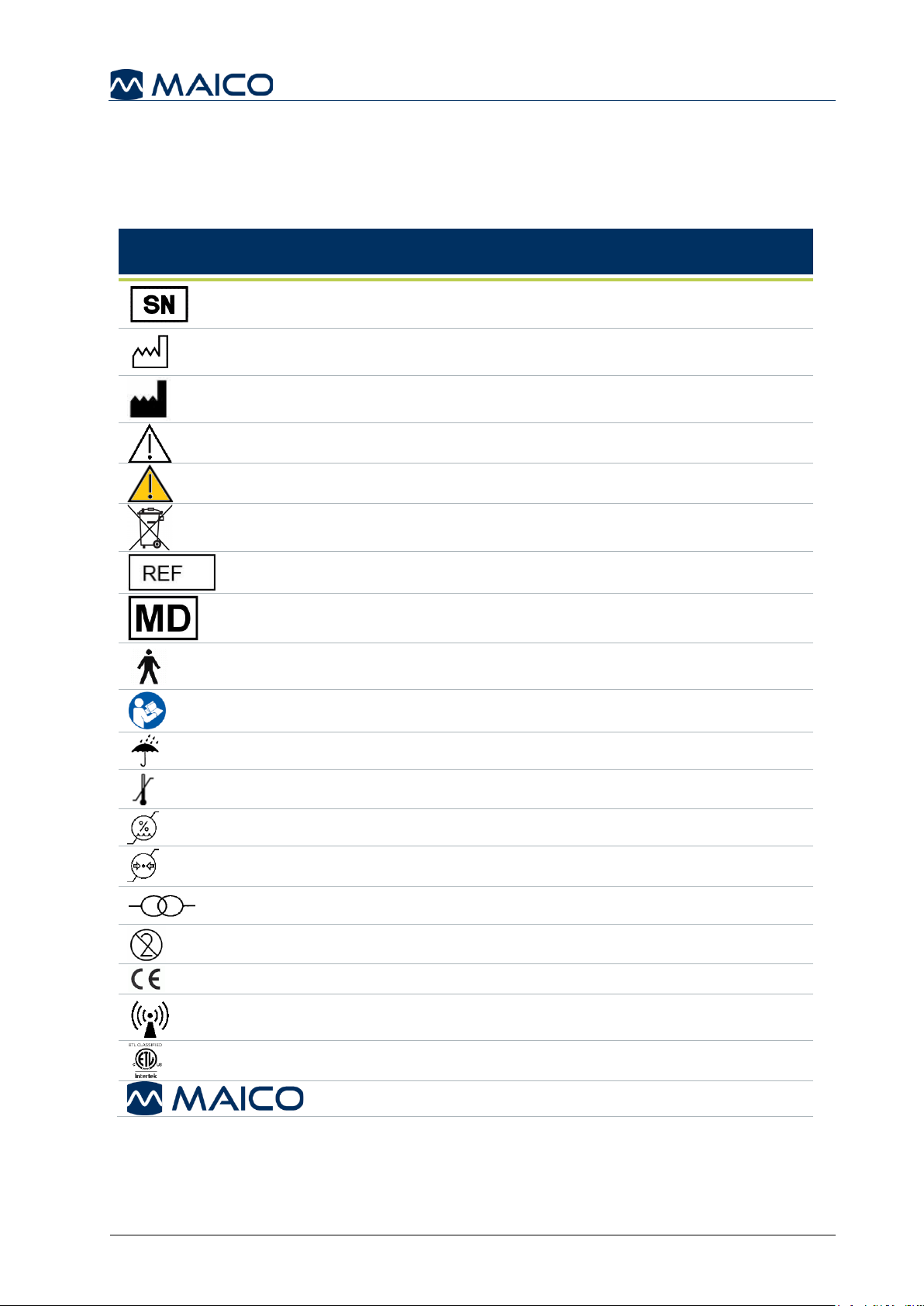

The following Table 1 gives an explanation of the symbols used on the device itself,
on the packaging and the accompanying documents including the Operation Manual.
Table 1 Regulatory Symbols
REGULATORY SYMBOLS
SYMBOL
DESCRIPTION
Serial number
Date of manufacture
Manufacturer
Caution, consult accompanying documents
Warning, consult accompanying documents
Returntoauthorizedrepresentative,specialdisposalrequired
Reference number
Medical Device
Patient applied part type B according to IEC 60601-1
Refer to instruction manual (mandatory)
Keep away from rain
Transport and storage temperature range
Transport and storage humidity limitations
Transport and storage atmospheric pressure limitations
Voltage transformer
Do not reuse
Conforms to Medical Device Regulation (EU) 2017/745
Non-ionizing electromagnetic radiation
ETL listed mark
Logo

Operation Manual touchTymp MI 26 and MI 36 Version
8511780 Rev. 4
12
30/06/2021
2.5 General Precautions
Before starting a measurement make sure, that the device
works properly.
Use and store the device indoors only. For operation,
storage and transport conditions see table in section 6.
For operation in certain places, a recalibration may be
necessary.
No modification of this equipment is allowed.
Equipment is not user repairable. Repairs must be
performed by a qualified service representative only. No
modifications of the equipment are allowed by anyone
other than a qualified MAICO representative. Modification
of the equipment could be hazardous. No part of the
equipment can be serviced or maintained while in use with
the patient.
Do not drop or otherwise cause undue impact to this
device. If the device is dropped or otherwise damaged,
return it to the manufacturer for repair and/or calibration.
Do not use the device if any damage is suspected.
Calibration of the device: The device and the transducers
complement each other and share the same serial number
(i.e. MA7663252). Therefore, the device shall not be used
with any other transducer prior to recalibration.
Recalibration also needs to be conducted, when a
defected headphone is replaced.
Uncalibrated devices may lead tofaulty measurement results
andcould even damage the hearing of theexaminee.
This device contains a coin-type lithium battery. The cell
can only be changed by service personnel. Batteries may
explode or cause burns, if disassembled, crushed or
exposed to fire or high temperatures. Do not short-circuit.
2.6 Electrical Safety and Measuring Security
This icon indicates that patient applied parts of the device
conform to IEC 60601-1 Type B requirements.
The protection class of the system is IEC 60601-1 class I.
In Case of Emergency
In case of emergency, disconnect the device from the
computer.
WARNING
WARNING
WARNING
WARNING
WARNING

Operation Manual touchTymp MI 26 and MI 36 Version
8511780 Rev. 4
13
30/06/2021
In Case of Emergency
Incaseofemergency,disconnectthedevicefrompowersupply.
Position the device in such a way that it can be easily
disconnected from the power plug at any time.
Do not use the device if the power supply unit and/or the
plug is damaged.
To transfer data to a PC, establishing a PC-connection via
USB is required. See section 4.2.4 on howto safely establish
a connection with a power supplied PC or laptop (medical
device/non-medicaldevice) or to a battery-driven laptop.
This equipment is intended to be connected to other
equipmentthus forming a Medical Electrical System. External
equipment intended for connection to signal input, signal
output or other connectors shall comply with the relevant
product standard e.g. IEC 60950-1 for IT equipment and the
IEC60601-seriesformedicalelectricalequipment.Inaddition,
all such combinations –Medical Electrical Systems –shall
comply with the safety requirements stated the general
standard IEC 60601-1, edition 3, clause 16. Any equipment
not complying with the leakage current requirements in IEC
60601-1 shall be kept outside the patient environment i.e. at
least 1.5 m from the patient support or shall be supplied via a
separation transformer to reduce the leakage currents. Any
person who connects external equipment to signal input,
signal output or other connectors has formed a Medical
Electrical System and is therefore responsible for the system
to comply with the requirements. If in doubt, contact qualified
medical technician or your local representative.
A Separation Device (isolation device) is needed to isolate
the equipment located outside the patient environment
from the equipment located inside the patient environment.
In particular such a Separation Device is required when a
network connection is made. The requirement for the
Separation Device is defined in IEC 60601-1 clause 16.
If the device is connected to a PC (IT equipment forming a
system) assembly and modifications shall be evaluated by
qualified medical technician according to safety
regulations in IEC 60601-series.
Do not touch the contacts of the device and the patient at the
same time.
If the device is connected to a PC (IT equipment forming a
system) do not touch the patient and the IT equipment at the
same time.
The consequence of not following this warning could be a
too high leakage current to the patient.
WARNING
WARNING
WARNING
WARNING
WARNING

Operation Manual touchTymp MI 26 and MI 36 Version
8511780 Rev. 4
14
30/06/2021
The device is not intended for operation in areas with an
explosion hazard. Do NOT use the device in a highly
oxygen-enriched environment, such as a hyperbaric
chamber, oxygen tent, etc. If the device is not used switch
it off and disconnect it from the power supply.
Never short-circuit the terminals.
To avoid the risk of electric shock, this equipment must
only be connected to the medical power supply originally
delivered by MAICO. Using another power supply can also
lead to electrical damage on the device.
Prevent cable breakage: cables must not be bent or
buckled.
2.7 Device Control
The user of the device should perform a subjective device check once a week
according ISO 8253-1. See section 6.7 for a checklist.
For annual calibration see section 2.5 and 3.2.
2.8 Electromagnetic Compatibility (EMC)
This device is suitable in hospital environments except for
near active HF surgical equipment and RF shielded rooms
of systems for magnetic resonance imaging, where the
intensity of electromagnetic disturbance is high.
The device fulfills the relevant EMC requirements. Avoid
unnecessary exposure to electromagnetic fields, e.g. from
mobile phones etc.
Use of this device adjacent to or stacked with other
equipment should be avoided because it could result in
improper operation. If such use is necessary, this device
and the other equipment should be observed to verify that
they are operating normally.
Use of accessories, transducers and cables other than
those specified or provided by the manufacturer of this
equipment could result in increased electromagnetic
emissions or decreased electromagnetic immunity of this
equipment and result in improper operation.
The list of accessories, transducers and cables can be
found in the section 6.5 of this instruction.
Portable RF communications equipment (including
peripherals such as antenna cables and external antennas)
should be used no closer than 30 cm (12 inches) to any part
of the touchTymp, including cables specified by the
manufacturer. Otherwise, degradation of the performance of
thisequipment could result in improperoperation.
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING

Operation Manual touchTymp MI 26 and MI 36 Version
8511780 Rev. 4
15
30/06/2021
3 Warranty, Maintenance and After-Sales Service
This section offers you important information about:
▪warranty conditions
▪maintenance
▪cleaning and disinfection recommendations
▪handling disposables
▪troubleshooting
▪recycling and disposal of the device
3.1 Warranty
The MAICO device is guaranteed for at least one year. Ask your authorized local
distributor for more information.
This warranty is extended to the original purchaser of the device by MAICO through
the distributor from whom it was purchased and covers defects in material and
workmanship for a period of at least one year from date of delivery of the device to the
original purchaser.
The device shall only be repaired and serviced by your distributor or by an authorized
service center. Opening the device case will void the warranty.
In the event of repair during the guarantee period, please enclose evidence of
purchase with the device.
3.2 Maintenance
In order to ensure that the device works properly, it has to be checked and calibrated
at least every twelve months.
The service and calibration must be performed by your dealer or to a service center
authorized by MAICO.
When returning the device for repairs or calibration it is essential to send the acoustic
transducers with the device. Please include a detailed description of faults. In order to
prevent damage in transit, please use the original packing when returning the device.
3.3 Cleaning and Disinfection Recommendations
3.3.1 General
It is recommended that parts (device like headphones, ear cushions) which come in
direct contact with the patient be subjected to standard cleaning and disinfecting
procedure between patients.
Recommendations for cleaning and disinfection of MAICO device presented in this
document are not intended to replace or contradict policies in effect or procedures
required for infection control at the facility.

Operation Manual touchTymp MI 26 and MI 36 Version
8511780 Rev. 4
16
30/06/2021
If there is not a high infection potential, MAICO recommends:
•Before cleaning always switch off and disconnect the device from power supply.
•For cleaning use a lightly dampened cloth with soap water solution.
•Disinfect the plastic housing of the touchTymp and its accessories by wiping the
surfaces with disinfectant wipes or a comparable product. Follow the
instructions on the specific disinfection product.
oWipe before and after each patient
oAfter contamination
oAfter infectious patients
To avoid damage of the device and its accessories, please mind
the following:
•Do not autoclave or sterilize.
•Do notuse the device in the presence of fluid that can come into
contact with any of the electronic components or wiring.
Should the user suspect fluids have contacted the system
components or accessories, the unit should not be used until
deemed safe by a MAICO certified service technician.
Do not use hard or pointed objects on the device or its accessories.
For more detailed cleaning recommendations see the following sections 3.3.2 to 3.5.
3.3.2 Cleaning the Touch Screen
Use a lens cleaning or microfiber cloth to clean the touchTymp touchscreen.
3.3.3 Cleaning the Case and Cables
Also, check-out our training videos:
MAICO Training | touchTymp Part 1 | 8/8 Cleaning - YouTube
https://www.youtube.com/watch?v=9o3QkyGCNLg&list=PLonI5JzuDcd7lxKobEy7BW3DS59QCsbA
G&index=8
Use caution while cleaning.
Use a damp cloth to clean the plastic parts of the touchTymp.
If disinfection is required, use a disinfectant wipe rather than a
spray product. Make sure that excess liquid from the wipe does
not seep into any sensitive areas such as connectors and
seams where plastic pieces connect such as the edges around
the touch screen.
Follow the instructions on the disinfection product.
CAUTION
CAUTION

Operation Manual touchTymp MI 26 and MI 36 Version
8511780 Rev. 4
17
30/06/2021
3.3.4 Cleaning the Probe Tip
Also, check-out our training videos:
MAICO Training | touchTymp Part 1 | 7/8 Cleaning the probe - YouTube
https://www.youtube.com/watch?v=r7Wj5wDFQDg&list=PLonI5JzuDcd7lxKobEy7BW3DS59QCsbA
G&index=7
In order to secure correct immittance measurements it is important to make sure that the
probe system is kept clean at all times. Therefore please clean the probe on a periodic
basis. It is indispensable to remove cerumen from the probe tip’s small acoustic and air
pressure channels. Therefore please follow the illustrated instructions below. The pictures
show the procedure on the Pen Probe (left) and the Shoulder Box (right).

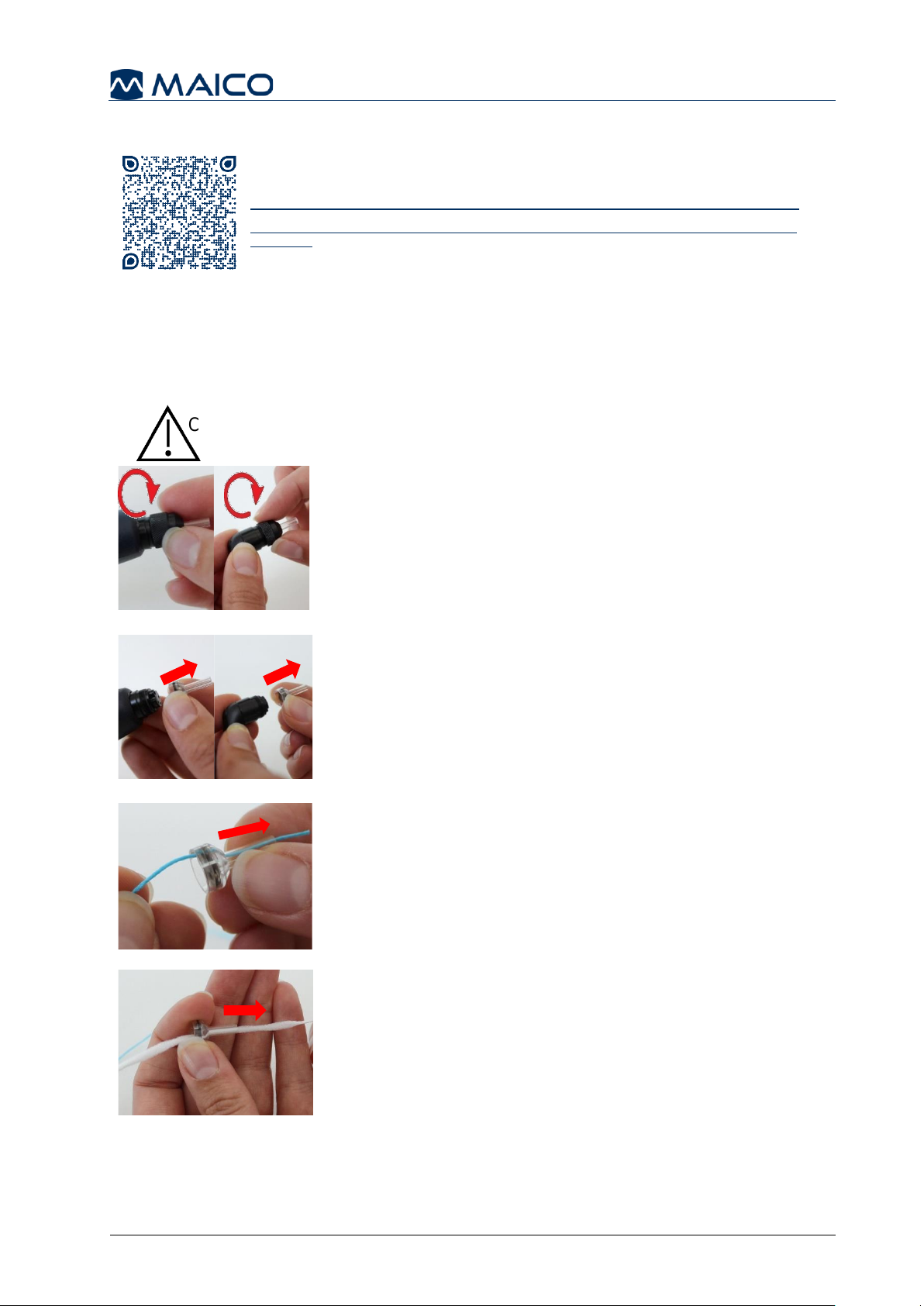

Never clean the probe tip while the tip is still attached to
the probe
Figure 2
Unscrew the probe cap by turning it in a counter clockwise
direction (Figure 2).
Figure 3
Take the plastic probe tip out of the probe (Figure 3).
Figure 4
Insert the blue end of the floss from back to front through
one of the probe channels. Pull the floss along its entire
length through the channel (Figure 4).
Figure 5
Proceed in the same way with all 4 probe channels. Use
the floss only once (Figure 5).
CAUTION

Operation Manual touchTymp MI 26 and MI 36 Version
8511780 Rev. 4
18
30/06/2021
Figure 6
Place the probe tip back onto the probe. Make sure that
the plastic pegs are inserted into the appropriate
corresponding cavities (Figure 6).
Figure 7
Screw the probe cap back on the probe (Figure 7). The
force of tightening the cap will tighten the screw
sufficiently. Never use tools to fix the probe cap!
If any blockage or damage occurs to the sealing gasket,
the probe system can only be serviced by MAICO.
Cleaning alternative
Figure 8
Figure 9
Use the cleaning set from the eartip box (Figure 8): Take
the cleaning tool apart to find the thin brush and thin rigid
plastic cord (Figure 9).
Figure 10
Use the plastic cord or brush to push debris out of the
probe tip (Figure 10).
Figure 11
Always enter the probe tip from the rear to avoid
accumulation of debris inside the vents (Figure 11).
Figure 12
Never clean the probe itself with
the cleaning devices. The probe
will be damaged (Figure 12).
Figure 13
Never clean the probe tip while
the tip is still attached. The probe
will be damaged (Figure 13).
CAUTION
CAUTION

Operation Manual touchTymp MI 26 and MI 36 Version
8511780 Rev. 4
19
30/06/2021
3.4 Disposables
Figure 14
Operating the touchTymp will require the use of eartips –
either mushroom shaped (1) or umbrella (2) eartips
(Figure 14).
Eartips are intended for single-use only. These should be
discarded after use. They cannot be cleaned.
In case of re-use of the single-use equipment you
enhance the risk of cross contamination!
MAICO strongly recommends to use Sanibel eartips only. In case you want to purchase
further disposables, please contact MAICO or your local distributor.
3.5 Components/Replacement Parts
Some reusable components are subject to wear with use over time. MAICO
recommends that you keep theses replacement parts available (as appropriate for your
touchTymp device configuration).
3.6 Troubleshooting
Table 2 Troubleshooting
Problem
Reason
Suggestion
No start of
measurement
Probe
Make sure the probe is connected to the back of
the device correctly and the brackets are closed.
Otherwise, follow the suggestions in Probe tip.
No start of
measurement
Probe tip
1. Clean the probe tip as described in the
manual. If the system still does not run
proceed with step 2.
2. Use a new probe tip. If the system still does
not run proceed with step.
3. Change the complete probe and check if the
system is running.
Screen is
frozen
Hold the Front key button for 10 seconds in
order to shut-off the device. Restart.
Probe light
stays white
Turn off the device. Confirm/reconnect the probe
before restarting.
Transfer to PC
not possible
Connection to PC
Make sure the USB/PC-connection is established
(PC connection license needs to be activated), the
PC software is opened and the device and the
connection icon is displayed green.
Buttons are
greyed out
No license
Missing transducer
calibration
Combinations of
settings not allowed
Purchase license if wanted.
Calibrate transducer.
Verify settings are correct.
NOTE: If there are any problems that you cannot solve yourself, please, contact your
customer service. It will be helpful to use the function Export error log (see section 5.6.20)
to send the customer service the data needed for solving the problem.
WARNING
1
2
