Rice Lake iQUBE2 Enterprise 1280 User manual

iQUBE2®
Digital Diagnostic Junction Box
Version 1.0
Installation Manual
PN 106113 Rev D
1280 Enterprise™ Indicator
920i® Programmable HMI Indicator
Virtui2® PC-based HME
December 20, 2019

An ISO 9001 registered company
© Rice Lake Weighing Systems. All rights reserved.
Rice Lake Weighing Systems® is a registered trademark of
Rice Lake Weighing Systems.
All other brand or product names within this publication are trademarks or
registered trademarks of their respective companies.
All information contained within this publication is, to the best of our knowledge, complete and
accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make
changes to the technology, features, specifications and design of the equipment without notice.
The most current version of this publication, software, firmware and all other product
updates can be found on our website:
www.ricelake.com

Contents
© Rice Lake Weighing Systems ● All Rights Reserved i
Contents
Technical training seminars are available through Rice Lake Weighing Systems.
Course descriptions and dates can be viewed at www.ricelake.com/training
or obtained by calling 715-234-9171 and asking for the training department.
1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.1 Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.2 System Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.3 Digital I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.4 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.5 Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.6 Transient Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3 System Configurations and Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3.1 Communications Option Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3.2 Power Supply Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Support Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4.1 Virtui2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4.2 Supporting Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.5 Printed Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.0 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 Unpacking and Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Mounting the Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2.1 UL Equipment Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2.2 UL Power Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3.1 Cable Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.4 Transient Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.5 Load Cells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.5.1 Load Cell Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.6 Serial Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.6.1 Port 1 Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.6.2 Communications Option Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.6.3 Communications Cable Distance Limitations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.7 Digital I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.8 Primary/Secondary Wiring and Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.8.1 Assigning Board Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.8.2 Manual Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.8.3 Start Auto Assign Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.8.4 Push-Button Address Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.8.5 Manual Assignment with Virtui2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.8.6 Restore System Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.9 Installing Option Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.10 Transient Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.11 Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.12 Parts Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

iQUBE2 Digital Diagnostic Junction Box
ii Visit our website www.RiceLake.com
Rice Lake continually offers web-based video training on a growing selection
of product-related topics at no cost. Visit www.ricelake.com/webinars
3.0 1280 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.1 Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.1.1 iQUBE2 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.2 Base Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.2.1 Board Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.2.2 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.2.3 Load Cells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.2.4 Load Cell Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.2.5 Comm Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.2.6 Digital I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.2.7 Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3.3 Scales . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.3.1 Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.3.2 Formatting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.3.3 Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.4 Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.5 Setpoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.6 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
4.0 920i Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4.1 Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4.1.1 Connect to 920i . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
4.1.2 Manual Assignment with the 920i . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
4.1.3 920i–iQUBE2 Menu Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4.2 Set COMM Parameters and Download Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
4.2.1 Associating a Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
4.2.2 Digital Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
4.3 920i Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
4.3.1 Front Panel Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
4.3.2 Advanced Calibration Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
5.0 Virtui2 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
5.1 Device Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
5.1.1 Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
5.1.2 Define Load Cells. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
5.1.3 Load Cell Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5.1.4 Scale Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
5.1.5 Additional iQUBE2 System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
5.1.6 Print Formatting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
5.1.7 Sending Configuration to iQUBE2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
5.2 Configuration Utility Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
5.2.1 2-Point Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
5.2.2 Corner Match . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
5.2.3 Section Match . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
5.2.4 Theoretical Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
5.2.5 Temporary Zero Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Contents
© Rice Lake Weighing Systems ● All Rights Reserved iii
Contents
Technical training seminars are available through Rice Lake Weighing Systems.
Course descriptions and dates can be viewed at www.ricelake.com/training
or obtained by calling 715-234-9171 and asking for the training department.
6.0 Serial Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
7.0 Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
7.1 Diagnostic Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
7.1.1 Diagnostic Error Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
7.1.2 Retrieving Diagnostic Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
7.2 Diagnostic Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
7.2.1 System Diagnostic Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
7.2.2 Cell Diagnostic Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
7.2.3 Scale Diagnostic Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
7.2.4 Diagnostic Flag Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
8.0 Data Formatting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
8.1 Weight Data Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
8.1.1 Data Format Tokens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
8.1.2 Weight Data Status Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
8.1.3 Diagnostic Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
8.2 Data Formatting Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
8.2.1 Formatting Data from Multiple Scales . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
8.2.2 Using the Start/Stop Streaming Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
8.2.3 Encapsulating Data with Prefix and Postfix Characters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
9.0 Maintenance and Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
9.1 Cell Emulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
9.1.1 Section Match . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
9.1.2 Corner Match . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
9.1.3 2-Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
9.1.4 Cell Emulation in Virtui2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
9.1.5 Cell Emulation with 920i Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
9.2 Power Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
9.2.1 System Current Draw. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
9.2.2 System Voltage Drop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
9.3 Installing Firmware Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
9.4 Replacing CPU Boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
9.4.1 Replacing the Primary CPU Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
9.4.2 Replacing a Secondary CPU board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
9.5 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
9.5.1 General Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
9.5.2 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
9.6 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

iQUBE2 Digital Diagnostic Junction Box
iv Visit our website www.RiceLake.com
Rice Lake continually offers web-based video training on a growing selection
of product-related topics at no cost. Visit www.ricelake.com/webinars

Introduction
© Rice Lake Weighing Systems ● All Rights Reserved 1
1.0 Introduction
This manual is intended for use by service technicians responsible for installing and servicing iQUBE2 digital diagnostic junction
boxes. This manual applies to Version 1.0 or later of the iQUBE2 software.
For applications using the 920i indicator as a host device, Version 4.0 or later of the 920i indicator software must be installed.
For applications using the 1280 indicator as a host device, Version 1.03 or later of the 1280 indicator software must be installed.
For installations using the 920i indicator, the indicator can be configured using the iRev, Version 4 or later, configuration utilities,
serial commands, or the indicator front panel keys.
Configuration and calibration of the iQUBE2 can also be accomplished using Virtui2.
Manuals, detailed warranty information and additional resources are available on the product pages of the Rice Lake
Weighing Systems website at www.ricelake.com.
If this product page does not have specific warranty information listed, Rice Lake Weighing Systems’ full Warranty and
Limitation of Liability can be found at www.ricelake.com/warranties.
Contact customer service at 800-472-6703 for any additional warranty information or product questions.
1.1 Safety
Safety Signal Definitions:
Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. Includes
hazards that are exposed when guards are removed.
Indicates a potentially hazardous situation that, if not avoided, could result in serious injury or death. Includes
hazards that are exposed when guards are removed.
Indicates a potentially hazardous situation that, if not avoided, could result in minor or moderate injury.
Indicates information about procedures that, if not observed, could result in damage to equipment or corruption
to and loss of data.
General Safety
Do not operate or work on this equipment unless this manual has been read and all instructions are understood.
Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake
Weighing Systems dealer for replacement manuals.
Failure to heed could result in serious injury or death.
Some procedures described in this manual require work inside the iQUBE2 or indicator enclosure. These procedures are to be
performed by qualified service personnel only.
Do not allow minors (children) or inexperienced persons to install/operate this unit.
Do not operate without enclosure completely assembled.
Do not place fingers into slots or possible pinch points.
Do not use this product if any of the components are cracked.
Do not make alterations or modifications to the unit.
Do not remove or obscure warning labels.
Do not submerge.
Before opening the unit, ensure all power is disconnected.
DANGER
WARNING
CAUTION
IMPORTANT
WARNING

iQUBE2 Digital Diagnostic Junction Box
2 Visit our website www.ricelake.com
1.2 Overview
The iQUBE2 is a digital programmable junction box with advanced diagnostic and multi-scale capabilities. A single 4-channel
iQUBE2 board can be configured to support up to four individual scales plus their sum. The modular design allows for the
connection of up to four iQUBE2 circuit boards to define a scale system of up to 16 full bridge analog load cells. An ASCII-based
command set allows the iQUBE2 to be configured and controlled by any programmable host that supports the command set.
1.2.1 Hardware
The CPU board (PN 106390) provides four load cell input channels, four configurable I/O channels, a selectable multi-protocol
communications port (RS-232, 2- or 4-wire RS-485) and an additional port that accepts various Rice Lake option cards (see
Table 1-2 on page 3) for simultaneous communications with multiple hosts.
1.2.2 System Models
The enclosures are available in both fiberglass and stainless steel, with or without a power supply, and in a variety channel
configurations. See Section 1.3 on page 3.
1.2.3 Digital I/O
Each CPU board provides four channels of digital I/O.
Digital inputs can be set to provide indicator functions, including four keys plus cell health and setpoints. The primary CPU
board has four digital inputs/outputs; any secondary CPU boards are used for cell health only.
1.2.4 Configuration
The iQUBE2 is designed for use with any host device capable of sending and receiving ASCII text. A simple communications
program, such as HyperTerminal, can be used to configure the most complex system and monitor all diagnostic capabilities.
In addition, Rice Lake Weighing Systems provides three additional interfaces for configuring and controlling:
• The 1280 Enterprise indicator, using the iQUBE2 configuration screens, using the front panel or Revolution configuration
utility (Revolution module for the 1280 which includes iQUBE2 configuration or an iQUBE2 Revolution module which can
connect directly to the iQUBE2), see Section 3.0 on page 21.
• The 920i Programmable HMI Indicator/Controller, using the 920i menus or the iRev 4 configuration utility, see
Section 4.0 on page 33.
• The Virtui2 PC-based HMI, PC-based indicator and configuration utility, see Section 5.0 on page 44.
Any indicator capable of operation as a serial scale can be configured and used as the indicating element.
1.2.5 Diagnostics
Advanced diagnostic capabilities include:
• Power supply and excitation voltage monitoring
• Load cell connection faults
• Load cell overload, under-load, balanced load, load cell drift, peak-to-peak noise and zero reference errors
Diagnostic information can be included in weight data or monitored on a communications channel separate from weight data.
See Section 7.0 on page 61 for more information about diagnostics.
1.2.6 Transient Protection
Transient protection boards are designed to protect the power supply lines by minimizing the effects of nearby lightening strikes
and other extreme transients.
Transient protection boards are recommended on each end of a power supply run when an external DC supply is used, or on
power supply cables to secondary units where the secondary enclosure runs are longer than 75'.
The transient protection board option (PN 110949) includes a mounting bracket.
Note

Introduction
© Rice Lake Weighing Systems ● All Rights Reserved 3
1.3 System Configurations and Options
The iQUBE2 is available in fiberglass or stainless steel enclosures.
• 8'' x 10'' – accommodates 1-2 CPU boards, up to 8 channels
• 10'' x 12'' – accommodates 1-3 CPU boards, up to 12 channels
• Maximum system configuration – accommodates 4 CPU boards, up to 16 channels and requires at least two enclosures.
1.3.1 Communications Option Cards
The option cards listed in Table 1-2 are available to extend the communications capabilities of the iQUBE2. The option cards

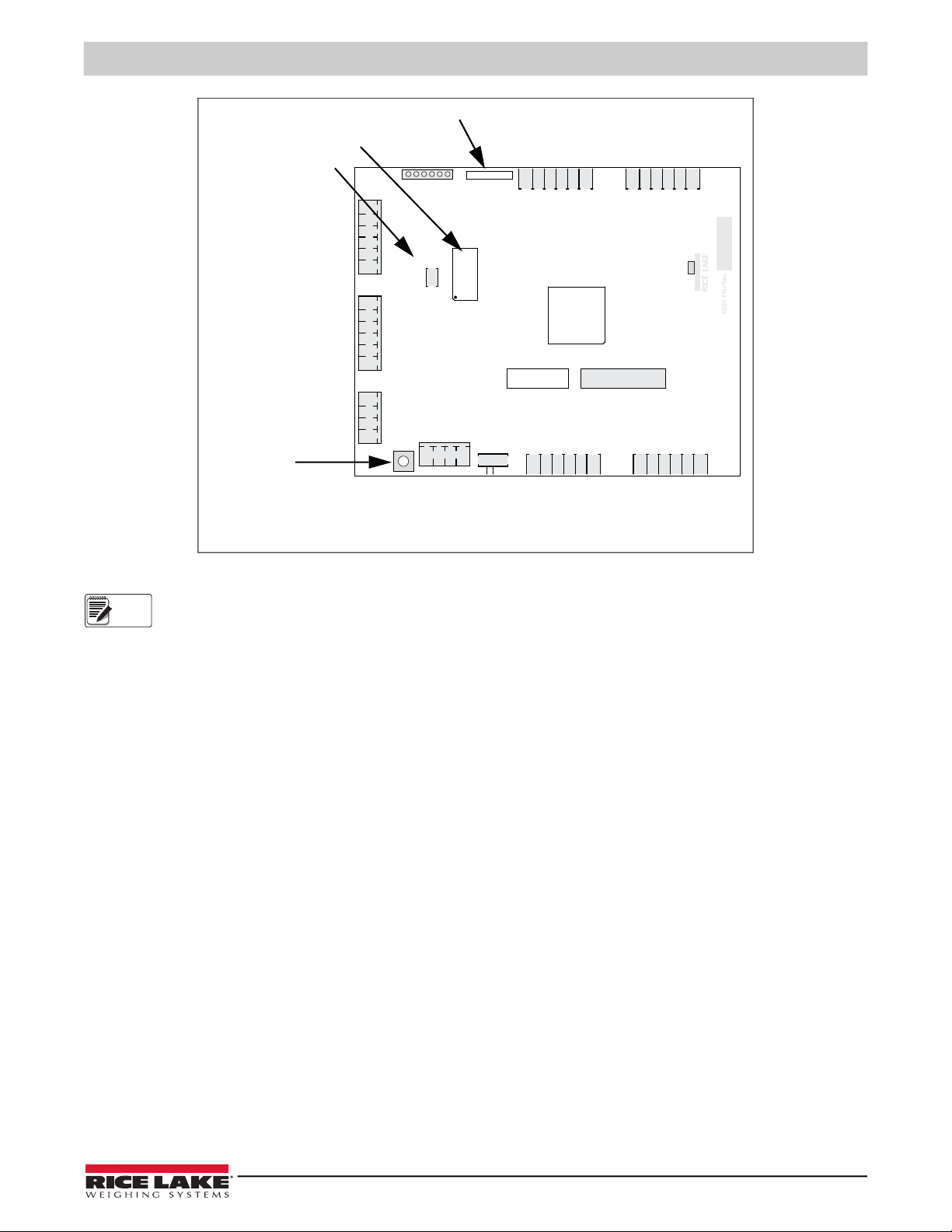

are installed in connector J9 on the CPU board (see Figure 2-4 on page 9).
1.3.2 Power Supply Options
The iQUBE2 can be powered by either the internal 7.5 VDC power supply (PN 76556) or by an external 12 VDC power supply
(PN 108434). The external DC power supply is mounted in its own 8'' x 6'' x 4'' enclosure and includes a transient protection
board for circuit protection.
See Section 9.2 on page 72 for information about calculating power requirements for particular system configurations.
1.4 Support Software
The iQUBE2 allows several methods of configuration, calibration and operation. In addition to support software listed in this
section, serial commands can be used for system configuration via a PC attached to a serial port.
1.4.1 Virtui2
Virtui2 is a virtual indicator interface for scale operations using the iQUBE2. It contains the Virtui2 Configuration Utility, a
separate windows application, which supports configuration and calibration for the iQUBE2. Use the Toolkit CD (PN 108435) to
install Virtui2; it is included in the parts kit.
Minimum system requirements for Virtui2: 1GHz processor, 1GB RAM, 400MB disk space, serial port or Ethernet, 1024x768 or
greater resolution monitor. Windows XP SP3 (32-bit), Windows Vista (32-bit or 64-bit).
See Section 5.1 on page 45 for more information.
1.4.2 Supporting Indicators
The iQUBE2 supports any indicator as a serial scale. The 1280 and 920i provide special functionality to work in conjunction with
the iQUBE2, allowing for configuration, calibration, and diagnostics.
Model Part No. Channels
Enclosure
Material
Enclosure Size
(inches)
Power Supply
(PN 76556)
iQUBE2-AA 108425 4 FRP 8 x 10 Yes
iQUBE2-AB 108429 4 FRP 8 x 10 No
iQUBE2-AA 108426 4 FRP 10 x 12 Yes
iQUBE2-AB 108430 4 FRP 10 x 12 No
iQUBE2-AA 108427 8 FRP 10 x 12 Yes
iQUBE2-AB 108431 8 FRP 10 x 12 No
iQUBE2-BA 108428 4 SST 8 x 10 Yes
iQUBE2-BB 108432 4 SST 8 x 10 No
Table 1-1. Available System Models
Model / Option Part No.
Fiber-optic interface card 77143
Ethernet interface card 77142
Wireless Ethernet card 108671
USB interface card 93245
Serial interface card 108579
Table 1-2. Communications Option Cards

iQUBE2 Digital Diagnostic Junction Box
4 Visit our website www.ricelake.com
1.5 Printed Information
iQUBE2 Options
• Fiber-Optic Interface Installation Instructions, PN 80230
• Ethernet Communications Installation Manual, PN 77224
• USB Communications Card Installation Instructions, PN 95490
• Serial Communications Expansion Card Installation Instructions, PN 110892
• Remote Power Supply Installation Instructions, PN 110564
920i System Manuals
• 920i Installation Manual, PN 67887
1280 System Manuals
• 1280 Technical Manual, PN 167659

Installation
© Rice Lake Weighing Systems ● All Rights Reserved 5
2.0 Installation
This section describes procedures for connecting load cell, power and serial communications cables to the iQUBE2 junction
box. Assembly drawings and replacement parts lists for the iQUBE2 are included.
Some procedures described in this manual require work inside the iQUBE2 or indicator enclosure. These
procedures are to be performed by qualified service personnel only.
Before opening the unit, ensure all power is disconnected.
Use a wrist strap for grounding and protection of components from electrostatic discharge (ESD) when working
inside the iQUBE2 enclosure.
2.1 Unpacking and Assembly
Immediately after unpacking, visually inspect the iQUBE2 and the parts list to ensure all parts are included and undamaged. If
any parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately.
Parts kit contents for 4- and 8-channel models of the iQUBE2.
2.2 Mounting the Enclosure
The iQUBE2 can be mounted either vertically or horizontally to a flat surface.
If the iQUBE2 will be attached to the building surface, a power supply cord mat be used for connection to the AC main supply,
provided the conditions in this section are met.
2.2.1 UL Equipment Considerations
The iQUBE2 should not be installed as a permanent part of the building structure. This includes Equipment For Building-In (per
UL Document 1.2.3.5). The iQUBE2 must be removable from the building surface.
2.2.2 UL Power Considerations
The power supply cord must not be attached to the building surface, nor run through walls, ceilings, floors and similar openings
in the building structure.
Installation measures must be taken to prevent physical damage to the power supply cord. Properly route the power supply
cord and position the iQUBE2 near an outlet, to allow for quick disconnect in case of an emergency.
Part No. Description
Quantity
4-ch 8-ch
14861 Machine screws, 8-32NC x 3/8 8 12
15134 Lock washers, No. 8 Type A 8 12
15631 Cable ties, 3-in. 5 5
15665 Reducing glands, 1/2 NPT 2 2
19538 Slotted posts, 1/4 x 1 8 10
53075 Ground cable clamps 8 12
66730 Ferrite EMI suppression filters 4 8
76513 4-position screw terminal connector 1 2
76514 6-position screw terminal connectors 6 12
94422 Capacity label 1 1
108435 Toolkit CD 1 1
Table 2-1. Parts Kit Contents
WARNING

iQUBE2 Digital Diagnostic Junction Box
6 Visit our website www.ricelake.com
2.3 Cable Connections
All models of the iQUBE2 provide cord grips for cabling into the unit, plus a dedicated cord grip for a ground wire. Up to 12 load
cells can be cabled into the iQUBE2 (in large FRP model only); other cord grips allow cabling for serial communications, digital
I/O, and AC power. Install plugs in all unused cord grips to prevent moisture from entering the enclosure.
2.3.1 Cable Grounding
Except for the power cord, all cables routed through the cord grips should be grounded against the indicator enclosure.
1. Install the grounding clamps on grounding studs, using the ground clamp hardware. Do not tighten the screws at this
time.
2. Route the cables through the cord grips and the grounding clamps to determine the cable lengths required to reach
the cable connectors.
3. Mark the cables to remove insulation and shield. See the following information on Stripping Cables.
4. Route stripped cables through the cord grips and grounding clamps.
5. Ensure the shields contact the grounding clamps as shown in Figure 2-1 and Figure 2-2. Tighten the ground clamp
screws.

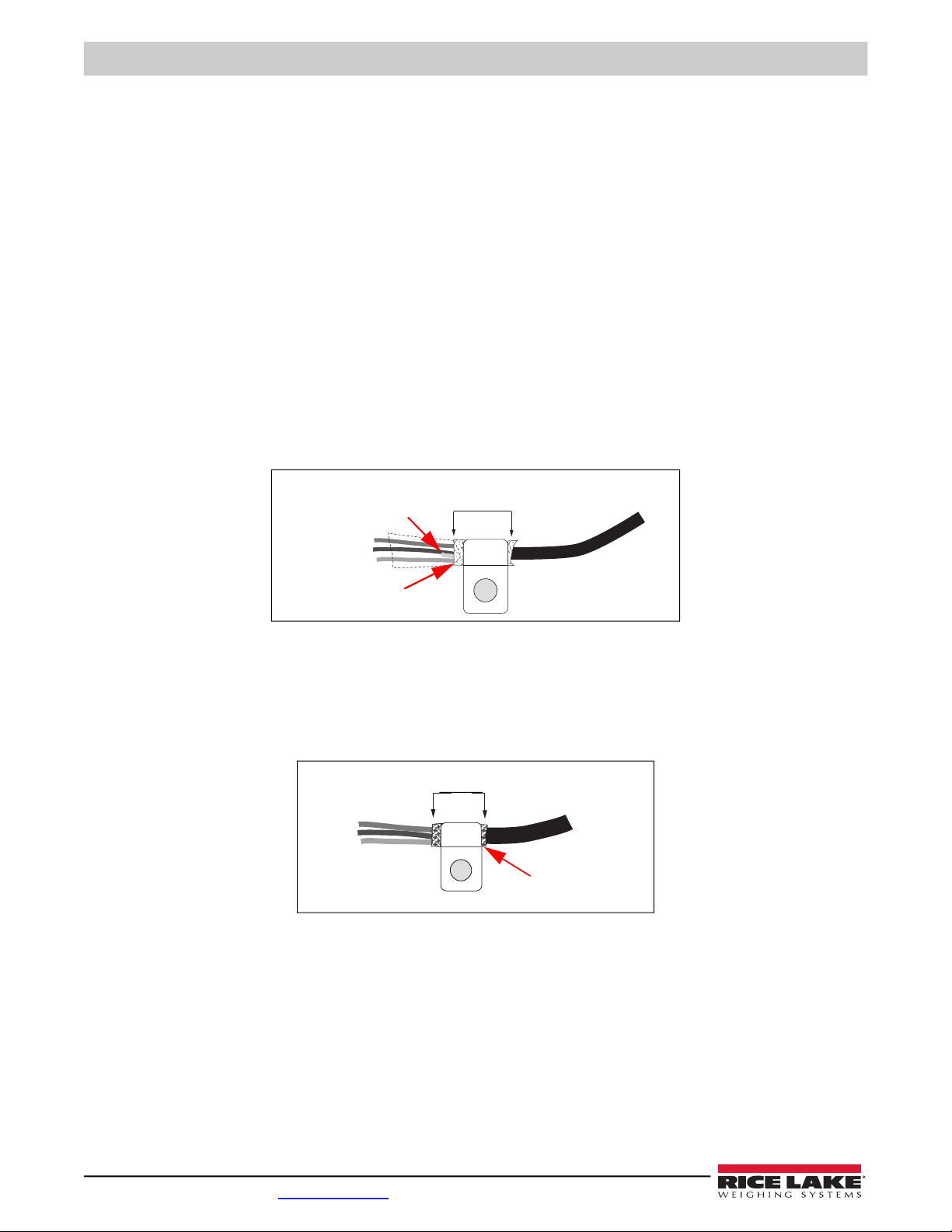

Stripping Cables
Foil Insulated Cable
Figure 2-1. Foil Insulated Cable
1. Strip the insulation and foil from the cable 1/2'' (15 mm) past the grounding clamp.
2. Fold the foil shield back on the cable where the cable passes through the clamp.
3. Ensure the silver (conductive) side of the foil is turned outward for contact with the grounding clamp.
Braided Shielding
Figure 2-2. Braided Shielding
1. Strip the insulation and braided shield from a point just past the grounding clamp.
2. Strip another 1/2'' (15 mm) of the insulation to expose the braid where the cable passes through the clamp.
Load Cell Cables
Cut the shield wire just past the grounding clamp. Shield wire function is provided by contact between the cable shield and the
grounding clamp.
Shield wire (cut)
Cut insulation here
Silver
side out
Cut insulation here
Braid

Installation
© Rice Lake Weighing Systems ● All Rights Reserved 7
2.4 Transient Protection
Improper grounding systems can cause costly lightening damage to electronics. Always strive for a single-
point grounding system. Refer to the product manual for proper grounding techniques.
Figure 2-3 illustrates a generic single point grounding system.
Figure 2-3. Truck Scale Single Point Grounding Example
IMPORTANT
Power Company Ground Rod
NOTE: Always verify that installed wiring is properly grounded
Junction
Box
Printer
Remote
Display
NOTE: Power only applies for junction
boxes containing an internal
power supply
Indicator
DC
Transient
Protection
NOTE: Connection for analog junction boxes or
iQube with an internal transient protection power supply
10 gauge wire recommended
12 gauge wire recommended
Fuse
Panel

iQUBE2 Digital Diagnostic Junction Box
8 Visit our website www.ricelake.com
2.5 Load Cells
Diagnostics may not function properly with load cells having a bridge resistance greater than 700 ohms.
Customers wanting to use load cells with a higher bridge resistance than 700 ohms can consult the Rice Lake
Weighing Systems service department for additional options.

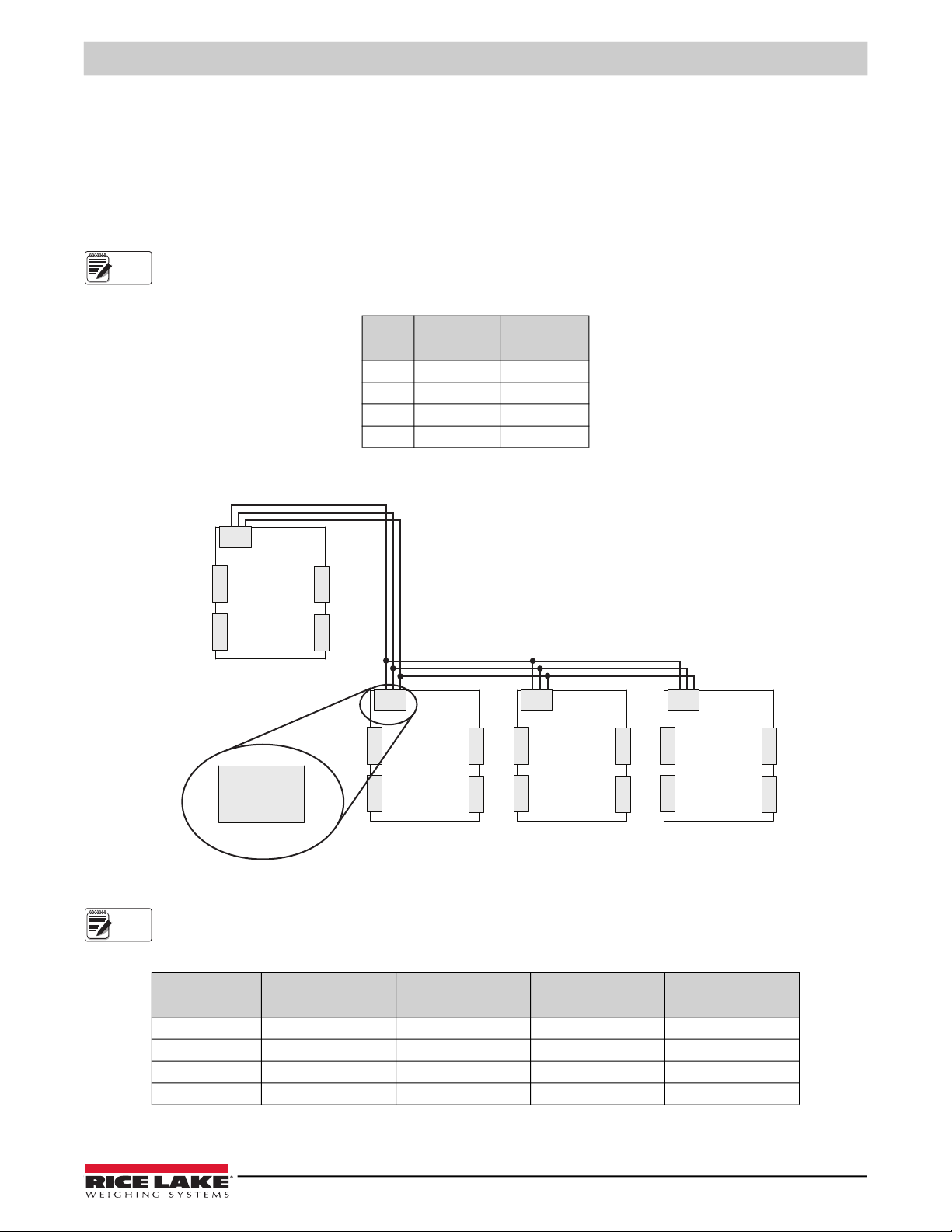

When load cells are wired to iQUBE2 connectors, J1-J4 are assigned by default as channels 1-4 (5-8, 9-12, 13-16 for
secondary units). The graphic representations of the weighing platform shown when configuring the scale, assumes particular
locations for each load cell, based on the connector used. Load cells can be renamed during configuration.
While load cells can be wired to any connector on the iQUBE2 connector board, platforms defined as paired sections (including
most truck scale applications) must correctly associate these pairs to ensure valid calibration and diagnostic functions.
2.5.1 Load Cell Wiring
To attach load cell cables to the CPU board:
1. Route the cables through the cord grips on the load cell connector end of the enclosure.
2. Strip 1/4'' of insulation from the ends of the load cell wires.
3. Install wires into the connectors as shown in Table 2-2.
4. Use cable ties and mounts to secure the load cell cables to the enclosure, when connections are complete.
Pins 5 and 6 provide connections for load cells that provide TEDS (Transducer Electronic Data Sheet)
information.
Do not connect sense wires to the TD terminals.
For load cells with a resistance greater than 2,200 Ohms, a high precision 2k Ohm resistor should be placed between
the EXC+ and EXC- pins of the load cell connection to maintain correct operation of the Cell Connect diagnostic.
Precision resistor properties: Temperature Coefficient ±10 ppm/°C; Tolerance ±1%
Pins (J1–J4) Function
1 +SIG
2 –SIG
3 +EXC
4 –EXC
5 +TD (TEDS)
6 –TD (TEDS)
Table 2-2. Load Cell Connector Pin Assignments
IMPORTANT
WARNING
Note

Installation
© Rice Lake Weighing Systems ● All Rights Reserved 9
Figure 2-4. iCPU Board
HB1 is a heartbeat monitor which monitors processor activity. Blinking once per second indicates normal operation.
As either errors or COM port activity increases, HB1’s blinking may slow down to reflect the added activity.
J6
POWER SUPPLY
CONNECTOR
+SIG
–SIG
+EXC
–EXC
+TD
–TD
J1
+SIG
–SIG
+EXC
–EXC
+TD
–TD
J2
J3
J4
–TD +TD –EXC +EXC –SIG +SIG
–TD +TD –EXC +EXC –SIG +SIG
S1
SW1
CONFIG SWITCH
S2
6 5 4 3 2 1
J7
SERIAL PORT 1
IO4
IO3
IO2
IO1
GND
+5V
J5
DIGITAL I/O
J12
M/S PORT
1
1
1
COMMUNICATIONS
PORT 2
J9
J10
J14
J8
TMS
TDI
TDO
TCK
GND
+3.3
CHANNEL 2 CHANNEL 1
CHANNEL 4 CHANNEL 3
485 232
HDPLX FDPLX
1 2
GND +V GND +V
1
RTS DTR RxD TxD GND1 GND
CFG OFF
HB1
########
CPU Board Serial Number
RLWS CPLD Port (Factory use only)
Used for factory
default or MS.AUTO
Heartbeat
Monitor
Load Cell
Connections
Load Cell
Connections
S2 Switches
Note

iQUBE2 Digital Diagnostic Junction Box
10 Visit our website www.ricelake.com
2.6 Serial Communications
Serial communications between the iQUBE2 and host or peripheral devices is provided by two ports.
• Port 1 – provides onboard RS-232 (full-duplex) or RS-485 (full- or half-duplex) communications on connector J7. S2 on
the CPU board is a pair of switches that are used to select the required setting
• Port 2 – uses an option card installed in connector J9 to expand the communication capabilities of the iQUBE2. Available
option cards support fiber-optic, wired and wireless Ethernet, USB, and RS-232/RS-485 communications
To attach serial communications cables, route the cable through the cord grip and wire to the connector on the CPU board. Use
cable ties to secure serial cables to the inside of the enclosure.
2.6.1 Port 1 Communications
Table 2-3 shows the pin assignments for Port 1 connector J7.
The switches are only read on power-up; if switch settings are changed, cycle power to the iQUBE2 before
attempting to communicate using Port 1.
RS-485/422 Connections to Host Indicators
See Section 4.0 on page 33 for connection to the 920i.
See Section 3.0 on page 21 for connection to the 1280.
Selecting Communication Type for Port 1
To select communication protocols on Port 1:
1. Remove power from the iQUBE2.
2. Place the S2 switches in the proper position for the communication type to be used. See Table 2-4.
3. Place SW1 in the CFG position.
4. Apply power to the iQUBE2.
5. Place SW1 in the OFF position.
J7 Pin RS-232 Signal
RS-485 2-Wire
Signal
RS-485 4-Wire
Signal
1 GND1 GND1 GND1
2 RxD — Rx+
3 — — Rx–
4 — A / + Tx+
5 TxD B / – Tx–
6 — — —
Table 2-3. Port 1 Pin Assignments
Port Selections Settings
1 RS-232
RS-485
On
Off
2 RS-485 Only 2-Wire
4-Wire
Table 2-4. S2 Switch Settings
Note

Installation
© Rice Lake Weighing Systems ● All Rights Reserved 11
2.6.2 Communications Option Cards
Table 2-5 lists communications option cards available for the iQUBE2. Communications option cards are installed in the J9
connector of the primary CPU board for the iQUBE2 system. All option cards use Port 3 except for wireless Ethernet, which
uses Port 2.
2.6.3 Communications Cable Distance Limitations
The maximum cable lengths that can be used for the communication types depend on a number of factors.
• Output impedance of the transmitter
• Electrical noise in the environment
• Cable capacity, wire gauge, termination, shielding and baud rates.
Use the distances in Table 2-6 as a general guide for communication cabling.
Data rate decreases with distance. See Table 2-7.
Ethernet port is not suitable for connection to circuits used outside the building and is subject to lightning or power
faults.
Option PN
Fiber-optic interface card 77143
Ethernet interface card IEEE 802.3 77142
Wireless Ethernet card IEEE 802.11g 108671
USB interface card 93245
Serial interface card 108579
Table 2-5. Communications Option Cards
Cable Type Distance
RS-232 50' (15 m) @ 19,200 Baud (10' @ 115,200 Baud)
RS-485 1000' (300 m) twisted pair cable @ 115,200 Baud
Fiber-optic 375' (114 m)
Ethernet Cat5 330' (100 m)
USB 16.5' (5 m)
802.11g 330' (100 m) under optimal conditions
Table 2-6. Communication Cable Limitations
Data Rate Approx. Range
54 Mbps 65'
48 Mbps 80'
36 Mbps 115'
24 Mbps 140'
18 Mbps 170'
11 Mbps 180'
9 Mbps 190'
5.5 Mbps 215'
3 Mbps 260'
1 Mbps 330'
Table 2-7. Approximate 802.11g Data Rate/Range
Note

iQUBE2 Digital Diagnostic Junction Box
12 Visit our website www.ricelake.com
2.7 Digital I/O
Each iQUBE2 board provides four channels of digital I/O.
Digital inputs can be set to provide many indicator functions, including four keys (Zero, Tare, Units, Mode) plus cell health, and
setpoints. See Table 6-10 on page 59 for a complete listing. The four digital inputs/outputs on the primary CPU are
configurable; any secondary CPU board’s I/O are used for cell health only.
The fastest I/O reaction times are achieved when the iQUBE2 controls its own free-running setpoints using its own local I/O (2
milliseconds). If preacts are required, the host device should be used as the controller for its own I/O.
Rice Lake does not recommend the use of iQUBE2 (local) I/O with host device controlled setpoints using the preact functions
as variances in the reaction time in serially controlled I/O can dramatically affect the preact algorithm.
Cell Health
The iQUBE2 CPU board provides bi-color cell status LEDs next to each load cell connector. These LEDs indicate the status of
connected load cells.
Digital inputs are active/low (0 VDC), inactive/high (5 VDC). Digital I/O are active/low if the CPU board’s LED color is green.
Digital outputs are typically used to control relays that drive other equipment. Outputs are designed to sink, rather than source,
switching current.
Each output is a normally open collector circuit, capable of sinking 25 mA when active. Digital outputs are wired to switch relays
when the digital output is active (low, 0 VDC) with reference to a 5 VDC supply.
Table 2-9 shows the pin assignments for connector J5.
LED Color Meaning
Green Load cell is good
Red Load cell error
Red/Green Flashing Consistent error being cleared by host
Off Disabled/load cell not assigned to a scale
Table 2-8. LED Status Indications
J5 Pin J5 Signal
1 +5V
2 GND
3 I/O 1
4 I/O 2
5 I/O 3
6 I/O 4
Table 2-9. J5 Pin Assignments (Digital I/O)

Installation
© Rice Lake Weighing Systems ● All Rights Reserved 13
2.8 Primary/Secondary Wiring and Configuration
An iQUBE2 system can consist of up to four boards, with up to four load cell channels wired to each board. Standard
enclosures can accommodate one or two boards; large enclosures allow up to three boards. For control of a multi-board
system, one board is assigned as the primary unit and the J12 connector (M/S port) is used to provide communication between
the primary and up to three secondary units.
Figure 2-5 shows the primary-to-secondary wiring for multiple iQUBE2 boards. Successive secondary units are wired in parallel
(A to A, B to B, GND to GND) to the J12 connector of each iQUBE2 board.
The M/S port provides RS-485 communications at approximately 450 KBPS. This port is reserved for communication
between iQUBE2 boards. No other devices should be connected to this port.
Figure 2-5. Primary-to-Secondary Communications Wiring
The cell numbering for secondary units follows the sequence of the load cell connector designations, with
connectors J1–J4 of the first secondary unit assigned cells 5–8, as shown in Table 2-11
J12
Pin
Primary
iQUBE2
Secondary
iQUBE2
1 iQA iQA
2 iQB iQB
3 GND2 GND2
4 GND2 GND2
Table 2-10. J12 Primary/Secondary Port
Load Cell
Connector
Primary Cell
Numbers
Secondary #1 Cell
Numbers
Secondary #2 Cell
Numbers
Secondary #3 Cell
Numbers
J1 1 5 9 13
J2 2 6 10 14
J3 3 7 11 15
J4 4 8 12 16
Table 2-11. Cell Numbering for Multiple-Board System
Note
GND2 GND2
iQB
iQA
J12
CELLS 1 – 4
1
2
3
4
GND2 GND2
iQB
iQA
J12
CELLS 5 – 8
5
6
7
8
GND2 GND2
iQB
iQA
J12
CELLS 9 – 12
9
10
11
12
GND2 GND2
iQB
iQA
J12
CELLS 13 – 16
13
14
15
16
Primary iQUBE2
Secondary
iQUBE2 #1
Secondary
iQUBE2 #2
Secondary
iQUBE2 #3
GND2 GND2
iQB
iQA
J12
Note

iQUBE2 Digital Diagnostic Junction Box
14 Visit our website www.ricelake.com
2.8.1 Assigning Board Addresses
Once the primary and secondary unit ports are wired (Figure 2-4 on page 9), their addresses must be assigned. There are two
ways to assign the secondary board addresses in an iQUBE2 system: manual entry or automatic, push-button assignment.
2.8.2 Manual Entry
Manual address assignments are done by manually entering the secondary board IDs and the desired addresses in the Virtui2
Configuration Utility or the indicator being used.
2.8.3 Start Auto Assign Procedure
For the 920i - The MS.AUTO algorithm can be started via software using a terminal program and sending the MS.AUTO
command to the iQUBE2 or by pressing the Auto Assign softkey in the Boards menu of the 920i. Additionally, the following
hardware implementation of the MS.AUTO algorithm can be used when no HMI is connected or the HMI is not easily
accessible.
For the 1280 - The MS.AUTO algorithm can be started via software using a terminal program and sending the MS.AUTO
command to the iQUBE2 or by pressing the Start Auto Assign Procedure in the Boards Assignment menu of the 1280.
Additionally, the following hardware implementation of the MS.AUTO algorithm can be used when no HMI is connected or the
HMI is not easily accessible.
1. Place the desired primary iQUBE2into setup mode by setting SW1 to CFG.
2. Remove power to the primary iQUBE2 by unplugging the J6 connector from the CPU board.
3. Press and hold S1 and return power to the CPU board by reconnecting J6.
4. Once J6 is reconnected, release S1 to begin the MS.AUTO algorithm.
The green status LEDs for each channel blinks on all iQUBE2 CPU boards in the system (primary and secondary).
MS.AUTO places all iQUBE2 boards in the system in a suspended state in which they are unresponsive to any
commands. Once started, MS.AUTO can only be terminated by pressing the S1 switch, waiting for the algorithm to
time out (approximately five minutes) or powering down the units.
2.8.4 Push-Button Address Assignment
Once MS.AUTO has been started (all boards’ channel status LEDs are blinking), the addresses for the secondary boards can
be assigned.
If MS.AUTO has been set on the iQUBE2 and it will be connected to a host device, upload the data from the iQUBE2 to
the host device. Ensure the master and secondary are configured, using the serial port menu go into the iQUBE2
screen and connect to the iQUBE2. Select upload to get data to host device.
1. Press and release the S1 button on the unit to be assigned as Secondary #1 (not the primary board). This registers its
ID with the primary unit which then assigns it an address. The channel status LEDs on this board stop blinking. The
status LEDs for all other boards in the system continue to blink.
2. Repeat Step 1 for Secondary Unit #2 and #3, as necessary.
3. Press and release the S1 button on the primary iQUBE2 once all secondary units have been assigned.
4. If using the hardware implementation method described above, store the assigned addresses into non-volatile
memory by setting SW1 to OFF on the primary iQUBE2.
For accessibility, in enclosures that contain more than one iQUBE2 board, the top board is typically the primary.
2.8.5 Manual Assignment with Virtui2
Primary/secondary assignment is performed within the Device Configuration section of the Virtui2 Configuration Utility. Refer to
Section 5.0 on page 44.
Note
Note
