Contents
Introduction
Thank you 1
Using Your Operator’s Manual 1
Safety Issues 1
Product Identification
Machine Serial Numbers 1
Product Specifications 1
Register Your Product and Warranty Online 2
Safety
Machine Safety Labels 2
Operating Safely 4
Workstation 5
Regulations for use of the transmission 5
PTO Shaft Safety 5
Driving Safely on Public Roads 6
Noise Levels 6
Operating the Machine
Inspections before Use 6
Key to Main Parts 7
Starting Regulations 8
Hitching to the Tractor 8
Operating the Machine 9
Adjusting the Rollers 10
Blade Rotations 11
Maintenance
PTO Shaft Maintenance 12
Maintenance Schedule 12
Trouble Shooting 13
Spare Parts
4200GR Rollermower 15
8000GR Rollermower 16
6300GR Rollermower 17
8400GR Rollermower 19
6300GR and 8400GR Trailed Rollermower 21
11000GR & 15000GR Rollermower 22
12FT3PL Rollermower 28
Star Drive Couplings 31
12000GR, 17000GR & 18000GR Rollermowers 32
Blades 38
PTO Shafts 45
Gearboxes 45
Coupling details

EEC certificate of conformity for machines
(conforming to Directive 98/37/EEC)
Company: Major Equipment Ltd.
Address: Coolnaha,
Ballyhaunis,
Co. Mayo,
Ireland.
Tel. [phone]
Fax [phone]
declares in sole responsibility that the product:
ROLLERMOWER
When properly installed, maintained and used only for it’s intended purpose, complies with
all the essential Health & Safety requirements of:
• THE SUPPLY OF MACHINERY (SAFETY) REGULATIONS 2008.
• S.I. No. 299 of 2007, Safety, Health and Welfare at Work (General Application)
Regulations 2007 (Ireland).
• Health & Safety at Work, etc. Act 1974 (c.37) (UK).
• EN ISO 14121-1: 2007 ‘Safety of machinery. Principles for risk assessment’.
• EN 745 - Agricultural Machinery - Rotary Mowers and Flail Mowers - Safety.
• EN ISO 13857 - Safety of machinery: Safety distances to prevent hazard zones
being reached by upper and lower limbs.
I certify on behalf of Major Equipment Int. Ltd., that this machine when properly installed
and operated correctly, complies with all the essential Health & Safety requirements of
all legislation referred to above.
Signature : ______________ Date 12/01/2012
Managing Director

1
www.major-equipment.com
Introduction
Thank you
We appreciate having you as a customer and wish you many years of safe and satisfied use of your machine.
Using Your Operator’s Manual
This manual is an important part of your machine and should remain with the machine when you buy it.
Reading your operator’s manual will help you and others avoid personal injury or damage to the machine. Information
given in this manual will provide the operator with the safest and most effective use of the machine.
Sections in your operator’s manual are placed in a specific order to help you understand all the safety messages so
you can operate this machine safely. You can also use this manual to answer any specific operating or servicing ques-
tions.
Safety Issues
Your manual contains special messages to bring attention to potential safety concerns, machine damage as well as
helpful operating and servicing information. Please read all the information carefully to avoid injury and machine dam-
age.
Product Identification
Machine Serial Numbers
If you need to contact MAJOR or your MAJOR dealer for information on servicing or spare parts, always provide the
product model and serial numbers.
We suggest that you record your machine details below:
Model No: ____________________________________
Serial No: ____________________________________
Date of Purchase: ____________________________________
Dealer Name: ____________________________________
Dealer Telephone: ____________________________________
Product Specifications
Model Working
Width Power (HP) PTO rpm Cutting Height Rotors Blades Weight Tyre Pressure Gearbox oil
4200 1.35m 25-35 540 12 - 150mm 2 8 360kg n/a EP 90
6300 1.86m 25-50 540 12 - 150mm 3 3 450kg 2 bar EP 90
8000 2.4m 30-60 540 12 - 100mm 2 8 650kg n/a EP 90
8400 2.3m 30-60 540 12 - 150mm 4 4 510kg 2 bar EP 90
8400FL 2.3m 60-110 1000 12 - 150mm 4 8 550kg n/a EP 90
120003PTL 3.56m 45-130 540 12 - 150mm 4 16 1280kg n/a EP 90
12000 3.56m 50-130 540 12 - 150mm 4 16 1500kg 2 bar EP 90
18000 5.4m 60-180 540 12 - 150mm 6 24 1890kg 2 bar EP 90
Model Working
Width Transport Width Power (HP) PTO rpm Cutting Height Rotors Blades Weight (Rear Mounted) Weight (c.w frame) Tyre Pressure Gearbox oil
11000 3.2m 2375mm 35-80 540/1000 12 - 150mm 5 10 1030kg 1140kg 2 bar EP 90
15000 4.6m 2375mm 40-80 540/1000 12 - 150mm 7 14 1280kg 1390kg 2 bar EP 90

2www.major-equipment.com
Register Your Product and Warranty Online
To register your product through the Internet, simply go to the Support section on www.major-equipment.com. Com-
pleting the information, either online or with the product warranty card, will ensure the customer that their product
receives all post sales service and important product information.
Safety
Machine Safety Labels
The machine safety labels shown in this section are placed in important areas on your machine to draw attention to
potential safety hazards.
On your machine safety labels, the words DANGER, WARNING, and CAUTION are used with
this safety-alert symbol. DANGER identifies the most serious hazards.
The operator’s manual also explains any potential safety hazards whenever necessary in special
safety messages that are identified with the word, CAUTION, and the safety-alert symbol.
To avoid injury, read the manual
Fold the PTO stand down before removing the
transport pin to avoid PTO shaft damage
Rotating blade hazard
High oil
pressure hazard
PTO entanglement
hazard - keep clear
of PTO drives.
Moving parts
hazard

3
www.major-equipment.com
Hazards associated with operating Grass Cutting Machinery
Shear Hazard
Shear hazards are created when the edges of two objects move toward or next to each other closely enough to
cut relatively soft material. This can include the parts of the machine under hydraulic control when operating from
transport to mowing position. Note the wing units are designed to float independently of the centre deck & are free to
move within operating limits.
Crush Hazard
Bystanders can be injured when machine is lowered into mowing position. Winged Mowers have crush points around
the hinge areas & between the wing & main body. Always use transport locking bars when not in use (winged models
only).
Rotating Blade Hazard
All persons are at risk if they place their hands or feet under the machine when it is raised from the ground when the
blades are in motion.
Pinch Hazard
Pinch points are created when two objects move together, with at least one of them moving in a circle. This hazard is
common in power transmission devices such as Belt Drives, Gear Drives & Rollers. Ensure all guarding is present.
Wrap Hazard
Any exposed, rotating machine component is a potential wrap point. Injuries usually occur when loose clothing or long
hair catch on and wrap around rotating parts such as PTO shafts or Drive shafts on the machine. Ensure all guarding
is present.
Free-wheeling parts Hazard
The heavier a revolving part is, the longer it will continue to rotate after power is shut off. This characteristic is called
‘free-wheeling.’ Rotary mower blades, and various other components, drive shafts etc., will continue to move after
power is shut off--often for several minutes. Injuries occur
• When operators shut off equipment, and attempt to clean or adjust a machine before components have completely
stopped moving
• When shear bolt protection device in PTO shaft shears & the rotors are still spinning but the primary PTO shaft
is stationary. Operator awareness is the key to safety around freewheeling parts. Never raise the machine while the
blades are still rotating.
Thrown objects Hazard
Rollermowers throw material as a natural part of doing their job. Foreign objects, such as stones, sticks and other
debris, may be taken into this equipment and expelled at tremendous speed. These objects are contained by the rear
roller & the sides of the machine.
Bystanders or animals in the path of thrown objects could be seriously injured.. Never operate machine with decks
raised from the ground as this makes the rear roller deflector redundant.
Hydraulic Hazard
Hydraulic systems store considerable energy,. Careless servicing, adjustment, or replacement of parts can result in
serious injury. High pressure blasts of hydraulic oil can injure eyes or other body parts. The following precautions are
crucial:
• Make certain the hydraulic pump is turned off.
• Lower attached equipment to the ground.
• Confirm that load pressure is off the system.
A pinhole leak in an hydraulic hose is a serious hazard. A leak may not be visible, and the only sign may be a few
drops of fluid. Never inspect hydraulic hoses with your hands, because a fine jet of hydraulic fluid can pierce the skin.
Slips trips and falls Hazard
Slips and falls often result from:
1. Slippery footing on the ground
2. Cluttered steps and work platforms.
The potential for slips and falls can be greatly reduced by using good judgement and practicing good housekeeping
on and around equipment.

4www.major-equipment.com
Operating Safely
The MAJOR Rollermower is designed to operate at 540 RPM. Ensure tractor PTO output is set at 540 RPM. The
MAJOR Rollermower must only be used for cutting grass. Moreover, it must only be used with a suitable tractor (see
product specifications) and driven by an adequate drive-line by the tractor PTO. All other use is strictly prohibited.
Users should become thoroughly familiar with the contents of this manual before using, servicing and mounting the
implement to the tractor and all other pertinent operations. Never wear jewellery, loose clothing such as ties, scarves,
belts, unbuttoned jackets or dungarees with open zips which could become caught up in moving parts.
Always wear approved garments complying with accident prevention provisions such as non-slip shoes, ear muffs,
goggles and gauntlets. Wear a jacket with reflecting stickers if the implement is used near public highways.
Consult your retailer, the Labour Health Service or your nearest equivalent authority for the information about the cur-
rent safety provisions and specific regulations with in order to ensure personal safety.
ALWAYS DISENGAGE PTO, SWITCH OFF THE TRACTOR ENGINE AND ENGAGE THE PARKING BRAKE BE-
FORE MAKING ADJUSTMENT TO THE MACHINE.
Noise Hazard
Please note that the machine is normally used outdoors and that the position of the operator is seated in the driving
seat of the tractor. It is advisable to consult the prescriptions listed in tractor operator and maintenance manuals.
The acoustic pressure was measured at a distance of 2.6m from the centre of the machine and at a height of 2.0m,
with the implement operating in a no load condition - 90 dBA. In a loaded condition & a PTO rate of 540 rpm the
obtained value was 97dBA.

5
www.major-equipment.com
NEVER PLACE LIMBS UNDER THE MACHINE WHILE ROTORS ARE TURNING. ROTORS CAN REMAIN
TURNING FOR UP TO 1 MINUTE AFTER DISENGAGING PTO.
Workstation
The operator must remain seated while working the machine. When the wings need to be raised and lowered the op-
erator must leave the tractor. Always ensure the PTO has been turned off and the parking brake applied before leaving
the tractor cab. The operator must always apply the parking brake, and turn off the engine before leaving machine or
carrying out maintenance.
NEVER OPERATE THE HYDRAULICS WITH THE TRACTOR SWITCHED OFF
Regulations for use of the transmission
The transmission to the gearboxes is protected throughout the machine by both PTO shafts and bolt down covers.
All guarding should be kept efficient and in good condition. If the condition is poor, the guarding should be renewed
before the implement is used.
UNLESS IT IS CORRECTLY PROTECTED, THE TRANSMISSION COULD CAUSE DEATH SINCE IT CAN
CATCH ON PARTS OF THE BODY OR CLOTHING
Ensure retaining chains are correctly anchored on all PTO shafts, preventing them form turning. Ensure drive line can
turn easily within the shield. Keep spline grooves clean and greased so that PTO shaft can connect easily. Besides
being described in this manual, the method by which the PTO shaft is connected to the tractor must be checked out
with the instructions in the tractor manufacturer’s manual.
PTO Shaft Safety
MAX PTO INPUT 540 R.P.M. Contact your nearest dealer or a specialised retail outlet if the PTO must be
replaced with a longer one, since this must belong to the same power category and possess the same char-
acteristics. An unsuitable PTO could easily break.
The tractor PTO shaft length may be altered to suit the individual tractor model. When
the machine is in operation, the PTO shaft should have a minimum 1/3 engagement as
shown in the diagrams. After the Rollermower has been hitched to the tractor, it should
be checked in various positions that the drive line is the correct length. If the PTO is too
short and tends to slip out of place, it must be replaced with a longer one.

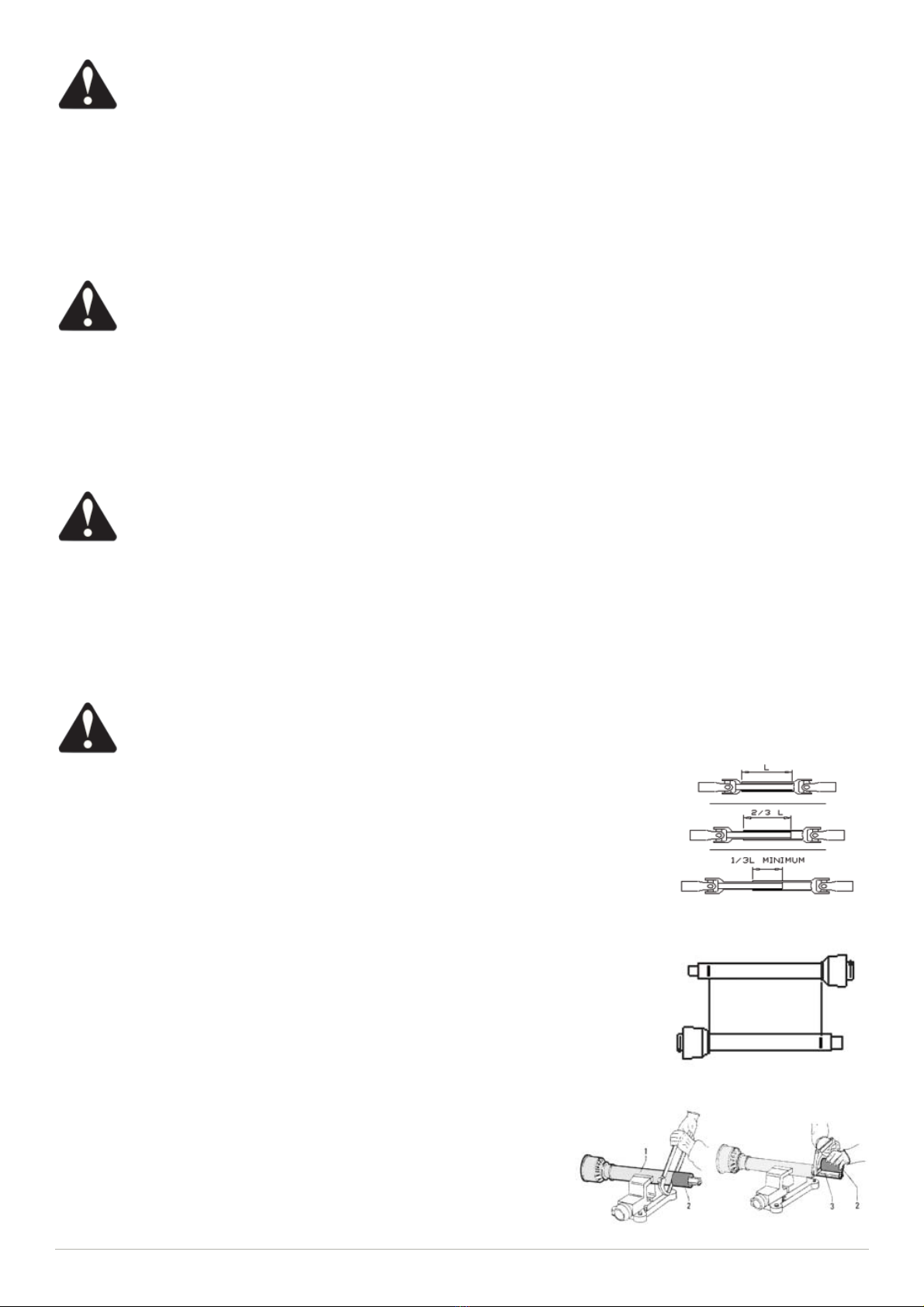

If the PTO shaft is too long, it should be shortened in the following way:
• Set the machine at a minimum distance from the tractor, then brake the tractor and
switch off the engine.
• Separate the two halves of the PTO. Insert the female part into the tractor PTO and
the male part into the Rollermower PTO, checking that the position is correct by means
of the fixing pins.
• Line up the two halves of the PTO together, keeping them parallel.
• Using a felt tip pen, match mark the place where the two halves must be shortened
as shown.
• First cut shield “1” and use part “2” as a reference to cut the splined
shaft.
• Proceed in the same way for the second half.
• Trim and chamfer the two cut ends of the PTO and clean off all swarf
and shavings.
• Grease the two profiles and join the two halves of the PTO together.
• Mount the PTO shaft and check that its length is correct as before.

6www.major-equipment.com
The shaft must not reach the end of the tube or project from this. Ensure the PTO does not bottom when turning
Driving Safely on Public Roads
Check the local Highway Code regulations before driving the tractor on public highways with a towed imple-
ment. Check the reflectors, hazard flashers and/or projecting load indicators are installed when required and
efficient. These indicators must be installed correctly and easily seen by the drivers of other vehicles.
Bystanders must not be allowed to lean against or climb onto the machine during transport or while working. Do not
allow bystanders to ride on the machine.
MAXIMUM TRANSPORT SPEED MUST NOT EXCEED 19Km/Hr (12 MPH)
Noise Levels:
The acoustic pressure was measured at a distance of 2.6m from the centre of the machine and at a height of
2.0m,with the implement operating in a no load condition - 90 dBA. In a loaded condition & a PTO rate of 700 rpm
the obtained value was 97dBA. It is advisable to consult the prescriptions listed in tractor operator and maintenance
manuals.
Operating the Machine
Inspections before Use
Always disengage PTO, Switch off tractor engine and engage the parking brake before making adjustment
to the machine.
1. With the whole machine as level as possible, check the oil level in the Primary Gearbox, top up as required with
SAE EP90 gear oil through the oil filler plug indicated. The correct level is at the oil level plug indicated. Check the oil
level in the Rotor Gearboxes and top up as required with SAE EP 90 gear oil through the oil filler plugs indicated. The
correct level is at the oil level plug indicated
Models:
12000GR
18000GR
Models:
4200GR
6300GR
8000GR
8400GR
11000GR
15000GR
Rotor gearbox
Oil level
plug Oil level
plug
Oil level
plug
Oil filler
plug Oil filler
plug
Oil filler
plug
T292 LF205
T27A

7
www.major-equipment.com
2. Grease the PTO shaft universal joints, drive shaft bearing and carrying arm pivots.
3. Re-sharpen old blades with a grindstone if necessary. Replace bent blades with new ones.
4. Check the blade mounting bolts are tight
1 - Spacer bushings
2 - Blade mount bolts
3 - Blade pivot bush
4 - Blade pivot bolt
5 - Gearbox output shaft
6 - Split pin
7 - Retaining nut
8 - Bolt
5. Ensure the gearbox shaft nuts are tight and retained in place by split pin.
6. Check tightness of all nuts, bolts and retaining screws after the first and second hours of work.
7. Ensure safety guards and flaps are in place at all times where fitted.
8. Due to the corrosive nature of grass when cut, wash down the machine when finished mowing, especially when
the machine is being stored for a long period of time.

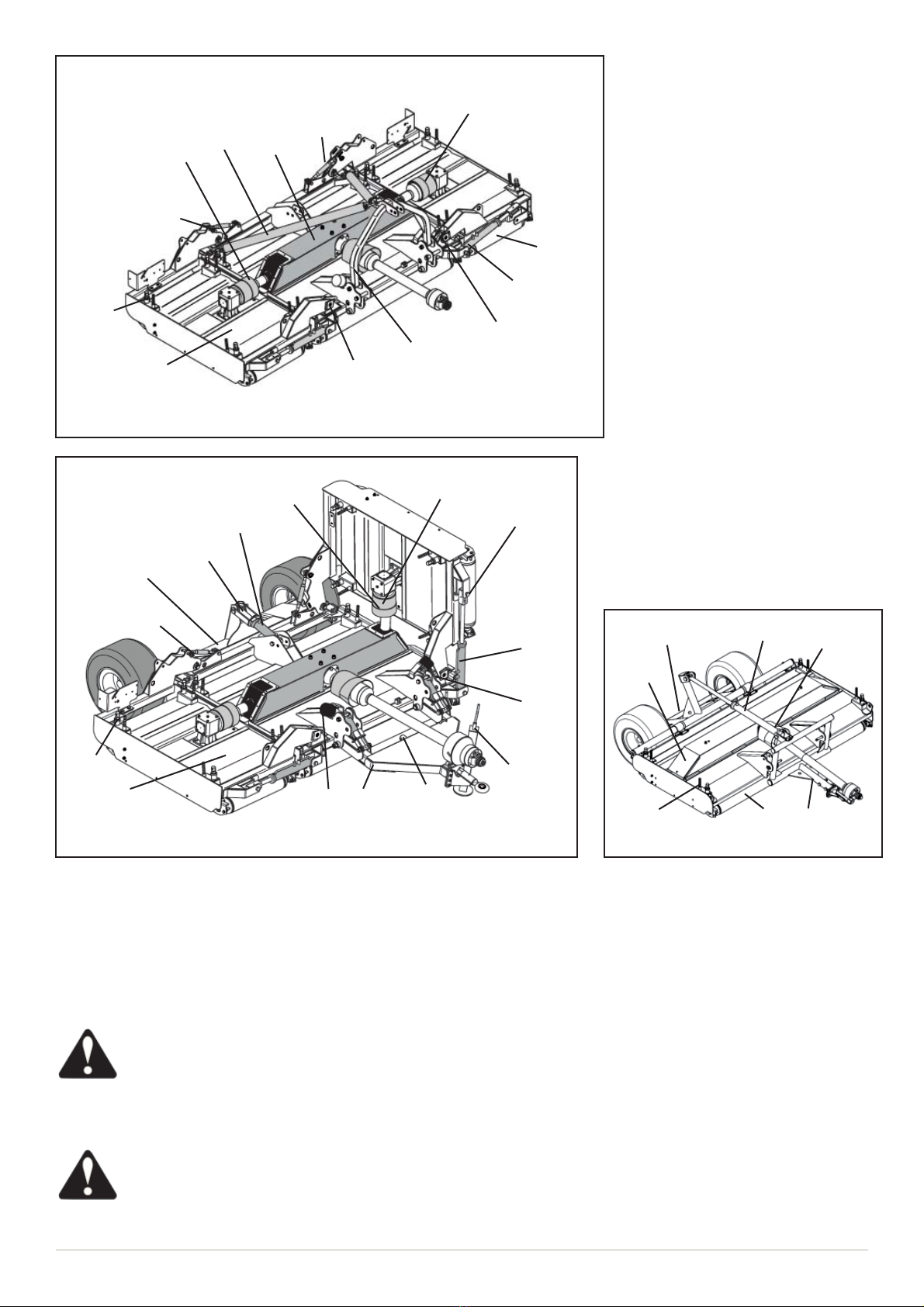

No Name No Name
1 Drawbar 10 Axle Ram Stopper
2 Jack - T/port Position 11 Wing PTO Shaft
3 Jack - Parking Position 12 Gearbox cover
4 Roller 13 Roller Adjuster & Guide
5 Wing Ram 14 Wing Transport Locking
Bar
6 Wing 15 Drawbar Ram Stopper
7 Hinge 16 A-Frame
8 Axle 17 Strap
9 Axle Ram 18 PTO Cover
Key to Main Parts
ENSURE THAT AFTER SERVICING THE TRANSMISSION,
THAT THE WING PTO SHAFT YOKES ARE CORRECTLY
ALIGNED AS SHOWN IN THE DIAGRAM BELOW – 12000,
17000 & 18000 MODELS ONLY. IF THE SHAFT JOURNALS ARE
FITTED INCORRECTLY THE DAMAGE WILL ONLY OCCUR WHEN
THE WINGS ARE RAISED INTO TRANSPORT POSITION
16
6
1
6578
1
57
7
52
2
8
2
3
3
4
12
13
14
16
17
18
18
18
8000GR 6300GR & 8400GR
1100GR & 15000GR
14
11
5
12 17 5
4
7
16
4
7
13
6
13
17
12
13 4
16

8www.major-equipment.com
Starting Regulations
Always check that any imminently dangerous conditions have been eliminated before using the machine. Ensure all
guarding is present & the operator is fully aware of the operations of the machine
Always ensure the pins lock the PTO shaft yoke ends onto the spline shafts on both the tractor and the
implement. An unlocked shaft could slip out of position, causing notable mechanical damage and serious
injury to both operator and bystanders.
Hitching to the Tractor
ALWAYS OPERATE ON LEVEL GROUND WHEN HITCHING/UNHITCHING THE IMPLEMENT. THIS WILL
PREVENT DANGEROUS MOVEMENT. NEVER ALLOW ANYONE TO STAND BETWEEN THE TRACTOR
AND THE ROLLERMOWER.
No Name
1 Drawbar
2 Jack- Transport Position
3 Jack- Parking Position
4 Roller
5 Wing Ram
6 Wing
7 Hinge
8 Axle
9 Axle Ram
10 Axle Ram Stopper
11 Wing PTO Shaft
12 Gearbox cover
13 Roller Adjuster & Guide
14 Wing Transport Locking Bar
15 Drawbar Ram Stopper
16 A-Frame
17 Strap
18 PTO Cover
12GM3PL
12000GR & 18000GR 6300 and 8400 Trailed Models
13
14
11
17 12 14
18
4
5
7
7
16
6
6
13
14
810
9
11
4
9
13
12
818
1
4
18
5
7
3
21
15

9
www.major-equipment.com

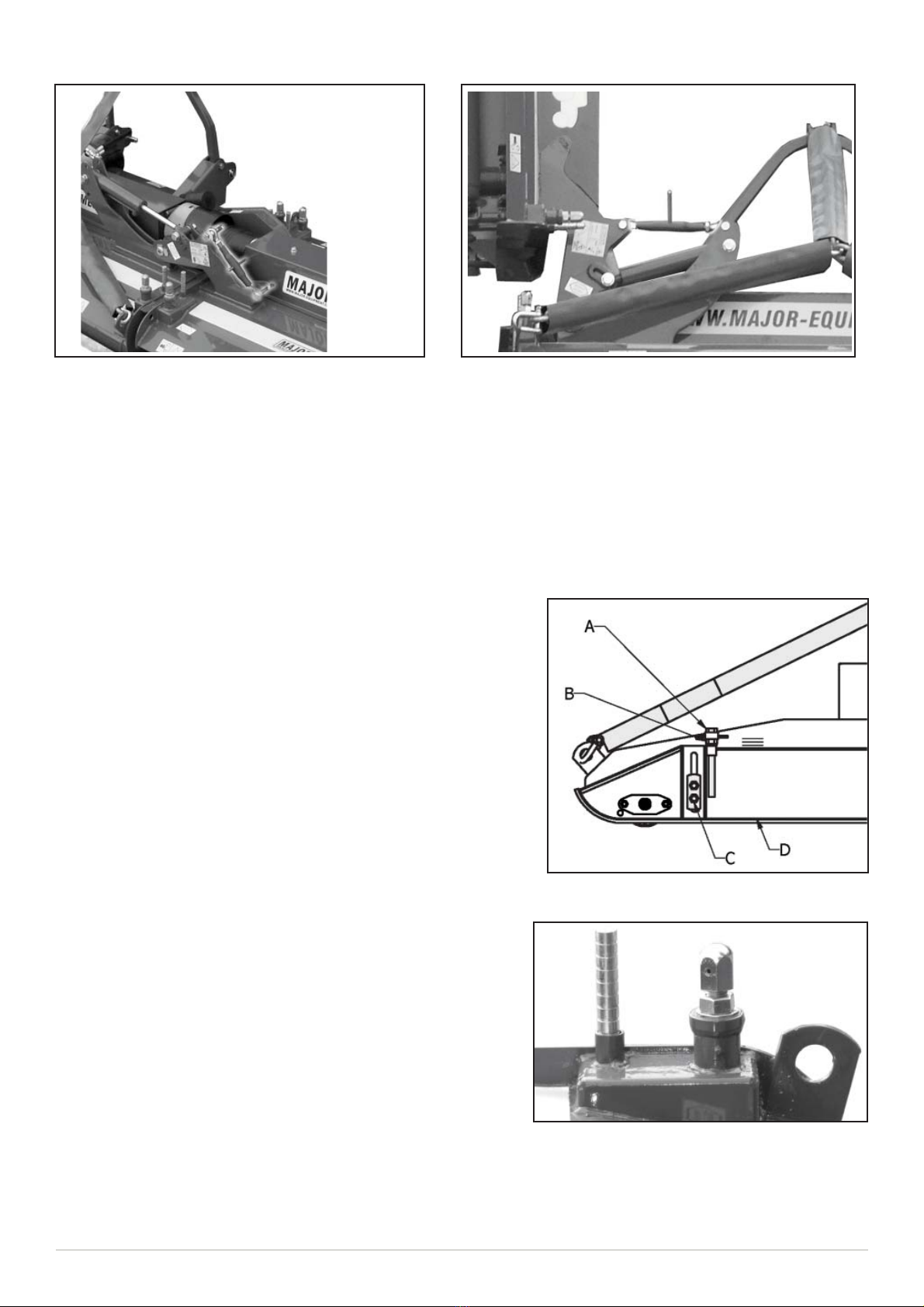

Three Point Linkage Models
1. Adjust both lift arms of the tractor until they are level in relation to each other.
2. Hitch the lower linkage arms to the Rollermower and connect the top link and PTO shaft. Ensure that the locking
pins are secure.
3. With the Rollermower lowered in its operating position, adjust the top link until the strap is slack, allowing the Roll-
ermower to produce a uniform finish in varying ground conditions.
4. Connect the PTO shaft. Check for the length
Trailed Models
1. Adjust the tractor hitch pin so that the hitch pin is approximately 400 mm (16”) from the end of the tractor PTO
shaft.
2. Adjust the Rollermower hitch eye to suit the tractor drawbar height paying particular attention to keep both height
adjusting bolts as far as possible on the adjusting bracket. Careful adjustment of the hitch eye height at this stage is
necessary in order to allow the machine to function safely and correctly.
3. Connect the machine to the tractor. Ensure no one is standing between the tractor and the Rollermower.
4. Before connecting the PTO shaft to the tractor, check it for length as shown earlier.
Operating the Machine
The MAJOR Rollermower is designed to operate at 540 RPM. Ensure tractor PTO output is set at 540 RPM.
1. Hitch the machine as outlined. Ensure bystanders are clear from the machine & cannot be hit with debris
expelled from the machine.
2. Locate the Parking Jack on its side under the PTO shaft on the stub provided (Trailed models only)
3. Ensure the PTO stand is flipped down. (Trailed models only)
4. Check PTO shaft is fully engaged on tractor PTO splines.
5. Raise the machine by hydraulic control. (Trailed models only)
6. Flip back axle and drawbar ram stoppers. (Trailed models only)
7. Lower the machine by hydraulic control to the ground or use tractor linkage controls.
8. After clearing the vicinity of bystanders, relocate the Wing Transport Locking Bars. Lower the wings by
hydraulic control. Ensure hydraulic ram is fully closed. (Winged mowers only)
12000 & 18000 Rollermower - Mowing Position
12000 & 18000 Rollermower - Transport Position
Axle & Wing locks
Axle & Wing
locks Drawbar
locks
Drawbar locks

10 www.major-equipment.com
ALWAYS HAVE THE TRACTOR SWITCHED ON WHEN RAISING THE WINGS INTO TRANSPORT POSITION.
IMPORTANT: The transport locking bars, transport pin and axle ram stopper should always be slotted into place while
transporting the machine. Doing this removes pressure from the hydraulic system. Failure to use the safety equipment
can cause mechanical as well as physical damage.
Adjusting the Rollers
8000 Model
Set the required height of cut by:
• Slackening the four skid retaining bolts (C),
• Raising/lowering the body by the Height Adjusters (A) and
• Readjusting the four adjusting bolts (C).
Tightly close the lock nut (B) again to keep the rollers in this position.
Indicators are provided on both sides of the machine to allow the
skids to be adjusted level from front to rear accurately.
4200/ 6300 / 8400/ 11000 / 12000 / 15000 / 18000 Models
• Slacken the Height adjuster stop lock nuts (B) and
• Adjust the roller adjuster (A) to obtain the desired cutting
height.
• Tightly close the lock nut (B) again to keep the rollers in this
position.
NOTE: IT IS IMPORTANT TO HAVE ROLLERS LEVEL AFTER SKID ADJUSTMENT
11000 & 15000 Rollermower - Mowing Position 11000 & 15000 Rollermower - Transport Position

11
www.major-equipment.com
Blades must always be timed at 90 degrees to each other as shown below. Failure to do so can cause the
blades to foul and in turn may damage the transmission.
FRONT OF MACHINE
4200 and 8000

12 www.major-equipment.com
Blade Rotations
Maintenance
The Rollermower must always be disconnected form the tractor before any cleaning, lubricating and servicing opera-
tions can be carried out.
If emergency operations are required whilst the machine is connected to the tractor, switch off the engine, engage the
parking brake and disengage the PTO.
Good, regular maintenance and correct use are if the Rollermower is to remain safe and long lasting.
PTO Shaft Maintenance
Guard Removal and Yoke End Greasing
1. Prise back locking tabs
2. Pull back PTO Guard
3. Grease points as shown
4. Push Guard into position
5. Click into place
6. Tie check chain
PTO Guard Greasing Intervals
Maintenance Schedule
INITIALLY 8 HOURS 16 HOURS
PTO Shafts ●●
Axle Bushings ●●
Wing Hinge Plate ●●
Roller Height Adjusters ●●

13
www.major-equipment.com
Grease the following:
Lubricate moveable mechanical joints when required.
All nuts and bolts in the transmission including Rubber couplings, Star Drives, PTO Shafts and Gearboxes should be
checked for tightened after mowing at the following intervals.
1st 50 Acres
1st 100 Acres
1st 250 Acres
And every 250 acres thereafter.
NOTE: ENSURE BLADE ROTATION AND TIMING IS CORRECT AFTER SERVICING TRANSMISSION.
Trouble Shooting
Fault Cause Remedy
Leaves a streak of
uncut or partially cut
grass
Blades dull or bent Replace blades
Carrier RPM too low Use correct PTO speed
Field conditions are so wet that the tractor
tire is pushing grass into mud
Too wet to mow. Stop operation and wait until it
is drier
Ground speed too fast Reduce ground speed by shifting to a lower gear
Grass is down from previous weather
conditions Mow in only one direction
Possible build-up materials under mower Clean mower
Blades mounted incorrectly (cutting edge
against direction rotation)
Change blades so that cutting edge is facing
correct rotation.
Material discharges
from mower unevenly;
bunches of material
along with swath
Material too high and too much material
Reduce ground speed but maintain 540rpm at
tractor PTO or make two passes over material.
Raise mower for the first pass and lower to
desired height for the second and cut a 90
degree angle to first pass
Grass wet
Allow grass to dry before mowing. Slow ground
speed of tractor but keep engine running at full
PTO rpm. Cutting lower will help
Gearbox overheating
Low on lubricant Fill to proper level
Improper type lubricant Replace with proper lubricant
Excessive grass / debris build-up around
gearbox. PTO running too fast.
Remove grass, etc from machine. Lower the
RPM rate
Blade is scalping
ground
Mower too low Raise mower-reset wheels
Field is ridged Cut field at a different angle
Field is too wet Stop and wait until it is dried
Mower will not cut. Shear bolt sheared Install new shear bolt
Blades wear too fast Cutting in sandy conditions Increase cutting height
Cutting in rocky conditions Increase cutting height
Blades hitting the ground Increase cutting height
Mower seems to
require excessive
power
Advancing into grass too rapidly Reduce forward travel speed
Hitting ground Raise mower and reset wheels
Worn or dull blades Sharpen or replace blades
Tractor not large enough Use larger horsepower tractor
Excessive vibration
Check gearbox bolts Tighten if loose
Check for loose nuts on blades Tighten if loose
Blade broken Replace blades, in set
New blade or bolts matched with worn blade
or bolts Replace blades or bolts in sets
Drivelines not phased correctly. Implement
and tractor yokes must be in line Phase the driveline. Replace if necessary

14 www.major-equipment.com
Noisy machine
Worn bearing Replace bearings
Low oil in gearbox Check level and add oil
Loose Parts Check all bolts are fully tightened
Wrong PTO rpm rate Check PTO rate & adjust as necessary
Rotors bent / broken Replace bent or missing blades
Bent PTO shaft Check PTO shafts are aligned correctly
Check output shaft on gearboxes are not bent
Check driveline between gearboxes is aligned.
Gearbox leaking
Damaged oil seal Replace seal
Bent shaft Replace oil seal and shaft
Shaft rough in oil seal area Replace or repair shaft
Oil seal installed incorrectly Replace seal
Oil seal not sealing in the housing Replace seal or use a sealant on outside
diameter of seal
Oil level too high Drain oil to proper level
Hole in gearbox Replace the gearbox
Gasket damaged Replace gasket
Bolts loose Tighten bolts

15www.major-equipment.com
4200GR Rollermower
Spare Parts
Item Part No Description Qty
1 4RM-BD001 4000 BODY 1
2 4RM-CV001 4000 GEARBOX COVER 1
3 4RM-SD1 4000 STAR DRIVE 4
4 725-SBLOL 725 SWING BLADE (Anti_Clk) 1
5 725-SBROL 725 SWING BLADE (Clk) 1
6 84RM-RDT DEFLECTOR TUBE 4
7 TDW-ROL 16ft TDR ROLLER 2
8 TDW-SB16 16ft SCRAPER 2
9 1/2F 1/2” FINE NYLOC NUT 12
10 12F-THRA THREADED HEIGHT ADJUSTER 4
11 12GMRA2L HEIGHT ADJUSTER (LH) 1
12 12GMRA2R HEIGHT ADJUSTER (RH) 1
13 12x3FBZP 1/2”x3” FINE BOLT 12
14 190.000.545 PTO GUARD (EXTENDED OVAL) 1
15 3546 LINCH PIN DIA 9.5 2
16 205872 6 SPLINE “L” BOX RATIO 1.92 2
17 5/8F 5/8” FINE NYLOC NUT 8
18 58x214FBZP 5/8”x2 1/4” FINE BOLT 8
19 8-6-7-00161 3/8” VALVE BREATHER 2
20 AF-CAT1 CAT 1 A-FRAME 1
21 BSW-STR BUCKET STRAP (2800mm) 1
22 EW29A 5/8” “D” SHACKLE 3
23 FWM12 M12 FLAT WASHER 8
24 FWM20 M20 FLAT WASHER 8
25 FWM8 M8 FLAT WASHER 4
26 M12 M12 NYLOC NUT 16
Item Part No Description Qty
27 M12x100BZP M12x100 BOLT 4
28 M12x30SZP M12x30 SET BOLT 4
29 M12x35BZP M12x35 BOLT 4
30 M12x50SZP M12x50 SET BOLT 2
31 M12x60BZP M12x60 BOLT 4
32 M20 M20 NYLOC NUT 2
33 M20HEX M20 PLAIN NUT 4
34 M20x110BZP M20x110 BOLT 2
35 M8x16SZP M8x16 SET BOLT 8
36 NT55A RUBBER COUPLING 2
37 RM-M20C ROLLER ADJUSTER CAP NUT 4
38 RMORA-1 OFFSET HEIGHT ADJUSTER (RH) 1
39 RMORA-2 OFFSET HEIGHT ADJUSTER (LH) 1
40 S15707 CAT 1/2 LINK PIN 2
41 S849 GREASE NIPPLE M6 STR 4
42 SW12 1/2” SPRING WASHER 4
43 SW58 5/8” SPRING WASHER 8
44 T27A267245 6 SPLINE “T” BOX RATIO 1.92 1
45 12T-BBS BLADE BACK SPACER 4
46 RM-RSN3 SHAFT COLLAR DIA 35 4
47 84RM-RD2 REAR DEFLECTOR (PLAIN) 1
48 84RM-RD2H REAR DEFLECTOR (PLAIN) 1
49 9TGT-CB GEARBOX COVER BRKT 2
50 GM6-4F GEARBOX REINF” 2
51 RM-RSN2 ROLLER MOUNT 4
52 RM-RSN4 SCRAPER MOUNT 4

16 www.major-equipment.com



















 

   
























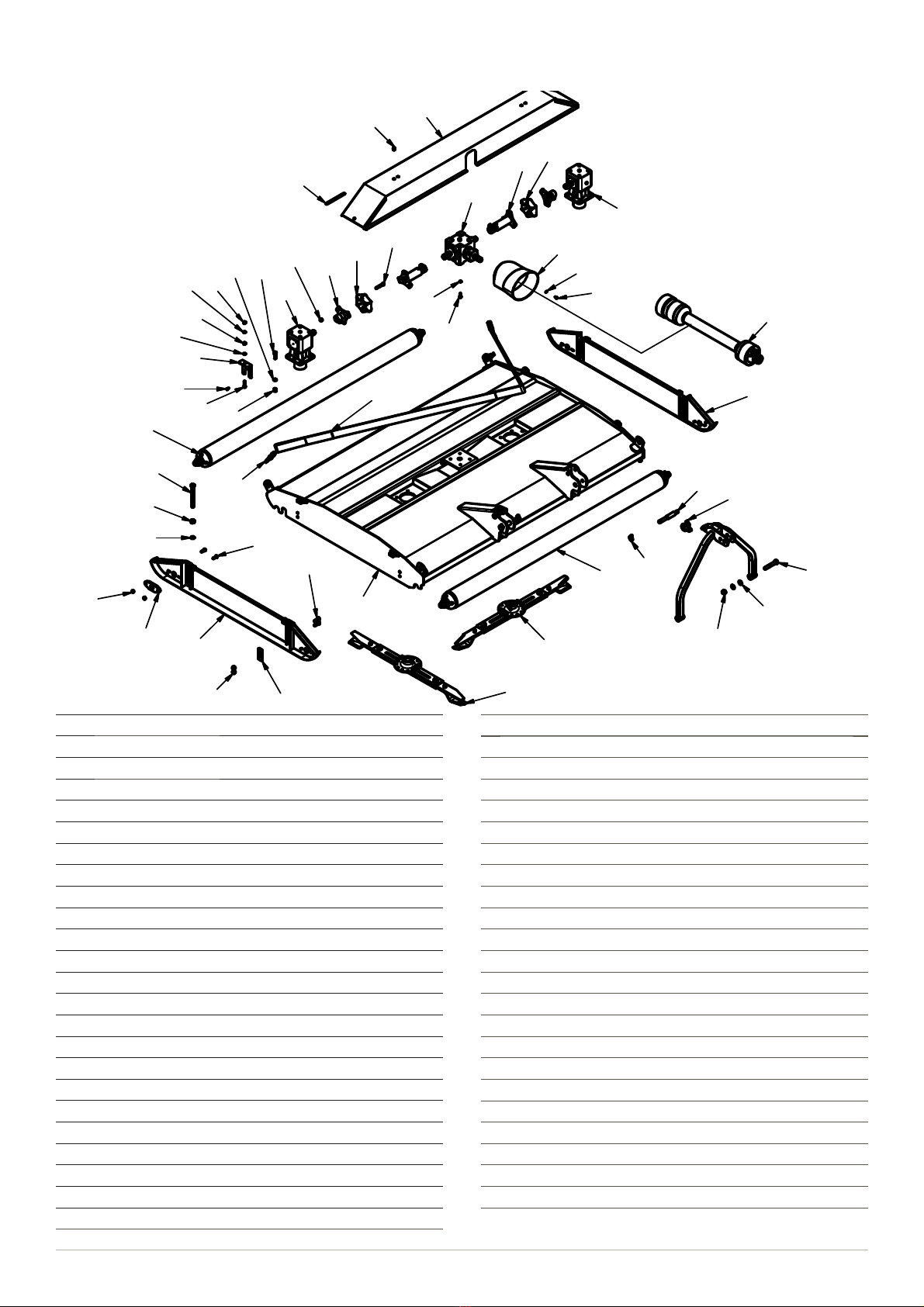

8000GR Rollermower
Item Part No Description Qty
1 Pro Cut Blades PRO BLADE Anti_Clk (see pg 34) 1
2 Pro Cut Blades PRO BLADE Clk (see pg 34) 1
3 8GMR-1 8000 ROLLER 2
4 GM6-4P SKID CLAMP PLATE 4
5 GM84-55L DRIVE TUBE (222mm) 2
6 GM84/L 8000 SKID (LH) 1
7 GM84/R 8000 SKID (RH) 1
8 GM84/COV GEARBOX COVER 1
9 GM9 8000 BODY 1
10 1/2F 1/2” FINE NYLOC NUT 12
11 12x3FBZP 1/2”x3” FINE BOLT 12
12 190.000.545 PTO GUARD (EXTENDED OVAL) 1
13 199099 DIA 15-17mm INSERT 2
14 LF205 6 SPLINE “L” BOX RATIO 1.47 2
15 5/8F 5/8” FINE NYLOC NUT 8
16 58x2FBZP 5/8”x2” FINE BOLT 8
17 GM84DRV 6 SPLINE STAR DRIVE 2
18 EW29A 5/8” “D” SHACKLE 3
19 FWM12 M12 FLAT WASHER 4
20 FWM20 M20 FLAT WASHER 4
21 FWM8 M8 FLAT WASHER 4
22 8GMSTRP 8000 RM STRAP (3930mm) 1
23 GM2 STANDARD A-FRAME 1
24 LS002 ANTI VIBRATION RUBBER 7
25 M12 M12 NYLOC NUT 12
26 M12x30SZP M12x30 SET BOLT 4
27 M12x35BZP M12x35 BOLT 8
28 M12x50SZP M12x50 SET BOLT 2
29 M16 M16 NYLOC NUT 8
30 M16x40SZP M16x40 SET BOLT 8
31 M20 M20 NYLOC NUT 2
32 M20HEX M20 PLAIN NUT 4
33 M20x120BZP M20x120 BOLT 2
34 M20x200SZP M20x200 SET BOLT 4
35 M8x16SZP M8x16 SET BOLT 8
36 NT55A RUBBER COUPLING 2
37 S15707 CAT 1/2 LINK PIN 2
38 3546 LINCH PIN DIA 9.5 4
39 SW58 5/8” SPRING WASHER 8
40 SWM12 M12 SPRING WASHER 4
41 SWM20 M20 SPRING WASHER 4
42 T27A 6 SPLINE “T” BOX RATIO 1.92 1
43 T500810ENC12RW6 FIXED SLIP CLUTCH 1200 Nm 1
44 9TGT-CB GEARBOX COVER BRKT 2
45 RM-RSN28 8000 ROLLER MOUNT 4
Item Part No Description Qty
