Yetter 5000-022C User manual

5000 SERIES
STALK
DEVASTATOR
CORN STALK ROLLER
*PATENTED*
5000-022C Lexion C512-30 / Capello/ Claas
5000-033B Lexion C508-30 / Capello/ Claas
OPERATOR’S MANUAL
PART IDENTIFICATION
2565-783_REV_D – 02/2024
YETTER MANUFACTURING CO.
FOUNDED 1930
Colchester, IL 62326-0358
Toll free: 800/447-5777
309/776-3222 (Fax)
Website: www.yetterco.com
E-mail: [e-mail]

2
FOREWORD
You’ve just joined an exclusive but rapidly
growing club.
For our part, we want to welcome you to the
group and thank you for buying a Yetter product.
We hope your new Yetter products will help you
achieve both goals-increase your productivity and
increase your efficiency so that you may generate
more profit.
This operator’s manual has been designed into
four major sections: Foreword, Safety
Precautions, Installation Instructions and Parts
Breakdown.
This SAFETY ALERT SYMBOL indicates
important safety messages in the
manual. When you see this symbol, be
alert to the possibility of PERSONAL
INJURY and carefully read the
message that follows.
The word NOTE is used to convey information
that is out of context with the manual text. It
contains special information such as
specifications, techniques and reference
information of a supplementary nature.
The word IMPORTANT is used in the text when
immediate damage will occur to the machine due
to improper technique or operation. Important will
apply to the same information as specified by
note only of an immediate and urgent nature.
It is the responsibility of the user to read the
operator’s manual and comply with the safe and
correct operating procedure and to lubricate and
maintain the product according to the
maintenance schedule in the operator’s manual.
The user is responsible for inspecting his
machine and for having parts repaired or
replaced when continued use of the product
would cause damage or excessive wear to the
other parts.
It is the user’s responsibility to deliver his
machine to the Yetter dealer who sold him the
product for service or replacement of defective
parts, which are covered by the warranty policy.
If you are unable to understand or follow the
instructions provided in this publication, consult
your local Yetter dealer or contact:
YETTER MANUFACTURING CO.
309/776-4111
800/447-5777
309/776-3222 (FAX)
Website: www.yetterco.com
E-mail: [e-mail]
WARRANTY
Yetter Manufacturing warrants all products manufactured and sold by it against defects in material. This
warranty being expressly limited to replacement at the factory of such parts or products as shall appear to
be defective after inspection. This warranty does not obligate the Company to bear cost of labor in
replacement of parts. It is the policy of the Company to make improvements without incurring obligations to
add them to any unit already sold. No warranty is made or authorized to be made, other than herein set
forth. This warranty is in effect for one year after purchase.
DEALER: ________________________________________
Yetter Manufacturing warrants its own products only and cannot be responsible for damages to
equipment on which mounted.

3
BE ALERT!
YOUR SAFETY IS INVOLVED.
WATCH FOR THIS SYMBOL. IT POINTS OUT IMPORTANT SAFETY PRECAUTIONS.
IT MEANS “ATTENTION---BECOME ALERT!”
It is your responsibility as an owner, operator, or supervisor to know and instruct everyone using this
machine at the time of initial assignment and at least annually thereafter, of the proper operation,
precautions, and work hazards which exist in the operation of the machine in accordance with OSHA
regulations.
Safety Is No Accident
The following safety instructions, combined with common sense, will save your equipment from
needless damage and the operator from unnecessary exposure to personal hazard. Pay special
attention to the caution notes in the text. Review this manual at least once each year with new
and/or experienced operators.
1. Read and understand the operator’s manual before operating this machine. Failure to do
so is considered a misuse of the equipment.
2. Make sure equipment is secure before operating.
3. Always keep children away from equipment when operating.
4. Make sure everyone that is not directly involved with the operation is out of the work area
before beginning the operation.
5. Make sure all safety devices, shields, and guards are in place and are functional before
beginning the operation.
6. Shut off power to adjust, service, or clean.
7. Keep hands, feet, and clothing away from moving parts. It is a good idea to remove all
jewelry before starting the operation.
8. Visually inspect the machine periodically during operation for signs of excessive vibration,
loose fasteners, and unusual noises.

4
PLEASE READ, VERY IMPORTANT
SECURE CORN HEADER AGAINST
UNWANTED LOWERING BY APPLYING
THE LOCKING MECHANISM ON THE
HYDRAULIC CYLINDERS!
1. ATTACH HEAD TO COMBINE, LOCK HEAD TO COMBINE
2. RAISE THE HEAD OFF THE GROUND AND ENGAGE THE SAFETY
STOP ON THE FEEDER HOUSE CYLINDER.
3. TURN OFF COMBINE ENGINE AND REMOVE KEY.
FOLLOW THE INSTRUCTIONS OF THE COMBINE
MANUFACTURER.

5
PLEASE READ, VERY IMPORTANT
Subject to the size and weight of the corn header, one or two additional
hydraulic cylinders may be required.
The combine manufacturer generally keeps the corresponding kits readily
available for the dealer.
Subject to the design of the corn header and carrying capacity of the
different combines, the steering axle may require the fitting of additional
weights and the rear tires might need to be filled with ballast.
FOLLOW THE INSTRUCTIONS OF THE COMBINE
MANUFACTURER.

6
TABLE OF CONTENTS
INTRODUCTION ….…………………………………….............2
WARRANTY ……………………….………………………….....2
SAFETY INFORMATION ...….....…………………...…......3 – 5
TABLE OF CONTENTS / TORQUE / TOOLS NEEDED........6
ASSEMBLY INSTRUCTIONS
5000-022C ..………………….........……...................7 – 11
5000-033B .....…………..........................................12 – 16
OPERATION / STORAGE / LOCK UP.……......…………….17

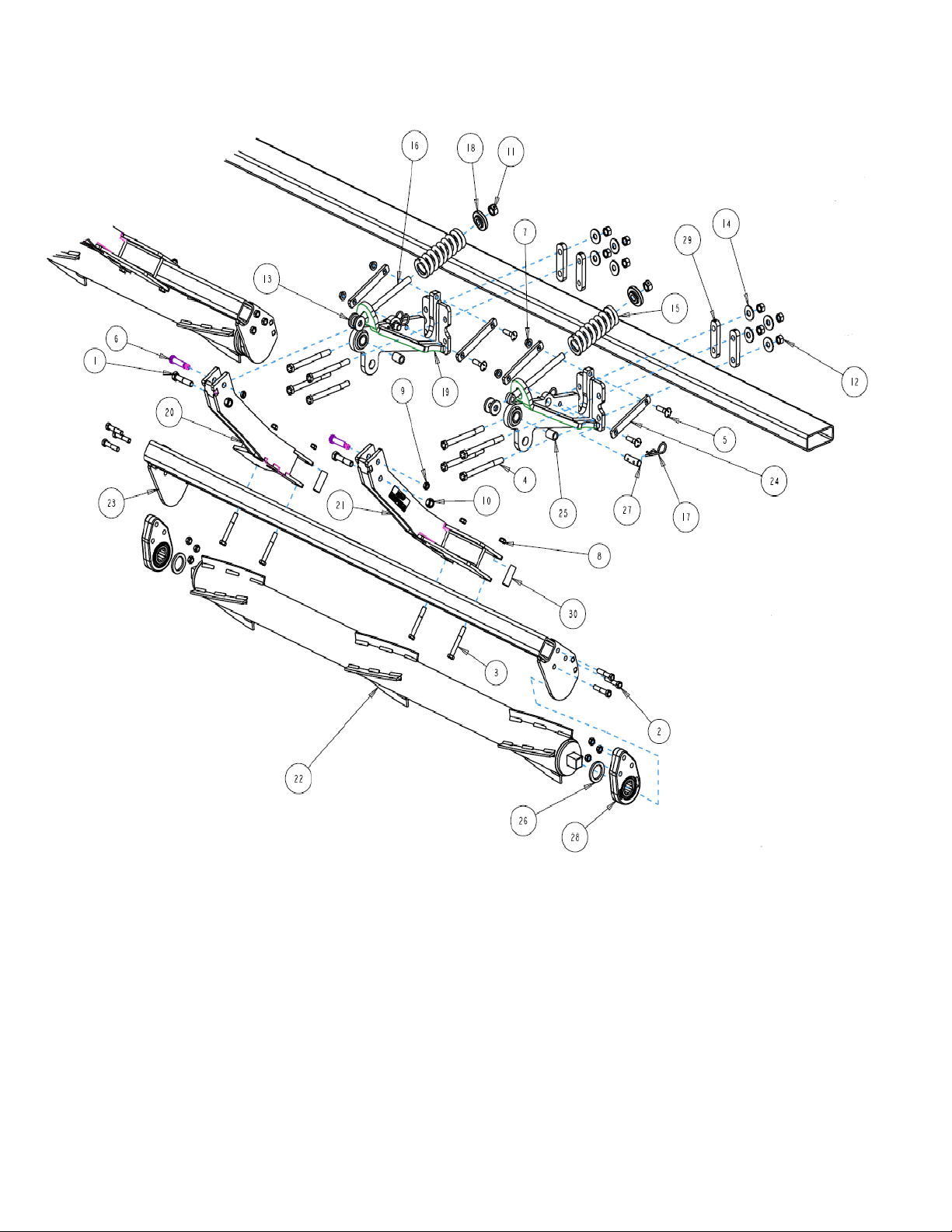

PARTS IDENTIFICATON
5000-022C ..………………………....……..…..........18 – 19
5000-033B .....……………………....………...…......20 – 21
TROUBLESHOOTING..........................................................22

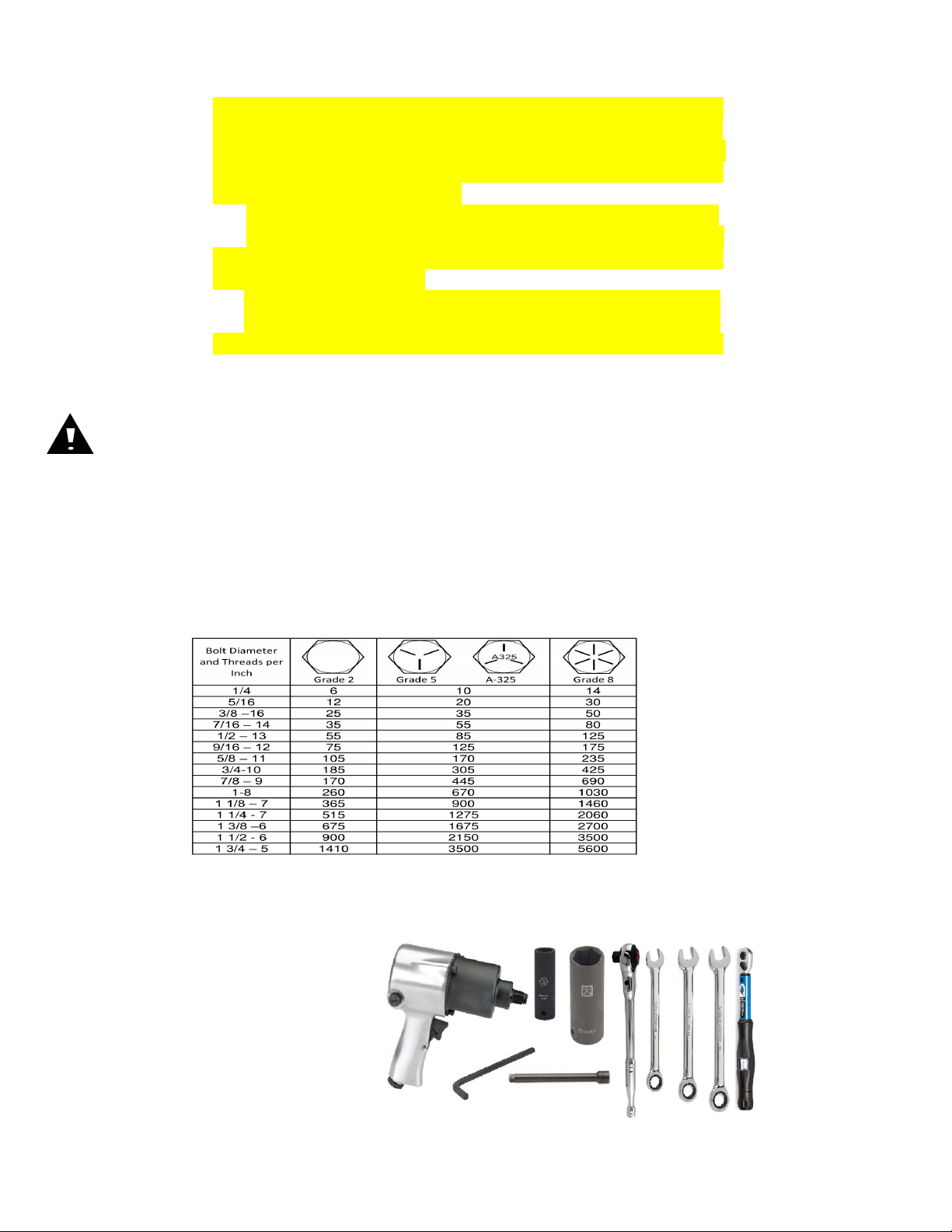

BOLT TORQUE
Important: Over-tightening hardware can cause just as much damage as under-tightening.
Tightening hardware beyond the recommended range can reduce its shock load capacity.
All hardware on the 5000 Devastator is either Grade 5 or Grade 8, unless otherwise noted. Grade 5 cap screws are marked
with three radial lines on the head. Grade 8 cap screws are marked with six radial lines on the head. If hardware must be
replaced, be sure to replace it with hardware of equal size, strength & thread type. Refer to the torque values chart when
tightening hardware.
The chart below is a guide for proper torque. Use it unless a specified torque is called out elsewhere in the manual.
Torque is the force applied to the end of the handle or cheater bar, times the length of the handle or bar.
Use a torque wrench wherever possible
The following table shows torque in ft.-lbs. for coarse thread hardware.
INSTALLATION TOOLS REQUIRED:
- Pneumatic or electric impact driver
- ¾ & 15/16 size sockets
- 10” impact driver extension
- Ratchet
- ¾, 15/16, & 1 1/8 size wrenches
- 5/16 Allen Wrench
- Torque Wrench

7
5000-022C ASSEMBLY INSTRUCTIONS
(LEXION C512-30 / CAPELLO)
Note: Before starting installation, clean the corn head of debris, remove the guards, & lift the snouts.
Step 1: Attach the 5000-250 mount brackets to the frame using the 4) 5/8 x 7” bolts, mounting straps, & 5/8 lock hex nuts.
Mounting Brackets will be located under the snouts between rows 1 & 2, 2 & 3, 4 & 5, 5 & 6, 7 & 8, 8 & 9, 10 & 11, and
11 & 12. Slide the mount bracket up so the deck plate adjustment rod is located in the cut out of the mount bracket.
Note: Do not fully tighten hardware until Step 6 after all of the pivot arms & springs are installed.
Arrows indicate 5000-250 mount bracket locations
NOTE: NOTCHES NEED CUT IN THE GUARDS TO ALLOW THE MOUNTING BOLTS TO BE USED. CUT
THESE NOTCHES AFTER THE COMPLETION OF THE DEVASTATOR INSTALLATION. IN SOME
SITUATIONS, A HOLE MAY NEED DRILLED IN THE MOUNTING TAB FOR THE GUARDS. POSITION THE
DECK PLATE ADJUSTER VERTICALLY TO HAVE CLEARANCE IN THE DEVASTATOR MOUNT OPENING.

8
5000-022C ASSEMBLY INSTRUCTIONS
Step 2: Attach the 5000-309 support straps using the ½” x 2” carriage bolts & ½ flange lock nuts, tighten.
Step 3: Install the 5000-323 lock-up pin in the storage location on the mount brackets. Secure with the
hairpin clips.
STORAGE LOCATION PINNED UP LOCATION

9
5000-022C ASSEMBLY INSTRUCTIONS

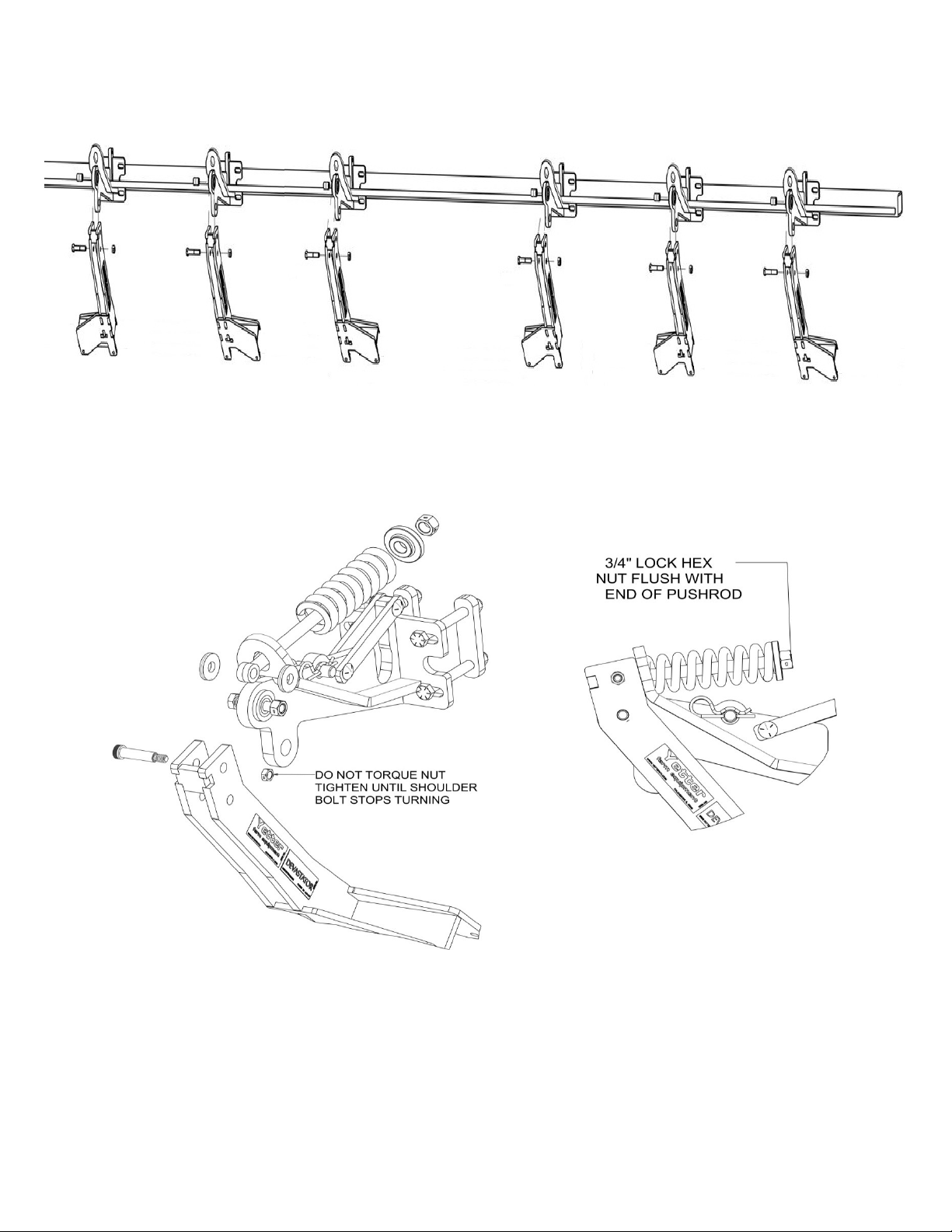

Step 4: Attach the pivot arms, using the lower of the 2 holes, to the mount brackets using
the 5/8” X 3 bolts, pivot bushings, and lock hex nuts. Tighten this hardware.
Step 5: Install the push rods into the mount brackets then attach to the pivot arms with
the 5/8” shoulder bolts, washers, and ½” jam lock nuts.
Note: The washers are installed on each side of the “eye” of the push rod.
Now install the compression spring, spring bushing, and ¾” lock hex nuts. Tighten the
hardware from Step 5 to the specification in the diagram below.
NOTE: Tightening the nut on the spring bushing more will result in added
down pressure. However, DO NOT tighten the nut on the spring bushing
down so far that spring compression limits pivot arm travel.

10
5000-022C ASSEMBLY INSTRUCTIONS
Step 6: Secure the mounting bracket installed in Step 1 at this time by tightening the 5/8 X 7” bolts & 5/8
lock nuts. Make sure the compression spring clears the cylinder channel, gathering chains, & deck plate
adjustment. The offset pivot arm clamp should be under the snout, not directly under the row.
Row 1 & 2 Row 2 & 3 Row 4 & 5
Row 5 & 6 Row 7 & 8 Row 8 & 9
Row 10 & 11 Row 11 & 12

11
5000-022C ASSEMBLY INSTRUCTIONS

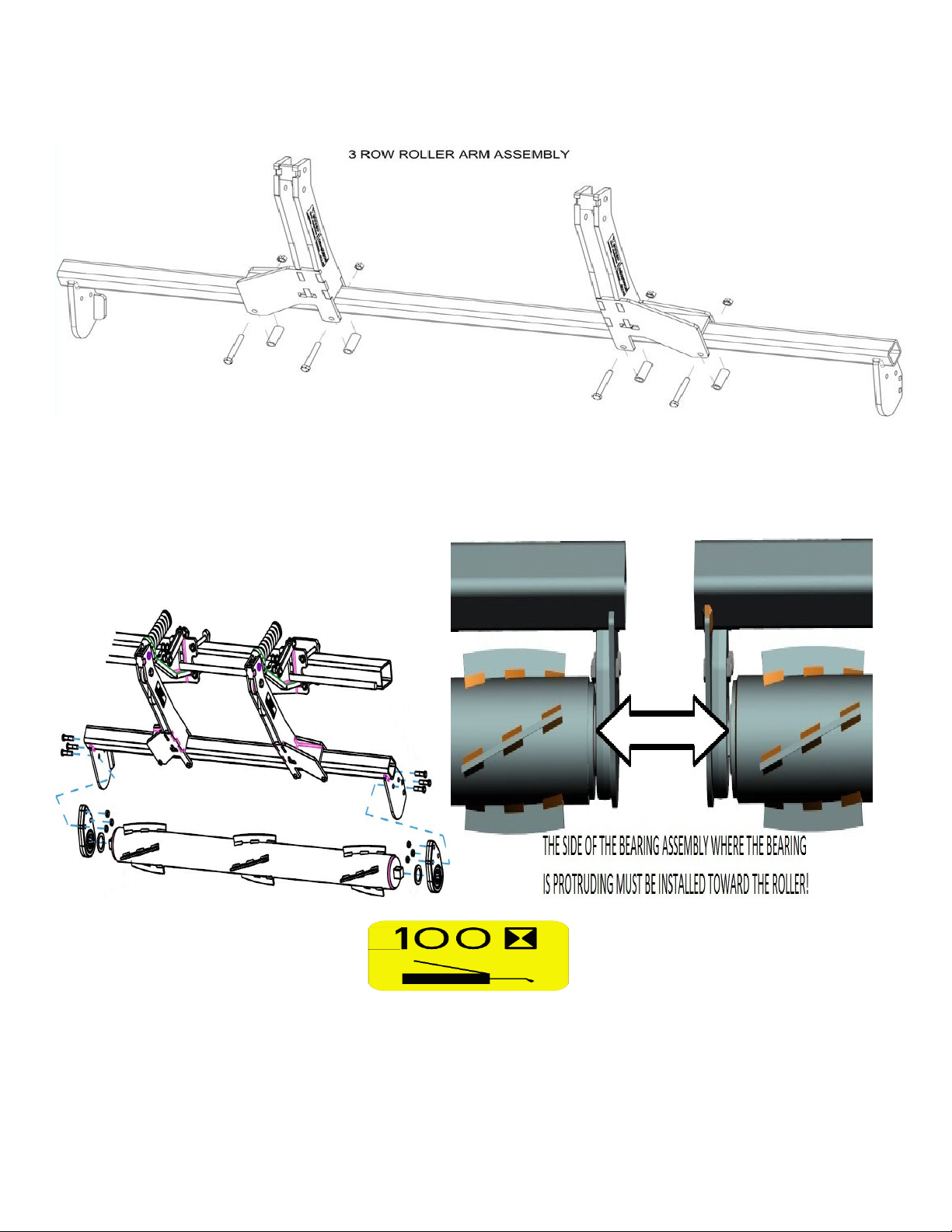

Step 7: Install the Roller Arm Mount Tube inside the clamp channel of the pivot arms using the 5000-
138 bolt bag. Do not tighten this hardware until after the rollers have been installed in Step 8.
Step 8: Insert the shim washer over the shaft on each end of the roller. Install the bearing over the shaft on each end of the
roller so that the side of the casting that has the bearing protruding past the housing surface is towards the roller barrel & shim
washer. Lift each roller into place, install the ½” X 2 ½” bolts & tighten the ½” lock nuts. Once the roller & bearing hardware is
fastened, spin the roller to ensure the bearing was installed correctly. If the roller was installed incorrectly, the roller will not spin
or will have drag. Slide the roller mount tube to gain clearance on each end of the corn head & then tighten the hardware.
NOTE: BEARING HOUSING SHOULD BE LUBRICATED WITH POLYUREA GREASE BEFORE USE AND THEN EVERY 100 HOURS OF OPERATION

12
5000-033B ASSEMBLY INSTRUCTIONS
(LEXION C508-30 / CAPELLO)
Note: Before starting installation, clean the corn head of debris, remove the guards, & lift the snouts.
Step 1: Attach the 5000-250 mount brackets to the frame using the 5/8 x 7” bolts, mounting straps, & lock hex nuts. Mounting
Brackets will be located under the snouts between rows 1 & 2, 2 & 3, 3 & 4, 5 & 6, 6 & 7, and 7 & 8. Slide the mount bracket up
so the deck plate adjustment rod is located in the cut out of the mount bracket.
Note: Do not fully tighten hardware until Step 6 after all of the pivot arms & springs are installed.
Arrows indicate 5000-250 mount bracket locations
NOTE: NOTCHES NEED CUT IN THE GUARDS TO ALLOW THE MOUNTING BOLTS TO BE USED. CUT
THESE NOTCHES AFTER THE COMPLETION OF THE DEVASTATOR INSTALLATION. IN SOME
SITUATIONS, A HOLE MAY NEED DRILLED IN THE MOUNTING TAB FOR THE GUARDS. POSITION THE
DECK PLATE ADJUSTER VERTICALLY TO HAVE CLEARANCE IN THE DEVASTATOR MOUNT OPENING.

13
5000-033B ASSEMBLY INSTRUCTIONS
Step 2: Attach the 5000-309 support straps using the ½” x 2” carriage bolts & flange lock nuts, tighten.
Step 3: Install the 5000-323 lock-up pin in the storage location on the mount brackets. Secure with the
hairpin clips.
STORAGE LOCATION PINNED UP LOCATION

14
5000-033B ASSEMBLY INSTRUCTIONS
Step 4: Attach the pivot arms, using the lower of the 2 holes, to the mount brackets using
the 5/8” X 3 bolts, pivot bushings, & lock hex nuts. Tighten this hardware.
Step 5: Install the push rods into the mount brackets then attach to the pivot arms with
the 5/8” shoulder bolts, washers, and ½” jam lock nuts.
Note: The washers are installed on each side of the “eye” of the push rod.
Now install the compression spring, spring bushing, and ¾” lock hex nuts. Tighten the
hardware from Step 5 to the specification in the diagram below.
NOTE: Tightening the nut on the spring bushing more will result in added
down pressure. However, DO NOT tighten the nut on the spring bushing
down so far that spring compression limits pivot arm travel. This will cause
the spring to break, especially if spring is compressed all off-season.

15
5000-033B ASSEMBLY INSTRUCTIONS
Step 6: Secure the mounting bracket installed in Step 1 at this time by tightening the 5/8 X 7” bolts & 5/8
lock nuts. Make sure the compression spring clears the cylinder channel, gathering chains, & deck plate
adjustment. The offset pivot arm clamp should be under the snout, not directly under the row.
Row 1 & 2 Row 2 & 3 Row 3 & 4
Row 5 & 6 Row 6 & 7 Row 7 & 8

16
5000-033B ASSEMBLY INSTRUCTIONS
Step 7: Install the Roller Arm Mount Tube inside the clamp channel of the pivot arms using the 5000-
138 bolt bag. Do not tighten this hardware until after the rollers have been installed in Step 8.
Step 8: Insert the shim washer over the shaft on each end of the roller. Install the bearing over the shaft on each end of the
roller so that the side of the casting that has the bearing protruding past the housing surface is towards the roller barrel & shim
washer. Lift each roller into place, install the ½” X 2 ½” bolts & tighten the ½” lock nuts. Once the roller & bearing hardware is
fastened, spin the roller to ensure the bearing was installed correctly. If the roller was installed incorrectly, the roller will not spin
or will have drag. Slide the roller mount tube to gain clearance on each end of the corn head & then tighten the hardware.
NOTE: BEARING HOUSING SHOULD BE LUBRICATED WITH POLYUREA GREASE BEFORE USE AND THEN EVERY 100 HOURS OF OPERATION

17
OPERATION
CORN HEAD ANGLE SHOULD BE BETWEEN 23 – 25°
FOR OPTIMUM DEVASTATATOR PERFORMANCE.
USE THE 5000-455 TO CHECK CORN HEAD ANGLE:
- Put the combine on a level surface. Lower the
Corn head to your normal working head height.
- Place the magnetic protractor on the stripper
plate to get the angle. Adjust the feeder house
as needed, fore or aft, to achieve 23 – 25 degrees.
BEARING REPLACEMENT
Put the bearing housing in a vice, use a pry bar to turn the bearing in the housing parallel with the slots, remove the old
bearing, apply anti-seize lubricant to the interior of the bearing housing, insert the new bearing in the slots, & use a pry bar to
move back to position. Wobble the bearing around to help work the lubricant into the outer race of the bearing.
STORAGE
When storing the corn head for the offseason, it is OK for the 5000 Stalk Devastators to hold some weight of the corn head whether
stored on the ground or on a trailer. Removing compression springs may help extend the service life.
LOCKING UP THE 5000 SERIES STALK DEVASTATOR

18
5000-022C PARTS IDENTIFICATION
ITEM
PART #
DESCRIPTION
QTY
1 2502-325 5/8” – 11 X 3” CAP SCREW GRADE 5 8
2 2502-353 ½” – 13 X 2 ½” CAP SCREW GRADE 8 24
3 2502-365 ½ - 13 X 3 ¾ CAP SCREW GRADE 5 16
4 2502-396 5/8 – 11 X 7 CAP SCREW GRADE 8 32
5 2505-345 ½ - 13 X 2 CARRIAGE BOLT GRADE 5 16
6 2510-121 5/8” DIAMETER SHOULDER X 2 ¼” WITH THREAD ½ -13 8
7 2520-361 ½ - 13 FLANGE WHIZLOCK HEX NUT GRADE 5 16
8 2520-362 ½-13 LOCK HEX NUT GRADE 8 40
9 2520-364 ½ - 13 HEX LOCK NUT 8
10 2520-459 5/8 – 11 LOCK HEX NUT GRADE 5 8
11 2520-515 ¾ - 10 LOCK HEX NUT GRADE 2 8
12 2520-603 5/8-11 TOP LOCK HEX NUT GRADE 8 32
13 2526-449 5/8 FLAT WASHER, ¼ THICK 16
14 2526-451 5/8 STANDARD FLAT WASHER 32
15 2550-709 ½ WIRE 2 ½ OD X 1 ½ ID X 7 ¼ COMPRESSION SPRING 8
16 2570-126 ¾ X 10 EYEBOLT 8
17 2570-465 HAIRPIN COTTER 16
18 2975-302 SPRING BUSHING 8
19 5000-250 MOUNTING WELDMENT – LEXION 8
20 5000-256 LEFT HAND ARM 19” 4
21 5000-259 RIGHT HAND ARM 19” 4
22 5000-272 3R30 ROLLER 71.5” 4
23 5000-275A 3R30 ROLLER MOUNT 75.375” 4
24 5000-309 SUPPORT STRAP 16
25 5000-318 PIVOT BUSHING 8
26 5000-322 SHIM WASHER 8
27 5000-323 LOCK UP PIN 8
28 5000-355 BEARING ASSEMBLY 8
2550-059 DEVASTATOR BEARING ONLY (NO CAST HOUSING) 8
29 5000-373 MOUNTING PLATE, 3” STRAP 16
30 5000-378 SPACER BUSHING 16

19
5000-022C PARTS IDENTIFICATION

20
5000-033B PARTS IDENTIFICATION
ITEM
PART #
DESCRIPTION
QTY
1 2502-325 5/8 – 11 X 3 CAP SCREW GRADE 5 6
2 2502-353 ½ - 13 X 2 ½ CAP SCREW GRADE 8 18
3 2502-365 ½ - 13 X 3 ¾ CAP SCREW GRADE 5 12
4 2502-396 5/8 – 11 X 7 CAP SCREW GRADE 8 24
5 2505-345 ½ - 13 X 2 CARRIAGE BOLT GRADE 5 12
6 2510-121 5/8” DIAMETER X 2 ¼” LONG SHOULDER, THREAD ½ -13 6
7 2520-361 ½ - 13 FLANGE WHIZLOCK HEX NUT, GRADE 5 12
8 2520-362 ½-13 LOCK HEX NUT GRADE 8 30
9 2520-364 ½ - 13 HEX LOCK NUT 6
10 2520-459 5/8 – 11 LOCK HEX NUT, GRADE 5 6
11 2520-515 ¾ - 10 LOCK HEX NUT, GRADE 2 6
12 2520-603 5/8-11 TOP LOCK HEX NUT GRADE 8 24
13 2526-449 5/8 FLAT WASHER, ¼ THICK 12
14 2526-451 5/8 STANDARD FLAT WASHER 24
15 2550-709 ½ WIRE 2 ½ OD X 1 ½ ID X 7 ¼ COMPRESSION SPRING 6
16 2570-126 ¾ X 10 EYEBOLT 6
17 2570-465 HAIRPIN COTTER 12
18 2975-302 SPRING BUSHING 6
19 5000-203B ROLLER 48” 1
20 5000-250 MOUNT– LEXION 6
21 5000-255 ROLLER MOUNT 1
22 5000-256 LEFT HAND ARM 19” 3
23 5000-259 RIGHT HAND ARM 19” 3
24 5000-272 3R30 ROLLER 71.5” 2
25 5000-275A 3R30 ROLLER MOUNT 75.375” 2
26 5000-309 SUPPORT STRAP 12
27 5000-318 PIVOT BUSHING 6
28 5000-322 SHIM WASHER 6
29 5000-323 LOCK UP PIN 6
30 5000-355 BEAING ASSEMBLY 6
2550-059 DEVASTATOR BEARING ONLY (NO CAST HOUSING) 6
31 5000-373 MOUNTING PLATE, 3” STRAP 12
32 5000-378 SPACER BUSHING 12
