J&M HT-974 User manual

HT-974
HT-974L-30
HT-974L-30X
HT-974XL-36
HT-974-16
HT-974-20
Rev. 5.4.2021
HEADER TRANSPORT
OPERATOR’S MANUAL
MODEL
Manual
J&M Manufacturing Co, Inc
284 Railroad Street - P.O. Box 547 | Fort Recovery, OH 45846 | Ph: [phone] | Fax: [phone]
www.jm-inc.com

2
Read manual instructions and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists are
completed before releasing equipment to the owner.
The dealer must complete the Warranty Registration found on the Dealer Portal website located at dealer.jm-inc.com and return it
to J&M Mfg. Co., Inc. at the address indicated on the form. Warranty claims will be denied if the Warranty Registration has not been
submitted.
EXPRESS WARRANTY:
J&M Mfg. Co., Inc. warrants against defects in construction or materials for a period of ONE year. We reserve the right to inspect
and decide whether material or construction was faulty or whether abuse or accident voids our guarantee.
Warranty service must be performed by a dealer or service center authorized by J&M Mfg. Co., Inc. to sell and/or service the type
of product involved, which will use only new or remanufactured parts or components furnished by J&M Mfg. Co., Inc. Warranty
service will be performed without charge to the purchaser for parts or labor based on the Warranty Labor Times schedule. Under
no circumstance will allowable labor times extend beyond the maximum hours indicated in the Warranty Labor Times schedule for
each warranty procedure. The purchaser will be responsible, however, for any service call and/or transportation of the product to
and from the dealer or service center’s place of business, for any premium charged for overtime labor requested by the purchaser,
and for any service and/or maintenance not directly related to any defect covered under the warranty. Costs associated with
equipment rental, product down time, or product disposal are not warrantable and will not be accepted under any circumstance.
Each Warranty term begins on the date of product delivery to the purchaser. Under no circumstance will warranty be approved
unless (i) the product warranty registration card has been properly completed and submitted to the equipment manufacturer,
and (ii) a warranty authorization number has been issued by the equipment manufacturer. This Warranty is eective only if the
warranty registration card is returned within 30 days of purchase.
This Warranty does not cover a component which fails, malfunctions or is damaged as a result of (i) improper modication or
repair, (ii) accident, abuse or improper use, (iii) improper or insucient maintenance, or (iv) normal wear or tear. This Warranty
does not cover products that are previously owned and extends solely to the original purchaser of the product. Should
the original purchaser sell or otherwise transfer this product to a third party, this Warranty does not transfer to the third
party purchaser in any way. J&M Mfg. Co., Inc. makes no Warranty, express or implied, with respect to tires or other parts or
accessories not manufactured by J&M Mfg. Co., Inc. Warranties for these items, if any, are provided separately by their respective
manufacturers.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS, IMPLIED OR STATUTORY,
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE.
In no event shall J&M Mfg. Co., Inc. be liable for special, direct, incidental or consequential damages of any kind. The exclusive
remedy under this Warranty shall be repair or replacement of the defective component at J&M Mfg. Co., Inc’s. option. This is the
entire agreement between J&M Mfg. Co., Inc. and the Owner about warranty and no J&M Mfg. Co., Inc. employee or dealer is
authorized to make any additional warranty on behalf of J&M Mfg. Co., Inc.
The manufacturer reserves the right to make product design and material changes at any time without notice. They shall not
incur any obligation or liability to incorporate such changes and improvements in products previously sold to any customer,
nor shall they be obligated or liable for the replacement of previously sold products with products or parts incorporating such
changes.
SERVICE:
The equipment you have purchased has been carefully manufactured to provide dependable and satisfactory use. Like all
mechanical products, it will require cleaning and maintenance. Lubricate the unit as specied. Observe all safety information in
this manual and safety signs on the equipment.
For service, your authorized J&M dealer has trained mechanics, genuine J&M service parts, and the necessary tools and equipment
to handle all your needs.
Use only genuine J&M service parts. Substitute parts may void warranty and may not meet standards required for safety and
satisfactory operation. Record the model number and serial number of your equipment in the spaces provided:
Model No: HT-974 Header Wagon Serial No: ________________________ Date of Purchase: ___________________
Purchased From: ________________________________________________________________________________
Provide this information to your dealer to obtain correct repair parts.
To the Dealer

3
Table of Contents
General Information ............................................................................ 4
Safety Rules..................................................................................... 4
Bolt Torque Chart ............................................................................... 5
Stud and Wheel Nut Torque Specications ....................................................... 5
Specs and Dimensions .......................................................................... 6
Initial Operation/Maintenance................................................................... 7
Service ......................................................................................... 8
Repair Parts List and Diagrams

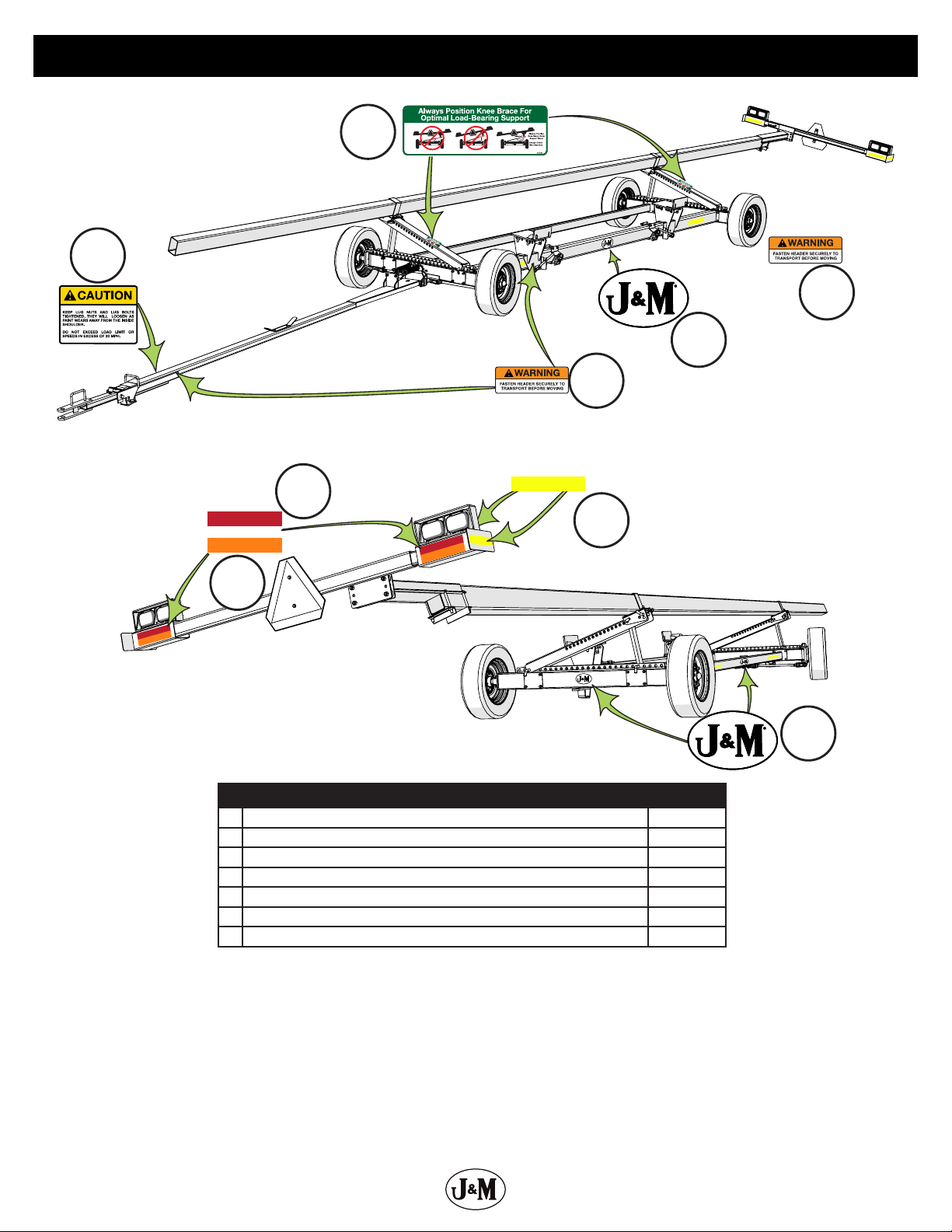

Decals .......................................................................................... 9
Main Frame & Bars .............................................................................10
Tongue Assembly ..............................................................................12

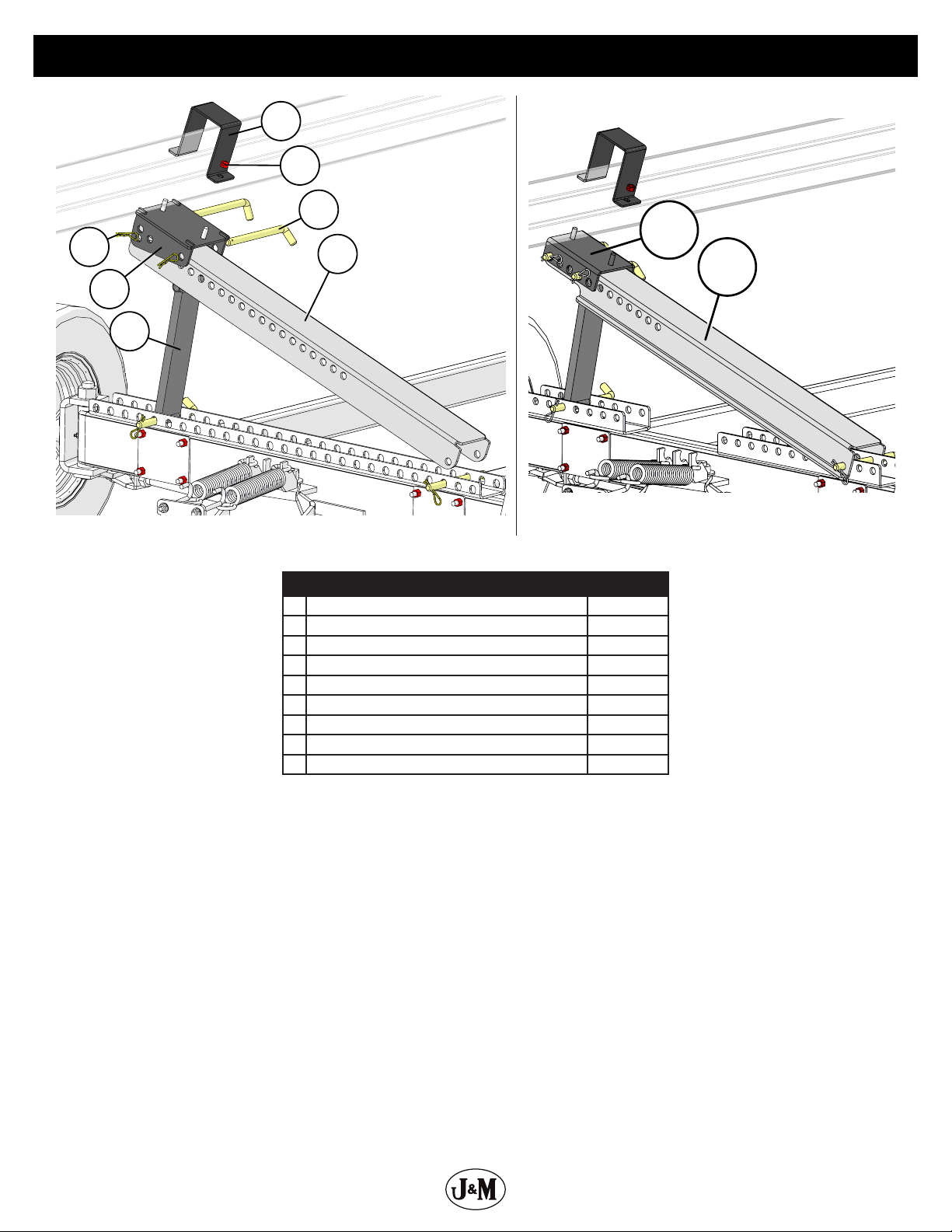

Upper Bar Mounts .............................................................................14

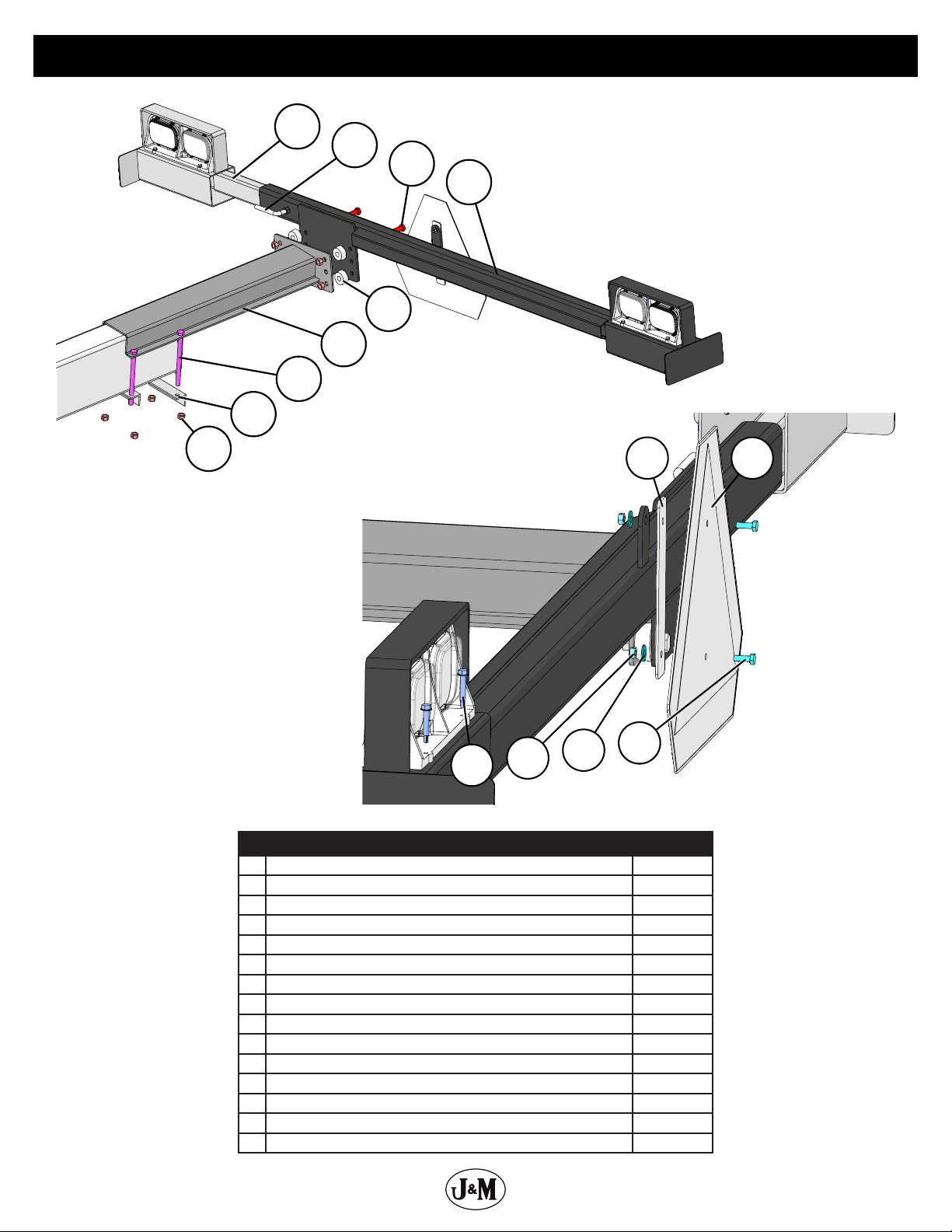

Header Mounts and Straps .....................................................................15
Axle Weldments ...............................................................................16

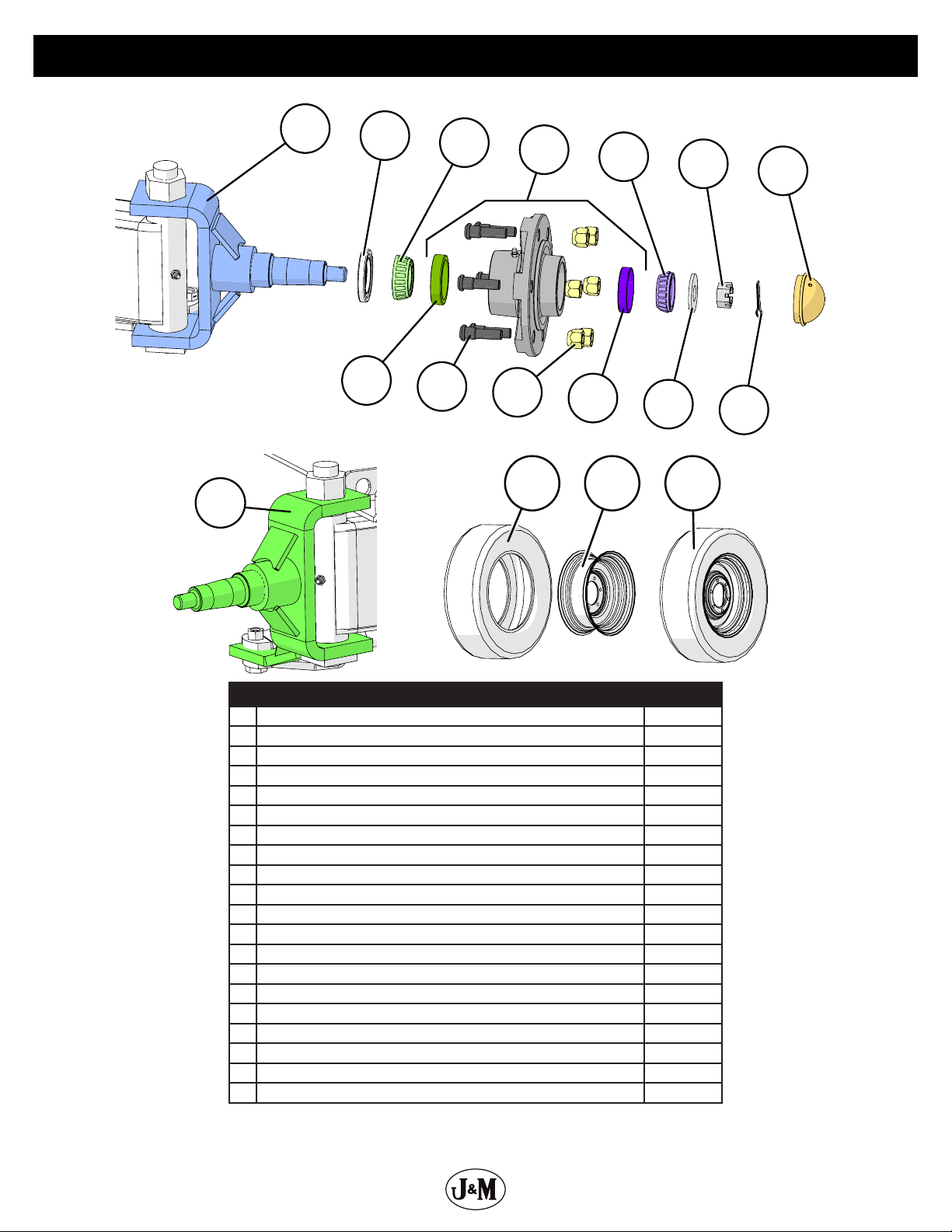

Spindle & Tire Assemblies ......................................................................17

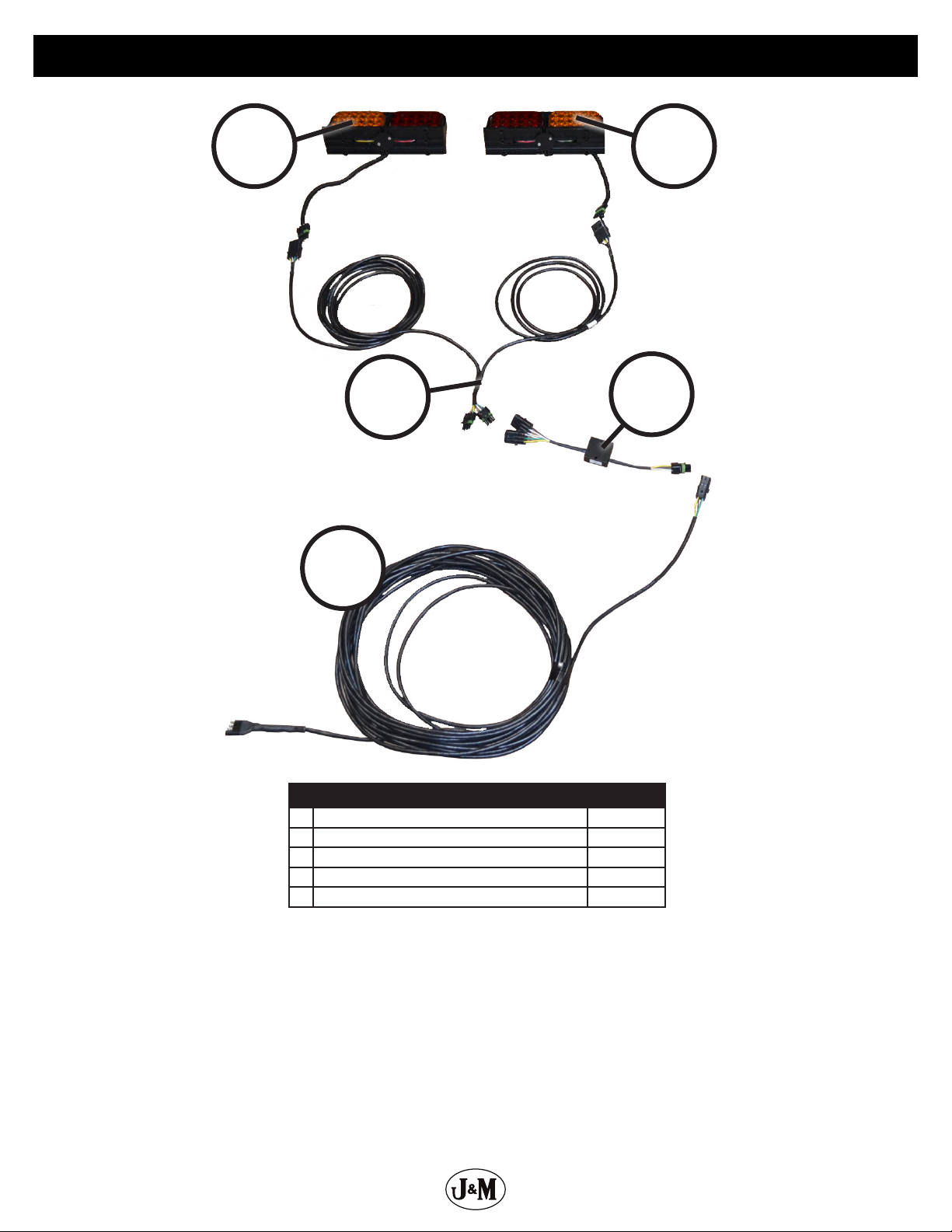

Light Kit .......................................................................................19
Set Up Instructions.............................................................................20
Set Up Assembly ...............................................................................21

4
General Information
TO THE OWNER:
The purpose of this manual is to assist you in operating and maintaining your header transport in a safe manner. Read it carefully. It
furnishes information and instructions that will help you achieve years of dependable performance and help maintain safe operating
conditions. If this machine is used by an employee or is loaned or rented, make certain that the operator(s), prior to operating:
1. Is instructed in safe and proper use.
2. Reviews and understands the manual(s) pertaining to this machine.
Throughout this manual, the term IMPORTANT is used to indicate that failure to observe can cause damage to equipment. The terms
CAUTION, WARNING and DANGER are used in conjunction with the Safety-Alert Symbol (a triangle with an exclamation mark) to indicate
the degree of hazard for items of personal safety. When you see this symbol, carefully read the message that follows and be alert to the
possibility of personal injury or death.
DANGER
WARNING
CAUTION
This Safety-Alert symbol indicates a hazard and means
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury,
and includes hazards that are exposed when guards are removed.
Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury.
Indicates that failure to observe can cause damage to equipment.
Indicates helpful information.
IMPORTANT
NOTE
Safety Rules
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Safety is a primary concern in the design and manufacture of our products. Unfortunately, our eorts to provide safe equipment can
be erased by an operator’s single careless act. In addition, hazard control and accident prevention are dependent upon the awareness,
concern, judgment, and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
Make certain that the operator(s), prior to operating is instructed in safe and proper use and reviews and understands the manual(s)
pertaining to this machine.
Read this manual before you operate this machine. If you do not understand any part of this manual, or need more information, contact
the manufacturer or your authorized dealer.
SAFETY
Understand that your safety and the safety of other persons is measured by how you service and operate this machine. Know the
positions and functions of all controls before you try to operate them. Make sure to check all controls in a safe area before starting your
work.
The safety information given in this manual does not replace safety codes, federal, state or local laws. Make certain your machine has the
proper equipment as designated by local laws and regulations.
A frequent cause of personal injury or death is from persons falling o equipment and being run over. Do not permit persons to ride on
this machine.
Travel speeds should be such that complete control and machine stability is maintained at all times. Where possible, avoid operating
near ditches, embankments and holes. Reduce speed when turning, crossing slopes and rough, slick or muddy surfaces.
Collision of high speed road trac and slow moving machines can cause personal injury or death. On roads, use asher lights according
to local laws. Keep slow-moving-vehicle emblem visible. Pull over to let faster trac pass.
Make sure that the header is fastened securely to the transport before moving.
Make sure that everyone is clear of equipment before applying power or moving the machine. NEVER position yourself under or near
header when mounting on the header transport.

5
Always tighten hardware to these values unless a dierent torque or tightening procedure is listed for specic application. Fasteners must
always be replaced with the same grade as specied in the manual parts list. Always use the proper tool for tightening hardware. Make
sure fastener threads are clean and you start thread engagement properly. Use these values when tightening all bolts and nuts with
the exception of wheel nuts. SAE Fasteners
Coarse Thread Series
Grade 5 Grade 8
Diameter and Pitch (Inches) Dry Oiled Dry Oiled
1/4”-20 8 ft-lbs 6 ft-lbs 12 ft-lbs 9 ft-lbs
5/16”-18 17 13 25 18
3/8”-16 31 23 44 33
7/16”-14 49 37 70 52
1/2”-13 75 57 106 80
9/16”-12 109 82 154 115
5/8”-11 150 113 212 159
3/4”-10 267 200 376 282
7/8”-9 429 322 606 455
1”-8 644 483 909 681
Fine Thread Series
Diameter and Pitch (Inches) Dry Oiled Dry Oiled
1/4”-28 10 ft-lbs 7 ft-lbs 14 ft-lbs 10 ft-lbs
5/16”-24 19 15 27 20
3/8”-24 35 26 49 37
7/16”-20 55 41 78 58
1/2”-20 85 64 120 90
9/16”-18 121 91 171 128
5/8”-18 170 127 240 180
3/4”-16 297 223 420 315
7/8”-14 474 355 669 502
TIGHTENING WHEEL NUTS: Standard 1/2” wheel studs and nuts should be tightened to torque 120 ft-lbs. During initial operation
of the header transport and then checked for proper torque after every 10 hours of use. Failure to do so may damage wheel nut seats.
Once seats are damaged, it will become impossible to keep nuts tight.
Stud and Wheel Nut Torque Specications
Always tighten hardware to these values unless a dierent torque or tightening procedure is listed for specic application. Fasteners must
always be replaced with the same grade as specied in the manual parts list. Always use the proper tool for tightening hardware. Make
sure fastener threads are clean and you start thread engagement properly. Use these values when tightening all studs and wheel
nuts.
Stud Tightening Torque
1/2”-20 120 ft-lbs
9/16”-18 170 ft-lbs
5/8”-18 300 ft-lbs
3/4”-16 400 ft-lbs
20mm 475 ft-lbs
22mm 640 ft-lbs
Safety Rules
Bolt Torque Chart
Make sure that the implement is fastened securely to the tractor by using the proper hich pin, clip and safety chains.
Before unhooking the implement from the towing unit, be sure to properly block the wheels to prevent the implement from moving.
Never overload the header transport. Overloading the header transport is dangerous and can cause extensive damage.
Do NOT exceed speeds in excess of 25 MPH. The header transport is designed for heavy loads at slow speeds. Also be sure slow moving
vehicle emblem is attached to rear of wagon.
IMPORTANT: Use caution when transporting. Be alert of the transport unit’s overall width when approaching obstacles, such as post signs
and poles, along the road. Check the transport width of the unit to ensure clearance before entering bridges.
COMPLY WITH ALL SAFETY WARNINGS AND CAUTIONS IN THIS MANUAL AND IN THE COMBINE OPERATOR’S MANUAL.
WARNING: BE SURE ALL LIGHTS ARE WORKING PROPERLY BEFORE HIGHWAY TRAVEL.

6
Specs and Dimensions
*HT-974-16 is at a height of 14”
Dimensions
HT-974 HT-974L-30 HT-974L-30X HT-974XL-36 HT-974-16 HT-974-20
A 12’-0” 15’-0” 15’-0” 17’-0” 6’-2” 6’-2”
B 27’-0” 32’-0” 32’-0” 38’-0” 16’-10” 20’-5”
C 6’-2” 6’-2” 6’-2” 6’-2” 6’-2” 6’-2”
D 33’-6” 39’-9” 36’-9” 44’-9” 23’-5” 27’-1”
E 13’-10” 16’-6” 24’-4” 16’-6” 14’-4” 18’-4”
Specications
HT-974 HT-974L-30 HT-974L-30X HT-974XL-36 HT-974-16 HT-974-20
Weight 1,540 lbs 1,755 lbs 1,870 lbs 1,830 lbs 1,580 lbs 1,725 lbs
Capacity (Net) 7,500 lbs 10,700 lbs 10,500 lbs 10,620 lbs 10,800 lbs 11,000 lbs
Spindle Size 1-3/4” Diameter 1-3/4” Diameter 1-3/4” Diameter 1-3/4” Diameter 1-3/4” Diameter 1-3/4” Diameter
Wheel Size 14”x6”-6 Bolt 15”x6”-6 Bolt 15”x6”-6 Bolt 15”x6”-6 Bolt 15”x6”-6 Bolt 15”x6”-6 Bolt
Tire Size 215/75R14-D 225/75R15-E 225/75R15-E 225/75R15-E 225/75R15-E 225/75R15-E
Steel Upper Bar 4”x6” 4”x6” 4”x6” 4”x6” 4”x6” 4”x6”
Upper Bar Length 25’ 30’ 30’ 36’ 20’ 20’
Box Channel Axle Frame 6” 6” 6” 6” 6” 6”
Extra low pro
mount
weldment for
4” x 6” tube
4-1/2” lip
Low pro base
weldment for
4“ x 6” tube and
upper mount
with 4-1/2” lip
High pro base
weldment for
4” x 6” tube and
upper mount
with 4-1/2” lip
17”
0”
4” or 6”
8” or 10”
High Prole
Mount
Standard
Low Prole
Mount
Extra
Low Prole
Mount
Measurement for“Ground to Top of Bar Height”is based on
standard tires and apex of the crown of the bar.
4-Wheel Steer Mount Options

7

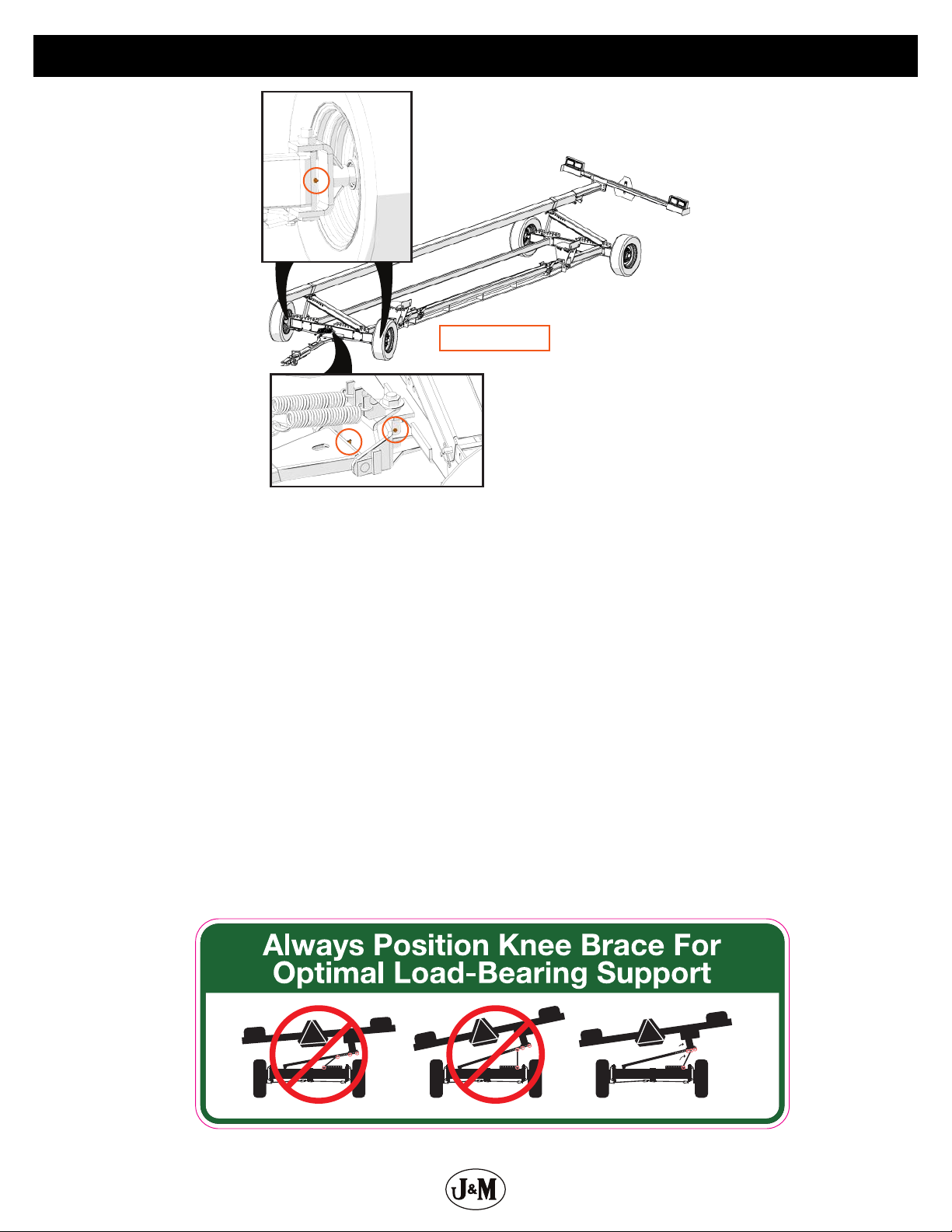

INITIAl OPeRATION / MAINTeNANce
BeceRTAIN ThAT All POweR IsshuT Off BefORe seRvIcINg The heAdeR TRANsPORT
Before the header transport is put into service:
• Has the Slow-Moving Vehicle Emblem been properly positioned at the rear of the header transport?
• Have all danger, warning, caution and important signs on the equipment been read and understood? If employees or others use or
are near this equipment, make sure that they also have read and understood all danger, warning, caution, and important signs on the
equipment and have also read the operators manual.
• Are all braces, bolts, nuts, lug bolts and lug nuts properly fastened?
• Has the header transport been properly fastened to the towing unit? Use a good quality hitch pin with clip and safety chains.
• Are the rear amber extremity lights properly positioned? Extend lights within 16” of the left and right extremities of the header.
OPeRATINg INsTRucTIONs/ MAINTeNANce
• Adjust the brackets on the header transport to best t your make and model header. When mounting the header, NEVER position
yourself under or near the header.
• Do not exceed the load and size limits of the unit.
• Keep the tires properly inated. Both under ination and over ination can greatly reduce tire life.
• Inspect bracing and welds periodically and repair immediately if needed. Failure to repair could cause extensive damage and greatly
reduce the life of the unit.
• Repack the bearings in the hub assembly once a year or as needed. Use a good quality bearing lubricant such as Bearing Guard MK1
or equivalent.
• Insert the amount of grease needed into all of the grease zerks shown in the image above.
• Be sure to check the hub nuts often and keep them properly tightened.
• Check alignment of tires yearly. Adjust the push pull bar to realign the tires if needed.
JM0026114
Always Position
Knee Brace Under
Support Beam
Always Check
Tire Clearance
Support Beam
Knee Brace
Initial Operation/Maintenance
Grease Zerks

8
A
B
CD
TIE ROD

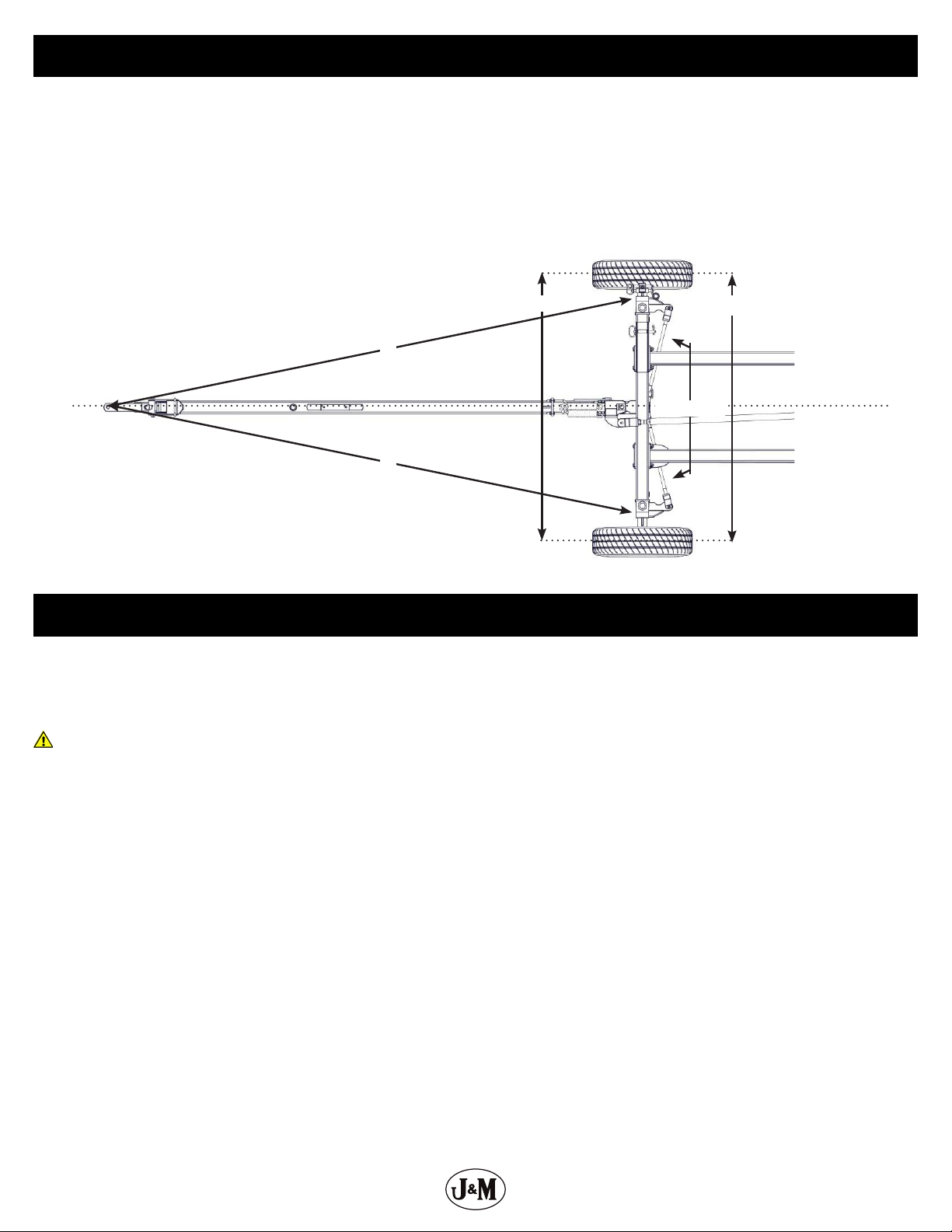

1. Locate the tongue in the straight and horizontal position. Check this by measuring reference lines“A”and “B”. These
measurements are the same when the tongue is straight forward.
2. To adjust the toe-in of the tire on the front axle, measure the distance between the wheels at the centerline of the tires.
Dimension “C” should be 1/8”to 1/4” shorter than dimension “D”. If not, loosen the locknuts on both ends of both front tie
rods. Adjust both front tie rods evenly as needed. Re-tighten the locknuts and recheck the dimensions.
Adjusting the Wheel Toe-In
Service
Repair Parts List and Diagrams
When performing maintenance work, wear sturdy, rough-soled work shoes and protective equipment for eyes, hair, hands, hearing and
head. Follow the Operator’s Manual instructions to ensure safe and proper maintenance and repair.
Your local, authorized dealer can supply genuine replacement parts. Substitute parts may not meet original equipment specications
and may be dangerous.
WARNING MAKE SURE ALL POWER IS SHUT OFF BEFORE PERFORMING ANY MAINTENANCE OR REPAIR WORK.

9
Decals
Description Part No.
1 Caution - Keep Lug Nut Tight / Do Not Exceed Load Limit - Decal JM0019220
2 J&M Oval Decal (Small) 3-5/8” x 5-1/4” JM0015150
3 HT - Knee Brace Set Up Decal JM0026114
4 Warning - Fasten Header Securely To Transport Before Moving Decal JM0039381
5 Amber Reective Decal 2” x 9” JM0009946
6 Red Reective Decal 2” x 9” JM0009945
7 Orange Reective Decal 2” x 9” JM0009944
1
2
2
3
4
4
5
6
7

10
Main Frame & Bars
9
810
12
11 13
15
14
45
3
2
1
67
2
HT-974
HT-974L-30
HT-974XL-36
HT-974L-30X
HT-974-16
HT-974-20

11
Main Frame & Bars
Description Part No.
1 4”x 6” x 25’ Upper Bar (UB-874S) JM0030203
2 4”x 6” x 30’ Upper Bar (UB-874SXL) JM0030201
3 4”x 6” x 36’ Upper Bar (UB-874SXL-36) JM0030205
4 2”x 4” x 152” Small Lower Bar (SLB-874) JM0030175
4 2”x 4” x 194” Small Lower Bar (HT-874XL) JM0030197
5 4”x 6” x 152” Large Lower Bar Weldment (LLB-874) JM0030179
5 4”x 6” x 194” Large Lower Bar Weldment (LLB-874XL) JM0030188
6 2”x 4” x 288” Small Lower Bar Weldment (HT-974) JM0059379
7 4”x 6” x 288” Large Lower Bar Weldment Trussed (HT-974) JM0061371
8 4”x 6” x 16’ Upper Bar (HT-974) JM0046202
9 2”x 4” x 168” Small Lower Bar Weldment (HT-974) JM0046203
10 4”x 6” x 168” Large Lower Bar Weldment Trussed (HT-974) JM0046206
11 4”x 6” x 20’ Upper Bar (HT-974) JM0045427
12 2”x 4” x 216” Small Lower Bar Weldment (HT-974) JM0045430
13 4”x 6” x 216” Large Lower Bar Weldment Trussed (HT-974) JM0044987
14 1/2”-13 Gr2 Z Centerlock Hex Nut JM0001511
15 1/2”-13 x 4-1/2”Gr5 Z Hex Bolt JM0008548

12
Tongue Assembly
7
6
4
3
2
1
5
9
8
12
14
13
11
10
18
17
1915
HT-974XL-36
Optional Folding Tongue
1615
HT-974 HT-974L-30X
HT-974-16
HT-974-20
24
21 22 23
20

13
Tongue Assembly
Description Part No.
1 Tongue Latch (Flapper Weldment) 10 Ton JM0003033
2 Compression Spring (1”x 1-3/4”) for Door Assembly & Tongue Latch JM0001688
3 Spacer Blocks, 2-1/2”, 6-15 Ton (SB-212) JM0003032
4 1/4” x 1-3/8” Roll Pin JM0009896
5 1” x 5-3/4” Flapper Pivot Shaft (LS-610) JM0027732
6 Tongue Stop Bolt Ring JM0001649
7 7/8”-9 x 2” Gr5 Z Hex Bolt JM0002108
8 Wire Harness Storage Bracket (WHB-1) JM0001438
9 1/4” x 3/4” Self Tapping Screw JM0001570
10 1/2”-13 Gr5 Z SF Hex Nut JM0002153
11 1/2”-13 x 6”Gr5 Z J-Bolt JM0002168
12 1-1/4”-7 Gr2 Z Hex Nut JM0001700
13 Large Tongue Spring 3/8” x 2” x 12-1/2” (55 Series, GDP) JM0014200
14 1-1/4”x 11-3/4”Tongue Bolt (6-10 Ton Horizonal) JM0027667
15 Short Inner Tongue (40”) (Header Transport) JM0001683
16 12’ Outer Tongue Weldment (OT-HT974) JM0030108
16 14’7”Outer Tongue Weldment 1 Spring (OT-HT974L) JM0030106
17 Long Inner Tongue 65” (Header Transport) JM0030165
18 14’7”Outer Tongue Weldment 2 Springs (OT-HT974XL) JM0030160
19 59”Outer Tongue Weldment (974-16, 974-20, 4WS-HD) JM0046959
20 HT-974 Folding Tongue Front Half JM0075914
21 3/4”x 4”Lynch Pin JM0075930
22 3/4”-10 Gr2 Z Nylon Locking Hex Nut JM0026756
23 3/4”-10 x 4”Gr5 Z Hex Bolt JM0009863
24 HT-974 Folding Tongue Back Half JM0075909

14
Upper Bar Mounts
3
7
5
6
2
1
4
Description Part No.
1 Upper Bar Clamp (4x6) (UBC-2) JM0028447
2 1/2”-13 Gr2 Z Centerlock Hex Nut JM0001511
3 3/4” x 8” Z L Pin (Header Wagon, c450) JM0029738
4 HT974 Scissor Arm (Stalk Roller Option) JM0054841
5 3/16” x 2-1/2” Hair Clip Pin (316HP) JM0001657
6 HT974 Upper Bar Mount/Slide Mount with Tilt JM0062925
7 Upper Bar Support Arm (UBSA-3) JM0003077
8 Upper Bar Slide Mount (UBSM-3) JM0015133
9 Upper Bar Channel Mount 3/4”(UBCM-3) JM0029588
8
9
Stalk Roller Scissor Arm and Upper Bar Mount Standard Scissor Arm and Upper Bar Mount

15
22
4
21
1
20
19
18
10
5
11
13
12
14
15
16
17
7
4
8
6
3
1
9
2
Description Part No.
1 Upper Header Wagon Mount JM0014351
2 Removable Header Stop Gusset JM0003075
3 3/16”x 2-1/2” Hair Clip Pin (316HP) JM0001657
4 High Prole Bottom Mount Weldment 4”x 6” (Front) JM0032573
5 5/8”-11 x 6-1/2”Gr5 Z Carriage Bolt JM0001651
6 3/4” L Pin (10-9/32” Length) JM0003076
7 5/8” USS Flat Washer JM0003073
8 Header Saddle Mount Bolt (Coupler) JM0001653
9 Clamp Handle Weldment (CHA2) JM0001656
10 1/2”-13 Gr2 Z Centerlock Hex Nut JM0001511
11 60 Degree Ratchet Strap Bracket Back Plate for 4”x 6”Tube JM0044977
12 1/2”-13 x 5”Gr5 Z Hex Bolt JM0001594
13 60 Degree Ratchet Strap Bracket Front Plate for 4”x 6”Tube JM0044978
14 3/8”-16 Gr2 Z Centerlock Hex Nut JM0001512
15 3/8”ID, 1”OD Z Flat Washer JM0003061
16 2”Tie-Down Ratchet (10,000 lb) (RA-1) JM0003084
17 3/8”-16 x 1”Gr8 YZ Hex Bolt JM0001485
18 Extra Low Prole Mount 4”x 6” Saddle (Front) JM0046210
19 Extra Low Prole Mount 4”x 6” Saddle (Back) JM0028948
20 Low Prole Bottom Mount Weldment 4”x 6” (Front) JM0037718
21 Low Prole Bottom Mount Weldment 4”x 6” (Back) JM0003072
22 High Prole Bottom Mount Weldment 4”x 6” (Back) JM0007140
23 60 Degree Ratchet Strap Bracket Back Plate for 4”x 4”Tube JM0061529
24 60 Degree Ratchet Strap Bracket Front Plate for 4”x 4”Tube JM0061530
25 Upper Header Wagon Mount with Short Lip JM0054856
Header Mounts and Straps
4”x4” Ratchet Strap Mount
for HT-974L-30X
4”x6” Ratchet
Strap Mount
Stalk Roller Upper Header Mount on left.
Standard Upper Header Mount on right
23
24
1
25

16
Axle Weldments
2
1
6
3
5
4
8
7
49
10
11
12
13
14
15
17
16
18
Description Part No.
1 Front Axle, Less Hub, Spindle Assembly and Hitch For Stalk Rollers (HT) JM0076273
2 1-3/4”Spindle & “U” Assembly, Right (SA-874R) JM0030141
3 Hitch Swivel Weldment 6-8 Ton (HT-974) (HW-68) JM0030131
4 1-1/4”-12 Gr5 Z Hex Nut JM0002158
5 1-1/4” USS Flat Washer JM0010112
6 King Pin Vertical Hitch Bolt (1-1/4”x 7-3/4”) 6-10 Ton (KP-610) JM0027665
7 1-1/4”ID x 1-1/2” OD Bronze Bushing (1”Depth) JM0002248
8 Spindle Bolt 1-1/4”x 10-1/4” (HT974) (SB-114) JM0019324
9 1-3/4”Spindle & “U” Assembly, Left (SA-874L) JM0030136
10 6-10 Ton Clevis Weldment (Left) (TRE-78L) JM0003168
11 7/8”-14 Gr5 Z LH Hex Nut JM0027686
12 Tie Rod (7/8”x 24-1/2”) (TR-78) JM0030104
13 7/8”-14 Gr5 Z Hex Nut JM0025714
14 6-10 Ton Clevis Weldment (Right) (TRE-78R) JM0030149
15 5/8”Shoulder Dia x 1” Shoulder Length x 1/2”-13 Shoulder Bolt & Nut (SB-58) JM0002408
16 1/2”-13 Gr5 Z Centerlock Hex Nut JM0001511
17 5/8”ID x 3/4” OD x 1/2” Bronze Bushing (BB-58) JM0003189
18 Rear Axle, Less Hub Assemblies for Stalk Roller (HT) JM0076274
19 Front Axle, Less Hub, Spindle Assembly and Hitch (HT) (FA-974) JM0030103
20 Rear Axle, Less Hub Assemblies (HT) (RA-974) JM0030097
20
19
Standard Axle Weldments
shown here
Stalk Roller Axle Weldments
shown here

17
Spindle & Tire Assemblies
123
89
13
11
45
12
6
10
7
14 15 16 17
Description Part No.
1 1-3/4”Spindle &“U”Assembly, Left (SA-874L) JM0030136
2 Grease Seal, 6-8 Ton (103953) JM0026572
3 Large Inner Bearing for 6-8 Ton (LM48548) (104579) JM0019563
4 G25 Hub with Races, Studs and Nuts, 7-8 Ton (105218) JM0026566
5 Small Outer Cone for 6-10 Ton (LM67048) JM0019564
6 3/4”-10 Gr5 Z Castle Hex Nut JM0002130
7 Dust Cap, 6-10 Ton (103969) JM0026567
8 Large Cup for 6-8 Ton (LM48510) (104580) JM0026565
9 Wheel Stud for Hub, 6-8 Ton (1/2”-20 x 1-7/8”) (4187) JM0019559
10 1/2”-20 Lug Nut, 6-8 Ton (5552) JM0003062
11 Small Cup for 6-10 Ton (LM67010) (200500) JM0026564
12 3/4” USS Flat Washer JM0010006
13 5/32” x 1-1/2” Cotter Pin JM0014348
14 1-3/4”Spindle &“U”Assembly, Right (SA-874R) JM0030141
15 14”Tire 215/75R14D (HT974) JM0019529
15 15”Tire ST215-75E15 (Carlisle) JM0030451
16 14”x 6”- 6 Hole Wheel Rim JM0019535
16 15”x 6”Wheel 6 Hole JM0030449
17 ST215-75D14 Carlisle Sport Trail Tire and 14x6 - 6 Hole Wheel Rim JM0019536
17 15”Wheel & Tire Assembly ST215-75E15 6 Bolt (Carlisle) JM0030452

18
Light Bar Assembly
123
5
6
9
8
7
4
14
13
11
15
10
12
Description Part No.
1 Telescoping Arm for Header Transport Light Kit (TA-1) JM0001375
2 1/2”-13 x 4” Gr5 Z Bent L Bolt JM0021419
3 1/2”-13 x 2” Gr8 Z Hex Bolt JM0001620
4 Header Transport Light Mounting Bracket (LMB-1) JM0001374
5 Neoprene Vibration Damping Mount with 5/8”Diameter Hole JM0001869
6 Header Transport Light Mount Extension Bracket (EB-1) JM0001393
7 1/2”-13 x 7” Gr8 YZ Hex Bolt JM0001622
8 Header Transport Light Bar Angle Iron Support (AIS-2) JM0001440
9 1/2”-13 Gr2 Z Centerlock Hex Nut JM0001511
10 Slow Moving Vehicle Sign Bracket JM0001645
11 Slow Moving Vehicle Sign JM0001616
12 1/4” x 1-1/2” Self Tapping Screw JM0001571
13 1/4”-20 Gr2 Z Centerlock Hex Nut JM0001505
14 1/4” ID, 3/4”OD Z Flat Washer JM0003090
15 1/4”-20 x 3/4” Gr5 Z Hex Bolt JM0001507

19
Light Kit
Description Part No.
1 Right LED Light Assembly - Header Transport JM0001682
2 Left LED Light Assembly - Header Transport JM0001680
3 Rear Harness (4WS, HT-974) JM0007166
4 Light Enhancer (4WS, HT-974) JM0007445
5 Main Harness (Header Transport - Ag) JM0007436
5
21
34

20
• Front & Rear Axle
Secure the front and rear axle to the frame
bars. Use (8) 1/2”x 4”zinc hex bolts and (8) 1/2”
centerlock hex nuts to install each axle. Tighten
all of the hex nuts.
• Wheels & Tires
Install all four tires. Attach the tires using (6) 1/2”
lugnuts. Tighten lugnuts in a star pattern to 120 ft-lbs
according to the gure below.
1
2
3
4
6
5
• Tongue Assembly
Install the tongue assembly. Attach the tongue
to the main frame using a 1-1/4”x 11-3/4”
pin weldment and a 1-1/4”hex nut. Tighten
hardware once installed.
Install the tongue spring. Raise the adjustable
portion of the tongue in the air to assist in
installing the tongue spring.
1/2”x 4”Bolt
1/2”Centerlock
Hex Nut
1-1/4”Hex Nut
1-1/4” x 11-3/4”Pin
Raise tongue to install spring(s).
Set Up Instructions
