MAKINEX GEN-10P User manual

10kVA Generator
GEN-10P
-2x15A Outlets
-2x15A + 1x20A (or 32A) 3P Outlets
OPERATOR’S MANUAL
Rev0919

Table of Contents
INTRODUCTION ...............................................................................................................................................1
DISCLAIMER.....................................................................................................................................................1
ABOUT THIS MANUAL......................................................................................................................................2
KEY TERMS..........................................................................................................................................................2
PRODUCT INFORMATION ................................................................................................................................3
SAFETY INFORMATION .......................................................................................................................................3
SAFETY DECALS ...................................................................................................................................................6
PRODUCT SPECIFICATIONS ..............................................................................................................................7
FEATURES............................................................................................................................................................7
OVERALL MACHINE DIMENSIONS.......................................................................................................................8
ALTERNATOR SPECIFICATIONS ...........................................................................................................................8
OPERATION .....................................................................................................................................................9
BEFORE USE ........................................................................................................................................................9
OPERATING GENERATOR ...............................................................................................................................11
STARTING THE ENGINE .....................................................................................................................................11
CONNECTING ELECTRICAL DEVICES ..................................................................................................................11
SHUTTING DOWN THE GENERATOR.................................................................................................................11
GENERAL RECOMMENDATIONS: ......................................................................................................................12
STORAGE .......................................................................................................................................................13
LIMITED WARRANTY......................................................................................................................................14
WARRANTY EXCLUSIONS ..................................................................................................................................15
OWNER’S RESPONSIBILITY UNDER LIMITED WARRANTY: ................................................................................15
CONTACT INFORMATION...............................................................................................................................17
APPENDICES...................................................................................................................................................18
APPENDIX A- WIRING CIRCUIT DIAGRAM (2x15A) ...........................................................................................19
APPENDIX B- WIRING CIRCUIT DIAGRAM (2x15A + 1x20A 3P).........................................................................20
APPENDIX C- RISK ASSESSMENT .......................................................................................................................21

GEN-10P –USER MANUAL REV0819 Page 1of 22
INTRODUCTION
Thank you for purchasing a MAKINEX product.
This manual provides information and procedures to safely operate and maintain
the GEN-10P Generator. For your own safety and protection from injury, carefully
read, understand and observe the safety instructions described in this manual.
Keep this manual or a copy of it with the machine. If you lose this manual or need
an additional copy, please contact MAKINEX. This machine is designed and built
with user safety in mind; however, it can present hazards if improperly operated
and serviced. Please follow the operating instructions carefully. If there are any
questions regarding operating or servicing of this machine, please contact
MAKINEX.
All rights, especially copying and distribution rights are reserved.
Copyright 2019 by MAKINEX
No part of this publication may be reproduced in any form or by any means,
electronic or mechanical, including photocopying, without express written
permission from MAKINEX
Any type of reproduction or distribution not authorised MAKINEX represents an
infringement of valid copyrights and will be persecuted. We expressly reserve the
right to make technical modifications, even without due notice, which aim at
improving our machines or their safety standards.
DISCLAIMER
MAKINEX and its affiliates take no responsibility for any damage, injury or
death resulting from the incorrect or unsafe use of this product. Use of this
product should be undertaken by competent persons only. It is the operator’s
responsibility to ensure that the following safety procedures are followed. If you
are unsure, do not operate this product.
Record the model and serial numbers as well as date and place of purchase for
future reference. Have this information available when ordering parts and when
making technical or warranty inquiries

GEN-10P –USER MANUAL REV0819 Page 2of 22
ABOUT THIS MANUAL
This manual uses the following symbols to help differentiate between different kinds
of information. The safety symbol is used with a key word to alert you to potential
hazards in operating and owning power equipment. Follow all safety messages to
avoid or reduce the risk of serious injury or death.
KEY TERMS
READ
CAREFULLY
READ CAREFULLY –refers to important
information that should be paid careful attention.
CAUTION
CAUTION - indicates a potential hazardous situation
which, if not avoided, may result in minor or moderate
injury
WARNING
WARNING –indicates a potentially hazardous
situation which, if not avoided, could result in death or
serious injury
DANGER
DANGER –indicates a imminently hazardous
situation which, if not avoided, will result in death or
serious injury
PROHIBITED
PROHIBITED –identifies actions that should never
be carried out by anyone interacting with the machine.
MAKINEX SUPPORT
Refer to contact details on pg. 17
MODEL NO.
GEN-10P
SERIAL NO.
DATE OF PURCHASE
PURCHASE LOCATION

GEN-10P –USER MANUAL REV0819 Page 3of 22
PRODUCT INFORMATION
SAFETY INFORMATION
WARNING
Read this manual thoroughly before operating your
generator. Failure to follow instructions could result in
serious injury or death
WARNING
MAKINEX GEN-10P Generator designed for
professional operators only, instruct operators in care
and use of the machine before use!
DANGER
GENERAL SAFETY PRECAUTIONS
•ALWAYS use in a well-ventilated area.
•ALWAYS ensure the applied load does not exceed the generators rating.
Overloading the generator is dangerous and could cause serious damage.
•ALWAYS disconnect the generator when carrying out any maintenance.
•ALWAYS ensure the generator reaches operating speed before connecting
a load.
•ALWAYS start the engine BEFORE connecting any appliances to the output
receptacles.
•ALWAYS test the RCBO’s before use.
•ALWAYS check the generator for damage before use.
•ALWAYS keep well clear of all moving parts on the generator at all times.
•NEVER allow children or animals near the generator.
•NEVER connect to a commercial or mains power supply, or any other
electrical source.
•NEVER allow the generator to run out of fuel when a load is connected.
•NEVER alter or tamper with the internal wiring of the generator.
•NEVER climb or stand on the generator as dents may cause overheating of
the acoustic lining.
•NEVER touch any part of the engine, alternator or exhaust when the
generator is in use as these get hot and could burn.

GEN-10P –USER MANUAL REV0819 Page 4of 22
DANGER
RISK OF EXPLOSION OR FIRE
•Fuel and its vapours are extremely flammable and
explosive
•Fire or explosion can cause severe burns or death
•ALWAYS switch the engine OFF when refuelling.
•ALWAYS refuel away from any source of heat.
•ALWAYS refuel in a well-ventilated area.
•NEVER overfill fill the tank, fill to the level specified.
•NEVER smoke whilst refuelling and avoid smoking or using a naked flame
near the generator.
•NEVER start the engine if there is a fuel spill. Any spillage must be wiped
clean and the generator allowed to dry before attempting to start the engine.
DANGER
RISK OF BREATHING
•Running engine gives off Carbon Monoxide, an
odourless, colourless, poisonous gas.
•Breathing Carbon Monoxide can cause nausea,
fainting or death.
•Some chemicals or detergents may be harmful if
inhaled or ingested, causing severe nausea,
fainting or poisoning.
WARNING: EXHAUST FUMES CAN BE FATAL.
•ALWAYS ensure that there is adequate ventilation when using the generator.
•ALWAYS position the generator so that the exhaust is pointing away from
people or animals.
•NEVER use the generator indoors or in an enclosed area. (i.e. in ware house,
tunnel, well or a hold).

GEN-10P –USER MANUAL REV0819 Page 5of 22
WARNING
RISK OF ELECTRICAL SHOCK
•Risk of electrocution.
•ALWAYS test the RCBO’s before use.
•ALWAYS store the generator undercover when not in use and away from
damp or wet conditions.
•NEVER use the generator outdoor when it is raining or snowing or in wet or
damp conditions.
•NEVER use water or any other liquids to clean the unit while it is running.
DANGER
RISK OF HOT SURFACES
•Contact with hot surfaces, such as engines
exhaust components, could result in serious burn.
•During operation, touch only the control surfaces of generator. Keep children
away from the generator at all times. They may not be able to recognise the
hazards of this product.
WARNING
POSITIONING THE GENERATOR FOR USE
•ALWAYS leave at least a 1 metre gap between the generator and any
surrounding building or structure.
•ALWAYS ensure the generator is on a solid, flat surface.
•ALWAYS ensure the surrounding area is free from any material that could
burn or be damaged by heat.
•NEVER move or tilt the generator whilst it is switched on.
•NEVER cover or enclose the generator whilst it is in use.
•Be aware of the weight of the generator, do not attempt to lift or move the
generator without the assistance of other personnel or suitable lifting
equipment.

GEN-10P –USER MANUAL REV0819 Page 6of 22

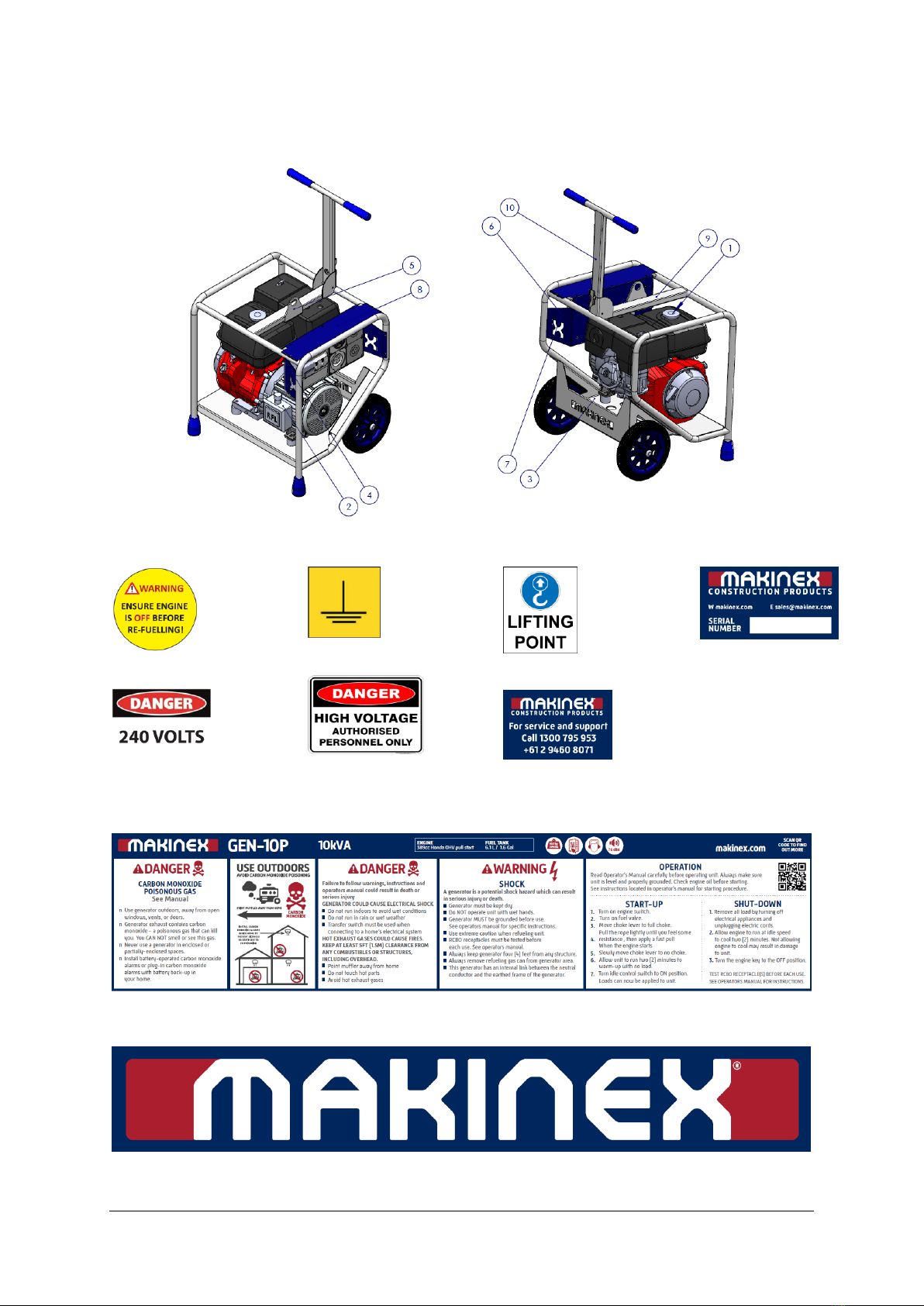

SAFETY DECALS
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9 & 10)

GEN-10P –USER MANUAL REV0819 Page 7of 22
PRODUCT SPECIFICATIONS
GENERATOR:
GEN-10P
MAX OUTPUT
10kVA
FREQUENCY
50Hz
VOLTAGE
240V
MAX OUTPUT
8000W
SOCKETS
(WITH RCBO PROTECTION)
2 X 15A SINGLE
PHASE + 1 X 20A 3-
PHASE SOCKETS
2 X 15A SINGLE
PHASE + 1 X 32A 3-
PHASE SOCKETs
2 X 15A SINGLE
PHASE SOCKETS
WEIGHT
102 kg
NOISE LEVEL (7M)
NO LOAD - 72dB
50% LOAD - 76dB
100% LOAD - 78dB
RATED POWER FACTOR
0.8
ENGINE:
TYPE
SINGLE CYLINDER AIR COOLED PETROL
MODEL
HONDA GX390
STARTING SYSTEM
PULL START
DISPLACEMENT
389CC
NET. POWER
7.8 kW @ 3000 RPM
CONTINUOUS POWER
6.4 Kw @ 3000 RPM
FUEL ECONOMY
2.4 L/h @ 50% LOAD
FUEL TANK
6.5 L
FEATURES
FEATURES
Durable Galvanised frame
Multi cushion isolators for vibration reduction
Compact design for easy storage and transport
Lifting point for transportation
RFL permanent magnet alternator

GEN-10P –USER MANUAL REV0819 Page 8of 22
OVERALL MACHINE DIMENSIONS
ALTERNATOR SPECIFICATIONS
Frame 132
Type
RF2 - 12.5
Enclosure IP23 PM Brushless Alternator
Poles 2 3
RPM 3000 415
Frequency 50 Hz Amps 15.5
Power 10.0 kW
M otor Start kVA
14.0
Weight (kg)
40
Short Cir Amps
46.5
Ref Temp 27 ºC Serial No. RF2-132-115-135-3P-1
http://www.rflalternators.com
EC.1282.OE140328.RFLQ093
Volts
Phase
RFL Alternators

GEN-10P –USER MANUAL REV0819 Page 9of 22
OPERATION
BEFORE USE
Before using the generator, ensure all the safety and operation instructions are
read and the following steps are performed.
OIL LEVEL CHECK
CAUTION
Check the engine oil level with the engine stopped and in a
levelled position
1. Clean area around oil fill and remove oil cap.
2. Check the dipstick to ensure there is enough
oil.
3. If there is not enough oil, using oil funnel
(optional), slowly pour contents into oil fill
opening.
4. Replace oil fill cap and tighten.
NOTE: Refer to GX390 Manual for more in-depth instructions
NOTE: New machines will be pre-oiled from MAKINEX with:
Honda Power Equipment Engine Oil –SAE 10W-30, API SJ
NOTE: IMPROPER treatment of generator
can damage it and shorten its life. DO NOT
attempt to start the engine before it has
been properly serviced with the
recommended oil. This may result in an
engine failure.

GEN-10P –USER MANUAL REV0819 Page 10 of 22
REFUELING
WARNING
FAILURE TO USE FUEL AS RECOMMENDED IN THIS
MANUAL WILL VOID WARRANTY
•DO NOT use unapproved gasoline such as ethanol-based fuel.
•DO NOT mix oil with gasoline.
•DO NOT modify engine to run on alternate fuels.
WARNING
Fuel and fuel vapour are extremely flammable
and explosive. Fire or explosion from misuse
of fuel can cause severe burns and even death.
FIRE
HAZARD
WARNING
Always ensure that fuel tanks are filled outdoors.
•Turn generator OFF and let it cool for at least two minutes before
removing fuel cap.
•Loosen fuel cap slowly to release pressure.
•Slowly add unleaded gasoline to fuel tank. DO NOT fill fuel above baffle
to allow for appropriate space fuel expansion.
•Wait for spilled fuel to evaporate before starting the engine.
WARNING
Keep fuel away from sparks, open flames, pilot lights,
heat and other ignition sources.
DO NOT light a cigarette or smoke near open fuel tank or
container.

GEN-10P –USER MANUAL REV0819 Page 11 of 22
OPERATING GENERATOR
WARNING
Read and adhere to all safety and operation instructions.
CAUTION
Always have the brake down while it is stationary.
STARTING THE ENGINE
1. Remove all connections from the AC sockets.
2. Turn ON the fuel supply valve.
3. If you are starting the generator ‘cold’ set the choke lever to the ON position.
If the generator is warm skip this step.
4. Turn the ignition key to the START position.
5. Pull the starting handle lightly until you start to feel resistance and then pull up
sharply to start the generator.
6. However if key start engine:
a) Ensure battery is connected and connection is secure.
b) Put the key in and turn clockwise to start the engine.
7. Once the engine has warmed up, set the choke lever to the OFF position.
CONNECTING ELECTRICAL DEVICES
The generator can supply 230V AC through 2 x 15amp sockets or 230V AC through
2 x 15amp sockets and 415V AC through the 20A socket.
1. Connect the appliance to the generator starting with the device that draws the
most current.
2. Set the circuit breaker to ‘ON’.
SHUTTING DOWN THE GENERATOR
1. Disconnect all appliances connected to the generator.
2. Turn the ignition key to the OFF position.
3. Set the fuel supply valve to OFF.
NOTE: To stop the generator in an emergency simply turn the ignition key to the off
position.

GEN-10P –USER MANUAL REV0819 Page 12 of 22
MAINTENANCE
GENERAL RECOMMENDATIONS:
Regular maintenance will improve the performance and extend the life of the
generator.
The generator’s warranty does not cover items that have been subjected to
operator abuse or negligence. To receive full value from the warranty, the
operator must maintain the generator as instructed in this manual and in the
engine user manual, including proper storage and regular servicing.
READ
CAREFULLY
Regular maintenance is required to ensure
performance of generator and to ensure warranty is
not voided.
The maintenance schedule is in the engine owner’s
manual.
Should you have questions about replacing components on your generator,
please contact dealer for assistance. MAKINEX dealers have access to all the
special tools, technical information, parts and training required to maintain your
MAKINEX product in peak operating condition.
Should you have questions about replacing components on your generator,
please contact dealer for assistance.

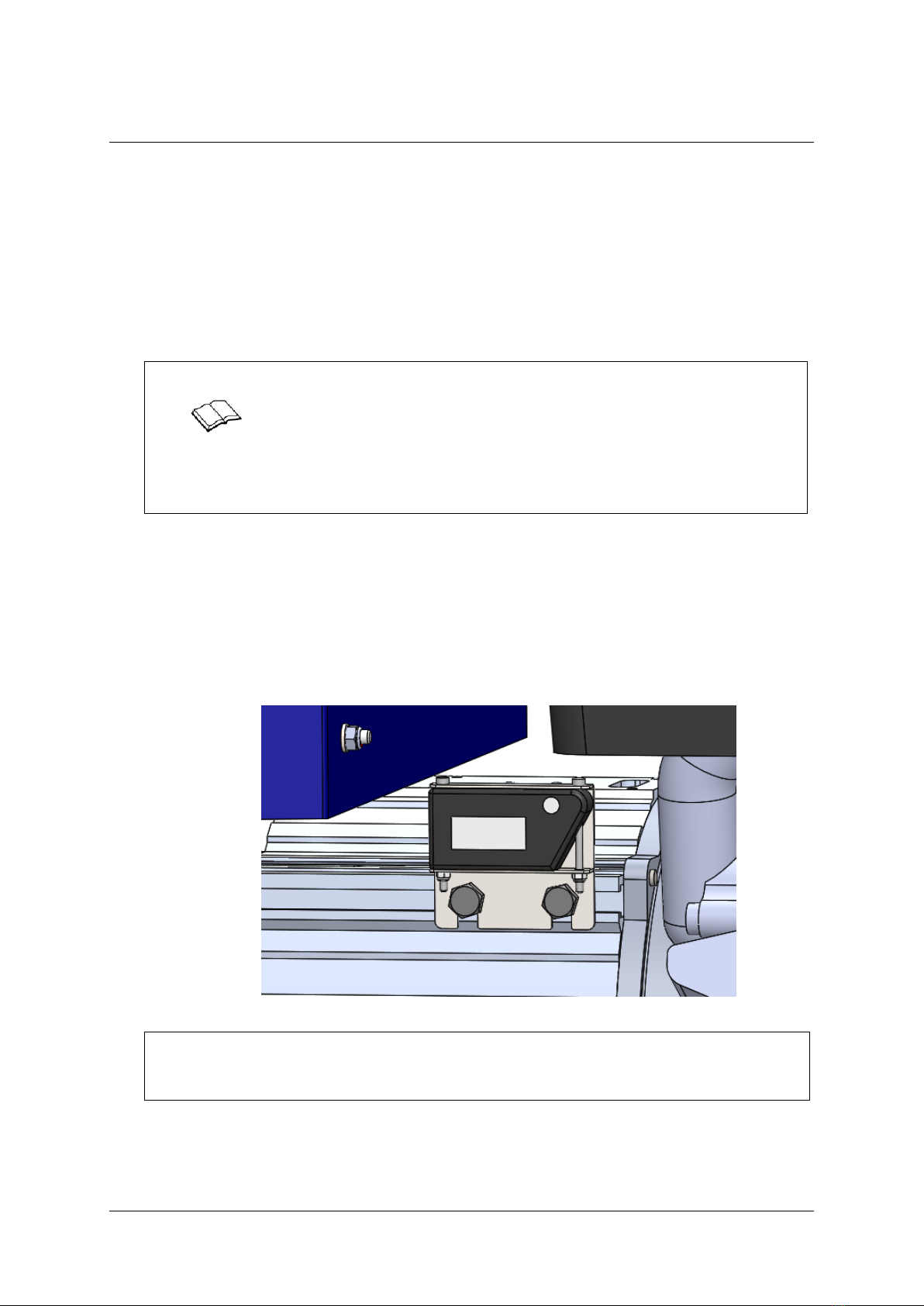

NOTE: An hour meter is installed on the machine to help with tracking
operation hours.

GEN-10P –USER MANUAL REV0819 Page 13 of 22
STORAGE
STORAGE WITH FUEL IN TANK
Gasoline fuel can become stale when stored over 30 days. Stale fuel causes
acid and gum deposits to form in the fuel system or crucial carburettor parts. To
keep fuel fresh:
1. Add a fuel stabiliser liquid additive to fuel.
2. Run engine for a minimum of 2 minutes to allow it to circulate throughout the
engine
WARNING
Fuel and fuel vapour are extremely flammable and
explosive. Fire or explosion from misuse of fuel can
cause severe burns and even death.
FIRE
HAZARD
RUST PREVENTION IN CYLINDERS
1. Remove spark plugs and pour approx. 15ml (1/2oz) of clean engine oil into the
cylinder.
2. Install spark plug and briefly turn the key starter for 1-2 seconds to distribute oil.
DO NOT start engine at this time.
3. Slowly pull the recoil starter 2-3 times to distribute and coat the cylinder bore
with oil.
WARNING
Unintentional sparking can cause fire or electrical shock.
Failure to observe this warning can cause severe property
damage, severe burns and even death.
Disconnect spark plug wire from spark plug and cover tip of
spark plug wire with insulating tape and place wire where it
cannot come in contact with spark plug or generator frame.
WARNING
Certain storage covers can be flammable or can melt in high
temperatures. DO NOT place storage cover over generator
until it has completely cooled.

GEN-10P –USER MANUAL REV0819 Page 14 of 22
LIMITED WARRANTY
In order to take advantage of the MAKINEX limited warranty, you must have
maintenance performed according to the schedule (contained in relevant
owner’s manual supplied with this product, e.g. Engine operator’s manual), by
an authorised MAKINEX dealer or MAKINEX service technician. You are free to
have your MAKINEX product serviced by any suitably qualified mechanic or
electrician (depending on the mechanical or electrical requirement) and this will
not affect your statutory warranties, however, failure by the owner to have the
recommended servicing carried out by an authorised MAKINEX dealer/service
technician means that you cannot take advantage of the MAKINEX limited
warranty.
In order to ensure your safety, we strongly recommend that you only use an
authorised MAKINEX dealer for servicing. Only authorised MAKINEX dealers
have access to all the special tools, technical information, parts and training
required to maintain your MAKINEX product in peak operating condition.
MAKINEX warrants each new Generator to be free from defects in material and
workmanship under normal domestic and industrial use and service for the
period specified below, conditional to the limitations and exclusions printed on
this page. This warranty applies only to new MAKINEX generator distributed by
us and by our authorised MAKINEX dealers.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure
and compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
WARRANTY: (Ex-factory/ Reseller premise)
MAKINEX warrants to the original purchaser:
oFrame and all Electrical components will be free of defects in material
and workmanship for a period of one (1) year from the original date of
purchase.
oHonda GX Engine is subject to (3) years warranty. Please see
www.hondapowerequipment.com.au for details.
oKohler KD Engine is subject to (3) years or 2000 hours warranty.
oHatz B Series Engine is subject to (2) years or 2000 hours warranty.
o3 years warranty on RFL alternators

GEN-10P –USER MANUAL REV0819 Page 15 of 22
WARRANTY EXCLUSIONS
This warranty does not cover the following repairs and equipment:
NORMAL WEAR
Generator needs periodic parts and service to perform well. This warranty does not
cover repair when normal use has exhausted the life of a part or the equipment as a
whole.
INSTALLATION, USE AND MAINTENANCE
This warranty will not apply to parts and/or labour if this generator is deemed to have
been misused, neglected, involved in an accident, abused, loaded beyond the
generator’s limits, modified and installed improperly. Normal maintenance such as
spark plugs, air filters, adjustments, fuel system cleaning and obstruction due to
build-up is not covered by this warranty.
OTHER EXCLUSIONS
This warranty excludes:
- Maintenance services cost.
- Expedited freight costs.
- Cosmetic damage such as paint, decals, etc.
- Problems caused by accidents, improper storage, handling and shipping.
- Accessory parts such as starting batteries, fuses, spark plugs, and storage
covers.
- Failures due to acts of God and other force majeure events beyond the
manufacturer’s control.
- Problems caused by parts that are not from the original manufacturer.
OWNER’S RESPONSIBILITY UNDER LIMITED WARRANTY:
Strict adherence to the maintenance checks and with proof of scheduled
maintenance history is required by an authorised agent or qualified mechanic.
It is the consumer’s responsibility to deliver the machine in question to our
service premises or to the premises of our appointed agent at the consumer’s
expense for replacement or repair as applicable. Maintenance services are not
covered under warranty.

GEN-10P –USER MANUAL REV0819 Page 16 of 22
Claim Procedure:
- Contact MAKINEX by phone or email informing us of your machines problem
or defect.
- Once the extent of the claim has been assessed, we retain the right to
compensate the consumer for such defect, or repair (parts & labour), or
replace the machine under warranty.
- All warranties will be carried out by MAKINEX authorised staff or appointed
agents at a premises to be determined by the Manufacturer.
- It is the responsibility (and cost) of MAKINEX or our appointed agent to return
the machine to be repaired or replaced under warranty to the consumer- this
is valid for domestic territories only (e.g. Australian units will be delivered
within Australian territory, USA units will be delivered within USA territory and
European units will be delivered within its designated country’s territories).
- Where the specific warranty component (e.g. Engine) is under a
Manufacturer’s warranty other than MAKINEX (e.g. Honda, Hatz or Kohler
etc.), the consumer can either contact MAKINEX or the applicable
Manufacturer for repairs where such warranty was registered with that
manufacturer at purchase.
- Warranty calls will only be carried out by our representatives and not via
client’s choice of repairer. We will not accept back charges for any work not
carried out by our representatives, or accept any charges due to equipment
being un-operational for any reason even during its warranty period.

GEN-10P –USER MANUAL REV0819 Page 17 of 22
CONTACT INFORMATION
For sales, service, warranty and parts for all MAKINEX products; please refer
below.
SALES, SERVICE, SPARE PARTS & WARRANTY
AUSTRALIA
SALES
TEL [phone] or
[phone]
WEB www.makinex.com.au
SERVICE, SPARE PARTS & WARRANTY
EMAIL [email protected]
USA
SALES
TEL [phone]
WEB www.makinex.com
SERVICE, SPARE PARTS & WARRANTY
EMAIL [email protected]
UK
WEB www.makinex.co.uk
EUROPE
TEL [phone] or
[phone]
EMAIL [email protected]
CHINA
TEL [phone]
EMAIL [email protected]
Or your nearest MAKINEX distributor
We have very knowledgeable, experienced staff to assist you with help and advice.

GEN-10P –USER MANUAL REV0819 Page 18 of 22
APPENDICES
- APPENDIX A- WIRING CIRCUIT DIAGRAM (2x15A)
- APPENDIX B- WIRING CIRCUIT DIAGRAM (2x15A + 1x20A 3P)
- APPENDIX C- RISK ASSESSMENT
