GB Cordless Driver Drill INSTRUCTION MANUAL
SSladdlös borrmaskin BRUKSANVISNING
NBatteridrevet boreskrutrekker BRUKSANVISNING
FIN Akkuporakone KÄYTTÖOHJE
LV Bezvada skrūvgriezis-urbmašīna LIETOŠANAS INSTRUKCIJA
LT Akumuliatorinis grąžtas NAUDOJIMO INSTRUKCIJA
EE Juhtmeta trell-kruvikeeraja KASUTUSJUHEND
RUS
Аккумуляторная Дрель-шуруповерт РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
DDF470
DDF480

2
1
2
3
1 013962
1
2 012128
1
3 013982
1
4 013958
1
5 013957
A
B
1
6 013954
1
7 013959
1
2
3
8 013960
1
9 013956
1
23
10 013968
1
2
11 013966 12 013961

3
ENGLISH (Original instructions)

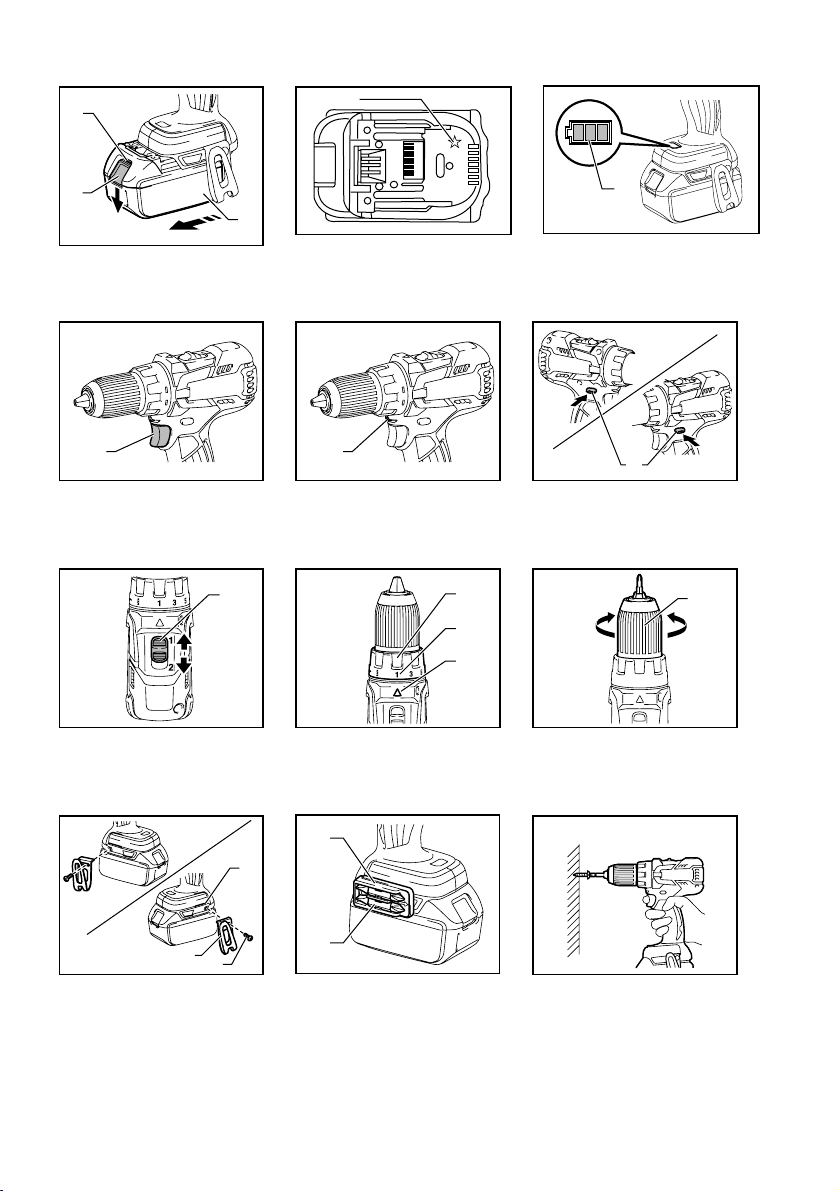

Explanation of general view
1-1. Red indicator
1-2. Button
1-3. Battery cartridge
2-1. Star marking
3-1. Battery capacity
4-1. Switch trigger
5-1. Lamp
6-1. Reversing switch lever
7-1. Speed change lever
8-1. Adjusting ring
8-2. Graduation
8-3. Arrow
9-1. Sleeve
10-1. Groove
10-2. Hook
10-3. Screw
11-1. Bit holder
11-2. Bit
SPECIFICATIONS
Model DDF470 DDF480
Steel 13 mm 13 mm
Wood 38 mm 38 mm
Wood screw 10 mm x 90 mm 10 mm x 90 mm
Capacities
Machine screw M6 M6
High (2) 0 - 1,550 0 - 1,550
No load speed (min-1) Low (1) 0 - 400 0 - 400
Overall length 185 mm 185 mm
Net weight 1.6 kg 1.5 kg 1.7 kg
Battery cartridge BL1430 / BL1440 BL1815 / BL1815N BL1830 / BL1840
Rated voltage D.C. 14.4 V D.C. 18 V
• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications and battery cartridge may differ from country to country.
• Weight, with battery cartridge, according to EPTA-Procedure 01/2003
ENE034-1
Intended use
The tool is intended for drilling and screw driving in
wood, metal and plastic.
ENG905-1
Noise
The typical A-weighted noise level determined
according to EN60745:
Model DDF470
Sound pressure level (LpA) : 73 dB (A)
Uncertainty (K) : 3 dB (A)
The noise level under working may exceed 80 dB (A).
Model DDF480
Sound pressure level (LpA) : 74 dB (A)
Uncertainty (K) : 3 dB (A)
The noise level under working may exceed 80 dB (A).
Wear ear protection
ENG900-1
Vibration
The vibration total value (tri-axial vector sum)
determined according to EN60745:
Work mode: drilling into metal
Vibration emission (ah,D) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
ENG901-1
• The declared vibration emission value has been
measured in accordance with the standard test
method and may be used for comparing one tool
with another.
• The declared vibration emission value may also be
used in a preliminary assessment of exposure.
WARNING:
• The vibration emission during actual use of the
power tool can differ from the declared emission
value depending on the ways in which the tool is
used.
• Be sure to identify safety measures to protect the
operator that are based on an estimation of
exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it
is running idle in addition to the trigger time).
ENH101-17
For European countries only
EC Declaration of Conformity
Makita declares that the following Machine(s):
Designation of Machine:
Cordless Driver Drill
Model No./ Type: DDF470, DDF480

4
Conforms to the following European Directives:
2006/42/EC
They are manufactured in accordance with the following
Standard or standardized documents:
EN60745
The Technical file in accordance with 2006/42/EC is
available from:
Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium
31.12.2013
000331
Yasushi Fukaya
Director
Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium
GEA010-1
General Power Tool Safety
Warnings
WARNING Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for
future reference.
GEB088-1
CORDLESS DRIVER DRILL
SAFETY WARNINGS
1. Use auxiliary handle(s), if supplied with the
tool. Loss of control can cause personal injury.
2. Hold power tool by insulated gripping surfaces,
when performing an operation where the
cutting accessory may contact hidden wiring.
Cutting accessory contacting a "live" wire may
make exposed metal parts of the power tool "live"
and could give the operator an electric shock.
3. Hold power tool by insulated gripping
surfaces, when performing an operation
where the fastener may contact hidden wiring.
Fasteners contacting a "live" wire may make
exposed metal parts of the power tool "live" and
could give the operator an electric shock.
4. Always be sure you have a firm footing.
Be sure no one is below when using the tool
in high locations.
5. Hold the tool firmly.
6. Keep hands away from rotating parts.
7. Do not leave the tool running. Operate the tool
only when hand-held.
8. Do not touch the drill bit or the workpiece
immediately after operation; they may be
extremely hot and could burn your skin.
9. Some material contains chemicals which may
be toxic. Take caution to prevent dust
inhalation and skin contact. Follow material
supplier safety data.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to safety rules for the subject product. MISUSE or
failure to follow the safety rules stated in this
instruction manual may cause serious personal
injury.
ENC007-8
IMPORTANT SAFETY
INSTRUCTIONS
FOR BATTERY CARTRIDGE
1. Before using battery cartridge, read all
instructions and cautionary markings on (1)
battery charger, (2) battery, and (3) product
using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical
attention right away. It may result in loss of
your eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any
conductive material.
(2) Avoid storing battery cartridge in a
container with other metal objects such
as nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current flow,
overheating, possible burns and even a
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 ﾟC (122 ﾟF).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a fire.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10. Follow your local regulations relating to
disposal of battery.
SAVE THESE INSTRUCTIONS.

5
Tips for maintaining maximum battery life
1. Charge the battery cartridge before
completely discharged.
Always stop tool operation and charge the
battery cartridge when you notice less tool
power.
2. Never recharge a fully charged battery
cartridge.
Overcharging shortens the battery service life.
3. Charge the battery cartridge with room
temperature at 10 ﾟC - 40 ﾟC (50 ﾟF - 104 ﾟF).
Let a hot battery cartridge cool down before
charging it.
4. Charge the battery cartridge once in every six
months if you do not use it for a long period
of time.
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before adjusting or
checking function on the tool.
Installing or removing battery cartridge
Fig.1
CAUTION:
• Always switch off the tool before installing or
removing of the battery cartridge.
• Hold the tool and the battery cartridge firmly when
installing or removing battery cartridge.
Failure to
hold the tool and the battery cartridge firmly may cause
them to slip off your hands and result in damage to the
tool and battery cartridge and a personal injury.
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
upper side of the button, it is not locked completely.
CAUTION:
• Always install the battery cartridge fully until the
red indicator cannot be seen. If not, it may
accidentally fall out of the tool, causing injury to
you or someone around you.
• Do not install the battery cartridge forcibly. If the
cartridge does not slide in easily, it is not being
inserted correctly.
Battery protection system
(Lithium-ion battery with star marking)
Fig.2
Lithium-ion batteries with a star marking are equipped
with a protection system. This system automatically cuts
off power to the tool to extend battery life.
The tool will automatically stop during operation if the
tool and/or battery are placed under one of the following
conditions:
• Overloaded:
The tool is operated in a manner that causes
it to draw an abnormally high current.
In this situation, release the switch trigger on
the tool and stop the application that caused
the tool to become overloaded. Then pull the
switch trigger again to restart.
If the tool does not start, the battery is
overheated. In this situation, let the battery
cool before pulling the switch trigger again.
• Low battery voltage:
The remaining battery capacity is too low
and the tool will not operate. In this situation,
remove and recharge the battery.

6
Indicating the remaining battery capacity
Fig.3
When you pull the switch trigger, the LED display shows
the remaining battery capacity as the following table.
LED indicator status Remaining battery capacity
About 50% or more
About 20% - 50%
About less than 20%
013980
NOTE:
• The LED display goes off approximately one
minute after releasing the switch trigger to save
the battery power. To check the remaining battery
capacity, slightly pull the switch trigger.
• When the LED display lights up but the tool does not
work even with a recharged battery cartridge, cool
down the tool fully. If the condition does not change,
have the tool repaired by a Makita local service center.
Switch action
Fig.4
CAUTION:
• Before inserting the battery cartridge into the tool,
always check to see that the switch trigger
actuates properly and returns to the "OFF"
position when released.
To start the tool, simply pull the switch trigger. Tool
speed is increased by increasing pressure on the switch
trigger. Release the switch trigger to stop.
Lighting up the front lamp
Fig.5
CAUTION:
• Do not look in the light or see the source of light directly.
Pull the switch trigger to light up the lamp. The lamp keeps
on lighting while the switch trigger is being pulled. The
lamp goes out 10 -15 seconds after releasing the trigger.
NOTE:
• When the tool is overheated, the tool stops
automatically and the lamp starts flashing. In this
case, release the switch trigger. The lamp turns off
in one minute.
• Use a dry cloth to wipe the dirt off the lens of the
lamp. Be careful not to scratch the lens of lamp, or
it may lower the illumination.
Reversing switch action
Fig.6
CAUTION:
• Always check the direction of rotation before
operation.
• Use the reversing switch only after the tool comes
to a complete stop. Changing the direction of
rotation before the tool stops may damage the tool.
• When not operating the tool, always set the
reversing switch lever to the neutral position.
This tool has a reversing switch to change the direction
of rotation. Depress the reversing switch lever from the
A side for clockwise rotation or from the B side for
counterclockwise rotation.
When the reversing switch lever is in the neutral
position, the switch trigger cannot be pulled.
Speed change
Fig.7
CAUTION:
• Always set the speed change lever fully to the
correct position. If you operate the tool with the
speed change lever positioned halfway between
the "1" side and "2" side, the tool may be
damaged.
• Do not use the speed change lever while the tool
is running. The tool may be damaged.
• If the tool speed is coming down extremely during
the operation with "2", slide the lever to the "1" and
restart the operation.
Position of speed
adjusting lever
Speed Torque Applicable operation
1
2
Low
High Low
High Heavy loading operation
Light loading operation
013983
To change the speed, switch off the tool first. Select the
"2" side for high speed or "1" for low speed but high
torque. Be sure that the speed change lever is set to the
correct position before operation.
Adjusting the fastening torque
Fig.8
The fastening torque can be adjusted in 17 steps by
turning the adjusting ring. Align the graduations with the
arrow on the tool body. You can get the minimum
fastening torque at 1 and maximum torque at marking.
The clutch will slip at various torque levels when set at
the number 1 to 16. The clutch does not work at
the marking.

7
Before actual operation, drive a trial screw into your
material or a piece of duplicate material to determine
which torque level is required for a particular application.
The following shows the rough guide of the relationship
between the screw size and graduation.
3.5 x 22
3.5 x 22 4.1x 38
4.1x 38
12 4 6 8 10 12 14 16
M4 M5 M6
Guideline of fastening torque
Adjusting graduations
Machine screw
Wood screw
Soft wood
(e.g. pine)
Hard wood
(e.g. lauan)
013981
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before carrying out
any work on the tool.
Installing or removing driver bit or drill bit
Fig.9
Turn the sleeve counterclockwise to open the chuck
jaws. Place the bit in the chuck as far as it will go. Turn
the sleeve clockwise to tighten the chuck.
To remove the bit, turn the sleeve counterclockwise.
Hook
Fig.10
The hook is convenient for temporarily hanging the tool.
This can be installed on either side of the tool.
To install the hook, insert it into a groove in the tool
housing on either side and then secure it with a screw.
To remove, loosen the screw and then take it out.
Installing bit holder (Optional accessory)
Fig.11
Fit the bit holder into the protrusion at the tool foot on
either right or left side and secure it with a screw.
When not using the driver bit, keep it in the bit holders.
Bits 45 mm-long can be kept there.
OPERATION
CAUTION:
• Always insert the battery cartridge all the way until
it locks in place. If you can see the red part on the
upper side of the button, it is not locked completely.
Insert it fully until the red part cannot be seen. If
not, it may accidentally fall out of the tool, causing
injury to you or someone around you.
• When the speed comes down extremely, reduce
the load or stop the tool to avoid the tool damage.
Fig.12
Hold the tool firmly with one hand on the grip and the
other hand on the bottom of the battery cartridge to
control the twisting action.
Screwdriving operation
CAUTION:
• Adjust the adjusting ring to the proper torque level
for your work.
Place the point of the driver bit in the screw head and
apply pressure to the tool. Start the tool slowly and then
increase the speed gradually. Release the switch trigger
as soon as the clutch cuts in.
CAUTION:
• Make sure that the driver bit is inserted straight in
the screw head, or the screw and/or bit may be
damaged.
NOTE:
• When driving wood screw, predrill a pilot hole 2/3
the diameter of the screw. It makes driving easier
and prevents splitting of the workpiece.
Drilling operation
First, turn the adjusting ring so that the pointer points to
the marking. Then proceed as follows.
Drilling in wood
When drilling in wood, the best results are obtained with
wood drills equipped with a guide screw. The guide
screw makes drilling easier by pulling the bit into the
workpiece.
Drilling in metal
To prevent the bit from slipping when starting a hole,
make an indentation with a center-punch and hammer
at the point to be drilled. Place the point of the bit in the
indentation and start drilling.
Use a cutting lubricant when drilling metals. The
exceptions are iron and brass which should be drilled
dry.

8
CAUTION:
• Pressing excessively on the tool will not speed up
the drilling. In fact, this excessive pressure will
only serve to damage the tip of your bit, decrease
the tool performance and shorten the service life
of the tool.
• There is a tremendous force exerted on the tool/bit
at the time of hole break through. Hold the tool
firmly and exert care when the bit begins to break
through the workpiece.
• A stuck bit can be removed simply by setting the
reversing switch to reverse rotation in order to
back out. However, the tool may back out abruptly
if you do not hold it firmly.
• Always secure small workpieces in a vise or
similar hold-down device.
• If the tool is operated continuously until the battery
cartridge has discharged, allow the tool to rest for
15 minutes before proceeding with a fresh battery.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before attempting to
perform inspection or maintenance.
• Never use gasoline, benzine, thinner, alcohol or
the like. Discoloration, deformation or cracks may
result.
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized Service Centers,
always using Makita replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Drill bits
• Screw bits
• Bit holder
• Hook
• Makita genuine battery and charger
NOTE:
Some items in the list may be included in the tool
package as standard accessories. They may differ from
country to country.

9
SVENSKA (Originalbruksanvisning)
Förklaring till översiktsbilderna
1-1. Röd indikator
1-2. Knapp
1-3. Batterikassett
2-1. Stjärnmarkering
3-1. Batterikapacitet
4-1. Avtryckare
5-1. Lampa
6-1. Reverseringsknapp
7-1. Hastighetsknapp
8-1. Inställningsring
8-2. Gradering
8-3. Pil
9-1. Hylsa
10-1. Spår
10-2. Krok
10-3. Skruv
11-1. Bitshållare
11-2. Bits
SPECIFIKATIONER
Modell DDF470 DDF480
Stål 13 mm 13 mm
Trä 38 mm 38 mm
Träskruv 10 mm x 90 mm 10 mm x 90 mm
Kapacitet
Maskinskruv M6 M6
Hög (2) 0 - 1 550 0 - 1 550
Obelastat varvtal (min-1) Låg (1) 0 - 400 0 - 400
Längd 185 mm 185 mm
Vikt 1,6 kg 1,5 kg 1,7 kg
Batterikassett BL1430 / BL1440 BL1815 / BL1815N BL1830 / BL1840
Märkspänning 14,4 V likström 18 V likström
• På grund av vårt pågående program för forskning och utveckling kan dessa specifikationer ändras utan föregående meddelande.
• Specifikationer och batterikassett kan variera från land till land.
• Vikt med batterikassett i enlighet med EPTA-procedur 01/2003
ENE034-1
Användningsområde
Maskinen är avsedd för borrning och skruvdragning i trä,
metall och plast.
ENG905-1
Buller
Typiska A-vägda bullernivån är mätt enligt EN60745:
Modell DDF470
Ljudtrycksnivå (LpA) : 73 dB (A)
Mättolerans (K) : 3 dB (A)
Bullernivån vid arbete kan överstiga 80 dB (A).
Modell DDF480
Ljudtrycksnivå (LpA) : 74 dB (A)
Mättolerans (K) : 3 dB (A)
Bullernivån vid arbete kan överstiga 80 dB (A).
Använd hörselskydd
ENG900-1
Vibration
Vibrationens totalvärde (tre-axlars vektorsumma) mätt
enligtEN60745:
Arbetsläge: borrning i metall
Vibrationsemission (ah,D) : 2,5 m/s2eller mindre
Mättolerans (K): 1,5 m/s2
ENG901-1
• Det deklarerade vibrationsemissionsvärdet har
uppmätts i enlighet med standardtestmetoden och
kan användas för jämförandet av en maskin med
en annan.
• Det deklarerade vibrationsemissionsvärdet kan
också användas i preliminär bedömning av
exponering för vibration.
VARNING!
• Viberationsemissionen under faktisk användning
av maskinen kan skilja sig från det deklarerade
emissionsvärdet, beroende på hur maskinen
används.
• Se till att hitta säkerhetsåtgärder som kan skydda
användaren och som grundar sig på en
uppskattning av exponering i verkligheten (ta med
i beräkningen alla delar av användandet såsom
antal gånger maskinen är avstängd och när den
körs på tomgång samt då startomkopplaren
används).
ENH101-17
Gäller endast Europa
EU-konformitetsdeklaration
Makita försäkrar att följande maskiner:
Maskinbeteckning:
Sladdlös borrmaskin
Modellnummer/Typ: DDF470, DDF480

10
Följer följande EU-direktiv:
2006/42/EC
De är tillverkade i enlighet med följande standard eller
standardiseringsdokument:
EN60745
Den tekniska dokumentationen i enlighet med
2006/42/EG finns tillgänglig från:
Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium
31.12.2013
000331
Yasushi Fukaya
Direktör
Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium
GEA010-1
Allmänna säkerhetsvarningar för
maskin
VARNING Läs igenom alla säkerhetsvarningar
och instruktioner. Underlåtenhet att följa varningar och
instruktioner kan leda till elektrisk stöt, brand och/eller
allvarliga personskador.
Spara alla varningar och instruktioner
för framtida referens.
GEB088-1
SÄKERHETSVARNINGAR FÖR
SLADDLÖS BORRMASKIN
1. Använd extrahandtag, om det levereras med
maskinen.
Att tappa kontrollen över maskinen kan leda
till personskador.
2. Håll maskinen i de isolerade handtagen om
det finns risk för att skärverktyget kan komma
i kontakt med en dold elkabel. Om
skärverktyget kommer i kontakt med en
strömförande ledning blir maskinens metalldelar
strömförande och kan ge operatören en elektrisk
stöt.
3. Håll maskinen i de isolerade handtagen om
det finns risk för att skruvdragaren kan
komma i kontakt med en dold elkabel. Om
skruvdragaren kommer i kontakt med en
strömförande ledning blir maskinens metalldelar
strömförande och kan ge operatören en elektrisk
stöt.
4. Se till att du hela tiden har ett säkert fotfäste.
Se till att ingen står under dig när maskinen
används på hög höjd.
5. Håll maskinen stadigt.
6. Håll händerna på avstånd från roterande delar.
7. Lämna inte maskinen igång. Använd endast
maskinen när du håller den i händerna.
8. Rör inte vid borr eller arbetsstycke
omedelbart efter användning eftersom de kan
vara extremt varma och orsaka brännskador.
9. Vissa material kan innehålla giftiga kemikalier.
Se till att du inte andas in damm eller får det
på huden. Följ anvisningarna i leverantörens
materialsäkerhetsblad.
SPARA DESSA ANVISNINGAR.
VARNING!
GLÖM INTE att noggrant följa säkerhetsanvisningarna
för maskinen även efter det att du har blivit van att
använda den. OVARSAM hantering eller underlåtenhet
att följa säkerhetsanvisningarna i denna
bruksanvisning kan leda till allvarliga personskador.
ENC007-8
VIKTIGA
SÄKERHETSANVISNINGAR
FÖR BATTERIKASSETT
1. Innan batterikassetten används ska alla
instruktioner och varningsmärken på (1)
batteriladdaren, (2) batteriet och (3) produkten
läsas.
2. Montera inte isär batterikassetten.
3. Om driftstiden blivit avsevärt kortare ska
användningen avbrytas omedelbart. Det kan
uppstå överhettning, brännskador och t o m
en explosion.
4. Om du får elektrolyt i ögonen ska de sköljas
med rent vatten och läkare uppsökas
omedelbart. Det finns risk för att synen förloras.
5. Kortslut inte batterikassetten.
(1) Rör inte vid polerna med något
strömförande material.
(2) Undvik att förvara batterikassetten
tillsammans med andra metallobjekt som
t ex spikar, mynt etc.
(3) Skydda batteriet mot vatten och regn.
Ett kortslutet batteri kan orsaka ett stort
strömflöde, överhettning, risk för brännskador
och maskinen kan till och med gå sönder.
6. Förvara inte maskinen och batterikassetten på
platser där temperaturen kan nå eller
överstiga 50 ﾟC (122 ﾟF).
7. Bränn inte upp batterikassetten även om den
är svårt skadad eller helt utsliten.
Batterikassetten kan explodera i öppen eld.
8. Var försiktig så att du inte råkar tappa batteriet
och utsätt det inte för stötar.
9. Använd inte ett skadat batteri.
10. Följ lokala föreskrifter beträffande
avfallshantering av batteriet.
SPARA DESSA ANVISNINGAR.
