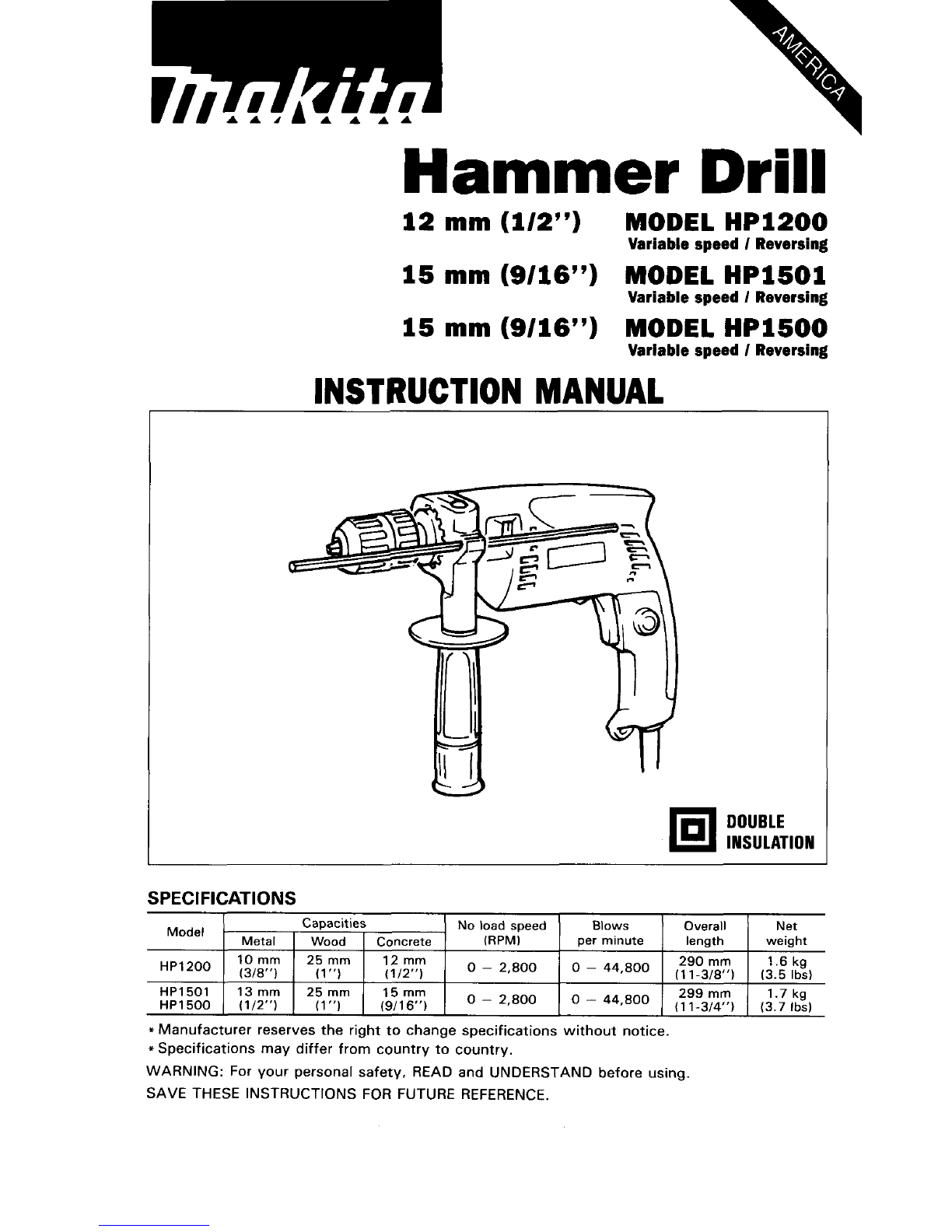

Makita HP1200 User manual

Hammer Drill
Model
HP1200
HP1501
HP1500
12 mm (1/2") MODEL HP12OO
15 mm (9/16") MODEL HP1501
15 mm (9/16") MODEL HP1500
Variable speed I Reversing
Variable speed
I Reversing
Variable speed
I Reversing
INSTRUCTION MANUAL
Capacities No load speed Blows Overall
(RPM) per minute length
-
Metal Wood Concrete
10" 25mm 12" 290 mm
(1/2**) 0 - 2,800 0 - 44,800 (l1-3/8,r)
(3/8") (1")
13mm 25mm 299
mm
(1/2") (1") (l$l:m) - 2'800 - 44'800 (11-3/4")
SPECIFICATIONS
Model
HP1200
HP1501
HP1500
Capacities
No load speed Blows Overall Net
(RPM) per minute length weight
Metal Wood Concrete
10" 25mm 12" 290 mm 1.6 kg
(3/8") (1") (3.5 Ibs)
13mm 25mm 15" 299 mm 1.7 kg
(1/2") (1") (9/16")
- 2'800 - 44'800 (11-34',) (3.7 Ibs)
-
(1/2") - 2'800 - 44'800 (11-3/8")
weight
1.6
kg

IMPORTANT

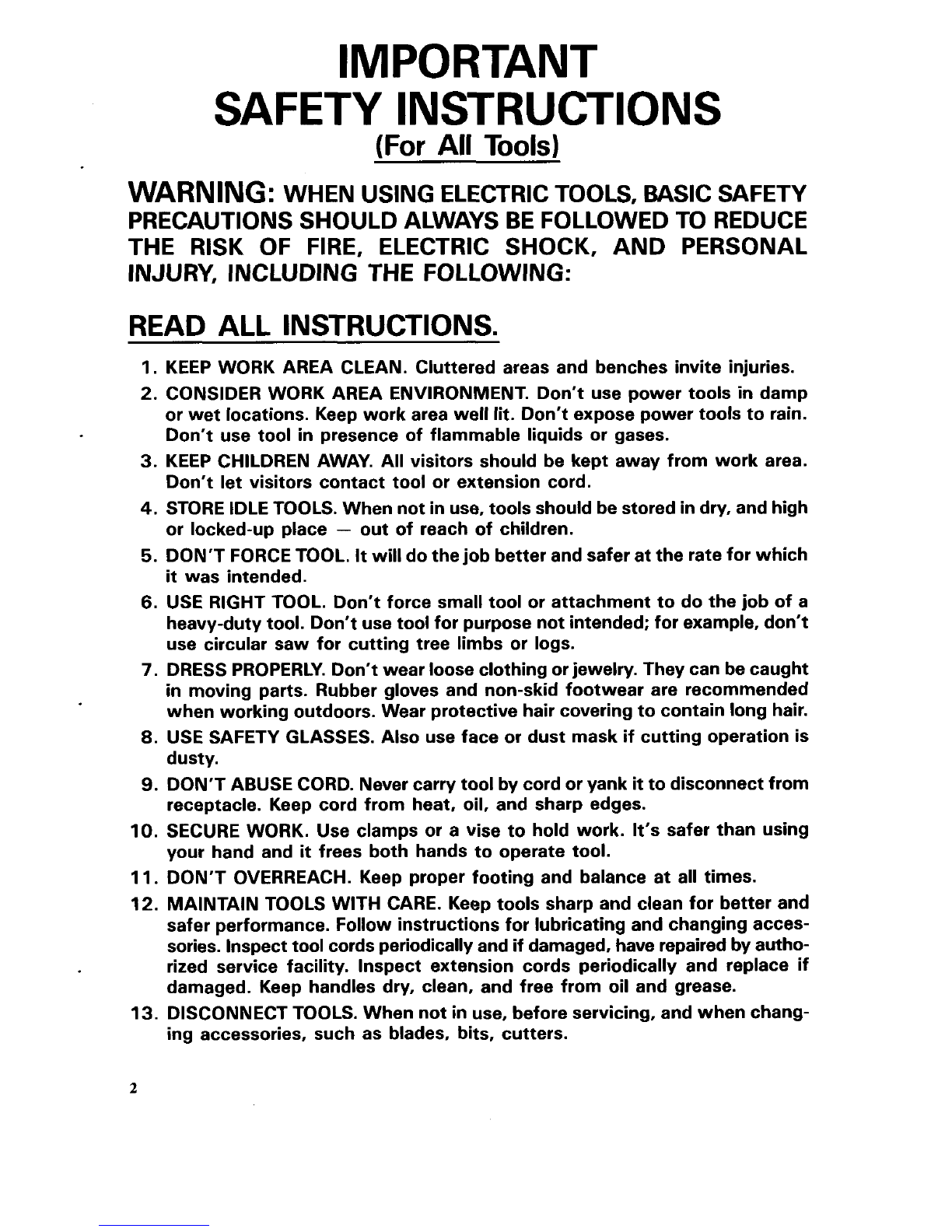

SAFETY INSTRUCTIONS
(For All Tools)
WARNING: WHEN USINGELECTRICTOOLS, BASIC SAFETY
PRECAUTIONSSHOULDALWAYS BE FOLLOWEDTO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1. KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
2. CONSIDER WORK AREA ENVIRONMENT. Don't use power tools in damp
or wet locations. Keep work area well
lit. Don't expose power tools to rain.
Don't use tool
in presence of flammable liquids or gases.
3. KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
4. STORE IDLETOOLS. Whennot in use, tools should bestored in dry, and high
or locked-up place
- out of reach of children.
5. DON'T FORCETOOL. It will dothejob better andsafer at the ratefor which
it was intended.
6. USE RIGHT TOOL. Don't force small tool or attachment todo the job of a
heavy-dutytool. Don't use toolfor purposenot intended; for example, don't
use circular saw for cutting tree limbs or logs.
7. DRESS PROPERLY. Don't wear loose clothing orjewelry. They can becaught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protectivehair covering tocontain long hair.
8. USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
9. DON'T ABUSE CORD. Never carry tool by cordor yank it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
IO. SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
11. DON'T OVERREACH. Keep proper footing and balance at all times.
12. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricatingand changing acces-
sories. Inspecttool cords periodicallyandif damaged, have repairedby autho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil and grease.
13. DISCONNECTTOOLS. When not in use, beforeservicing, and when chang-
ing accessories, such as blades, bits, cutters.
2

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are removed from tool before turning
it on.
15. AVOID UNINTENTIONAL STARTING. Don't carry toolwithfinger onswitch.
Be sure switch is OFF when plugging in.
16. EXTENSION CORDS. Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy enough to carry
the current your product will draw. An undersized cord will cause
a drop
inlinevoltage resulting in
loss of power and overheating. Table 1 shows the
correct size to use depending on cordlengthandnameplate ampere rating.
If in doubt, use the next heavier gage. The smaller the gage number, the
heavier the cord.

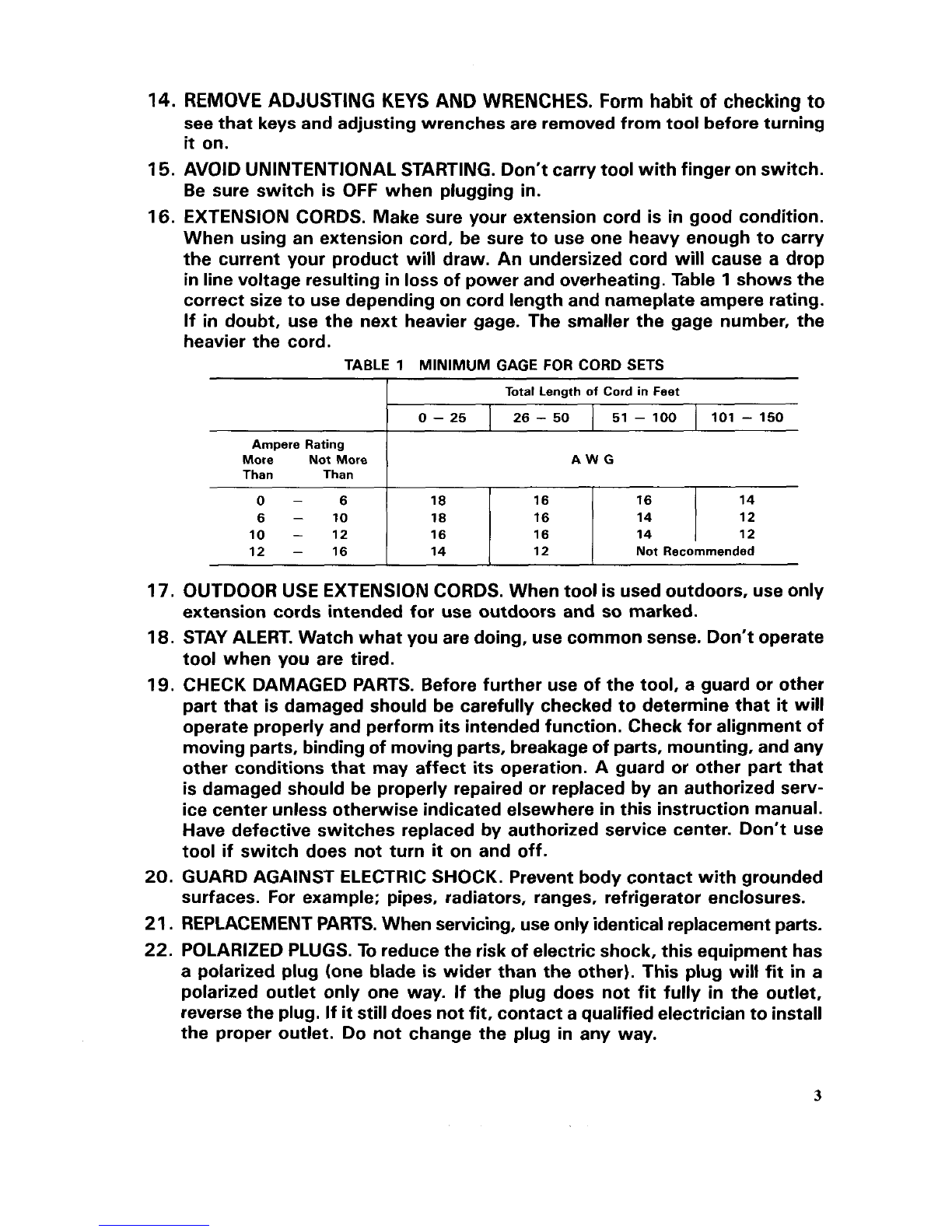

TABLE 1 MINIMUM GAGE FOR CORD SETS
I
Total Length of Cord in Feet
1 0 - 25 I 26 - 50 I 51 - 100 1 101 - 150
Mr:?M; 1 18 , 16 AiG 16 , 14
-
10 18 16 14 12
10
-
12 16 16 14 12
12
-
16 14 12 Not Recommended
17. OUTDOOR USE EXTENSIONCORDS. When tool is usedoutdoors, use only
extension cords intended for use outdoors and
so marked.
18. STAY ALERT. Watch what you are doing, use common sense. Don't operate
tool when you are tired.
19. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform itsintended function. Check for alignment of
moving parts, bindingof moving parts, breakageof parts, mounting, and any
other conditions that may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced by an authorized serv-
ice center unlessotherwise indicated elsewhere
in this instruction manual.
Have defective switches replaced by authorized service center. Don't use
tool
if switch does not turn it on and off.
20. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
21. REPLACEMENT PAFlTS. Whenservicing, useonly identicalreplacementparts.
22. POLARIZEDPLUGS. To reduce the risk of electric shock, this equipment has
a polarized
plug (one blade is wider than the other). This plug will fit in a
polarized outlet only one way.
If the plug does not fit fully in the outlet,
reversethe plug.
If it stilldoes not fit, contacta qualified electrician toinstall
the proper outlet. Do not change the plug in any way.
3

VOLTAGE WARNING: Before connectingthe tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
,
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result
in SERIOUS INJURY tothe user - as well as damage to
the tool. If
in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
1
ADDITIONAL SAFETY RULES
Wear a hard hat (safety helmet), safety glasses and/or face shield. It isalso
highly recommended that you wear a dust mask, ear protectors and thickly
padded gloves.
2. Undernormaloperation, thetoolisdesignedtoproduce vibration. The screws
can come loose easily, causinga breakdown or accident. Check tightness of
screws carefully before operation.
3. Always be sure you have a firm footing.
Be sure no one is below when using the tool
in high locations.
4. Hold the tool firmly with both hands. Always use the side grip.
5. Keep hands away from rotating parts.
6. Do not leave the tool running. Operate the tool only when hand-held.
7. When drilling into walls, floors or wherever "live" electrical wires may be
encountered,
DO NOT TOUCH ANY METAL PARTS OF THE TOOL!
Holdthe tool by the insulated grasping surfaces to prevent electric shock
if
you drill into a "live" wire.
8. Do not touch the bit or the workpiece immediately after operation; they may
be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
4

CAUTION:
Always besure thatthetool is switchedoff and unpluggedbeforeinstallingor removingthe side
grip, bitor other accessories.
Installingthe side grip
Always install the side grip on the tool and
hold the tool firmly with both hands during
operation.
The side grip swings around to
either side, allowing easy handling of the tool
inany position.Swing it tothedesiredposition
and secure
it byturningclockwise.
NOTE:
Thesidegripcannot swing
360” when thedepthgauge is installed.
Installingor removingdriver bit or drill bit
CAUTl ON :
Always besure thatthetoolisswitchedoff andunpluggedbeforeinstallingor removingthe bit.
For ModelHPI
501
Hold the ring and turn the sleeve counter-
clockwise to open the chuck jaws. Place the
bit in the chuck
as far as it will go. Holdthe
ring firmly and turn the sleeve clockwise to
tightenthechuck.
To remove the bit, hold the ring and turn the
sleeve counterclockwise.
For Model
HPI 200 and HPI 500
To installthe bit,place it inthe chuckas far as
it will go. Tighten thechuck byhand. Placethe
chuck key in each
of the three holes and
tighten clockwise. Be sure to tighten
all three
chuckholesevenly.
To removethe bit,turn the chuck keycounter-
clockwise in just one hole, then loosen the
chuck
by hand.
After usingthe chuck key,be sureto return
it
tothe originalposition.
.Chuck key
5

Depth gauge I
The depth gauge is convenient for drilling
holesof uniform depth. Loosen the side grip
and insert the depth gauge into the hole in
the side grip. Adjust the depth gauge to the
desireddepthandtightenthe sidegrip.
Action mode
This tool employs the action mode changing
buttons.For rotationonly, pressthe button
on
the L- mark side fully. For rotation with
hammering,pressthe buttonon the
"0 mark
sidefully.
CAUTION:
,------Side grip
Besuretopresstheactionmodechangingbuttonas far as it willgo. Failuretodo so maycause
malfunctionof the tool.
6

Switch action
To start the tool, simply pull the trigger. Tool
speed is increased by increasing pressureon
the trigger. Release the trigger to stop. For
continuousoperation, pullthe trigger and then
push in the lock button. To stop the tool while
in the locked position, pull the trigger fully,
then releaseit.
CAUTION:
Before pluggingin the tool, always check to see that the switch trigger actuates properly and
returnstothe
"OFF" wsition whenreleased.
Reversingswitch
This tool hasa reversingswitch to changethe
direction of rotation.
Move the reversing
switch lever to
t> the position for clockwise
rotation or the
0 position for counterclock-
wise rotation.
Reversing
switch lever -
CAUTION:
*Always check the direction of rotation before operation.
*Use the reversing switch only after the tool comes to
a complete stop. Changing the
direction
of rotation before the tool stops may damagethe tool.
7

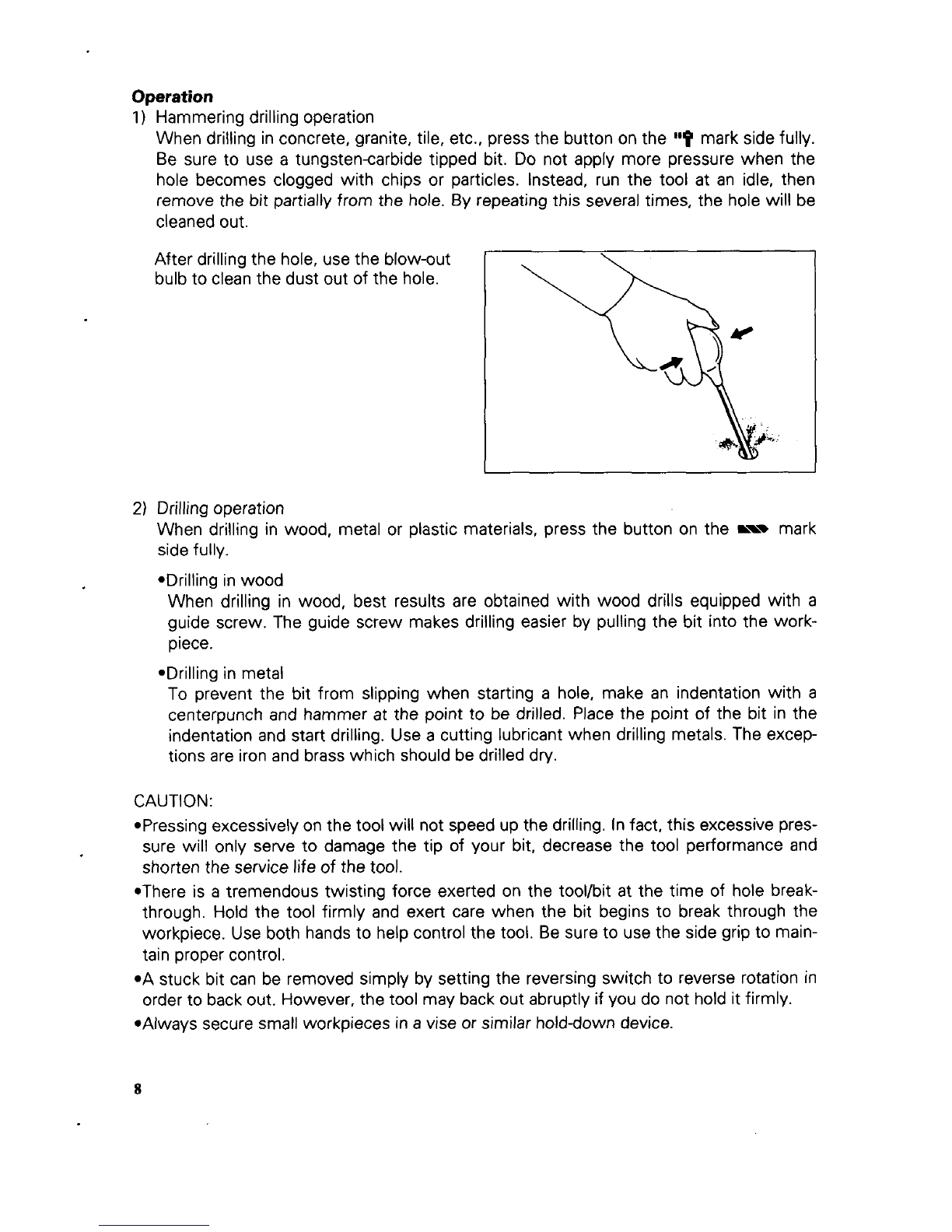

Operation
1) Hammeringdrilling operation
When drilling in concrete, granite, tile, etc., pressthe button on the
lop mark side fully.
Be sure to use
a tungstencarbide tipped bit. Do not apply more pressure when the
hole becomes clogged with chips or particles. Instead, run the tool
at an idle, then
remove the bit partiallyfrom the hole. By repeatingthis several times, the hole will be
cleanedout.
After drilling the hole, usethe blow-out
bulbto cleanthe dust out of the hole.
2) Drillingoperation
When drilling in wood, metal or plastic materials, press the button on the
L- mark
side fully.
*Drilling in wood
When drilling in wood, best results are obtained with wood drills equipped with
a
guide screw. The guide screw makes drilling easier by pulling the bit into the work-
piece.
To prevent the bit from slipping when starting a hole, make an indentation with a
centerpunch and hammer at the point to be drilled. Place the point of the bit in the
indentation and start drilling. Use
a cutting lubricant when drilling metals. The excep
tions are iron and brass which should be drilled dry.
*Drillingin metal
CAUTION:
*Pressing excessively on the toolwill not speed up the drilling. Infact, this excessive pres-
sure will only serve to damage the tip of your bit, decrease the tool performance and
shorten the service lifeof the tool.
*There
is a tremendous twisting force exerted on the tool/bit at the time of hole break-
through. Hold the tool firmly and exert care when the bit begins to break through the
workpiece. Use both hands to help control the tool. Be sure to use the side grip to main-
tain proper control.
*A stuck bit can be removed simply by setting the reversing switch to reverse rotation in
order to back out. However,the tool may back out abruptly if you do not hold
it firmly.
*Always secure small workpieces in
a vise or similar hold-downdevice.
8

MAINTENANCE
CAUTION:
Always be surethat thetool isswitched off andunplugged beforeattemptingto performinspec-
tion
or maintenance.
To maintain product SAFETY and RELIABILIN, repairs, any other maintenanceor adjustment
should be performedby Makita Authorized
or Factory Service Centers, always using Makita
replacementparts.
9

ACCESSORIES
CAUTION:
These accessories or attachments are recommended for use with your Makitatool specified in this
manual. The use of any other accessories or attachments might present a risk of injury to persons.
The accessories or attachments should be used
only in the proper and intended manner.
~ ~
Part No.
711120-A
Heavy duty masonry drill bit
for percusion drill
~
Bit Shank Overall
diameter dia. length
3116" 3116" 4
711121-A
711122-A
711123-A
711124-A
711125-A
711126-A
711127-A
1/4" 1/4" 4
114" 114" 6
5/16" 1/4" 6
318" 114" 6
112" 3/8" 6
5/8" 318" 6
314" 3/8" 6
711128-A
I l/l$ 114" 13
711129-A
1 114" I 13
Square drill bit
-
711130-A 1 1/2" I 3/8" 1 13
784606-0A
Blow-out bulb
Part No. 765009-6
Bits
I Size I Part NO.
Phillips
Slotted 784010-0A
784011-0A
Phillips bit
r--L-T
I
Part NO. I Size I L (mm)
784201-5
I No. 1 I 65 (2-5/8")
784202-3 45 (1-314")
784203-
1 65 (2-5/8")
784206-5 110(4-318")
784207-3 150(5-718")
No. 2
10

May-21-'96 US
HAMMER DRILL
12 mm (1/2") Model HP1200
15 mm (9/16") Model HP1500
w
Note: The switch, noise suppressor and other part configurations
may differ from country to country.
11

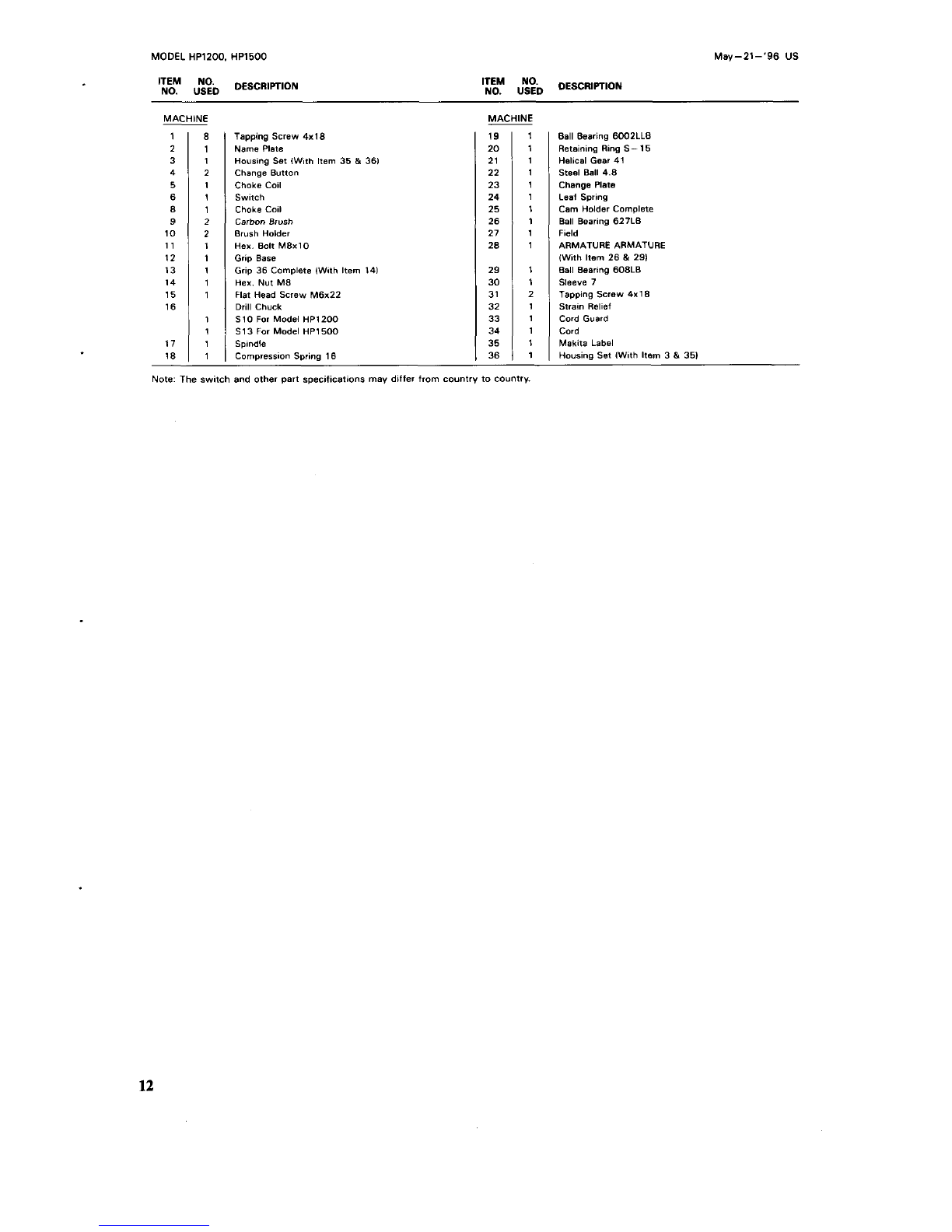

MODEL HP1200. HP1500
'LiM DESCRIPTION
21
31
42
51
61
81
92
May--21-'96 US
'LtM AtD DESCRIPTION
12
13
14
15
16
17
18
MACHINE
118
1
1
1
1
1
1
1
1
Tapping
Screw 4x18
Name Plate
Housing Set IWith Item 35 & 361
Change Button
Choke Cot1
Switch
Choke Coil
Carbon
Brush
Brush Holder
Hex Bolt Max10
Grip
Base
Grip 36 Complete IWith Item 141
Hex Nut M8
Flat Head
Screw M6x22
Drill Chuck
S10 For Model HP1200
513
For Model HP1500
Spindle
Commession Soma 16
MACHINE
-
19
20
21
22
23
24
25
26
21
28
29
30
31
32
33
34
35
36
-
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
-
Ball Bearing 6002LLB
Retaining
Ring S- 15
Helical Gear 41
Steel Ball 4 8
Change Plate
Leaf sprtng
Cam Holder Complete
Ball
Eearmg 627LB
Field
ARMATURE ARMATURE
(With Item
26 & 291
Ball Bearing 608LB
Sleeve 7
Tapping
Screw 4x18
Strain Relief
Cord Guard
Cord
Mskita Label
Housing Set (With Item 3 & 351
Note The Switch and other part specifications
may differ from country to country.
12

Nou.-21-'95 US
15 mm (9/16")
HAMMER DRILL
Model HP1501
13

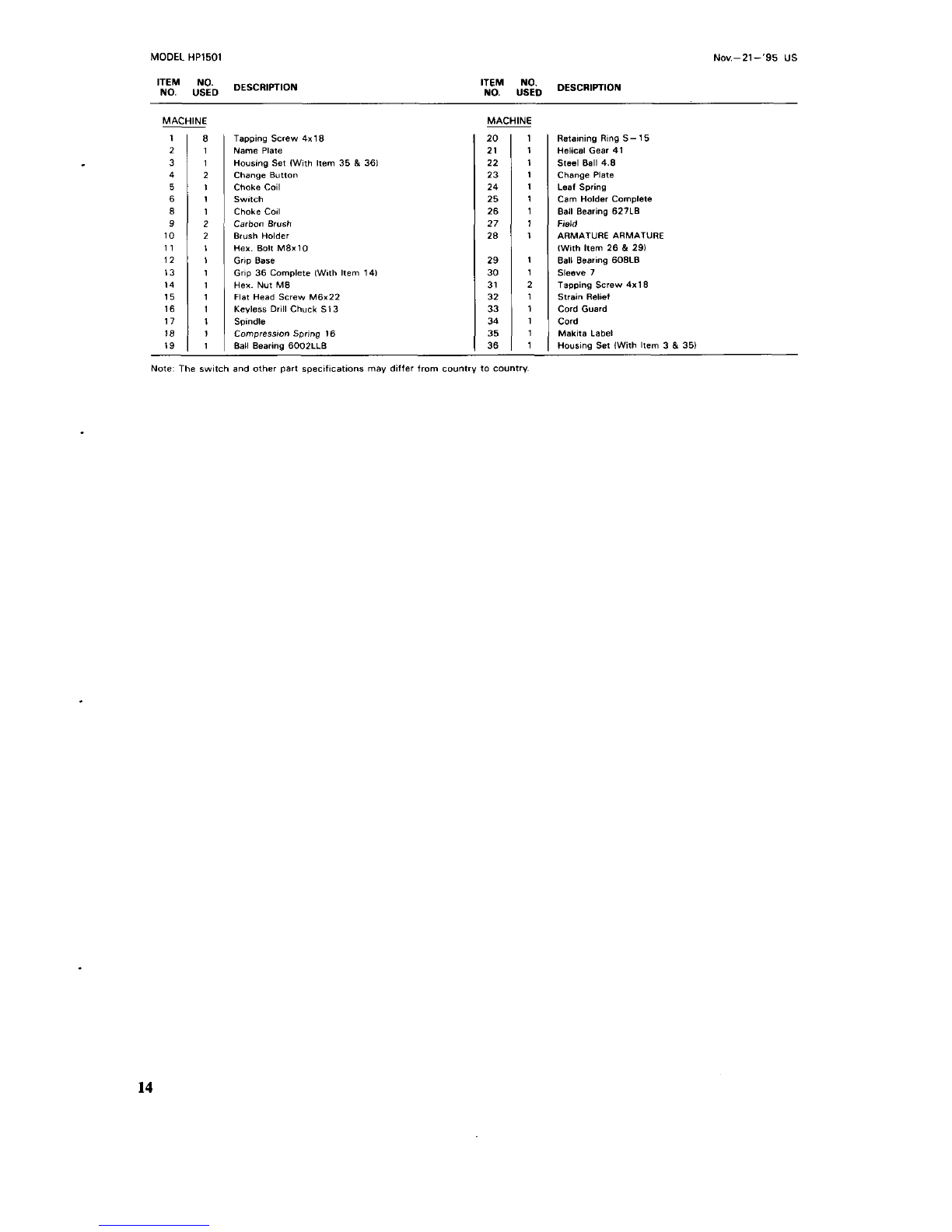

MODEL HP1501
'LiM DESCRIPTION
Nov.--21-'95 US
'LiM AtD DESCRIPTION
MACHINE
1
2
3
4
5
6
8
9
10
11
12
13
14
15
16
17
18
19
8
1
1
2
1
1
1
2
2
1
1
1
1
1
1
1
1
1
-
Tapping Screw 4x18
Name
Plate
Housmg Set (With Item 35 & 361
Change Button
Choke Coil
Switch
Choke Coil
Carbon Brush
Brush Holder
Hex Bolt M8x10
Grip Bare
Grip 36 Complete IWiIh Item 141
Hex Nut MB
Flat Head Screw M6x22
Keyless Drill Chuck 513
Spindle
Compression Spnng
16
Ball Bearing 6002LLB
MACHINE
~
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
-
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
-
Retaining Ring S- 15
Helical Gear 41
Steel Ball 4 8
Change Plate
Cam Holder Complete
Ball Bearing 627LB
FleM
ARMATURE ARMATURE
IWith Item
26 & 291
Ball Bearing 608LB
Sleeve 7
Tapping Screw 4x18
Strain Relief
Card Guard
Cord
Makita Label
HOUS~O Set (With Item 3 & 35)
Leaf sprtng
Note The SwIIch and other part specifications may differ from country 10 country
14

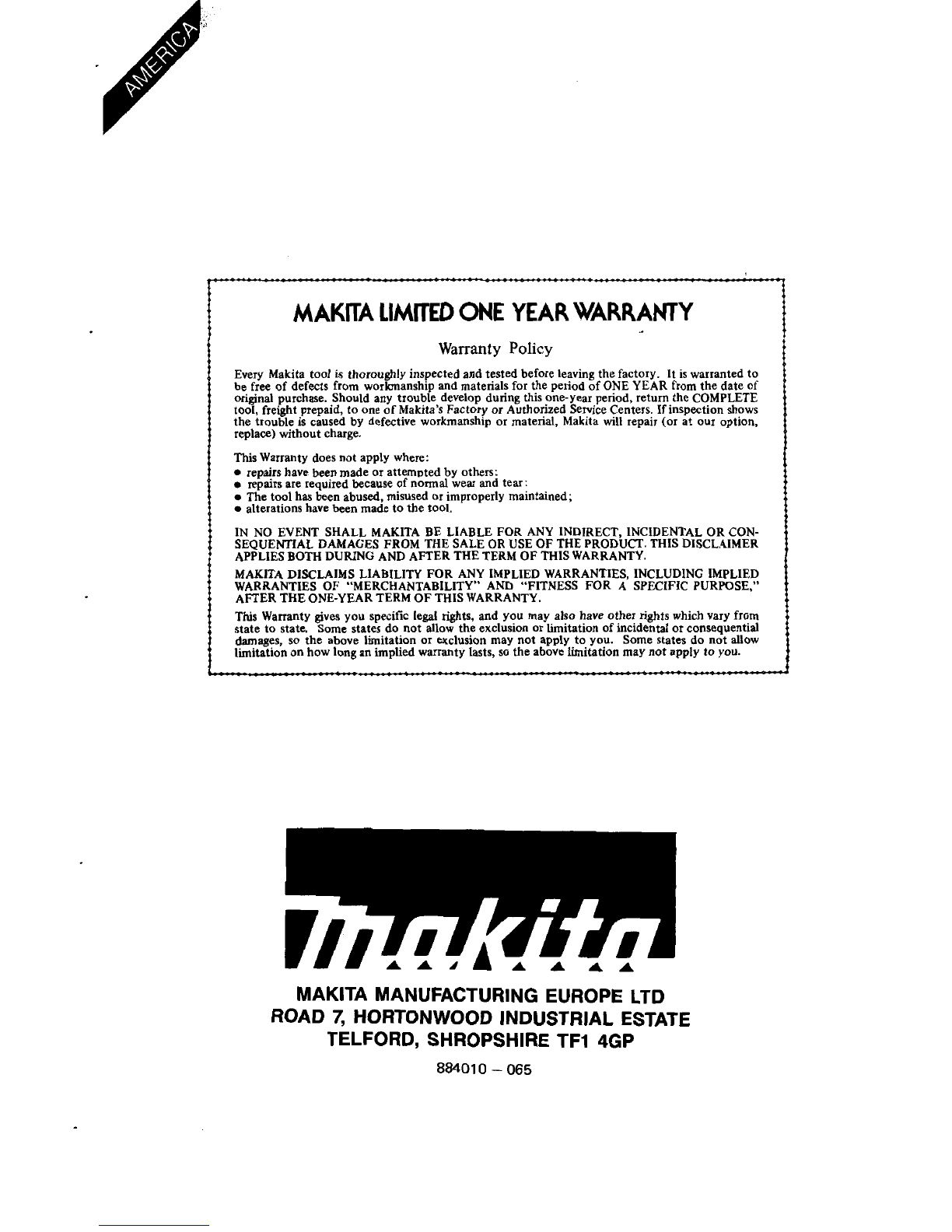

MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid,
to one of Makita’s Factory or Authorized ServiceCenters. If inspection shows
the trouble is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
This Warranty does
not apply where:
repairs have been made or attempted by others:
repairs are required because of normal wear and tear:
Thetool has been abused, misused or improperly maintained;
alterationshave been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALEOR USE OF THE PRODUCT. THIS DISCLAIMER
APPLIESBOTH DURING AND AFTER THE TERM OFTHIS WARRANTY.
MAKITA DISCLAIMSLIABILITY FOR ANY IMPLlED WARRANTIES, INCLUDING IMPLIED
WARRANTIES
OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THEONE-YEARTERM OFTHIS WARRANTY.
This Warranty gives you specific legal rights, and you may also have other
rights which vary from
state
to state, Some states do not allow the exclusion or Limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply
to you. Some states do not allow
limitation
on how long an implied warranty lasts, so the above limitation may not apply to you.
- u__ J
MAKITA MANUFACTURING EUROPE LTD
ROAD
7, HORTONWOOD INDUSTRIAL ESTATE
TELFORD, SHROPSHIRE TF1 4GP
88401 0 - 065
