Makita 9526PB User manual

Angle Grinder
MODEL
100 mm (4") MODEL 9526PB
115 mm (4-1/2") MODEL 9527PB
125 mm (5") MODEL 9528PB
No load speed (RPMI Overall length Net weight Spindle thread
INSTRUCTION MANUAL
DOUBLE
INSULATION
9527PB I 10,000 I 275 mm (10-7/8") I 1.5 kg (3.3 Ibs) I 5/8"
9528PB
I 10,000 I 275 mm (10-7/8") 1 1.5 kg 13.3 Ibs) I 5/8"
* Manufacturer reserves the right to change specifications without notice.
Specifications may differ from country to country.
WARNING: For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

GENERAL SAFETY RULES
(For All Tools)
WARNING! Read and understand all instructions. Failure
tofollow all instructions listed below, may result
in electric
shock, fire and/or serious personal injury.
.
SAVE THESE INSTRUCTIONS
READ ALL INSTRUCTIONS.
1. Keepyour work area cleanandwell lit. Clutteredbenchesand dark areas invite
accidents.
2. Donot operatepowertools in explosive atmospheres,such as in thepresence
of flammable liquids, gases, or dust. Power tools create sparks which may
ignite the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause
you to loose control.
4. DoubleInsulatedtoolsare equippedwithapolarizedplug(onebladeiswider
than the other.) This plug
will fit in a polarized outlet only one way. If the
plug does not fit fully
in the outlet, reversethe plug. If it still does not fit,
contact a qualified electrician to install a polarized outlet. Do not change
the plug
in any way. Double insulation El eliminates the need for the three
wire grounded power cord and grounded power supply system.
5. Avoid body contact withgrounded surfaces such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is
grounded.
6. Don't exposepower tools torainor wet conditions. Water entering a power
tool will increase the risk of electric shock.
7. Donotabuse the cord. Neverusethecord tocarry thetools or pull the plug
from anoutlet. Keepcord away from heat, oil, sharp edgesor movingparts.
Replace damaged cords immediately. Damaged cords increase the risk of
electric shock.
8. When operating a power tool outside, useanoutdoor extension cordmarked
"W-A" or "W." These cords are rated for outdoor use and reduce the risk
of electric shock.
9. Stay alert, watchwhat youare doingand usecommonsense whenoperating
a power
tool. Do not use tool while tired or under the influence of drugs,
alcohol, or medication.
A moment of inattention while operating power tools
may result in serious personal injury.
IO. Dressproperly. Donot wear looseclothing or jewelry. Contain longhair. Keep
your hair, clothing, andglovesawayfrom moving parts. Looseclothes, jewelry
or
long hair can be caught in moving parts.
2

11. Avoid accidental starting. Be sure switchisoff before plugging in. Carrying
tools
with your finger onthe switchor plugging in tools that have the switch
on invites accidents.
12. Removeadjusting keys or switches before turning the tool on. A wrench or
a key that is left attached to
a rotating part of the tool may result inpersonal
injury.
13. Donotoverreach. Keepproperfooting andbalanceat alltimes. Properfooting
and balance enables better control of the tool
in unexpected situations.
14. Use safety equipment. Always wear eye protection. Dust mask, non-skid
safety shoes, hard hat, or hearing protection must be used
for appropriate
conditions.
15. Use clamps or other practical way tosecure and support the workpiece to
a stable platform. Holdingthe work by hand or against your body is unstable
and may lead to
loss of control.
16. Do notforce tool. Usethe correct tool for your application. The correct tool
will do the job better and safer at the rate for which it is designed.
17. Do not use tool if switch does not turn it on or off. Any tool that cannot
be controlled with the switch is dangerous and must be repaired.
18. Disconnect the plugfromthe power source beforemakingany adjustments,
changing accessories, or storing the tool. Such preventive safety measures
reduce the risk of starting the tool accidentally.
19. Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
20. Maintain tools with care. Keep cutting tools sharp and clean. Properly
maintainedtools, withsharp cutting edges are less likely to bindandare easier
to control.
21. Check for misalignment or binding of movingparts, breakageof parts, and
any other condition that may affect the tools operation. If damaged, have
the toolservicebeforeusing. Many accidents are caused by poorlymaintained
tools.
22. Use only accessoriesthat are recommended by the manufacturer for your
model. Accessories that may be suitablefor one tool, may become hazardous
when used on another tool.
23. Tool service must be performed only by qualified repair personnel. Service
or maintenance performed by unqualified personnel could result in a risk of
injury.
24. When servicingatool, useonly identical replacement parts. Follow instruc-
tions in the Maintenance section of this manual. Use of unauthorized parts
or failure tofollow MaintenanceInstructions maycreate
a riskof electricshock
of injury.
3

SPECIFIC SAFETY RULES FOR GRINDER
1. Always useproper guardwithgrindingwheel. A guard protectsoperator from
broken wheel fragments.
2. Accessories must be rated for at least the speed recommended on the tool
warninglabel. Wheels and other accessories running over ratedspeed can
fly
apart and cause injury.
3. Holdtool by insulatedgrippingsurfaces when performinganoperationwhere
the cutting tool may contact hidden wiring or its own cord. Contact
with a
"live" wire
will make exposed metal parts of the tool "live" and shock the
operator.
4. Never use hubbed grinding wheels on this tool (for 9526PB only).
SYMBOLS
The followings show the symbols usedfor tool.
V
A
Hz
kg
h
min
S
/L
-
____
n,
-
6
A
bb
.../ min
.................
.................... alternating current
.................. ...... no loadspeed
................................. alternating or direct current
................................. Class II Construction
...................... splash-proofconstruction
watertight construction
.....
............... revolutions or reciprocationperminute
@ ................................. number of blow
4

Installingthewheel guard
Mount the wheel guard with the tab on the
wheel guard band aligned with the notch
on the bearing box. Then rotate the wheel
guard 180" counterclockwise. Be sure to
tighten the screw securely.
Installingside grip (auxiliary handle)
For 9527PB and 9528PB only
Screw the side grip on the tool securely.
The side grip can be installedon either side
of thetool, whichever
is convenient.
Installingor removing
the depressed center wheel
CAUTION:
Always be sure that the tool
is switched off and unplugged before installingor removing
the wheel.
Mount the inner flangeonto the spindle. Fitthe wheel on over the inner flange and screw
the lock nutontothe spindle.
B527PB
9528pB Lock nut e
l
Depressed
center wheel
Inner flange
9526PB
Lock nut -@
Depressed
center wheel
Inner flange
5

To tighten the lock nut, press the shaft
I
lock firmly so that the spindle cannot re-
volve, then use the lock nut wrench and
securely tightenclockwise.
Lock nut
Shaft lock
WARN I NG :
Only actuate the shaft lock when the spindle is not moving.
Switchaction
CAUTION :
0 Do not pullthe trigger forcibly without pushinginthe lock-off button.
0 Before plugginginthe tool, alwayscheck to see that the switchtrigger actuatesproperly
and returnstothe
"OFF" positionwhen released.
To prevent the trigger from being acciden-
tally actuated,
a lock-off button is pro-
vided.
To start thetool, push inthe lock-off
button and then pull the trigger.
Release
the trigger to stop. For continuousopera-
tion, pull the trigger and then push in the
lock-on button.
To stop the tool from the
locked position, pull the trigger fully, the
release
it.
I I
Lock-onbutton
Lock-off button
Switchtrigger 2
6

Operation
Hold the tool firmly. Turn the tool on and
then apply the wheel or disc to
the work-
piece.
In general, keep the edge
of the wheel or
disc
at an angle of about 15" to the work-
piecesurface.
During the break-in period with
a new
wheel, do not work the grinder
in the B
direction or it will cut into the workpiece.
Once the edge
of the wheel has been
rounded off
by use, the wheel may be
worked inboth
A and B directions.
I
WARNING:
0 Itshould never be necessary to force the tool. The weight of the tool applied adequate
pressure. Forcingand excessive pressure could cause dangerouswhen wheel breakage.
0 Continued use of a worn-out wheel may result inwheel explosionand serious personal
injury. Depressed center wheel should not be used after
it has beeen worn down to
75 mm (3") in diameter for Model 9526PB or 90 mm (3-1/2") for Models 9527PB and
9528PB in diameter. Use of the wheel after this point
is unsafe and it should be re-
movedfrom service and renderedunusable by intentional destruction.
7

MAINTENANCE
CAUTION :
Always be sure that the tool is switchedoff and unplugged beforeattempting toperform
inspectionor maintenance.
Replacingcarbonbrushes
Remove and check the carbon brushes
regularly. Replacewhen they wear down to
the limit mark. Keep the carbon brushes
clean and free to slip
in the holders. Both
carbon brushes should be replaced
at the
Limit mark
same time. Use only identical carbon
brushes.
Use
a screwdriver to remove the brush
holder caps. Take out the worn carbon
brushes, insert the new ones and secure the
brush holdercaps.
Screwdriver
Brush holder caD
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or
adjustment should be performed by Makita Authorized or Factory Service Centers,
alwaysusingMakita replacementparts.
8

ACCESSORIES
CAUTION:
These accessories or attachments are recommended for use withyour Makitatool specified in this
manual. The
use of any other accessories or attachments might present a risk of injuryto persons.
The accessories or attachments should
be used only in the proper and intended manner.
Pari No.
741402~8
IBulkl
741402~8~1
741402~9~1
741402-C
941425~8
741402-8
741402-9AP
)Wheel cover
Grit Wheels
per pkg
St2e
4,, 3116..
24 1
4"
x 114" x 518''
-
C24R
4"
x 3116" x 518''
4" x 114" x 518''
~245
@Depressed center wheels
741405~21
741405~2P
741423-0-1
1
5
4"
x 3116" x 518" 36 -
741423 8
741423~0
741426-8
741424
8 1
741424
8
741407~8 24
741427
8 C24R 1
4 i/z., 114- 718"
5" x 114" x 718''
FO,
Model
-
9526PB
3527PB
-
3528PB
@Inner flange
224337-3
82 224332-3
::;$:
@ Multi-disc
Part No.
742038 OA
742038-08
742038-OC
742038 00 100
794332 2A
4,' x 112" x 518'' 9526PB
4~112" x 518" x 718'' 9527PB
794332-20
I I 100 I
794331-4A
794331~48
794331-4c 5"
x 518" x 718"
9528PB
794331 4D
@Lock nut
224563-4
9

@Rubber pad
Pam No. Diameter
743009-6
Grit ""
per Pkg.
@Abrasive discs
742087-3~3
742040-9-3
742036-A-5
742037-A-5
742030-A-5
742087-A-5
742040-A-5 120
742038-0
I I 50 I
742040-0 I
4-1/2"
742074-A-5
I
I 120 I
El-
-
120
742075-A-5
742076-A-5
742073-0
7 4 2 0 74 - 0
742075-8
7 4 2 0 7 6 - 8
Far Model
9526PB
@Lock nut 10-30
(For abrasive disc)
@Wire cup brush 75
Part No. 1 FOO;OI;
224502-4
@Wire bevel brush
85
Part No. I For Model
@Wheel guard assembly
(For
cut-off wheel) For Model 9526PB
Part
No. 192476-6
9527PB
9528P0
10

@Cut-off wheel
Part No. Size Grit Wheels per pkg. For use
724104-1 10 4" x 3/32" x 518"
36 10 For masonry and concrete.
77~1n7-5in A" ~fi~" VR" AF~ in
For steel and cast iron.
For Model
9526PB
Knot-Type
Wire cup brush
Stringer Bead Twist
Wire brush wheel
Full Cable Twist
Wire brush wheel
Part No. I For Model
743208-0A I
Part No. I For Model
74321 1-A
Knotted Twist
Wire brush wheel
Lock nut wrench
Grip
Part No. 152487-3
782412-6 1
11

Dec.-05-'95 US
100 mm (4")

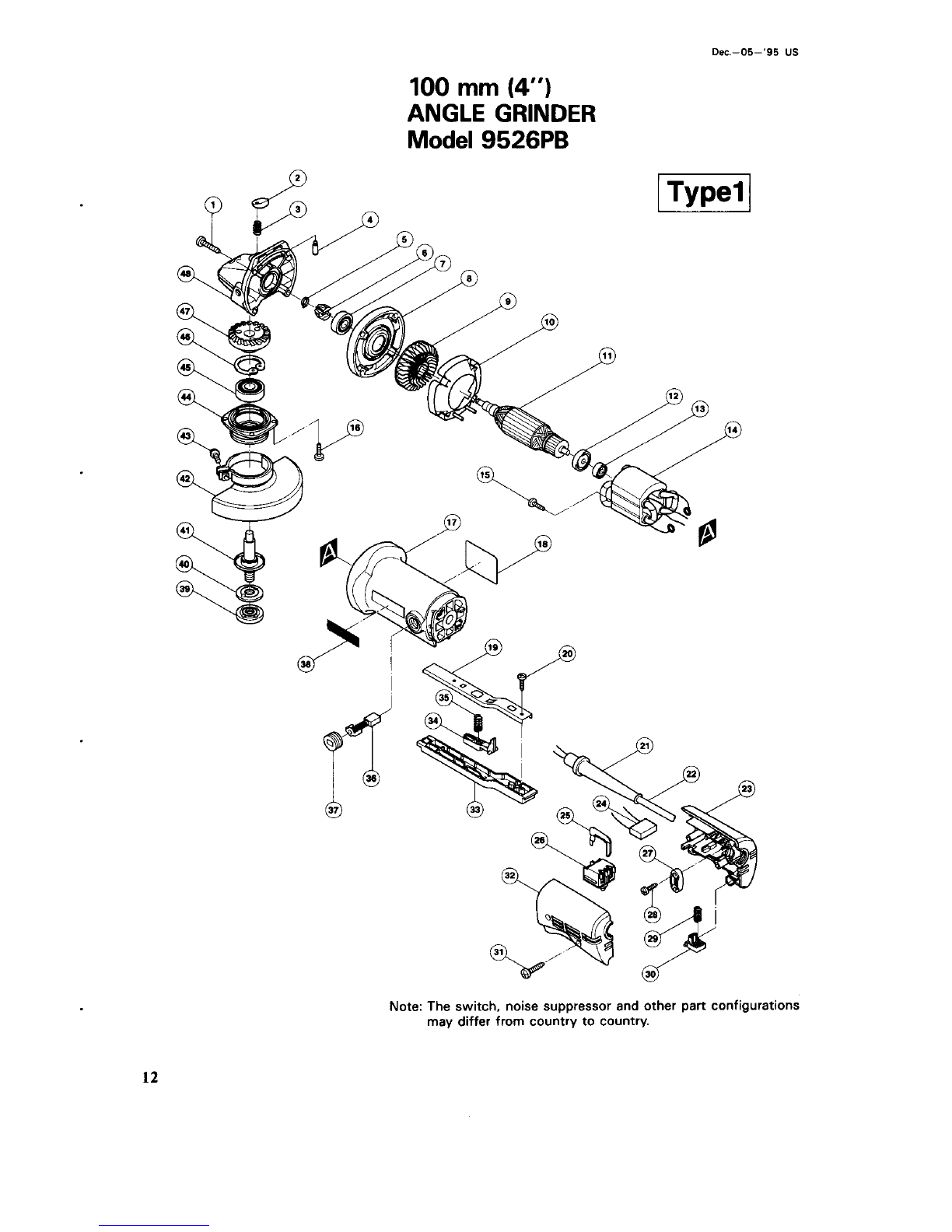

ANGLE GRINDER
Model 9526PB
Note: The switch, noise suppressor and other part configurations
may differ from country to country.
12

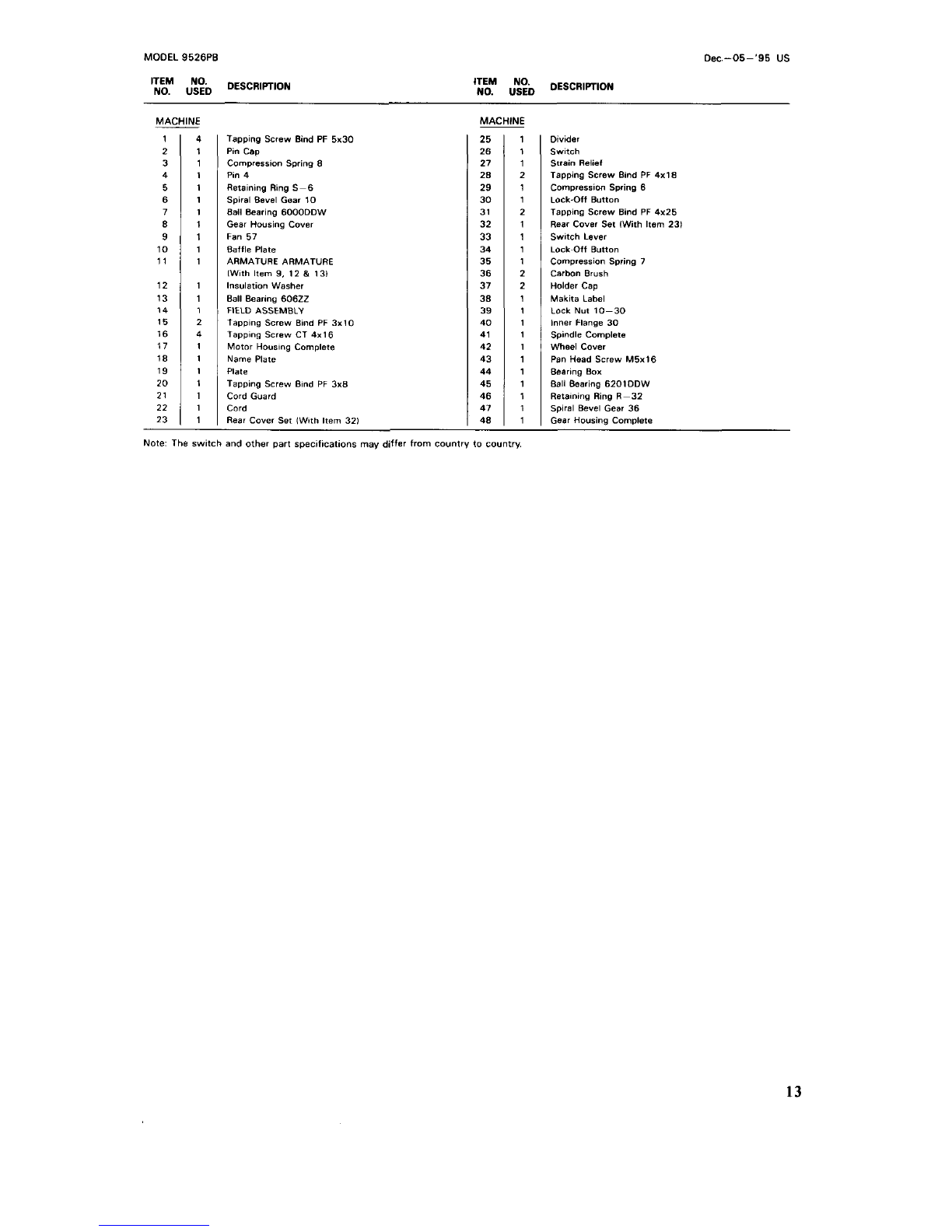

MODEL 9526PB Dec-O5-'95 US
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
I;:, ,&, DESCRIPTION
4 Tapping Screw Bind PF 5x30 25 1
1 Pl" cap 26 1
1 PI" 4 28 2
1 Spiral Bevel Gear 10 30 1
1 Ball Bearing 6000DDW 31 2
1 Gear Housing Cover 32 1
1
Fan 57 33 1
1 Baffle
Plate 34 1
1 ARMATURE ARMATURE 35 1
lW8lh
Item 9. 12 & 131 36 2
1
ln~~lation Washer 37 2
1 FIELD ASSEMBLY 39 1
2 Tapping
Screw Bind PF 3x10 40 1
4 Tapping
Screw CT 4x16 41 1
1
Name Plate 43 1
1 Plate 44 1
1 Cord Guard 46 1
1 Cord 41
1
1 Rear Cover Set [With Item 321 48 1
1 Compression Spring 8 27 1
1 Retaining Ring
S-6 29 1
1 Ball Bearing
60622 38 1
1 Motor Housing Complete 42 1
1 Tapping
Screw Bind PF 3x8 45 1
$ED DESCRIPTION
Divider
Switch
Strain Relief
Tapping Screw Bind PF 4x18
Compression Spring
6
Lock-Off Button
Tapping
Screw Bind PF 4x25
Rear Cover Set [With Item 231
Switch Lever
Lock
Off Button
Compression Spring 7
Carbon Brush
Holder Cap
Makita Label
Lock
Nut 10-30
Inner Flange 30
Spindle Complete
Wheel Cover
Pan Head Screw M5x16
Bearing BOX
Ball Bearing 6201DDW
Retaining Ring R-32
Spiral Bevel Gear 36
Gear Housing Complete
13

Dec.-05-'95 US

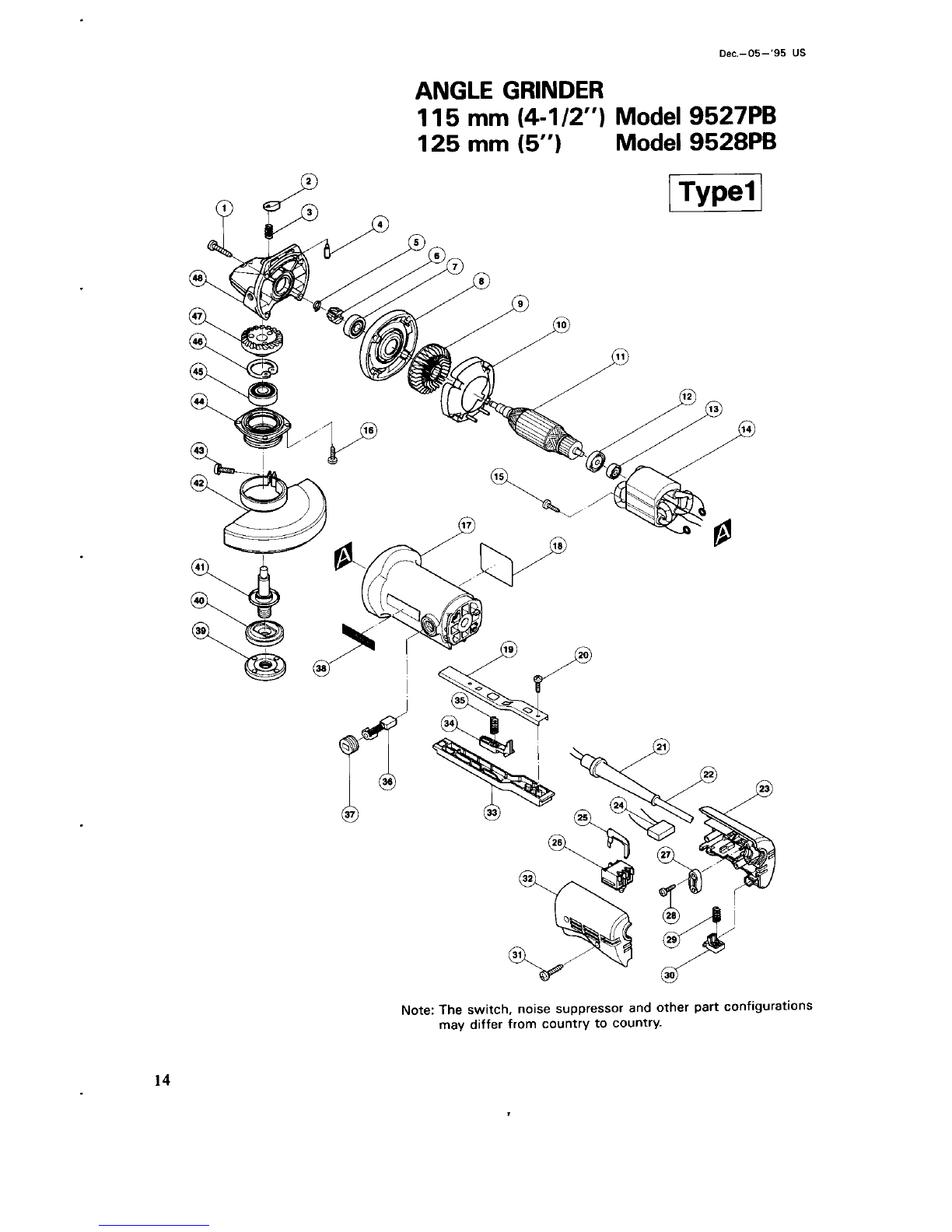

ANGLE GRINDER
11 5 mm (4-1 12") Model 9527PB
125 mm (5") Model 9528PB
Note: The switch, noise suppressor and other part configurations
may differ from country to country.
14

MODEL 95270. 9528PB
IT;'," LD DESCRIPTION
De=.-05-'95 US
'LLM AtD DESCRIPTION
MACHINE
__
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
-
4
1
1
1
1
1
1
1
1
1
1
1
1
1
2
4
1
1
1
1
1
1
1
-
Tapping Screw Bind PF 5x30
PI" cap
Compression Spring
8
P," 4
Retaining Ring 5- 6
Spiral Bevel Gear 10
Ball Bearing 6WODDW
Gear Housing Cover
Fan 57
Baffle Plate
ARMATURE ARMATURE
lWith Item 9. 12 & 131
Insulation Washer
Ball Bearing 60622
FIELD ASSEMBLY
Tapping
Screw Bind PF 3x10
Tapping Screw CT 4x16
Motor Housing Complete
Name Plate
Plate
Tapping
Screw Bind PF 3x8
Cord Guard
Cord
Rear Cover Set lWith Item 321
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1
1
1
2
1
1
2
1
1
1
1
2
2
1
1
1
1
1
1
1
1
1
1
1
Divider
Switch
Strain Relief
Tapping Screw Bind PF 4x18
Compression Spring 6
Lock Dff Button
Tapping
Screw Bind PF 4x25
Rear Cover Set lWith Item 231
SwmhLever
Lock Off Button
Compression Spring
7
Carbon Brush
Holder Cap
Makita Label
Lock Nu1 14-45
Inner Flange 42
Spindle Complete
Wheel Cover
Pan Head Screw MSxl6
Ball Bearing 6201DDW
Retaining Ring R-32
Spiral Bevel Gear 36
Gear Housing Complete
Besnng Box
Note The Switch and other part speciftcations may differ from country to country.
15

MAKITA LIMrrED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop duringthis one-year period, return the COMPLETE
tool, freight prepaid, to one of Makita's Factory or Authorized SeMce Centers. If inspection shows
the trouble is caused by defective workmanship or material, Makita
will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
0 repairs have been made or attemptedby others:
repairs are required because of normal wear and tear:
0 Thetool has been abused, misused or improperly maintained;
0 alterations have been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTALOR CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USE
OF THE PRODUCT.THIS DISCLAIMER
APPLIESBOTH DURING AND AFTER THE TERM OF THIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLlED WARRANTIES, INCLUDING IMPLIED
WARRANTIES
OF "MERCHANTABILITY" AND "FITNESS FOR A SPECIFIC PURPOSE,''
AFTERTHEONE-YEAR
TERM OF THIS WARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion or limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation onhow long an implied warranty lasts,
so the above limitation may not apply to you.
MAKITA MANUFACTURING EUROPE LTD
ROAD
7, HORTONWOOD INDUSTRIAL ESTATE
TELFORD, SHROPSHIRE TF1 4GP
884047 - 062
