1
ENGLISH (Original instructions)
INSTRUCTION MANUAL
DOUBLE INSULATION
IMPORTANT: Read Before Using.
Die Grinder
GD0602
009306

2
ENGLISH (Original instructions)
SPECIFICATIONS
Model GD0602
Max. collet capacity 8 mm
Max. wheel diameter 38 mm
Wheel Point Max. mandrel (shank) length 46 mm
Rated speed (n) / No load speed (n0) 25,000 min-1
Overall length 264 mm
Net weight 1.4 kg
Safety class /II
• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications may differ from country to country.
• Weight according to EPTA-Procedure 01/2003
END202-8
Symbols
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
･Read instruction manual.
･DOUBLE INSULATION
･Wear safety glasses.
･Only for EU countries
Do not dispose of electric equipment
together with household waste
material!
In observance of the European
Directive, on Waste Electric and
Electronic Equipment and its
implementation in accordance with
national law, electric equipment that
have reached the end of their life must
be collected separately and returned to
an environmentally compatible
recycling facility.
ENE050-1
Intended use
The tool is intended for grinding ferrous materials or
deburring castings.
ENF002-2
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated and can, therefore, also be used
from sockets without earth wire.
GEA005-3
General Power Tool Safety
Warnings
WARNING Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and
instructions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
4. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
5. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of
electric shock if your body is earthed or grounded.
6. Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.

3
7. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
8. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk
of electric shock.
9. If operating a power tool in a damp location is
unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
10. Use of power supply via a RCD with a rated
residual current of 30 mA or less is always
recommended.
Personal safety
11.
Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication.
A
moment of inattention while operating power tools may
result in serious personal injury.
12. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
13. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your finger on the switch or energising power
tools that have the switch on invites accidents.
14. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool
may result in personal injury.
15. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
16.
Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts.
Loose clothes, jewellery or
long hair can be caught in moving parts.
17. If devices are provided for the connection of
dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce dust-
related hazards.
Power tool use and care
18. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
19. Do not use the power tool if the switch does
not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous
and must be repaired.
20. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
21. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
22. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many
accidents are caused by poorly maintained power
tools.
23. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
24. Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
Service
25. Have your power tool serviced by a qualified
repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
26. Follow instruction for lubricating and
changing accessories.
27. Keep handles dry, clean and free from oil and
grease.
GEB034-9
DIE GRINDER SAFETY
WARNINGS
Safety Warnings Common for Grinding Operation:
1. This power tool is intended to function as a
grinder. Read all safety warnings, instructions,
illustrations and specifications provided with
this power tool. Failure to follow all instructions
listed below may result in electric shock, fire
and/or serious injury.
2. Operations such as sanding, wire brushing,
polishing or cutting-off are not recommended
to be performed with this power tool.

4
Operations for which the power tool was not
designed may create a hazard and cause
personal injury.
3. Do not use accessories which are not
specifically designed and recommended by
the tool manufacturer. Just because the
accessory can be attached to your power tool, it
does not assure safe operation.
4. The rated speed of the accessory must be at
least equal to the maximum speed marked on
the power tool. Accessories running faster than
their rated speed can break and fly apart.
5. The outside diameter and the thickness of
your accessory must be within the capacity
rating of your power tool. Incorrectly sized
accessories cannot be adequately controlled.
6. The arbour size of accessories must properly
fit the collet of the power tool. Accessories that
do not match the mounting hardware of the power
tool will run out of balance, vibrate excessively
and may cause loss of control.
7. Mandrel mounted accessories must be fully
inserted into the collet or chuck. If the mandrel
is insufficiently held and/or the overhang of the
wheel is too long, the mounted accessory may
become loose and be ejected at high velocity.
8. Do not use a damaged accessory. Before each
use inspect the accessory such as abrasive
wheels for chips and cracks. If power tool or
accessory is dropped, inspect for damage or
install an undamaged accessory. After
inspecting and installing an accessory,
position yourself and bystanders away from
the plane of the rotating accessory and run
the power tool at maximum no-load speed for
one minute. Damaged accessories will normally
break apart during this test time.
9. Wear personal protective equipment.
Depending on application, use face shield,
safety goggles or safety glasses. As
appropriate, wear dust mask, hearing
protectors, gloves and workshop apron
capable of stopping small abrasive or
workpiece fragments. The eye protection must
be capable of stopping flying debris generated by
various operations . The dust mask or respirator
must be capable of filtrating particles generated
by your operation. Prolonged exposure to high
intensity noise may cause hearing loss.
10. Keep bystanders a safe distance away from
work area. Anyone entering the work area
must wear personal protective equipment.
Fragments of workpiece or of a broken accessory
may fly away and cause injury beyond immediate
area of operation.
11. Hold power tool by insulated gripping
surfaces only, when performing an operation
where the cutting accessory may contact
hidden wiring or its own cord. Cutting
accessory contacting a "live" wire may make
exposed metal parts of the power tool "live" and
could give the operator an electric shock.
12. Always hold the tool firmly in your hand(s)
during the start-up. The reaction torque of the
motor, as it accelerates to full speed, can cause
the tool to twist.
13. Use clamps to support workpiece whenever
practical. Never hold a small workpiece in one
hand and the tool in the other hand while in
use. Clamping a small workpiece allows you to
use your hand(s) to control the tool. Round
material such as dowel rods, pipes or tubing have
a tendency to roll while being cut, and may cause
the bit to bind or jump toward you.
14. Position the cord clear of the spinning
accessory. If you lose control, the cord may be
cut or snagged and your hand or arm may be
pulled into the spinning accessory.
15. Never lay the power tool down until the
accessory has come to a complete stop. The
spinning accessory may grab the surface and pull
the power tool out of your control.
16. After changing the bits or making any
adjustments, make sure the collet nut, chuck
or any other adjustment devices are securely
tightened. Loose adjustment devices can
unexpectedly shift, causing loss of control, loose
rotating components will be violently thrown.
17. Do not run the power tool while carrying it at
your side. Accidental contact with the spinning
accessory could snag your clothing, pulling the
accessory into your body.
18. Regularly clean the power tool’s air vents. The
motor’s fan will draw the dust inside the housing
and excessive accumulation of powdered metal
may cause electrical hazards.
19. Do not operate the power tool near flammable
materials. Sparks could ignite these materials.
20. Do not use accessories that require liquid
coolants. Using water or other liquid coolants
may result in electrocution or shock.
Kickback and Related Warnings
Kickback is a sudden reaction to a pinched or snagged
rotating accessory. Pinching or snagging causes rapid
stalling of the rotating accessory which in turn causes
the uncontrolled power tool to be forced in the direction
opposite of the accessory’s rotation.
For example, if an abrasive wheel is snagged or
pinched by the workpiece, the edge of the wheel that is
entering into the pinch point can dig into the surface of

5
the material causing the wheel to climb out or kick out.
The wheel may either jump toward or away from the
operator, depending on direction of the wheel’s
movement at the point of pinching. Abrasive wheels
may also break under these conditions.
Kickback is the result of power tool misuse and/or
incorrect operating procedures or conditions and can be
avoided by taking proper precautions as given below.
a) Maintain a firm grip on the power tool and
position your body and arm to allow you to
resist kickback forces. The operator can control
kickback forces, if proper precautions are taken.
b) Use special care when working corners,
sharp edges etc. Avoid bouncing and snagging
the accessory. Corners, sharp edges or bouncing
have a tendency to snag the rotating accessory
and cause loss of control or kickback.
c) Do not attach a toothed saw blade. Such
blades create frequent kickback and loss of control.
d) Always feed the bit into the material in the same
direction as the cutting edge is exiting from the
material (which is the same direction as the chips
are thrown).
Feeding the tool in the wrong direction
causes the cutting edge of the bit to climb out of the
work and pull the tool in the direction of this feed.
Safety Warnings Specific for Grinding:
a) Use only wheel types that are recommended
for your power tool and only for recommended
applications.
b) Do not position your hand in line with and
behind the rotating wheel. When the wheel, at
the point of operation, is moving away from your
hand, the possible kickback may propel the
spinning wheel and the power tool directly at you.
Additional Safety Warnings:
21. The tool is intended for use with bonded
abrasive wheel points (grinding stones)
permanently mounted on plain, unthreaded
mandrel (shanks).
22. Make sure the wheel is not contacting the
workpiece before the switch is turned on.
23. Before using the tool on an actual workpiece,
let it run for a while. Watch for vibration or
wobbling that could indicate poor installation
or a poorly balanced wheel.
24. Use the specified surface of the wheel to
perform the grinding.
25. Watch out for flying sparks. Hold the tool so
that sparks fly away from you and other
persons or flammable materials.
26. Do not leave the tool running. Operate the tool
only when hand-held.
27. Do not touch the workpiece immediately after
operation; it may be extremely hot and could
burn your skin.
28. Observe the instructions of the manufacturer
for correct mounting and use of wheels.
Handle and store wheels with care.
29. Check that the workpiece is properly
supported.
30. If working place is extremely hot and humid,
or badly polluted by conductive dust, use a
short-circuit breaker (30 mA) to assure
operator safety.
31. Do not use the tool on any materials
containing asbestos.
32. Always be sure you have a firm footing. Be
sure no one is below when using the tool in
high locations.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to safety rules for the subject product. MISUSE or
failure to follow the safety rules stated in this
instruction manual may cause serious personal
injury.

6
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function
on the tool.
Switch action
1
009307
CAUTION:
• Before plugging in the tool, always check to see
that the slide switch actuates properly and returns
to the "OFF" position when the rear of the slide
switch is depressed.
To start the tool, slide the slide switch toward the "I
(ON)" position. For continuous operation, press the front
of the slide switch to lock it.
To stop the tool, press the rear of the slide switch, then
slide it toward the "O (OFF)" position.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the
tool.
Installing or removing wheel point
1
2
3
009308
Loosen the collet nut and insert the wheel point into the
collet nut. Use one wrench to hold the spindle and the
other one to tighten the collet nut securely.
The wheel point should not be mounted more than 10
mm from the collet nut. Exceeding this distance could
cause vibration or a broken shaft.
10 mm (3/8") MAX.
015679
To remove the wheel point, follow the installation
procedure in reverse.
CAUTION:
• Use the correct size collet cone for the wheel point
which you intend to use.
OPERATION
009310
Turn the tool on without the wheel point making any
contact with the workpiece and wait until the wheel point
attains full speed. Then apply the wheel point to the
workpiece gently. To obtain a good finish, move the tool
in the leftward direction slowly.
CAUTION:
• Apply light pressure on the tool. Excessive
pressure on the tool will only cause a poor finish
and overloading of the motor.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection
or maintenance.
• Never use gasoline, benzine, thinner, alcohol or
the like. Discoloration, deformation or cracks may
result.
To maintain product SAFETY and RELIABILITY, repairs,
carbon brush inspection and replacement, any other
maintenance or adjustment should be performed by
Makita Authorized Service Centers, always using Makita
replacement parts.
1. Wrench 13
2. Collet nut
3. Wrench 13
1. Slide switch

7
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Wheel points
• Collet cone set (3 mm, 6 mm, 8 mm, 1/4", 1/8")
• Wrench 13
• Side handle set

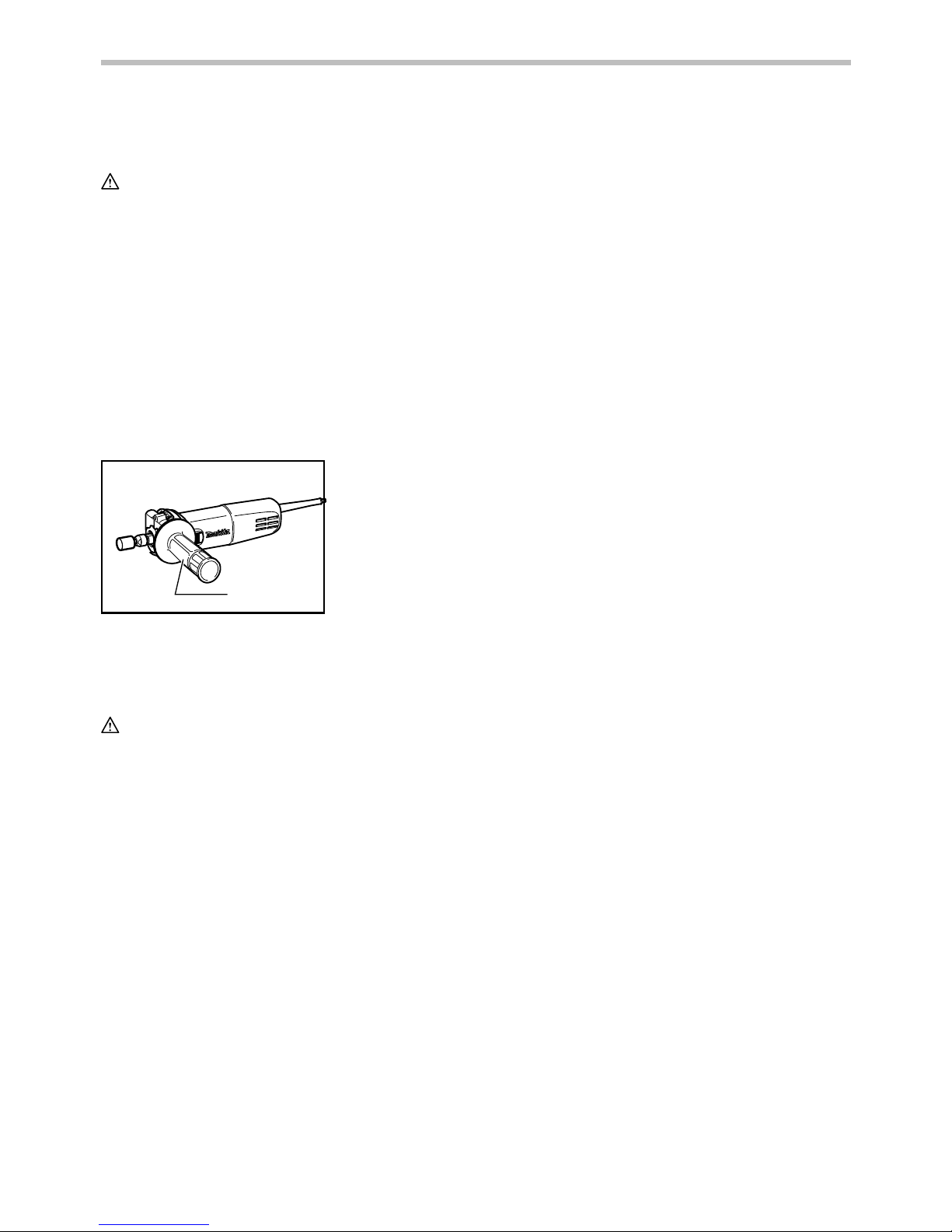

Side handle
1
009311
When using the side handle, remove the rubber
protector, insert the side handle on the tool barrel as far
as it will go and rotate it to the desired angle. Then
tighten the handle firmly by turning clockwise.
CAUTION:
• When using the tool without handle, always install
the rubber protector on the tool.
• When installing the rubber protector, always push
it onto the tool until the protrusion inside the
rubber fits to the grooves in the tool.
NOTE:
• Some items in the list may be included in the tool
package as standard accessories. They may differ
from country to country.
1. Side handle

8
Makita Corporation
www.makita.com
884856D7
