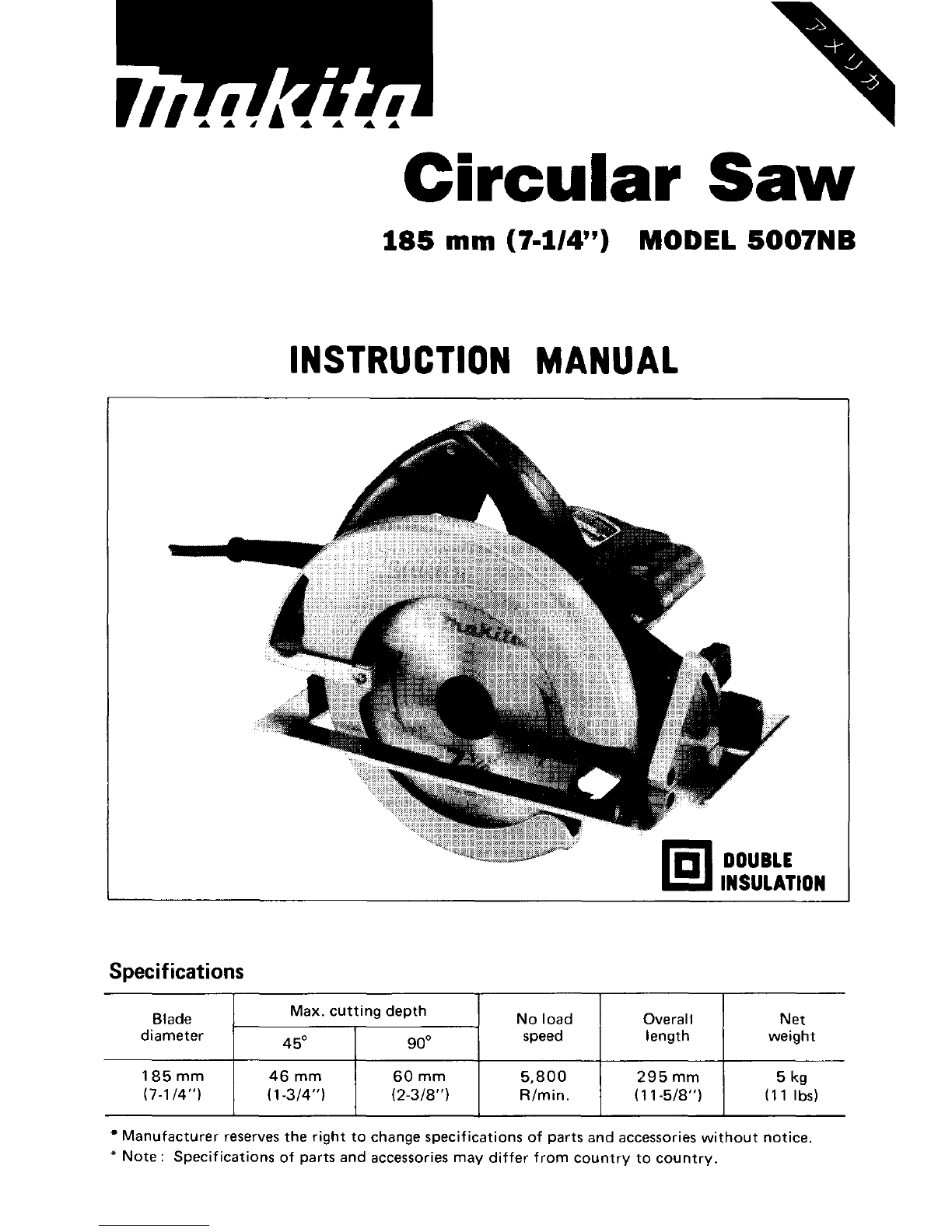

Circular Saw
185 mm (7-1/4") MODEL 5007NB
INSTRUCTION MANUAL
Specifications
Max. cuttingdepth
diameter
5,800
295 mm
(7-1 14") (1 -314") Rlmin. (11 -518") (11 Ibs)
185 mm
Manufacturer reserves the right tochange specifications of parts and accessories without notice.
* Note: Specifications of partsand accessories may differ from country tocountry.

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING:
WHEN USING ELECTRICTOOLS, BASICSAFETY
PRECAUTIONSSHOULDALWAYS BE FOLLOWEDTO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT.Don't use power tools in damp
or wet locations. Keep work area well
lit. Don't expose power tools torain.
Don't use tool
in presence of flammable liquids or gases.
KEEP CHILDRENAWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. When
not in use, tools should bestored in dry, andhigh
or locked-up place
- out of reach of children.
DON'T FORCETOOL.
It will do thejob better andsafer atthe ratefor which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment todo the job of a
heavy-dutytool. Don't usetool for purpose notintended; for example, don't
use circular saw for cutting tree limbs or logs.
DRESS PROPERLY. Don't wear looseclothingorjewelry. They can becaught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair coveringtocontain long hair.
USE SAFETY GLASSES. Also use face or dust mask if cuttingoperation is
dusty.
DON'T ABUSE CORD. Never carry tool by cordor yank
it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricating and changing acces-
sories. Inspecttool cords periodicallyandif damaged, have repairedbyautho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS. When notinuse, beforeservicing, and whenchang-
ing accessories, such as blades, bits, cutters.

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keysandadjustingwrenches are removed from
tool before turning
it on.
15. AVOID UNINTENTIONALSTARTING. Don't carry toolwithfinger onswitch.
Be sure switch is OFF when plugging
in.
16. EXTENSIONCORDS. Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy enough to carry
the current your product will draw. An undersized cord will cause a drop
inlinevoltage resulting
in loss of power andoverheating. Table 1 shows the
correct size touse depending oncord lengthand nameplateampere rating.
If
in doubt, use the next heavier gage. The smaller the gage number, the
heavier the cord.
TABLE 1 MINIMUM GAGE FOR CORD SETS
Ampere Rating
More
Not More
Than Than
I
Total Length of Cord in Feet
0 - 25 26 - 50 51 - 100 101 - 150
AWG
0- 6
6 - 10
10 ~ 12
12 ~ 16
18 16 14
16 16 14 12
14 12
Not Recommended
18 16 ;: 1 12
17. OUTDOOR USE EXTENSIONCORDS. When tool isusedoutdoors, use only
extension cords intended for use outdoors and
so marked.
18. STAY ALERT. Watch what you are doing, usecommon sense. Don't operate
tool when you are tired.
19. CHECK DAMAGEDPARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly andperform itsintendedfunction. Check for alignment of
movingparts, bindingof movingparts, breakageof parts, mounting, andany
other conditions that may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced by an authorized serv-
ice center unlessotherwise indicatedelsewhere
in this instruction manual.
Have defective switches replaced by authorized service center. Don't use
tool if switch does not turn
it on and off.
20. GUARD AGAINST ELECTRIC SHOCK. Preventbody contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
21
. REPLACEMENTPARTS. When servicing, useonly identicalreplacementparts.
22. POLARIZEDPLUGS. To reducethe risk of electric shock, this equipment has
a polarized plug (one blade
is wider than the other). This plug will fit in a
polarized outlet only one way. If the plug does not fit fully
in the outlet,
reversethe plug.
If it stilldoes notfit, contact aqualifiedelectriciantoinstall
the proper outlet.
Do not change the plug in any way.
3

VOLTAGEWARNING: Before connectingthe toolto a power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source
with voltage greater than that specified
for the toolcan result
in SERIOUS INJURY to the user - as well as damage to
the tool.
If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.

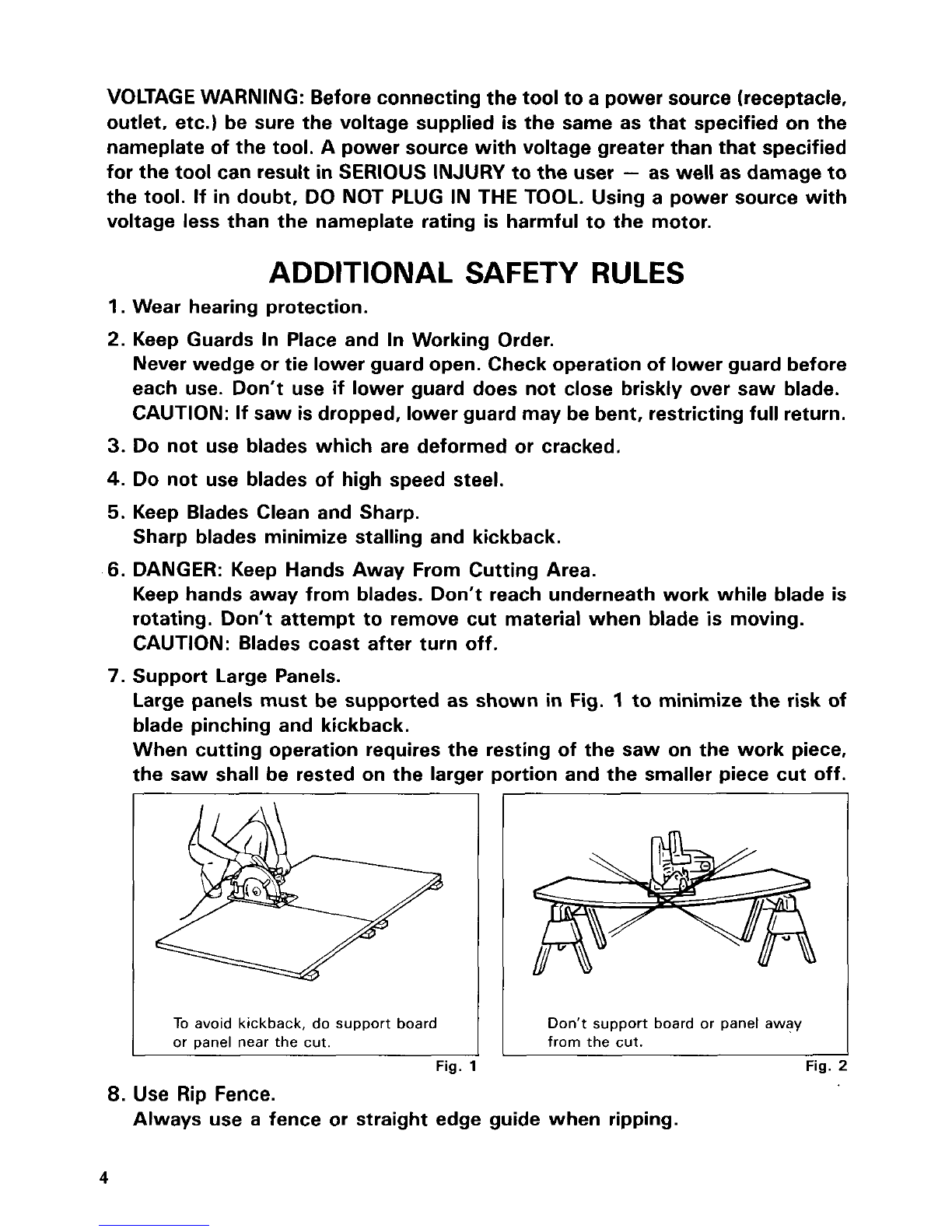

ADDITIONAL SAFETY RULES
1. Wear hearing protection.
2. Keep Guards In Place and In Working Order.
Never wedge or tie lower guardopen. Check operation of lower guard before
each use. Don’t use
if lower guard does not close briskly over saw blade.
CAUTION:
If saw isdropped, lowerguard may bebent, restricting full return.
3. Do not use blades which are deformed or cracked.
4. Do not use blades of high speed steel.
5. Keep Blades Clean and Sharp.
Sharp blades minimize stalling and kickback.
6. DANGER: Keep Hands Away From Cutting Area.
Keep hands away from blades. Don’t reach underneath work while blade is
rotating. Don’t attempt to remove cut material when blade
is moving.
CAUTION: Blades coast after turn off.
Large panels must be supported as shown
in Fig. 1 to minimize the risk of
blade pinching and kickback.
When cutting operation requires the resting of the saw on the work piece,
the saw shall be rested on the larger portion and the smaller piece cut off.
7. Support Large Panels.
To avoid kickback, do support board
or panel near the cut. Fig.
1
Don’t support board or panel away
from the cut.
8. Use Rip Fence.
Always use a fence or straight edge guide when ripping.
4
Fig. 2

9. Guard Against Kickback.
Kickback occurs whenthe saw stalls rapidly andisdrivenback towards the
operator. Releaseswitch immediately
if blade bindsor saw stalls. Keepblades
sharp. Support large panels as shown in Fig.
1. Use fence or straight edge
guidewhen ripping. Don't force tool. Stay alert exercisecontrol. Don't remove
saw from work during a cut while the blade is moving.
NEVER place your hand or fingers
behind the saw. If kickback occurs,
the saw could easilyjump backwards
over your hand, possibly causing
severe injury.
Fig. 3
IO. Lower Guard. Raise lower guard with the retracting handle.
11. Adjustments. Before cutting be sure depth and beveladjustmentsaretight.
12. Use Only Correct Blades In Mounting. Don't use blades with incorrect size
13. Avoid Cutting Nails. Inspect for and remove all nails from lumber before
cutting.
14. When operating the saw, keep the
cordaway from the cuttingarea and
position
it so that it willnotbe caught
onthe workpiece during the cutting
operation.
Operate with proper hand support,
proper workpiece support, and
supply cord routing away from the
work area.
holes. Never use defective or incorrect blade washers or bolts.
WARN
IN G :
A typical illustration of proper hand
support, workpiece support, and
supply cord routing.
Fig. 1
It is important to support the workpiece properly and to holdthe saw firmly
toprevent
loss of controlwhich could causepersonalinjury. Fig. 4 illustrates
typical hand support of the saw.
5

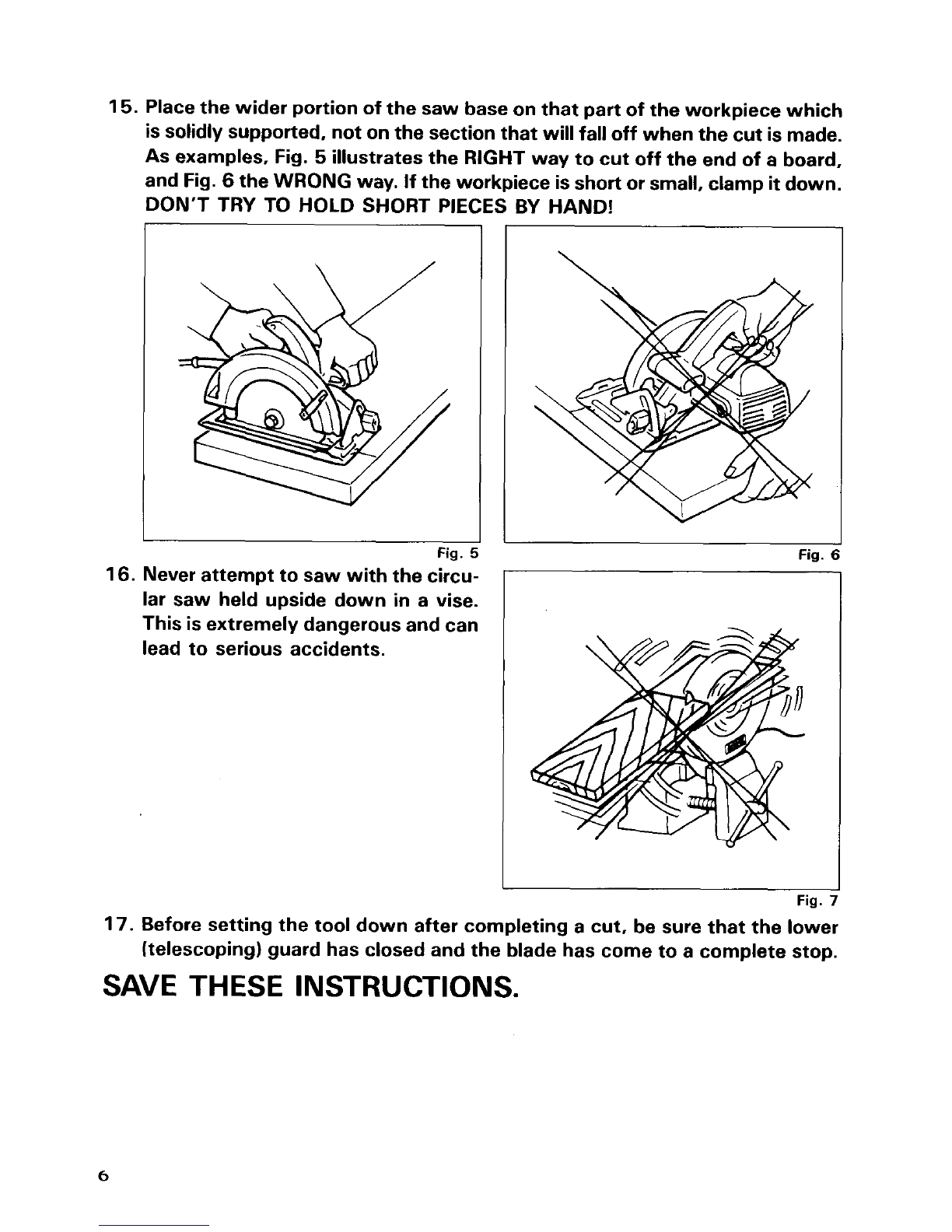

15. Placethe wider portion of the saw baseonthat partof the workpiece which
issolidly supported, notonthe sectionthat willfall off whenthe cutismade.
As examples, Fig. 5 illustratesthe RIGHT way tocut off theend of a board,
and Fig.
6 theWRONG way. If the workpiece isshort or small, clamp it down.
DON'T TRY TO HOLD SHORT
PIECE:
\ /
Fig.
BY HAND!
\
Fig. 6
16. Never attempt tosaw withthe circu-
lar saw held upside down
in a vise.
This isextremely dangerous andcan
lead to serious accidents.
I I
Fig. 7
17. Beforesetting the tool down after completing a cut, be sure that the lower
(telescoping)guard has closed and the blade has come to a complete stop.
SAVE THESE INSTRUCTIONS.
6

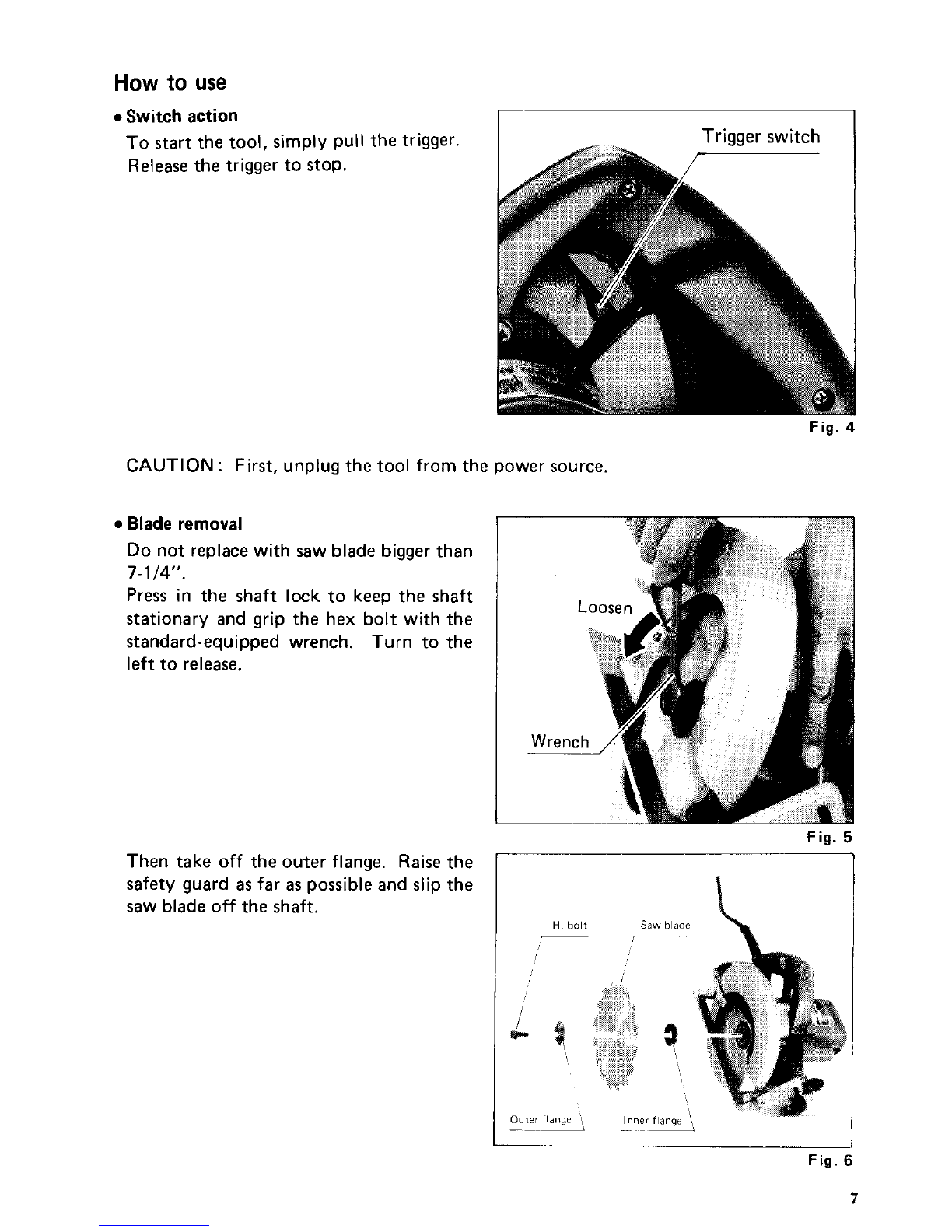

How to use
0 Switch action
To start the tool, simply pullthe trigger.
Release the trigger to stop. Trigger switch
Fig. 4
CAUTION : First, unplugthe tool from the power source.
0 Blade removal
Do not replacewith saw blade bigger than
Press in the shaft lock to keep the shaft
stationary and grip the hex bolt with the
standard-equippedwrench. Turn to the
left to release.
7- 114".
Fig. 5
Then take off the outer flange. Raise the
safety guard
as far as possibleand slip the
saw blade off the shaft.
Saw blade
___
H bolt
I
I
1
8x-
Outer flanqe \
Inner flanae \
Fig. 6
7

0 Blade installation
Blade installation
is performed by revers-
ingthe blade removalprocedure.
a. Installinner flange on shaft.
b. Installblade.
c. Put on outer flange.
d. Installhex bolt.
This circular saw uses
a saw blade with a
hole diameter of 5/8". The recessedside
of inner flange
is kept on the blade motor
side when mounting
(see figure). Raise
the safetv ward as far as possible (i.e., as
Ta
Inner flange- [-.Saw blade
Fig. 7
,I
when removingthe blade),then mount the blade on the shaft with the Makita name side
facing you.
Secure the hex bolttightly, or the blade will slip and not turn.
CAUTIONS:
Use only the Makitastandard-equippedwrench to installor remove the saw blade.
The use of other tools may cause dangerous loosenessor tightness.
0 Adjusting cuttingdepth
To adjust the cutting depth, loosen the
clamp lever on the depthguide then hold-
ing down the base with on hand raise or
lower the body for the desired depth.
CAUTIONS
:
Use a shallow cuttingdepthwhen cutting
thin stock for cleaner, safer cuts.
After making the cutting depth adjust-
ment, always secure the clamp lever.
Fig. 8
8

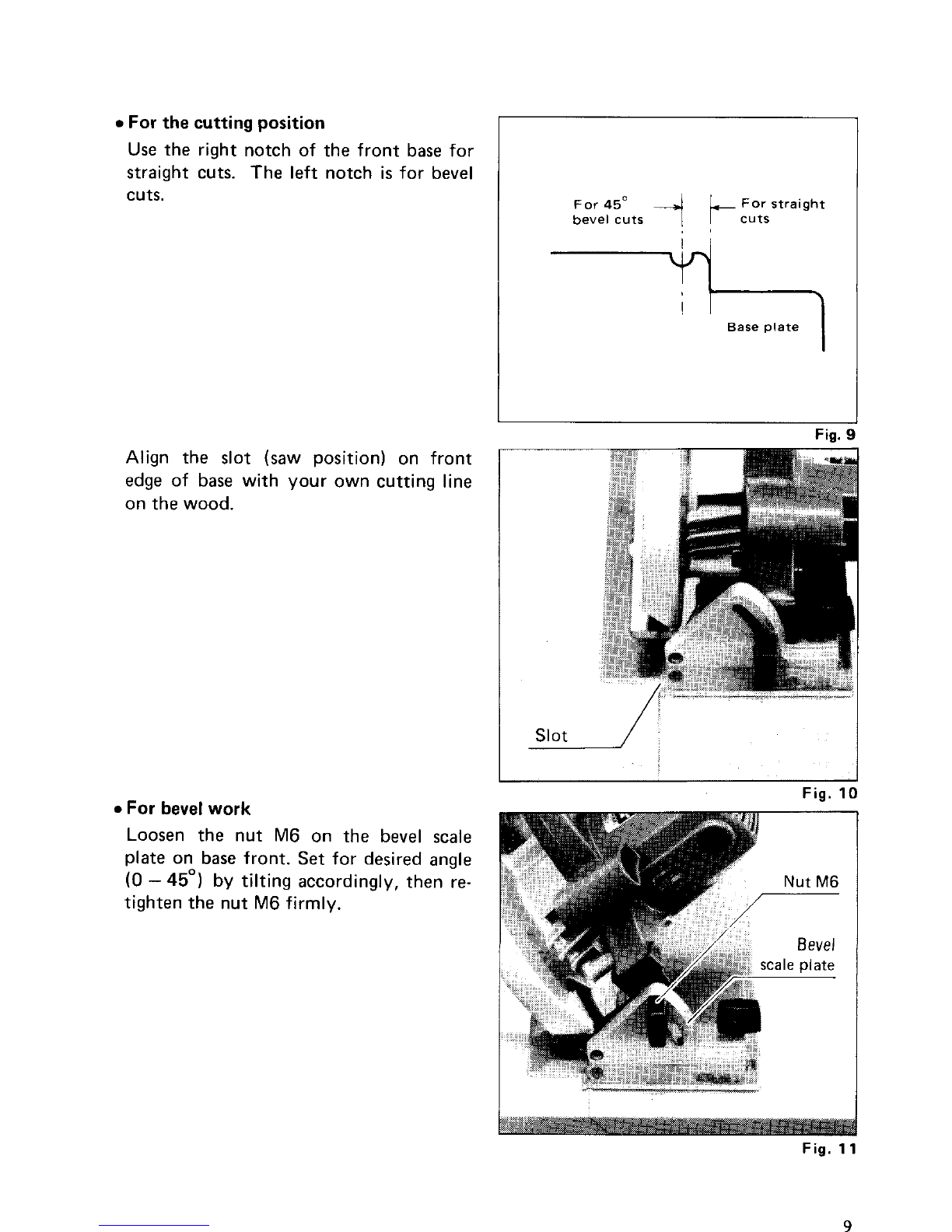

0 For thecuttingposition
Use the right notch of the front base for
straight cuts. The
left notch is for bevel
cuts.
Align the slot (saw position) on front
edge of base with your own cutting line
onthe wood.
0 For bevel work
Loosen the nut M6 on the bevel scale
plate on base front. Set for desired angle
(0 - 45') by tilting accordingly, then re-
tighten the nut M6firmly.
For 45' 4 cfuq:straight
bevel cuts
Base plate
Fig. 9
/
Fig. 10
Fig. 11
9

Maintenance
0 Replacingcarbon brushes
Replace carbon brushes when they wear
down to about
6 mm (1/4") of spark-
ing will occur. Both brushes should be
changed
at the same time.
NO.
185-76
I
U
6 mm (1 14")
Diameter di7$:e, Part No.
(ltlKA, (15.88mm,5/8" 20 721245-4
Fig. 12
ACCESSORIES
CAUTION :
The accessories specified in this manual are recommendedfor use with your Makita Circular Saw. The
use of any other accessory might be hazardous.
0 Guide rule
(Part No. 164095-8)
Wrench (13)
(Part No. 781 203-2)
SAW BLADE
Chisel tooth combination saw blade Carbide-tipped saw blade
Faster, smoother, longer sawing
without blade sharpening.
Cuts wood, drywall, plastics,
hardwood. etc.
For rip and cross-cutwork.
Most frequently used for
general carpentry.
10

Apr -09'84 US

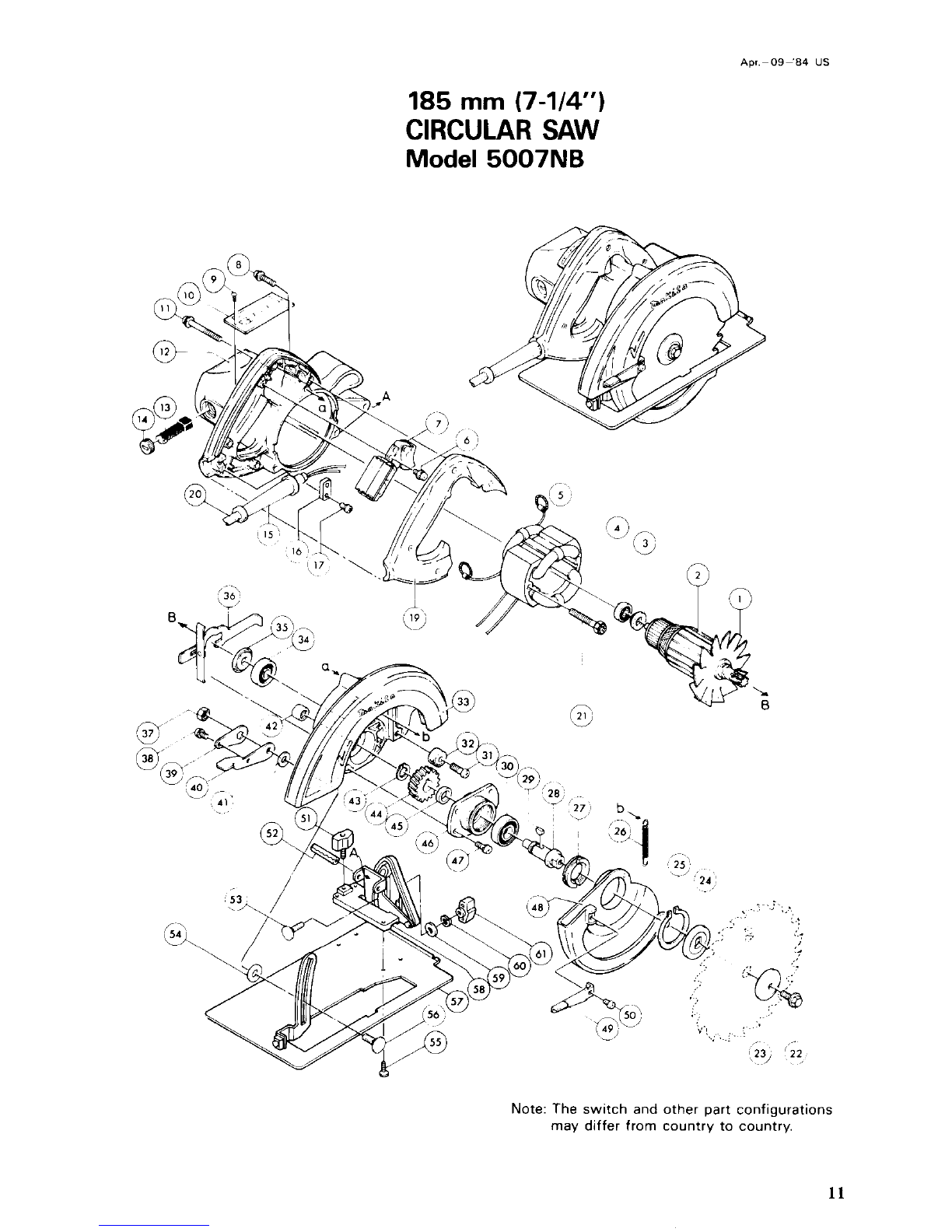

185 mm (7-1/4')
CIRCULAR SAW
Model 5007NB
Note: The switch and other part configurations
may differ from country
to country.
11

/!M MODEL 5007NB NO.
USED
MACHINE
~
MACHINE
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
~
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1

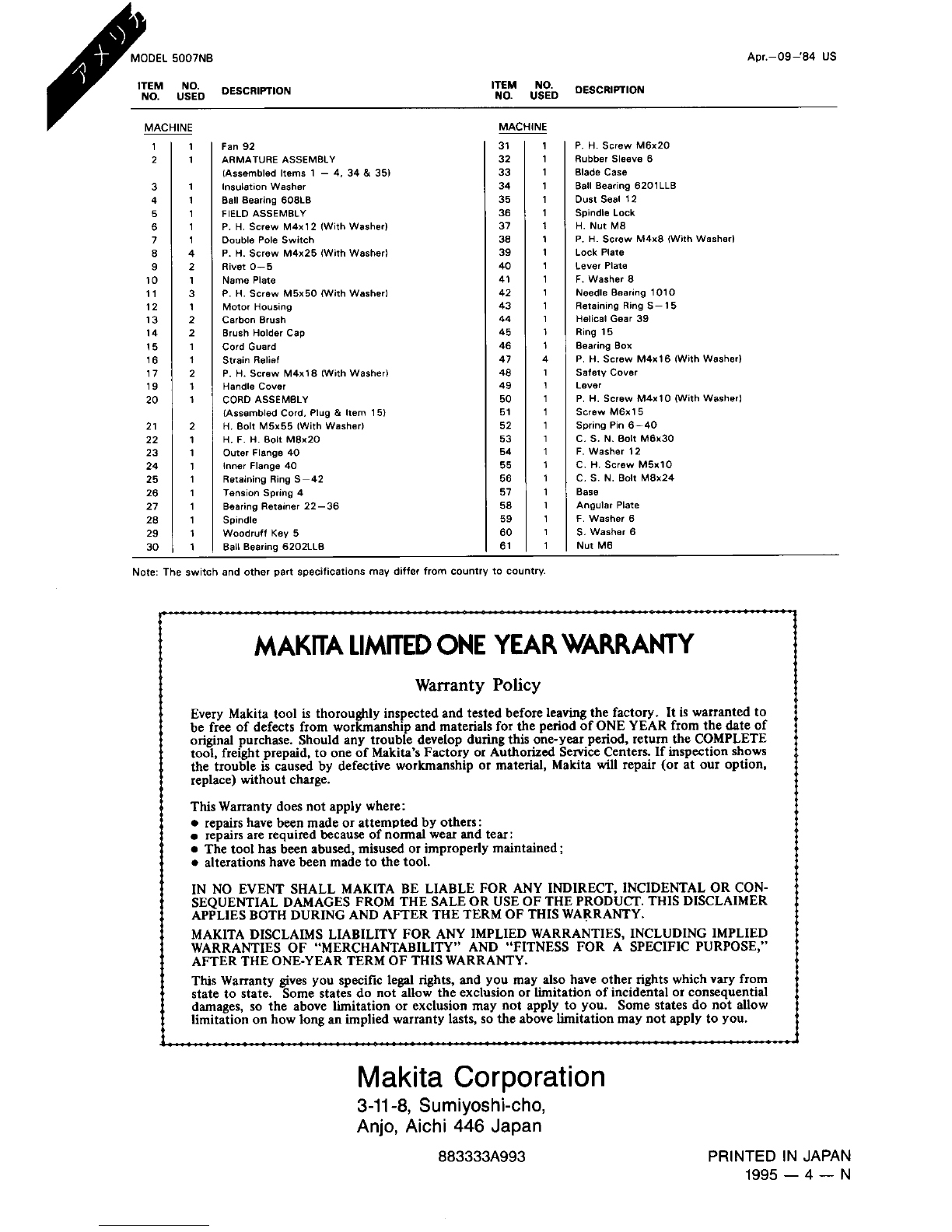

DESCRIPTION
10
11
12
13
14
15
16
17
19
20
21
22
23
24
25
26
27
28
29
30
ITEM NO.
NO. USED
11
21
31
41
51
61
71
04
92
1
3
1
2
2
1
1
2
1
1
2
1
1
1
1
1
1
1
1
1
Apr.-09-’84 US
DESCRIPTION
Fan 92
ARMATURE ASSEMBLY
lAasembled Items 1 - 4. 34 & 351
ln~~lation Washer
Ball Bearing 608LB
FIELD ASSEMBLY
P. H. Screw M4x12 (With Washer)
Double
Pole Switch
P. H. Screw M4x25 (With Washer1
Rivet
0-5
Name Plate
P H Screw M5x50 IWith Washerl
Motor Housing
Carbon Brush
Brush Holder Cap
Cord Guard
Strain
Relief
P. H. Screw M4xl8 (WithWasher1
Handle Cover
CORD ASSEMBLY
(AssembledCord. Plug & Item 151
H. Bolt M5x55 (With Washer)
H.
F H Bolt Max20
Outer Flange 40
Inner Flange 40
Retaining Ring S-42
Tension Spring 4
Bearing Retainer 22-36
Spindle
Woodruff
Key 5
Ball Bearing 6202LLB
Note The switch and other part Specifications may differ from country to country
P. H. Screw M6x20
Rubber Sleeve 6
Blade Case
Ball Bearing 6201LLB
0“St Seal 12
Spindle Lock
H. Nut MB
P. H. Screw M4x8 (With Warherl
Lock Plate
Lever Plate
F. Washer 8
Needle Bearing 1010
Retaining Ring 5-15
HelicalGear 39
Ring 15
BBBrlng BOX
P. H. Screw M4x16 (With Washer)
Safely Cover
LWW
P. H. Screw M4x10 IWith Washer)
Screw
M6x15
Spring Pin 6-40
C. S. N. Bolt M6x30
F. Washer 12
C. H. Screw M5x10
C. S N. Bolt MBx24
8858
Angular Plate
F Washer 6
S. Washer 6
NUM6
MAKmA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leavingthe factory. It is warranted to
be free of defects from workmanshipand materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop duringthis one-year period, return the COMPLETE
tool, freight prepaid,
to one of Makita’s Factory or Authorized ServiceCenters. If inspection shows
the trouble is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
ThisWarranty does not apply where:
repairs have been made or attemptedby others:
repairs are required because of normal wear and tear:
The tool has been abused, misused or improperly maintained ;
0 alterationshave been made to the tool.
i
IN NO EVENT SHALL MAKlTA BE LIABLE FOR ANY INDIRECT, INCIDENTALOR CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USE OFTHEPRODUCT. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THE TERM OFTHIS WARRANTY.
MAKlTA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THEONE-YEAR TERM OFTHISWARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state
to state. Some states do not allow the exclusion or limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation on how long an implied warranty lasts,
so the above limitation may not apply to you.
- __L
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi
446 Japan
883333A993
PRINTED IN JAPAN
1995
- 4 - N
