Makita LC1230 User manual

Metal Cutting Saw
305 mm (12”) MODEL LC1230
INSTRUCTION MANUAL
DOUBLE
INSULATION

SPECIFICATIONS
Blade diameter .............................................. ,305 mm (1 2")
Hole (arbor)diameter .......................................... .25.4 mm (1 "1
Noloadspeed(RPM) ................................................. 1,300
Dimensions (L x W x H) ......... 516 mm x 306 mm 603 mm (20-1/3" x 12" x 23-W8")
Netweight ................................................ 19.0 kg (41.8 Ibs)
Cuttingcapacity
rB-I
AxB
t
_.
Cuttingangle
45" 90 mm (3-1/2") 85
mm x 85 mm (3-5/16" x 3-5/16")
2

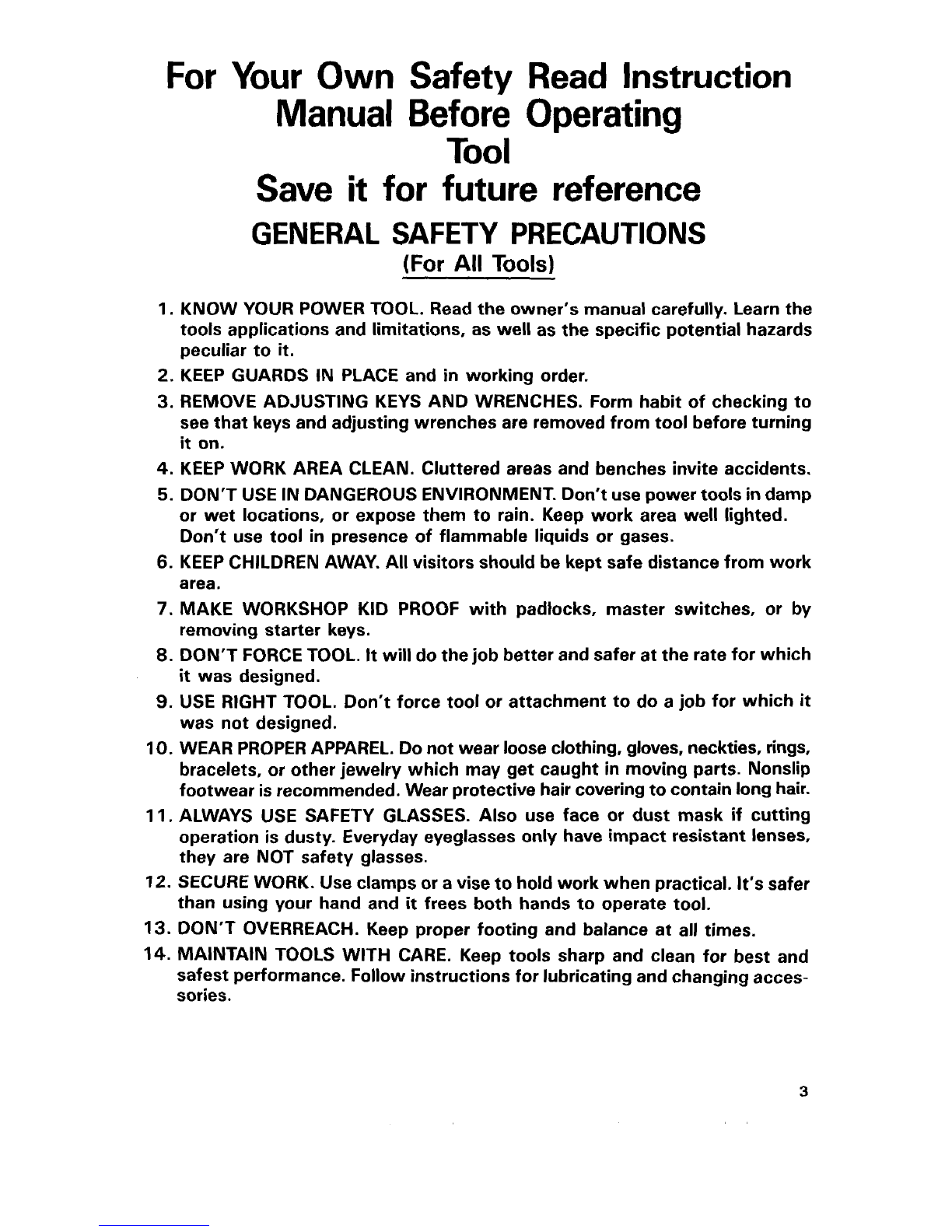

For Your Own Safety Read Instruction
Manual Before Operating
Tool
Save it for future reference
GENERAL SAFETY PRECAUTIONS
(For All Tools)
1. KNOW YOUR POWER TOOL. Readthe owner's manual carefully. Learnthe
tools applications and limitations, as well as the specific potential hazards
peculiar to
it.
2. KEEP GUARDS IN PLACE and in working order.
3. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keys and adjustingwrenches are removed from tool before turning
it on.
4. KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.
5. DON'T USE INDANGEROUSENVIRONMENT. Don't usepowertools in damp
or wet locations, or expose them to rain. Keep work area well lighted.
Don't use tool
in presence of flammable liquids or gases.
6. KEEP CHILDRENAWAY. All visitors should be kept safe distance from work
area.
7. MAKE WORKSHOP KID PROOF with padlocks, master switches, or by
removing starter keys.
8. DON'T FORCETOOL. It will do thejob better andsafer at the ratefor which
it was designed.
9. USE RIGHT TOOL. Don't force tool or attachment to do a job for which it
was not designed.
IO. WEAR PROPER APPAREL. Donotwear loose clothing, gloves, neckties, rings,
bracelets, or other jewelry which may get caught
in moving parts. Nonslip
footwear isrecommended. Wear protective haircovering tocontainlonghair.
11. ALWAYS USE SAFETY GLASSES. Also use face or dust mask if cutting
operation is dusty. Everyday eyeglasses only have impact resistant lenses,
they are NOT safety glasses.
12. SECURE WORK. Useclamps or a visetoholdwork when practical. It's safer
than using your hand and
it frees both hands to operate tool.
13. DON'T OVERREACH. Keep proper footing and balance at all times.
14. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for best and
safest performance. Follow instructions for lubricatingand changing acces-
sories.
3

Ampere Rating
More Than More Than
Not
Volts
I Total length of cord in feet
120 V
I 25 ft. 50 ft. 100 ft. 150 ft.
AWG
4
0 6
6 10
10 12
12 16
18 16 16 14
18 16 14 12
16 16 14 12
14 12
Not Recommended

VOLTAGE WARNING: Before connecting the tool to a power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified
on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result
in SERIOUS INJURY to the user - as well as damage to
the tool. If in doubt, DO NOT PLUG INTHE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
ADDITIONAL SAFETY RULES
1. Wear eye protection.
2. Do not operate saw without guards in place.
3. Don't use the tool in the presence of flammable liquids or gases.
4. Check the blade carefully for cracks or damage before operation.
5. Use only flanges specified for this tool.
6. Be carefulnottodamagethe arbor, flanges (especially the installing surface)
7. Make sure that the base is properly secured
so it will not move during
8. For your safety, removethe chips, small pieces, etc. from the table top before
9. Make sure the shaft lock is released before the switch is turned on.
Replace cracked or damaged blade immediately.
or bolt. Damage to these parts could result in blade breakage.
operation.
operation.
IO. Be sure that the blade does not contact the base in the lowest position.
11. Hold the handle firmly. Be aware that the saw moves up or down slightly
during start-up and stopping.
12. Do not perform any operation freehand. The workpiece must be secured
firmly with the vise during all operations.
13. Keep hands out of pathof saw blade, Avoid contact withany coasting blade.
It can still cause severe injury.
14. Never reach around saw blade.
15. Make sure the blade is not contacting the workpiece before the switch is
turned on.
16. Before using the tool on an actual workpiece, let it run for a while. Watch
for vibration or wobbling that could indicate poor installation or a poorly
balanced blade.
17. Wait until the blade attains
full speed before cutting.
18. Stop operation immediately
if you notice anything abnormal.
19. DO not attempt to lock the trigger in the on position.
20. Shut off power and wait for saw blade to stop before servicing or adjusting
tool.
5

21. Be alert at all times, especially during repetitive, monotonous operations.
Don't be lulledintoafalse sense of security. Blades are extremelyunforgiving.
22. Turn off tool and wait for saw blade to stop before moving workpiece or
changing settings.
23. Always use accessories recommended
in this manual. Use of improper
accessories such as abrasive wheels may cause an injury.
24. Don't abuse cord. Never yank cord
to disconnect it from the receptacle. Keep
cord away from heat, oil, water and sharp edges.
25. Never attempt to cut workpieces less than
14 Gauge (0.08") thick except
pipeor workpieceswhich cannot be securedfirmly withthe vise. The piece
cut off may be caught by the blade, causing dangerous scattering of chips
and/or damage to the carbide-tips. Possible serious injury may result.
.
26. Unplug tool before changing blade or servicing.
SAVE THESE INSTRUCTIONS.
6

Socket wrench
The socket wrench is stored on the left
side
of the tool base. When using the
socket wrench, pull it out
of the wrench
holder. After using the socket wrench,
returnit to the wrench holder.
Positioningthe tool
When the tool is shipped from the factory,
the handle is locked in the lowered posi-
tion. Release the handle from the lowered
position by lowering is slightly and remov-
ingthe chainfrom the hook on the handle.
Bolt the tool with two bolts to
a level and
stablesurface usingthe bolt holes provided
in the
tool base. This will help prevent tip-
pingand possibleinjury.
Bolt
-
U
7

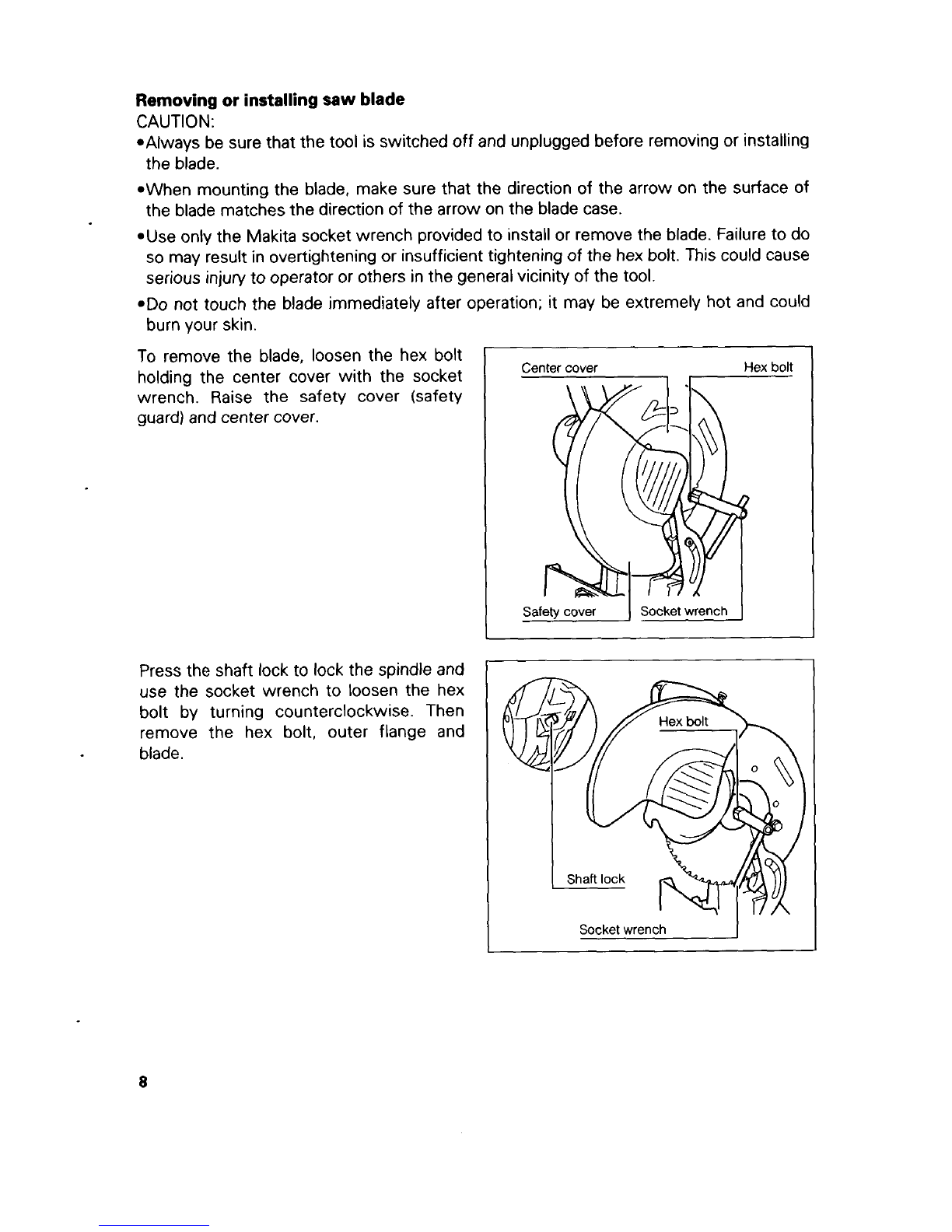

Removing or installing saw blade
CAUTION:
.Always be sure that the tool is switchedoff and unpluggedbeforeremovingor installing
the blade.
.When mountingthe blade, make sure that the direction
of the arrow on the surface of
the blade matchesthe direction of the arrow on the blade case.
.Use only the Makitasocket wrench providedto installor removethe blade. Failure todo
so may resultinovertighteningor insufficienttighteningof the hex bolt.This couldcause
serious injurytooperator or others inthe general vicinity of the tool.
.Do not touch the blade immediately after operation; it may be extremely hot and could
burnyour skin.
To remove the blade, loosen the hex bolt
holding the center cover with the socket
wrench. Raise the safety cover (safety
guard)and center cover.
Center cover Hex bolt
Safety cover 1 Socket wrench
Press the shaft lock to lock the spindle and
use the socket wrench to loosen the hex
bolt by turning counterclockwise. Then
remove the hex bolt, outer flange and
blade.
8

To installthe blade, mountthe inner flange,
saw blade, outer flange and hex bolt onto
the spindle in that order. Tighten the hex
bolt by turning clockwise while pressingthe
shaft lock. Return the safety cover and
center cover to the original position. Then
tighten the hex bolt clockwise to secure the
center cover. Lower the handle to make
sure that the safety cover moves properly.
Carbide-tippedsaw blade Hex bolt
I I7
Settingfor desiredcuttingangle
CAUTION:
Always tighten the hex bolt securely after changingthe cuttingangle.
To change the cutting angle, loosen the
lever. Move the vise stop
so that the indi-
cator
will point to the desired graduation.
Then tighten the lever to secure the vise
stop.
Graduation Indicator
Securing workpieces
CAUTION:
Always set the vise nut to the right fully when securing the workpiece. Failure to do
so
may result ininsufficient securingof theworkpiece. This could cause the workpiece to be
ejectedor causedamageto the blade.
By turning the vise handle counterclock-
wise and then flipping the vise nut to the
left, the vise is released from the shaft
threads and can be moved rapidly in and
out. To grip workpieces, push the vise
handle until the vise plate contacts the
workpiece. Flipthe vise nut to the right and
then turn the vise handle clockwise to
securely retain the workpiece.
Vise plate Vise nut
I
9

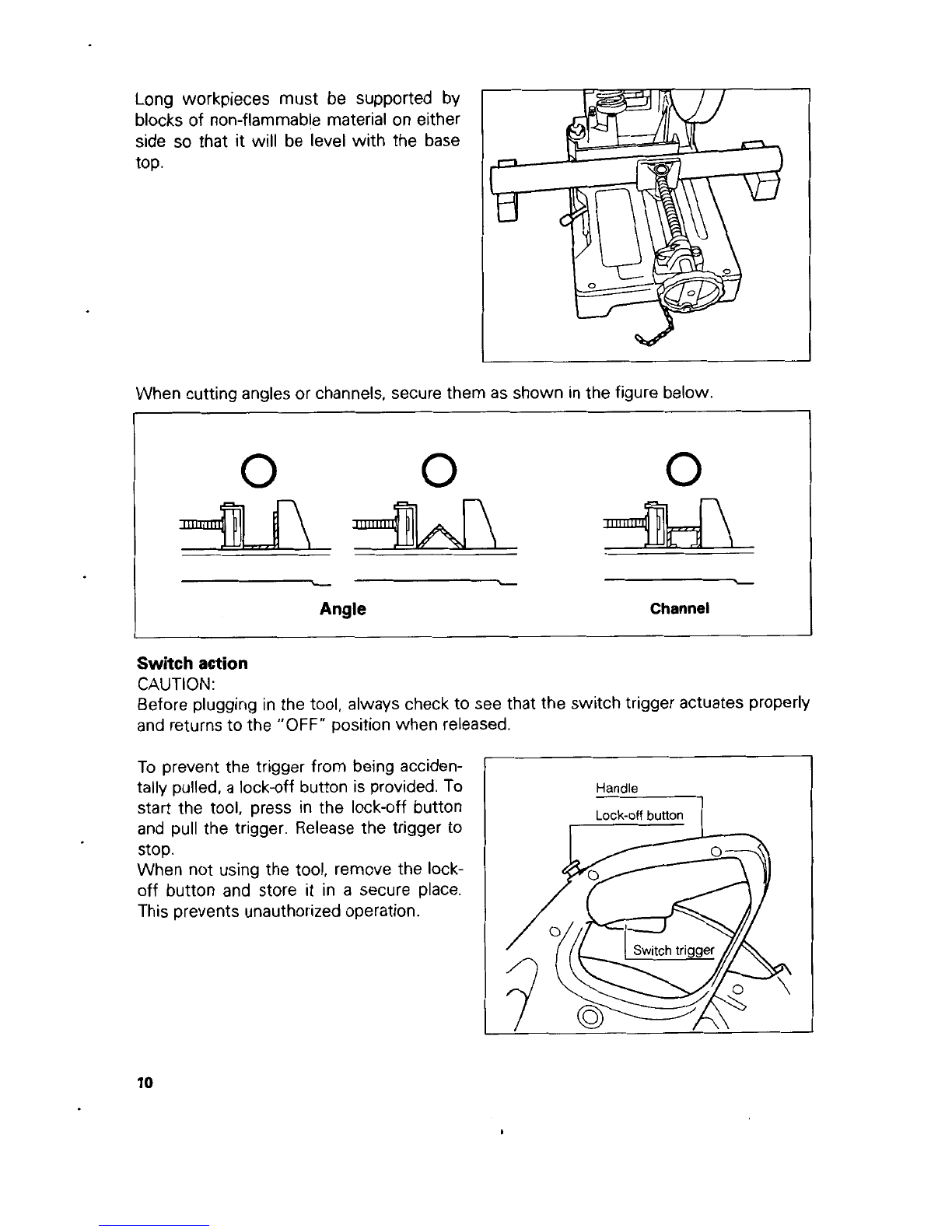

Long workpieces must be supported by
blocksof non-flammablematerialon either
side
so that it will be level with the base
top.
To prevent the trigger from being acciden-
When cuttingangles or channels, secure them as shown in the figure below.
I
0 0 0
L L L
Angle Channel
Switch action
CAUTION:
Before plugginginthe tool, always check to see that the switch trigger actuates properly
10

Cutting operation
CAUTION:
*Never attempt to cut workpieces less than 14 gauge (0.08”) thick except pipe or work-
pieceswhich cannot be secured firmly
with the vise. The piececut off may be caught by
the blade,causingdangerous scattering of chips and/or damageto the carbide-tips.
Pos-
sible serious injury may result.
*Do not apply excessive pressure on the handle when cutting. Too much pressure
may result in overloadof the motor, decreased cutting efficiency and/or damage to the
carbide-tipsor bladeitself.
*TOOlittle pressureonthe handlemay result in more sparks and prematurebladewear
*Do nottouch the blade, workpiece or cutting chipsimmediately after operation;they may
*If the bladestops during operation, makes an odd noise or begins to vibrate, switch off
be extremely hot and could burnyour skin.
the tool immediately. Replace cracked or damagedbladewith a newone.
Hold the handlefirmly. Switch on the tool and wait untilthe blade attains full speed. Then
lower the handlegently to bringthe bladeclose to the workpiece.When the blademakes
contact, ease into the cut gently at first, then gradually add pressure as the cutting posi-
tion steadies. Your pressure on the handle should be adjusted to produce the minimum
amount
of sparks.
When the cut is completed, switch off the tool and WAIT UNTILTHE BLADE HAS COME
TO A COMPLETE STOP before returning the handle to the fully elevated position.
If the
handle is raised while the blade is still rotating, the piece cut off may be caught by the
blade, causing dangerous scattering
of chips. When cutting only part of the way into a
workpiece, raise the handlewhile the blade is rotating. Switching off during the cut may
causedamagetothe carbide-tipsas they contact the workpiece.
Dust collection
CAUTION:
Do not touch any part of the dust box except its handle immediately after operation; it
may beextremely hot and could burnyour skin.
This tool is equipped with the dust box to
collect dust and cut chips. When the dust
box is full, hold the handle of the dust box
and raise it slightly. Then pull the dust box
out of the tool base. Empty the dust box of
itscontents.
11

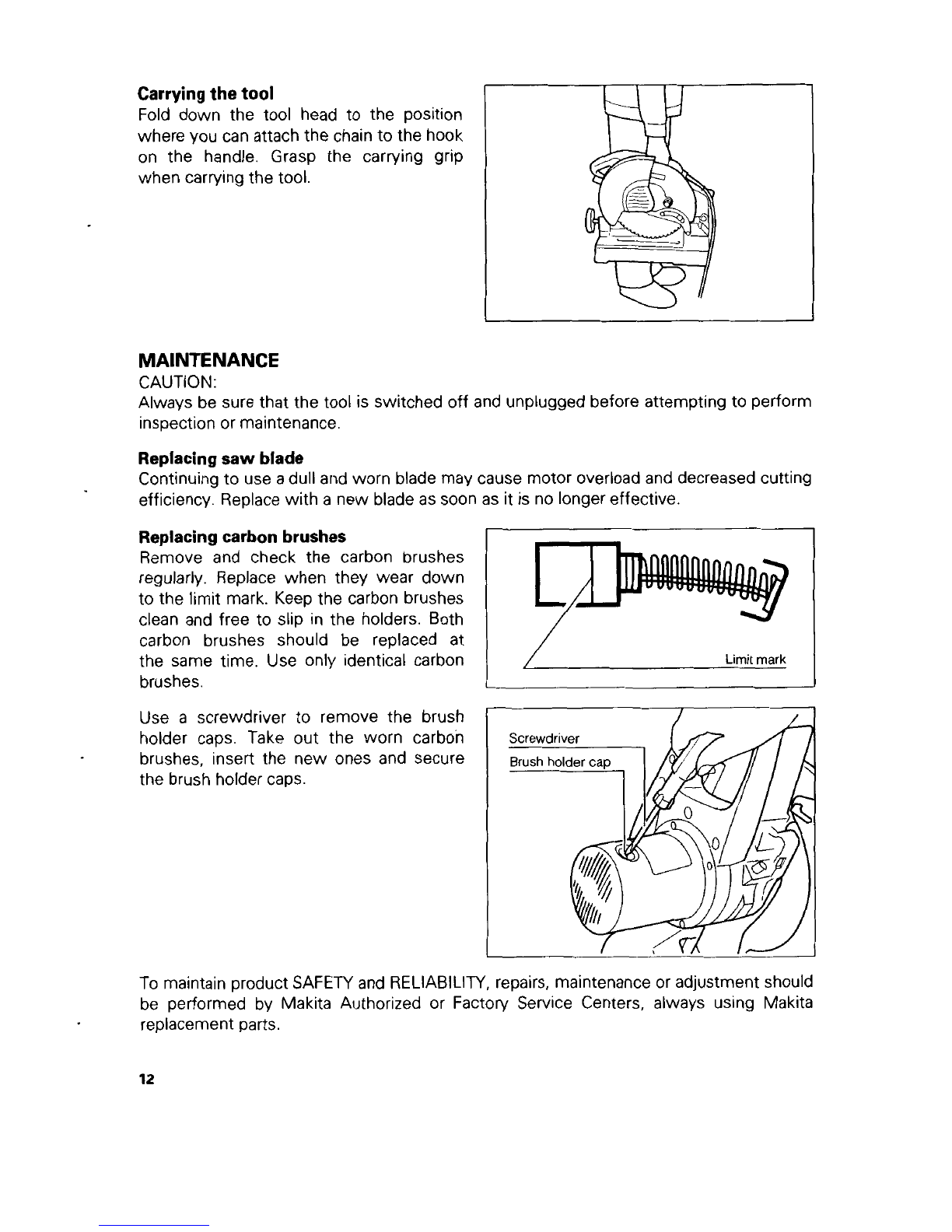

Carrying thetool
Fold down the tool head to the position
where you can attach the chainto the hook
on the handle. Grasp the carrying grip
when carryingthetool.
I Ill
MAINTENANCE
CAUTION:
Always be sure that the tool is switched off and unplugged before attempting to perform
inspection or maintenance.
Replacingsaw blade
Continuingto use a dull andworn blademay cause motor overloadand decreased cutting
efficiency. Replacewith
a newbladeas soon as it is no longereffective.
Replacingcarbonbrushes
Remove and check the carbon brushes
regularly. Replace when they wear down
to the limit mark. Keepthe carbon brushes
clean and free to slip in the holders. Both
carbon brushes should be replaced at
the same time. Use only identical carbon
brushes.
Use
a screwdriver to remove the brush
holder caps. Take out the worn carbon
brushes, insert the new ones and secure
the brush holder caps.
/ Limitmark
To maintainproduct SAFETY and RELIABILITY, repairs, maintenance or adjustment should
be performed by Makita Authorized or Factory Service Centers, always using Makita
replacement parts.
12

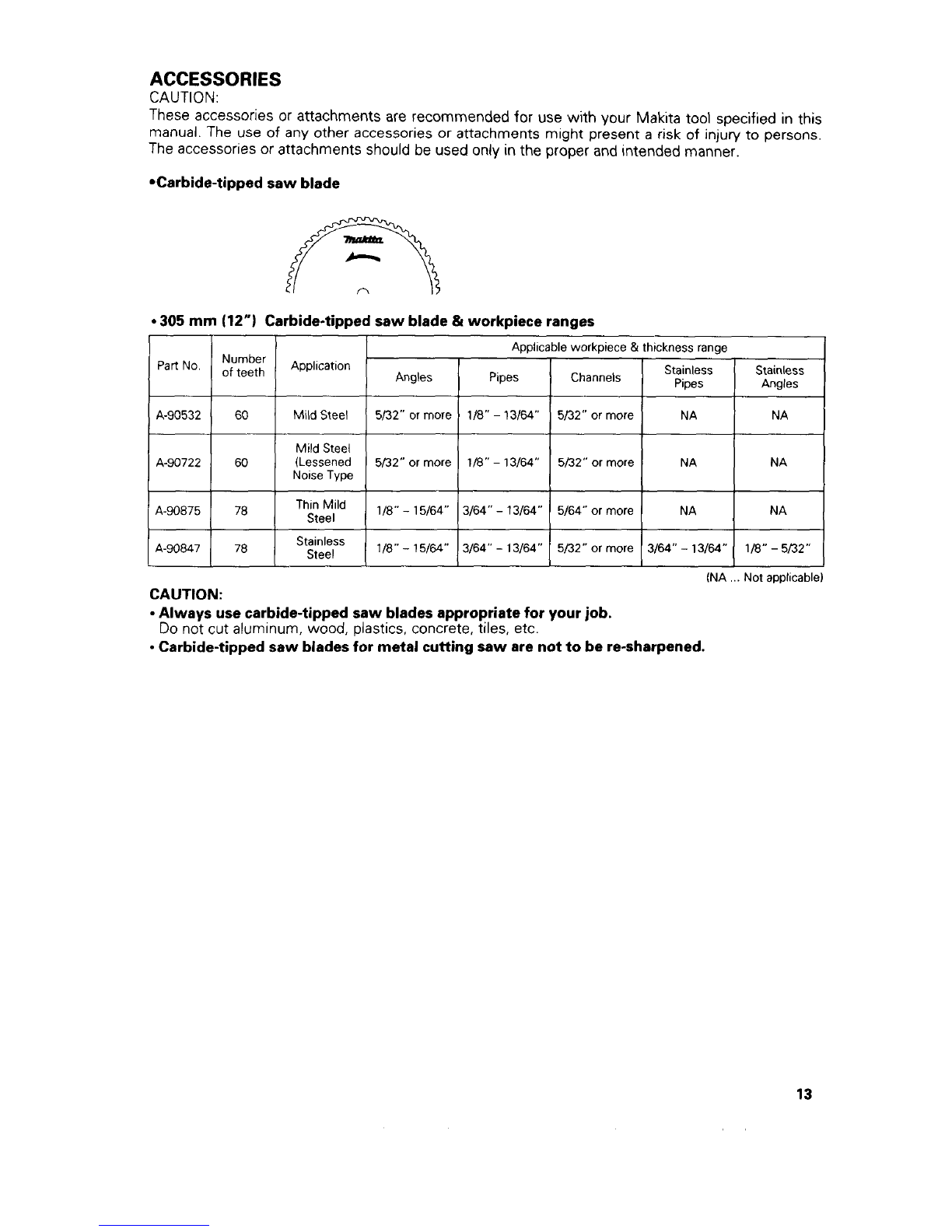

ACCESSORIES
CAUTION
These accessories or attachments are recommended for use
with your Makita tool specified in thls
manual The use
of any other accessories or attachments might present a risk of injury to persons
The accessoriesor attachments should be used
only in the proper and intended manner.
*Carbide-tipped saw blade
305 mm (12”) Carbide-tippedsaw blade & workpiece ranges
(NA Not applicable
CAUTION:
Always use carbide-tippedsaw bladesappropriatefor your job.
Do not cut aluminum, wood, plastics,concrete, tiles, etc
Carbide-tippedsaw bladesfor metalcutting saw are not tobere-sharpened.
13

June-7-’99 US

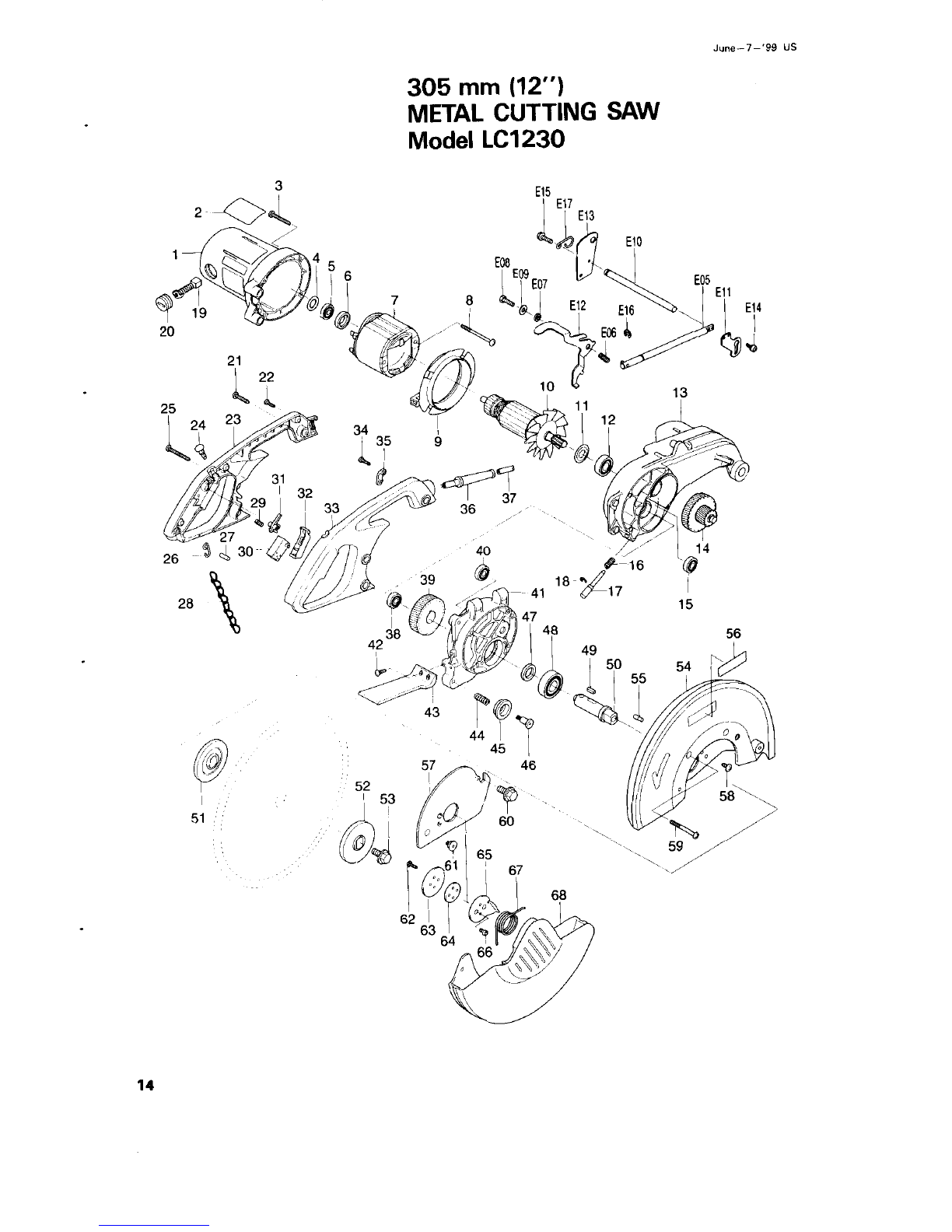

305 mm (12”)
METAL CUTTING SAW
Model LC1230
14

114
Note: The switch and other part configurations
may differ from country
to country.
15

"."D.l
P.. 6
Mf.4
MAKITA LIMITEDONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It IS warranted to
be free
of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid, to one of Makita's Factory
or Authorized Service Centers. If inspection shows
the trouble is caused by defective workmanship
or material. Makita will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
repairs have been made or attempted by others:
repairs are required because of normal wear and tear
The tool has been abused, misused or improperly maintained,
alterations have been made tothe tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT. INCIDLNTAL
OR CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USE OFTHtPRODUCT. THIS DlSCLAlMhR
APPLIES BOTH DURING AND AFTER THE TERM OFTHIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTltS, INCLUDING IMPLED
WARRANTIES OF "MERCHANTABILITY" AND "FITNESS FOR A SPECIFIC PURPOSE,"
AFTER THEONE-YEAR TERM OFTHIS WARRANTY.
~~
This Warranty gives you specific legal rights, and you may also have other nghts which vary from
state
to state. Some stater do not allow the exclusion or limitation of incidental or consequential
damages.
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation
on haw long an implied warranty lasts, so the above hitatton may not apply to you.
J
Makita Corporation
884227~983
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japan
PRINTED IN JAPAN
1999-1 0-N
