INSTRUCTION MANUAL

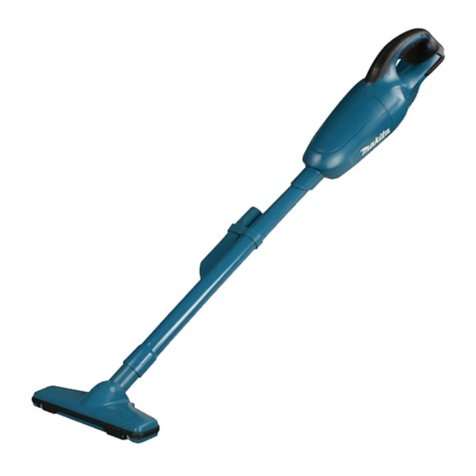

Cordless Cleaner
DCL181F
ENGLISH: Original instructions
Read before use.

2ENGLISH
WARNING
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sen-
sory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruc-
tion concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children with-
out supervision.
• See the chapter “SPECIFICATIONS” for the type reference of the battery.
• See the section “Installing or removing battery cartridge” for how to remove or install the battery.
• When disposing the battery cartridge, remove it from the tool and dispose of it in a safe place. Follow your local
regulations relating to disposal of battery.
• If the tool is not used for a long period of time, the battery must be removed from the tool.
• Do not short the battery cartridge.
• See the chapter “MAINTENANCE” for the appropriate details of precautions during user maintenance.
SPECIFICATIONS
Model: DCL181F
Capacity 650 mL
Continuous use
(with battery BL1830B)
HIGH Approx. 20 min
LOW Approx. 40 min
Overall length 999 mm
Rated voltage D.C. 18 V
Net weight 1.2 - 1.5 kg
• Due to our continuing program of research and development, the specications herein are subject to change without notice.
• Specications may di󰀨er from country to country.
• The weight does not include accessories but battery cartridge(s). The lightest and heaviest combination weight
of the appliance and battery cartridge(s) are shown in the table.
Applicable battery cartridge and charger
Battery cartridge BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B
Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF /
DC18SH
• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
and chargers may cause injury and/or re.
Symbols
The followings show the symbols which may be used for the equip-
ment. Be sure that you understand their meaning before use.
Read instruction manual.
Ni-MH
Li-ion
Only for EU countries
Due to the presence of hazardous com-
ponents in the equipment, waste electrical
and electronic equipment, accumulators
and batteries may have a negative impact
on the environment and human health.
Do not dispose of electrical and electronic
appliances or batteries with household waste!
In accordance with the European Directive on
waste electrical and electronic equipment and on
accumulators and batteries and waste accumu-
lators and batteries, as well as their adaptation to
national law, waste electrical equipment, batteries
and accumulators should be stored separately
and delivered to a separate collection point for
municipal waste, operating in accordance with the
regulations on environmental protection.
This is indicated by the symbol of the crossed-
out wheeled bin placed on the equipment.
Intended use
The tool is intended for collecting dry dust.

3ENGLISH
SAFETY WARNINGS
Cordless cleaner safety warnings
WARNING: IMPORTANT! READ CAREFULLY
all safety warnings and all instructions BEFORE
USE . Failure to follow the warnings and instructions
may result in electric shock, re and/or serious injury.
1. Do not expose to rain. Store indoors.
2.
Do not allow to be used as a toy. Close attention
is necessary when used by or near children.
3. Use only as described in this manual. Use only
manufacturer's recommended attachments.
4. Do not use with damaged battery. If appliance
is not working as it should, has been dropped,
damaged, left outdoors, or dropped into water,
return it to a service center.
5. Do not handle appliance with wet hands.
6.
Do not put any object into openings. Do not use
with any opening blocked; keep free of dust,
lint, hair, and anything that may reduce air ow.
7. Keep hair, loose clothing, ngers, and all parts
of body away from openings and moving parts.
8.
Turn o󰀨 all controls before removing the battery.
9. Use extra care when cleaning on stairs.
10. Do not use to pick up ammable or combusti-
ble liquids, such as gasoline, or use in areas
where they may be present.
11. Use only the charger supplied by the manufac-
turer to recharge.
12.
Do not pick up anything that is burning or smok-
ing, such as cigarettes, matches, or hot ashes.
13. Do not use without dust bag and/or lters in place.
14. Do not charge the battery outdoors.
15. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of re
when used with another battery pack.
16. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and re.
17.
When (the) battery pack is not in use, keep it away
from other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
18. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water.
19.
Do not use a battery pack or tool that is damaged or
modied. Damaged or modied batteries may exhibit unpre-
dictable behaviour resulting in re, explosion or risk of injury.
20. Do not expose a battery pack or tool to re or
excessive temperature. Exposure to re or tem-
perature above 130 °C may cause explosion.
21.
Follow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specied in the instructions. Charging improp-
erly or at temperatures outside the specied range may
damage the battery and increase the risk of re.
SAVE THESE INSTRUCTIONS.
ADDITIONAL SAFETY RULES
This appliance is intended for household use.
1. Read this instruction manual and the charger
instruction manual carefully before use.
2. Do not pick up the following materials:
—
Hot materials such as lit cigarettes or spark/
metal dust generated by grinding/cutting metal
— Flammable materials such as gasoline,
thinner, benzine, kerosene or paint
— Explosive materials like nitroglycerin
—
Ignitable materials such as Aluminum, zinc,
magnesium, titanium, phosphorus or celluloid
— Wet dirt, water, oil or the like
—
Hard pieces with sharp edges, such as wood
chips, metals, stones, glasses, nails, pins or razors
— Powder to clot such as cement or toner
— Conductive dust such as metal or carbon
— Fine particle like concrete dust
Such action may cause re, injury and/or prop-
erty damage.
3. Stop operation immediately if you notice any-
thing abnormal.
4. If you drop or strike the cleaner, check it care-
fully for cracks or damage before operation.
5.
Do not bring close to stoves or other heat sources.
6. Do not block the intake hole or vent holes.
SAVE THESE INSTRUCTIONS.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using battery.
2. Do not disassemble or tamper with the battery car-
tridge. It may result in a re, excessive heat, or explosion.
3. If operating time has become excessively shorter,
stop operating immediately. It may result in a risk of
overheating, possible burns and even an explosion.
4. If electrolyte gets into your eyes, rinse them out
with clear water and seek medical attention right
away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2)
Avoid storing battery cartridge in a container
with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain.
A battery short can cause a large current ow, over-
heating, possible burns and even a breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8.
Do not nail, cut, crush, throw, drop the battery cartridge,
or hit against a hard object to the battery cartridge. Such
conduct may result in a re, excessive heat, or explosion.
9. Do not use a damaged battery.

4ENGLISH
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask o󰀨 open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliant products may result in a re, exces-
sive heat, explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge. It may result in poor performance or
breakdown of the tool or battery cartridge.
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near high-voltage electri-
cal power lines. It may result in a malfunction or
breakdown of the tool or battery cartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causing res, personal injury and damage. It will
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2.
Never recharge a fully charged battery cartridge.
Overcharging shortens the battery service life.
3. Charge the battery cartridge with room tempera-
ture at 10 °C - 40 °C (50 °F - 104 °F). Let a hot
battery cartridge cool down before charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before adjusting or checking function on the tool.
CAUTION: Take care not to trap nger(s)
between cleaner and battery as shown in diagram
when loading battery. Trapping nger(s) may cause
injury.
Installing or removing battery
cartridge
CAUTION: Always switch o󰀨 the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge. Failure to hold the tool and the battery
cartridge rmly may cause them to slip o󰀨 your hands
and result in damage to the tool and battery cartridge
and a personal injury.
1
2
3
► 1. Red indicator 2. Button 3. Battery cartridge
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
upper side of the button, it is not locked completely.

5ENGLISH
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
it may accidentally fall out of the tool, causing injury to
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
Battery protection system
The tool is equipped with a tool/battery protection sys-
tem. This system automatically cuts o󰀨 power to the
motor to extend tool and battery life. The tool will auto-
matically stop during operation if the tool or battery is
placed under one of the following conditions.
Overloaded:
The tool is operated in a manner that causes it to draw
an abnormally high current.
In this situation, turn the tool o󰀨 and stop the application
that caused the tool to become overloaded. Then turn
the tool on to restart.
If the tool does not start, the battery is overheated. In
this situation, let the battery cool before turning the tool
on again.
Low battery voltage:
The remaining battery capacity is too low and the tool
will not operate. In this situation, remove and recharge
the battery.
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
1
2
► 1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted O󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may di󰀨er slightly
from the actual capacity.
NOTE: The rst (far left) indicator lamp will blink when
the battery protection system works.
Switch action
1
2
► 1. OFF button 2. HIGH/LOW button
To start the cleaner, simply press the "HIGH/LOW"
button. To switch o󰀨, press the "OFF" button. To change
the cleaner speed, press the "HIGH/LOW" button. The
rst press on this button is for high speed and the sec-
ond press for low speed and then each press on this
button repeats the high/low speed cycle alternatively.

6ENGLISH
Lighting the lamp
CAUTION: Never look into the light directly.
Direct light causes damage to your eyes.
1
2
3
► 1. OFF button 2. HIGH/LOW button 3. Lamp
To turn on the lamp, simply press the "HIGH/LOW"
button. To turn o󰀨 the lamp, press the "OFF" button.
ASSEMBLY
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before carrying out any work on the tool.
Type of lter
Normal lter
321
► 1. Capsule 2. Prelter 3. Filter
High performance lter
21
► 1. Capsule 2. High performance lter
Disposing of dust
CAUTION: Empty the cleaner before it
becomes too full, or the suction force weakens.
CAUTION: Be sure to empty out the dust
inside the cleaner itself. Failure to do so may
cause the lter to be clogged or the motor to be
damaged.
Disposing of dust for normal lter
1. In order to drop dust sticking on the lter in the
capsule, tap the capsule 4 or 5 times with your hand.
Now point suction inlet downwards, turn capsule in
direction of arrow in diagram, and disconnect capsule
slowly and straight.
1
2
► 1. Capsule 2. Suction inlet
NOTE: Dust may spill out when capsule is opened, so
be sure to set a garbage bag beneath capsule.

7ENGLISH
2. Remove accumulated dust from inside of capsule
and o󰀨 of prelter.
2
1
► 1. Prelter 2. Capsule
3. Twist prelter in direction of arrow to unfasten
securing lip from cleaner unit and then pull o󰀨 prelter.
2
1
► 1. Prelter 2. Securing lip
4. Clean out ne dust from prelter. Next, remove
lter, and lightly tap to dislodge dust.
2
1
► 1. Prelter 2. Filter
Disposing of dust for high
performance lter
1. In order to drop dust sticking on the lter in the
capsule, tap the capsule 4 or 5 times with your hand.
Now point suction inlet downwards, turn capsule in
direction of arrow in diagram, and disconnect capsule
slowly and straight.
1
2
► 1. Capsule 2. Suction inlet
NOTE: Dust may spill out when capsule is opened, so
be sure to set a garbage bag beneath capsule.
2. Remove accumulated dust from inside of capsule
and o󰀨 of high performance lter.
1
2
► 1. Capsule 2. High performance lter
3.
Twist high performance lter in direction of arrow to unfas-
ten securing lip from cleaner unit and then pull o󰀨 the lter.
1
► 1. Securing lip
4. Clean out the ne dust and lightly tap to dislodge
dust from high performance lter.

8ENGLISH
Reassembly
Reassembly for normal lter
1. Put on lter until it is fully in position on the cleaner
unit.
1
► 1. Filter
1
► 1. Filter
NOTE: Make sure lter is put on straight without
being peeled back. If lter is put on incorrectly as
shown in diagram, dust will get into motor housing,
and cause motor failure.
2. Connect prelter. At this time, make sure to twist
prelter so that securing lip is rmly locked into cleaner
unit.
1
► 1. Prelter
3. Connect capsule. Align O mark on capsule with O
mark on handle and then rmly twist capsule in direction
of arrow until it is secured.
1
► 1. O Mark
2
1
► 1. Handle 2. Capsule
NOTE: Always remove dust ahead of time, as suction
power will be reduced if there is too much dust in
cleaner.
NOTE: Always be sure to check that both lter and
prelter are loaded correctly prior to using cleaner.
If they are not loaded correctly, dust will get into the
motor housing, and cause motor failure.
If the following examples occur, lter and prelter are
not loaded correctly. Reload them correctly to rectify
problem.

9ENGLISH
Problem Examples
Example 1: Only prelter has been loaded (no lter)
1
► 1. Prelter
Example 2: Only lter has been loaded (no prelter)
1
► 1. Filter
Example 3: Filter has been loaded in a peeled back
state
1
► 1. Filter
Example 4: Prelter's securing lip is not rmly locked
into groove of cleaner housing
2
13
► 1. Groove of cleaner housing 2. Prelter 3. Securing
lip
Reassembly for high performance
lter
1. Connect high performance lter. At this time, make
sure to twist high performance lter so that securing lip
is rmly locked into cleaner unit.
1 2
► 1. High performance lter 2. Securing lip
1
► 1. Securing lip

10 ENGLISH
2. Connect capsule. Align O mark on capsule with O
mark on handle and then rmly twist capsule in direction
of arrow until it is secured.
1
► 1. O Mark
2
1
► 1. Handle 2. Capsule
NOTE: Always remove dust ahead of time, as suction
power will be reduced if there is too much dust in
cleaner.
NOTE: Always be sure to check that high perfor-
mance lter is loaded correctly prior to using cleaner.
If they are not loaded correctly, dust will get into the
motor housing, and cause motor failure.
If the following examples occur, high performance
lter is not loaded correctly. Reload them correctly to
rectify problem.
Problem Examples
Securing lip of high performance lter is not rmly
locked into groove of cleaner housing.
12
► 1. Securing lip 2. Groove of cleaner housing
OPERATION
CAUTION: To connect attachments, such
as nozzle, twist and insert the attachment in
direction of the arrow to secure the connection
during use. To disconnect the attachments, twist
and extract it also in direction of the arrow. If an
attachment is twisted in the opposite direction when
being connected or disconnected, the capsule may
become loose.
1
► 1. Capsule
Cleaning (Suction)
Nozzle
Attach the nozzle to clean o󰀨 tables, desks, furniture,
etc. The nozzle slips on easily.
1
► 1. Nozzle

11 ENGLISH
Nozzle + Extension wand (Straight pipe)
The extension wand ts in between the nozzle and the
cleaner itself. This arrangement is convenient for clean-
ing a oor in a standing position.
1
23
► 1. Cleaner body 2. Extension wand 3. Nozzle
Corner nozzle
Fit on the corner nozzle for cleaning corners and crev-
ices of a car or furniture.
21
► 1. Corner nozzle 2. Cleaner body
Corner nozzle +Extension wand
(Straight pipe)
In tight quarters where the cleaner itself cannot
squeeze in, or in high places hard to reach, use this
arrangement.
3
12
► 1. Corner nozzle 2. Extension wand 3. Cleaner body
Cleaning without nozzle
You can pick up powder and dust without nozzle.
MAINTENANCE
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before attempting to perform inspection or
maintenance.
After use
NOTICE: Putting the cleaner against the wall
without any other support cause the cleaner to
fall down and be damaged.
Cleaning
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
NOTICE: Do not blow dust sticking on the
cleaner and lters by air duster. It brings dust into
the housing and causes failure.
NOTICE: After washing lters, dry them thoroughly
before use. Insu󰀩ciently dried lters may cause poor
suction and shorten the service life of the motor.
NOTICE: After cleaning lters and sponge lter,
be sure to re-install them before use. If you use the
cleaner without lters and sponge lter, dust comes
into the motor housing and cause malfunction.

12 ENGLISH
Cleaner body
From time to time wipe o󰀨 the outside (cleaner body) of
the cleaner using a cloth dampened in soapy water.
Clean out also the suction opening and lter mounting
area.
Filter
Wash the lter in soapy water when it is clogged with
dust and the cleaner power becomes weak. Dry it out
thoroughly before use.
Sponge lter
When the sponge lter becomes dirty, clean it as
follows.
1. Remove the lter.
2. Pull out the sponge lter from between the pillars.
3. Clean the sponge lter by tapping or washing. If
you wash it, dry it out thoroughly before use.
4.
Insert the sponge lter from between the pillars and
set it in the original position. Make sure that each bottom
edge of the pillar holds down the sponge lter, and there is
no gap between the sponge lter and suction opening.
1
2
► 1. Sponge lter 2. Bottom edge of pillar
Wall mount for cordless cleaner
Optional accessory
NOTE: The screw to mount the holder is not included.
Prepare a screw which ts with the material to screw
into.
Attach the wall mount for cordless cleaner to a hard wooden wall,
beam or column, where the wall mount for cordless cleaner can
be rmly secured. Always be sure that the wall mount for cordless
cleaner is securely attached before hanging the cleaner.
1
► 1. Wall mount for cordless cleaner
CAUTION: Do not hang the cleaner to the wall
mount violently or hang other appliances than the
cleaner.

13 ENGLISH
Troubleshooting
Before asking for repairs, check the following points.
Symptom Area to be investigated Fixing method
Weak suction power Is the capsule full of dust? Empty the capsule of dust.
Is the lter clogged? Clean or wash the lter.
Is the battery cartridge discharged? Charge the battery cartridge.
Not working Is the battery cartridge discharged? Charge the battery cartridge.
CAUTION: Do not attempt to repair the cleaner by yourself.
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed
by Makita Authorized or Factory Service Centers, always using Makita replacement parts.
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
specied in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or attachment
for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Extension wand (Straight pipe)
• Nozzle
• Nozzle for carpet
• Shelf brush
• Corner nozzle
• Round brush
• Flexible hose
• Free nozzle
• Filter
• Prelter
• High performance lter
• Wall mount for cordless cleaner
• Cyclone attachment
• Makita genuine battery and charger
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
di󰀨er from country to country.
Cyclone attachment
1
2
3
► 1. Straight pipe 2. Cyclone attachment 3. Suction
inlet
About the cyclone attachment
Using the cleaner with the cyclone attachment installed
reduces the amount of dust that enters the capsule,
which helps to prevent the suction force from weaken-
ing. In addition, cleaning after use is also simple.
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before carrying out any work on the tool. If the
battery cartridge is left inserted, the cleaner may start
unexpectedly and result in injury.
CAUTION: Clean the mesh lter of the
cyclone attachment and the lters of the cleaner
unit when they become clogged. Continued use in
the clogged condition may result in heating or smoke.

14 ENGLISH
NOTICE: When the cyclone attachment is
attached, do not use the cleaner in the horizontal
or upward facing condition. Doing so may cause
the mesh lter to become clogged.
NOTICE: Always use the cleaner with the lters
installed, even when using the cyclone attach-
ment. Using the cleaner without the lters installed
may result in a motor malfunction.
NOTE: Check that the cyclone attachment, cleaner,
and straight pipe are locked properly before use.
NOTE: Empty the dust case of the cyclone attach-
ment and the capsule of the cleaner when dust has
accumulated. Continued use will result in weakened
suction force.
Disposing of dust
When dust has accumulated up to the full line of the
dust case, follow the procedure below and dispose of
the dust.
1. Hold the dust case rmly, press and hold the two
buttons, and remove the dust case.
2
3
1
4
► 1. Full line 2. Dust case 3. Button (two locations)
4. Mesh lter
2. Dispose of the dust inside the dust case and
remove any dust and powder adhered to the surface of
the mesh lter.
3. Insert the dust case all the way until the two but-
tons lock with a click.
2
1
► 1. Dust case 2. Button (two locations)
NOTE: Check that the cyclone attachment, cleaner,
and straight pipe are all rmly connected before
restarting operation.
NOTE: If the suction force does not recover even
after disposing of the dust and cleaning the mesh
lter, check whether dust has accumulated in the
capsule of the cleaner or clogging has occurred.
Cleaning
When the dust case becomes dirty or the mesh lter is
clogged, remove and wash them with water. (Refer to
“Disposing of dust” for the removal procedure.)
Dry the parts thoroughly before reinstallation and use.
1
2
► 1. Dust case 2. Mesh lter
When the mesh lter gets dirty badly, clean it in the
following procedures.
1. Turn the mesh lter counterclockwise and remove
it while the hooks are unlocked.
1
2
► 1. Mesh lter 2. Hook
2. Remove the dust on the mesh lter and then wash
it with water. After that, dry it thoroughly.

15 ENGLISH
3. Insert the mesh lter into the base while the hooks
are aligned with the port. Turn the mesh lter clockwise
until the hooks are locked with a click. Make sure that
the mesh lter is installed securely.
2
1
3
► 1. Mesh lter 2. Hook 3. Port

www.makita.com
Makita Europe N.V.
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japa
n
Jan-Baptist Vinkstraat 2,
3070 Kortenberg, Belgium
885580D221
EN
20201105
