Makita 4013D User manual

N MANUAL

SPECIFICATIONS
Model Ratedvoltage Capacity Dimensions (L x W x H)
465mmx112mmx180mm
473mmx112mmx180mm
4013D
D.C. l2 "
0'5 pint) (18-1/4 x 4-3/8 x 7-1/8")
4033D D'C'
14'4 "
0'5 pint) (1&5/8 x4-3/8"x7-1/8)
Netweight
0.89kg
0.89kg
(1.96
Ibs)
(1.96 Ibs)
Manufacturer reservesthe right to change specificationswithout notice.
Specificationsmay differ from country to country.
IMPORTANTSAFETY INSTRUCTIONS
USA01 2- 1
When usingan electricalappliance,basic precautionsshould always
befollowed, includingthe following:
READALL INSTRUCTIONSBEFORE USING THIS APPLIANCE
A WARNING:
To reducethe risk of fire, electric shock or injury:
1.
2.
3.
4.
5.
6.
7.
2
Do not leave appliance when battery fit-
ted. Removebattery from appliancewhen
not
in useandbeforeservicing.
Do not exposetorain. Store indoors.
Do not allow to be used as a toy. Close
attention
is necessary when used by or
nearchildren.
Useonly as described in this manual. Use
only manufacturer's recommended
attachments.
Do not usewith damagedbattery.If appli-
ance
is notworking as it should, has been
dropped, damaged, left outdoors, or
dropped into water, return
it to a service
center.
Do not handleappliancewith wet hands.
Do not put any object into openings. Do
not use with any opening blocked; keep
free
of dust, lint, hair, and anything that
may reduceair flow.
8. Keep hair, loose clothing, fingers, and all
parts of body away from openings and
movingparts.
9. Turn off all controls before removing the
batterycartridge.
10. Useextracarewhen cleaningon stairs.
11. Do not use topick up flammable or com-
bustible liquids, such as gasoline, or use
in areaswhere they may bepresent.
12. Useonlythe chargersuppliedbytheman-
ufacturerto recharge.
13. Do notpick up anythingthat is burningor
smoking, such as cigarettes, matches,or
hotashes.
14. Do not usewithout filters inplace.
15.
Do notchargethe battery outdoors.
.

SAVE THESE INSTRUCTIONS
This appliance is intended for householduse.
ADDITIONAL SAFETY RULES USBO62-1
Read this instruction manual and the 4.
charger instruction manual carefully
beforeuse.
Do not pickupwet materials, lit cigarettes
or the like.
Stop operation immediately if you notice
anything abnormal.
5.
6.
If you drop or strike the cleaner, check it
carefully for cracks or damage before
operation.
Do not bringclose to stoves or other heat
sources.
Do not blockthe intakeholeor vent holes.
SAVE THESE INSTRUCTIONS
3

A CAUTION:
Alwavs be sure that the cleaner is switched off and the
FUNCTIONAL
DESC R I PTl ON
Model
4013D
4033D
batteiy cartridge is removed before adjusting or
checkingfunctionon the cleaner.
Batteries
1220,1222,1234, 1235,1200,1202, 1202A
1420,1422,1434,1435
I I.
1. Batterycartridge
2.
Push button
0
Always switch off the cleaner beforeinsertion or removal
of the batterycartridge.
To remove the battery cartridge, withdraw it from the
cleaner while pressing the buttons on both sides of the
cartridge.
To insert the battery cartridge, align the tongue on the
battery cartridge with the groove inthe housing and slip
it into place. Always insert
it all the way until it locks in
place with a little click. If not, it may accidentally fall out
of the cleaner, causing injury to you or someone around
you.
Do not use force when inserting the battery cartridge. If
the cartridge does not slide in easily, it is not being
insertedcorrectly.
~1585
Installingset plate (Optional accessory) for 4013D
only
Always install the set plate when using battery cartridges
1200,
1202 or 1202A. Installthe set plateonthe cleaner with
the screw provided.
1. Screw
2. Set plate
Charging
Charge the battery cartridge with your Makita charger prop-
erly beforeuse.
Followingbatteriescan be usedfor this cleaner;
4

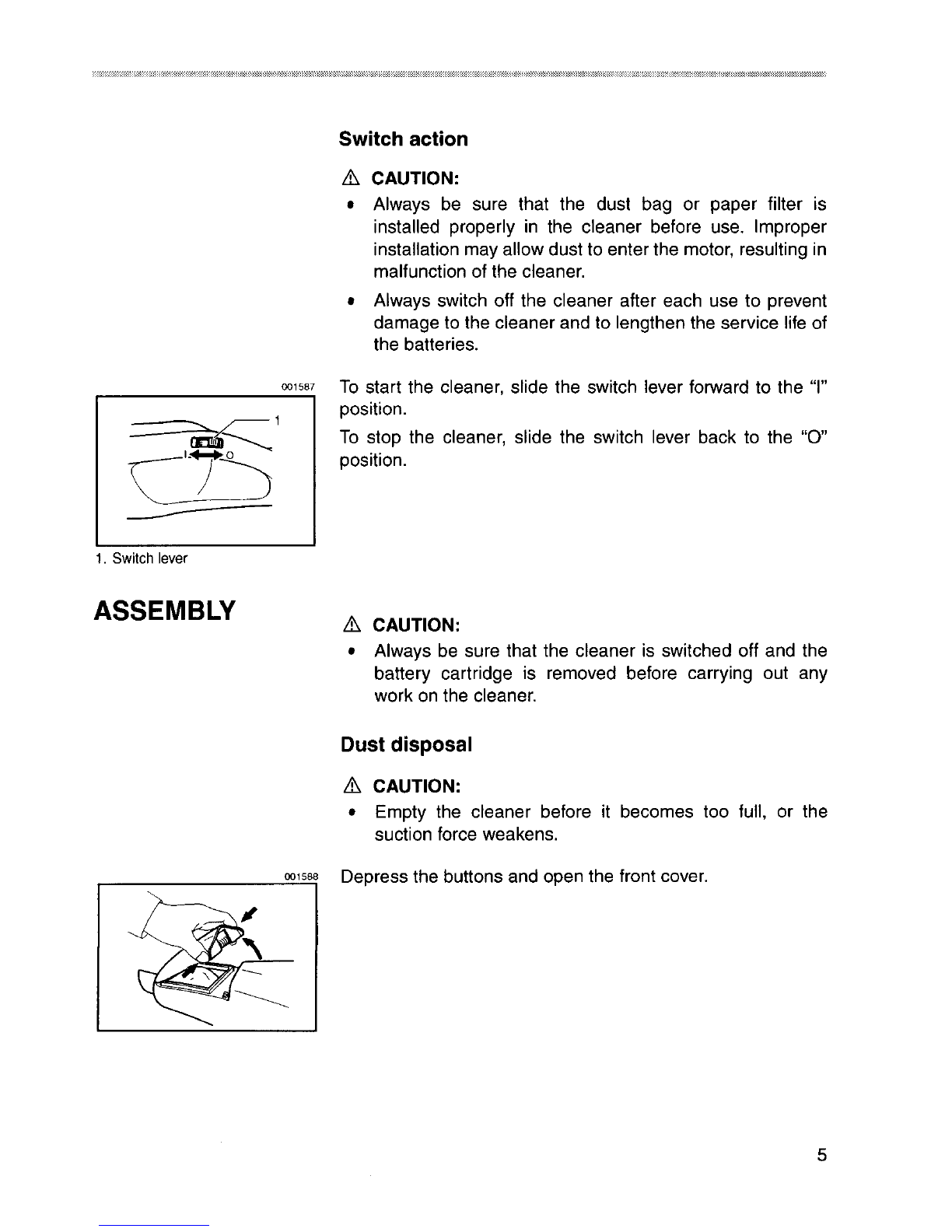

Switch action
A CAUTION:
Always be sure that the dust bag or paper filter is
installed properly in the cleaner before use. Improper
installationmayallow dust to enter the motor, resultingin
malfunctionof the cleaner.
Always switch off the cleaner after each use to prevent
damageto the cleaner and
to lengthenthe service life of
the batteries.
1. Switch lever
ASSEMBLY
To start the cleaner, slide the switch lever forward to the “I”
position.
To stop the cleaner, slide the switch lever back to the “0
position.
A CAUTION:
Always be sure that the cleaner is switched off and the
battery cartridge is removed before carrying out any
work onthe cleaner.
Dust disposal
A CAUTION:
Empty the cleaner before it becomes too full, or the
suctionforce weakens.
Depressthe buttonsand openthe front cover.
5

001589 Take the dust bagout of the cleanercarefully so that the con-
tents will not spill out.
Emptythe contents out of the dust bag.
Also empty out the dust insidethe cleaner itself.Failure to do
so may cause the sponge filter to be clogged or the motorto
be damaged.
W15I
I
installingdust bag
Placethe dust bag intothe cleaner cavity.
Insert the holder of the dust bag all the way into the slots in
the cleanercavity.
A CAUTION:
Forgetting to install the dust bag, failure to insert the
holder of the dust bagallthe way into the slots or usinga
broken or ripped bag, may allow dust
to get into the
motor.This may result in motor failure.
6

001%
Hook the front cover onto the front lip of the cleaner. Then
closethe front cover.
1. Hook
2. Front lip
00159
NOTE:
When installing the paper filter, follow the same
proceduresfor the dust bag.
Always unfolda new paper filter before installing it on the
cleaner.
Corner nozzle storage
When not in use, the corner nozzle can be conveniently
stored
in the cleaner body.
Cleaner body
2. Corner nozzle
OPERATION
001595 Cleaning(Suction) Nozzle
Attach the nozzle to clean off tables, desks, furniture etc.
Nozzleslips oneasily.
1. Nozzle
7

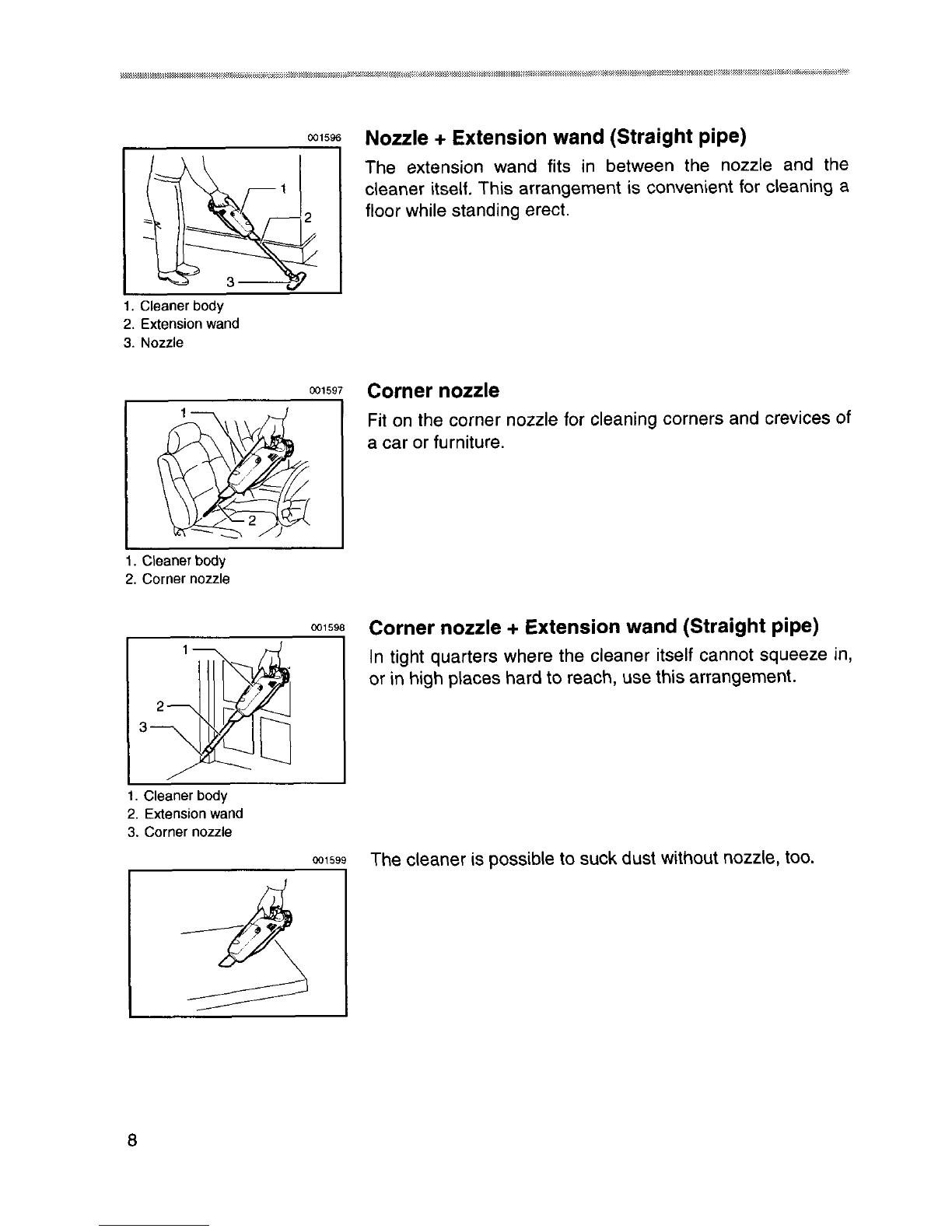

~15% Nozzle
+ Extensionwand (Straight pipe)
The extension wand fits in between the nozzle and the
cleaner itself.This arrangement is convenient for cleaning a
floor while standingerect.
1. Cleaner body
2. Extensionwand
3. Nozzle
~1597 Corner nozzle
Fit on the corner nozzlefor cleaningcorners and crevices of
a car or furniture.
1. Cleaner body
2. Corner nozzle
001598
Corner nozzle + Extensionwand (Straight pipe)
In tight quarters where the cleaner itself cannot squeeze in,
or inhighplaces hard to reach, usethis arrangement.
1. Cleaner body
2. Extensionwand
3. Corner nozzle
~1599
The cleaner is possibleto suck dust without nozzle,too.
8

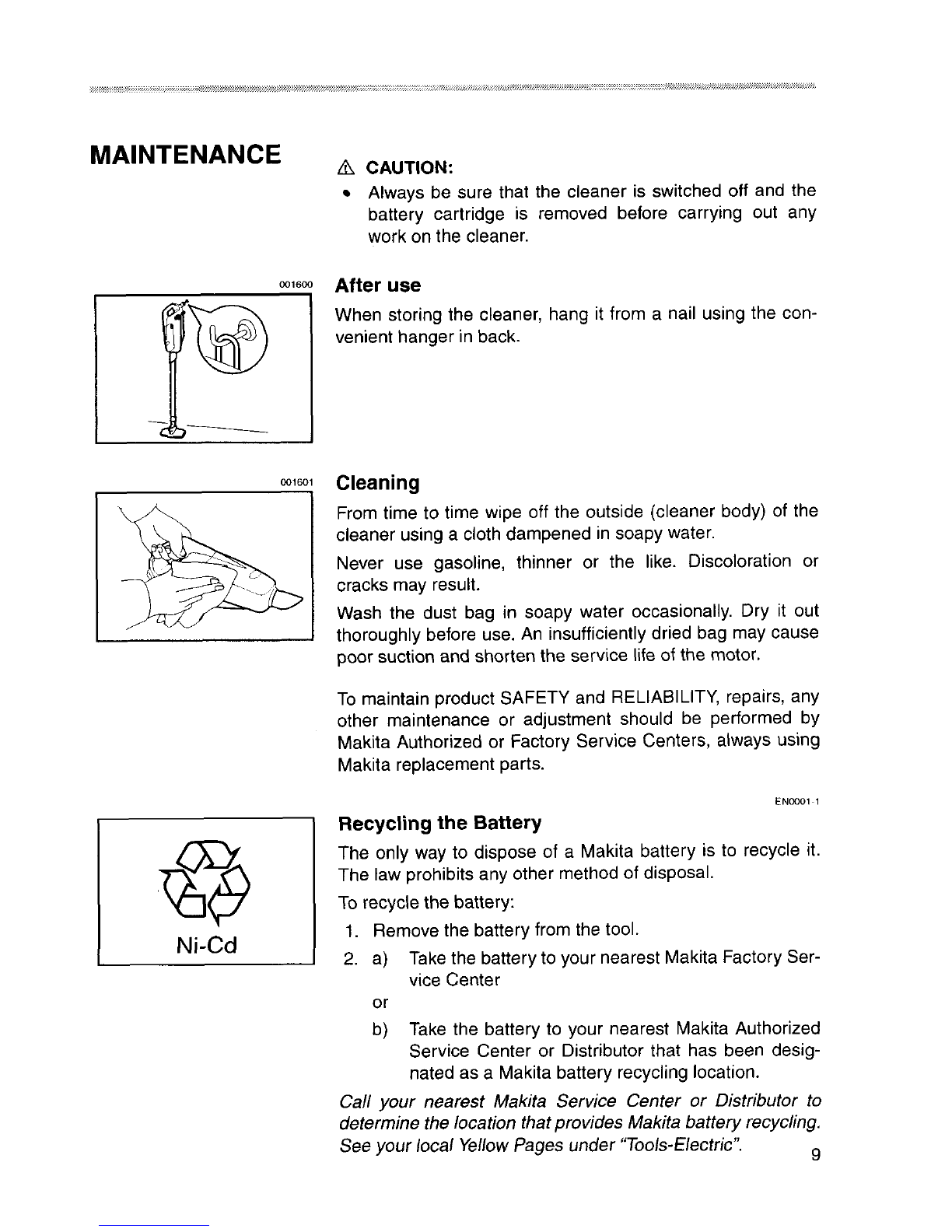

MAINTENANCE
001600
001601
A CAUTION:
Always be sure that the cleaner is switched off and the
battery cartridge is removed before carrying out any
work on the cleaner.
After use
When storing the cleaner, hang it from a nail using the con-
venient hanger inback.
Cleaning
From time to time wipe off the outside (cleaner body) of the
cleaner usinga clothdampenedin soapy water.
Never use gasoline, thinner or the like. Discoloration or
cracks may result.
Wash the dust bag in soapy water occasionally. Dry it out
thoroughly before use. An insufficientlydried bag may cause
poor suctionand shorten the service life of the motor.
To maintainproduct SAFETY and RELIABILITY, repairs,any
other maintenance or adjustment should be performed by
Makita Authorized
or Factory Service Centers, always using
Makitareplacement parts.
Recyclingthe Battery
The only way to dispose of a Makita battery is to recycle it.
The law prohibitsany other method
of disposal.
To recyclethe battery:
1. Removethe battery from the tool
2. a)
or
b)
ENWOl 1
Take the batteryto your nearest MakitaFactory Ser-
vice Center
Take the battery
to your nearest Makita Authorized
Service Center or Distributor that has been desig-
natedas a Makita battery recyclinglocation.
Call your nearest Makita Service Center or Distributor to
determinethe location thatprovides Makita battery recycling.
9
Seeyour localYellow Pages under “Tools-€ lectric”.

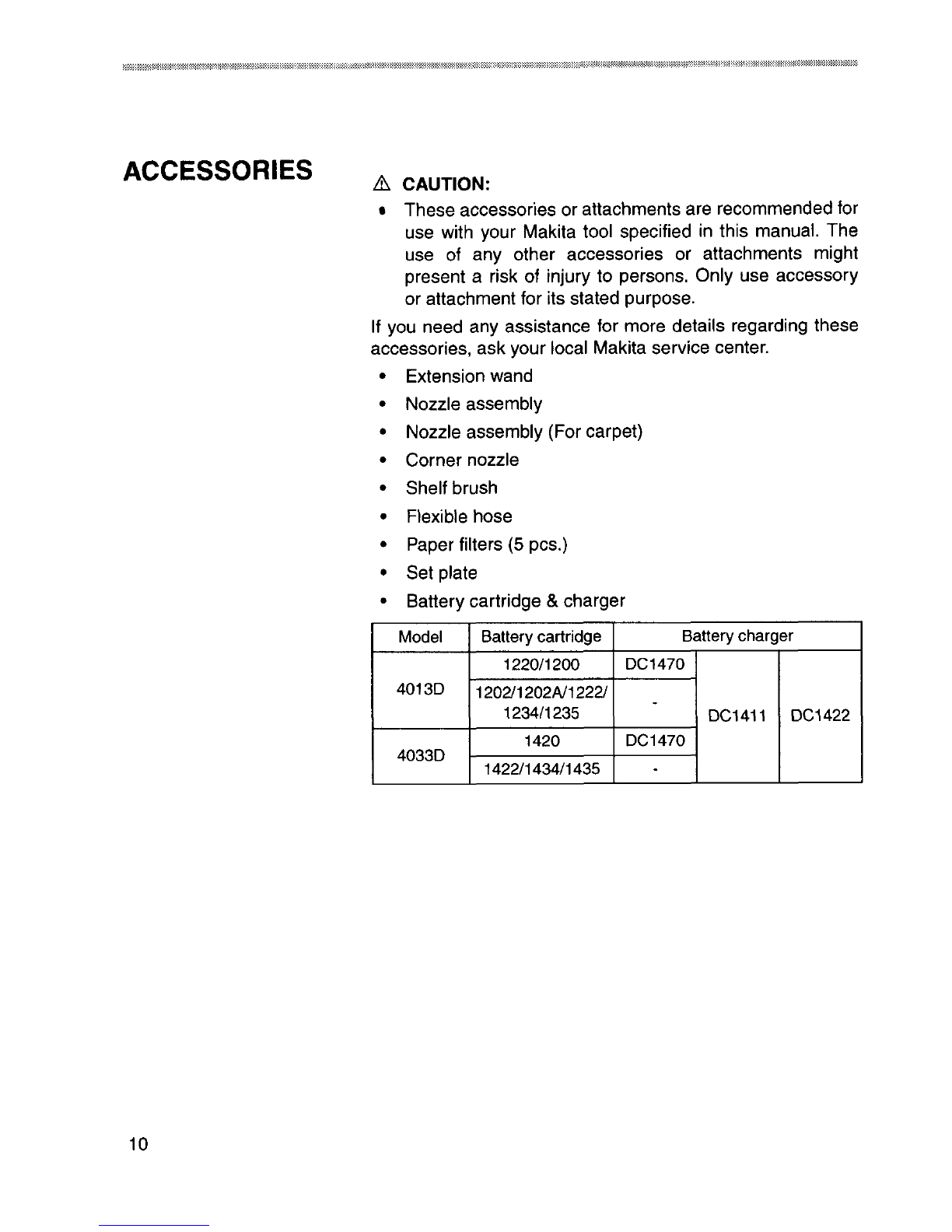

ACCESSORIES
Model Batterycartridge
122011200
4013D 1202/1202A/1222/
123411235
1420
142211434l1435
4033D
A CAUTION:
Theseaccessoriesor attachmentsare recommendedfor
use with your Makita tool specified in this manual. The
use
of any other accessories or attachments might
present a risk of injury
to persons. Only use accessory
or attachmentfor its stated purpose.
If you need any assistance for more details regardingthese
accessories,ask your local Makitaservice center.
Batterycharger
DC1470
DC1411 DC1422
DC1470
Extensionwand
Nozzleassembly
Nozzleassembly (For carpet)
Corner nozzle
Shelf brush
Flexiblehose
Paperfilters (5 pcs.)
10

.- . .. .. . . .. . . . .. ... - -.. . ... .. .. .. . - ... .
.. ..
.. .

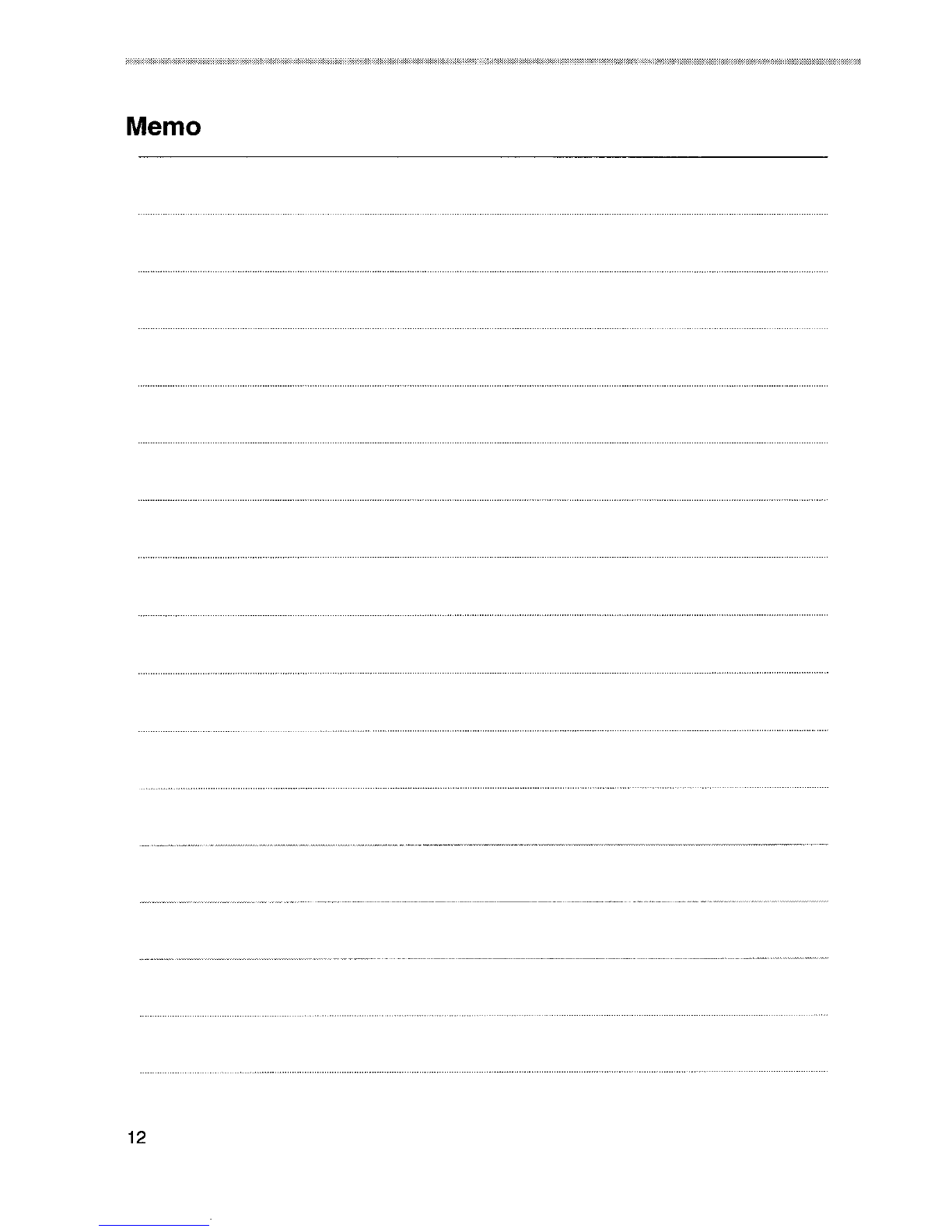

Memo
12

L
3
0
I
I
Makita U.S.A., Inc.
14930Northam Street
La Mirada,
CA 90638-5753
IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
Fold
First Class
pastage
Req"ited
post MllC* Wlll
not deliver
without proper
n postage
IIIIIIII
I
I
I
I
I
I
I
I
I
I

MAIL THIS PORTION
Your answer to the following questions are appreciated.
1.Thisproduct was purchasedfrom:
0 Home Center 0 Other ( ) 0 Magazine 0 Radio
0 Hardware/LumberStore
0 Tool Distributor
0 IndustrialSupply
0 StoreDisplay 0 Previoususage
0 Constructionsupply
0 Catalog 0 Other (
3. How did you learn of about this product:
0 From Dealer 0 Exhibition
Newspaper 0 From Friend
4. Mostfavoredpointsare:
2. Use of the productisintended for:
0 ConstructionTrade
0 IndustrialMaintenance
0 Home Maintenance
0 Hobby
0 Other ( )
5. Any comments:
0 Design
Features
0 Size
0 Price
0 Makita Brand
0 Repair Service
0 Durability
0 Power
0 Other (
I
MODELNO.
ATE PURCHASED
YEAR SERIALNO.
STATUS SEX
Married Single M F
rlTL.
LAST NAME / COMPANY NAME
,TREETADRESS
:ITY
AREA
CODE
STATE ZIP CODE PHONE
[IIIII
AGE: 0 Under 19 0 20-29 0 30.39 0 40-49 c] 50-60 0 over 60
BESURETO COMPLETE THE CUSTOMER'S PORTION OF THIS FORMAND RETAIN FOR YOUR RECORDS
Please return this portion by facsimile or mail.
Facsimile No. (714) 522-81 33

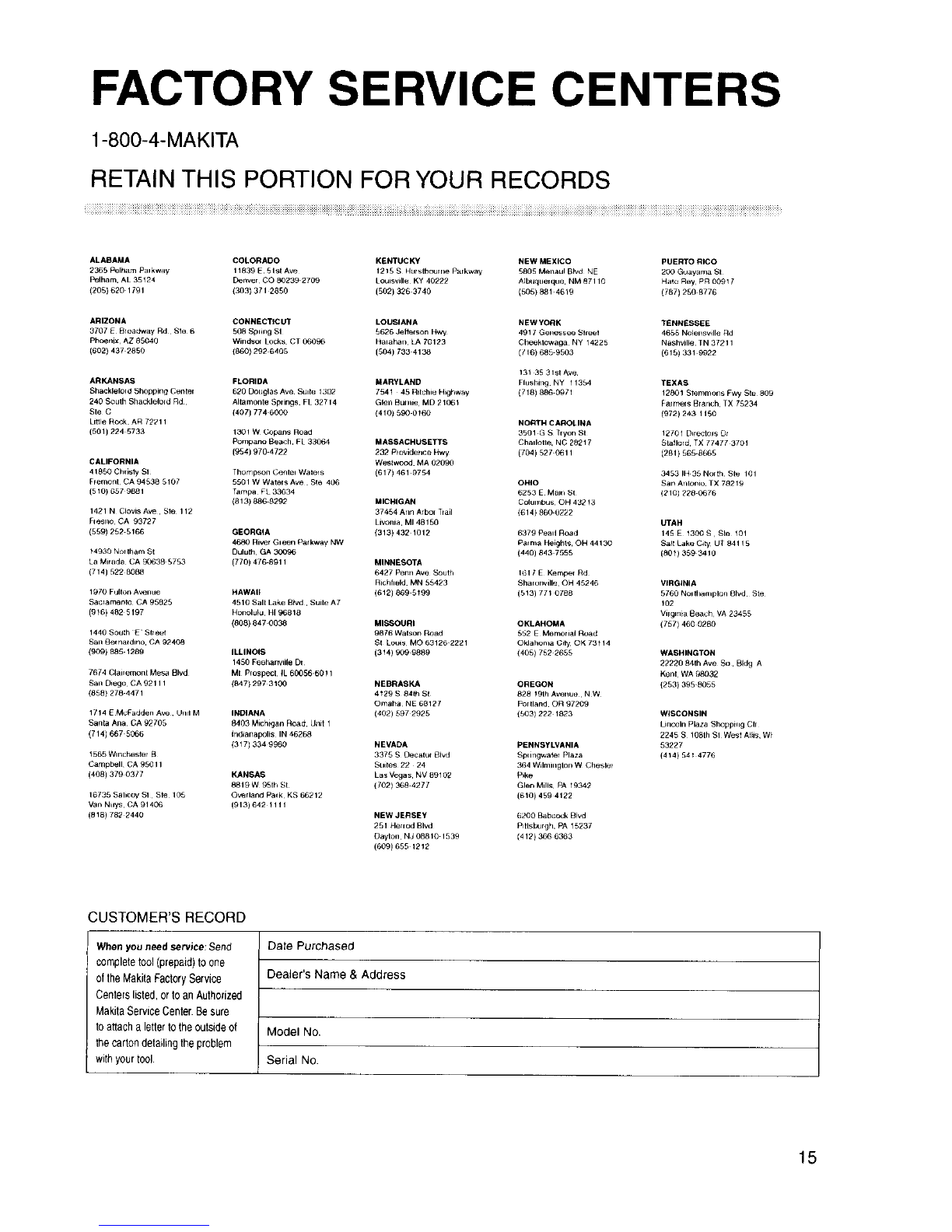

FACTORY SERVICE CENTERS
1 -800-4-MAKITA
RETAIN THIS PORTION FOR YOUR RECORDS
ALABAMA
2355 Rlham Paikway
Rlham AL35124
(2051 620 I791
ARIZONA
3707 E Binadway Rd Sfe 6
Phoenix A285040
[phone]
ARKANSAS
Shackleloid Shopping Ceriler
240 South Shacklelord Rd
Sle C
Lltlle Hock AR ,211 I
15011 221 5733
CALIFORNIA
11850Chmty SI
Fremonl CAS4538 5107
15,01657 9881
1121 N Clovis Ave bfo 1I2
Fiesilo CA 93727
[phone]
14930 Nnllham SI
La Miiada CA 906138 5753
l7l4j 522 80%
1970 Fullon Avenae
saciamsnto CA 85825
(8161482
5197
144OSO"fh E Sllsa,
sa,, Bo,na,d,n" CI 91408
(9091 ea5 12BY
7674 Clairemonl Mesa elvd
San Diqo CA 921 I I
[phone]
1/14 E MLFadden Aue Un8l M
Sank Ana CA 92705
[phone]
,585 Wlncheste, 0
Campbell CA 9501 I
14081 379 0317
16715Sali~~SI Ste 105
Van Nap CA 91106
inial 782 2440
COLORADO
llR3QE 5lslAue
Dsnve, CO 80239 2709
[phone]
CONNECTCUT
508 Spring SI
Windsol Lo&> CT 060%
i860)292 6405
FLORIDA
620 Doriglas Ave Suile ,302
Allamonte Spmgs FL 32714
1407)774 6wO
130, w copan* Road
Pompano Beach FL 33064
195419704722
Thumpion Canlei Waieis
5501 w water3 AVS Sk 4u6
Tampa f L 33634
i813I8868292
GEORGIA
16R) River Glean Parkway NW
Dululh GA 30396
1770)416 891 1
HAWAII
4510 Salt Lake Blvd Suite A7
[phone]
nonoiuiu HI 96818
ILLINOIS
1450Feshawille Dr
MI Prospect IL600566011
(841)28131W
INDIANA
8403 MiLhigaii Road Unit 1
iiidianapolir IN46268
1317l3349980
CUSTOMER'S RECORD
KENTUCKY
Louisville KY 10222
15021 326 3740
1215s nil~riboullle ~~~i~~~
LOUSIINA
5626 Jslferran Hmi
Halahail tb 70123
1504) 733 4138
MARYLAND
7541 45 Rilchie Highway
Gleii Burllie MD 21061
i410)5900160
MASSACHUSETTS
232 Ploadence thy
Welwod MA 02090
(61/)461 9154
MICHIGAN
37454 A,," Arbor Tla,,
Livonir MI 48150
(3131432 1012
MINNESOTA
6121 Pan,, me S0"fh
Richlisld
MN 55423
16121869 5199
MISSOURI
0876 Wslron Road
SI Louis M063126 2221
(3141 9~ 9889
NEBRASKA
Omaha NE68127
(4021 197 2921
4129s 6ims1
NEVADA
3375 S Dr~dlo Blvd
su,es22 21
LasVegas NV89102
IiM)368427/
NEW JERSEY
NEW MEXICO
5805 Mens", Bkd NF
AIbeqaerqoe NMBIIIO
[phone]
NEWVORK
491 7 Gei~sss~s blrral
Cheaklowaga NY 14225
(/16)6859503
131 3531alAve
Flashing NY < 1354
1718) 886 091,
NORTH CAROLINA
3501 G b lryon SI
Chadotls. NC 28217
1/04) 527 0611
om0
6253 t Main SI
ColLimbus OH 43213
(614) 860 "222
6379 Peal1 Road
Paima Height3 OH11130
[phone]
lill/E KempriRd
Sharuibille OH 45216
15,31771 0788
OKLAHOMA
5b2 E Memollai Rvad
OLlah"",aCl~ OK73114
[phone]
OREGON
828 19th i\vsnua N w
Portland OR 97209
(5003)222 1823
PENNSVLVANIA
3% Wilmlnglon W Chsblal
Pile
Glen M111s PA 19342
161014584122
sp,,ngwa,e,
Plaza
6200 0abL-k Bivd
P81isbirgh. PA 15237
14121%%6363
PUERTORlCO
2W Guayama SI
Hal" Rey PR w911
1787)250 8776
TENNESSEE
4655 Naieasalle Rd
Nashville TN 37211
16151331 9922
VIRGINIA
5760 Noillidniplon Blvd Ste
102
Virginia BeaLh VA 23455
[phone]
WASHINGTON
22220 84thAue So Bldg A
Kent WA 98032
12531395 8055
WISCONSIN
Lin~aln Plaza Shoppirig CIr
2245 S 1OBlhSI West Alle Wl
53227
14141 141 6776
When you need service Send
complete tool (prepaid) to one
01 the Makita Factory Service
Centers listed or
to an Authorized
MakitaService Center Be sure
to attach a letter to the outside of
the carton detailingthe problem
with your tool
Date Purchased
Dealer's Name
8 Address
I Model No. I
I Serial NO I
15

MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool isthoroughly inspectedand tested before leavingthe factory. It iswarranted to be freeof
defects fromworkmanship and materialsfor the periodof ONEYEAR from the dateof originalpurchase.
Should any troubledevelop duringthis one-year period,returnthe COMPLETE
tool, freightprepaid,to one of
Makita'sFactory or Authorized ServiceCenters. If inspectionshows the trouble iscausedby defective
workmanship or material,Makitawill repair (or at our option, replace) without charge.
This Warranty does not apply where:
repairshavebeen made or attemptedby others:
repairsare requiredbecauseof normalwear and tear:
*The
tool has beenabused, misused or improperlymaintained:
alterationshave been made to the tool.
INNO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT,INCIDENTAL OR CONSEQUENTIAL
DAMAGES FROMTHE SALE OR USEOFTHE PRODUCT. THIS DISCLAIMER APPLIES BOTH DURING
AND AFTER THETERM
OF THISWARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIEDWARRANTIES, INCLUDING IMPLIEDWARRANTIESOF
"MERCHANTABILITY"AND "FITNESS FOR A SPECIFIC PURPOSE," AFTER THE ONE-YEARTERM OF
THIS WARRANTY.
ThisWarranty gives you specificlegalrights,andyou may also have other rightswhich vary form state
to state.
Some statesdo notallow the exclusionor limitationof incidentalor consequentialdamages,
so the above
limitationor exclusion may notapplyto you. Some states do not allow limitationon how longan implied
warrantv lasts,
so the above limitationmay notapply to you.
MakitaCorporation
