Makita EW1OOR User manual

PUMP
MODEL : EW1 OOR
INSTRUCTION MANUAL
1 ISSUEEMD-PU0945 I

Thank you for purchasinga Makitawater pump.
This manual covers operationand maintenance of water pumps.
All information in this publication is based
on the latest product infor-
mation availableat the time of approvalfor printing.
Please readthis manual carefully beforeoperating.
CONTENTS
Page
1. PUMP SAFETY 1
2. COMPONENTS 2
3. PREPARATIONS FOR STARTING 3
4. STARTING THE ENGINE 5
5, OPERATION 7
...............................................
...............................................
.............................
......................................
..................................................
.....................................
6, STOPPING THE ENGINE a
....................................
7. MAINTENANCE SCHEDULE 9
8, "HOW-TO" MAINTENANCE 10
9. TROUBLESHOOTlNG 12
10. PREPARATIONS FOR STORAGE 14
....................................
........................................
.............................

~~
~~ ~

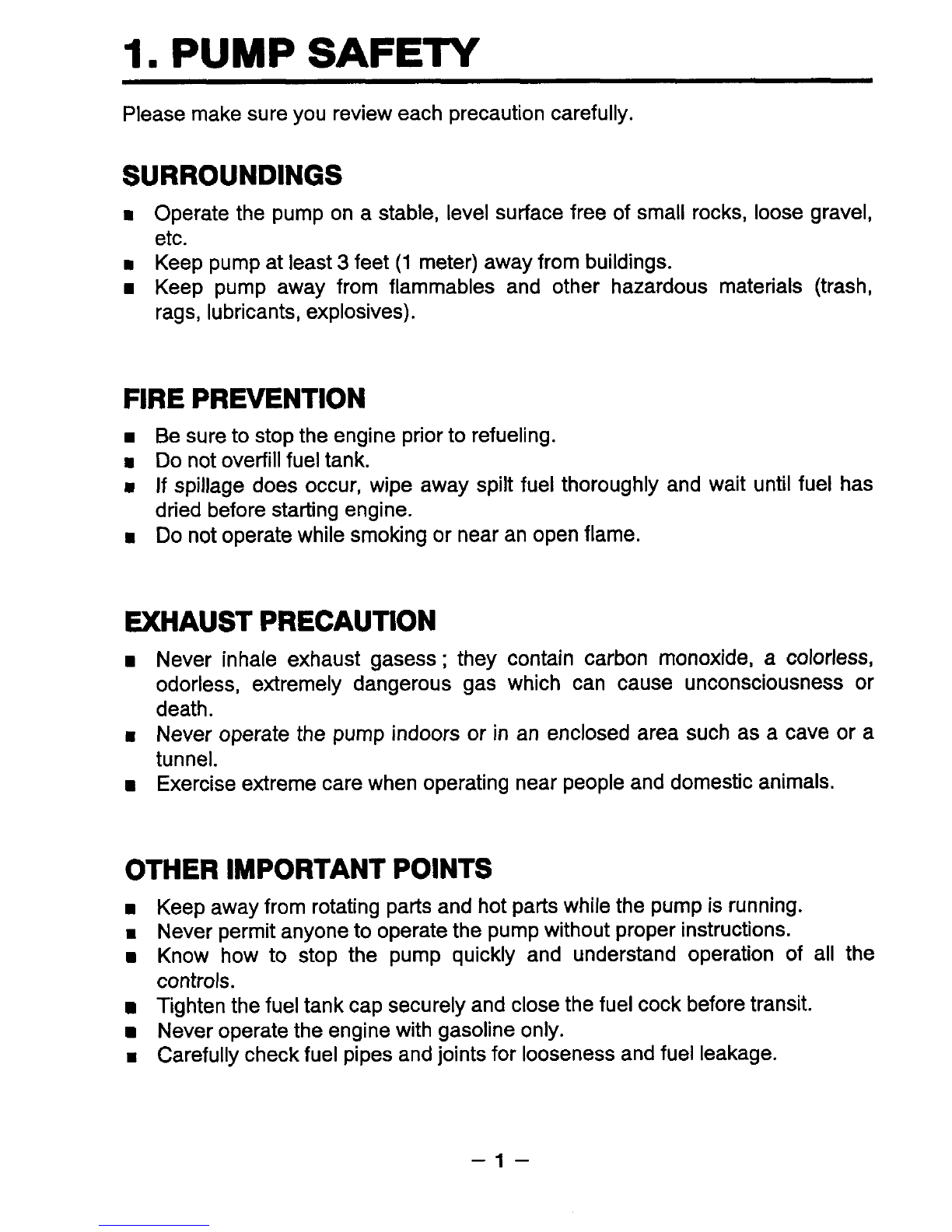

Please make sureyou revieweach precautioncarefully.
SURROUNDINGS
m Operate the pump on a stable, level surfacefree of small rocks, loose gravel,
etc.
m Keep pumpat least 3 feet (1 meter)awayfrom buildings.
Keep pump away from flammables and other hazardous materials (trash,
rags, lubricants,explosives).
FIREPREVENTION
Be sureto stopthe engine priorto refueling.
m Do notoverfillfueltank.
m If spillage does occur, wipe away spilt fuel thoroughly and wait until fuel has
dried beforestartingengine.
m Do notoperatewhile smoking or near an open flame.
EXHAUSTPRECAUTION
Never inhale exhaust gasess; they contain carbon monoxide, a colorless,
odorless, extremely dangerous gas which can cause unconsciousness or
death.
m Never operate the pump indoors or in an enclosed area such as a cave or a
tunnel.
Exerciseextreme care when operatingnear peopleand domesticanimals.
OTHER IMPORTANTPOINTS
Keepaway from rotatingpartsand hot partswhile the pump is running.
m Never permitanyoneto operatethe pumpwithoutproperinstructions.
Know how to stop the pump quickly and understand operation of all the
controls.
Tightenthe fueltank cap securelyand closethe fuel cock beforetransit.
Neveroperatethe enginewith gasolineonly.
m Carefullycheckfuel pipesand jointsfor loosenessand fuel leakage.
-1-

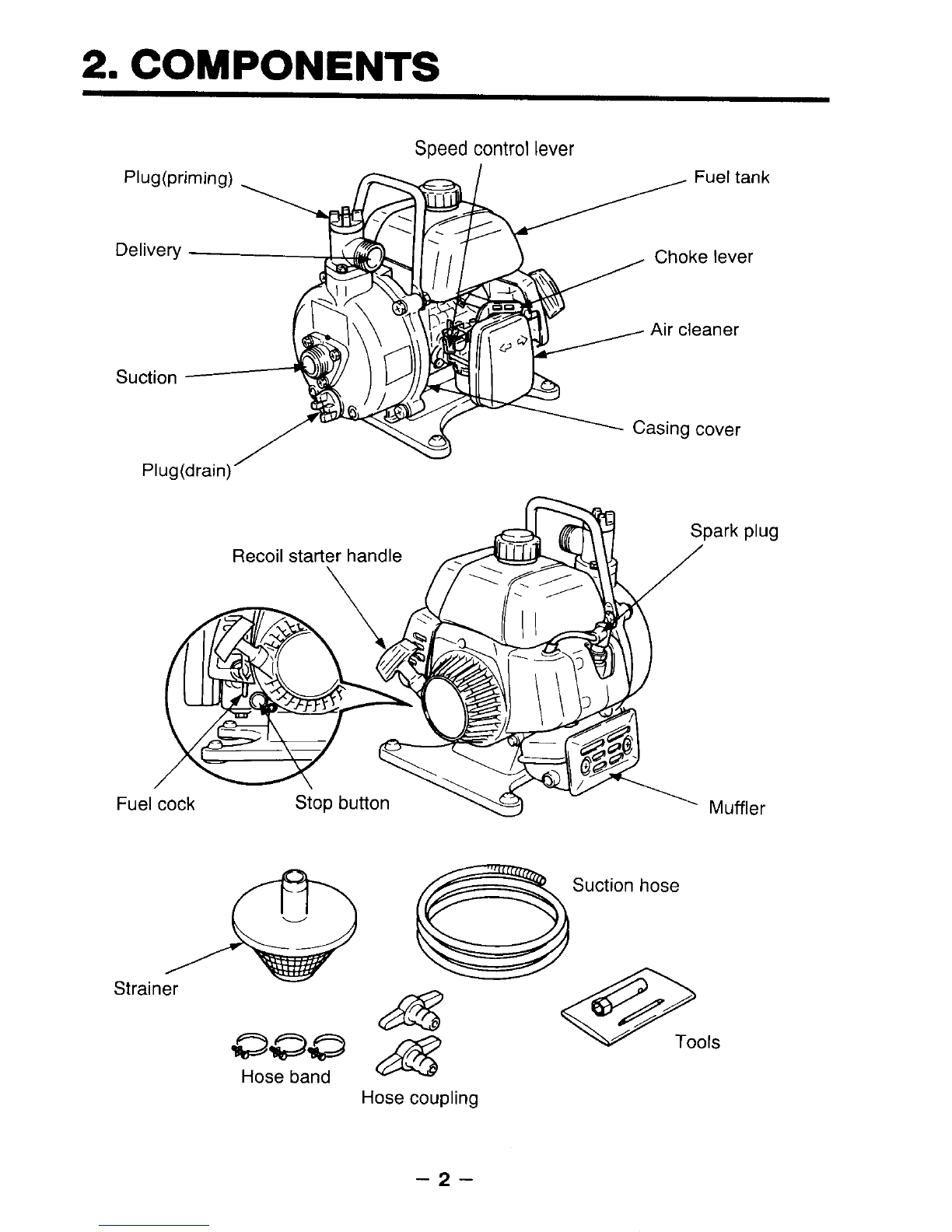

2. COMPONENTS
Speed control lever
Plug(priming)
\
Delivery
Fueltank
, Chokelever
Suction
Plug(drain)’
Hosecoupling
-2-

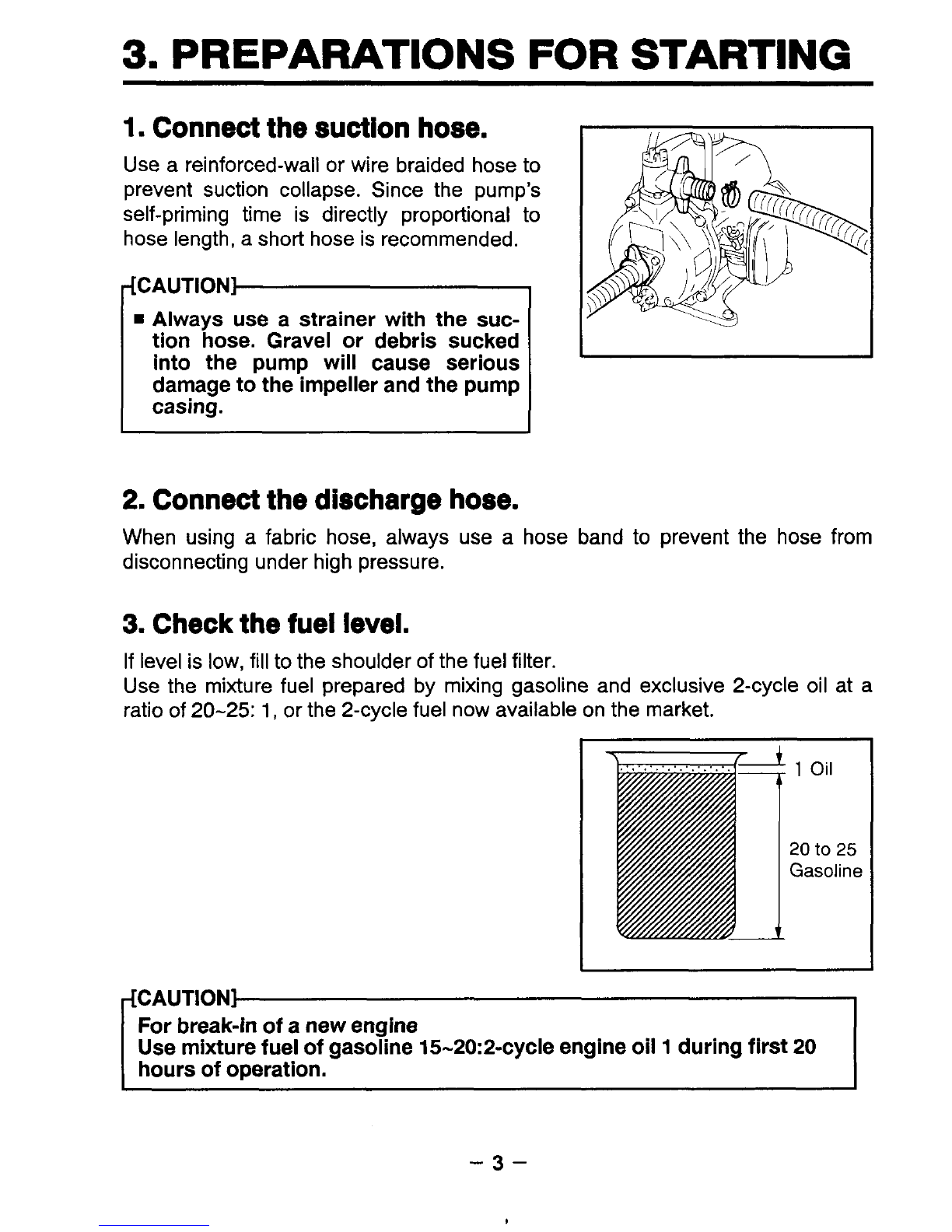

3. PREPARATIONS FOR STARTING
1. Connectthe suction hose.
Use a reinforced-wallor wire braided hoseto
prevent suction collapse. Since the pump’s
self-priming time is directly proportional
to
hose length,a short hose is recommended.
[CAUTION]-
= Always use a strainer with the suc-
tion hose. Gravel or debris sucked
into the pump will cause serious
damage
to the impeller and the pump
casing.
2. Connectthe discharge hose.
When using a fabric hose, always use a hose band to prevent the hose from
disconnecting underhigh pressure.
3. Checkthe fuel level.
If levelis low,fillto the shoulder of the fuel filter.
Use the mixture fuel prepared by mixing gasoline and exclusive 2-cycle oil at
a
ratioof 20-25: 1, or the 2-cyclefuel now availableon the market.
1 Oil
20 to 25
Gasoline
CAUTION}
For break-in of a newengine
Use mixturefuelof gasoline 15-20:2-cycle engine oil
1 duringfirst 20
hoursof operation.
-3-
I

4. Checkthe prlming water.
It is recommendedthat the water chamber of
pump casing should be primed with full of
water beforeoperating.
+CAUTION]-,
Never attempt to operate the pump
without priming water or the pump
will overheat. Extended dry opera-
tion will destroy the mechanicalseal.
If the unit has been operated dry,
stop the engine immediately and al-
low the pump to cool before adding
primingwater.
-4-

4. STARTING THE ENGINE
1. Openthefuel cock.
2. Setthespeed control leverto “START.”
3. Closethe choke lever.
If the engine is warm or the ambient
temperature is high, close the choke
lever half-way,or keep
it open fully.
If the engine is cold, or the ambient
temperature
is low, close the choke
lever.
-5-

4. Pull the starter handle slowly until re-
sistance is felt. This is the "compression"
point. Return the handle to its original
positionand pullswiftly.
H Do not pullout the rope allthe way.
H After starting the engine, allow the
starter handle return to its original
positionwhile still holdingthe handle.
-6-

5. OPERATION
Avoid operatingthe engine at highspeedfor a longtime without load.
1. After starting the engine, gradually open
choke by turning the choke lever and
finally keepitopenfully.
Do not fully open the choke lever im-
mediately when the engine is cold or
the ambient temperature is low, be-
causethe engine may stop.
2. After the engine starts, set the speed
control lever at the low speed position
(L)
and warm it up without a load for a few
minutes.
Gradually move the speed control lever to-
ward the high speed position
(H) and set it at
the requiredenginespeed.
NOTE :
Whenever high speed operation is not re-
quired, slow the engine down (idle), by mov-
ing the speed control lever to save fuel and
extendengine life.
-7-
I

6. STOPPINGTHE ENGINE
1. Set the speed control lever to the low
speed position and allow the engine to
run at low speed for
2 or 3 minutes
beforestopping.
2. Keep depressing the STOP BUTTON
untilthe engine stops.
Do not stop the engine suddenly when it
is runningat highspeed.
3. Closethe fuel cock.
4. Pull the starter handle slowly and return
the handle to its original position when
resistance
is felt.
NOTE :
The above operation is necessary to prevent
outside moist air from intruding into the
combustionchamber.
STOPPINGENGINEWITH THE
FUEL COCK
Close the fuel cock and wait for a while until
the engine stops.
Avoid letting fuel remain in the carburetor
long period, or the passages
of the carbu-
retor may become clogged with impurities,
and malfunctionsmay result.
-8-

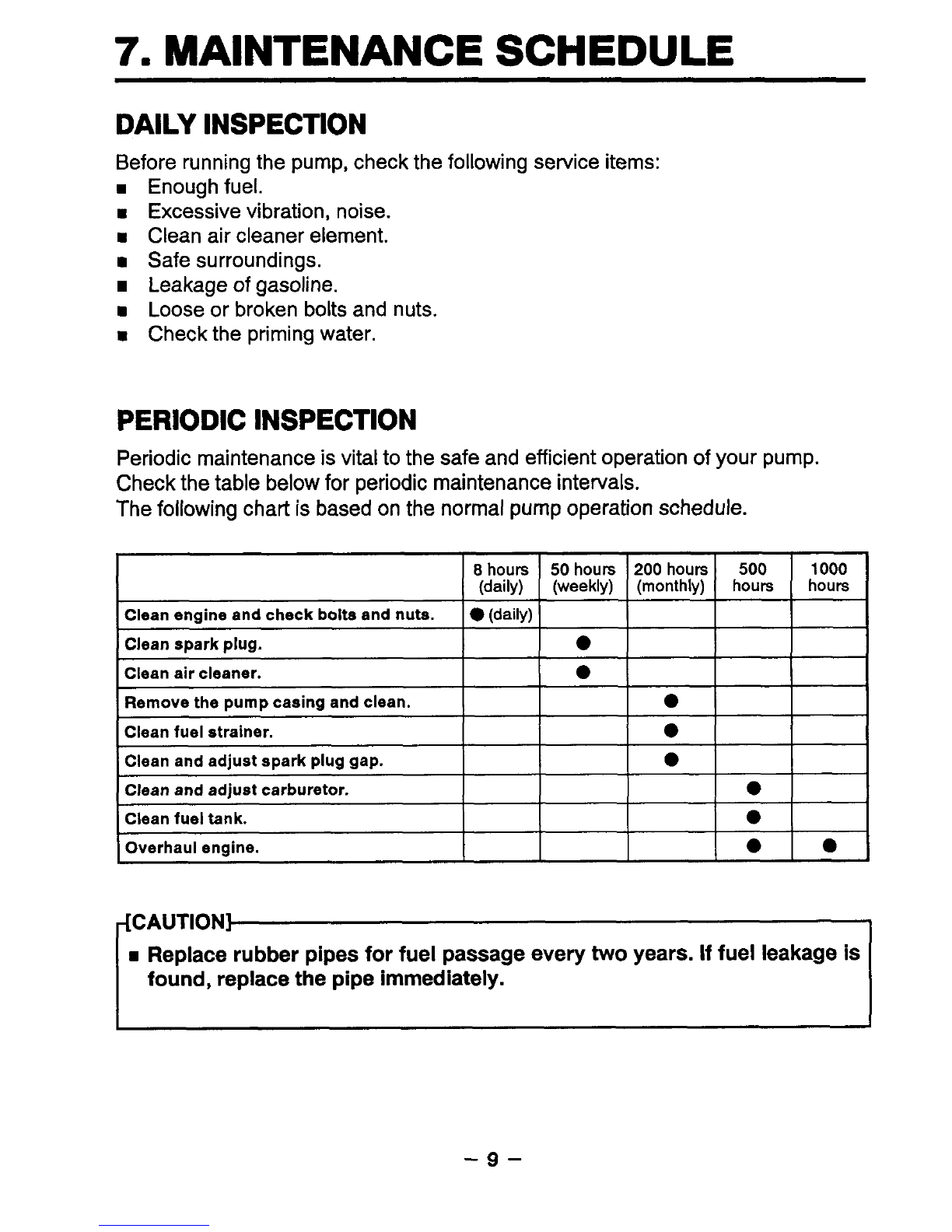

DAILY INSPECTION
lhours
(daily)
0 (daily)
Clean engineand check
bolts and nuts.
Clean spark plug.
Clean air cleaner.
Beforerunningthe pump, checkthe following serviceitems:
a Enoughfuel.
a Excessivevibration,noise.
a Cleanair cleanerelement.
Safesurroundings.
Leakageof gasoline.
a Looseor brokenboltsand nuts.
m Checkthe primingwater.
50hours 200 hours
500 1000
(weekly) (monthly) hours hours
0
0
PERIODIC INSPECTION
Periodicmaintenanceisvitalto the safe and efficientoperation of your pump.
Checkthe table below
for periodic maintenanceintervals.
Thefollowingchart
is basedon the normalpumpoperationschedule.
~
Removethe pumpcasing and clean.
0
Clean fuel strainer. 0
Clean and adjust spark plug gap. 0
Cleanand adjust carburetor. 0
Cleanfuel tank. 0
Overhaul engine. 0 0
[CAUTION]
a Replacerubber pipes for fuel passageevery two years. If fuel leakage is
found, replacethe pipe immediately.
-9-

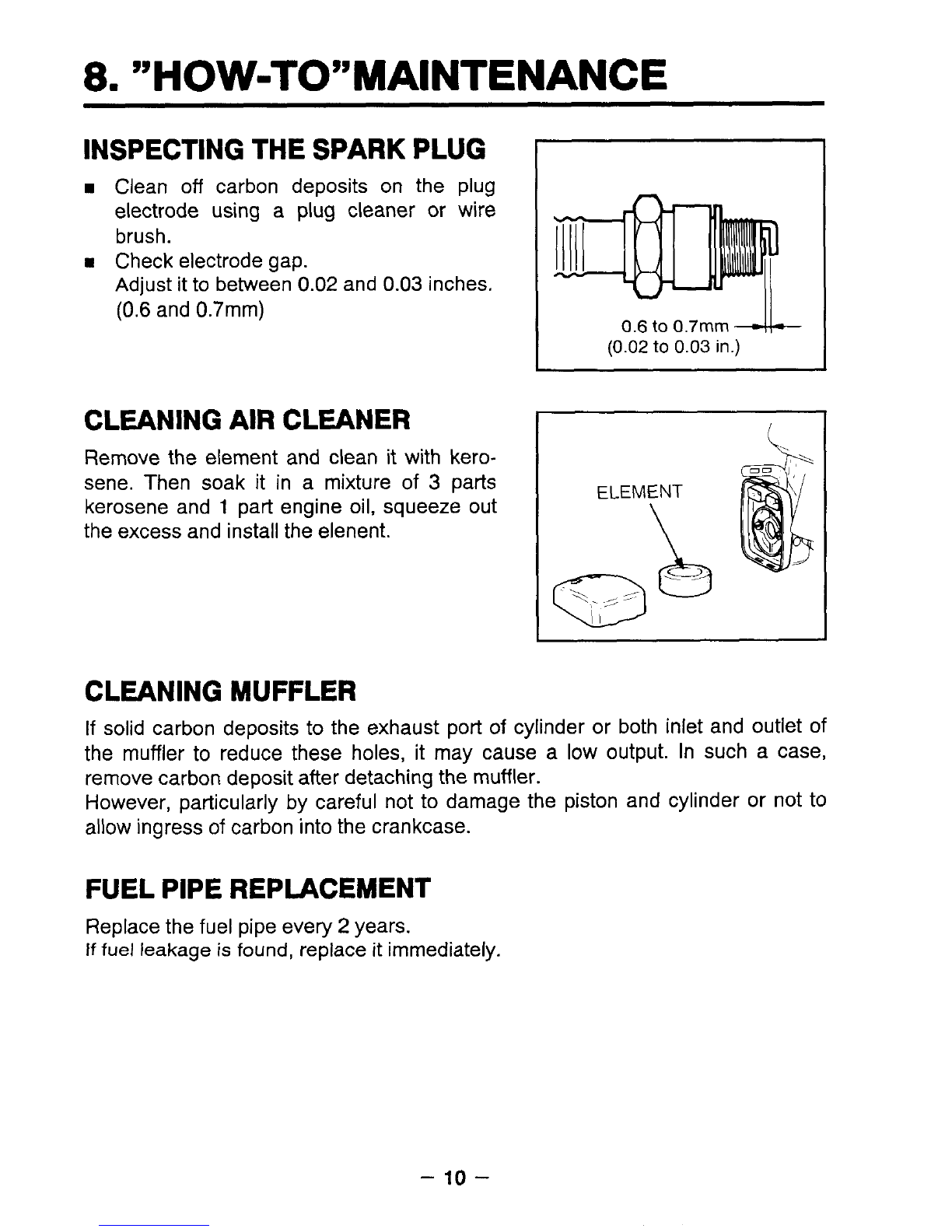

0. "HOW-TO" MAINTENANCE
INSPECTING THE SPARK PLUG
Clean off carbon deposits on the plug
electrode using a plug cleaner or wire
brush.
w Check electrode gap.
Adjust itto between
0.02 and 0.03 inches.
(0.6 and 0.7mm)
CLEANING AIR CLEANER
Remove the element and clean it with kero-
sene. Then soak it in a mixture of
3 parts
kerosene and
1 part engine oil, squeeze out
the excess and installthe elenent.
0.6 to 0.7" -+-
(0.02 to 0.03 in.)
I
ELEMENT
CLEANING MUFFLER
If solid carbon deposits to the exhaust port of cylinder or both inlet and outlet of
the muffler to reduce these holes, it may cause a low output. In such a case,
removecarbon deposit after detachingthe muffler.
However, particularly by careful not to damage the piston and cylinder or not to
allow ingress
of carbon intothe crankcase.
FUEL PIPEREPLACEMENT
Replacethe fuel pipeevery 2 years.
If fuel leakage is found, replace it immediately.
- 10 -

CHECKING BOLTS, NUTSAND SCREWS
Retightenloose boltsand nuts.
Checkfor fuel and oil leaks.
Replacedamaged parts with newones.
Keepsafety onyour mind.
CLEANING FUELSTRAINER
w Loosenthe banjo boltfrom the carburetor
and removethe strainer (plasticmesh).
w Clean the strainer with kerosene and
reassemble
it.
- 11 -

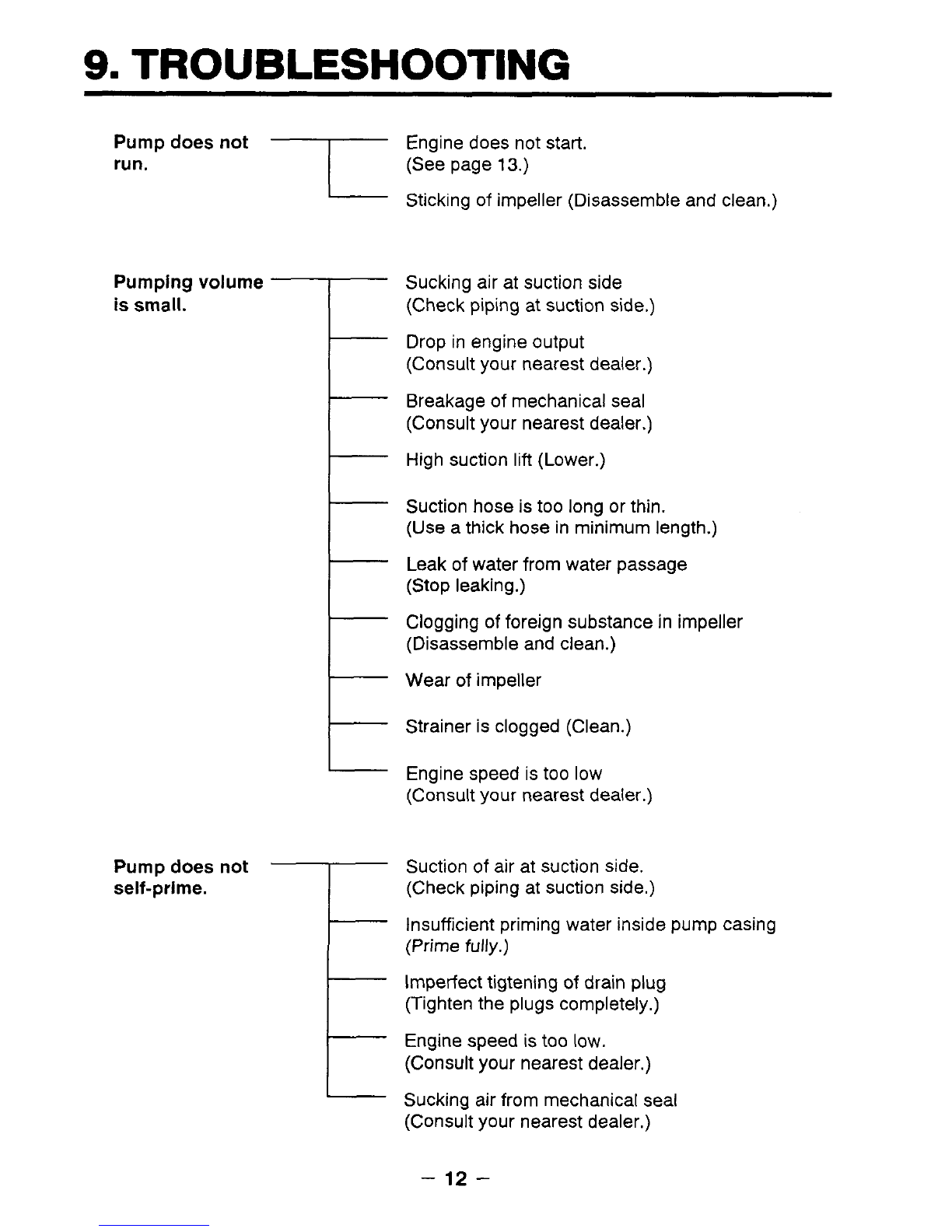

Pump does not
run.
I
Pumping volume
is small.
-r
Pump does not
self-prime.
Engine does not start.
(Seepage
13.)
Sticking of impeller (Disassembleand clean.)
Sucking air at suction side
(Check piping at suction side.)
Drop in engineoutput
(Consultyour nearestdealer.)
Breakageof mechanicalseal
(Consultyour nearestdealer.)
High suction
lift (Lower.)
Suction hose istoo long or thin.
(Use a thick hose in minimumlength.)
Leak of water from water passage
(Stop leaking.)
Cloggingof foreign substancein impeller
(Disassembleand clean.)
Wear of impeller
Strainer is clogged (Clean.)
Engine speed is too
low
(Consultyour nearestdealer.)
Suction of air at suction side.
(Check pipingat suction side.)
Insufficientprimingwater insidepump casing
(Prime
fully.)
Imperfecttigtening of drain plug
(Tightenthe plugscompletely.)
Enginespeed istoo
low.
(Consult your nearestdealer.)
Suckingair from mechanicalseal
(Consultyour nearest dealer.)
- 12 -

WHEN ENGINEDOES NOT START:
fore you take the pump to your
Makita dealer.
If you still have trouble after com-
pleting the checks, take the pump
to your nearest Makitadealer.
Before testing, carefully wipe off
spilledfuel.
Put the plug as far away from the
spark plug holeas possible.
Ground the side of the electrode to
any engine ground.
r 1. Removethe plug and connect itto the plug cap.
Pull the starter- handle while putting the plug
againstthe engine ground.
strong spark
Is therea
2. Try with a new plug if the spark is weak or no
spark flies.
3. The ignition system is faulty if there is no spark
with a new plug.
Take your pumpto your nearest Robin dealer.
t
1. Pull the starter handle slowly and check if
r resistanceisfelt.
2. If littleforce is requiredto pull the starter handle,
enough com-
pression? check if the spark plug istightenedfirmly.
failure
3. Ifthe spark plug is loose, tighten it.
I
Is the spark
plugwet with-
fuel?
1
4. if compression is still low, consult your nearest
dealer.
- 1. Choke (close choke lever) and pull the starter
handlefive or six times.
Remove the plug and check if its electrode is
wet. If the electrode is wet, fuel is well supplied
to your engine.
- 2. When the electrode is dry, check where the fuel
stops. (Check the fuel intake of the carburetor
and fuel strainer intake.)
3. In case the engine does not start with well
suppliedfuel, try using differentfuel.
-
- 13 -

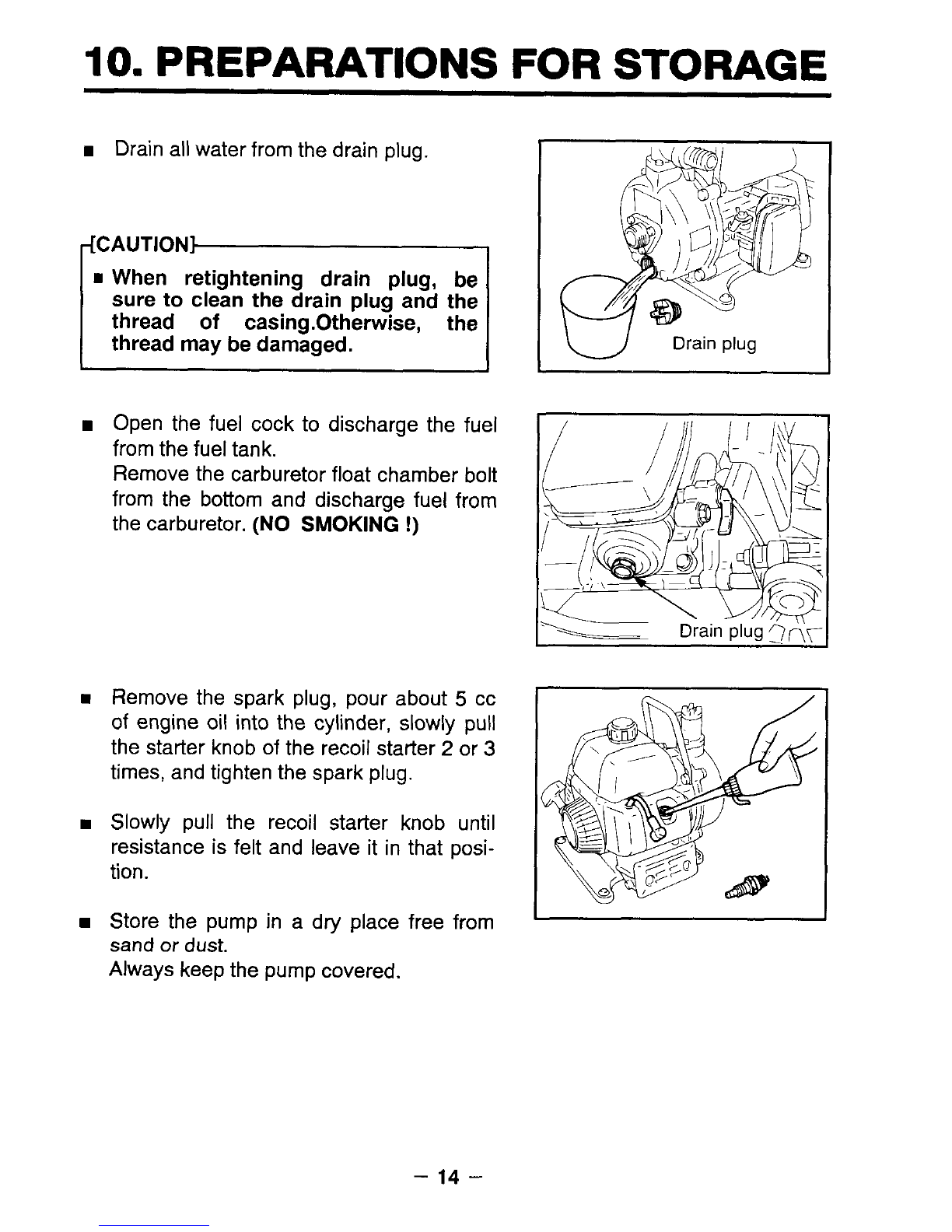

IO. PREPARATIONS FOR STORAGE
Drainallwater fromthe drain plug.
[CAUTION
m When retightening drain plug, be
sure
to clean the drain plug and the
thread
of casing.Otherwise,
thread may be damaged.
Open the fuel cock to discharge the fuel
fromthe fueltank.
Removethe carburetorfloat chamber bolt
from the bottom and discharge fuel from
the carburetor.
(NO SMOKING !)
m Remove the spark plug, pour about 5 cc
of engine oil into the cylinder, slowly pull
the starter knob of the recoil starter
2 or 3
times, and tighten the spark plug.
Slowly pull the recoil starter knob until
resistanceis felt and leave it in that posi-
tion.
Store the pump in a dry place free from
sand or dust.
Always keepthe pumpcovered.
I u Drain plug
- 14 -

MAKITA LIMITED ONEYEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is
warranted to be free of defects from workmanship and materials for the period of
ONE YEAR from the date of original purchase. Should any trouble develop during
this one-year period, return the COMPLETE
tool, freight prepaid, to one of Makita’s
Factory or Authrorized Service Centers.
If inspection shows the trouble is caused by
defective workmanship
or material, Makita will repair (or at our option, replace)
without charge.
This Warranty does not apply where:
0 repairs have been made or attempted by others;
0 there IS evidence of normal wear and tear;
0 The tool has been abused, misused or improperly maintained;
0 alterationshave been made to the tool.
Defects are due to the use
of parts, accessories or attachments which are not Makita
genuine products,specifically recommended for use with this
tool.
Damage may be caused in transit (This must be the responsibility of the carrier.)
Claims arise from regulations such asfor noise
levels, exhaust gas emissions,etc. This
product has been operated for racing purposes or other competitve activities. This
product has been employed for powering equipment that is operated on,
in or near
water or explosive atmospheres.
The followingparts are expendable (not durable), so warranty does not apply:
Expendable
parts including, but not limited to:
Spark
plugs, packings. gaskets, rubber materials. washers, nuts, V-belt, engine oil,
grease,paper elements
, brushes, mechanical seal,pump impellerand volute casing.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM THE SALE OR USE
OF THE PRODUCT. THIS DISCLAIMER APPLIES BOTH DURING AND
AFTER THETERM
OF THIS WARRANTY.
I
1
1 INCLUDING IMPLIED WARRANTIES OF “MERCHANTABILITY” AND
“FITNESS FOR A SPECIFIC PURPOSE,” AFTER THE ONE-YEAR TERM OF
THIS WARRANTY.
This Warranty gives you specific legal rights, and you
may also have other rights
which very from state to state. Some states do not allow the exclusion of limitation of
incidental or consequential damages,
so the above limitation or exclusion may not
apply to you. Some states do not allow limitation on how long an implied warranty
lasts,
so the above limitation may not apply to you.
I MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES.
MakitaCorporation
3-1 8-8, Sumiyoshi-cho
Anjo, Aichi
446 Japan
PRINTED IN JAPAN
