MAKSIWA SC.1100.X User manual

1
SC.1100.X
INSTRUCTION MANUAL
10” Table Saw - 3 Wire 220 V - 1 Phase
ATTENTION: READ THIS MANUAL BEFORE USING THE MACHINE.

2
Greetings,
Congratulations, you just purchased the SC.1100.X Maksiwa Table Saw, which
was developed with the Maksiwa’s highest standards of technology and quality.
Your SC.1100.X Maksiwa Table Saw allows you to have the highest productivity in
woodworking. It should be noted that to use this machine with maximum effi ciency,
you should read and understand the instructions in this manual.
Visit our website to know about our launches and other product lines and Technical
Assitance:
www.maksiwa.com/usa
[email protected]

3
Attention!: The machine must be inspected immediately upon arrival. If the machine has been
damaged during transport, or if any parts are missing, a written record of the problems must be
submitted to the forwarding agent and a damage report compiled. Also be sure to notify your
supplier immediately.
For the safety of all personnel, it is necessary to study this manual thoroughly before assembly
and operation. This manual must be kept in good condition and should be considered as part
of the machine. Furthermore, the manual must be kept to hand and within the vicinity of the
machine so that it is accessible to operators when using, maintaining or repairing the machine.
!
Maksiwa International Inc.
4100 N Powerline Rd, Suite D3 Pompa-
no Beach, FL
Call us free: 844-319-6594
[email protected]
www.maksiwa.com/usa

4
Contents
1.General.....................................................................................................................................................................05
1.1 Symbol legend................................................................................................................................................05
1.2 Information on the operating instructions ..................................................................................................05
1.3 Liability and warranty.....................................................................................................................................05
1.4 Copyright........................................................................................................................................................06
1.5 Spare parts.....................................................................................................................................................06
1.6 Disposal .........................................................................................................................................................06
2. Safety Regulations...............................................................................................................................................07
2.1 Workspace.....................................................................................................................................................07
2.2 Maintainance .................................................................................................................................................07
2.3 Machine Safety..............................................................................................................................................08
3.Specifi cations......................................................................................................................................................13
3.1 Technical Specifi cations ...................................................................................................................................13
3.2Electrical Requirements .................................................................................................................................13
4. Installation............................................................................................................................................................15
4.1 Unpacking and Checking Contents ...............................................................................................................15
4.2 Assembly ......................................................................................................................................................16
5. Operating Procedures ........................................................................................................................................28
5.1Description ......................................................................................................................................................28
5.2 Starting and Stopping the Saw ......................................................................................................................28
5.3 Adjustments ...................................................................................................................................................29
5.4 TypesofCuts/Operations...............................................................................................................................32
6. Maintenance ........................................................................................................................................................36
6.1 Safety Instructions ........................................................................................................................................36
6.2 Cleaning .........................................................................................................................................................36
6.3 Lubrication .....................................................................................................................................................36
6.4 Service ...........................................................................................................................................................36
6.5 Changing the Blade Saw .................................................................................................................................37
7. Troubleshooting .................................................................................................................................................38
8. Exploded View ......................................................................................................................................................40
9. Wiring Diagram .....................................................................................................................................................50
10.TermsofWarranty...............................................................................................................................................51

5
1 General
1.1 Symbol legend
Important technical safety instructions in this manual are marked with symbols.
These instructions for work safety must be followed.
In all these particular cases, special attention must be paid in order to avoid accidents, injury to persons or
material damage.
Warning! Risk of injury or death!
This symbol marks instructions that must be followed in order to avoid harm to one’s health, injuries,
permanent impairment or death!
Warning! Danger! Electric current!
This symbol warns of potentially dangerous situations relating to electrical current. Not observing the
safety instructions increases the risk of serious injury or death. All electrical repairs must be carried
out by a qualifi ed electrician!
Attention! Risk of material damage!
This symbol marks instructions which, if not observed, may lead to material damage, functional
failures
and/or machine breakdown!
1.2 Information on the operating instructions
This manual describes how to operate the machine properly and safely. Be sure to follow the safety tips and
instructions stated here as well as any local accident prevention regulations and general safety regulations.
Before beginning any work on the machine, ensure that the manual, in particular the chapter entitled “Safety”
and the respective safety guidelines, has been read in its entirety and fully understood. This manual is an
integral part of the machine and must therefore be kept in the direct vicinity of the machine and be accessible
at all times. If the machine is sold, rented, lent or otherwise transferred to another party, the manual must
accompany the machine.
1.3 Liability and warranty
The contents and instructions in this manual have been compiled in consideration of current regulations and
state-of-the-art technology as well as based on our know-how and experience acquired over many years. This
1 General
!

6
manual must be read carefully before commencing any work on or with this machine. The manufacturer shall
not be liable for damage and/or faults resulting from the disregard of instructions in the manual. The text
and images do not necessarily represent the delivery contents. The images and graphics are not depicted
on a 1:1 scale. The actual delivery contents are dependent on custom-build specifi cations, add-on options
or recent technical modifi cations and may therefore deviate from the descriptions, instructions and images
contained in the manual. Should any questions arise, please contact the manufacturer. We reserve the right
to make technical modifi cations to the product in order to further improve user-friendliness and develop its
functionality.
1.4 Copyright
This manual should be handled confi dentially. It is designated solely for those persons who work on or with the
machine. All descriptions, texts, drawings, photos and other depictions are protected by copyright and other
commercial laws. Illegal use of the materials is punishable by law.
This manual, in its entirety or parts thereof, may not be transferred to third parties or copied in any way or
form, and its contents may not be used or otherwise communicated without the express written consent of
the manufacturer.
Infringement of these rights may lead to a demand for compensation or other applicable claims. We reserve
all rights in exercising commercial protection laws.
1.5 Spare parts
Attention: Non genuine, counterfeit or faulty spare parts may result in damage, cause malfunction or
complete breakdown of the machine.
If unauthorized spare parts are fi tted into the machine, all warranty, service, compensation and liability claims
against the manufacturer and their contractors, dealers and representatives shall be rejected. Use only genuine
spare parts supplied by the manufacturer. Unless, specifi ed by manufactor.
1.6 Disposal
Attention!: Used electrical materials, electronic components, lubricants and other auxiliary substances
must be treated as hazardous waste and may only be disposed of by specialised, licensed fi rms.
If the machine is to be disposed of, separate the components into the various materials groups in order to
allow them to be reused or selectively disposed of. The whole
structure is made of steel and can therefore be dismantled without problem. This material is also easy to
dispose of and does not pollute the environment or jeopardize public health. International environmental
regulations and local disposal laws must always be complied with.
1 General
!

7
2 Safety Regulations
For your own safety, read all of the instructions and precautions before operating tool.
• Wear proper apparel. Do not wear loose clothing, gloves, neckties, rings, bracelets or other jewelry which
may get caught in moving parts of machine.
• Wear protective hair covering to contain long hair.
• Wear safety shoes with non-slip soles.
• Wear safety glasses complying with the Standard of your country. Everyday glasses have only impact
resistant lenses. They are NOT safety glasses.
• Wear face mask or dust mask if operation is dusty.
• Be alert and think clearly. Never operate power tools when tired, intoxicated or when taking medications
that cause drowsiness.
2.1 Workspace
• Keep work area clean. Cluttered work areas invite accidents.
• Do not use power tools in dangerous environments. Do not use power tools in damp or wet locations. Do
not expose power tools to rain.
• Work area should be properly lighted.
• Keep visitors at a safe distance from work area.
• Keep children out of workplace. Make workshop childproof. Use padlocks, master switches or remove
switch keys to prevent any unintentional use of power tools.
• Keep power cords from coming in contact with sharp objects, oil, grease and hot surfaces.
2.2 Maintainence
• Always unplug tool prior to inspection.
• Consult manual for specifi c maintaining and adjusting procedures.
• Keep tool lubricated and clean for safest operation.
• Remove adjusting tools. Form habit of checking to see that adjusting tools are removed before switching
machine on.
• Keep all parts in working order. Check to determine that the guard or other parts will operate properly and
perform their intended function.
• Check for damaged parts. Check for alignment of moving parts, binding, breakage, mounting and any
other condition that may affect a tool’s operation.
• A guard or other part that is damaged should be properly repaired or replaced. Do not perform makeshift
repairs. (Use parts list provided to order replacement parts.)
2 Safety Regulations

8
• Maintain proper adjustment of rip fence and blade guard.
• Never adjust saw while running. Disconnect power to avoid accidental start-up.
• Have damaged or worn power cords replaced immediately.
• Keep blade sharp for effi cient and safest operation.
2.3 Machine Safety
• Use right tool for job. Do not force tool or attachment to do a job for which it was not designed.
• Disconnect tool when changing blade.
• Avoid accidental start-up. Make sure that the tool is in the “off” position before plugging in, turning on safety
disconnect or activating breakers.
• Do not force tool. It will work most efficiently at the rate for which it was designed.
• Keep hands away from blade and moving parts and cutting surfaces.
• Never leave tool running unattended. Turn the power off and do not leave tool until it comes to a complete
stop.
• Do not overreach. Keep proper footing and balance.
• Never stand on tool. Serious injury could occur if tool is tipped or if blade is unintentionally contacted.
• Know your tool. Learn the tool’s operation, application and specific limitations.
• Handle workpiece correctly. Press firmly against table. Protect hands from possible injury.
• Turn machine off if it jams. Blade jams when it digs too deeply into workpiece. (Motor force keeps it stuck
in the work.)
• Feed work into the blade only as recommended in “Operation.”.
WARNING! FOR YOUR OWN SAFETY, DO NOT OPERATE YOUR SAW UNTIL IT IS COMPLETELY
ASSEMBLED AND INSTALLED ACCORDING TO INSTRUCTIONS.
STABILITY OF SAW
If there is any tendency for the saw to tip over or move during certain cutting operations, such as cutting extremely
heavy panels or long heavy boards, the saw should be bolted down. If you attach any kind of extensions over
24″wide to either end of the saw, make sure you either bolt the saw to the floor, as appropriate, or support the
outer end of the extension from the bench or floor, as appropriate.
LOCATION
The saw should be positioned so neither the operator nor a casual observer is forced to stand in line with the
saw blade.
KICKBACKS
A kickback occurs during a rip-type operation when a part or all of workpiece is thrown back violently toward
operator. Keep your face and body to one side of the saw blade, out of line with a possible kickback. Kickbacks
2 Safety Regulations

9
and possible injury from them can usually be avoided by:
• Maintaining rip fence parallel to saw blade.
• Keeping saw blade sharp. Replace or sharpen anti-kick-back pawls when points become dull.
• Keeping saw blade guard, spreader, and anti-kickback pawls in place and operating properly. The spreader
must be in alignment with the saw blade and the pawls must stop a kickback once it has started. Check their
action before ripping.
• Not ripping work that is twisted or warped or does not have a straight edge to guide along the rip fence.
• Not releasing work until you have pushed it all the way past the saw blade.
• Using a push stick for ripping widths less than 6 inches.
• Not confining the cutoff piece when ripping or crosscutting.
PROTECTION: EYES, HANDS, FACE, BODY, EARS
• If any part of your saw is missing, malfunctioning, or has been damaged or broken (such as the motor switch,
electronic controls, other operating control, a safety device or power cord), cease operating immediately
until the particular part is properly repaired or replaced.
• Wear safety goggles that comply with the standard of your country and a face shield or dust mask if operation
is dusty. Wear ear plugs or muffs during extended periods of operation.
• Small loose pieces of wood or other objects that contact the rear of the revolving blade can be thrown back
at the operator at excessive speed. This can usually be avoided by keeping the guard and spreader in place
for all thru-sawing operations (sawing entirely thru work) and by removing all loose pieces from the table
with a long stick of wood immediately after they are cut off.
• Use extra caution when the guard assembly is removed for resawing, dadoing, or rabbeting, replace guard
as soon as that operation is completed.
• Never turn the saw ON before clearing the table of all tools, wood scraps, etc., except the workpiece and
related feed or support devices for the operation planned.
• Never place your face or body in line with the cutting tool.
• Never place your fingers or hands in path of saw blade or other cutting tool.
• For rip or rip-type cuts, the following end of a workpiece to which a push stick or push board is applied must
be square (perpendicular to the fence) in order that feed pressure applied to the workpiece by the push stick
or block does not cause the workpiece to come away from the fence, and possibly cause a kickback.
• During rip and rip-type cuts, workpiece must be held down on table and against fence with a push stick, push
block, or feather boards, as applicable (see following figures).
• Push stick: A safety device used to push the workpiece through a cutting operation. Used most often when
rip cutting thin workpieces.
• The push stick and push block examples shown below are useful for keeping hands and fingers away from
saw blade during ripping, rabbeting and dadoing. Apply downward pressure and push workpiece through
the cut and past the blades. Several other configurations may be suitable for safe operation. Feather boards
are used to keep the work in contact with the rip fence or table during the cutting operation. Use of feather
2 Safety Regulations

10
boards can help to prevent kickbacks and binding. Feather boards should be used for all “non thru-sawing”
operations.
• Never reach in back of the cutting tool with either hand to hold down or support the workpiece, remove wood
scraps, or for any other reason. Avoid awkward operations and hand positions where a sudden slip could
cause fingers or hand to move into a saw blade or other cutting tool.
• Do not perform layout, assembly, or setup work on the table while the cutting tool is rotating.
• Do not perform any operation freehand—always use either rip fence or miter gauge to position and guide
the work.
• Never use the rip fence when cross-cutting or the miter gauge when ripping. Do not use rip fence as a length
stop. Never hold onto or touch free-end of workpiece or a free-piece that is cut off, while power is ON and/
or saw blade is rotating.
• Shut the saw OFF and disconnect power source when removing the table insert, changing the cutting tool,
removing or replacing the blade guard, or making adjustments.
• Provide adequate support to the rear and sides of the saw table for wide or long workpieces.
• Plastic and composition materials (like hardboard) may be cut on your saw. However, since these are usually
quite hard and slippery, the anti-kickback pawls may not stop a kickback. Therefore, be especially attentive
to following proper setup and cutting procedures for ripping. Do not stand, or permit anyone else to stand,
in line with a potential kickback.
• If you stall or jam the saw blade in the workpiece, turn saw OFF and remove the workpiece from the saw
blade. Check to see if the saw blade is parallel to the miter gauge grooves and if the spreader is in proper
alignment with the saw blade. If ripping at the time, check to see if the rip fence is parallel with the saw
blade. Readjust as required.
• Do not remove small pieces of cutoff material that may become trapped inside the blade guard while the
saw is running. This could endanger your hands or cause kick-back. Turn saw OFF and wait until blade stops.
• Use extra care when ripping wood with twisted grain or wood that is twisted or bowed—it may rock on table
and pinch saw blade.
2 Safety Regulations

11
2 Safety Regulations

12
KNOW YOUR CUTTING TOOLS
• Dull, gummy, improperly sharpened or set cutting tools can cause material to stick, jam, stall saw, or kickback
at operator. Minimize potential injury by proper care and machine maintenance.
WARNING: Never attempt to free a stalled saw blade without first turning saw OFF.
• Never use grinding wheels, abrasive cutoff wheels, friction wheels (metal slitting blades), wire wheels or
buffing wheels.
USE ONLY ACCESSORIES DESIGNED FOR SAW
• Crosscutting operations are worked more conveniently and with greater safety if an auxiliary wood facing
is attached to miter gauge using holes provided. However, facing must not interfere with proper functioning
of saw blade guard.
• Make sure the top of the arbor or cutting tool rotates toward you when standing in normal operating position.
Also make sure the cutting tool, blade flange and arbor nut are installed properly. Keep the cutting tool as
low as possible for the operation being performed. Keep all guards in place whenever possible.
• Do not use any blade or other cutting tool marked for operating speed less than 4000 RPM. Never use a
cutting tool larger in diameter than diameter for which saw was designed. For greatest safety and efficiency
when ripping, use maximum diameter blade for which saw is designed, since under these conditions
spreader is nearest the blade.
• Adjust table inserts flush with table top. Never operate saw unless proper insert is installed.
• Never feed material into the cutting tool from the rear of the saw. An accident and serious injury could result.
THINK SAFETY
Safety is a combination of operator common sense and alertness at all times when the saw is being used. Never
use another person as a substitute for a table extension, or as additional support for a workpiece that is longer
or wider than basic saw table, or to assist in feeding, supporting or pulling the workpiece.
Do not pull the workpiece through the saw blade—position your body at the infeed side of the guard; start and
complete the cut from that same side. This will require added table support for long or wide workpieces that
extend beyond the length or width of the saw table.
CAUTION: Follow safety instructions that appear on the front of your saw.
2 Safety Regulations

13
3 Specifi cations
3 Specifi cations
3.1 Technical Specifi cations
Please choose proper power source, voltage and frequency that are shown in the label for your machine.
10” Contractor Table Saw
Motor 2.5 Hp 8 Amp or A 1800W
Table Size 20″X 27″ (508X685mm)
Extended Table Size 44″ X 27″ (1118X685mm)
Saw Blade 10″ X 5/8″ (254x15.875mm)
Maximum Cut Depth at 90° 3-1/8 ″ (80mm)
Maximum Cut Depth at 45° 2-3/16″ (55mm)
Blade angle 0~45°
Max. Ripping Capacity 30″ (762mm)
Blade Speed 60Hz 3450 RPM
3.1 Electrical Requirements
POWER SUPPLY AND MOTOR SPECIFICATIONS
WARNING: To avoid electrical hazards, fi re hazards, or damage to the tool, use proper circuit protection. Use a
separate electrical circuit for your tools. To avoid shock or fi re, if power cord is worn or cut, or damaged in any
way, have it replaced immediately.
GROUNDING INSTRUCTIONS
WARNING: This tool must be grounded while in use to protect the operator from electrical shock.
IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides a path of least resistance for electric
current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment-
grounding conductor and a grounding plug. The plug MUST be plugged into a matching receptacle that is properly
installed and grounded in accordance with ALL local codes and ordinances.
DO NOT MODIFY THE PLUG PROVIDED. If it will not fi t the receptacle, have the proper receptacle installed by a
qualifi ed electrician.
IMPROPER CONNECTION of the equipment-grounding conductor can result in risk of electric shock. The
conductor with green insulation (with or without yellow stripes) is the equipment-grounding conductor. If repair
or replacement of the electric cord or plug is necessary, DO NOT connect the equipment-grounding conductor
to a live terminal.
CHECK with a qualifi ed electrician or service person if you do not completely understand the grounding
instructions, or if you are not sure the tool is properly grounded.

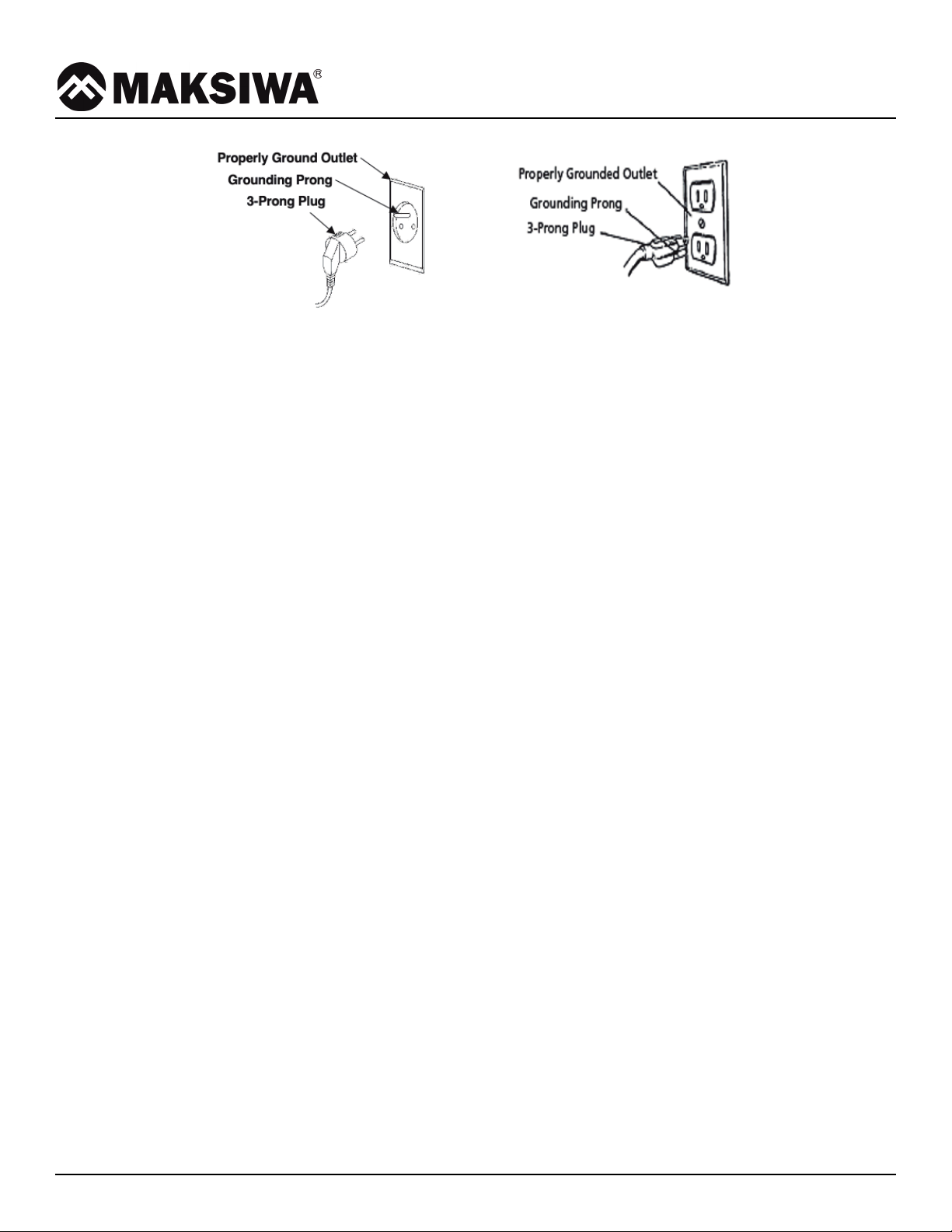

Refer to nether picture:

14
3 Specifi cations
WARNING: Improper connection of equipment grounding conductor can result in the risk of electrical shock.
Equipment should be grounded while in use to protect operator from electrical shock.
WARNING: This machine is for indoor use only. Do not expose to rain or use in damp locations.
GUIDELINES FOR EXTENSION CORDS
USE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension
cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause
a drop in line voltage, resulting in loss of power and cause overheating.
Be sure your extension cord is properly wired and in good condition. Always replace a damaged extension
cord or have it repaired by a qualifi ed person before using it. Protect your extension cords from sharp objects,
excessive heat and damp or wet areas.
ELECTRICAL CONNECTIONS
WARNING: Make sure unit is off and disconnected from power source before inspecting any wiring. The power
lines are inserted directly onto the switch. The green ground line must remain securely fastened to the frame
to properly protect against electrical shock.

15
4 Installation
4 Installation
4.1 Unpacking and Checking Contents
Carefully unpack the table saw and all its parts, and compare against the illustration following.
WARNING:
• To avoid injury from unexpected starting, do not plug the power cord into a power source receptacle during
unpacking and assembly. This cord must remain unplugged whenever you are assembling or adjusting the
machine.
• If any part is missing or damaged, do not plug the machine until the missing or damaged part is replaced,
and assembly is complete.
TABLE OF LOOSE PARTS
Unpack carton; check you machine to see parts listed below:
Item Parts Name Item Parts Name
1TABLE SAW 14 SMALL RIVING KNIFE
2EXTENSION TABLE (2) 15 HEX WRENCH (6)
3RIP FENCE ASSEMBLY 16 10-13MM WRENCH
4MITER GAUGE ASSEMBLY 17 24MM WRENCH
5BLADE GUARD ASSEMBLY 18 PUSH STICK
6HANDWHEEL WITH KNOB (2) 19 RIP FENCE STORAGE HOOKS (2)
7LONG FRONT RAIL 20 BLADE GUARD STORAGE HOOKS (2)
8SHORT FRONT RAIL 21 LEFT STAND “A”
9LONG REAR RAIL 22 FRONT BRACE WITH LABEL
10 SHORT REAR RAIL 23 REAR BRACE
11 BLADE 24 RIGHT STAND “B”
12 ANTI-KICKBACK PAWL ASSEMBLY 25 AAA BATTERY (2) (THE BATTERIES ARE USED
FOR LASER. THEY WILL NOT BE SUPPLIED, IF
YOUR TABLE SAW IS NOT SUPPLIED LASER )
13 RIVING KNIFE

16
4 Unpacking and Checking Contents
Hardware Bag #1 (For extension table assembly)
M10X25 Socket head bolt (6)
10mm Lock washer
10mm Flat washer
Hardware Bag #2 (For guide rail)
M8X25 Hex head bolt (6)
M8X25 Socket head bolt (6)
8mm Flat washer (18)
M8 Hex nut (12)
Hardware Bag #3
M8X16 Carriage bolt (16) (For assembling stand to main machine)
8mm Lock washer (16)
8mm Flat washer (16)
M6X20 Socket head screw (2) (For assembling fence storage hooks)
M4X8 Pan head screw (4) (For assembling blade guard storage hooks)
4mm Flat washer (4)
IMPORTANT: Table is coated with a protectant. To ensure proper fi t and operation, remove coating. Coating
is easily removed with mild solvents, such as mineral spirits, and a soft cloth. Avoid getting solution on paint
or any of the rubber or plastic parts. Solvents may deteriorate these fi nishes. Use soap and water on paint,
plastic or rubber components. After cleaning, cover all exposed surfaces with a light coating of oil. Paste wax
is recommended for table top.
WARNING: Never use highly volatile solvents. Non fl ammable solvents are recommended to avoid
4.2 Assembly
CAUTION: Do not attempt assembly if parts are missing. Use this manual to order replacement parts. Be certain
all parts are clean and free of shipping preservative. Also, completely remove all parts of packing. Saw cabinet
should be directly on the fl oor.
SAW INSTALLATION
Positioning the saw on a level surface will improve stability and accuracy and prevent warpage and failure of
cast components and welds.
WARNING: Make certain that the saw is disconnected from the power source.

17
4 Unpacking and Checking Contents
INSTALL HANDWHEELS
Refer to following fi gure
• Remove saw cabinet from the carton box and place upside down on cardboard on fl oor.
• Place one of the handwheels onto the blade raise/lower shaft located on the front of the cabinet. Align the
groove in the back of the handwheel with the pin.
• Thread the washer and locking knob onto the threaded end of the shaft.
• Repeat the steps above to assemble the remaining handwheel and locking knob onto the blade tilt shaft
located on the side of the cabinet.
REMOVE PACKING MATERIAL
Refer to following fi gure
• Use the handwheel to raise the motor.
• Remove the packing material under the motor.

18
4 Unpacking and Checking Contents
ASSEMBLE THE STAND BASE
Refer to following fi gure
Assemble the two side stands, front brace with label and rear brace together using 8 carriage bolts, fl at washers
and nuts.
ATTACH STAND BASE TO CABINET
Refer to following fi gure
• Place the stand base assembly over cabinet.
• Secure stand base assembly using 8 carriage bolts, fl at washers and nuts.

19
4 Unpacking and Checking Contents
ATTACH EXTENSION TABLES
Refer to following fi gure
• With help of another person, place the table saw upright. Adjust the feet to make the table saw stand stably.
• With help of another person, Assemble extension table to the table using socket head bolts, lock washers
and fl at washers.
• If necessary, remove the left side cover to install the extension table and replace it after the installation.
• Wipe surface clean.
• Do not tighten completely until tables are level. Use a straightedge to level tables. If necessary, adjust the
set screw to level the table.
• After tables are adjusted level and fl at, secure the extension tables by tightening the bolts completely.
• Repeat above procedure for the other extension table.

20
4 Unpacking and Checking Contents
INSTALL BLADE
Refer to following fi gure
• Unlock the knob and remove the table insert.
• Raise blade assembly all the way up.
• Pull arbor lock and use wrench to loosen fl ange nut. Remove fl ange and nut from arbor.
• Place blade on arbor. Make sure arrow on blade and teeth point towards front of saw.
• Replace fl ange and nut on arbor and securely snug blade in position. Replace the table insert.
CHECK TABLE ALIGNMENT
Refer to following fi gure.
• Saws are shipped from the factory with the table adjusted so the miter gauge slots are parallel to the saw
blade. However, in order to obtain the best results from the saw, it is suggested this adjustment be checked
before operating.
• A simple method of checking alignment is as follows: Bolt or clamp a dowel rod or similar object to miter
gauge (a combination square can be substituted). Pick out a tooth on front of blade and set the dowel to it
so it is just touching. Move same tooth to back of blade.
