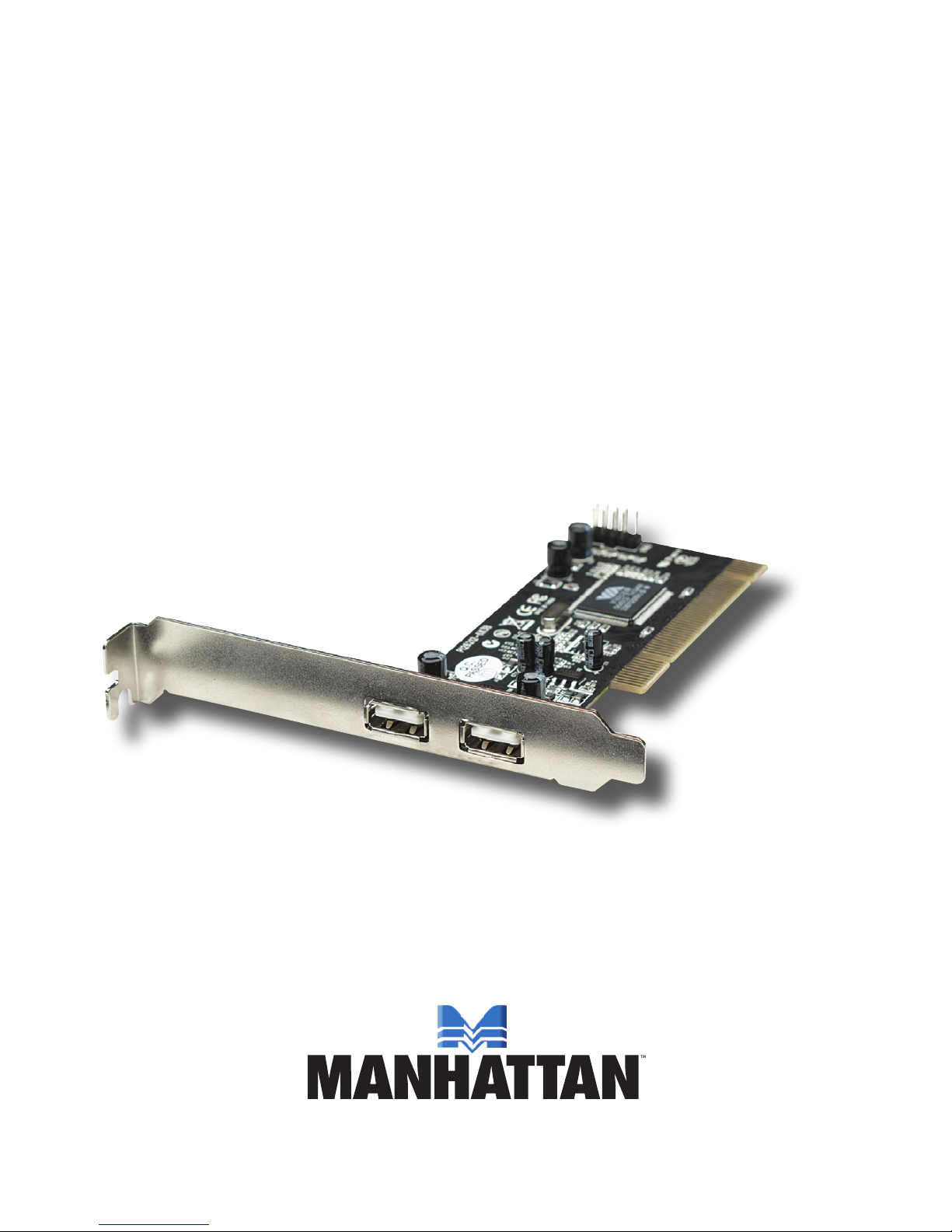

Manhattan 167741 User manual

HI-SPEED
USB 2.0
PCI CARD
QUICK
INSTALL
GUIDE
Model 167741
MAN-167741-QIG-0707-02

INTRODUCTION
Thank you for purchasing the MANHATTAN
®
Hi-Speed USB 2.0 PCI
Card, Model 167741.
The easy-to-follow instructions in this guide help make installation of
the card quick and simple, so you’ll also soon be enjoying the benets
of these features:
• Adds 2 external Hi-Speed USB 2.0 ports
• Each port supports data transfer rates of up to 480 Mbps
• Compatible with all USB devices and hot-swappable — add and remove
USB devices at any time
• Works with various types of USB devices including hubs, removable
drives, digital cameras, scanners, CD-RWs, DVD-ROMs, PC video
cameras and printers
• No driver software needed for Windows 2000 (SP4), XP, Server 2003
or Vista
• Supports high-speed (480 Mbps), full-speed (12 Mbps), and low-speed
(1.5 Mbps) data transfer modes for simultaneous operation of multiple
USB 2.0/1.1 devices
• Lifetime Warranty
System Requirements
• Windows 2000/XP/Server 2003/Vista
• Available PCI slot
Package Contents
• Hi-Speed USB 2.0 PCI Card
• Quick install guide
3 3

HARDWARE INSTALLATION

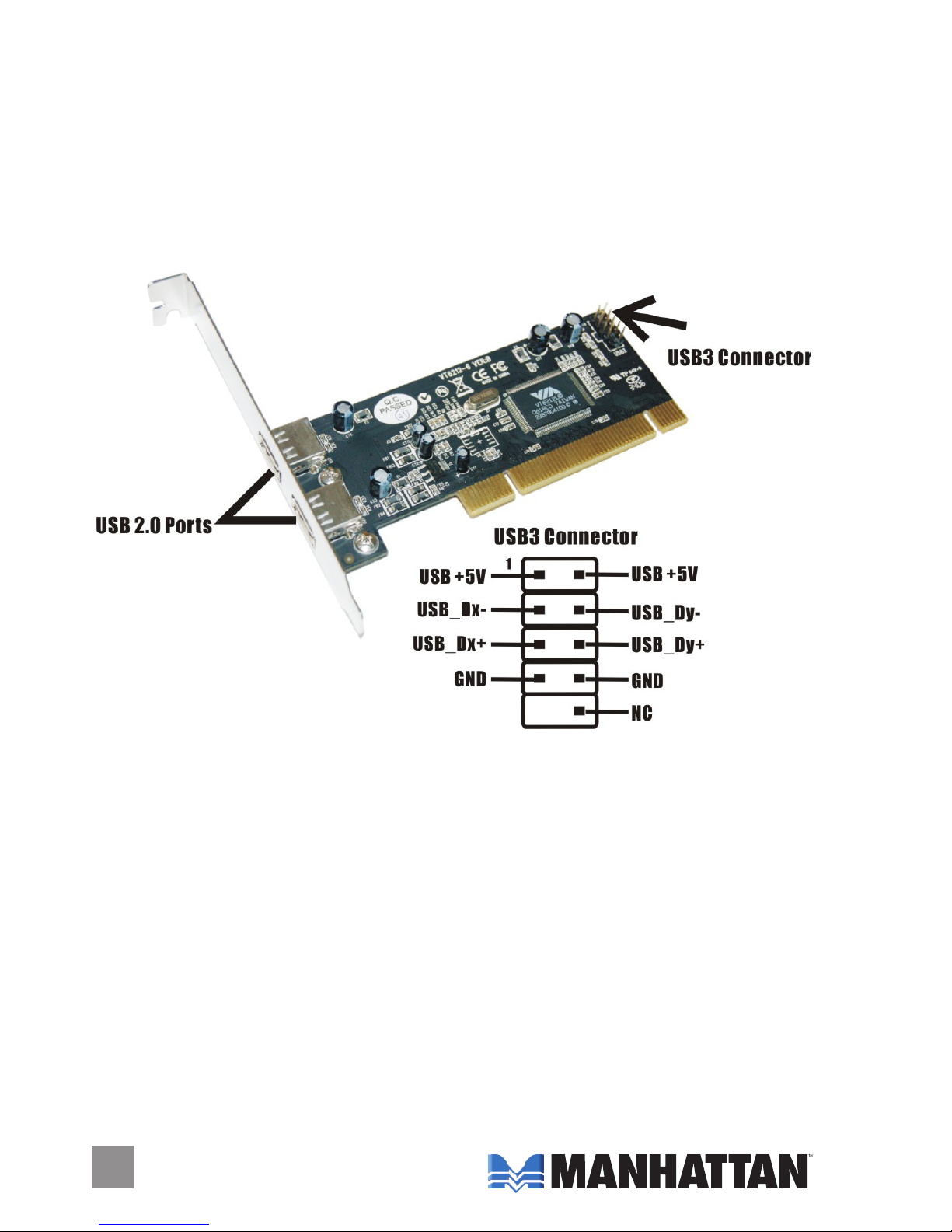

Before installing the card, note the position of the available USB ports.
NOTE: Be careful with the polarity of the USB connector (USB3).
Check the pin assignments carefully while connecting the USB cable,
as an incorrect connection between the cable and connector will
prevent the card from working or even damage it.
.
1. Turn off your computer.
2. Unplug the power cord and remove your computer’s cover.
3. Remove the slot bracket from an available PCI slot.
4. To install the card, carefully align the card’s bus connector with the
selected PCI slot on the motherboard. Push the board down rmly.
5. Replace the slot bracket’s holding screw to secure the card.
6. Replace the computer cover and reconnect the power cord.
44

5
DRIVER INSTALLATION
Windows 2000/XP/ Server 2003/Vista automatically detects and installs
the correct driver for the card. Ensure you have the latest Service Pack
installed: SP1 or later for Windows XP; SP4 or later for Windows 2000.

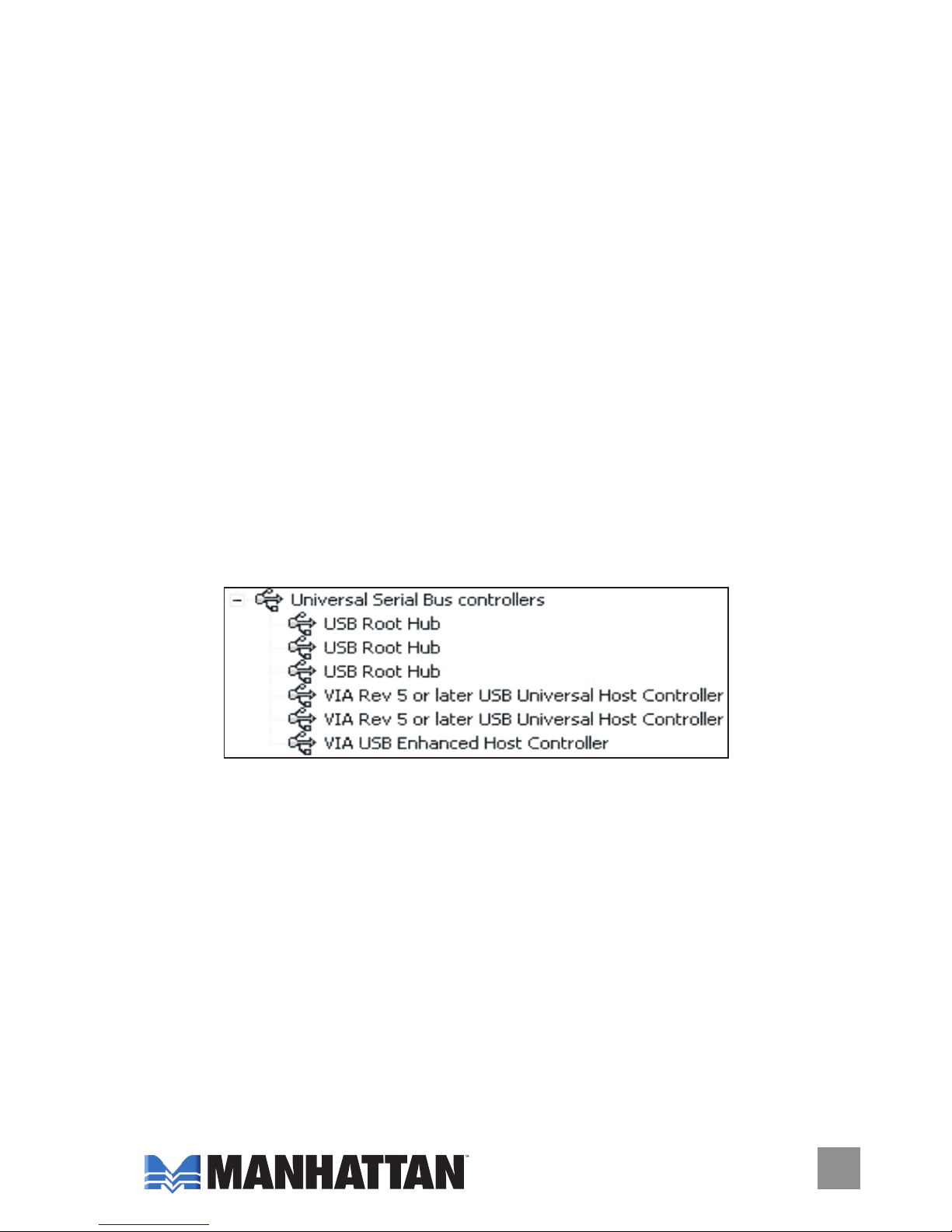

Verify Windows Driver Installation
1. Right-click “My Computer”; click “Manage”; click “Device Manager.”
2. Double-click “Universal Serial Bus Controllers” to conrm installation
with the following display.
• USB Root Hub (USB 2.0 Root Hub in Windows 2000)
• USB Root Hub
• USB Root Hub
• VIA Rev 5 or later USB Universal Host Controller
(VIA USB Universal Host Controller in Windows 2000)
• VIA Rev 5 or later USB Universal Host Controller
(VIA USB Universal Host Controller in Windows 2000)
• VIA USB Enhanced Host Controller
SPECIFICATIONS
Standards and certications
• USB 2.0/1.1/1.0, FCC, RoHS, CE, WEEE
Port specications
• 2 external Hi-Speed USB 2.0 ports, A-type
Bus specications
• PCI 32-bit interface
• VIA 6212 chipset
5

66

Are you completely satised with this product?
Please contact your MANHATTAN®dealer
with comments or questions.
