Manhattan Plaza HD-52 User manual

YOUR USER GUIDE
LET’S GET
STARTED
Manhattan
Model: Plaza HD•S2

2
WELCOME TO FREESAT
We are so pleased you bought this Manhattan
Plaza HD•S2 Freesat receiver.
Now you can enjoy:
• Quality state-of-the-art satellite TV receiver
• Over 180 of your favourite channels
• Picture perfect High Definition (selected channels)
• BBC iPlayer & ITV Player
• Easy plug and play set up
• Expert customer support - visit freesat.co.uk
or call 0845 3130051
Not included:
• Monthly subscriptions (It’s free)
• Lengthy contracts (It’s free forever)
• Baffling, complicated technology (It’s simple)
The Plaza HD•S2 is packed with amazing
features. Some of the highlights are:
• Create your own personal Programme Guide
using up to 8 favourites lists (see p22)
• One-touch reminders (p20)
• Timer, Auto Turn On & Auto Turn Off functionality (p29)
TECHNICAL SUPPORT FOR
YOUR PLAZA HD•S2
Phone: [phone]
Web: www.manhattan-tv.com
You can submit a support request via our website 24 hours a
day. However, if your matter is urgent then please contact us by
phone. We are open Monday to Friday from 9am to 5:30pm.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.

3
Advanced Use 22
Using the favourites lists 22
Display mode 24
TV/DTV 24
Changing the channel list 24
The lock PIN 24
Using the setup menus 25
General menu section 25
- Subtitles 26
- Subtitle language 26
- Information 26
Picture menu section 26
- Screen type 27
- Display mode 27
- HDMI resolution 27
- Scart mode 27
Sound menu section 28
- Audio language 28
- Audio description volume 28
- Dolby digital 28
- Lip-sync delay 28
- Balance 29
CONTENTS
In The Box 5
Your receiver 6
Remote control 8
Preparation 10
The satellite dish 10
Connecting your receiver 10
Switching on 11
Tuning in 12
Everyday Use 15
Turning on the receiver 15
Changing channels 15
Changing the volume 16
Browsing bar 16
Subtitles and Audio Description (AD) 17
Using the channel list 18
Searching for a channel 18
Regional channels 18
Using the programme guide 19
Interactive TV services 21
1
2
3
4
continued...

4
5
6
1
CONTENTS
Advanced Use (continued) 29
Time menu section 29
- Auto stanby 29
- Sleep timer 29
- Auto turn on 29
- Auto turn off 29
- Time zone 30
System menu section 30
- Freesat installation 30
- Add non-Freesat channels 30
- Network configuration 30
- Parental guidance 30
- Hide adult channels 30
- Lock online content 31
- Set lock pin 31
- Software update via OAD 31
- OAD software manual scan 31
- Software update via USB 31
- Restore factory default 31
4On Demand TV 32
Setting up for on demand TV 32
Watching on demand TV 33
Non-Freesat Channels 35
Tuning in non-Freesat channels 35
Watching non-Freesat channels 36
Appendix A Safety 38
Appendix B Troubleshooting 40
Appendix C Specifications 42
Notes 43

5

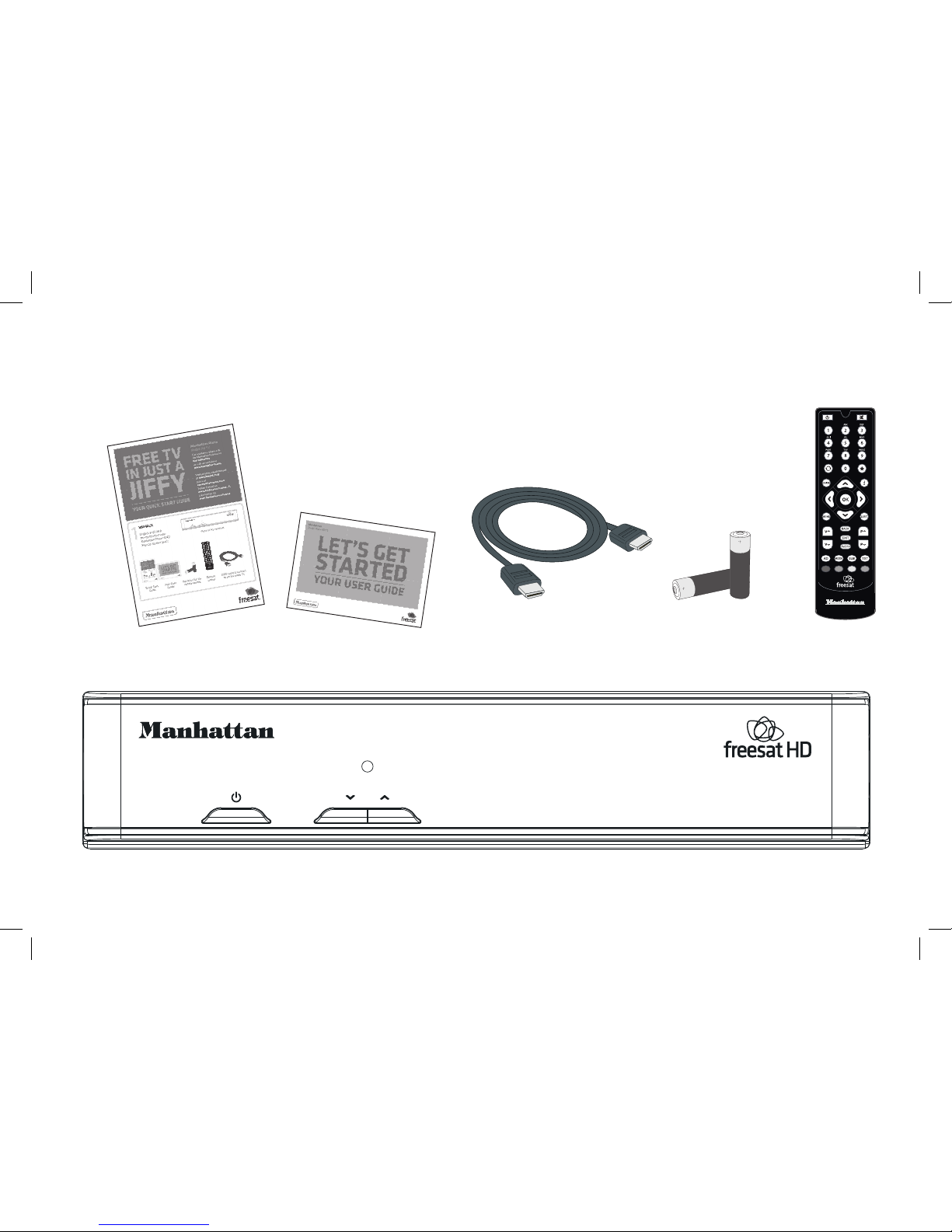

In The Box
In your Plaza HD•S2 Freesat receiver pack you should
find the following items:
1
Plaza HD•S2 receiver
Remote control
Batteries for the
remote control
HDMI cable to connect to
an HD-ready TV
Quick Start Guide Main User Guide

6
YOUR RECEIVER
Manhattan Plaza HD•S2

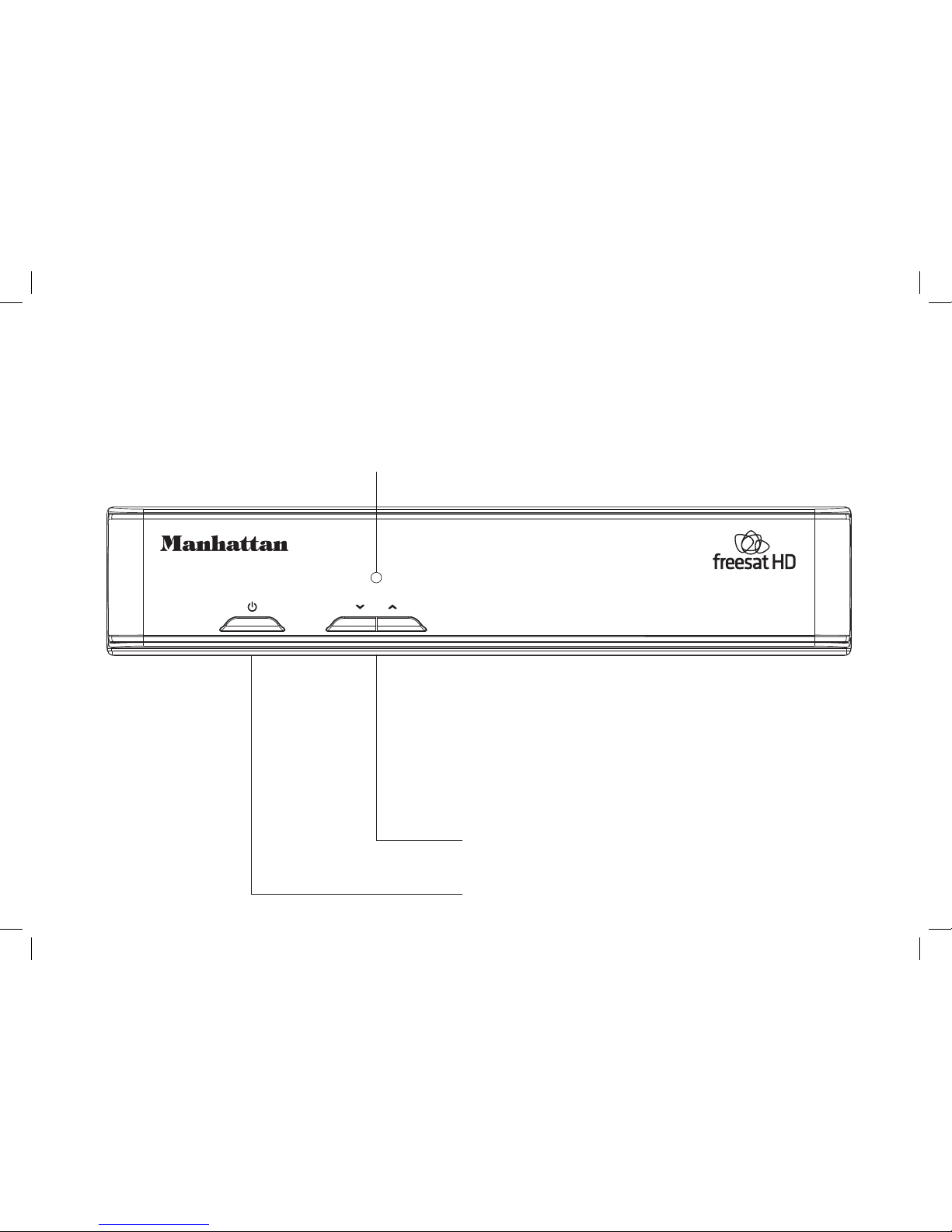

Front
CHANNEL CHANGE UP/DOWN
The up/down arrows on the front are for changing channel
STANDBY
Switch the receiver on and off
POWER INDICATOR LIGHT
(red for standby, blue for on)

7
Manhattan Plaza HD•S2
Rear
LNB IN
Input for connection to
satellite dish
ETHERNET
Network socket for
connection to the Internet
TV SCART
Output for connection to a
non-HD television
USB
Socket for upgrading the
receiver’s software
HDMI
Output for connection to a
HD-ready television
OPTICAL S/PDIF
Optical audio output for
connection to a digital audio
system
POWER CABLE
For connection to a mains
plug socket

8
REMOTE CONTROL
Standby - switches the receiver on and off.
Mute - silences the receiver’s sound.
0, 1 … 9 - buttons to directly select channels, enter numeric
value in the set-up menus and to enter your postcode.
Switches back to the last channel watched.
Displays your favourites lists and adds channels to them in
the channel list.
Displays the main menu screen.
Displays channel and programme information.

9
Up, down, left, right - move the highlight bar in menus
and in the programme guide, and allow you to browse
the channels and programmes.
Selects the option in a menu.
Displays the channel list.
Displays the programme guide.
Exits a menu and returns to the main menu.
Exits a menu and returns to normal TV viewing.
Switches the TV SCART output between Freesat and the
TV’s tuner.
Turns the volume up and down.
Switches to the next or previous channel. Moves one page up
or down in the channel list.
Displays the available audio menu to choose between
normal sound and audio description.
Switches between available screen display modes.
Displays the subtitles menu to select a subtitle type.
Displays interactive and digital text services (where available).
Red, green, yellow, blue – Chooses
options within menus.

10
Preparation
This section explains how to set up your Plaza HD•S2
to receive Freesat channels.
To receive Freesat, you must connect your Plaza HD•S2 receiver
to an appropriate satellite dish, fixed in position and accurately
pointed at the 28.2° East satellite position.
For safety reasons and to provide reliable reception, we strongly
recommend that you have your dish installed by a professional.
You may be able to use a satellite dish already installed at your
home. If you have any questions about the dish, please consult
your installer.
CONNECTING YOUR RECEIVER
Place your Plaza HD•S2 receiver on a firm, level surface close to the
television, a mains electricity socket, and the cable from the dish.
(See Appendix A – Safety.)
2
Connect the cable from your dish to the LNB IN socket at the back
of the receiver (if the dish cable is fitted with a wall socket inside
your home, you will need a connecting cable, which you can get
from your installer).
THE SATELLITE DISH

11
SWITCHING ON

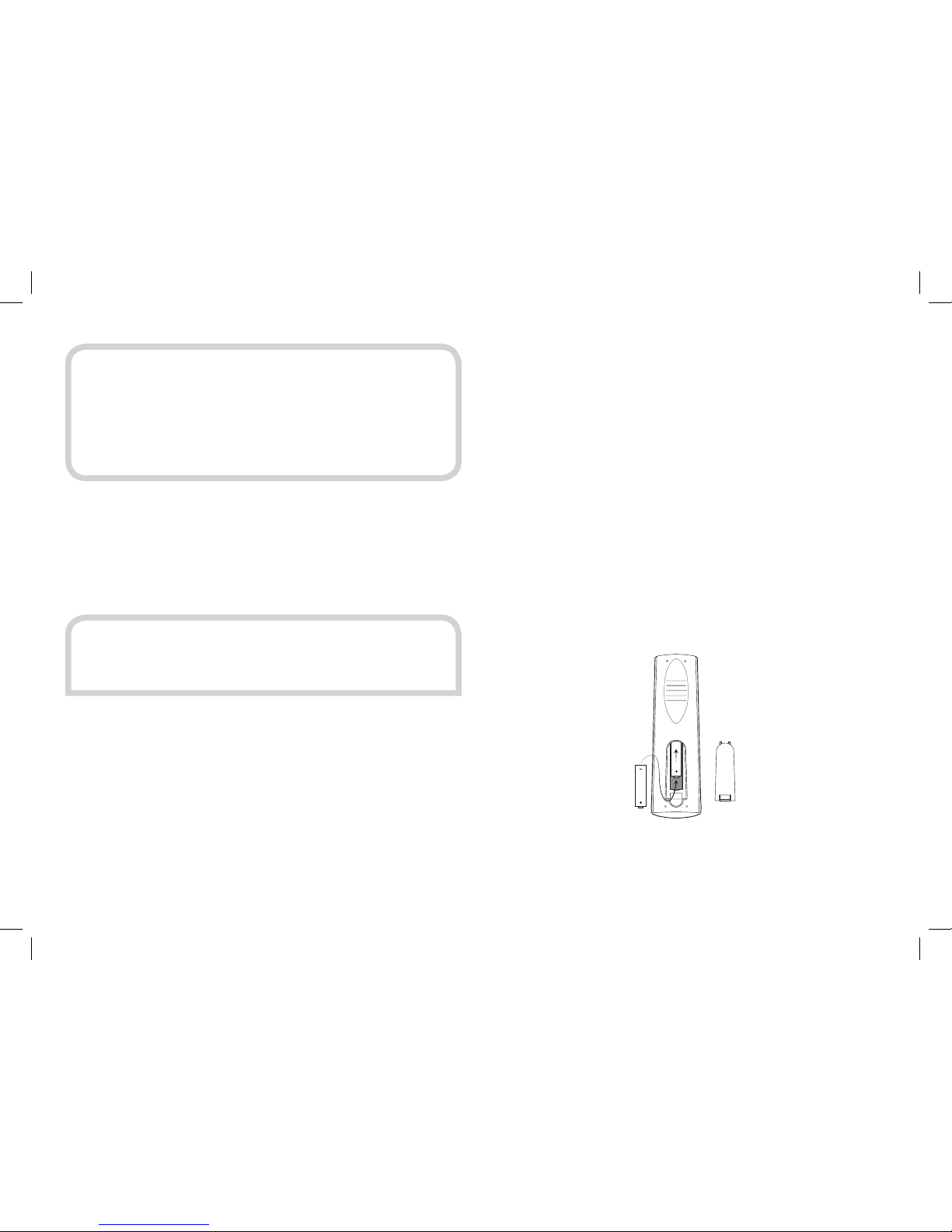

Take off the battery compartment cover from the back of the
Plaza HD•S2 remote control by lifting it up while pushing the catch.
Insert the two AAA batteries supplied, as shown on the inside of
the compartment, and replace the compartment cover.
HINT: The “F-connector” used for the satellite dish cable
connection has a central wire that is inserted into the hole
in the LNB IN socket while the collar is screwed onto the
socket. When screwing on the collar, make sure that the
central wire goes into the socket hole and is not bent to
one side.
Turn off your television and connect the HDMI cable supplied
between the HDMI socket at the back of your Plaza HD•S2 receiver
and an HDMI socket on your television. There may be more than
one HDMI socket on your television. If you are not sure which to
use, check the television’s manual.

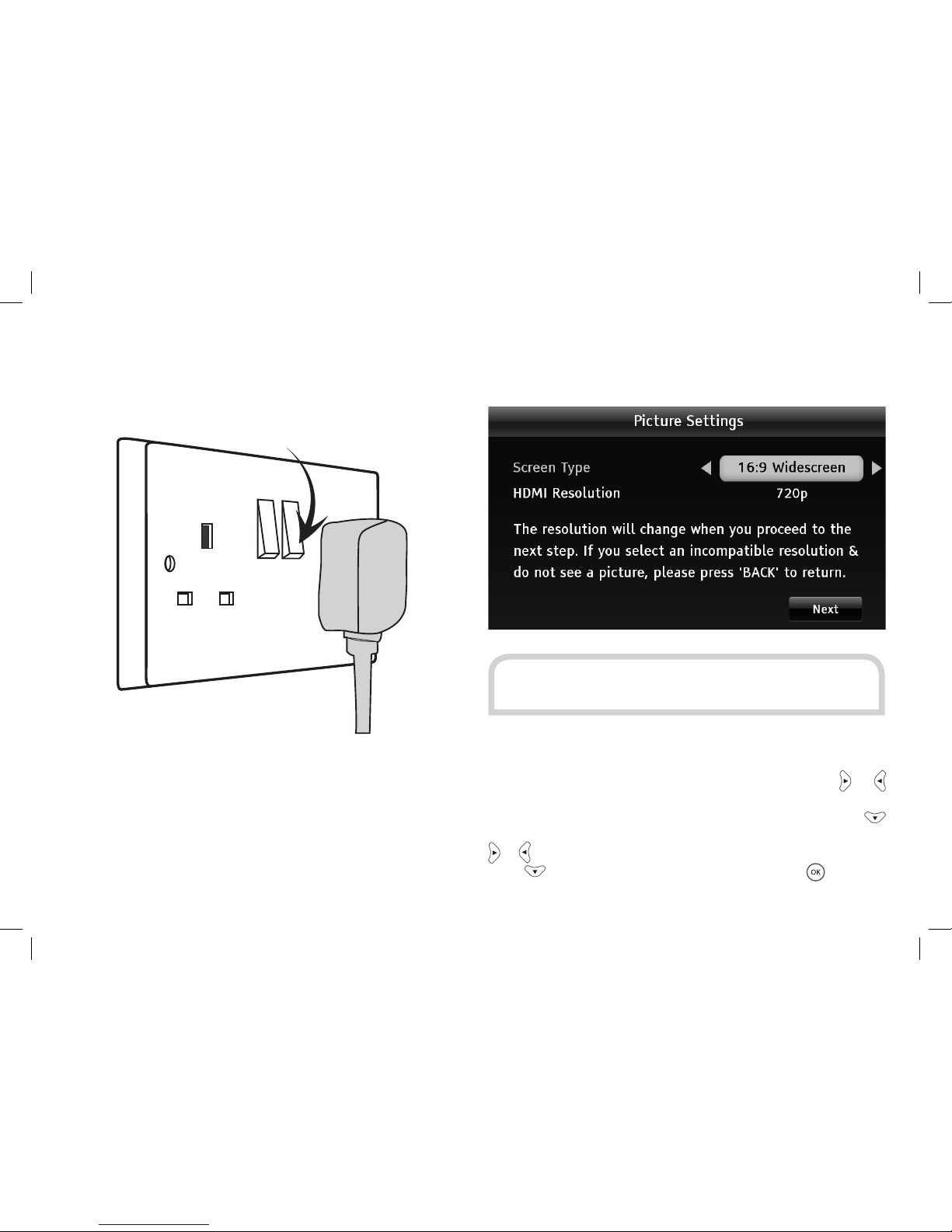

Plug the power cable from the rear of the Plaza HD•S2 into an
available mains socket that is turned off.
You can also connect the Plaza HD•S2 receiver to a stereo or
surround sound system, so that you can listen to the TV sound
through the sound system instead of (or as well as) the television’s
speakers. If you connect an optical lead (not supplied) between the
S/PDIF sockets on your receiver and digital sound system, you can
listen to the TV sound in digital audio quality, or even in surround
sound, depending on the broadcast and your sound system.
HINT: If your television has no HDMI socket, then it must
be connected to the receiver by SCART cable, and you will
not be able to watch Freesat channels in high definition.
To watch On Demand TV services including BBC iPlayer and ITV Player,
the Plaza HD•S2 must be connected to your internet router or hub
using an ethernet cable (not supplied). Plug one end of the ethernet
cable into the ETHERNET socket at the back of the Plaza HD•S2, and
the other into your hub or router. Make sure the connections are fully
pushed in - you’ll hear a click as they lock into place. Consult your
router or hub’s documentation for further guidance.
If your receiver is not located near your hub or router, you could use
HomePlug powerline adapters to extend your home network using
the ring main of your house. Another option is to use a Wireless
Ethernet Bridge to bridge the Ethernet socket of the Plaza HD•S2
to Wi-Fi, enabling it to connect wirelessly to your home network.
For more information, please consult with your installer or retailer. If
you require support for these devices, you will need to contact the
manufacturer. The Plaza HD•S2 does not support USB Wi-Fi dongles.
B4

12
SWITCHING ON (continued)
Turn on your TV set and choose the HDMI input (see your
television’s manual for guidance).
Switch on the mains socket the Plaza HD•S2 is connected to.
After a few seconds, the receiver’s first Freesat installation screen
shown below will appear on the television screen:
TUNING IN
When the first installation screen is displayed, use the or
buttons to select the screen format of your television (16:9
Widescreen or the squarer 4:3 Traditional). Then press the
button to highlight the HDMI Resolution selection box, and use the
or buttons to select the correct resolution for your television.
Press to select the “Next” button and then press to display
the next installation screen.
HINT: If you do not see this screen on your television, see
‘Troubleshooting’ on page 40.

13

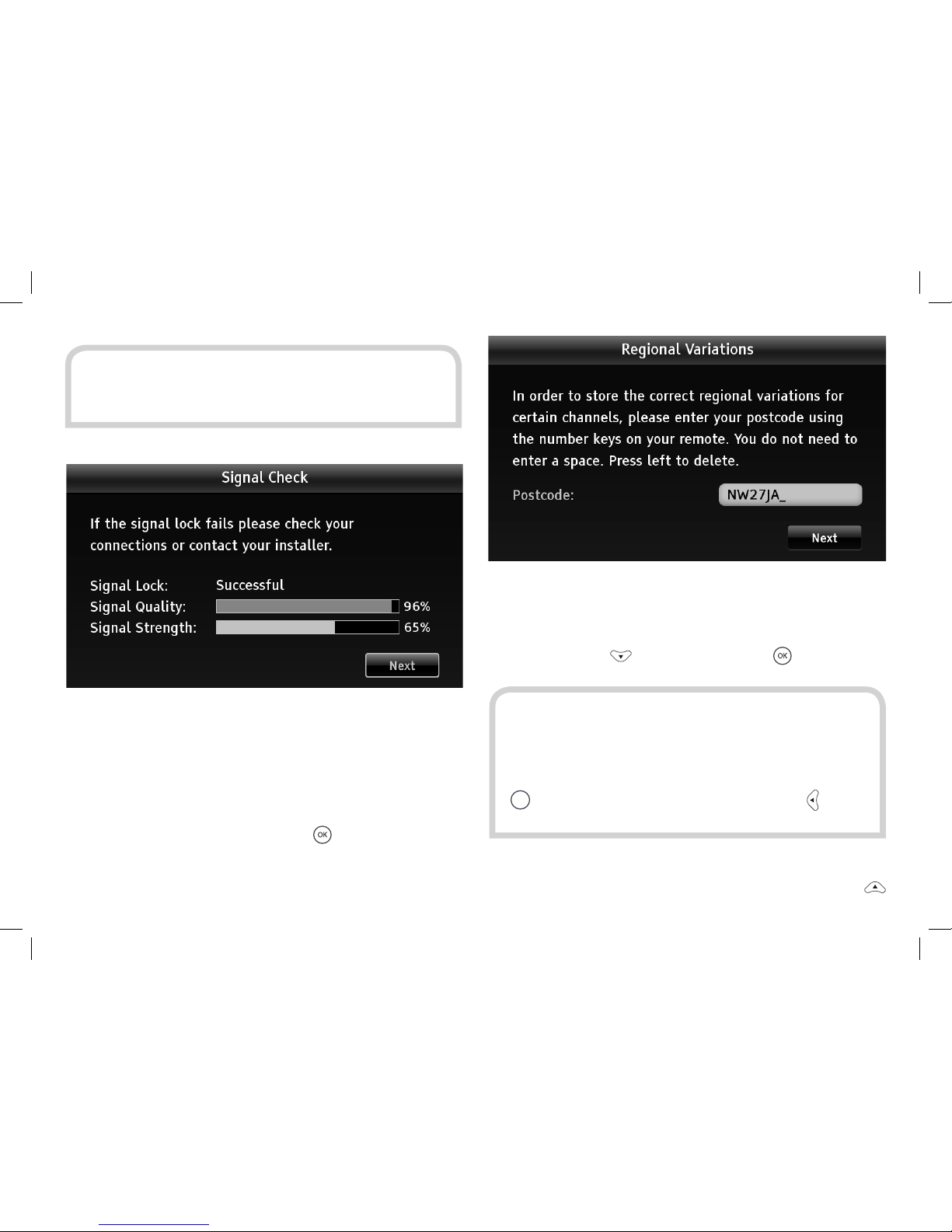

The signal check screen shows the strength and quality of the
Freesat signal received from your satellite dish. If the signal lock
fails, you should check the satellite dish connection at the back
of the receiver (switch the receiver off and reconnect the cable if
necessary). If the connection is OK, consult your dealer or installer.
When the signal lock is successful, press to proceed.
Enter your postcode using the number buttons on the remote
control, or press the red button to use the on-screen soft keyboard.
You do not need to enter a space. Once you have entered your
postcode, press the button and then press to proceed.
With the on-screen soft keyboard, enter each letter and number
of the postcode by highlighting it on the keyboard using the
HINT: You should set the HDMI resolution to the highest
that your television can display (see your television’s
manual). If in doubt, set the resolution to 720p.
HINT: Enter your postcode with the number buttons by
pressing the correct button on the remote a number of
times to produce the relevant letter (printed above each
button), or number, in the same way as ‘texting’ with a
mobile phone. For example, for an ‘S’, you would press the
7button four times. If you make a mistake, the button
deletes the last character entered.

14
TUNING IN (continued)
and buttons, then pressing . The red button deletes
the last letter entered and the green button confirms the whole
postcode.
Your Plaza HD•S2 receiver will take a couple of minutes to find
and store the available Freesat channels. The number of Freesat
TV and radio channels found is shown on the screen as the scan
proceeds, along with an indication of how far the scan has to go.
When the scan is complete, press the button to proceed.
To use the parental guidance function, locked channels & online
content, hidden adult channels or restore to factory default, you
need to create a PIN. Enter your choice of PIN by pressing the
required number button (0, 1 … 9) for each of the four PIN digits,
then press to proceed.
The setup completion screen confirms the lock PIN you have set.
Press the button and your Plaza HD•S2 receiver is now ready
for you to watch Freesat digital TV.
HINT: When new Freesat channels are introduced, you do
not need to retune your Plaza HD•S2 receiver because it is
automatically updated.

15
Everyday Use
This section describes the day-to-day use of your Plaza
HD•S2 receiver – how to select the channels that you
want to watch, view the programme schedules, and
control the basic features.
CHANGING CHANNELS
Step through the channels by pressing the or buttons on
the remote control or the and buttons on the front of the
Plaza HD•S2 receiver.
If you know the channel’s number, you can switch directly to the
channel you want by using the number buttons on the remote
control. As you enter a channel number, each digit appears at
the top left of the screen to show the number button you have
pressed. All the Freesat channel numbers have three digits and
the first channel is 101. The radio stations are stored from channel
number 700.
Press the button to switch from the channel you are currently
watching to the channel you were watching before.
TURNING ON THE RECEIVER
Press the button on the remote control or the button
on the front of the receiver. The power light on the front panel
changes from red to blue when the receiver is powered up.
You can turn off the Plaza HD•S2, so it goes into standby, by pressing
the button on the remote control or the button on the
receiver. When the receiver is in standby, the power light on the front
panel turns red. The Plaza HD•S2 uses less power when in standby.
3
HINT: You should leave the Plaza HD•S2 receiver plugged in
with the socket switched on, at all times (except when there
is lightning – see Appendix A). When you are not using the
receiver, put it in standby by pressing the button on the
remote control or the button on the front of the receiver.
HINT:To savepower, thePlaza HD•S2receiver willautomatically
switch to standby if it is not used for a long time. This feature
can be disabled – see the Advanced Use section of this guide.
HINT: There are some channel numbers missing in the
channel list because spaces are left for future channels to
join Freesat.
HINT: If you enter a number that does not exist, the
channel will not change.

16
CHANGING CHANNELS (continued)
There are other ways to change channel:
• Use the browsing bar at the bottom of the screen (see below)
• Use the on-screen channel list (see page 18)
• Use the programme guide (see page 19)
CHANGING THE VOLUME
You can increase or decrease the volume by using the and
buttons on the remote control. The sound is silenced by pressing
the button and restored to its previous level by pressing the
button again.
BROWSING BAR
Whenever you change channel, the Plaza HD•S2 briefly displays a
browsing bar at the bottom of the screen that contains information
about the current channel and programme. You can press the
button at anytime to display the bar again.
It shows:
• the name and number of the channel
• the name of the programme you are watching
• the start and finish time of the programme
• the progress through the programme
• the date and time
The information bar may also display symbols to indicate:
The programme is in High Definition.
Subtitles are available.
Audio Description is available.
Dolby Digital audio is available.
Parental guidance is advised as the programme contains
language or scenes that may not be suitable for children
(press for further details).
(press
The channel is locked (see the Advanced Use section).
An HD version is available on another channel (press for
further details).
HINT: The mute control also affects the sound supplied to
the VCR SCART socket, and so using this control while a
programme is being recorded will affect the recording.
HINT: You can also display the browsing bar by pressing
or on the remote control while you are watching TV.

17
While the bar is displayed, press the button to see details of the
next programme, and the button to go back again. To see what
is on another channel, press the or buttons. To change to
this channel, press while the bar is still displayed. To remove
the bar from the screen at anytime, press .
While the browsing bar is displayed, press again to display
more information about the selected programme, including a
short summary. Pressing the button once more removes the
extra information from the screen.
SUBTITLES AND AUDIO DESCRIPTION
Many Freesat programmes are broadcast with subtitles for people
who are deaf or hard of hearing. Channels with subtitles available
show the symbol in the information bar.
If you want to turn on subtitles, first display the subtitles menu
by pressing the button and then use the and buttons
to highlight “English” (or “English Teletext” for larger subtitles),
and press . To turn off subtitles, select “Off” from the subtitles
menu and press .
Some programmes have an extra soundtrack to tell people who are
blind or partially sighted what is happening on screen. Channels
with this audio description available show the symbol in the
information bar.
To turn on audio description, press the button to display the
available audio menu and then select “English Audio Description
(MPEG)”.
HINT: When the extra programme information is displayed,
you can still press or to see what is on now or next and
and to see what is on other channels.

18

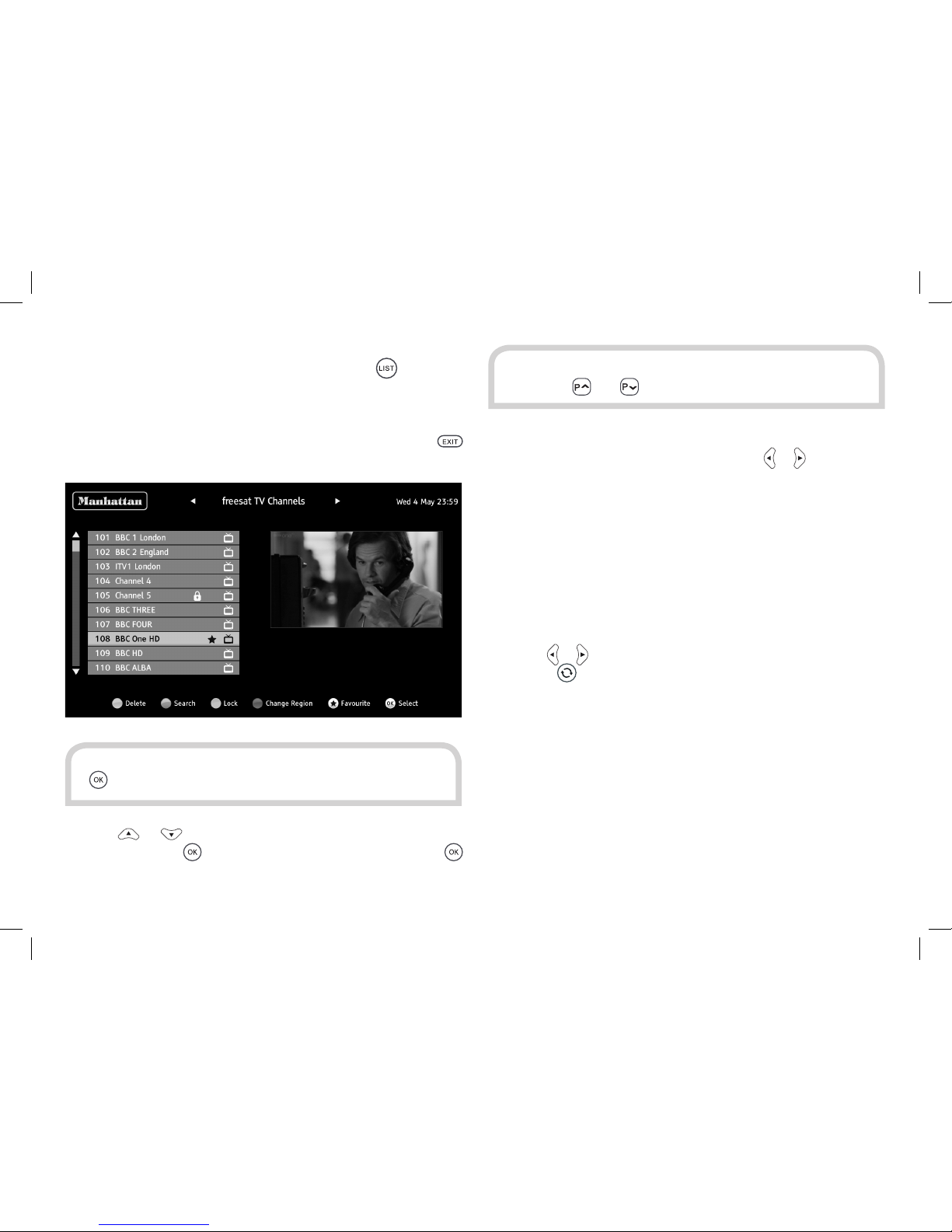

USING THE CHANNEL LIST
Display the on-screen channel list by pressing the button on
the remote control. This lists the channels on the left-hand side of
the screen, in number order, and displays a preview window of the
currently selected channel on the right-hand side of the screen.
You can return to watching TV at any time by pressing the
button.
Use the or buttons on the remote control to highlight a
channel then press to view it in the preview window. Press
again to exit the channel list and watch the channel full-screen.
TV and radio channels are stored in separate lists. Switch between
the TV and radio channel lists by pressing the or buttons. The
name of the list is displayed at the top of the screen.
SEARCHING FOR A CHANNEL
You can search for a channel by name, or a part of its name. Press
the green button while on the channel list screen and enter the
word that you want to search for using the on-screen keyboard.
The receiver shows a list of all channels with the search word
within their name, for you to choose from in the normal way. You
can press or to see the search results for the different channel
lists. Press to clear the search.
REGIONAL CHANNELS
With Freesat, some channels, such as BBC1, broadcast regional
variations of their channels. The initial regional variations are
based on the postcode that you entered when you installed the
Plaza HD•S2.
You can replace the regional variation of a channel in the channel
list by pressing the blue button while the channel is highlighted.
The current list will change to show the regional variations of that
channel (if available).
HINT: You can also display the channel list by pressing the
button while watching TV.
HINT: Move a page at a time through the channel list by
using the and buttons.

19
Choose the region that you want from the list by moving the
highlight bar through the list with the and buttons and then
pressing , or press to leave the region setting unchanged.
USING THE PROGRAMME GUIDE
The Plaza HD•S2 programme guide displays details of all
programmes showing on Freesat channels for the next week
ahead.
To access the guide, press the button on the remote control.
Choose the section of the guide you want to look at – either all
channels or a specific channel genre – by pressing the , ,
or buttons to highlight the section, and then to select it.
The programme guide shows a table of the programmes, with
each page showing eight channels over a two-hour period.
HINT: You can skip the genre choice stage by pressing
the button a second time, to jump straight to the
programme guide for all of the channels.

20

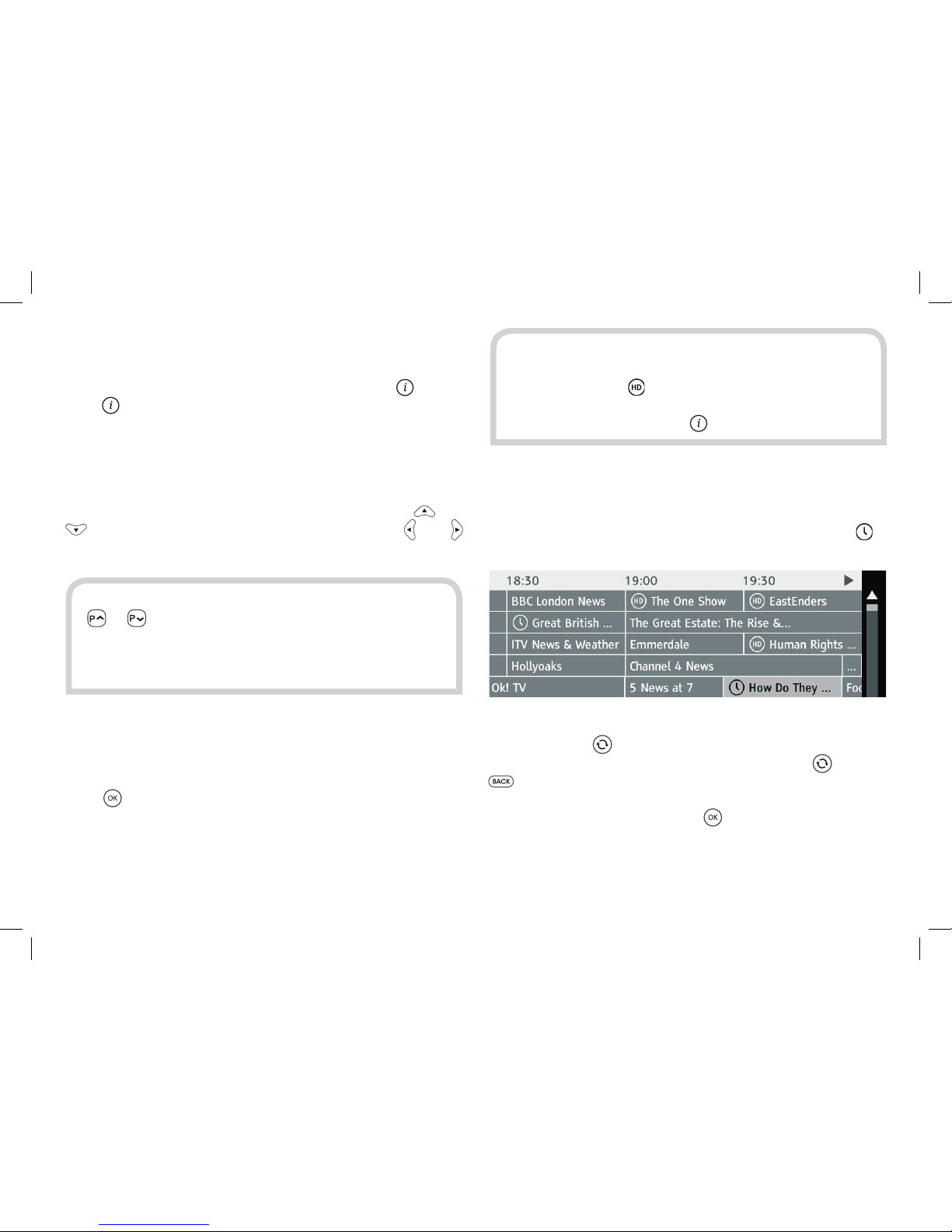

USING THE PROGRAMME GUIDE (continued)
Information on the highlighted programme is shown above the
table and you can read a full summary by pressing the button.
Press again to remove the summary box.
The current date and time is displayed at the top right of the screen
and an orange line at the top of the table shows the present time
in the schedule.
You look through the scheduled programmes using the and
buttons to move through the channels and the and
buttons to highlight programmes showing at different times.
As you move the highlight bar through the schedule, the
programme summary shown above the list changes to reflect the
programme highlighted.
Press to switch the receiver to the channel and programme
highlighted. If the programme is on at the time, the receiver will
switch to that channel immediately.
If the programme is scheduled for later on, a reminder is set so
that when the programme is about to start, a message is displayed
on-screen and, after a few seconds, the receiver automatically
switches to the relevant channel. In the programme guide a is
shown next to a programme with a reminder set.
You can see a list of all the programmes with reminders set
by pressing the button, and you can cancel a reminder by
highlighting it and pressing the red button. Pressing again or
leaves the reminder list and returns to the programme guide.
You can also cancel a reminder by highlighting the programme in
the programme guide and pressing again
You can set as many reminders as you want but if you try to set a
reminder on one channel for the same time as one you have already
set on another channel, a warning is displayed on the screen.
HINT: You can jump through the list more quickly using the
or buttons to move to the next or previous page.
The green and red buttons move the highlight bar through
the schedule two hours forward or back, and the blue and
yellow buttons move a day forward or back.
HINT: Programmes in standard definition that are also
available on another channel in HD are labelled in the
schedules with an symbol. You can see the time and
channel that the HD version is broadcast by highlighting
the programme and pressing .
