Grove RTE
Product Guide
Features
• 120 t (130 USt) capacity
• 12,8 m - 48,8 m (42 ft - 160 ft)
five-section, full power boom
• 11 m -18 m (36 ft - 59 ft) osettable
bi-fold swingaway extension
• 8 m (26 ft) extension inserts
• Grove MEGAFORM™ boom
• Cummins 224 kW (300 hp) Tier III,
diesel engine
• Grove “E” series cab
Extensions
A 18 m (59 ft) offsettable bi-fold lattice swingaway extension and two 8 m
(26 ft) inserts give the RT9130E a maximum tip height of 85 m (279 ft).
A hydraulically offsettable bi-fold lattice swingaway is also available, and
conveniently offsets from 0˚ to 40˚ from the operator’s cab.
Features
Boom
The 48,8 m (160 ft) five-section Full Power boom
incorporates the “U” shaped MEGAFORM™ design,
which eliminates stiffeners, thus reducing weight and
increasing capacity.
Removable outrigger boxes
Removable front and rear outrigger boxes provide up
to 8788 kg (19,374 lb) of weight reduction for easier
transport. Include the removable 18 100 kg (40,000
lb) of counterweight, auxiliary hoist and rope, and the
RT9130E can easily self-remove close to 29 000 kg
(64,000 lb).
Cab
The “E” Series cab on the RT9130E
tilts up to 20 providing the operator
additional comfort when working at long
boom and extension lengths.
Specifications 4
Dimensions and weights 7
Working range 8
Load charts 9
Working range with inserts 13
Load chart with inserts 14
Working range - lung 16
Load charts - lung extension 18
Load handling 25
Notes 26
Contents
4*Denotes optional equipment
Specifications
Superstructure
Counterweight
18 144 kg (40,000 lb) of total counterweight.
Hydraulically installed and removed.
Hoist Specifications
main and auxiliary hoist
Planetary reduction with automatic spring applied
multi-disc brake. Grooved drum electronic hoist drum
rotation indicator, and hoist drum cable followers.
Maximum single line pull:
1st layer - 9083 kg (20,024 lb)
3rd layer - 7724 kg (17,028 lb)
5th layer - 6718 kg (14,811 lb)
Maximum permissible line pull:
7620 kg (16,800 lb) with 6 x 37 class rope
7620 kg (16,800 lb) with 35 x 7 class rope
Maximum single line speed: 171 m/min (562 fpm)
Boom
12,8 m - 48,8 m (42 ft - 160 ft) five-section,
sequenced synchronized full power boom.
Maximum tip height: 51,5 m (169 ft)
Lattice extension
11 m - 18 m (36 ft - 59 ft) offsettable bifold lattice
swingaway extension. Offsets 0°, 20° and 40°. Stows
alongside base boom section.
Maximum tip height: 69,2 m (227 ft)
* Optional lattice extension
11 m - 18 m (36 ft - 59 ft) hydraulically offsettable
bifold lattice swingaway extension. Offsets from 0°
to 40°. Stows alongside base boom section.
Maximum tip height: 69,2 m (227 ft)
Boom nose
Seven nylatron sheaves mounted on heavy duty tapered
roller bearings with removable pin-type rope guards.
Quick reeving type boom nose. Removable auxiliary
boom nose with removable pin type rope guard.
Boom elevation
One double acting hydraulic cylinder with integral
holding valve provides elevation from -3° to 78°.
Load moment and anti-two
block system
Standard “Graphic Display” load moment and anti-two
block system with audio-visual warning and control
lever lockout. These systems provide electronic display
of boom angle, length, radius, tip height, relative load
moment, maximum permissible load, load indication
and warning of impending two-block condition. The
standard Work Area Definition System allows the
operator to pre-select and define safe working areas.
If the crane approaches the pre-set limits, audio-visual
warnings aid the operator in avoiding job-site
obstructions.
Cab
20° tilt, full-vision, all-steel fabricated with acoustical
lining and tinted safety glass throughout. Deluxe seat
incorporates armrest-mounted hydraulic single-axis
controllers. Dash panel incorporates gauges for all
engine functions. Other standard features include: hot
water heater, cab circulating air fan, air conditioning
sliding side and rear windows, sliding skylight with
electric wiper and sunscreen, electric windshield wash/
wipe, fire extinguisher and seat belt.
Swing
Two speed, (2) planetary swing drives with foot applied
multi-disc wet brakes. Spring applied, hydraulically
released swing brakes. 360° positive swing lock and
two-position mechanical house lock, both operated
from cab. Maximum speed: 2.5 rpm
Hydraulic system
Six main pumps with a combined capacity of 776 LPM
(205 GPM).
Maximum operating pressure: 331 bar (4800 psi).
Two individual post pressure compensated valve banks.
Return line type filter with full flow by-pass protection
and service indicator. Replaceable cartridge with
micron filtration rating of 5/12/16.
1230 L (325 gal) reservoir. Remote mounted oil cooler
with thermostatically controlled hydraulic driven
motor, fan/air to oil. System pressure test ports.
* Optional lattice extension inserts
Two 8 m (26 ft) lattice extension inserts. Installs
between the boom nose and bifold extension,
nonstowable. Maximum tip height: 85 m (279 ft)
5Grove RT9130E *Denotes optional equipment
Specifications
Carrier
Chassis
Box section frame fabricated from high-strength, low
alloy steel. Removable outrigger housings, front/rear
towing and tie down lugs.
Outrigger system
Four hydraulic telescoping single-stage double box
beam outriggers with inverted jacks and integral
holding valves. Three position settings, 0%, 50% and
fully extended. Outrigger boxes removable for ease of
transportation. All steel fabricated, quick release type
outrigger floats, 775 m (30.5 in) diameter.
Maximum outrigger pad load - 75 298 kg (166,000 lb)
Outrigger controls
Controls and crane level indicator located in cab.
Engine (Tier III)
Cummins QSC8.3L diesel, six cylinders, 224 kW (300
bhp) (Gross) at 2200 rpm.
Maximum torque: 1356 Nm (1000 ft lb) at 1600 rpm
Fuel tank capacity
379 L (100 gal)
Transmission
Full powershift with 6 forward and 3 reverse speeds.
Front axle disconnect for 4 x 2 travel.
Electrical system
Two 12 V - maintenance free batteries.
12 V starting and lighting, circuit breakers.
Axles
Front: Drive/steer with differential and planetary
reduction hubs rigid mounted to frame.
Rear: Drive/steer with differential and planetary
reduction hubs pivot mounted to frame.
4 x 4
Drive
Fully independent power steering:
Front: Full hydraulic steering wheel controlled.
Rear: Full hydraulic switch controlled.
Provides infinite variations of four main steering
modes: front only, rear only, crab and coordinated.
Rear steer centered indicator light.
Superstructure continued
Steering
Automatic full hydraulic lockouts on rear axle permits
254 mm (10 in) oscillation with boom centered over
the front.
Oscillation lockouts
Rope class:
6 x 37 EIPS IWRC, Special Flexible
35 x 7 EIPS WSC, Rotation Resistant
Rope diameter: 19 mm (3/4 in)
Rope length:
Main hoist - 290 m (950 ft)
Auxiliary hoist - 213 m (700 ft)
Maximum rope stowage: 368 m (1206 ft)
Full hydraulic split circuit, dry disc service brakes
operating on all wheels. Spring-applied, hydraulically
released parking brake mounted on front axle.
Brakes
Standard 33.25 x 29 - 38 bias ply, Titan SL-100
Tires
Full lighting including turn indicators, head, tail, brake
and hazard warning lights.
Lights
AUXILIARY LIGHTING AND
CONVENIENCE PACKAGE:Includes cab
mounted amber flashing light, 360° rotation spotlight
and dual base boom mounted floodlights, and rubber
mat for stowage trough
130 USt hookblock
Rear pintle hook
Cab controlled cross axle differential locks, (front
and rear)
PAT event recorder down load kit
Wind speed indicator (wireless)
Third wrap indicator with hoist cut-out (main and
auxiliary)
6
Specifications
* Optional equipment
Carrier continued
*Denotes optional equipment
Full width aluminum fenders, full length aluminum
decking, dual rear view mirrors, hook-block tie down,
electronic back-up alarm, light package, front stowage
well, tachometer/hourmeter, immersion type block
heater, rear wheel position indicator, 36,000 BTU
hot water cab heater, hoist mirrors, engine distress
A/V warning system, front/rear tie down and tow
lugs, coolant sight level indicator, hydraulic pump
disconnect, LMI light bar. Hydraulically activated
boom removal pins, lift cylinder travel support, 80T
hookblock, 10T top swivel ball.
Miscellaneous standard equipment
24 km/h (15 mph)
Maximum speed
73% (Based on 81 647 kg [180,000 lb] GVW) 33.25
x 29 tires, pumps engaged, 48,8 m (160 ft) boom,
plus 18 m (59 ft) swingaway, 18 144 kg (40,000 lb)
counterweight, hookblock and headache ball.
Gradeability (theoretical)
Grove RTE
Dimensions and weights
Weights
Dimensions
All dimensions are in inches (feet)
Gross
kg (lb)
Front
kg ( lb)
Rear
kg (lb)
Weight
of items
removed
Basic Machine: Includes ft main boom, main hoist with ft of wire
rope and auxiliary hoist with ft of wire rope, manual osettable bifold
swingaway, full counterweight, USt headache ball, and USt hookblock
,
,
,
Sub: Hydraulic osettable bifold swingaway
,
,
,
Remove: , lb counterweight, auxiliary hoist with rope, and manual
osettable swingaway
,
,
,
,
Remove: , lb counterweight, auxiliary hoist with rope, manual
osettable swingaway, USt hookblock, USt headache ball, and both
outrigger boxes/beams
,
,
,
,
Remove: , lb counterweight, auxiliary hoist with rope, both outrigger
boxes/beams, USt hookblock, USt headache ball, and boom assembly
,
,
,
,
Remove: , lb counterweight, auxiliary hoist with rope, both outrigger
boxes/beams, USt hookblock, USt headache ball, boom assembly, and
all tire/wheels
,
,
,
,
8

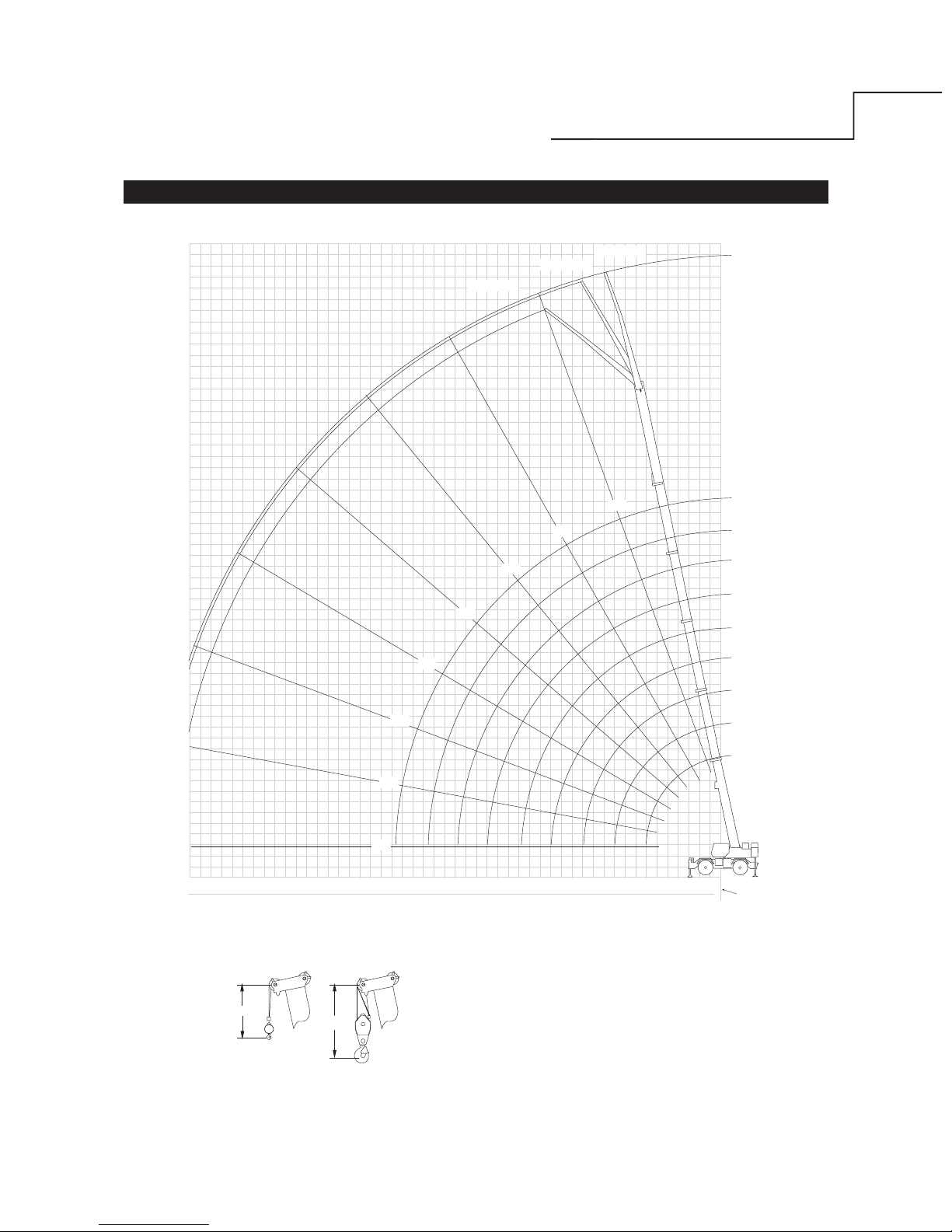

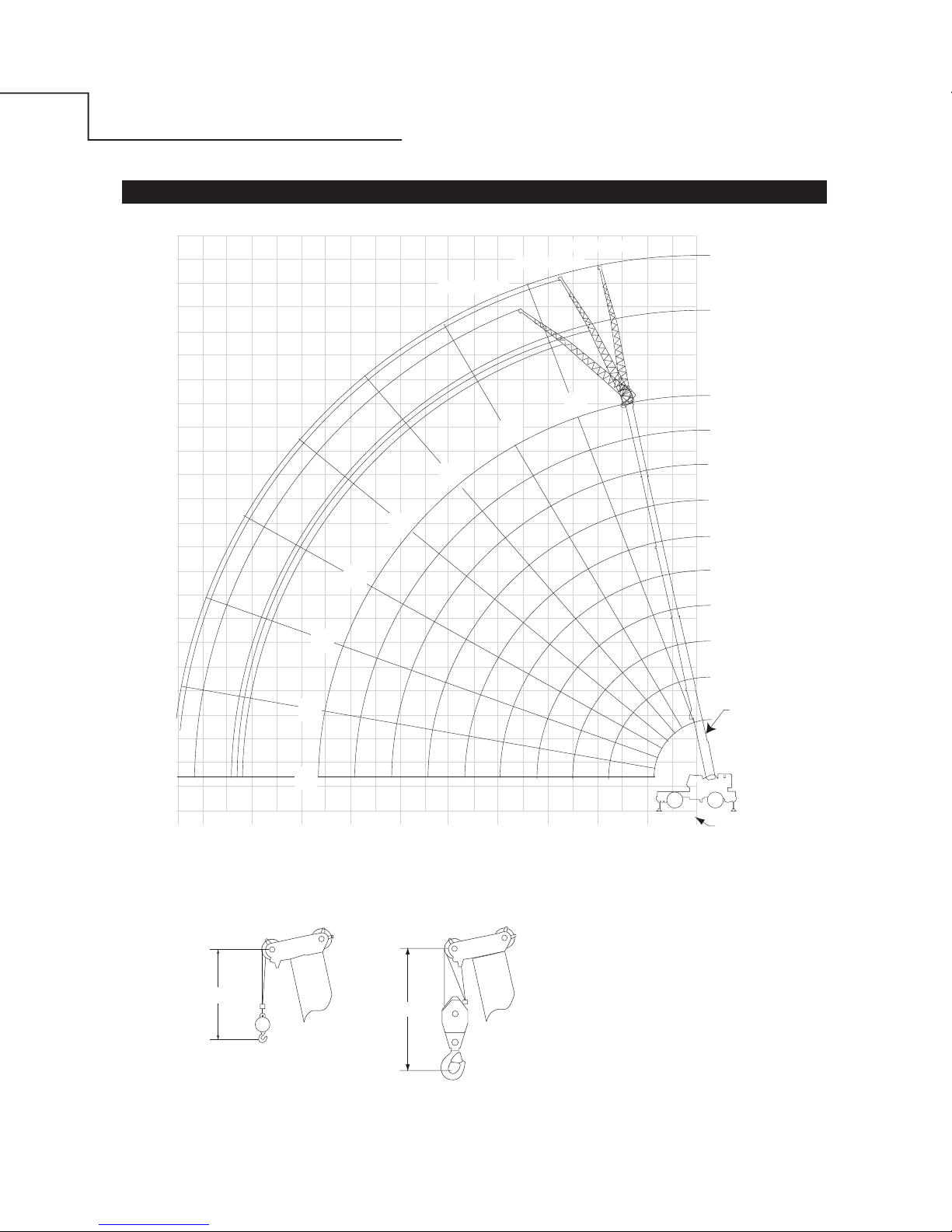

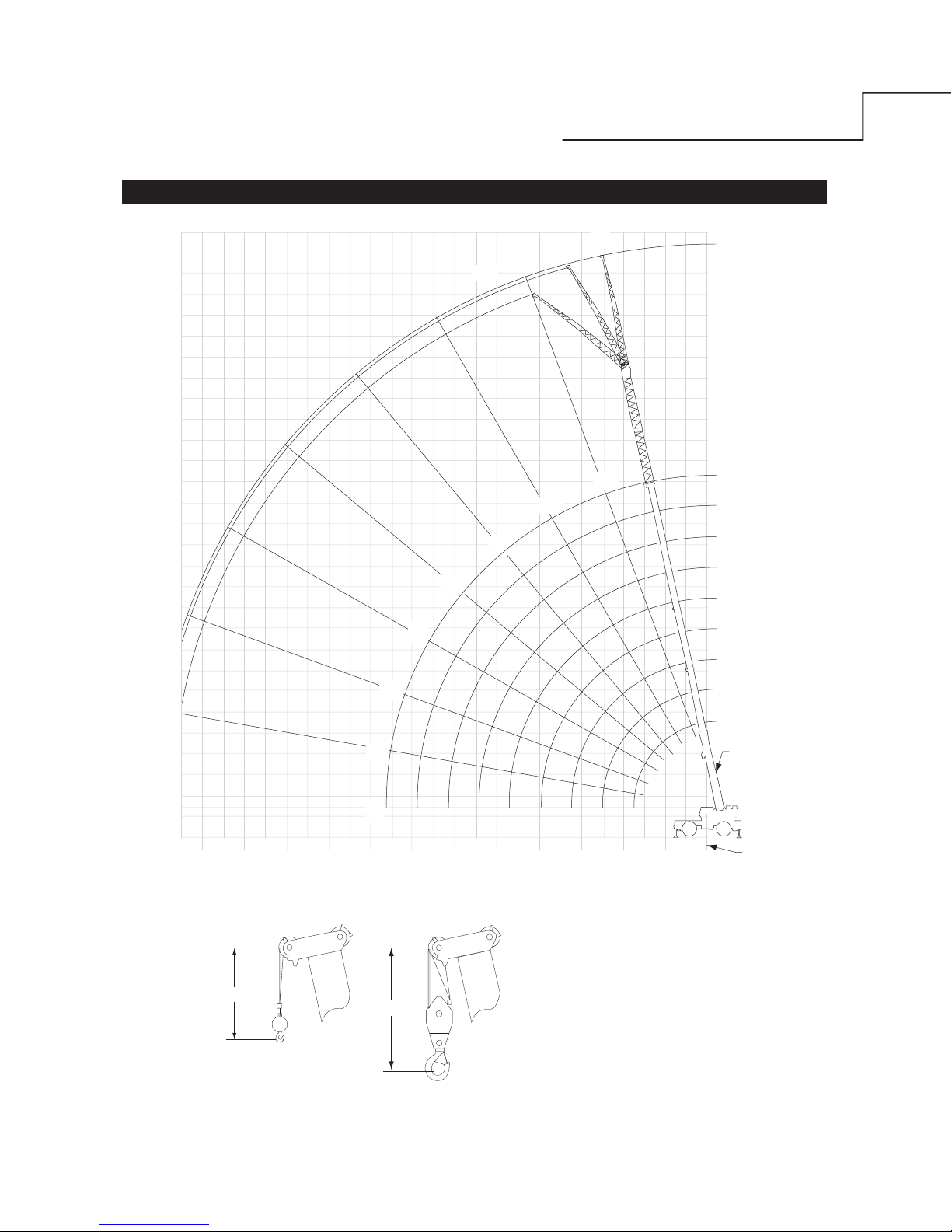

Working range
THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE.
The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane
ft main boom + ft ft fixed offset extension
9Grove RT9130E
Load chart
THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE.
The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane
Pounds
42 ft - 160 ft
40,000 lb 100%
27 ft 10 in
spread
360°
Lifting capacities at zero degree boom angle
Feet
Main boom length in feet
#0001
42 57 72 86 100 115 130 145 160
10 +260,000
(71.5) 147,000
(76.5)
12 224,000
(68.5) 147,000
(74.5) *127,000
(78)
15 176,000
(63.5) 147,000
(71.5) 127,000
(76)
*92,600
(78)
20 127,500
(55.5) 125,500
(65.5) 115,500
(71.5) 86,550
(75.5) *65,000
(78)
25 97,300
(46) 95,550
(60) 95,300
(67)
78,900
(72) 62,650
(75)
44,600
(78)
30 76,900
(34)
75,250
(53.5) 75,050
(62.5) 68,500
(68.5) 56,800
(72)
44,600
(75.5) 43,150
(78)
35 60,950
(46.5) 60,750
(58)
60,100
(64.5) 50,050
(69)
44,600
(73) 42,200
(76)
32,550
(78)
40 50,300
(38.5) 50,150
(52.5) 50,550
(60.5) 44,050
(66)
41,400
(70)
38,000
(73.5) 32,550
(76)
25,100
(78)
45 42,050
(28) 41,950
(47)
42,350
(56.5) 38,950
(62.5) 37,450
(67.5) 34,150
(71)
32,550
(74)
24,800
(76.5)
50 35,400
(41) 35,850
(52.5) 34,650
(59)
33,450
(64.5) 31,350
(68.5) 29,550
(71.5) 24,500
(74.5)
55 30,050
(34)
30,550
(47.5) 30,050
(55.5) 30,000
(61.5) 29,200
(66)
26,850
(69.5) 24,000
(72.5)
60 25,600
(24.5) 26,100
(42.5) 25,850
(52)
26,950
(58.5) 26,350
(63.5) 24,700
(67.5) 23,200
(70.5)
65 22,400
(37)
22,150
(48)
23,800
(55.5) 23,850
(61) 22,950
(65) 21,100
(68.5)
70 19,200
(30.5) 18,950
(44)
20,800
(52.5) 21,600
(58.5) 20,850
(62.5) 19,200
(66.5)
75 16,400
(22)
16,200
(39)
18,100
(49)
19,250
(55.5) 19,000
(60.5) 17,500
(64.5)
80 13,800
(34)
15,700
(45.5) 16,900
(52.5) 17,100
(58)
15,750
(62.5)
85 11,650
(28) 13,550
(41.5) 15,000
(49.5) 15,500
(55.5) 14,300
(60)
90 9770
(19.5) 11,700
(37)
13,100
(46.5) 13,900
(53)
13,100
(58)
95 10,000
(32) 11,450
(43) 12,250
(50) 12,150
(55.5)
100 8490
(26.5) 9940
(39.5) 11,000
(47)
11,400
(53)
105 5690
(18.5) 8630
(35.5) 9730
(44) 10,200
(50.5)
110 7320
(30.5) 8460
(41)
9020
(48)
115 6220
(25) 7370
(37.5) 8100
(45.5)
120 5120
(17.5) 6280
(33.5) 7190
(42.5)
125 5350
(29.5) 6270
(39.5)
130 4430
(24) 5350
(36)
135 2560
(16.5) 4560
(32.5)
140 3770
(28)
23
145
Boom
Angle
Main boom length in feet
42 57 72 86 100 115 130 145 160
0° 41,400
(35.3) 24,650
(50) 15,350
(64.6) 9700
(79.3) 5250
(94) 3650
(108.6) 2450
(123.3) 1450
(138)
Note: ( ) Reference radii in feet .A6-829-103576
Minimum boom angle (°) for indicated length (no load)
Maximum boom length (ft) at 0° boom angle (no load)
#LMI operating code. Refer to LMI manual for instructions.
*This capacity is based upon maximum obtainable boom angle.
+16 parts line required to lift this capacity (using aux. boom nose). Refer to Operator's and Safety Handbook for reeving diagram.
Note: ( ) Boom angles are in degrees.
10 THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE.
The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
Load chart
Pounds
100 ft 36 ft - 59 ft 40,000 lb 100%
27 ft 10 in
spread
360°
Feet
36 ft LENGTH 59 ft LENGTH
0°
OFFSET 20°
OFFSET 40°
OFFSET 0°
OFFSET 20°
OFFSET 40°
OFFSET
#0021 #0022 #0023 #0041 #0042 #0043
NOTES:
1. All capacities above the bold line are based
on structural strength of boom extension
and do not exceed 85% of tipping loads, in
accordance with SAE J-765.
2. 36 ft boom extension may be used for single
or double line lifting service. 59 ft boom
extension may be used for single line lifting
service only.
WARNING: Lifting with the 36 ft extension
base, with the 23 ft extension fly either
erected or folded along side of extension base,
is strictly prohibited.
3. Radii listed are for a fully extended boom with
the boom extension erected. For main boom
lengths less than fully extended, the rated
loads are determined by boom angle. Use
only the column which corresponds to the
boom extension length and offset for which
the machine is configured. For boom angles
not shown, use the rating of the next lower
boom angle.
WARNING: Operation of this machine with
heavier loads than the capacities listed is
strictly prohibited. Machine tipping with
boom extension occurs rapidly and without
advance warning.
4. Boom angle is the angle above or below
horizontal of the longitudinal axis of the
boom base section after lifting rated load.
5. Capacities listed are with outriggers properly
extended and vertical jacks set only.
11Grove RT9130E THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE.
The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane
Load chart
NOTES:
1. All capacities above the bold line are based on
structural strength of boom extension and do
not exceed 85% of tipping loads, in accordance
with SAE J-765.
2. 36 ft boom extension may be used for single or
double line lifting service. 59 ft boom extension
may be used for single line lifting service only.
WARNING: Lifting with the 36 ft extension
base, with the 23 ft extension fly either erected
or folded along side of extension base, is strictly
prohibited.
3. Radii listed are for a fully extended boom with
the boom extension erected. For main boom
lengths less than fully extended, the rated
loads are determined by boom angle. Use only
the column which corresponds to the boom
extension length and offset for which the
machine is configured. For boom angles not
shown, use the rating of the next lower boom
angle.
WARNING: Operation of this machine with
heavier loads than the capacities listed is
strictly prohibited. Machine tipping with boom
extension occurs rapidly and without advance
warning.
4. Boom angle is the angle above or below
horizontal of the longitudinal axis of the boom
base section after lifting rated load.
5. Capacities listed are with outriggers properly
extended and vertical jacks set only.
Pounds
130 ft 40,000 lb36 ft - 59 ft 100%
27 ft 10 in
spread
360°
Feet
0°
OFFSET
20°
OFFSET 40°
OFFSET 0°
OFFSET 20°
OFFSET 40°
OFFSET
#0021 #0022 #0023 #0041 #0042 #0043
36 ft LENGTH 59 ft LENGTH
12 THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE.
The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
Load chart
Pounds
160 ft 40,000 lb36 ft - 59 ft 100%
27 ft 10 in
spread
360°
Feet
0°
OFFSET
20°
OFFSET 40°
OFFSET 0°
OFFSET 20°
OFFSET 40°
OFFSET
#0021 #0022 #0023 #0041 #0042 #0043
36 ft LENGTH 59 ft LENGTH
NOTES:
1. All capacities above the bold line are based
on structural strength of boom extension
and do not exceed 85% of tipping loads, in
accordance with SAE J-765.
2. 36 ft boom extension may be used for single
or double line lifting service. 59 ft boom
extension may be used for single line lifting
service only.
WARNING: Lifting with the 36 ft extension
base, with the 23 ft extension fly either
erected or folded along side of extension
base, is strictly prohibited.
3. Radii listed are for a fully extended boom with
the boom extension erected. For main boom
lengths less than fully extended, the rated
loads are determined by boom angle. Use
only the column which corresponds to the
boom extension length and offset for which
the machine is configured. For boom angles
not shown, use the rating of the next lower
boom angle.
WARNING: Operation of this machine with
heavier loads than the capacities listed is
strictly prohibited. Machine tipping with
boom extension occurs rapidly and without
advance warning.
4. Boom angle is the angle above or below
horizontal of the longitudinal axis of the
boom base section after lifting rated load.
5. Capacities listed are with outriggers properly
extended and vertical jacks set only.
13Grove RT9130E
Working range
THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE.
The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
ft main boom + inserts + ft ft fixed offset extension
14
Load chart
THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE.
The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
Pounds
160 ft 40,000 lb
59 ft 100%
27 ft 10 in
spread
360°
Feet
0°
OFFSET 20°
OFFSET 40°
OFFSET 0°
OFFSET 20°
OFFSET 40°
OFFSET
#0084 #0085 #0086 #0084 #0085 #0086
59 ft LENGTH WITH 26 ft INSERT
59 ft LENGTH WITH 52 ft INSERT
26 ft or 52 ft
Insert
NOTES:
1. All capacities above the bold line are based
on structural strength of boom extension
and do not exceed 85% of tipping loads, in
accordance with SAE J-765.
2. 59 ft folding boom extension length may be
used for single line lifting service only.
Note: Lifting with the 36 ft extension base
with either one or two 26 ft insert sections
installed is not permitted.
3. For main boom lengths less than 160 ft
with the boom extension erected, the rated
loads are determined by boom angle. Use
only the column which corresponds to the
boom extension length and offset for which
the machine is set up. For boom angles not
shown, use the rating of the next lower boom
angle.
4. WARNING: Operation of this machine with
heavier loads than the capacities listed is
strictly prohibited. Machine tipping with
boom extension occurs rapidly and without
advance warning.
5. Boom angle is the angle above or below
horizontal of the longitudinal axis of the
boom base section after lifting rated load.
6. Capacities listed are with outriggers properly
extended and vertical jacks set only.
15Grove RT9130E
Load chart
THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE.
The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
Pounds
42 ft - 86 ft
40,000 lb Pick & Carry
up to 2.5 mph Boom Centered
over Front
Main boom length in feet
#9006
Feet 42 57 72 86
NOTES:
1. Capacities are in pounds and do not exceed
75% of tipping loads as determined by test in
accordance with SAE J-765.
2. Capacities are applicable to machines
equipped with 33.25x29 (38 ply) bias ply tires,
at 85 psi cold inflation pressure.
3. Capacities appearing above the bold line are
based on structural strength and tipping
should not be relied upon as a capacity
limitation.
4. Capacities are applicable only with machine
on firm level surface.
5. On rubber lifting with boom extension not
permitted.
6. Axle lockouts must be functioning when
lifting on rubber.
7. For pick and carry operation, boom must be
centered over front of machine, mechanical
swing lock engaged and load restrained
from swinging. When handling loads in the
structural range with capacities close to
maximum ratings, travel should be reduced
to creep speeds.
8. All lifting depends on proper tire inflation,
capacity and condition. Capacities must be
reduced for lower tire inflation pressures. See
lifting capacity chart for tire used. Damaged
tires are hazardous to safe operation of
crane.
9. Creep – not over 200 ft of movement in any
30 minute period and not exceeding 1 mph.
THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE.
The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
16
Working range
ft main boom + ft ft luffing extension
THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE.
The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane 17Grove RT9130E
Working range
ft main boom + inserts + ft ft luffing extension
THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE.
The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
18
Load chart
Pounds
100 ft 40,000 lb36 ft - 59 ft 100%
27 ft 10 in
spread
360°
Feet
36 ft LENGTH 59 ft LENGTH
5°
OFFSET 20°
OFFSET 40°
OFFSET 5°
OFFSET 20°
OFFSET 40°
OFFSET
#0091 #0092
NOTES:
1. All capacities above the bold line are based
on structural strength of boom extension.
2. 36 ft boom extension may be used for single
or double line lifting service. 59 ft boom
extension may be used for single line lifting
service only.
WARNING: Lifting with the 36 ft extension
base, with the 23 ft extension fly either
erected or folded along side of extension
base, is strictly prohibited.
3. Radii listed are for a 100 ft boom with the
boom extension erected. For main boom
lengths less than 100 ft, the rated loads are
determined by boom angle. Use only the
column which corresponds to the boom
extension length and offset for which the
machine is configured. For boom angles
not shown, use the rating of the next lower
boom angle.
WARNING: Operation of this machine with
heavier loads than the capacities listed is
strictly prohibited. Machine tipping with
boom extension occurs rapidly and without
advance warning.
4. Boom angle is the angle above or below
horizontal of the longitudinal axis of the
boom base section after lifting rated load.
5. Capacities listed are with outriggers properly
extended and vertical jacks set only.
ft ft luffing folding boom extension fixed angle ft main boom
THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE.
The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane 19Grove RT9130E
Load chart
Pounds
130 ft 40,000 lb36 ft - 59 ft 100%
27 ft 10 in
spread
360°
Feet
36 ft LENGTH 59 ft LENGTH
5°
OFFSET 20°
OFFSET 40°
OFFSET 5°
OFFSET 20°
OFFSET 40°
OFFSET
#0091 #0092
NOTES:
1. All capacities above the bold line are based on
structural strength of boom extension.
2. 36 ft boom extension may be used for single or
double line lifting service. 59 ft boom extension
may be used for single line lifting service only.
WARNING: Lifting with the 36 ft extension
base, with the 23 ft extension fly either erected
or folded along side of extension base, is strictly
prohibited.
3. Radii listed are for a 130 ft boom with the boom
extension erected. For main boom lengths less
than 130 ft, the rated loads are determined
by boom angle. Use only the column which
corresponds to the boom extension length and
offset for which the machine is configured. For
boom angles not shown, use the rating of the
next lower boom angle.
WARNING: Operation of this machine with
heavier loads than the capacities listed is
strictly prohibited. Machine tipping with boom
extension occurs rapidly and without advance
warning.
4. Boom angle is the angle above or below
horizontal of the longitudinal axis of the boom
base section after lifting rated load.
5. Capacities listed are with outriggers properly
extended and vertical jacks set only.
ft ft luffing folding boom extension fixed angle ft main boom
THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE.
The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
20
Load chart
Pounds
160 ft 40,000 lb36 ft - 59 ft 100%
27 ft 10 in
spread
360°
Feet
36 ft LENGTH 59 ft LENGTH
5°
OFFSET 20°
OFFSET 40°
OFFSET 5°
OFFSET 20°
OFFSET 40°
OFFSET
#0091 #0092
NOTES:
1. All capacities above the bold line are based on
structural strength of boom extension and do not
exceed 85% of tipping loads, in accordance with
SAE J765.
2. 36 ft boom extension may be used for single or
double line lifting service. 59 ft boom extension
may be used for single line lifting service only.
WARNING: Lifting with the 36 ft extension base,
with the 23 ft extension fly either erected or folded
along side of extension base, is strictly prohibited.
3. Radii listed are for a 160 ft boom with the boom
extension erected. For main boom lengths less
than 160 ft, the rated loads are determined
by boom angle. Use only the column which
corresponds to the boom extension length and
offset for which the machine is configured. For
boom angles not shown, use the rating of the next
lower boom angle.
WARNING: Operation of this machine with
heavier loads than the capacities listed is strictly
prohibited. Machine tipping with boom extension
occurs rapidly and without advance warning.
4. Boom angle is the angle above or below horizontal
of the longitudinal axis of the boom base section
after lifting rated load.
5. Capacities listed are with outriggers properly
extended and vertical jacks set only.
ft ft luffing folding boom extension fixed angle ft main boom
Other manuals for Grove RT9130E
1
Table of contents
Other Manitowoc Construction Equipment manuals
Manitowoc
Manitowoc 15000 3 Series User manual
Manitowoc
Manitowoc Grove TMS800E13 User manual
Manitowoc
Manitowoc National Crane NBT50 Series User manual
Manitowoc
Manitowoc National Crane 600E-2 User manual
Manitowoc
Manitowoc National Crane NBT50L Series User manual
Manitowoc
Manitowoc GROVE RT650E User manual
Manitowoc
Manitowoc 14000 User manual
Manitowoc
Manitowoc MLC80A-1 Installation and user guide
Manitowoc
Manitowoc MLC300 Installation and user guide
Manitowoc
Manitowoc MLC300 User manual
Manitowoc
Manitowoc 14000 User manual
Manitowoc
Manitowoc 18000 User manual
Manitowoc
Manitowoc National Crane 1300A Installation and user guide
Manitowoc
Manitowoc National Crane NBT40 Series User manual
Manitowoc
Manitowoc 14000 2 Series User manual
Manitowoc
Manitowoc National Crane NBT30H-2 User manual
Manitowoc
Manitowoc 2250 2 Series User manual
Manitowoc
Manitowoc MLC300 User manual
Manitowoc
Manitowoc 500E2 User manual
Manitowoc
Manitowoc GROVE GMK 6400 User manual
Popular Construction Equipment manuals by other brands
Komatsu
Komatsu PC58UU-3 Shop Manual
Sakai
Sakai SV204 Series Operating & maintenance instructions
Fayat Group
Fayat Group BOMAG BW 213 DH-4 BVC Service manual
ASTEC
ASTEC KPI-JCI FT2640 troubleshooting manual
Textron
Textron Greenlee ALUMINUM SITE-RITE 840A instruction manual
Altrad
Altrad BELLE VIBRATECH+ 38 Operator's manual
Atlas Copco
Atlas Copco SmartROC T45-11 Original instructions
stellar labs
stellar labs 3315 owner's manual
Reliable
Reliable TADANO TR-500XL-3 instructions
Quantum
Quantum QIMT Series PARTS, INSTALLATION AND MAINTENANCE MANUAL
Palfinger
Palfinger Clocktower PK2400 TK Operating and maintenance manual
Husqvarna
Husqvarna PG 400 Operator's manual
Baileigh Industrial
Baileigh Industrial RDB-150-AS Operator's manual
HYVA
HYVA HA70 Operator's manual
JLG
JLG R1532i Operation and safety manual
Lissmac
Lissmac MAB 1200 operating manual
Mounting Systems
Mounting Systems Theta installation manual
NetterVibration
NetterVibration NHG Series operating instructions
