Maono AU-PM422 User manual

AU-PM422
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch

2
Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully before
first use and keep this user manual for future reference. Pay particular attention to the safety
instructions. If you have any questions or comments about the device, please contact the
customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

3
Caring for Your Microphone
•Please keep the product in a dry, clean, dust-free environment.
•Keep corrosive chemicals, liquids and heat source away from the product to prevent
mechanics damage.
•Use only a soft and dry cloth for cleaning the product.
•Malfunction may be caused by dropping, impact of external force.
•Do not attempt to disassemble the product. Doing so voids warranty.
•Please have the product checked or repaired by authorized technicians if any
malfunctions happened.
•Failure to follow all the instructions may result in mechanics damage.
•Warranty does not apply to human errors.

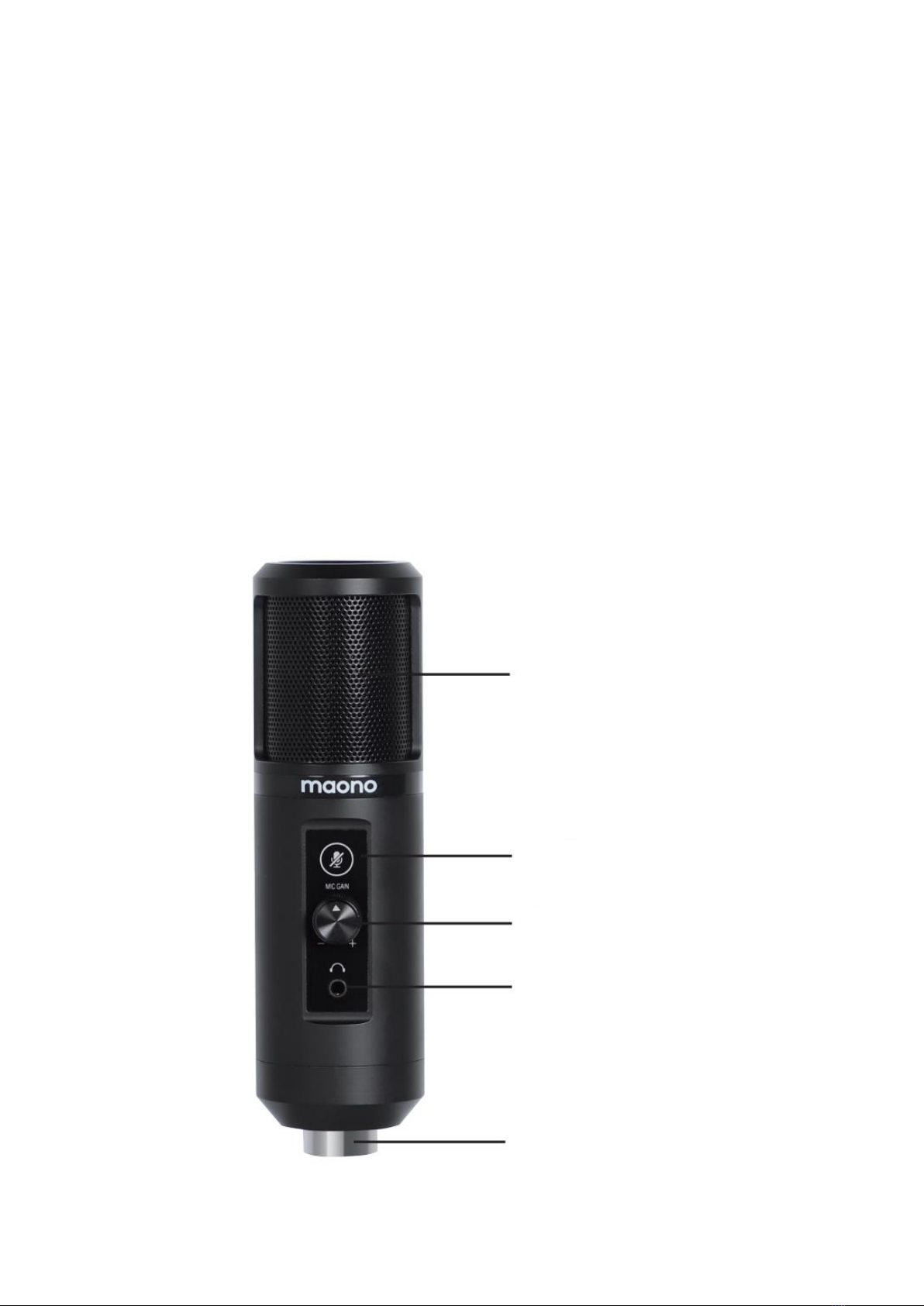

Introduction
Microphone Capsule
Mute touch panel
Mic Gain Control
3.5mm Audio Jack
USB Connector

4

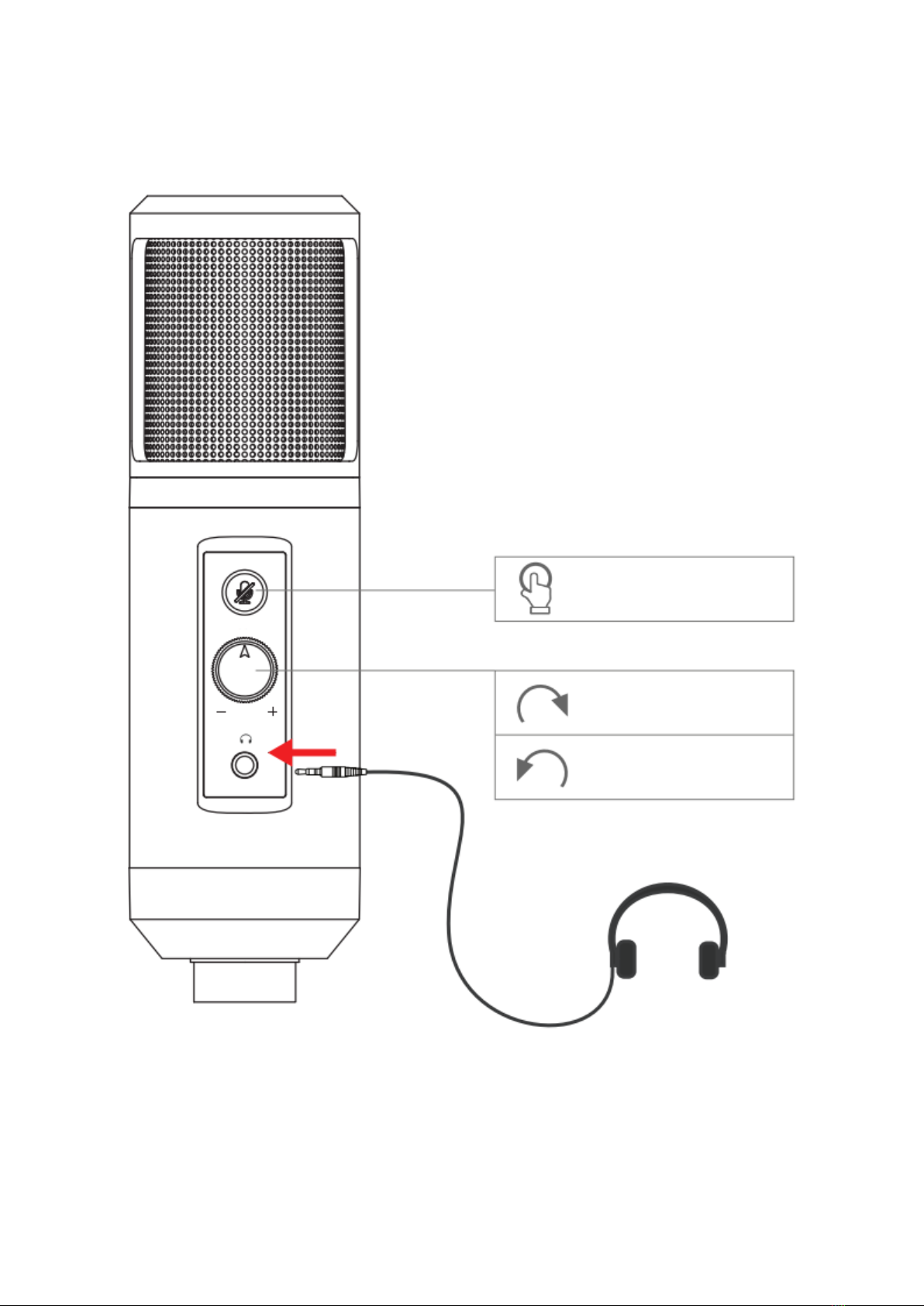

Operation
Mic Gain
LED indicator colour changes to
Cyan - Unmute
Red - Mute
Touch to Mute or Unmute
Increase Mic Gain
Increase Mic Gain

5

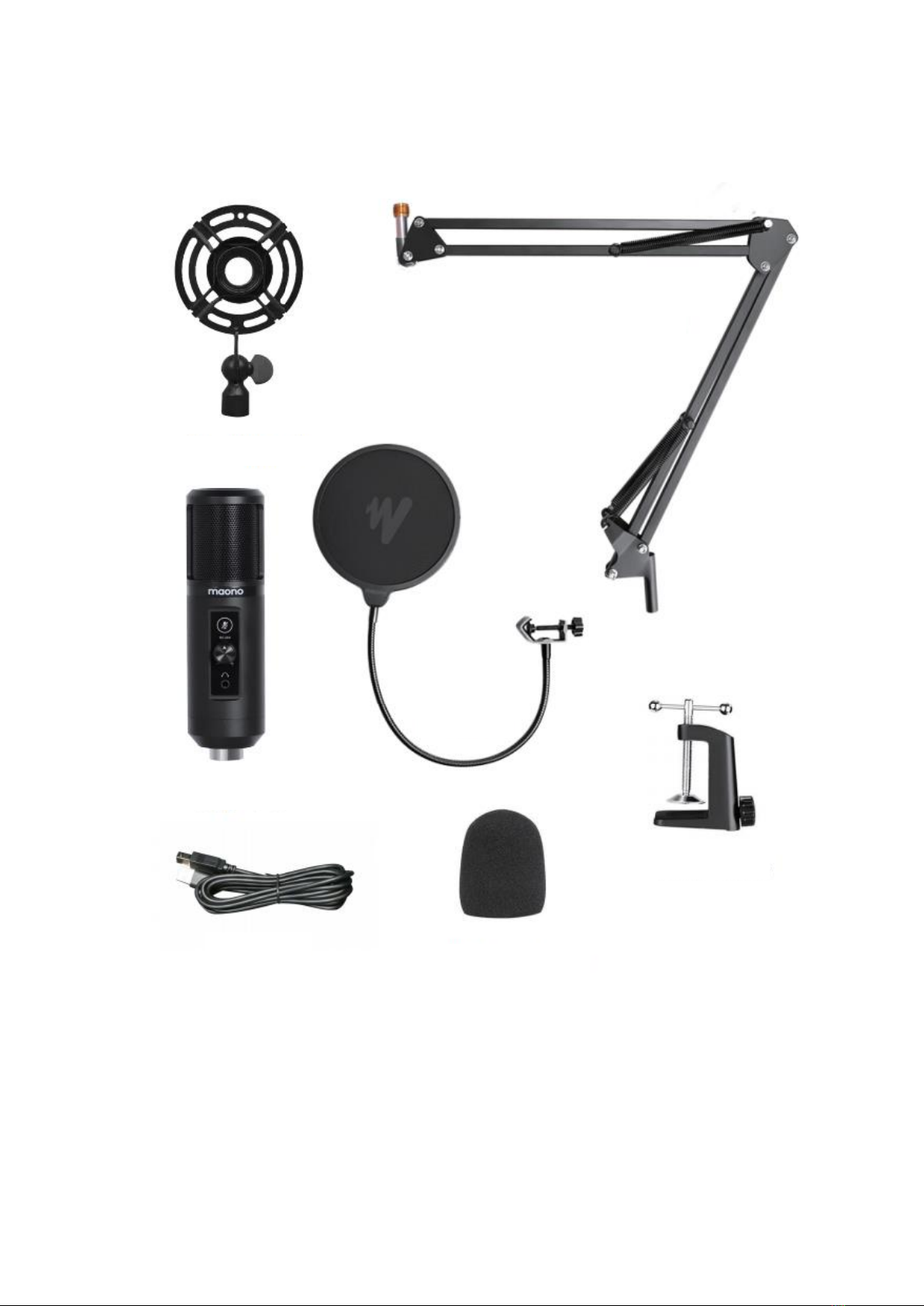

Package contents
Microphone stand
Shock mount
Pop-filter
Microphone
USB Cable
Table clamp
Windscreen cap

6

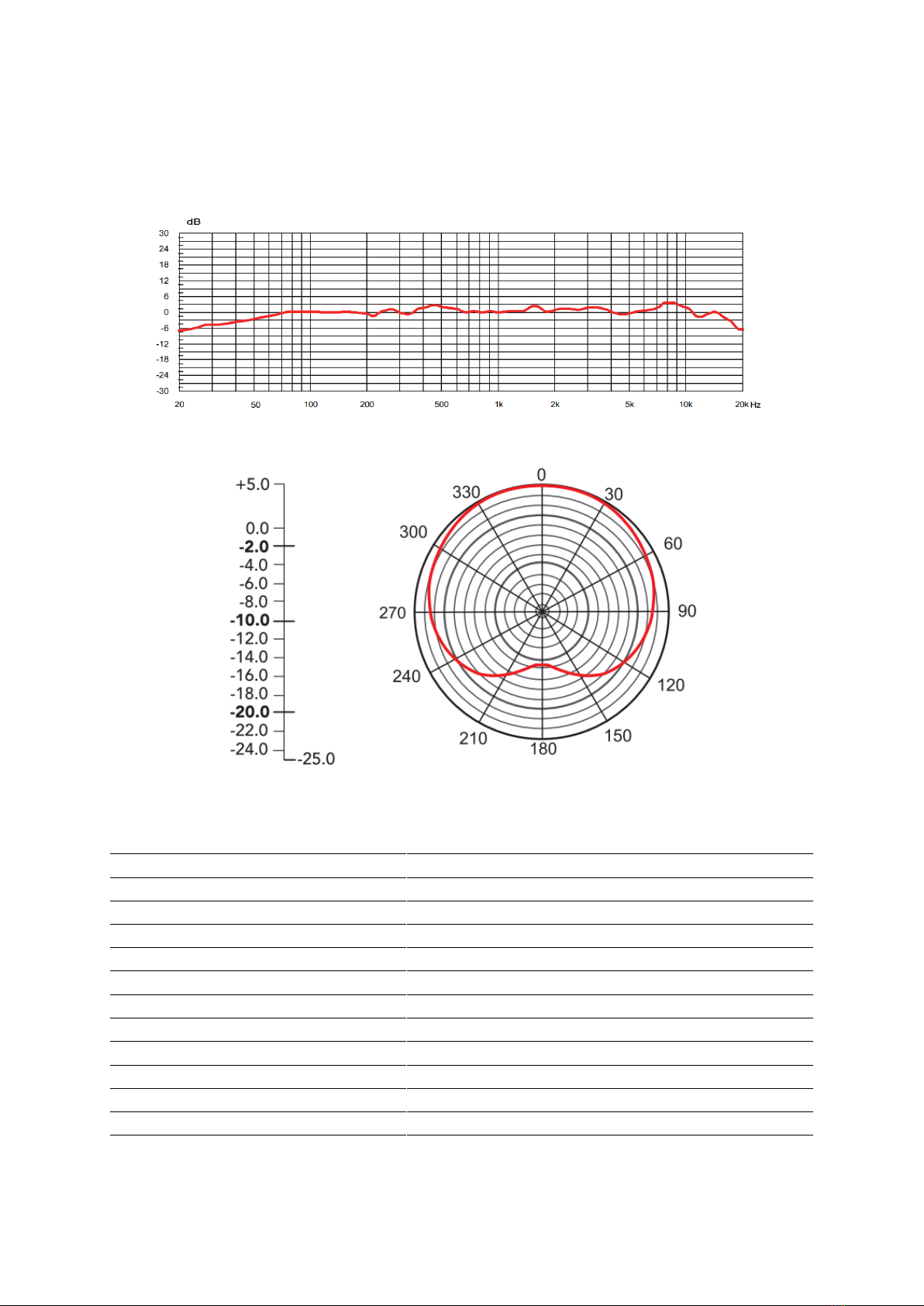

Specifications
Frequency response
Polar Pattern
Pattern
Cardioid
Frequency Response
20 –20.000 Hz
Sensitivity
-47 dB~-29 dB, ±3 dB (0 dB=1 V/Pa at 1 KHz)
Bit Depth
24 bit
Sample Rate
Up to 192 kHz
Power Requirements
USB (5 V DC)
S/N Ratio
74 dB
Maximum SPL
125 dB
Mute control
Touch panel
Microphone Gain
Knob
Monitor
Available
Headphone Jack
3.5 mm (1/8”) TRS (stereo)
LED Indicator
Available
USB Cable
USB-A to USB-B 2.5 m
dB rel. 1 V/Pa
(at 1 kHz)

7
Description
The AU-PM422 has built-in professional sound processor chipset, the sampling rate up to
192kHz/ 24bit and is equipped with a USB output for applicate on computer easily. It is
designed for digitally capturing music or any acoustic audio source using your favourite
recording software. Cardioid polar pattern reduces pickup of sounds from the sides and rear,
improving isolation of desired sound source. The microphone has studio-quality articulation
and intelligibility perfect for singing, podcasting, voice-over, field recording and home studio
recording.
Features
•Large plated membrane capsule with Cardioid polar pattern.
•Built-in Professional sound chipset.
•Hi-Res Audio sampling rate up to 192 kHz, 24-bit Max.
•Mute is controllable by touch panel with not handing noise.
•Zero-latency monitor function with 3.5 mm TRS audio jack.
•USB connectivity, digital output.
•Plug and Play for PC, MAC.
•Stable metal boom arm system, Shock mount and pop filter included.
•Boom arm with 2-axis swivel mount for accurate positioning.

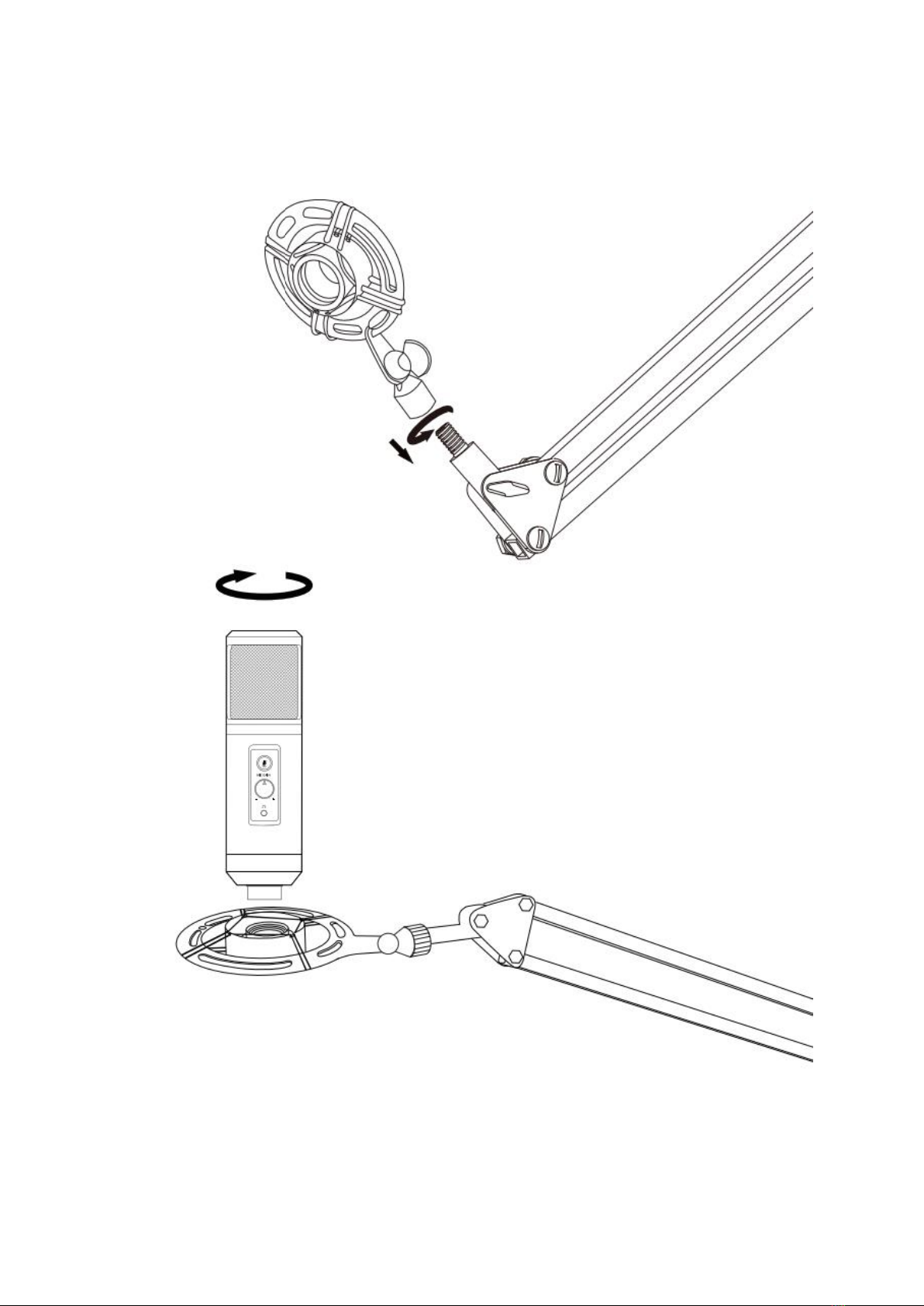

Installing microphone stand on table

8
Installation quick guide

9
Quick installation guide
Connection to a computer

10

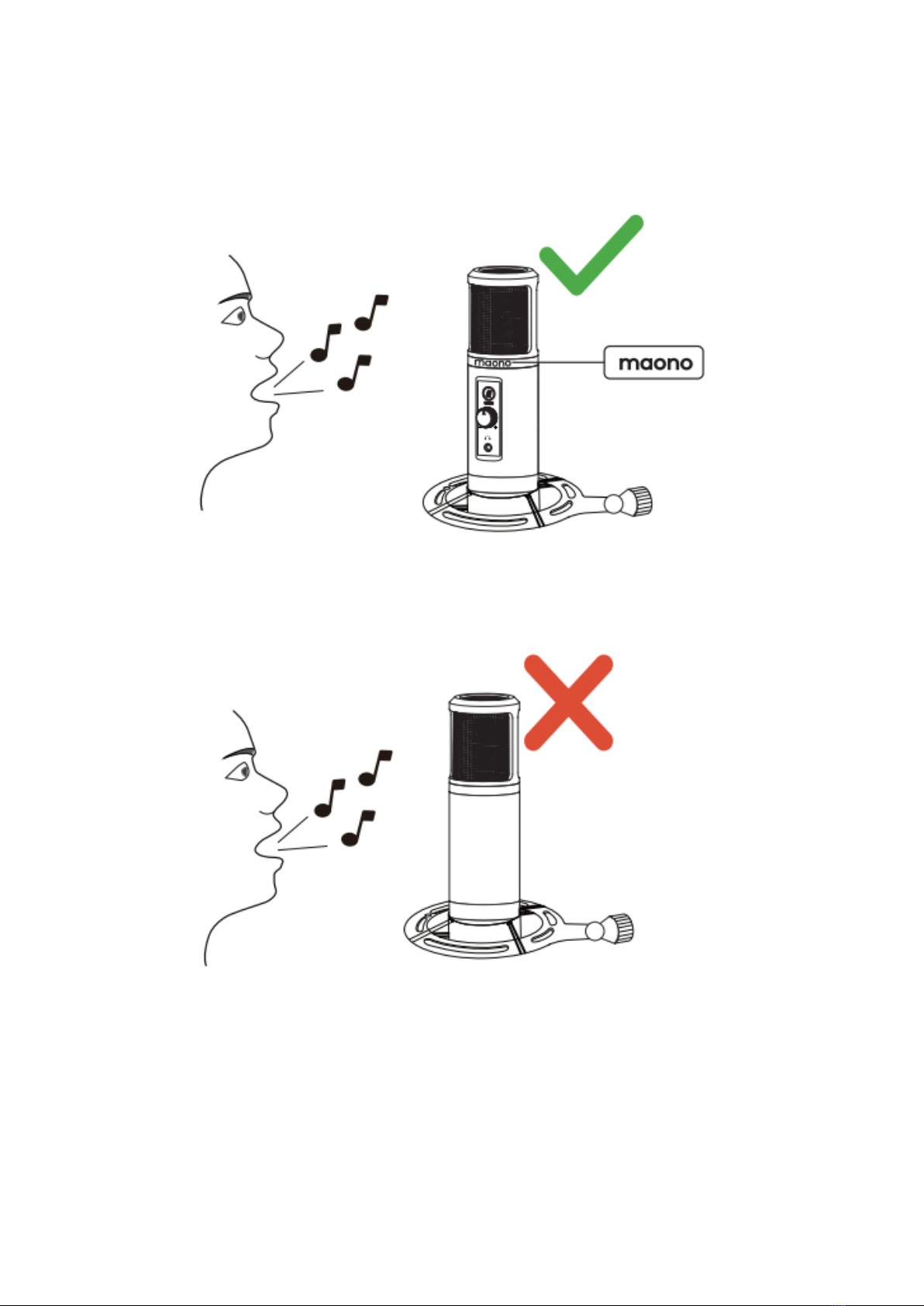

Microphone positioning

11
How to set up on computer
Setting microphone level

12
How to set up on Apple Mac

13
Warranty Conditions
A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you need
repair or other services during the warranty period, contact the product seller directly, you
must provide the original proof of purchase with the date of purchase.
The following are considered to be a conflict with the warranty conditions, for which
the claimed claim may not be recognized:
•Using the product for any purpose other than that for which the product is intended or
failing to follow the instructions for maintenance, operation and service of the product.
•Damage to the product by a natural disaster, the intervention of an unauthorized person
or mechanically through the fault of the buyer (e.g. during transport, cleaning by
inappropriate means, etc.).
•Natural wear and aging of consumables or components during use (such as batteries,
etc.).
•Exposure to adverse external influences, such as sunlight and other radiation or
electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage, electrostatic
discharge voltage (including lightning), faulty supply or input voltage and inappropriate
polarity of this voltage, chemical processes such as used power supplies, etc.
•If anyone has made modifications, modifications, alterations to the design or adaptation
to change or extend the functions of the product compared to the purchased design or
use of non-original components.

14
EU Declaration of Conformity
Identification data of the manufacturer's / importer's authorized representative:
Importer: Alza.cz a.s.
Registered office: Jankovcova 1522/53, Holešovice, 170 00 Prague 7
IČO: 27082440
Subject of the declaration:
Title: Microphone
Model / Type: AU-PM422
The above product has been tested in accordance with the standard(s) used to
demonstrate compliance with the essential requirements laid down in the Directive(s):
Directive No. (EU) 2014/30/EU
Directive No. (EU) 2011/65/EU as amended 2015/863/EU
Prague, 23. 11. 2020

15
WEEE
This product must not be disposed of as normal household waste in accordance with the EU
Directive on Waste Electrical and Electronic Equipment (WEEE - 2012/19 / EU). Instead, it shall
be returned to the place of purchase or handed over to a public collection point for the
recyclable waste. By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. Contact your local
authority or the nearest collection point for further details. Improper disposal of this type of
waste may result in fines in accordance with national regulations.

16
Vážený zákazníku,
děkujeme Vám za zakoupení našeho produktu. Prosíme, pečlivě si přečtěte následující
instrukce před prvním použitím a uživatelskou příručku si uschovejte pro pozdější užití.
Zejména dbejte na bezpečnostní pokyny. Pokud máte jakékoliv dotazy či připomínky ohledně
přístroje, prosíme, obraťte se na zákaznickou linku.
✉www.alza.cz/kontakt
✆[phone]
Dovozce Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

17
Péče o mikrofon
●Výrobek uchovávejte v suchém, čistém a bezprašném prostředí.
●Udržujte korozivní chemikálie, kapaliny a zdroje tepla v dostatečné vzdálenosti od
výrobku, aby nedošlo k poškození mechaniky.
●K čištění výrobku používejte pouze měkký a suchý hadřík.
●Porucha může být způsobena pádem nebo nárazem vnější síly.
●Nepokoušejte se výrobek rozebírat. V opačném případě zaniká záruka.
●Pokud dojde k poruše, nechte výrobek zkontrolovat nebo opravit autorizovaným
technikem.
●Nedodržení všech pokynů může mít za následek poškození mechaniky.
●Záruka se nevztahuje na lidské chyby.
Úvod
Mikrofonní kapsle
Dotykový panel - Ztlumit
Zesilovač zvuku
3.5mm audio konektor
USB konektor

18
Provoz
Mic Gain
Barva indikátoru LED:
Azurová - Zapnout zvuk
Červená – Ztlumit zvuk
Stisknutím vypnete nebo
zapnete zvuk
Zvýšit hlasitost
Snížit hlasitost

19
Obsah balení
Kovové rameno
mikrofonu
Tlumič
Popový filtr
Mikrofon
USB Kabel
Svorka na stůl
Větruvzdorný molitanový tlumič

20
Technické specifikace
Frekvenční odezva
Polární vzor
Vzor
Kardioidní
Frekvenční odezva
20 –20.000 Hz
Citlivost
-47 dB~-29 dB, ±3 dB (0 dB=1 V/Pa při 1 KHz)
Bitová hloubka
24 bitů
Vzorkovací frekvence
Až do 192 kHz
Požadavky na napájení
USB (5 V DC)
Poměr zvuk / šum
74 dB
Max. SPL
125 dB
Ztlumit
Dotykový panel
Zesilovač zvuku
Knoflík
Monitor
Dostupný
Konektor pro sluchátka
3.5 mm (1/8”) TRS (stereo)
LED Indikátor
Dostupný
USB Kabel
USB-A na USB-B 2.5 m
dB rel. 1 V/Pa
(při 1 kHz)
