Marabut ARCO RED LINE User manual

COLOUR:
TENT DIMENSIONS:
2-3 persons
GUARANTEE
3 YEAR
ALU PINS
UV
RESISTANT
3,55 kg3 kg
poliamid
RIP - STOP
3000 mm H
2
O
ALU FRAME
3 entrances
min. max.
ARCO
USER MANUAL
TECHNICAL SPECIFICATIONS:
Flysheet: Rip-Stop polyamide 40D 240T (3000 mm H20)
silicone finish
Sleeping area: polyamide
Floor: Rip-Stop polyamide 50D 240T, finish silicone
Frame: aluminium 7001 T6 ø9,5 mm
Pins: aluminium 7001 T6
Seams: sealed
Tent capacity: 2 - 3
Weight: min. 3.0 kg
max. 3.55 kg
Min weight = the tent with frame poles
Max weight = the tent with accessories, e.g. pins,repair kit, guy lines,
bag, manual, guarantee.
Dimensions: 307 x 240 x 103 cm (external)
156x 223 cm (sleeping area)
124
105 156 50
307
103
223
240
92

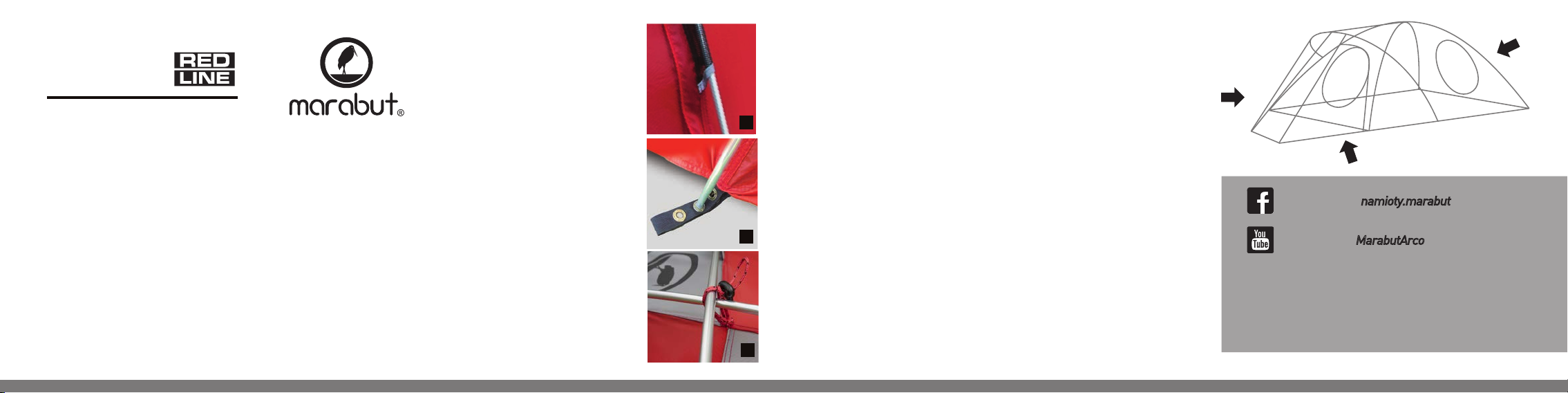

SETTING UP THE TENT
 Spread out the tent on the ground, not necessarily in the place where you want to set it. Do not fix it with
pins to the ground! Fasten the zippers.
 Insert assembled frame poles into the sleeves of the flysheet (Fig. 1).
 Bend the upper pole to mount its other end in openings of the tape in the corners of the floor and
flysheet (Fig. 2.). Similarly fix the other end of the frame pole and other poles. Note: 3 openings in
tapes are provided for adjusting the tension of the tent.
 Stiffen the intersection of the frame poles using the connector (Fig. 3.)
 Tent prepared as described above should be set at the desired location. Stretch the floor and attach
it with the pins in the corners, then stabilize the tent using guy lines.
ACCESSORIES
repair kit: a rope with tensioner, repair tube for frame pole.
1.
2.
3.
AFTER-SALES SERVICES FOR MARABUT TENTS
All our tents are covered by a 3-year guarantee. When buying
a MARABUT tent, you can be sure that even after the guarantee
period we will quickly and professionally repair any damage.
Our after-sales services include attaching snow aprons, repla-
cing worn-out floors and providing spare frame poles.
facebook.com/namioty.marabut
youtube.com/MarabutArco
Marabut Sp z o.o.
ul. Przemysłowa 10, 32-070 Czernichów, Poland
phone: [phone], [e-mail]
www.namioty.marabut.com
COMPONENTS:
 flysheet and sleeping area cover (integrated) frame
(3 frame poles) alu pins (19) guy lines (4) bag manual
 guarantee
ARCO
USER MANUAL
