Marantz Av7005 User manual

2011 home

entertainment

hOMEThEATRE

COMPONENTS

aNY FiLE pOSSiBLE

e new AV7005 features network connections – so you can enjoy almost any music ﬁle from almost

any device. e AV7005 oﬀers audio streaming capabilities thanks to the built-in digital media player,

so it can decode music ﬁles stored on your PC or external storage unit streamed via the network.

Almost any ﬁle is possible including MP3, WMA, FLAC and AAC. And all handled with the best

possible quality, thanks to the high quality built-in audio processing engine and Marantz Digital Audio

Expander (M-DAX) technology for compressed audio.

With built-in vTuner Internet Radio, you can also enjoy thousands of on-line radio stations and with

optional Bluetooth connectivity (RX101 module) music can even be streamed from a compatible

Bluetooth device.

MAR ANTZ 7AV SEPARATES

EXTERNAL HARD DISKROUTERPC

LAPTOP

PROJECTOR LCD TV

MM8003

LOUDSPEAKERS

AV70 05

MAR ANTZ6AV SEPARATES

The 7.2 channel AV7005 gives you superb audio quality thanks partially to Marantz-own HDAM modules and renown

Marantz design. The audio signal is passed to the XLR outputs and the separate power amp. In addition, all audio

signals enter the DSP in a variety of ways to ensure that all channels are kept completely separate, thus eliminating

interfering ‘channel crosstalk’. For example, you can route the audio signal via the network jack for streaming music

from your PC or Internet radio. Alternatively, you can route it via one of the six HDMI 1.4a inputs, one of which is

hidden behind the front flap for easy access. Here you can also find the iPod-digital-compatible USB input and a

second double line display, which complements the famous elegant circular display with more detailed information.

The AV7005 also takes supreme care of 3D video signals, even in stand-by mode, and sends them to the two HDMI

1.4a output sockets. And there is even a Phono MM input – ideal for those precious vinyls. It supports all the latest

sound formats including Audyssey DSX by using the Sharc 32 Bit signal processor from Analog Devices, also for

handling the MultEQ XT auto calibration. It’s all there, just waiting to perform.

AV 70 05

MULTI-CHANNEL AV PRE-AMPLIFIER

• Dolby TrueHD, DTS HD, Audyssey

DSX

• Network streaming for audio and


• Internet radio

• Toroidal Power Transformer

• XLR pre-output x 8 channels

• Current Feedback circuitry with

Marantz HDAM

• 6 in / 2 out HDMI 1.4a (3D)

• Video scaling up to 1080p

• iPod/iPhone compatible USB input

• Phono MM amplier

• M-DAX2

• GUI

• Multi room/Multi source

• RS232C

• Learnable RC

• Available in Black

AV SEPARATES

PC AUDIO

STREAMING

ABT2015

MAR ANTZ 9AV SEPARATES

The new MM7055 is the five-channel option in this year’s extended line-up of main amplifiers. Based on the

technology used in the MM80 03 and using the exact same chassis, it delivers a thumping 140 W RMS into 8 Ohms

to each of the channels, while the ultra-wide bandwidth current feedback technology easily handles the highest

SACD frequencies – this also makes it ideal for the high definition DTS Master Audio and Dolby TrueHD formats too.

The result? Totally precise tonal and image balance, speed and dynamics. And on top of all that, you also get XLR

audio inputs, DC triggers and a Marantz control bus system for remote on/off. There’s even a stylish new display

screen showing the actual output power. This is power and convenience to take your breath away.

MM7055

5-CHANNEL POWER AMPLIFIER

• 5 x 140 W RMS 8 Ohms

• Current Feedback circuitry

• Balanced inputs

• Gold-plated speaker terminals

• DC trigger control inputs

• Marantz remote bus

• Available in Black

MAR ANTZ8AV SEPARATES

AV SEPARATES

The MM7025 is this year’s ideal two-channel main amplifier with a whopping 140 W RMS into 8 Ohms per channel.

Use it in an AV setup to give your front channels an earth-moving boost or simply to make a sensational upgrade to

an existing stereo system. Because the technology is the same as that in the MM7055 and MM8003, using them in

combination is fast, efficient and friendly. It’s a great flexible customisation enabler. And, as with the big brother

MM7055, it also includes a new stylish display, XLR inputs, DC triggers and Marantz bus.

MM7025

2-CHANNEL POWER AMPLIFIER

• 2 x 140 W RMS 8 Ohms

• Current Feedback circuitry

• Balanced inputs

• Gold-plated speaker terminals

• DC trigger control inputs

• Marantz remote bus

• Available in Black

At the heart of this amplifier is a massive high-current, audiophile-grade, oversized Toroidal power transformer.

It easily delivers more than 140 W to each of the eight channels, and in addition to its sheer power, it incorporates

highgrade audio components throughout, extensive shielding of key components, and ultra-wide bandwidth Current

Feedback technology. The amplification system was originally developed to handle Super Audio CD signals, so it’s

ideal for the new DTS-HD Master Audio and Dolby True HD formats. The chassis is completely copper-plated to

deliver perfect grounding, and to eliminate EMI. The result is an amazingly accurate tonal and image balance, allied

to speed and dynamics with very low distortion.

MM8003

8-CHANNEL POWER AMPLIFIER

• 140 W x 8 ch (8 Ohms) Power Amplifiers

• Low Impedance Continuous Drive Capability

• Current Feedback Amplifier Circuit

• Massive Toroidal Power Transformer

• 8 ch XLR Input Terminals

• DC Trigger Control Inputs, DC Power Status Outputs,

IR Flasher Input Terminals

• Output Channel Relay On/Of f Control by Remote

Signal (to Multi Zone Use)

• Copper-Plated Chassis

• Gold-Plated Speaker Terminals

• Marantz Designed Storage Capacitors for Quick

Response to Rapidly Varying Sources

• Sophisticated new aluminium / reinforced resin front

panel

ThriLLiNG hOME ThEaTrE

Ignite your senses and stretch your emotions with this latest collection of Marantz High Deﬁnition

AV systems oﬀering HD Audio Decoding, 1080p video scaling, network streaming for audio/video,

and HD from Blu-ray. is collection of products builds on world-class excellence and now includes

even more style, precision and functionality. For example, there’s the new M1 design: based on the

look and feel of the Marantz Premium Range, its three-piece construction dampens the front panel’s

resonance frequency, and protects the inner circuitry from signal-degrading inﬂuences. ere’s also

Current Feedback ampliﬁcation and Toroidal Transformers, with fast current delivery capability. And it

doesn’t stop there; your compressed audio ﬁles such as MP3 and AAC will sound sublime thanks to the

Marantz Digital Audio Expander (M-DAX). ere’s never been a better time to be a true lover of music

and movies.

MAR ANTZ10 AV R E C E I V E R S

SR70 05

HD 3D AV RECEIVER WITH AUDIO STREAMING

MAR ANTZ 11AV R E C E I V E R S

• Newly designed clean front panel

with a porthole second display

• Marantz quality discrete 125 W

Amp x 7 ch (8 Ohms, 20 Hz - 20 kHz)

• Current Feedback topology

featuring Marantz HDAM circuits

for Pre-amplier

• Support HDMI ver.1.4a 3D, ARC

and Content t ype, 6 Inputs (Front

1), 2 Outputs

• Support HDMI CEC, Deep Color,

x.v.Color, Auto Lip Sync and

Standby Pass Through (Last or

selected one in menu)

• Front USB input for iPod/iPhone

Digital connection (Audio) or USB

Memory (Audio/Photo)

• Ethernet port for Audio/Photo

streaming (Support DLNA1.5,

Windows 7)

• Internet Radio through vTuner UI

• Streaming service capability:

Napster / last.fm / ﬂickr

• Dolby TrueHD, Digital Plus, Prologic

IIz, IIx, II, Virtual Speaker, Headphone

• DTS-HD Master Audio, High

Resolution Audio, ES Discete 6.1,

Matrix6.1, Neo:6, 96/24, Express,

Neural Surround

• Audyssey DSX, Dynamic Volume

and Dynamic EQ

• Audyssey MultEQ XT Auto

Calibration

• Audyssey MultEQ Pro for Custom

Installation

• Bluetooth Wireless Audio

Transmission Capability with

option RX101

• Composite/Component to HDMI

scaling up to 1080p

• HDMI to HDMI scaling

• Composite to Component Analogue

up conversion

• OSD overlay on HDMI output

• Assignable HDMI, Component

inputs

• Anchor Bay 10-bit Video

Processing/Scaling

• M-DAX 2 (Improved Algorithm,

Marantz Dynamic Audio eXpander

ver.2)

• New colour GUI On-Screen Display

• Dot Matrix x 2 lines rich info.

Display in the front door

• Input Rename, Skip, Level control

• Selectable various volume set-up:

Power on, Limit and Mute level

• Phono (MM) input

• 11 pair screw-type speaker

terminals

• Zone2 Audio Pre outputs,

Component/Composite Video

output

• Zone3 Audio Pre outputs

• 7.1 ch Pre out + second Subwoofer

Pre out

• I/P Control

• RS-232C for Custom Installation

• Flasher In

• DC Trigger Out x 2

• Marantz D-Bus (RC-5) In/Out

• External IR Receiver Capability

with option RX101

• Detachable Power Code (IEC320

2 pin type)

• Backlight, LCD, Learning and

Pre-code System Remote

Controller

Note: Product features highlighted in

blue indicate improvements over

SR6005 model

AV RECEIVERS

The new SR7005 AV Receiver with 7 x 125 W into 8 Ohms keeps cross channel contamination to an absolute

minimum for ultra-precise signal processing. The ‘muscle’ power of the system comes from the current feedback

circuitry with Marantz HDAMs and an oversized low impedance transformer for rapid current supply. Not even

extreme demands for power will pull the SR7005 of f balance. The ‘brain’ of the system is the latest 400 MHz Sharc

DSP, which easily handles HD audio decoding including the Audyssey DSX and the MultEQ XT room calibration. The

source signal can be either digital or analogue, and it can also be from a wide variety of inputs. Firstly, there are six

HDMI 1.4a inputs – one of which is hidden behind the front flap for easy access. For new media there is a

iPod-digital-compatible USB input, while the RJ45 Net work jack provides connection to vTuner Internet radio and

music services such as Napster and last.fm. You can even access your music librar y stored on computer (see the

graphic on page 11). Classical analogue signals will come from the built-in FM tuner or via either the analogue input

jacks or the Phono equalizer: which is ideal for vinyls. Video signals are also treated with loving care by ABT2015

video processing, a host of video adjustment possibilities and two HDMI 1.4a outputs supporting 3D video. It’s all

there, eager to please.

ANY FILE POSSIBLE

The new SR7005 features network connections – so you can enjoy almost any music file from almost any device.

The SR7005 offers audio streaming capabilities thanks to the built-in digital media player, so it can decode music

files stored on your PC or external storage unit streamed via the network. Almost any file is possible including MP3,

WMA, FLAC and AAC. And all handled with the best possible quality, thanks to the high quality built-in audio

processing engine and Marantz Digital Audio Expander (M-DAX) technology for compressed audio.

With built-in vTuner Internet Radio, you can also enjoy thousands of on-line radio stations and with optional

Bluetooth connectivity (RX101 module) music can even be streamed from a compatible Bluetooth device.

EXTERNAL HARD DISKROUTERPC

LAPTOP

PROJECTOR LCD TV

LOUDSPEAKERS

SR7005

PC AUDIO

STREAMING

ABT2015

ThE LaTEST hOME ThEaTrE TEChNOLOGY

e latest version of the HDMI standard (1.4a) is also at work in this year’s collection of Marantz AV

Receivers*– to ensure that both movie lovers and gamers are completely future-proofed with spectacular

3D video support at 1080p HD. But that’s not all. As you would expect with Marantz, we’ve built in

a whole range of audio quality performance enhancements. For example, the power supply has been

strengthened with a new power transformer and customized components. e signal processing power

has also been enhanced by using the latest generation 32 Bit Sharc DSP from Analogue Devices. And

it’s not just performance that’s been enhanced, there are also many convenience features in this year’s

line up. For example, auto set-up with microphone, video conversion for one cable connection to the

TV set, and extended connectivity including HDMI front input.

Also, for the new way of enjoying media via the network / Internet, the top model includes an integrated

media player. It’s all pure enjoyment for the eyes and ears. And even when these units are not playing,

they add style and attitude to the living room, thanks to their elegant design. Be it slim height AV,

middle class AV with control button and front input hidden behind ﬂap, or the top-of-the-range AV

with a classy circular display – take a closer look, you can practically hear the quality.

* Some features not included in model NR1501

• 70% Power Guarantee (in 5

channels)

• Fully discrete wide range ampliers

delivering 7 x 100 W RMS

• Sophisticated new aluminium/

reinforced resin front panel with

hidden front inputs

• Dolby Digital Plus, Dolby TrueHD,

DTS HD Master Audio and 7.1

Multi-channel PCM for High

Denition (HD) Audio from Blu-ray

Disc™

• 32-bit DSP with DD-EX, DTS-ES,

DTS96/24, CSII and DPL IIz

• M-DAX audio enhancer for all

compressed audio formats as MP3,

WMA, AAC, etc

• Sound delay function to sync audio

and video

• 4 x HDMI 1.4 inputs for digital audio

and video including Deep Color

support plus one output

• Room Acoustic Calibration with EQ

by Audyssey for one touch speaker

set-up

• Clear OSD menu structure and ease

of use due to front panel cursor

control

• Pure direct mode for best audio

performance

• 24-bit/192 kHz D/A converters on all

ch annel s

• Multi-zone output

• RS232C, IR Flasher port and DC

trigger for system integration

• Speaker C function for bi-amping of

front channels in 5.1 set-up

• 3D Image Pass Through

• ARC (Audio Return Channel)

• CEC (Consumer Electronic Control)

• HDMI Pass-thru in stand-by

• Input assignment

• USB: Input for iPhone/iPod/HDD/

Flash Drive

• Audyssey Dynamic EQ and Volume

• Discrete level adjustment by input

• Volume limiting & Start-up Volume

setting

Note: Product features highlighted in

blue indicate improvements over

NR1601 model

MAR ANTZ12 AV R EC E I V E R S

MAR ANTZ 13

AV R E C E I V E R S

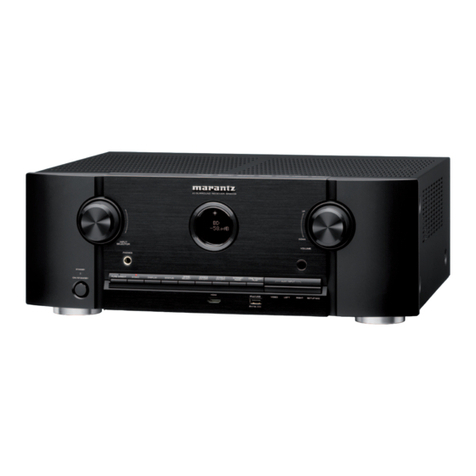

The new SR6005 is powerful … very powerful – 7 x 110 W RMS to be exact. Combined with high-quality audio

processing this stylish box of tricks creates a devastatingly convincing cinematic experience… and thrusts you right

into the heart of the action. That’s because the digital audio signal – up to Dolby TrueHD and DTS-HD – is fed via

one of the six 3D supporting HDMI 1.4a inputs. In addition, the system’s Dynamic Volume control ensures that the

sound remains the same level even when a commercial interrupts. Also, the video up-scaling of analogue and digital

video signals up to 1080p – by the famous Anchor Bay ABT2015 – avoids the necessity of selecting the right input

on the TV: once it is set-up, the SR6005 automatically makes the right connection. In addition, for ‘new media’ the

SR6005 includes an iPod-digital-compatible USB input behind the front flap, and for Bluetooth devices such as a PC

or mobile phone the receiver is ready with the optional RX101. What’s more, set-up, optimisation and operation are

all quick and easy – with the Audyssey MultEQ and intuitive to use graphic user interface.

Pure enjoyment has never been easier.

The SR5005 provides 7 x 100 W RMS, has decoders for standard as well as Dolby TrueHD and DTS HD Master

Audio, and comes with four HDMI 1.4a inputs – making it immediately ready for 3D video. It easily handles the most

demanding of scenes in action films, as well as offering excellent-quality music playback, thanks to the advanced

Marantz audio technologies. To ensure you get the best possible audio from compressed files on iPod via USB, the

SR5005 incorporates the M-DAX2 – Marantz Dynamic Expander version2. This neat little addition also optimises

the qualit y of MP3 files from either CD or the optional Bluetooth receiver RX101. Every thing sounds clearer, more

detailed, and more alive. To finish of f, the SR5005 comes with a whole host of convenience features such as ‘auto

set-up’ with Audyssey MultiEQ and Dynamic Volume, multi-room with multi-source flexibility, and ‘video-off’ mode

to ensure you enjoy your movies and music in true dynamic Marantz style. What’s more, all analogue and HDMI

video sources can be up-scaled to 1080p via the Anchor Bay ABT1030 processor.

SR6005 SR5005

3D 7.1 HD AV RECEIVER WITH MULTI-ROOM SOUND 3D 7.1 HD AV RECEIVER WITH MULTI-ROOM SOUND

• Marantz quality discrete 110 W Amp

x 7 ch (8 Ohms, 20 Hz - 20 kHz)

• Support HDMI ver.1.4a 3D, ARC and

Content type, 6 Inputs, 1 Output

• Support HDMI CEC, Deep Color,

x.v.Color, Auto Lip Sync and Standby

Pass Through (Last or selected one

in menu)

• Front USB Audio input for iPod/

iPhone digital connection or USB

Memory

• Dolby TrueHD, Digital Plus, Prologic

IIz, IIx, II, Virtual Speaker,

Headphone

• DTS-HD Master Audio, High

Resolution Audio, ES Discete 6.1,

Matrix6.1, Neo:6, 96/24, Express,

Neural Surround

• Audyssey Dynamic Volume and

Dynamic EQ

• Audyssey MultEQ Auto Calibration

• Bluetooth Wireless Audio

Transmission Capability with option

RX101

• Composite/Component to HDMI

scaling up to 1080p

• HDMI to HDMI scaling

• Composite to Component Analogue

up conversion

• OSD overlay on HDMI output

• Assignable HDMI, Component

inputs

• Anchor Bay 10-bit Video

Processing/Scaling

• M-DAX 2 (Improved Algorithm,

Marantz Dynamic Audio eXpander

ver.2)

• New color GUI On Screen Display

• Dot Matrix x 2 lines rich info.

display

• Clean front door design

• Input Rename, Skip, Level control

• Selectable various volume setup:

Power on, Limit and Mute level

• 9 pair screw type speaker terminals

• Zone2 Audio Pre outputs

• 7.1 ch Inputs

• 7.1 ch Pre out + second Subwoofer

Pre out

• RS-232C for Custom Installation

• IR Flasher In

• DC Trigger Out

• Marantz D-Bus(RC-5) In/Out

• External IR Receiver Capability with

option RX101

• Detachable Power Code (IEC320 2

pin type)

• Backlight, LCD, Learning and

Pre-code System Remote Controller

Note: Product features highlighted in

blue indicate improvements over

SR5005 model

6 in

1 OUT

ABT2015

6 in

1 OUT

ELEGaNCE WiTh a pUNCh

Every audiophile wants an AV Receiver in their living room that’s got loads of connectivity as well as

the best sound reproduction. But some people (or their partners) just don’t want such a big box in their

living room. at’s why Marantz has developed the ﬁrst super-slim AV receiver to which you

can simultaneously connect your satellite box, BD/DVD player, game console and camcorder, and can

give you exceptional quality sound reproduction. Introducing the NR1601 and NR1501 – elegance

with a punch.

MAR ANTZ14 AV R E C E I V E R S

4IN

1OUT

Enjoy award-winning Marantz performance, including the latest video and sound technologies, without the bulk of

the standard component size. The new NR1601 is an elegant slim-line Home Theatre Receiver. But don’t let

appearances deceive you … this super-slim model packs as much punch as its big brothers, thanks to the discrete 7

x 50 W RMS output. For even more performance from the left and right front channels, there is the bi-amp option.

On the video side, all four HDMI 1.4a inputs support 3D video, analogue video signals are even converted to HDMI

level including I/P conversion. The set-up is easy – with the help of Audyssey MultEQ (setup microphone is included)

– no need to study the manual, just follow the on-screen menu instructions. And, just like the rest of the 2011

Marantz AV Receiver range, the NR1601 has an iPod-digital-compatible USB input, as well as an M-DA X2 to make

the very most of sound quality from compressed audio. It all adds up to easy to use slim-line elegance with a

powerful punch.

NR16 01

3D SLIM-LINE 7.1 HD AV RECEIVER

MAR ANTZ 15A V R E C E I V E R S

All the performance, all the convenience, and all the versatility you’ve come to expect from the larger Marantz AV

Receivers – but this time in a highly elegant, super-slim cabinet that’s just 10.5 cm high, to perfectly complement

your DVD or Blu-ray player. The NR1501 has on-board decoders for both standard and high definition audio such as

DTS-HD and TrueHD, it also effortlessly converts analogue video signals to HDMI. Its four HDMI 1.3a inputs handle

a host of digital sources, so you can easily hook-up your satellite box, BD/DVD player, game console and camcorder

all at the same time. And there is just one HDMI cable connected to your screen. What’s more, you don’t need to

spend time selecting the correct input on your TV – the NR1501 does it all for you. Fans of portable media players

like iPods will love the front audio input for easy connection. The loudspeaker set-up can be as simple as a stereo

system or (when front speakers are not powerful enough) a 2.1 with additional subwoofer for the bass and special

effects. You can even extend it to a 5.1 or even 7.1 system, filling the room with spectacular surround sound and

converting your living room into a sensational cinema. What’s more, the OSD menu and MRAC auto set-up using a

microphone makes installation fast and easy – even for non-technical users. Just enjoy the fabulous sound and the

elegant appearance: the NR1501 has it all.

NR1501

SLIM DESIGN AV RECEIVER

• MRAC system to automatically tune speaker system to your room

• 7 x 50 W RMS

• Slim height cabinet

• Dolby TrueHD, DD+, DTS-HD

• Built-in FM/AM tuner

• HDMI v1.3 4 in / 1 out

• Full On-screen Display

• Assignable Digital inputs

• Input Rename function

• RC-5 in/out for system linking

• Preset coded Remote Control

• Heavy-Duty Binding Posts on 5 channels

• Support HDMI ver.1.4a 3D, ARC

and Content type, 4 Input, 1 Output

• Support HDMI CEC, Deep Color,

x.v.Color, Auto Lip Sync and

Standby Pass Through (Last or

selected one in menu)

• Front USB audio input for iPod /

iPhone digital connection or USB

Memory

• Dolby TrueHD, Digital Plus,

Prologic IIz, IIx, II, Virtual Speaker,

Headphone

• DTS-HD Master Audio, High

Resolution Audio, ES Discete6.1,

Matrix6.1, Neo:6, 96/24, Express,

Neural Surround

• Audyssey Dynamic Volume and

Dynamic EQ

• Audyssey MultEQ Auto Calibration

• Bluetooth Wireless Audio

Transmission Capability with

option RX101

• Composite / Component to HDMI

conversion

• Assignable HDMI, Component

inputs

• M-DAX2 (Marantz Dynamic Audio

eXpander) for compressed audio

• On Screen Display for Setup

through HDMI/Composite Video

outputs

• All screw type, 9 channel speaker

terminals for 7 ch + Front Height

(PLIIz) or Speaker B

• 7 channels of all discrete

amplication (50 W x 7)

• Subwoofer Pre-out

• Front mini jack input for a portable

audio player

• IR Flasher In

• Marantz D-Bus (RC-5) In/Out

• External IR Receiver Capability

with option RX101

• Detachable Power Code (IEC320

2 pin type)

• Input Rename, Skip, Level control,

• Selectable volume setup

conguration: Power on, Limit and

Mute level

• Backlight, Pre-code and Learning

Remote Controller

Note: Product features highlighted in

blue indicate improvements over

NR1501 model

4IN

1OUT

2OUT

• Plays Super Audio CD(Stereo/

Multi), BD-Video/-ROM,

DVD-Audio/Video/-R/-RW/+RW,

CD-DA/-R/-RW/dtsCD

• Supports HDMI ver.1.4a, 3D

Blu-ray disc playback capability

• x.v.Color, Deep Color and HDMI

CEC support

• Online contents access capability:

NetFlix (subscription required),

YouTub e

• Supports DLNA 1.5, streaming

capability of home network

Audio/Video/Photo contents

• Built-in 1G memory for BD-

Live(Profile 2.0), expandable the

memory by USB memory

• Quick Start up, faster loading

time: Less than 1/2 - 1/3 time

against our previous models

• Plays MP3/WMA/AAC/WAV/DivX

Plus HD/AVCHD/Jpeg/Kodak

Picture CD format on disc

• Plays MP3/WMA/AAC/WAV/DivX

Plus HD/AVCHD/Mpeg/h.264/

Jpeg/ format through USB

memory/Network

• 10bit I/P & scaler, 148.5MHz over

sampling, 12-bit Video processing

• Various Picture adjustments

capability

• 192 kHz/24bit audio D/A

converter for Stereo analogue

audio outputs

• Independent board construction

to minimize the interaction

between Audio, Video and Power

Supply stages

• New ‘Home’ menu st yle colour

GUI

• Component/Composite Video

outputs, Coaxial Digital Audio

output

• IR Flasher In/Out

• Marantz D-bus(RC-5) In/Out

• Luminous-key Remote

• Two IR Remote Code Set

• Detachable Power Cord

Note: Product features highlighted in

blue indicate improvements over

BD5004 model

MAR ANTZ 19UNIVERSAL DISC & BLU-RAY PLAYERS

Now you can have the legendary Marantz quality in an exceptional value-for-money Blu-ray Disc player. Not only

does it reproduce all the delicate audio details from SACD its superb 24 fps Blu-ray qualit y comes with BD-Live and

DLNA1.5 specifications. You can also enjoy your latest music and video downloads from your PC from your couch.

The quick response mechanism will play Blu-ray, DVD, DVD-A, SACD, CD and is compatible with MP3, WMA, DivX

HD and lots, lots more. In addition, the UD5005 includes a stereo output for analogue signals from CDs or

down-mixed DVD and Blu-ray sound, while the HD audio sound is streamed via the HDMI 1.4a output – which also

makes the player 3D-ready (software update required) for software yet to come on Blu-ray discs.

UD5005

UNIVERSAL DISC HD PLAYER

• Playback of Blu-ray Disc,

DVD-Video, DVD-Audio, SACD, CD

• BD-Live Profile 2.0

• HDMI 1.3a

• Customised components

• Dolby True HD and DTS-HD

decoding

• Separate analogue audio circuitr y

with Marantz HDAM

• 7.1ch RCA Audio output

• SD Card Reader

• RS232C interface

Note: Product features highlighted in

blue indicate improvements over

UD5005 model

• Playback of Blu-ray Disc, DVD-Video,

DVD-Audio, SACD and CD

• BD-Live Prole 2.0

• Toroidal transformer

• Copper-plated chassis

• HDMI 1.3a

• Dolby True HD and DTS-HD decoding

• Realta Optix HQV video processing

• Separate analogue audio circuitry

with Marantz HDAM and XLR output

• 7.1 ch RCA Audio output

• SD Card Reader

• RS232C interface

Note: Product features highlighted in

blue indicate improvements over

UD8004 model

MAR ANTZ18 U N I V E R S A L DI SC & B LU - R A Y PL A Y ER S

The moment that the Blu-ray standard became fully specified was also the moment for Marantz to give the green

light to its engineers to create the ultimate-qualit y Blu-ray and SACD player! The result is the flagship UD9004: a

Reference standard Blu-ray Player. The UD9004 incorporates Silicon’s Realta Optix HQV 10-bit processing

technology, derived from professional broadcast systems, with no less than 10 technologies for a breathtaking

picture from both DVD and Blu-ray. It also has a whole host of state-of-the-art features to reproduce exeptional

quality audio – as you would expect from a Marantz player. It includes a heavy multi-layer copper-plated chassis, as

well as an audio-exclusive power supply with encased Toroidal transformer and customised capacitors. To avoid any

cross talk to the main front channels, dedicated boards are used in the XLR outputs, the main cinch outputs, and the

left over channels. Four separate audio boards are used in total, with only the best components used.

Combining these components with Marantz’s HDAM-SA2 outputs and endless fine-tuning gives this player a

tremendously spacious, lively and tonally well balanced sound. Dual HDMI outputs provide the possibility of sending

a dedicated video, as well as a dedicated audio signal to their output source, thus minimising the deleterious effect

and with less processing, reducing the signal degradation.

Be prepared for an exceptional audio-visual experience – with the exceptional Marantz UD9004!

Although the UD8004 is a more accessible Universal Disc player solution, it is still a truly exceptional-quality

flagship unit, benefiting greatly from the UD9004. Its absolute video integrity ensures excellent Blu-ray playback

and it actively improves the quality of your DVDs – that’s because the new Anchor Bay video processing chip

optimises any signal with adaptive 3D de-interlacing, noise reduction and detail enhancement. For the analogue

video-out, it applies a 297 MHz/12 bit DAC. On the audio side, Marantz has ensured excellent reproduction of CD

and SACD by building in a dedicated power supply exclusively for analogue audio. HDAM-SA2s are used for all

channels and are divided over t wo independent audio boards. And all of this functionality and high quality

reproduction is packed in a very solid chassis.

UD90 04

UD8 004

REFERENCE UNIVERSAL DISC PLAYER

UNIVERSAL DISC PLAYER

• Playback of Blu-ray Disc,

DVD-Video and CD, DVD-R/RW,

MP3, WMA, DivX HD, AVCHD and

JPEG HD

• BD-Live Profile 2.0

• HDMI 1.3a

• Deep Colour

• IP-conversion and up-scaling to

1080p

• Output of all raw HD Audio data

via HDMI

• 2 ch audio down-mix

• SD Card

Now you can have the legendary Marantz quality in an exceptional value-for-money Blu-ray Disc player. Its highly

attractive price is matched by its superb 24 fps Blu-ray quality. It comes with the new full Profile2.0 / BD-Live

specification, which means it has an Internet connection for downloading additional movie content. It will also

upscale your DVDs to 1080p. The new design with the centred mechanism per fectly fits into the Marantz receiver

and amplifier line up. Furthermore, the BD5004 includes a stereo output for analogue signals from CDs or down-

mixed DVD and Blu-ray sound, while the HD-Audio sound will be streamed via HDMI 1.3a output. And for the purist

enjoying music from CDs there’s a Pure Direct Mode.

BD50 04

BLU-R AY PLAYER

The MA9S2 has been completely reworked and revoiced to combine perfect harmony with thrilling dynamism.

Most vitally, it provides instantaneous power.Which is impor tant, because whatever the output specification of an

amplifier may be, its performance ultimately depends on its ability to deliver current quickly. That’s why the MA9S2

gives truly instantaneous current supply, three times that of any otherMarantz product. On peak levels the MA9S2

is able to deliver an incredible 150 ampere, making it the ultimatemonaural power-amplifier – ideal for driving even

the most demanding of speakers with absolute ease.

• Reference Series full balanced monaural power amplifier

• Ultra stable power output of 300 W at 8 Ohms RMS and 600 W 4 Ohms RMS

• Current Feedback technology for fast and accurate signal handling

• Audiophile 2-stage circuit concept for best signal to noise ratio of 120 dB

• Instantaneous current delivery capability

• Current peak level capability of incredible 150 ampere

• Marantz’ newly developed HDAMs for Super Audio (HDAMSA)

• Shielded Toroidal transformer and Shottky barrier diodes

• Choke input system to reduce rectifier harmonic noise

• Ultra lowimpedance amplifier

• Rigid multi-layer chassis construction with aluminium front and side panels

• Multi-layer solid copper-plated chassis, rear panel and system block shielding

• One balanced and two unbalanced inputs (selectable)

• Two low impedance WBT speaker terminals for bi-wiring

• Blue illuminated power meter (switchable)

MA9S2

REFERENCE MONO POWER AMPLIFIER

MAR ANTZ 23REFERENCE SERIES

Audiophiles be prepared: the SC7S2 has been completely reworked, revoiced and revamped with new

environmental-friendlier materials – and still maintaining a spectacular channel separation of over 100 dB at 20 kHz.

It also now has four (instead of two in the ‘S1’ version) Wolfson electronic volume controls. Combined with an

extended high frequency response of up to 150 kHz, this advanced, high-quality pre-amplifier for stereo and

multi-channel set-ups provides a super-wide range and high dynamic signal handling. Extended high frequency

response as well as channel separation express the truemeaning of ‘Super Audio’. Unparalleled attention to detail

in the design and development of the input and output circuitries, volume control section, power supply circuits,

makes the SC7S2 the ultimate, top-rated performer in its class. And of course it is as solid as the SA7S1.

• Reference Series full balanced control amplifier

• Built without compromise on material and components

• Ultrawide frequency range (3 Hz - 150 kHz)

• Current Feedback technology for fast and accurate signal handling

• Fully symmetrical circuit layout with over 100 dB channel separation

• Balanced XLR in and out

• Digital high quality linear volume control with 4 x Wolfson WM8816

• New low noise Shielded Toroidal transformer and Shottky barrier diodes

• Choke input system to reduce rectifier harmonic noise

• Rigid multi-layer chassis construction with aluminium front and side panels

• Multi-layer solid copper-plated chassis, rear panel and system block shielding

• The Marantz newly developed HDAMs for Super Audio (HDAMSA)

• Floating control bus to control up to 4 x SC7S2 parallel for multi-channel upgrade option

• Bi- (monaural) and triple-amp capability to drive up to 6 x MA9S2 for the highest achievable stereo performance

• New aluminium top remote control with extended functionality

SC7S2

REFERENCE STEREO CONTROL PRE-AMPLIFIER

MAR ANTZ22 REFERENCE SERIES

REFERENCE

SERIES

COMPROMISE

MAR ANTZ 25REFERENCE SERIES

GMR

The SA7S1 Super Audio CD Player has launched integration into new heights of stunning, reference-quality

excellence. Perfect harmony with the other sections of this integrated player is ensured by our highly advanced

D2F – Dynamic Digital Filtering technology,which use the Marantz own filter characteristic. The result is the most

detailed and dynamic reproduction ever heard. In addition, and unique to Marantz, is our full separation of digital

and analogue sections, this not only separates the digital and analogue power supplies but separates them at

ground level as well – thanks to the new GMR (Giant Magneto Resistor) technology – completely avoiding any

influence of digital noise on the sensitive analogue. Further options are external clock input and digital phase

inverting. And because the whole unit is as ‘solid as a rock’, with a metal tray disc mechanism, copper-shielded

chassis, high-grade power supply and best-in-class components, this player represents absolute uncompromising

quality, designed, engineered and created for the uncompromising ear.

• Reference Series Audiophile Super Audio CD player (Stereo)

• Marantz exclusive D2F – Dynamic Digital Filtering

• Marantz own filter characteristic makes standard CD sound almost SACD quality

• Three exclusive digital filter characteristics selectable for different tastes

• Switchable DC filter and switchable Noise Shaper for additional fine-tuning

• Newly developed full metal original disc loading mechanism

• Grounding for digital and analogue section fully separated by GMR technology

• Low Jitter internal clock system

• External clock input and digital phase inverter

• Fully balanced signal handling with dedicated digital to analogue converters

• Toroidal transformer for stabile power delivery

• Choke input to reduce rectifier harmonic noise

• Copper-plated chassis, rear panel and systemblock shielding

• Rigid double layer chassis construction with aluminium front and side panels

• Balanced XLR and gold-plated RCA output terminals

• Low noise LCD

• Aluminium-top remote control with Marantz amplifier control

SA7S1

REFERENCE SACD PLAYER

Sep 2007

MAR ANTZ24 REFERENCE SERIES

e SA7S1 is truly a no-compromise piece of engineering. It is the Marantz ﬂagship Super Audio CD

Player and it provides the superb sound quality that the SC7S2 and MA9S2 deserve. It follows the

legendary SA1 (1999-2002) and CD7 and incorporates key features from both, retaining the excellent

SACD playability and customised digital ﬁlter technology for CD players – ﬁrst seen in the CD7.

In addition, because Marantz more than ever is totally committed to unsurpassed quality reproduction

we gave the new SA7S1 an unsurpassed treatment in terms of extreme engineering and the utmost

attention to detail.As you would expect from such a prestigious piece of work, it features a solid base

cabinet, large ring transformer, and copper plating.

NEWLY DEVELOPED ORIGINAL DISC LOADING MECHANISM

As proven by our digital ﬁltering technology: when the market is short in top-quality solutions our

engineers develop their own. at’s why we developed the Marantz mechanism SACDM-1 (Super

Audio Compact Disc Mechanism 1). Its die-cast construction uses micro precision metals to guarantee

the best and cleanest data read-out ever, even on the high speed rotating SACDs. e metal tray is

coated with a non-reﬂecting material to prevent light reﬂection, which may trouble the laser light. And

thanks to the solid-as-a-rock metal body there is no chance of vibration inﬂuence. Only supreme, pure

digital signal will emerge to feed the digital ﬁlters and the D/A converters.

We proudly present you the ultimate sound machine. Because music matters.

REFERENCE TECHNOLOGIES

CHOKE INPU T TOPOLOGY

In the power supply section, the choke inpu t topology is adopted to drastically

reduce rectier harmonic noise and to reduce the inuence of distortion from

the mains power network. This system is especially suitable for a c ontrol

amplier in which ver y small signal amplication occurs.

SHOTTKY DIODES

A Shot tky diode is a special type of diode with a ver y low forward-volt age

drop compared to normal diodes. This lower voltage drop translates into

higher s ystem efciency.

Shot tky diodes have very f ast signal handling, can easily stay higher

temperat ures and are sensitive very low voltages.

LINEA R VOLUME CONTROL

Linear volume control offers minimal cross talk with a very precise volume

adjustment over a r ange from 0 dB to 100 dB w ith a gang error less than +/-

0.5 dB.

BTL

A BTL is a possibility t o use t wo ampliers as one monor aul amplier. This

conguration, in theor y quadruples the output power deliver y to the speaker

and of fers better control over it leading to a very c ontrol, dy namic and open

music reproduction.

WBT

Very high quality sp eaker terminals made by German speaker terminal

specialist WBT who has over 20 years of experience in pro duction of best

sounding speaker terminals.

MARANTZ IN NOVATIVE D2F – DYNAMIC DIGITA L

FILTERING

Some audio companies focus on sound modication b y selecting and

customising electric al components for the analogue par t of the player but they

have only limited knowledge of digital ltering an d have to use standard

solutions – which Marantz believes to be sub-st andard for a genuine

audiop hile player. Tha t’s why Marantz has invested extensiv ely in gaining

expert knowledge into this crucial part of a CD player during CD playback.

The Marant z Digital Filt er eliminates out-of-band noise, reﬂecting into a better

S/N ratio, dynamic r ange, and various ot her charac teristics. There is no group

delay, and the player of fers ﬂat frequency character istics. Filters of three

types are prov ided, and because each affords a distinctive sound, users can

switch to t he desired lter for playback suiting the disc or their listening mood.

GMR – GI AN T MAGNETIC RESISTOR

The Giant Magnetic Resis tor is a t echnolog y compare able wit h an optical

coupler, makes it possible to separate two section of a product galvanic.

The GMR outperforms the optic al coupler when it comes to high fr equencies.

This big b enet is used in this player to separate the digital section fr om the

analogue one and this even on the ground level.

No high frequency distortion to the sensitive audio signal; no inﬂuence to the

power for the audio s tages.

FLOATI NG CONTROL BUS SYSTEM

A Marantz own communication sys tem to connect pre- or integrated

ampliers ov er a dedicated bus line to enable sy nchronized operations. The

units are working as master and slave – t he master unit controls the other s.

F.C.B.S. c an be us ed for a powerful bi-amping or a multichannel surround

setup.

GMR

MAR ANTZ 29KI PEARL

To faithfully reproduce a musical experience in the way that the original artist intended, to recreate the

atmosphere, the emotion and all of the nuances – requires a special CD player. And that’s exactly what you can

expect from the limited edition KI Pearl SACD Player. But as with the amplifier the quality of a CD player cannot be

judged by reading the specifications list. It requires careful listening. And that’s what Ken Ishiwata has done for

hours upon hours. Listening testing, reconfiguring. Searching for the ultimate combination of components.

The result is an SACD player with an ultra-realistic three-dimensional sound stage. Every instrument is positioned

with pin-point accuracy, and just as importantly they remain in their locations and never drift with increasing

volume. It’s a sound stage that also offers remarkable depth and height, allowing the vocals to be lifted over the

music for an extra-real reproduction of a live performance. It all adds up to a sublime musical experience filled

with emotion.

SA-KI PEARL

SACD PLAYER

MAR ANTZ28 KI PEARL

KI PEARL

Only the best and finest components can reproduce music exactly the way the original artist intended.

Without any doubt, electronics is key. But it should be invisible, because nothing – absolutely nothing – should get

in the way of the music. This philosophy is alive and kicking like never before in this superb amplifier. What’s more,

invisibilit y means that it’s not about specifications such as main capacitor values. Specifications don’t say anything

when it comes to sound qualit y. What matters is the right combination of parts. It’s all about carefully selecting,

combining and testing all the components – as they work together. And only when each individual part works

in complete harmony with the rest can you be cer tain that they will perform invisibly. That’s true music in its

human form.

PM-KI PEARL

INTEGRATED AMPLIFIER

• Ken Ishiwata’s 30th anniversary model SACD Player

• Limited Edition

• Silk black nish

• 5 mm aluminium top cover

• Solid aluminium feet

• Additional heavy bottom-plate

• Copper-plated chassis

• High quality audio components

• Adapting HDAM-SA2 & HDAM-SA modules

• Toroidal transformer with case

• SACDM-10 mechanism with Xyron tray loader

• High performance DAC CS4398 from Cirrus logic

• Selectable DAC lter

• Optical digital input for DAC mode

• Playback SACD stereo, CD-DA, MP3 and WMA

• Ken Ishiwata’s 30th anniversary model amplier

• Limited Edition

• Silk black nish

• 5 mm aluminium top cover

• Solid aluminium feet

• Additional heavy bottom-plate

• Copper-plated chassis

• High quality audio components

• Adapting HDAM-SA3 & HDAM-SA2 modules

• Toroidal transformer with case

• Full discrete 2-stage power amplier

• Constant current feedback phono equalizer (MM/MC)

• CD direct input buffer circuit

• Power amp / direct input

• 140 W/ch at 4 Ohms, 90 W/ch at 8 Ohms

• Selectable DAC lter

• Optical digital input for DAC mode

• Playback SACD stereo, CD-DA, MP3 and WMA

KI PEARL LITE

MAR ANTZ 30KI PEARL LITE MAR ANTZ

MODE

TRI-T ONE

CONTROL

When the Original KI Pearl were ﬁrst introduced last year, they were universally acknowledged as

supremely exquisite high audio gems. Not only did they take music sensations to new heights, they were

the ideal tribute to Ken Ishiwata’s 30-year association with Marantz. At special listening demonstrations

across the globe, music lovers were ﬁrst captivated and then totally spellbound by their supreme

performance. However, as a highly exclusive limited edition, they were also beyond the reach of many.

at’s why Marantz decided to reuse all that had been discovered in developing the original Pearls to

create the KI Pearl Lites. So that more people could take part. Importantly, the new Lites embody the

same passion, the same commitment, and the same emotion as the original Limited Edition. Only the

exterior design is diﬀerent, their performance is still sublime.

As you would expect from a KI Pearl, this new current feedback amplifier has been given layer upon layer of tender

loving care. For example, the high-quality components that proved such a success in the original KI Pearls are now

used in this new amp. This helps ensure that it faithfully reproduces the music’s dynamic structure, tonal quality and

stereo image. This new Pearl has also been given a copper-plated chassis to help ensure the lowest possible

impedance grounding. Marantz designers also shaped and optimised the power handling characteristics to

guarantee the unique KI Pearl experience. They redesigned the large double shielded Toroidal transformer’s circuitry

to optimise bandwidth power: a massive energy reserve to drive even the most demanding of speakers with

absolute ease. And, because ‘vinyl’ is back, the PM-KI Pearl Lite supports Phono MM also with current feedback

technology. So much has been given. It’s now time to take time, and enjoy.

Although the SA-KI Pearl Lite is a brand new member of the KI Pearl family, it is also proven. That’s because it

utilises the technology and the experience gained from the development of the highly-acclaimed Premium Range’s

SA-KI Pearl. Which makes it a perfect no-compromise player for CDs, SACDs and even USB devices with MP3, WMA

and iPod/iPhone files. In addition, this bright little protégé can also be directly connected to your PC without a

network set-up. Thanks to its B-type USB input on the rear panel, the PC will recognise it as an ‘audio card’. In

addition, the optical and coaxial digital inputs mean you can use it as an external DAC too. All these connectivity

options make the SA-KI Pearl Lite very convenient, but convenience is just the start. All these different sources use

the same excellent audio processing, so all your music will radiate the same intense lustre and inner glow of a

perfect pearl.

PM-KI PEARL LITE

SA-KI PEARL LITE

INTEGRATED AMPLIFIER

SUPER AUDIO CD PLAYER

• Ken Ishiwata Edition

• 2 x 70 W RMS 8 Ohms

• Full discrete Current Feedback

amplier technology

• Toroidal transformer

• Copper-plated chassis

• HDAM-SA3

• Power amp direct

• Constant Current Feedback

Phono MM

• Speaker A/B

• Custom made speaker terminals

• Remote bus

• RC

• Available in Black and Silver

• Ken Ishiwata Edition

• SACD (stereo), CD, CD-R/RW, MP3

and WMA playback

• Toroidal transformer Copper-plated

chassis

• XYRON Loading mechanism

• Discrete symmetric circuit

architecture

• HDAM & HDAM-SA2

• iPod / iPhone compatible

• DAC Mode with 3 digital inputs incl.

USB type B

• Gold-plated outputs

• Remote bus

• RC

• Available in Black and Silver

Note: Shown here with optional

Marantz wood side-panels

MAR ANTZ56 KI PEARL LITE

Note: Shown here with optional

Marantz wood side-panels

In the long search for the perfect hi-ﬁ, the Marantz philosophy is simple: to maintain the

purity and integrity of the original signal at alltimes. is, we believe, is the only route to

achieving true hi-ﬁ sound quality.

At Marantz, we believemusic should be heard as originally intended by the artists,

composers, and performers we admire. So when we design Premium Ampliﬁers, we begin by

shortening signal pathways to minimise the possibility of distortion. Even our signal switches

are built to audiophile speciﬁcation with high quality contacts and electronic relay switched

input circuitry, all in a sealed and dust-free environment. Power supplies are highly speciﬁed,

using only top quality components. Left and right signal paths are symmetrical to ensure

perfect imaging across the stereo ﬁeld. Even the heatsinks are separated to minimise channel

cro stalk. us, Premium Ampliﬁers deliver a broad and accurate soundstage, with each

instrument perfectly focused in its position in the stereo picture.

We believe musical expression is at the heart of our search for perfect hi-ﬁ. at’s why we

design Premium components to deliver the truest possible rendering of musical dynamics.

A Linear Drive Power Supply (LDPS) works in conjunction with current feedback

ampliﬁcation to act as a limitless reserve of power for Premium-Series Ampliﬁers. With

this depth of power, even the most extreme dynamic moments are delivered with perfect

expression.

Premium-Series Ampliﬁers are built to respond to the steepest signal attacks with incredible

speed and accuracy, so none of the subtleties in the ebb and ﬂow of the music are lost. e

short, symmetrical signal paths and discrete surface-mount components of Marantz’s own

Hyper Dynamic Ampliﬁer Modules (HDAM) make them superior to traditional integrated

circuit Op-Amps – which have a poorer slew rate and are too-slow-acting to deliver the audio

signal’s transient character faithfully.

Premium-Series Ampliﬁers encapsulate perfectly our determination to achieve the highest

possible quality audio performance.

ENhANCED

MUSICALITY

MAR ANTZ32 AMPLIFIERS – CONTROL / POWER / INTEGR ATED MAR ANTZ 33AMPLIFIERS – CONTROL / POWER / INTEGR ATED

CONTROL /

POWER

AMPLIFIERS

In developing the SC11S1 Marantz engineers took as much as possible from the Reference Series SC7S2. For

example, the full balanced layout in-current feedback technology was applied, guaranteeing excellent signal

integrity. Then the Wolfson high linear electric volume control and the new version of small signal amplifier

HDAM – specially developed by Marantz – were added. The unit now incorporates the HDAM-SA2, which

guarantees precision high-speed signal handling over a wide frequency range. It also uses high precision Melf

resistors to minimise tolerances – essential for audio integrity. While the high quality in-current feedback phono

amplifier for the MM / MC system makes external phono amplifier obsolete. And for advanced systems the

floating control bus allows bi-amp and multi-channel set-ups. It all adds up to a scintillating audio experience with

crystal clear transparency.

• Full balanced current feedback control amplifier

• Technologies derived from the Reference Series SC7S2

• Fast, accurate signal handling for up to 100 kHz and higher

• Digital high quality linear volume control with Wolfson WM8816

• New Toroidal transformer with shield case and very low impedance

• HDAMSA2: High speed amplifier module with new high precision Melf resistors

• Current feedback MM/MC phone EQ for best vinyl performance

• Current feedback headphone driver (full balance input signal)

• High speed line input buffers keeping the full integrity of the source signal

• Customised ‘Blue Cap’ film capacitors used in SC7S2 and MA9S2

• Wide range on connectivity including two times XLR

• Full balanced XLR and additional RCA pre out

• Floating Control Bus Systemfor Bi-Amp or Multi channels set-up

• Heavy, 5 mm thick, copper-plated aluminium top lid and aluminium die-cast feet

• Trigger-Out to remote control the SM11S1 on and off switching

• New aluminium-top remote control with extended functionality

SC11S1

PREMIUM STEREO CONTROL PRE-AMPLIFIER

MAR ANTZ34 AMPLIFIERS – CONTROL / POWER

The new SM11S1 is powerful. Very powerful. That’s because it takes as much as possible from the highly

acclaimed Reference Series MA9S2. The result? A powerful, highly dynamic stereo main amplifier, offering an

open, transparent, and precision sound.

As you would expect, this current feedback technique amplifier can easily handle demanding loudspeakers. For

extreme set-ups, the bridge mode (BTL mode) can convert the stereo amplifier SM11S1 to a 400 W mono

amplifier. The two-stage circuit construction (voltage amplification first to increase audio signal, buffer

amplification second to ensure high current delivery) guarantees an excellent signal to noise ratio and the full

control of any speaker. Thanks to the adjustable gain factor the SM11S1 can also upgrade the PM11S1 integrated

amplifier, creating an excellent bi-amp systemset up. Switching on / off can be remote controlled via a DC trigger

from SC11S1 or other sources. Prepare to be exhilarated to a scintillating audio experience with crystal clear

transparency.

• Stereo power amplifier in-current feedback technology

• Technologies derived from the Reference Series MA9S2

• Ultra stable power output of 2 x 100 W 8 Ohms and 2 x 200 W 4 Ohms RMS

• Inmonaural mode – Bridge Mode (BTL) – up to 1 x 400 W 8 Ohms

• Fast and accurate signal handling for signals up to 100 kHz and higher

• Audiophile 2-stage circuit conceptwith voltage and power buffer amplifier stages

• Instantaneous current delivery capability

• Gain factor selectable 17.5 dB / 23 dB / 29.5 dB – can be used to upgrade PM11S1

• HDAMSA2: High speed amplifier module with new high precision Melf resistors

• High speed input buffers keeping the full integrity of the signal

• Customised ‘Blue Cap’ film capacitors used in SC7S2 and MA9S2

• Large Toroidal transformer with anti magnetic aluminium shield case

• Output levelmeter in low noise LCD technology – 3 digit per channel

• Each one stereo balanced XLR and stereo unbalanced input

• Two pair low impedance WBT speaker terminals for bi-wiring

• Heavy, 5 mm thick, copper-plated aluminium-top lid and aluminium die-cast feet

• DC trigger for remote on/off switching

SM11S1

PREMIUM STEREO POWER AMPLIFIER

MAR ANTZ 35AMPLIFIERS – CONTROL / POWER

This adored member of the Marantz Premium Range is packed with advanced technologies to give you the best in

detail, precision, and emotion. Thanks to the shielded Toroidal transformer and customised components, it offers

ultra-stable power output at 2 x 100 W into 8 Ohms or 2 x 200 W into 4 Ohms. Absolute signal integrit y and very low

signal-to-noise ratio is guaranteed via the 3-stage construction which includes a pre-amplifier and a dual stage

main-amplifier, as well an extra pre-amplifier for Phono MM/MC. Key technologies include the latest Marantz

Current Feedback HDAM-SA3, symmetrical circuitr y with the shortest signal paths to deliver dynamic sound and

perfect stereo imaging. The result is an unbelievably wide sound stage, but with extremely precise positioning of

instruments and vocals. In addition, the chassis and rear panel are copper-plated to guarantee low impedance

ground potential at any point for best possible signal integrity. All of which means that the PM-11S2 is a vision of

perfection.

• Full discrete Current Feedback amplification

• Ultra stable power output of 2 x 100 W 8 Ohms RMS and 2 x 200 W 4 Ohms RMS

• High quality linear volume control with dual Wolfson WM8816

• Massive shielded Super Ring transformer and Customised Components

• Choke input power supply to reduce rectifier harmonic noise

• Three-stage amplification construction

• Short discrete circuit architecture with symmetrical layout

• Balanced input and fully balanced signal handling up to speaker terminal

• Marantz Current Feedback HDAMs

• Floating Control Bus for audiophile multi-channel, vertical and horizontal bi-amping capability

• MM/MC phono stage with Current Feedback technology

• Rigid double layer chassis construction with aluminium front and side panels

• Copper-Plated chassis, rear panel and system block shielding

• Tone control and Source Direct function

• Low noise inverted LCD

• Blue illumination (switchable)

• Aluminium-top system remote control

PM-11S2

PREMIUM INTEGR ATED STEREO AMPLIFIER

MAR ANTZ36 A M P LI F I E R S - I N T E G R A T E D

INTEgR ATED

AMPLIFIERS

The PM15S2 uses the latest generation of Marantz-own HDAM modules, as well as a top-down version of the

PM11S2’s Constant Current Feedback MM/MC phono stage, which vinyl fans will simply fall in love with. The

powerful Toroidal transformer delivers exceptionally high current values to instantaneously follow every dynamic

and every detail of the music, while an additional CD direct input buffer ensures a completely unadulterated audio

signal. In addition, the symmetrical circuit architecture, with system block shielding and independent left and right

heat sinks, eliminates cross-channel interference for the clearest, most ‘visible’ of sound stages. One of the unit’s

many convenience innovations is the special Power Amp Direct Mode, enabling you to use the PM15S2 as a pure

power amplifier – useful when combining a high-quality AV System with an audiophile stereo set-up. Also, with

rigid double layer chassis, aluminium front and side panels, and an additional bottom plate to minimise external

noise, the PM15S2 is as solid as it gets. It all adds up to an extraordinarily high-quality stereo sound.

• Full discrete Current Feedback amplification

• Power output of 2 x 90 W 8 Ohms RMS and 2 x 140 W 4 Ohms RMS

• High quality linear volume control with Wolfson WM8816

• Shielded Toroidal transformer

• High-grade audio components

• Three-stage amplification construction

• Symmetric circuit architecture with system block shielding

• Short discrete circuit architecture

• Marantz Current Feedback HDAMs

• Floating control bus for audiophile multi-channel, vertical and horizontal bi-amping capability

• MM/MC phono stage with current feedback technology

• Rigid double layer chassis construction with aluminium front and side panels

• Tone control and Source Direct function

• WBT speaker terminals

• Low noise inverted LCD

• Blue illumination (switchable)

• Aluminium-top system remote control

PM15S2

PREMIUM INTEGR ATED STEREO AMPLIFIER

MAR ANTZ 37A M P L I F I E R S – I N T E G R A T E D

PM7004

INTEGRATED AMPLIFIER

MAR ANTZ38 A M P L IF I E R S - I N T E G R A T E D

This full discrete current feedback integrated amplifier is perfect for audiophiles wanting both excellent music

quality and flexible operation. It offers a powerful 2 x 70 W into 8 Ohms, while the symmetrical circuits ensure

perfect image balancing. To guarantee best sound quality the PM7004 includes high-grade audio components,

current feedback HDAMs, and a high-speed instantaneous current supply. Also included is a highly useful new

Tri-Tone Control system – this enables you to adjust not only Bass and Treble, but also the Mids. It is perfect for

optimising the sound quality of compressed files such as MP3, by providing much finer adaptation steps. It is also

useful to partly correct your room acoustics. All this is possible, but of course you can simply use the PM7004 in

source-direct mode for the purest audio signal and enjoy your vinyls via Phono (MM) input.

• 2 x 70 W RMS 8 Ohms

• Full Discrete Current

• Feedback amplifier technology

• HDAM-SA3

• Power amp direct

• Source Direct function

• Tri-Tone control

• Phono MM

• Speaker A/B with Marantz original speaker terminals

• Remote bus

• RC

• Available in Black and Silver

A-B

The PM6003 replaces the much-praised PM6002, the last amplifier to be upgraded to the new M1 Reference Design

st yle. But it’s not just the outward aesthetics that have been improved; Marantz took this upgrade oppor tunity to

further improve this already excellent amp by refining the sound and optimising the balance from bass to mid to

highs for a performance full of harmony. The new lower impedance Toroidal transformer shielded with case, was

also matched to the new main capacitors, which again have been aligned to the new type of power transistor,

mounted on a new extruded aluminium head sink, capable of handling higher currents and keeping closer control of

the speaker. And of course all of the original features - such as six-line audio input including Phono, t wo-pairs of

gold-plated speaker connection with the convenience of bi-wiring and a remote handset – are still available.

PM6003

INTEGRATED AMPLIFIER

This excellent entry-level integrated amp breaks all the rules. That’s because it’s the first in its class to offer

current feedback architecture – a feature that until now has been exclusive to the much more expensive models.

This technology provides very fast and accurate signal handling which results in perfectly balanced stereo sound

reproduction and a very open and precise sound stage. Offering 40 W per channel into 8 Ohms or 55 W into 4 Ohms,

this amp includes a metal chassis and front metal panel to ensure a very rigid and solid base. It also offers

customised components for sound tuning, a phono MM equaliser, as well as Source Direct functionality to ensure

shortest signal paths. Without doubt, the PM5004 has raised the performance bar in the so-called entry level area.

Great sound. Amazing versatilit y.

PM50 04

I N T E G R A T E D A M P L I F I ER

MAR ANTZ 39A M P L I F I E R S – I N T E G R A T E D

• Latest integrated amplier from the

Marantz audio product development

department

• 2 x 45 W RMS power amplication

• Low impedance Toroidal

transformer for instantaneously

current delivery capability

• Power supply with 2 x 10000 mF

customised main capacitors and

Shottky diodes

• Customised audio components for

best balanced audio

• Music reproduction close to original

recording

• Fully symmetrical circuit

architecture

• Source Direct function for best

sound quality to bypass tone control

• Two pair of heavy gold-plated

speaker terminals – output A/B

• Six audio inputs including phono

(MM) and full recording out selector

• Headphone output

• Solid metal front panel and rigid

chassis construction

• Dedicated remote and Marantz

D-Bus

• Sophisticated Aluminium/

Glass-reinforced resin hybrid front

panel

• Discrete-component amplier with

current feedback Pre & Power

amplier

• Source Direct Mode

• Input buffer circuit for high S/N &

channel separation

• Fully discrete, MM phono stage

• Active Filter type Tone Control,

Loudness

• 5 line-level inputs, 2 Record outputs

• Triple command code sets

• Transparent screw-type A/B

speaker terminals

• IR asher input

• Detachable power cord

• 2 switched / 1 un-switched AC

outlets

• System remote controller

TRI-T ONE

CONTROL

A-B

MAR ANTZ40 AV R E C E I V ER SMAR ANTZ STEREO RECEIVERS

STEREO

RECEIVERS

This latest 2 x 80 W stereo receiver, in the new reference standard design, is built to the highest standards and

expertly finished. The slim aluminium front expresses perfect balance, while the dimensions are the same as

those for the CD5003 and SA7003, giving you the option of creating an extraordinary system from just two

components. Close attention to details and a no-compromise construction ensure faithfully captured excitement

and emotional playback of your music. This RDS stereo receiver comes with FM / AM reception, 50 random

presets and a powerful amplifier at its heart. For vinyl addicts there’s also a high-quality phono MM pre-amplifier.

A subwoofer output and a pair of screw-type speaker terminals make it the true centre-piece of your home stereo

system.

SR5023

STEREO RECEIVER

MAR ANTZ 41S T E R E O R E C E I V E R S

• 2 x 80 W (8 Ohms RMS) power

amplification

• Sophisticated new aluminium/

reinforced resin front panel

• FM/ AM Tuner with 50 random

presets

• Solid metal front panel and rigid

chassis construction

• Symmetric circuit architecture

• Separate solid heat sinks

• Tone control and Source Direct

function

• Pre-output and main-input for

upgrade possibilities

• Eight audio inputs including

Phono (MM)

• Video switching via three audio /

video inputs and a monitor output

• Subwoofer output

• RS232

• Sleep and timer function

• Speaker A/B

• Flasher In for system integration

(direct connection to RX8001)

• Triple IR Code set

• Detachable power cable

• Front panel lock

• New System Remote Control and

Marantz D-Bus

• Available in Black only

The SR4023 is the pure high performance stereo receiver, with an AM / FM Tuner 50 random presets and a

powerful 2 x 80 W stereo amplifier at its heart. The phono MM pre amplifiermakes it easy to connect a turntable.

Its extensive AV switching capabilities and the speaker A/B feature make it a true centre piece of your stereo

system. The new Premium-based designed metal chassis and solid metal front panel provide a rigid base for high

quality performance.

SR4023

STEREO RECEIVER

A-B

• 2 x 80 W (8 Ohms RMS) power

amplication

• Sophisticated new aluminium/

reinforced resin front panel

• RDS FM/ AM tuner with 50 random

presets

• Full dot-matrix display

• Symmetric circuit architecture

• Slim design, same cabinet as

CD5003

• Tone control and Source Direct

function

• Six audio inputs including phono

(MM) and one record out

• Subwoofer output

• Sleep timer function

• ‘Screw-type’ speaker terminals

• Detachable power cord

• System remote control and Marantz

D-Bus

• Available in New Silver only

If you’re looking for a compact all-in-one music player that looks as great as it sounds, then look no fur ther. The

Marantz high-quality lifestyle CD Receiver Melody Music – now in its second generation – will dazzle you in both

look & feel as well as in audio reproduction. Inside the stylish aluminium cabinet, finished with a high-gloss black

cover, the Melody Music has the technology to play all your digital music as well as your favourite FM radio stations

with RDS information – and all with a powerful 60 W RMS x 2 ch into 6 Ohms or 30 W RMS x 4 ch into 6 Ohms. The

Melody Music will play your CDs and your MP3 and WMA files, even those stored on a USB device, iPod or an

iPhone. You can even hook up your PC via the M-Xport for Bluetooth wireless audio with optional RX101. All of

which means high-quality music from almost any source. Enjoy it in your main room, via headphones or in a

multi-room set-up – you can even expand the system with subwoofer and satellite speakers. Almost any thing is

possible with this amazing compact and powerful CD Receiver.

CR503

MELODY MUSIC – CD RECEIVER

• Stylish solid metal cabinet

• 2 x 60 W RMS 6 Ohms

• Stereo FM/AM Tuner

• AUX-input

• Tone control

• CD, CD-R/RW, MP3 and WMA

• iPod / iPhone compatible USB

interface

• Source direct

• Speaker A/B

• Headphone output

• Remote Control

• Available in Silver

MAR ANTZ42 MELODY LIFESTY LE SYSTEMS

The Melody Media is not only a good-looking, good-sounding CD Receiver; it also provides effortless access to a

myriad of dif ferent music sources. Firstly, it gives you high-qualit y playback of CD content as well as MP3 and WMA

files from CD-R/RW. And as it is a receiver, a radio is built-in and you can select analogue AM / FM radio or take

advantage of digital radio broadcasting DAB+, which offers superior sound quality and supplementary information.

The USB port is iPod-digital-compatible and is ‘Works with iPhone’ certified. But it doesn’t stop there: you can also

connect the Melody Media to the Internet or your PC via the Ethernet input on the back. The DLNA 1.5 certified

Melody Media plays thousands of free-of-charge Internet radio stations from all over the world via vTuner. You can

even access your own music library on your PC. Whatever you want, the powerful 60 W RMS x 2 plays music loud

and clear… and effortlessly, because the large display makes operation easy. The Melody Media has it all.

CR603

MELODY MEDIA – CD RECEIVER WITH DAB+ AND INTERNET RADIO

MAR ANTZ 43MELODY LIFEST YLE SYSTEMS

CD RECEIVER

EXTERNAL HARD DISKROUTERPC

LAPTOP

LCD TV

LOUDSPEAKERS

CR603

aNY FiLE pOSSiBLE

e new CR603 features network connections – so you can enjoy almost any music ﬁle from almost any

device. e CR603 oﬀers audio streaming capabilities thanks to the built-in digital media player, so it

can decode music ﬁles stored on your PC or external storage unit streamed via the network.

Almost any ﬁle is possible including MP3, WMA, FLAC and AAC. And all handled with the best

possible quality, thanks to the high quality built-in audio processing engine and Marantz Digital Audio

Expander (M-DAX) technology for compressed audio.

With built-in vTuner Internet Radio, you can also enjoy thousands of on-line radio stations and with

optional Bluetooth connectivity (RX101 module) music can even be streamed from a compatible

Bluetooth device.

• Stylish and solid metal cabinet

• 2 x 60 W RMS 6 Ohms

• DAB+ and Stereo FM/AM Tuners

• vTuner internet radio

• Streaming music from PC

• CD, CD-R/RW, MP3, WMA

• iPod / iPhone compatible USB

input

• AUX-input

• Tone control

• Source direct function

• Speaker A/B

• Headphone output

• Remote Control

• Available in Black

The Melody Movie is a high-qualit y Blu-ray receiver… and so much more. That’s because it enter tains in so many

ways. In addition to playing Blu-ray discs, it plays CDs and DVDs – with all the finest of details faithfully

reproduced. You can also plug-in your iPod, or even your mobile phone or PC – via the optional Bluetooth connection

RX101. Stereo FM/AM? No problem! The Melody Movie is also a tuner. But most importantly, whatever the source,

prepared to be fascinated, shocked and seduced. As a 2.1 BD Receiver you may want to connect just two

loudspeakers directly, or with an additional subwoofer. As you’d expect, BD-picture quality is great, but also from

DVDs, since Melody Movie up-scales them to 1080p HD resolution. Sound quality also gets the supreme treatment

with a digital amplifier that delivers 2 x 70 W, and an advanced smart signal processing system. In addition, with

Dolby Virtual Speakers, you can experience all-enveloping surround sound from just t wo speakers. This is big, big

entertainment from a very compact and well-designed box.

ER 803

MELODY MOVIES – BLU-RAY RECEIVER

• Stylish and solid high gloss black

cabinet

• 2 x 70 W RMS 6 Ohms

• Plays Blu-ray Disc, DVD and CD

• MP3, WMA compatible

• Stereo FM/AM with RDS

• BD-Live

• Video scaling up to 1080p

• HDMI 1.3a

• GUI

• Stereo down-mix

• iPod / iPhone compatible

• M-Xport

• Dolby Virtual Speaker and Dolby

Headphone

• Subwoofer Out

• Remote Control

• Available in Black

PCAUDIO

STREAMING

A-B

Plays

Windows

Media™

™

The NA7004 is your ideal connection to your favourite music, no matter where it comes from – whether it’s from

your PC, external hard disc, or as an FM, DAB or DAB+ radio station broadcast in your country, or even on the other

side of the world via Internet radio or music ser vice Napster. The NA7004 connects to them all. That’s because it

incorporates technology based on the DLNA1.5 standard for audio streaming. This functionality can also be found in

other products, but here it is much more directed to music lovers and audiophiles, because Marantz has done

everything to ensure top-quality audio: rigid cabinet structure, strong power supply, audio output stage applying the

famous HDAM-SA2, and fine-tuning by customized components. This network audio player is even ideal for people

with no network installed in the home. Simply hook-up the NA7004 via USB connector on the back to your PC and it

will recognize the NA7004 as an external sound card. That’s the most direct way to enjoy excellent quality. And

there’s more: digital inputs, iPod-digital-compatible USB and optional Bluetooth reception. This is versatility in the

extreme, but amazingly it’s also extremely easy to operate via the large display.

NETWORK AUDIO PLAYER

NA 70 04

aNY FiLE pOSSiBLE

e new NA7004 features network connections – so you can enjoy almost any music ﬁle from almost any device. e NA7004 oﬀers

audio streaming capabilities thanks to the built-in digital media player, so it can decode music ﬁles stored on your PC or external storage

unit streamed via the network.

Almost any ﬁle is possible including MP3, WMA, FLAC and AAC. And all handled with the best possible quality, thanks to the high

quality built-in audio processing engine and Marantz Digital Audio Expander (M-DAX) technology for compressed audio.

With built-in vTuner Internet Radio, you can also enjoy thousands of on-line radio stations and with optional Bluetooth connectivity

(RX101 module) music can even be streamed from a compatible Bluetooth device.

daB+ digital radio

internet radio

media streaming

BluetootH connectivity

direct iPHone/iPod connection

itunes PlayBack via airPlay

MAR ANTZ 45NETWORK AUDIO PLAYER

• vTuner Internet radio

• Streaming music from PC

• DAC Mode: 2 digital inputs and

USB type B

• DAB+

• Stereo AM / FM tuner

• High qualit y D/A converter

CS4398

• Discrete symmetric circuit

architecture

• HDAM-SA2 circuitry

• iPod / iPhone compatible

• M-XPort

• Remote bus

• Dedicated remote control or

control via App (with Network)

• Available in Black

NETWORK

AUDIO PLAYER

PCAUDIO

STREAMING

MODE

MAR ANTZ44 NETWORK AUDIO PLAYER

O P T I C A L A N D

COAXIAL INPUTS

RX101

F M /A M

RADIO

EXTR A USB INPUT

F O R U N C O M P R E S S E D

FILES

MAR ANTZ46 SA C D / C D P L A Y E R S

Once again, Marantz engineers have used the successful technologies of the Reference Series to create an

equivalent in the Premium Range. This time technologies from the SA7S1 have been applied to create the new

SA11S2. Most notably, the latest digital filtering parameters are nowused to create reference-quality playback –

making standard CDs sound like SACDs. The new die-cast mechanism is also derived from the SA7S1, to guarantee

crystal-clear data readout. While the 5 mm thick aluminium-top lid and aluminium die-cast feet add reference-

quality stability. Marantz engineers also added the digital phase inversion and the external clock input, providing

additional fine-tuning and upgrade options. The result? Sustained signal integrity, original sound stage

reproduction, unsurpassed rhythmic intensity, and a quality of dynamics and pacemore usually associated with the

recording studio.

• Second generation audiophile Super Audio CD and CD player of 11-Series

• Technologies derived from the Reference Series SA7S1

• Newmodified die-cast loading mechanism derived from the SA7S1

• Heavy, 5 mm thick, copper-plated aluminium-top lid and aluminium die-cast feet

• Marantz exclusive D2F – Dynamic Digital Filtering

• Marantz own filter characteristic makes standard CD sounds almost like SACD

• High grade DSP technology able to handle the 8 x over sampled CD data stream

• Three exclusive digital filter characteristics selectable – same as SA7S1 – for different tastes

• Switchable DC filter to cancel offsets on older CDs

• Switchable Noise Shaper for additional fine tuning

• HDAMSA2: High speed amplifier module with newhigh precision Melf resistors

• Shielded Toroidal transformer for stable power delivery

• Lowjitter high precise internal clock system

• Additional external clock input and digital phase inverter

• Copper-plated chassis, rear panel and system block shielding

• Rigid double layer chassis construction with aluminium front and side panels

• Balanced XLR and gold-plated RCA output terminals

• Low noise LCD

• Aluminium-top remote control with Marantz amplifier control

SA11S2

SACD PLAYER

MAR ANTZ 47S A C D/ C D P L A Y E R S

SACD / CD

PL AY ER S

CLOSER TO

PERFECTION WITh

SUPER AUDIO

The oversized Toroidal transformer inside the SA-15S2 generates the cleanest of power deliveries to eliminate

component cross-contamination, while the highly-acclaimed Marantz Xyron mechanism, with solid aluminium

housing, suppor ts MP3 and WMA playback – without, of course, af fecting its CD and SACD sound quality. The

advanced Cirrus Logic bitstream CS4398 DAC heightens analogue performance and provides a choice of different

digital filters. In addition, the analogue output stage makes use of the HDAM-SA2 module and selected

components, and the headphone stage is equipped with a high-speed current buffer amp making it insensitive to the

headphone when connected: hence noise is minimised and audio quality maximised. Another major benefit is the

digital input, enabling you to connect a music server or a network audio client to take advantage of the high-quality

DAC and the superior audio output stage.

• Audiophile SACD (stereo) and CD DA player

• High precision ‘Super’ Audio D/A converter CS4397 from Crystal

• High performance system clock to reduce jitter to the minimum

• Short symmetric discrete circuit architecture

• Low noise LCD

• The Marantz Current Feedback Hyper Dynamic Amplifier Modules (HDAM)

• High grade customised components

• Zero-Impedance Matching Joint for best signal to noise ratio

• Dedicated top grade headphone circuitry with a fast Current Feedback circuitry

• Rigid double layer chassis construction with aluminium front and side panels

• Blue illumination (switchable)

• Aluminium top remote control with Marantz amplifier control

• Gold-plated RCA output terminals

• Marantz D-Bus

SA-15S2

PREMIUM SUPER AUDIO CD PLAYER

• SACD (stereo) and CD DA playback

• Audiophile D/A conversion via the

CS4397 ‘Super DAC’

• Marantz Current Feedback Hyper

Dynamic Amplier Modules

• Dedicated power supply circuits for

system blocks

• High grade audio components

• Zero impedance matching joint

• Symmetric discrete circuit

architecture

• Gold-plated outputs for best

connectivity

• Display off function to minimise

high frequency noise interference

• High quality headphone fast current

buffer output

• Quick replay

• Dedicated remote and Marantz

D-Bus

MAR ANTZ48 SACD / CD PLAYERS

Plays

Windows

Media™

™

This stereo SACD and CD player underlines the Marantz heritage for high quality two channel audio reproduction. It

faithfully reproduces a wide sound stage with no extra or missing information, thanks to the faster, low-noise and

lower impedance symmetrical circuits with high quality parts. The loading mechanism is made from a new material

called Xyron, which has very high rigidit y and resonance-damping characteristics. Its reduced distortion spectrum

enables you to listen to SACDs with the sonic excellence you’ve come to expect from this player. It can even replay

compressed audio formats such as MP3 and WMA in high quality. The headphone amplifier and gold-plated outputs

complete this beautiful player. In total, the SA7003 expresses the Marantz dedication to the purest reproduction of

musical emotion.

SA7003

SACD PLAYER

• Compatible with CD DA and CD-R/

RW discs

• Playback of MP3 and WMA les

• CD-Text on front panel display

• High quality DA conversion with

CS4398

• Audio circuit with Marantz HDAMs

derived from SA15S1

• Customised audio components for

best balanced audio

• Oversized transformer for stable

power supply

• Display off function to minimised

high frequency noise interference

• Gold-plated stereo audio out and

coaxial digital out RCA sockets

• Headphone circuit with high speed

audio buffer amplier

• Solid metal front panel and rigid

chassis construction with heavy

metal plate

• Dedicated remote and Marantz

D-Bus

Plays

Windows

Media™

™

Developed as successor for the highly popular and What Hi-Fi? Award winner CD6002, this new CD6003 offers

ever ything a dedicated music lover desires: wide dynamic range, clear detail reproduction, and excellent staging.

The solid chassis is further strengthened by an additional metal bottom-plate, which further reduces unwanted

vibration and makes the CD6003 a real ‘heavyweight fighter’. The mechanism is centrally installed and the USB

input is derived from the SA8003 and features an iPod digital connection. The stable, oversized power supply feeds

the digital and analogue circuitry of the player, where the high quality CS4398 converts digital signals into

analogue, which is then ‘pushed’ to the gold-plated cinch outputs by Marant z’s own small signal amplifier, the

HDAM-SA2. Altogether the CD6003 is a match made in heaven for the music lover who wants nothing but the best

performance at an attractive price.

CD60 03

CD PLAYER

MAR ANTZ 49SACD/CD PLAYERS

The CD5004 plays CD, CD-R and CD-RW discs as well as MP3 and WMA files. And perhaps more importantly, it

helps reproduce high-qualit y audio. That’s because it incorporates high-qualit y audio components such as the

famous CS4392 DAC as well as the Marantz-own HDAM-SA2. It also includes customised components for sound

tuning and a reliable CD transport mechanism. The Audio EX(clusive) mode fur ther enhances sound quality by

switching off functions, such as digital output and pitch control that are not in use. The Auto Music Scan (AMS)

quickly finds the music on the disc and the Quick Replay function repeats favourite passages. In addition, high-grade

gold-plated analogue outputs guarantee best connectivit y. A well-defined headphone output, an easy to read

display, and a remote control rounds off this excellent player.

CD500 4

CD PLAYER

• Five disc CD changer with fast disc

access

• Compatible with CD and CD-R/RW

discs

• MP3 playability

• Multi-bit D/A conversion via CS4392

DAC

• Thick aluminium front panel

• Stable low resonance mechanism

mounted on solid metal chassis

• Headphone output with adjustable

volume

• Digital coaxial and optical outputs

• Auto Music Scan

• Random and program play

• RS232C and Flasher In ports for

system integration

• Dedicated remote with direct disc

access and Marantz D-Bus

With a five-disc carousel, fully programmable playback mode as well as random, repeat and scan modes, the

CC4003 CD changer provides endless combinations of non-stop music. Its multi-read drive plays not only CDs but

also CD-R/RWs with MP3 or WMA files. For the analogue output, the internal high quality CS4392 D/A converter

guarantees superb sound qualit y. Coaxial digital and optical outputs are provided for digital connection. There’s also

a headphone output with adjustable volume, and the dedicated remote controller provides direct disc access, while

the metal chassis and solid metal front panel provide a rigid base for high quality performance. The Marantz D-Bus

system and a built-in RS232C port with discrete coding provide an open architecture for enhanced system control.

And of course it’s in the new M1 Reference Style design.

CC 40 03

CD CHANGER

• Analogue audio circuits featuring

Marantz HDAM®-SA2

• ELNA Silmic & Cerane series High

performance audio grade capacitors

• High performance Cirrus Logic

CS4392 D/A converter

• Current-buffered headphone output

• Audio EX mode for super-quiet

performance

• MP3/WMA playback capability

with CD-R/RW disc

• Variable pitch control

• Convenient ‘Quick Replay’ function

• IR Flasher input

• CD-Text, MP3/WMA tag data

display

• Independent gold-plated analog

output jacks

• Gold-plated coaxial and optical

digital outputs

• Detachable power cord

Plays

Windows

Media™

™

Other manuals for AV7005

This manual suits for next models

Table of contents

Popular Receiver manuals by other brands

JVC

JVC KD-DV7302 instructions

OEM

OEM IW-SYS3 Brochure & specs

Sony

Sony ICF-M300L Service manual

Bluestream

Bluestream RX18G Quick reference guide

Axis

Axis MA1400BT installation instructions

Botech

Botech CA9500IR user guide

Multiplex

Multiplex RX-5 light M-LINK operating instructions

AEG

AEG DVB-T 4545 instruction manual

Onkyo

Onkyo TX-NR636 Basic Manual

Digitus

Digitus DN-70310 manual

Panasonic

Panasonic SA-HR50 operating instructions

SkyTraq

SkyTraq PX1100T manual

Amiko

Amiko ALOEN user manual

NEC

NEC Slot-in CAT5 Receiver (video) STv1 user guide

Levn

Levn BTI 020V user manual

Sangean

Sangean TRAVELLER 760 DPR-76 quick start guide

Sony

Sony HCD-DZ200 Service manual

Pioneer

Pioneer MVH-08UBG/XEUW5 Service manual

Marantz AV7005 User manual

Popular Receiver manuals by other brands
