Marantz SR-6001 User manual

RS-232C Control Specification :
Rev 00
Marantz America, Inc. 2007
All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of copyright.
All specifications might be subject to change without notice.
SR6001
RS-232C Control Specification
Category :
A/V Receiver
Document Version :
1.00
Author(s) :
Marantz America, Inc.
Date : 2007/02/07
Number of Page : 19

SR6001 RS-232C Control Specification Page: 2 / 19
Document Version [1.00]
Company Restricted
Table of Contents
1. Introduction ............................................................................................................................................................ 3
1-1. Purpose ............................................................................................................................................................ 3
1-2. Scope................................................................................................................................................................ 3
1-3. Abbreviations ................................................................................................................................................... 3
1-4. References ....................................................................................................................................................... 3
2. Global Description ................................................................................................................................................ 3
2-1. Overview........................................................................................................................................................... 3
2-2. Block Diagram.................................................................................................................................................. 3
2-3. Interface connection specification of the product........................................................................................... 3
2-4. Assumptions and Dependencies.................................................................................................................... 3
3. Detailed Description.............................................................................................................................................. 4
3-1. Connection format ........................................................................................................................................... 4
3-1-1. Physical connection................................................................................................................................. 4
3-1-1-1. Data transmission sequence from Host to Slave .......................................................................... 4
3-1-1-2. Data transmission sequence from Slave to Host .......................................................................... 4
3-2. Transmission data format................................................................................................................................ 5
3-2-1. Transmission data format from Host to Slave........................................................................................ 5
3-2-1-1. Form1: Command ........................................................................................................................... 5
3-2-1-2. Form2: Status request ..................................................................................................................... 5
3-2-2. Transmission data format from Slave to Host........................................................................................ 5
3-2-2-1. Form1: ACK/NAK ............................................................................................................................ 5
3-2-2-2. Form2: Status answer and Auto status feedback.......................................................................... 5
3-3. The transaction sequences and the regulations............................................................................................ 6
3-3-1. The transaction sequences..................................................................................................................... 6
3-3-2. The transaction regulations..................................................................................................................... 6
3-3-3. Specification of Auto status feedback..................................................................................................... 6
3-3-4. Example of the transactions.................................................................................................................... 6
3-3-5. Examples of the handshaking flowchart ................................................................................................ 7
3-3-5-1. Example of successful handshaking.............................................................................................. 7
3-3-5-2. Examples of handshaking error...................................................................................................... 7
4. Recommendations of Command, Status and Layer definition..................................................................... 8
5. Definitions of Command, Status and Layer...................................................................................................... 9
This section is told how to define “Command”, “Status” and “Layer” of this product. .................................................. 9
5-1. Normal Command List .................................................................................................................................... 9
5-1-1. Main function contents............................................................................................................................. 9
5-1-2. Display and Menu contents...................................................................................................................10
5-1-3. Surround contents ................................................................................................................................. 11
5-1-4. Tuner contents .......................................................................................................................................12
5-1-5. XM Contents ..........................................................................................................................................12
5-1-6. Multi Room contents.............................................................................................................................. 13
5-2. Specific Commands.......................................................................................................................................14
5-3. Status request and Status answer list...........................................................................................................15
5-3-1. Normal Status request and Status (answer and feedback) list...........................................................15
5-3-2. Layer of the statuses .............................................................................................................................18
6. Revision history................................................................................................................................................... 19

SR6001 RS-232C Control Specification Page: 3 / 19
Document Version [1.00]
Company Restricted
1. Introduction
1-1. Purpose
This document was written as a reference specification of products that are controled by the host controller.
1-2. Scope
This document would be using by software or hardware engineers for production of the product.
1-3. Abbreviations
Abbreviation Description
1-4. References
Hardware Software Interface Specification ver. 1.02 / author: N.Sakamoto
2. Global Description
2-1. Overview
A Host controller can control or watch out the product as a Slave very easily via the communication cable.
2-2. Block Diagram
* The product connector is using D-SUB 9pin male.
* RS232C cable must use D-SUB 9pin female to connect the products.
2-3. Interface connection specification of the product
uP Interface Signal name Connection device D-Sub Pin Connecter
- N.C. - 1
TxD (output) 2
UART RxD (input)
RS232C
Level shift driver 3
- N.C. - 4
- GND GND 5
- N.C. - 6
- N.C. - 7
- N.C. - 8
- N.C. - 9
<The product connector>
RS232C D-SUB (9pin,Male)
2-4. Assumptions and Dependencies
HOST
(Controller)
SLAVE
(The product)
Connector
D-SUB (9pin, male)
RS232C cable (Straight)

SR6001 RS-232C Control Specification Page: 4 / 19
Document Version [1.00]
Company Restricted
3. Detailed Description
The interface specification between the product and a Host controller is described below.
3-1. Connection format

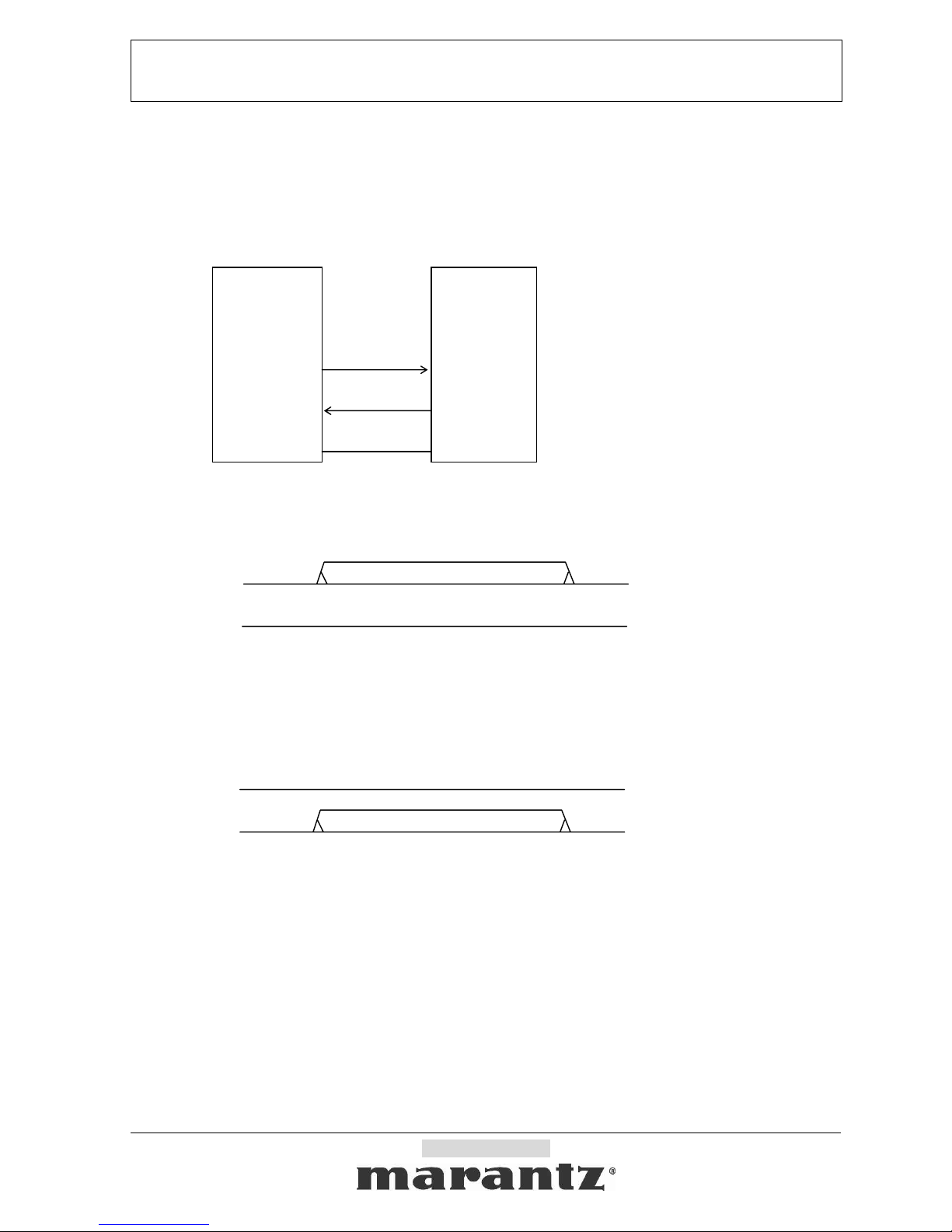

3-1-1. Physical connection
Host(Controller) Slave(theproduct)
(Serialsetting<RS232Cbasic>)
Baud Rate : 9600bps
DataBits :8bit
Parity :None
Stopbit :1bit
Handshaking :None
3-1-1-1. Data transmission sequence from Host to Slave
Host (Controller) Slave (The product)
TxD → RxD
RxD ← TxD
1. Host starts a data transmission from TxD.
2. Host performs the data transmission of the number of required bytes, and ends a transmission.
3-1-1-2. Data transmission sequence from Slave to Host
Host (Controller) Slave (The product)
TxD → RxD
RxD ← TxD
1. Slave starts a data transmission from TxD.
2. Slave performs the data transmission of the number of required bytes, and ends a transmission.
TxD
RxD
GND
RxD
TxD
GND

SR6001 RS-232C Control Specification Page: 5 / 19
Document Version [1.00]
Company Restricted
3-2. Transmission data format
3-2-1. Transmission data format from Host to Slave
There are two kinds of transmission data form from Host shown below.
3-2-1-1. Form1: Command
Command is a data that requests some status change.
Start character : ’@’
COMMAND : see “Command list”
End character (CR) : 0Dh
Start
@
Command
“xxx:”+”...”
End
0Dh
3-2-1-2. Form2: Status request
Status request is a data that requests a answer of some status.
Start character : ’@’
Request status : see “Status request list”
Request character : ‘?’
End character (CR) : 0Dh
Start
@
Command
“xxx:?”+”...”
End
0Dh
3-2-2. Transmission data format from Slave to Host
There are two kinds of transmission data form from Slave shown below.
3-2-2-1. Form1: ACK/NAK
ACK is a reply data from Slave when Slave got an acceptable command data from Host.
(ACK is sent to Host when Slave has no related status by the Command.)
Start character : ’@’, ACK : 06h, End character (CR) : 0Dh
Start
@
ACK
06h
End
0Dh
NAK is a reply data from Slave when Slave got an incorrect Command data, Status request data or
some other data from Host.
Start character : ’@’, NAK : 15h, End character (CR) : 0Dh
Start
@
NAK
15h
End
0Dh
3-2-2-2. Form2: Status answer and Auto status feedback
Status answers are reply data when Slave got an acceptable Request status or Command data from
Host. Auto status feedbacks are send to Host data when a Slave’s status is changed.
Start character : ’@’
Answer character : see “Status list”
End character (CR) : 0Dh
Start
@
Status
“xxx:”+”...”
End
0Dh

SR6001 RS-232C Control Specification Page: 6 / 19
Document Version [1.00]
Company Restricted
3-3. The transaction sequences and the regulations
3-3-1. The transaction sequences
The transactions have three kinds of sequence.
*A transaction is a Command from Host then Slave will be an answer by Status answer, ACK or NAK.
*A transaction is a Status request from Host then Slave will be an answer by Status answer or NAK.
*A transaction is Auto status feedback from Slave when a Slave’s status changed. (If the auto status
feedback is enabled.)
3-3-2. The transaction regulations
The transactions have some kinds of regulation.
* An answer (ACK, NAK or Status answer) transmittion by Slave has to finish within 500ms when got a
Command or a Status request from Host.
* Host must not transmit an another Command or Status request until "it receives a answer by a
previous Command or Status request" or "it passes a term of waitinng time from a finishing of previous
transmission of a Command or a Status request ".
* Slave has to finish a transaction under 500ms when it sends Auto status feedback data.
3-3-3. Specification of Auto status feedback
There are some specific regulations about Auto status feedback.
* The product status has segmented into four layers of 1, 2, 3 and 4.
* The status of layer 1 are assigned most kindly status to Host. (The statuses of layer 2 are assigned
kindly status, the statuses of layer 3 are not so need status to Host and the statuses of layer 4 are
probably no wished statuses.)
* Each layer status can control transmit enable or disable by Host command. (The product default
would be all disables.)
* Slave sends auto status feedback by itself when the status is changed and if the status feedback is
enabled.
* The product defined and segmentationed layers are takeing in status list.

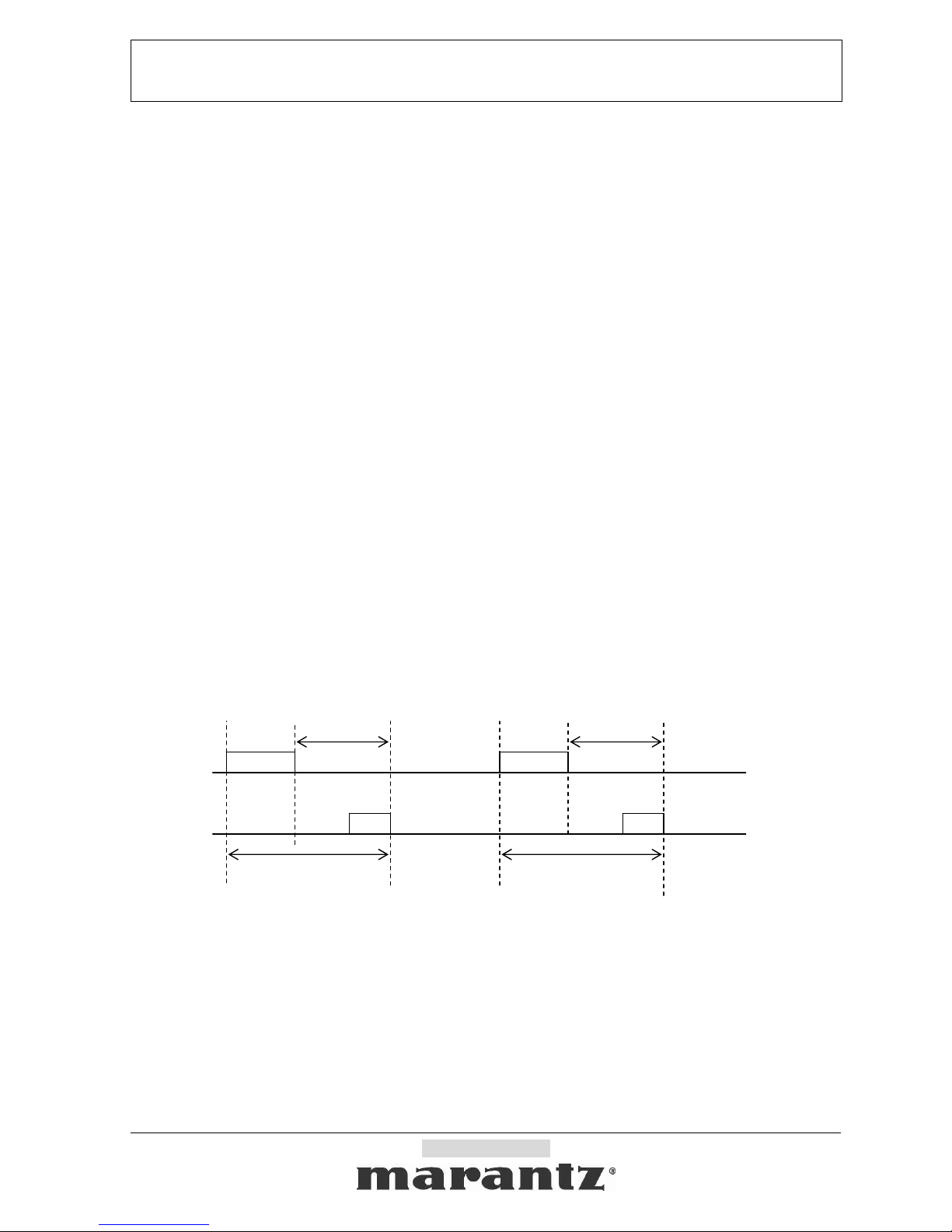

3-3-4. Example of the transactions
<Host> <Slave>
TxD RxD
RxD TxD
Example of the transactions
Max. 0.5sec
Transaction Transaction
Command
Status answer
ACK or NAK
Status
request
Status answer
Max. 0.5sec

SR6001 RS-232C Control Specification Page: 7 / 19
Document Version [1.00]
Company Restricted
3-3-5. Examples of the handshaking flowchart
3-3-5-1. Example of successful handshaking
SLAVEHOST
Com mand
acce
p
table
Request
acce
p
table
Com mand
A
CK
Status
request
Status
answer
Related
Status answer
or
A
uto status
feedback
Changed
som e status!
The product can reply ACK instead of related status, if the product can not send the related status
immediatly.
3-3-5-2. Examples of handshaking error
SLAVEHOST
Com m and
in c o rre c t
Request
in c o rre c t
Com m and
NAK
Status
request
NAK

SR6001 RS-232C Control Specification Page: 8 / 19
Document Version [1.00]
Company Restricted
4. Recommendations of Command, Status and Layer definition
-All Commands, Statuses and Layers will be defined other specific document.
-[MANDATORY] The product MUST have Commands and the Statuses same as a remote controller
buttons (IR controller) of the product.
-All Commands are required working by discreate as ON/OFF commands. (It means that do not support
TOGGLE command only. )
-All Commands and Statuses are defined same chharacter size except ACK/NAK on the product.
( Recommended character length : 3~6 characters )
-It permits attaching 0x0A character to a reply characters from the product. In this case, must suppose that the object
is followed altogether.
-Recommend to supports numbers or values direct setting command, if it has variable numbers or
values.

SR6001 RS-232C Control Specification Page: 9 / 19
Document Version [1.00]
Company Restricted
5. Definitions of Command, Status and Layer
This section is told how to define “Command”, “Status” and “Layer” of this product.
5-1. Normal Command List
This chapter will show the commands of this product.
5-1-1. Main function contents
Command Reply from Slave
TOGGLE “PWR:0”
OFF “PWR:1”
POWER
ON “PWR:2”
“PWR:1”
“PWR:2”
TOGGLE “ATT:0”
OFF “ATT:1”
AUDIO ATT
ON “ATT:2”
“ATT:0” (None)
“ATT:1” (OFF)
“ATT:2” (ON)
TOGGLE “AMT:0”
OFF “AMT:1”
AUDIO MUTE
ON “AMT:2”
“AMT:1”
“AMT:2”
TOGGLE “VMT:0”
OFF “VMT:1”
VIDEO MUTE
ON “VMT:2”
“VMT:1”
“VMT:2”
VALUE “VOL:0xxxy”
UP “VOL:1”
DOWN “VOL:2”
UP-FAST “VOL:3”
VOLUME
DOWN-FAST “VOL:4”
“VOL:xxxy”
xxx = vol. value as +18~-80db, y = .0 or .5
db
00.0 = ”VOL: 000”
-∞= “VOL:-ZZZ”
VALUE “TOB:0xxx”
UP “TOB:1”
TONE BASS
DOWN “TOB:2”
“TOB:xxx”
xxx = vol. value as +06 ~-06
VALUE “TOT:0xxx”
UP “TOT:1”
TONE TREBLE
DOWN “TOT:2”
“TOT:xxx”
xxx = vol. value as +06 ~-06
TV “SRC:1”
DVD “SRC:2”
VCR1 “SRC:3”
DSS/VCR2 “SRC:5”
AUX1 “SRC:9”
AUX2 “SRC:A”
CD/CD-R “SRC:C”
TAPE “SRC:E”
TUNER1 “SRC:F”
FM1 “SRC:G”
AM1 “SRC:H”
SOURCE
Select
XM1 “SRC:J”
“SRC:va”, (v ,a= ‘0’ ~ ‘Z’)
(v = video, a = audio.)
v = 0 (V-OFF)
a = N (7.1CH)
TOGGLE “71C:0”
OFF “71C:1”
7.1 Channel
Input ON “71C:2”
“71C:1” (OFF)
“71C:2” (ON)
Command Reply from Slave
SPKR SEL “SPK:0”
SPKR-A OFF “SPK:1”
SPKR-A ON “SPK:2”
SPKR-B OFF “SPK:3”
SPEAKER
Select
SPKR-B ON “SPK:4”
“SPK:ab”, a=SPK-A, b=SPK-B
“SPK:11” (A-OFF,B-OFF)
“SPK:21” (A-ON,B-OFF)
“SPK:12” (A-OFF,B-ON)
“SPK:22” (A-ON,B-ON)

SR6001 RS-232C Control Specification Page: 10 / 19
Document Version [1.00]
Company Restricted
5-1-2. Display and Menu contents
Command Reply from Slave
VALUE “SLP:0xx” (xx=”00”~”90”)
SLEEP OFF “SLP:1”
“SLP:01~90” ( ON )
“SLP:00” (OFF)
TOGGLE “MNU:0”
(work same as RC)
OFF “MNU:1”
ON “MNU:2”
MENU
ENTER “MNU:3”
“MNU:1” (Not on Menu)
“MNU:2” (On Menu )
UP “CUR:1”
DOWN “CUR:2”
LEFT “CUR:3”
CURSOR
RIGHT “CUR:4”
ACK
Command Reply from Slave
TRG. 1 OFF “DCT:11”
(DC TRG. 1 OFF)
DC TRG.
TRG. 1 ON “DCT:12”
(DC TRG. 1 ON)
“DCT:ax”
( a: 1:OFF=1, ON=2)
‘x’ is fixed character
e.g.) “DCT:1x” (TRG.1 OFF)
“DCT:2x”(TRG.1ON)

SR6001 RS-232C Control Specification Page: 11 / 19
Document Version [1.00]
Company Restricted
5-1-3. Surround contents
Command Reply from Slave
AUTO “SUR:00”
STEREO “SUR:01”
DOLBY “SUR:02”
PLⅡ(x) MOVIE “SUR:03”
PLⅡ(x) MUSIC “SUR:05”
PLⅡ(x) GAME “SUR:07”
EX/ES “SUR:0A”
DTS ES
(DISC, MATRIX) “SUR:0E”
NEO6 CINEMA “SUR:0F”
NEO6 MUSIC “SUR:0G”
Multi Ch.
(MOVIE, MUSIC) “SUR:0H”
CSⅡCINEMA “SUR:0I
CSⅡMUSIC “SUR:0J”
CSⅡMONO “SUR:0K”
VIRTUAL “SUR:0L”
DTS “SUR:0M”
DD+ PLⅡx
MOVIE “SUR:0O”
DD+ PLⅡx
MUSIC “SUR:0P”
SOURCE DIRECT “SUR:0T”
PURE DIRECT “SUR:0U”
NEXT “SUR:1”
Surr. Mode
PREV “SUR:2”
“SUR:x“, (x = ‘0’ ~’Z’)
“SUR:0”: AUTO
“SUR:1”: STEREO
“SUR:2”: DOLBY
“SUR:3”: PLⅡ(x) MOVIE
“SUR:5”: PLⅡ(x) MUSIC
“SUR:7”: PLⅡ(x) GAME
“SUR:A”: EX/ES
“SUR:E”: DTS ES (Discrete/ Matrix)
“SUR:F”: NEO6 CINEMA
“SUR:G”: NEO6 MUSIC
“SUR:H”: Multi Ch. (MOVIE, MUSIC)
“SUR:I”: CSⅡCINEMA
“SUR:J”: CSⅡMUSIC
“SUR:K”: CSⅡMONO
“SUR:L”: VIRTUAL
“SUR:M”: DTS
“SUR:O”: DD + PLⅡ(x) MOVIE
“SUR:P”: DD + PLⅡ(x) MUSIC
“SUR:T: SOURCE DIRECT
“SUR:U: PURE DIRECT
Command Reply from Slave
BYPASS “DHM:0”
“DHM:1”
“DHM:2”
(+PLⅡMOVIE)
Dolby
Headphone
Mode DH1(DH)
“DHM:3”
(+PLⅡMUSIC)
“DHM:x”
x = Dolby Headphone mode

SR6001 RS-232C Control Specification Page: 12 / 19
Document Version [1.00]
Company Restricted
Command Reply from Slave
TOGGLE “NGT:0”
OFF “NGT:1”
NIGHT MODE
ON “NGT:2”
“NGT:0” (invalid)
“NGT:1” (OFF)
“NGT:2” (ON)
VALUE “LIP:0xxx”
(xxx = value ms)
UP “LIP:1” (up 10ms)
Lip Sync.
DOWN “LIP:2” (down 10ms)
“LIP:xxx” (xxx = value ms)
xxx = “000” (OFF)
xxx = “010” ~ “200” (ON)
TOGGLE “TTO:0”
OFF “TTO:1”
ON “TTO:2”
NEXT “TTO:3”
Tes t To n e
(Force
start/stop Test
Tone with Auto
mode) PREV “TTO:4”
“TTO:1xy” (OFF)
“TTO:2xy” (ON)
(x: Auto=0, Manual=1)
(y=Ch.)
5-1-4. Tuner contents
Command Reply from Slave
VALUE “TFQ:0xxxxx“
(xxxxx = freq.)
UP “TFQ:1“
DOWN “TFQ:2“
Auto-UP “TFQ:3“
Tuner1
Frequency
Auto-DOWN “TFQ:4“
“TFQ:xxxxx” (xxxxx = Frequency)
if ( xxxxx < 00256 ), band = XM;
else if (xxxxx < 02000), band=AM;
else band=FM;
(ex.“08750” = FM87.50MHz)
*Auto-UP/DOWN dose not operate in XM
*XM can be selected When Band is XM.
VALUE “TPR:0ww”
UP “TPR:1”
DOWN “TPR:2”
P-Scan start “TPR:3”
Tuner1 Preset
P-Scan stop “TPR:4”
“TPR:ww”
(ww = current preset nr.)
(ww = 01 ~ ??)
TOGGLE “TMD:0”
OFF(MONO) “TMD:1”
Tuner1 mode
ON(AUTO) “TMD:2”
“TMD:0”( - )
“TMD:1” (MONO)
“TMD:2” (AUTO)
TOGGLE “TPI:0”
OFF “TPI:1”
Tuner Preset
Info. ON “TPI:2”
“TPI:1” (OFF)
“TPI:2” (ON)
Tuner1 MEMO - “MEM:0” ACK
Tuner1 CLEAR - “CLR:0” ACK
5-1-5. XM Contents
Command Reply from Slave
TOGGLE “XDP:0”
NORMAL “XDP:1”
ART/SNG “XDP:2”
CATEGORY “XDP:3”
XM DispMode
STATUS “XDP:4”
“XDP:1”(NORMAL)
“XDP:2”(ART/SNG)
“XDP:3”(CATEGORY)
“XDP:4”(STATUS)
TOGGLE “CAT:0”
CH. UP “CAT:1”
CH. DOWN “CAT:2”
CAT. NEXT “CAT:3”
XM Category
CAT. PREV “CAT:4”
“CAT:yxx”
(y: Un search=1, in search=2)
(xx: Category No. 00(none), 01 to 32)

SR6001 RS-232C Control Specification Page: 13 / 19
Document Version [1.00]
Company Restricted
5-1-6. Multi Room contents
Command Reply from Slave
TOGGLE “MPW:0”
OFF “MPW:1”
Multi Room A
POWER ON “MPW:2”
“MPW:1” (OFF)
“MPW:2” (ON)
TOGGLE “MSP:0”
OFF “MSP:1”
Multi Room A
SPEAKER ON “MSP:2”
“MSP:1” (OFF)
“MSP:2” (ON)
TOGGLE “MAM:0”
OFF “MAM:1”
Multi Room A
AUDIO MUTE ON “MAM:2”
“MAM:1”
“MAM:2”
VALUE “MVL:0xxx”
UP “MVL:1”
Multi Room A
VOLUME DOWN “MVL:2”
“MVL:xxx”
xxx = vol. value as “ 00” ~”-90”
VARIABLE “MVS:1”Multi Room A
VOLUME SET FIXED “MVS:2”
“MVS:1” ( VARIABLE)
“MVS:2” (FIXED)
TV “MSC:1”
DVD “MSC:2”
VCR1 “MSC:3”
DSS/VCR2 “MSC:5”
AUX1 “MSC:9”
AUX2 “MSC:A”
CD/CDR “MSC:C”
TAPE “MSC:E”
TUNER1 “MSC:F”
FM1 “MSC:G”
AM1 “MSC:H”
Multi Room A
SOURCE
Select
XM1 “MSC:J”
“MSC:va”
(v, a= ‘0’ to ‘Z’)
(v = video, a = audio.)
VALUE “MSL:0xx” (“xx” = min) “MSL:xx” (xx = min)Multi Room A
SLEEP OFF “MSL:1” “MSL:00”
TOGGLE “MST:0”
STEREO “MST:1”
Multi Room A
Stereo/Mono MONO “MST:2”
“MST:0”( - )
“MST:1”(STEREO)
“MST:2”(MONO)
VALUE “MTF:0xxxxx“
(xxxxx = freq.)
UP “MTF:1“
DOWN “MTF:2“
Auto-UP “MTF:3“
Multi Room A
Tuner1
Frequency
Auto-DOWN “MTF:4“
“MTF:xxxxx”, (xxxxx = Frequency)
if ( xxxxx < 00256 ) band = XM;
else if (xxxxx < 02000) band=AM;
else band=FM;
(e.g.“08750” = FM87.50MHz)
*Auto-UP/DOWN dose not operate in XM
*XM can be selected When Band is XM.
VALUE “MTP:0ww”
(ww = preset nr.)
UP “MTP:1”
DOWN “MTP:2”
SCAN Start “MTP:3”
Multi Room A
Tuner1 Preset
SCAN Stop “MTP:4”
“MTP:ww”
(ww = current preset nr.)
(ww = 01 ~??)
TOGGLE “MTM:0”
OFF(MONO) “MTM:1”
Multi Room A
Tuner1 mode ON(AUTO) “MTM:2”
“MTM:0”( - )
“MTM:1”(MONO)
“MTM:2”(AUTO)

SR6001 RS-232C Control Specification Page: 14 / 19
Document Version [1.00]
Company Restricted
Command Reply from Slave
VALUE “MSV:0xxx”
UP “MSV:1”
Multi RoomA
Speaker
VOLUME DOWN “MSV:2”
“MSV:xxx”
xxx = Vol. value as +90 ~-90
VARIABLE “MSS:1”
Multi RoomA
Speaker
VOLUME SET FIXED “MSS:2”
“MSS:1” ( VARIABLE)
“MSS:2” (FIXED)
TOGGLE “MSM:0”
OFF “MSM:1”
Multi RoomA
Speaker
AUDIO MUTE ON “MSM:2”
“MSM:1”,
“MSM:2”
5-2. Specific Commands
Command from Host Reply from Slave
Auto status feedback
(The product default is disabled
all auto status feedback.)
“AST:x” (x = ‘0’ ~ ’F’)
bit 3 : Layer 4 ( 1 = Enable, 0 = Disable)
bit 2 : Layer 3 ( 1 = Enable, 0 = Disable)
bit 1 : Layer 2 ( 1 = Enable, 0 = Disable)
bit 0 : Layer 1 ( 1 = Enable, 0 = Disable)
same as
command define

SR6001 RS-232C Control Specification Page: 15 / 19
Document Version [1.00]
Company Restricted
5-3. Status request and Status answer list
5-3-1. Normal Status request and Status (answer and feedback) list
Status request Status answer and feedback
OFF “PWR:1”
POWER “PWR:?”
ON “PWR:2”
OFF “ATT:1”
AUDIO ATT “ATT:?” ON “ATT:2”
OFF “AMT:1”
AUDIO MUTE “AMT:?” ON “AMT:2”
OFF “VMT:1”
VIDEO MUTE “VMT:?” ON “VMT:2”
VOLUME “VOL:?”
Volume value = xxxy
(see command list)
“VOL:xxxy”
(+18.0 ~ -80.0dB)
TONE BASS “TOB:?” Bass value = xxx
(see command list) “TOB:xxx”
TONE TREBLE “TOT:?” Treble value = xxx
(see Command List) “TOT:xxx”
SOURCE Select “SRC:?” Video+Audio source
(see Command List)
“SRC:va”
(v ,a= ‘0’ ~ ‘Z’)
(v = video, a = audio.)
OFF “71C:1”
7.1 Channel Input “71C:?” ON “71C:2”
ANALOG “ISG:1”
DIGITAL “ISG:2”
INPUT SIGNAL “ISG:?”
HDMI “ISG:4”
SPEAKER Select “SPK:?” Speaker status = ab
a = SPKR-A, b = SPKR-B
“SPK:ab”
a,b (1 = OFF, 2 = ON)
Status request Status answer and feedback
SLEEP “SLP:?” Sleep time (xx = 00 ~ 90) “SLP:xx”
OFF “MNU:1” ( Not on Menu)
MENU “MNU:?”
ON “MNU:2” (On Menu)
Status request Status answer and feedback
DC TRG. “DCT:?” “DCT:ax”
(a: OFF=1, ON=2)
e.g.)
“DCT:1x”, (TRG.1 OFF)
“DCT:2x”, (TRG.1 ON)
Status request Status answer and feedback
Surr. Mode “SUR:?” “SUR:x”
same as command
replay
(see Command list)
Dolby Headphone
mode “DHM:?” “DHM:x” same as command reply
(see Command list)
OFF “NGT:1”
Night Mode “NGT:?” ON “NGT:2”
Lip Sync. “LIP:?” VALUE (ms) “LIP:xxx”
(xxx = 000 ~ 200 ms)

SR6001 RS-232C Control Specification Page: 16 / 19
Document Version [1.00]
Company Restricted
Status request Status answer and feedback
Digital Signal Format “SIG:?”
x =
‘0’ :No detect
’1’ :D DIGITAL AC-3
‘2’ : D DIGITAL AC-3 PL
‘3’ : D DIGITAL SURR. EX
‘4’ : DTS
‘5’ : DTS ES DISCREATE
‘6’ : DTS ES MATRIX
‘7’ : AAC
‘8’ : MPEG
‘9’ : M-PCM
‘A’ : PCM
‘B’ : HDCD
‘C’ : DSD
‘D’ : DTS 96/24
‘E’ : reserved
‘F’ : OTHER
“SIG:x”
x = signal
Status request Status answer and feedback
Tuner1 Frequency “TFQ:?” “TFQ:xxxxx” same as command reply
(see Command list)
Tuner1 Preset “TPR:?” “TPR:ww” same as command reply
(see Command list)
OFF ( MONO) “TMD:1”
Tuner1 mode “TMD:?” AUTO “TMD:2”
OFF “TPI:1”
Tuner Preset Info. “TPI:?” ON “TPI:2”
Status request Status answer and feedback
XM ChName “CHN:?” Channel Name “CHN:xxxxxxxx”
x=10Byte
XM ArtistName “ARN:?” Artist Name “ARN:xxxxxxxx”
x=16Byte
XM SongTitle “SON:?” Song Title “SON:xxxxxxxx”
x=16Byte
XM CategoyName “CTN:?” Category Name “CTN:xxxxxxxx”
x=8Byte
XM Signal Status “SST:?” Antenna Status
“SST:x”
x= Status
0= CHECK ANTENNA
1= STRONG
2= MARGINAL
3= WEAK
4= NO

SR6001 RS-232C Control Specification Page: 17 / 19
Document Version [1.00]
Company Restricted
Status request Status answer and feedback
OFF “MPW:1”Multi Room A
POWER “MPW:?” ON “MPW:2”
OFF “MSP:1”Multi Room A
SPEAKER “MSP:?” ON “MSP:2”
OFF “MAM:1”Multi Room A
AUDIO MUTE “MAM:?” ON “MAM:2”
Multi Room A
VOLUME “MVL:?” Volume value = xxx “MVL:xxx”
VARIABLE “MVS:1”Multi Room A
VOLUME SET “MVS:?” FIXED “MVS:2”
Multi Room A
SOURCE Select “MSC:?”
Video+Audio source
(v ,a= ‘0’ – ‘Z’)
(v = video, a = audio.)
“MSC:va”
Multi Room A
SLEEP “MSL:?” Sleep time min : xx = ‘00’ ~ ‘99’ “MSL:xx”
STEREO “MST:1”Multi Room A
STEREO/MONO “MST:?” MONO “MST:2”
Status request Status answer and feedback
Multi Room A
Tuner1
Frequency
“MTF:?”
xxxxx = frequency
if ( xxxxx < 00256 ) band = XM;
else if (xxxxx < 02000) band=AM; else
band=FM;
“MTF:xxxxx”
Multi Room A
Tuner1 Preset “MTP:?” xx = preset number ( 01 ~ ??) “MTP:xx”
- (None) “MTM:0”
OFF (MONO) “MTM:1”
Multi Room A
Tuner1 Mode “MTM:?”
ON (AUTO) “MTM:2”
Multi RoomA
Speaker VOLUME “MSV:?” Volume value = xxx “MSV:xxx”
VARIABLE “MSS:1”Multi RoomA
Speaker
Volume Set
“MSS:?” FIXED “MSS:2”
OFF “MSM:1”Multi RoomA
Speaker
AUDIO MUTE
“MSM:?” ON “MSM:2”

SR6001 RS-232C Control Specification Page: 18 / 19
Document Version [1.00]
Company Restricted
5-3-2. Layer of the statuses
Status Layer
POWER “PWR:” 1
AUDIO ATT “ATT:” 3
AUDIO MUTE “AMT:” 1
VIDEO MUTE “VMT:” 1
VOLUME “VOL:” 1
TONE BASS “TOB:” 1
TONE TREBLE “TOT:” 1
SOURCE Select “SRC:” 1
7.1 Channel Input “71C:” 1
INPUT SIGNAL SOURCE “ISG:” 3
SPEAKER Select “SPK:” 1
Status Layer
SLEEP “SLP:” 2
MENU “MNU:” 4
DC TRIG. “DCT:” 1
Status Layer
Surr. Mode “SUR:” 2
Dolby Headphone Mode “DHM:” 2
Night Mode “NGT:” 3
Lip Sync. “LIP:” 4
Tes t To n e “TTO : ” 1
Ch.Select “CSL:” 4
Digital Signal Format “SIG:” 4
Status Layer
Tuner1 Frequency “TFQ:” 3
Tuner1 Preset “TPR:” 2
Tuner1 mode “TMD:” 2
Tuner Preset Info. “TPI:” 2
Status Layer
XM Display mode “XDP:” 1
XM Category Search “CAT:” 4
XM Category Name “CTN:” 4
XM Channel Name “CHN:” 4
XM Artist Name “ARN:” 4
XM Song Title “SON:” 4
XM Signal Status “SST:” 1

SR6001 RS-232C Control Specification Page: 19 / 19
Document Version [1.00]
Company Restricted
Status Layer
Multi Room A POWER “MPW:” 1
Multi Room A SPEAKER “MSP:” 2
Multi Room A AUDIO MUTE “MAM:” 1
Multi Room A VOLUME “MVL:” 1
Multi Room A VOLUME SET “MVS:” 2
Multi Room A SOURCE Select “MSC:” 1
Multi Room A SLEEP “MSL:” 2
Multi Room A STEREO/MONO “MST:” 2
Multi RoomA Speaker VOLUME “MSV:” 1
Multi RoomA Speaker Volume Set “MSS:” 2
Multi RoomA Speaker A-MUTE “MSM:” 1
Status Layer
Multi Room A Tuner1 Frequency “MTF:” 3
Multi Room A Tuner1 Preset “MPR:” 2
Multi Room A Tuner1 Mode “MTM:” 2
6. Revision history
Ver. Date Owner Change description
1.00 02/06/07 Marantz America, Inc. Issued Revision1.0
