TABLE OF CONTENTS
Graco®Xtreme®45:1 Airless Spray Pumps
Company Prole..................................................................2
Table of Contents .............................................................3
Graco® Xtreme® 45:1 Airless Spray Pumps ........4-18
Graco®Xtreme®45:1 Airless Spray Pumps .......................4-5
Xtreme® Airless Sprayers................................................... 6-7
NXT®Model 6500 Air Motor and Exhaust.......................... 8-9
290cc Lower Displacement Pump Repair Parts ............ 10-11
Xtreme® Seals Repair Kits ............................................. 12-13
Tuff-Stack™Repair Kits.................................................. 14-15
X-Tuff®Repair Kits......................................................... 16-17
Filter Cap Series Key.......................................................... 18
Optional Accessories...............................................19-21
Suction Tubes and Accessories.......................................... 19
High Pressure Ball Valves .................................................. 19
Xtreme® Airless Sprayer Stainless Steel Hopper ........... 20-21
Maintenance Notes ..................................................22-23

4
PART NUMBERS AND SCHEMATICS GUIDE
Graco®Xtreme®45:1 Airless Spray Pumps
Part
Numbers
GRACO®XTREME® 45:1 AIRLESS SPRAYERS
MOUNT
Built-In Filter DataTrakTM Hopper Included XTR™ 5 Airless Spray Gun
HOSES
Heavy-Duty Cart Light-Weight Cart Wall Mount 50 Feet x 3/8" I.D. Airless Spray Hose 6 Feet x 1/4" I.D. Airless Spray Hose
20GX45DH4 X X
20GX45DH2 X X X
20GX45DH3 X X X X X
20GX45DH6 X X X X X X
20GX45DH1 X X X X X X
20GX45DH5 X XXXXXX
20GX45DH7 X X X X
20GX45DL4 X X
20GX45DL2 X X X
20GX45DL6 X X X X X X
20GX45DL3 X X X X X
20GX45DL1 X X X X X X
20GX45DL5 X XXXXXX
20GX45DW4 X X
20GX45DW2 XXX
GRACO®XTREME® 45:1 AIRLESS SPRAYER – SPECIFICATIONS
Output Per Cycle 4,550 psi
Pump Lower Output per Cycle 290cc
Motor NXT 6500cc
De-Icing Motor Yes
Xtreme®Seal and Leather Packing Yes

Graco®Xtreme®45:1 Airless Spray Pumps 5
PART NUMBERS AND SCHEMATICS GUIDE
*20GX45DH4 Shown

Graco®Xtreme®45:1 Airless Spray Pumps
6
PART NUMBERS AND SCHEMATICS GUIDE
Graco®Xtreme®45:1 Airless Spray Pumps
Item# Part# Description
Fig. 1
2
—
20G287884
20G287919
Heavy-Duty Cart
Lightweight Cart
3 20G197682 1" Suction Tube
4
—
20G247301
20G288687
1" NPT x Quick Connect, 6 ft. Suction Hose
1" NPT x Quick Connect, 10 ft. Suction Hose (Wall-Mount Units)
5 20G116401 Elbow Adapter
6 20G116402 Quick Connect Adapter
7 20G244524 Ground Assembly Wire with Clamp
10 20G181072 Strainer Inlet
11 20G100101 Hex Head Cap Mounting Screw
12 20G100133 Lock Washer
13
—
20G247312 Adapter Kit Plate
(Includes Lock Nut and Adapter Plate)
14 20G24E013 Air Control (Heavy Duty Cart)
18 20G162505 1/2" F x 3/8" M Swivel Union Fitting
101 20GXTR504 XTR™ 5 Spray Gun for 25:1 – 50:1 ratio only (Not included with all models, see page 4)
102 20GH52506* Fluid Hose (Nylon, 1/4" I.D. x 1/4" NPS (M), 6 ft.), 6100 psi
103 20GH53850* Fluid Hose (Nylon, 3/8" I.D. x 3/8" NPS (M), 50 ft.), 5800 psi
104 20G164856 3/8" x 1/4" NPT Reducing Nipple Fitting
301 — Spray Pump (See page 4)
302 — Pump Lower (See pages 10-17)
303 — NXT®Air Motor (See pages 8-9)
— 206M358 Part Numbers and Schematics Guide – Graco®Xtreme®45:1 Airless Spray Pumps
— 206M508 Part Numbers and Schematics Guide – Graco®XTR™ 5 Airless Spray Gun
—209V508 Operator's Manual – Graco®Xtreme®Pump Packages
*Not included with all models, see page 4

7
PART NUMBERS AND SCHEMATICS GUIDE
Graco®Xtreme®45:1 Airless Spray Pumps
Figure 1: Graco®Xtreme®45:1 Airless Spray Pumps

8
PART NUMBERS AND SCHEMATICS GUIDE
Graco®Xtreme®45:1 Airless Spray Pumps
NXT®Model 6500 Air Motor and Exhaust
Item# Part# Description
Fig. 2
—
—
—
20GN65DN0
20GN65DH0
20GN65LN0
NXT®Model 6500 De-Icing
Air Motor
NXT®Model 6500 De-Icing
Air Motor with Sensor
NXT®Model 6500 Low
Noise Motor
1 20G15F953 Top Cover
2 20GNXT604 Cylinder
3 20GNXT602 Bottom Cover
4 20GNXT601 Piston Assembly
7 20G161562 Packing, V-block; Nitrile
8 20G15H610 Packing, Backup; Leather
9 20G16A026 Retaining Ring
10 20GNXT106 Piston Bumper, includes
Magnet
12 20GNXT100 Poppet
(Includes Item #'s: 12a-12d)
12a — O-Ring, buna-N
12b 20GNXT101 O-Ring, buna-N
12c 20GNXT101 O-Ring, Backup, buna-N
12d — O-Ring, buna-N
13 20G119050 1/2-13 x 8" Hex Head Bolt,
(203 mm)
14 20G15F639 1/2-13 Nut with Lock
Washer
15 20GNXT603 Mufer
17 20G122675 Piston O-Ring, Nitrile
18 20G15F448 End Cap O-Ring, Nitrile
20 20G119990 O-Ring, buna-N
21 20G15F931 Lift Ring
22 20GNXT110 De-Ice Exhaust Kit
(Includes Item #'s: 20, 25,
44, 56, and 57)
23 20GNXT105 Remote Exhaust Kit
(Includes items 20, 44)
24 20GNXT104 Low Noise Exhaust Kit
(Includes item #'s: 20, 22,
25, 44, 54, 55, 56, and 57)
25 20G120730 1/4-20 x 1" Machine Screw,
Hex Head, (25 mm)
41 20G120088 3/8-16 x 4" Screw (101 mm)
Item# Part# Description
43 20G120091 1/4-20 x 2" Screw, Thread
Forming, (51 mm)
44 20G120092 1/4-20 x 2-1/2" Thread
Forming Screw, (63 mm)
46 20G253476 Gasket
47 20G287844 Valve Cover, Outer
51 20G15F674 Safety Label
52 20G15F973 Safety Label
54 20G15H179 Deector
55 20G107257 1/4-20 x 1/2" Thread
Forming Screw, (13 mm)
56 20G15H190 Exhaust Seal
57 20G15K345 Gasket, buna-N
58 20G120206 Poppet Mufer
59 20G277366 Bumper
60 20G116343 Ground Screw, M5 x 0.8
61 20G111307 Lock Washer, 5 mm
62 20GNXT112 De-Ice Knob
63 20G15G689 Exhaust Diffuser
— 20GNXT600 Repair Kit NXT 6500 Air
Motor (Includes Item #'s: 7,
8, 9, 17, 18, and 46)
—209V509 Operator's Manual –
Graco®NXT®Air Motor

9
PART NUMBERS AND SCHEMATICS GUIDE
Graco®Xtreme®45:1 Airless Spray Pumps
Figure 2: NXT®Model 6500 Air Motor and Exhaust

10
PART NUMBERS AND SCHEMATICS GUIDE
Graco®Xtreme®45:1 Airless Spray Pumps
Item#
20GL290C1
20GL290C3
(No Built-In Filter)
20GL290C2
(Built-In Filter) Description
Fig. 3
1 20G24B825 20G24B825 Displacement Rod
2 20G15K031 20G15K031 Packing Nut
3 — — Stack Packings, Throat
4 — — Stack Packings, Piston
7 20G197327 20G197327 Packing Cartridge, Throat
8 20G197335 20G197337 Housing Outlet
9 20G244893 20G244893 O-Ring, Top Cylinder, PTFE Medium
(Quantity of 10)
10 20G244826 20G244826 Self-Locking Pin
11 20G197319 20G197319 Lower Cylinder
12 20G244899 20G244899 Ball Piston (Quantity of Three)
13 20G24B830 20G24B830 Piston Valve
14 20G197304 20G197304 Inlet Housing
15 20G198647 20G198647 Inlet Ball Guide
16 20G253030 20G253030 Inlet Ball (Quantity of Three)
17 20G244856 20G244856 Inlet Shim Ball Guide (Quantity of Nine)
18 20G197344 20G197344 Inlet Seat
19 20G247395 20G247395 Throat Seal Plug (Quantity of 10)
20 — 20G16M461 Top Filler Cap
21 — 20G171941 Compression Spring
22 — 20G244895 Thin Filter O-Ring, PTFE (Quantity of 10)
23 — 20G224459 Strainer, 60 mesh screen
24 — 20G186075 Filter Support
25 — 20G262484 Filter O-Ring, Medium, PTFE (Quantity of 10)
26 — 20G16M462 Lower Filter Cap
27 20G244894 20G244894 Foot Valve and Cylinder Bottom O-Ring,
PTFE thin (Quantity of 10)
30 20G172479 20G172479 Warning Tag
32 20G244891 20G244891 Throat Cartridge O-Ring, PTFE thin
(Quantity of 10)
38 — 20G158491 Nipple Fitting, Outlet, 1/2 in
39 — 20G24N518 Packless Plug, 1/2 in
40 — 20G245143 Pressure Dump Valve
41 — 20G116746 Barbed Fitting, Plated
42 — 20G116750 Nylon Tube
49 20G101754 20G198292 Pipe Plug
59 — 20G262483 Filter O-Ring, PTFE thick (Quantity of 10)
290cc Xtreme®Sprayer Lower Displacement Pump

11
PART NUMBERS AND SCHEMATICS GUIDE
Graco®Xtreme®45:1 Airless Spray Pumps
Figure 3: 290cc Xtreme®Sprayer Lower Displacement Pump

12
PART NUMBERS AND SCHEMATICS GUIDE
Graco®Xtreme®45:1 Airless Spray Pumps
Item# Part# Description
Fig. 4
— 20G24F963 Xtreme®Seal Repair Kit
(Includes Item #'s: 1 (Quantity of Two); 2 (Quantity of Two); 3 (Quantity of Four);
4 (Quantity of Six); 5 (Quantity of Four); 6 (Quantity of Two); 7, 8, 9, 10 (Quantity of Three);
and 11)
103 — Throat Packings
103a 20G244885 Male Gland (Quantity of Four)
103b 20G244879 Female Gland (Quantity of Four)
103c 20G244873 V-Packing, Leather (Quantity of 10)
103d 20G244867 V-Packing, UHMWPE (Quantity of 10)
104
104a
104b
104c
104d
—
20G244886
20G244880
20G244874
20G244868
Piston Packings
Male Gland (Quantity of Four)
Female Gland (Quantity of Four)
V-Packing, Leather (Quantity of 10)
V-Packing, UHMWPE (Quantity of 10)
109 20G244893 PTFE O-Ring, Top Cylinder Medium (Quantity of 10)
112 20G244899 Ball Piston, 1 in (25 mm) (Quantity of Three)
116 20G253030 Ball Inlet, 1-1/2 in (38 mm) (Quantity of Three)
117 20G244856 Shim Inlet, Ball Guide (Quantity of Nine)
119 20G244999 Throat Seal Plug, 1-3/4 in (Quantity of 10)
— 20G247395 Throat Seal Plug, 2-1/2 in (Quantity of 10)
122 20G244895 Filter O-Ring, Thin, PTFE (Quantity of 10)
123 20G238436 Strainer, 30 mesh screen, 5.65 in (Quantity of 25)
— 20G224458 Strainer, 30 mesh, 5.65 in (Quantity of Two)
— 20G238438 Strainer, 60 mesh, 5.65 in (Quantity of 25)
— 20G224459 Strainer, 60 mesh, 5.65 in (Quantity of Two)
125 20G262484 Filter O-Ring, Medium, PTFE (Quantity of 10)
— 20G244896 Filter O-Ring For Series A Pumps (Quantity of 10)
127 20G244894 O-Ring, PTFE, Thin (Quantity of 10)
143 20G116802 Foot Valve Spring (20G262795 only)
159 20G262483 Top Cap O-Ring, PTFE (Quantity of 10)
— 20G244895 Top Cap O-Ring For Series A Pumps (Quantity of 10)
— 209V021 Operator's Manual – Graco®Xtreme®Pump Lowers
Xtreme® Seal Repair Kit for 290cc Lower Displacement Pump

13
PART NUMBERS AND SCHEMATICS GUIDE
Graco®Xtreme®45:1 Airless Spray Pumps
Figure 4: Xtreme® Seal Repair Kit for 290cc Lower Displacement Pump
103
104

Graco®Xtreme®45:1 Airless Spray Pumps
14
PART NUMBERS AND SCHEMATICS GUIDE
14
Tuff-Stack™ Repair Kit for 290cc Lower Displacement Pump
Item# Part# Description
Fig. 5
—20G24F964 Tuff-Stack™ Repair Kit
(Includes Item #'s: 1 (Quantity of Two); 2 (Quantity of Two); 3 (Quantity of Four);
4 (Quantity of 10); 5 (Quantity of Two); 6 (Quantity of Four); 7, 8, 9 (Quantity of Three);
and 10)
103
103a
103b
103e
—
20G244885
20G244879
20G244861
Throat Packings
Male Gland (Quantity of Four)
Female Gland (Quantity of Four)
V-Packing Carbon-Filled, PTFE/UHMWPE, Blue (Quantity of 10)
104
104a
104b
104e
—
20G244886
20G244880
20G244862
Piston Packings
Male Gland (Quantity of Four)
Female Gland (Quantity of Four)
V-Packing Carbon-Filled, PTFE/UHMWPE, Blue (Quantity of 10)
109 20G244893 PTFE O-Ring, Top Cylinder Medium (Quantity of 10)
112 20G244898 Ball Piston, 7/8 in (22 mm) (Quantity of Three)
116 20G253030 Ball Inlet, 1.5 in (38 mm) (Quantity of Three)
117 20G244856 Shim Inlet, Ball Guide (Quantity of Nine)
119 20G244999 Throat Seal Plug, 1-3/4 in (Quantity of 10)
— 20G247395 Throat Seal Plug, 2-1/2 in (Quantity of 10)
122 20G244895 Filter O-Ring, Thin, PTFE (Quantity of 10)
123 20G238436 Strainer, 30 mesh screen, 5.65 in (Quantity of 25)
— 20G224458 Strainer, 30 mesh, 5.65 in (Quantity of Two)
— 20G238438 Strainer, 60 mesh, 5.65 in (Quantity of 25)
— 20G224459 Strainer, 60 mesh, 5.65 in (Quantity of Two)
125 20G262484 Filter O-Ring, Medium, PTFE (Quantity of 10)
— 20G244896 Filter O-Ring For Series A Pumps (Quantity of 10)
127 20G244894 O-Ring, PTFE, Thin (Quantity of 10)
143 20G116802 Foot Valve Spring (20G262795 only)
159 20G262483 Top Cap O-Ring, PTFE(Quantity of 10)
— 20G244895 Filter O-Ring For Series A Pumps (Quantity of 10)
— 209V021 Operator's Manual – Graco®Xtreme®Pump Lowers

15
PART NUMBERS AND SCHEMATICS GUIDE
Graco®Xtreme®45:1 Airless Spray Pumps

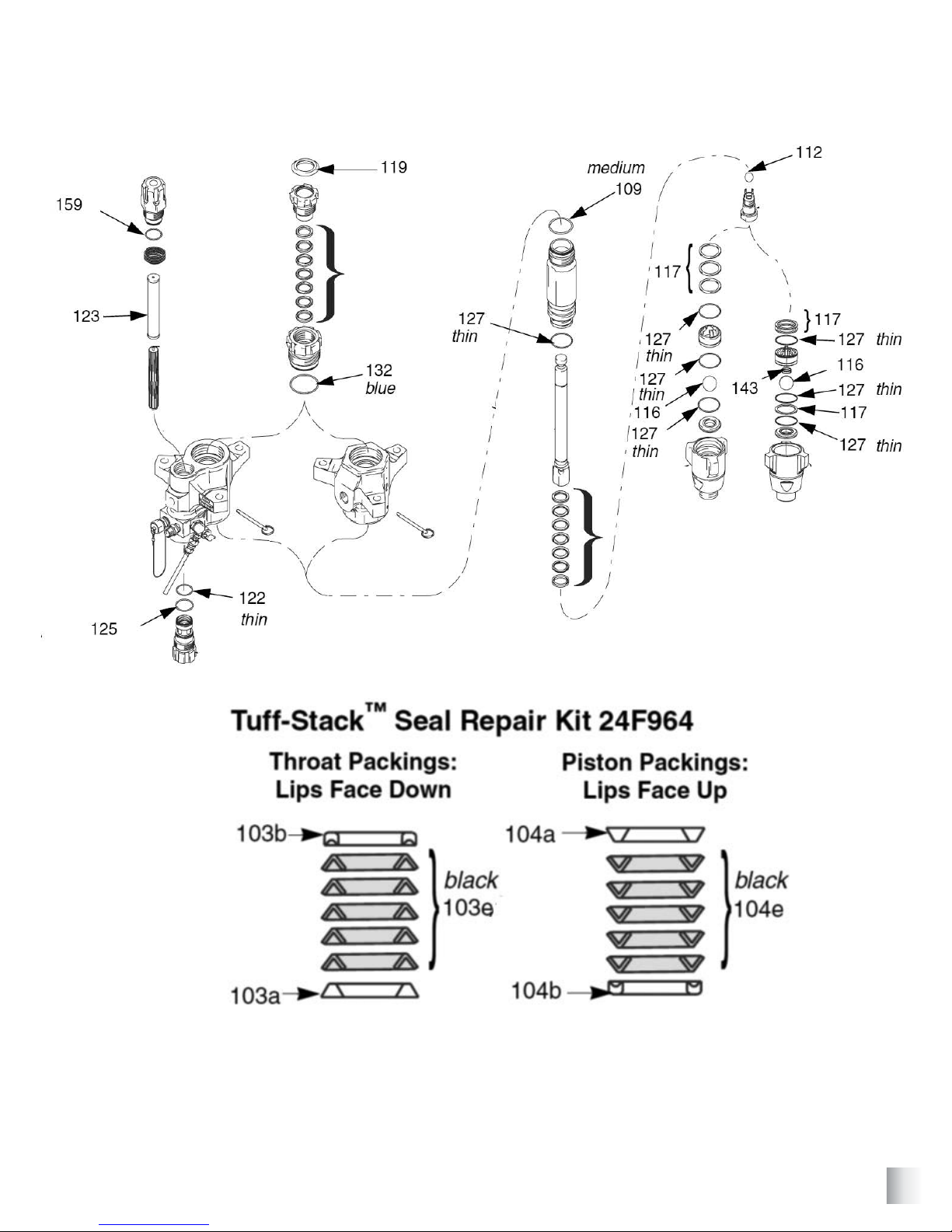

Figure 5: Tuff-Stack™ Repair Kit for 290cc Lower Displacement Pump
103
104

Graco®Xtreme®45:1 Airless Spray Pumps
16
PART NUMBERS AND SCHEMATICS GUIDE
16
X-Tuff™Repair Kit for 290cc Lower Displacement Pump
Item# Part# Description
Fig. 6
—20G262795 X-Tuff™ Repair Kit
(Includes Item #'s: 1 (Quantity of Two); 2 (Quantity of Two); 3 (Quantity of Four);
4 (Quantity of Six); 5 (Quantity of Four); 6 (Quantity of Two); 7, 8, 9, 10 (Quantity of Three);
and 11)
103
103a
103b
103c
103d
—
20G244885
20G244879
20G244861
20G244867
Throat Packings
Male Gland (Quantity of Four)
Female Gland (Quantity of Four)
V-Packing Carbon-Filled, PTFE/UHMWPE, Blue (Quantity of 10)
V-Packing, UHMWPE, Black (Quantity of 10)
104
104a
104b
104c
104d
—
20G244866
20G244880
20G244862
20G244868
Piston Packings
Male Gland (Quantity of Four)
Female Gland (Quantity of Four)
V-Packing Carbon-Filled, PTFE/UHMWPE, Blue (Quantity of 10)
V-Packing, UHMWPE, Black (Quantity of 10)
109 20G244893 PTFE O-Ring, Top Cylinder Medium (Quantity of 10)
112 20G244898 Ball Piston, 7/8 in (22 mm) (Quantity of Three)
116 20G253030 Ball Inlet, 1.5 in (38 mm) (Quantity of Three)
117 20G244856 Shim Inlet, Ball Guide (Quantity of Nine)
119 20G244999 Throat Seal Plug, 1-3/4 in (Quantity of 10)
— 20G247395 Throat Seal Plug, 2-1/2 in (Quantity of 10)
122 20G244895 Filter O-Ring, Thin, PTFE (Quantity of 10)
123 20G238436 Strainer, 30 mesh screen, 5.65 in (Quantity of 25)
— 20G224458 Strainer, 30 mesh, 5.65 in (Quantity of Two)
— 20G238438 Strainer, 60 mesh, 5.65 in (Quantity of 25)
— 20G224459 Strainer, 60 mesh, 5.65 in (Quantity of Two)
125 20G262484 Filter O-Ring, Medium, PTFE (Quantity of 10)
— 20G244896 Filter O-Ring For Series A Pumps (Quantity of 10)
127 20G244894 O-Ring, PTFE, Thin (Quantity of 10)
143 20G116802 Foot Valve Spring (20G262795 only)
159 20G262483 Top Cap O-Ring, PTFE(Quantity of 10)
— 20G244895 Filter O-Ring For Series A Pumps (Quantity of 10)
— 209V021 Operator's Manual – Graco®Xtreme®Pump Lowers

17
PART NUMBERS AND SCHEMATICS GUIDE
Graco®Xtreme®45:1 Airless Spray Pumps
Figure 6: X-Tuff™Repair Kit for 290cc Lower Displacement Pump
™
103
104

Graco®Xtreme®45:1 Airless Spray Pumps
18
PART NUMBERS AND SCHEMATICS GUIDE
18
Item# Part# Description
Fig. 7
— 20G24F975 Filter Cap Conversion Kit – Complete
20 20G16M461 Tip Filter Cap
21 20G171941 Filter Spring
22 20G244895 O-Ring PTFE Thin (Quantity of 10)
23A
23B
20G224458
20G224459
Strainer, 30 Mesh
Strainer, 60 Mesh
24 20G186075 Support
25 20G262484 O-Ring PTFE Medium (Quantity of 10)
26 20G16M462 Cap
59 20G262483 O-Ring PTFE Thick (Quantity of 10)
Filter Cap Conversion Kits for Graco®Xtreme®Lowers
Converts Series A Lowers to Series B Lowers

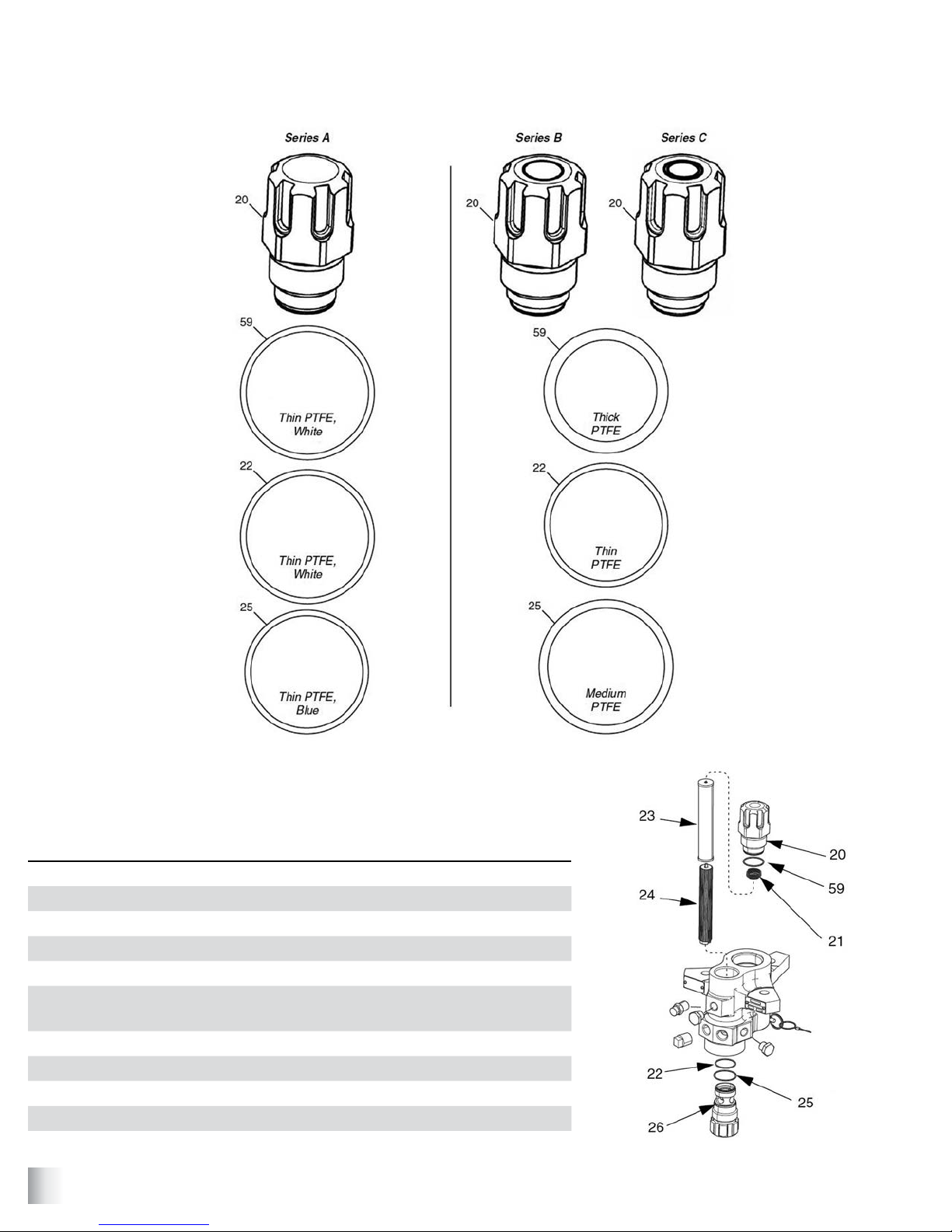

Figure 7: Filter Cap Series Key

19

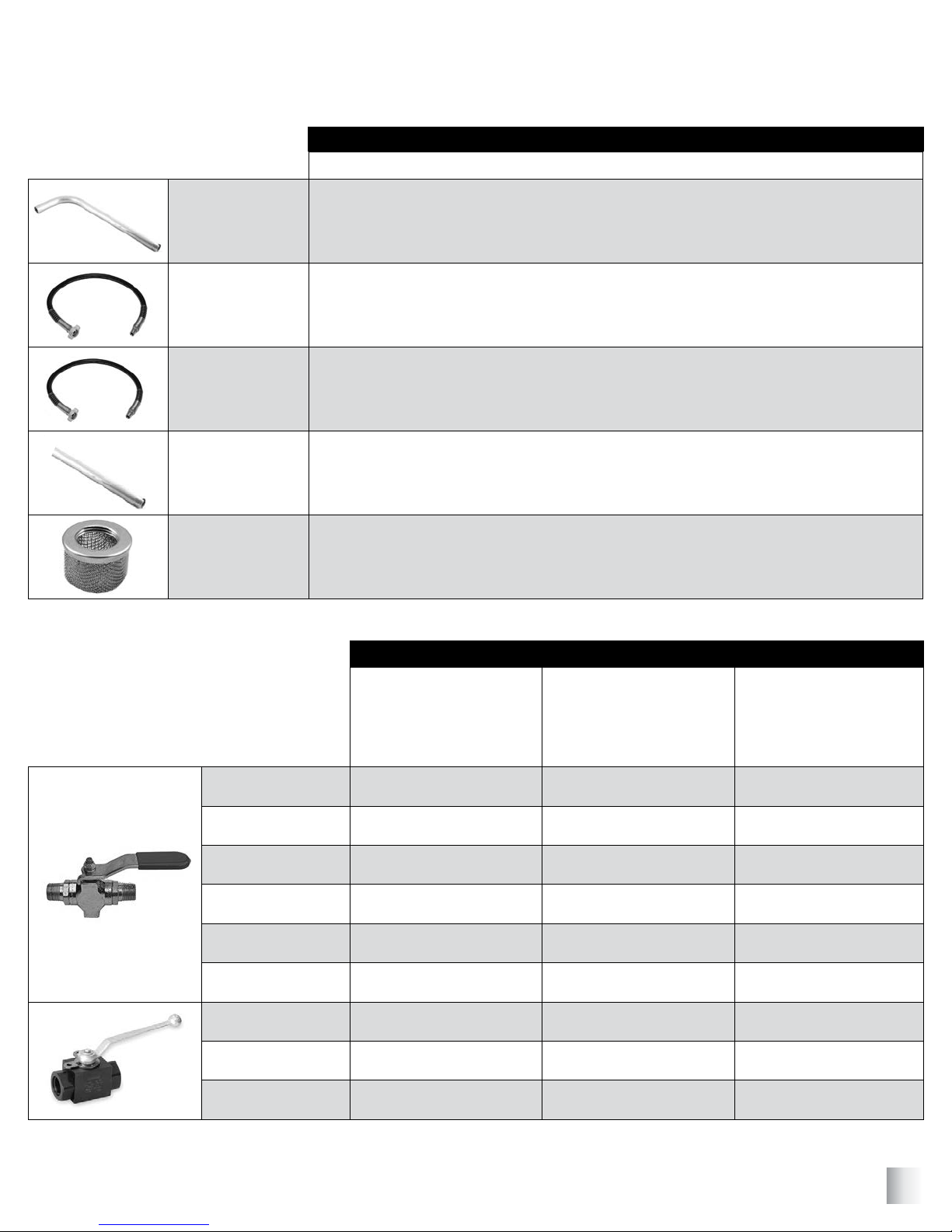

OPTIONAL ACCESSORIES
Part
Numbers
SUCTION TUBE AND ACCESSORIES
Description
20G197682 Suction Tube
20G247301 1" I.D. x 6' Suction Hose with Couplings
20G247302 1" I.D. x 10' Suction Hose with Couplings
20G245136 55 Gallon Suction Tube Extension Kit
Includes Suction Tube and Couplings
20G181072 60 Mesh Strainer for 1" Suction Tube
Graco®Xtreme®45:1 Airless Spray Pumps
HIGH PRESSURE BALL VALVES
Part
Numbers
Thread Size Seal Material Working Pressure
20G210657B 1/4" Male x 1/4" Male Viton 5,000 psi
20G210658B 3/8" Male x 3/8" Male Viton 5,000 psi
20G210659B 1/4" Male x 3/8" Male Viton 5,000 psi
20G214037 1/4" Male x 1/4" Male Teflon 5,000 psi
20G223959B 3/8" Male x 1/4" Male Teflon 5,000 psi
20G210658B 3/8" Male x 3/8" Male Teflon 5,000 psi
20DQVAE2AO14 1/4" Female x Female Nitrile 7,000 psi
20DQVAE2AO38 3/8" Female x Female Nitrile 7,000 psi
20DQVAE2AO12 1/2" Female x Female Nitrile 7,000 psi

Graco®Xtreme®45:1 Airless Spray Pumps
20
OPTIONAL ACCESSORIES
Graco®Xtreme®Airless Spray Pumps – Stainless Steel Hopper Kit
Item# Part# Description
Fig. 8
—
—
20G24X570
20G24Y402
Xtreme®Sprayer Stainless Steel Hopper Kit – Heavy-Duty Cart
Xtreme®Sprayer Stainless Steel Hopper Kit – Lightweight Cart
1 20G17E114 Hopper
2 20G17C474 Bracket
3 20G17D554 Upper Bracket
4 20G126939 90° Elbow
5 20G128095 Cam/Groove
6 20G17C692 Cam/Groove Fitting, 1.5m, 1-1/2" NPT
7 20G128094 Bushing
8 20G112395 Flanges Cap Screw – HD (Quantity of Four)
9 20G112958 Nut (Quantity of Four)
10 20G17C453 Gasket
12 20G15M987 1/2" NPT (M) x 1/2" NPT (F) 60° Elbow
— 20G110110 6 ml Stainless Steel Pipe Sealant
— 20G16U537 Lid
