Mark BEAM 190 User manual

v. 14.02.01
User Manual / Instrucciones de Usuario
BEAM 190

Item
Item ............................................................................................................................................. 2
1.Product introduce ................................................................................................................ 3
1.1 Fixture Size ........................................................................................................................4
2.Safety information ......................................................................................................... …..5
2.1 Anti-high temperature .................................................................................................... ...6
2.2 Burst Prevention .................................................................................................................6
.
2.3 To prevent falling wounding ...............................................................................................6
2.4 UV protection and the bulb explosion ..............................................................................6
2.5 Prevention of electric shock ................................................................................................ 6
2.6 to prevent burning or fire ......................................................................................................6
3.Packing and shipping .............................................................................................................7
3.1 packaging randomized accessories project .............................................................................7
3.2 transport the protection locks. ................................................................................................ 7
3.3 device packaging ................................................................................................................. ...7
3.4 Unpacking. ............................................................................................................................. 7
4.Installation standards ................................................................................................. …...8
4.1 device fixed to the bracket ......................................................................................................8
4.2 rigging installation ................................................................................................................. 8
4.3 connected devices .................................................................................................................. 8
5.AC power........................................................................................................................... ……9
5.1 Fuse......................................................................................................................................8
5.2 Power connection ................................................................................................................8
6.Lamp......................................... ....................................................................................………10
6.1Bulb Description ....................................................................................................................10
6.2 changing a light bulb .......................................................................................................... ..10
7.Channels................................................................................................................. ..........……12
8. Clear and Maintenance…………................................……...........................…..………..15

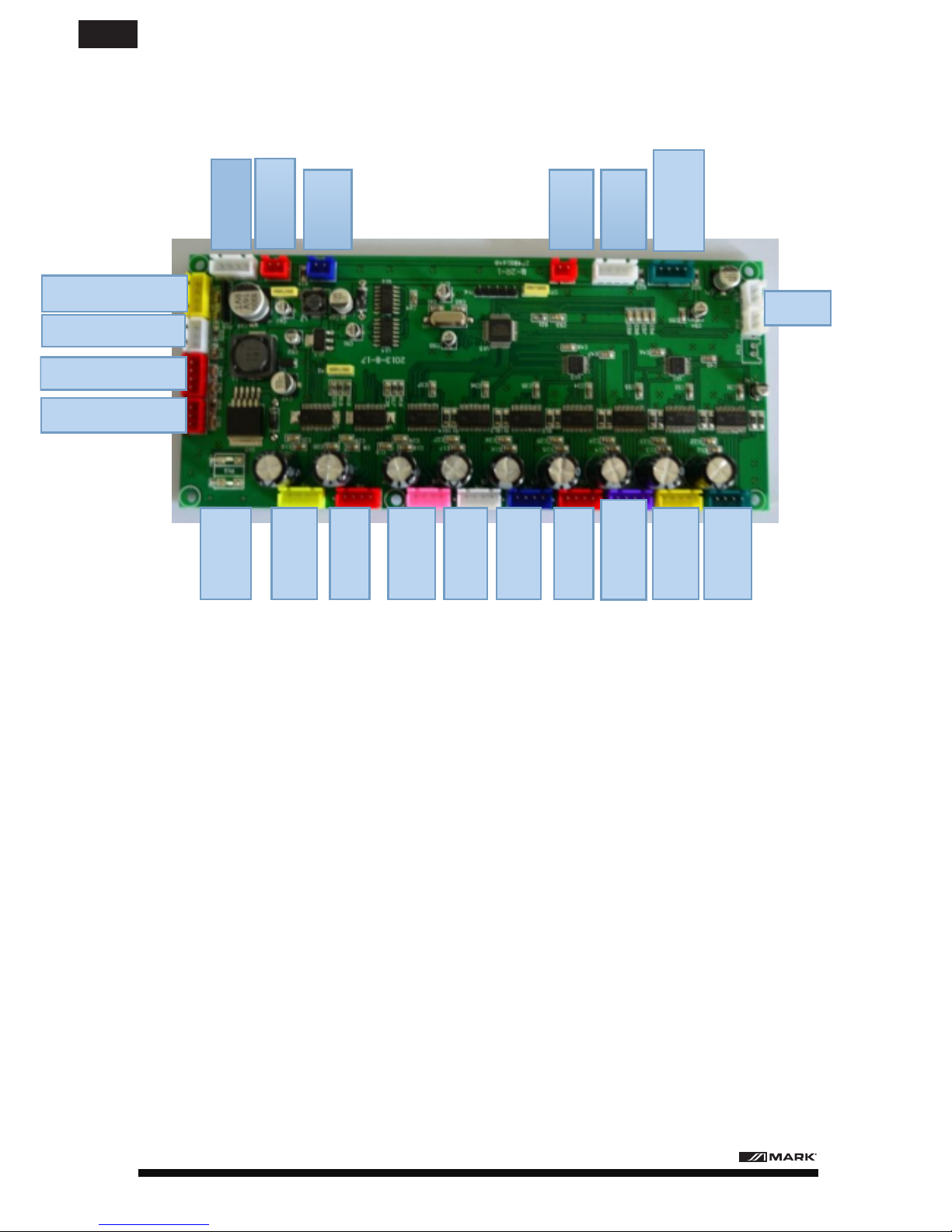

9. PCB Board….......................………................................……...........................…..………..16
BEAM 190 User Manual/Manual de uso Pag 2
EN

STATEMENT
The product is good packing when ship out the factory. All users should strictly abide by the
warnings and instructions stated in this manual, any damage and results due to misuse and the
neglect of this operating manual will be excluded from the deal responsibility this manual will not
informed in additionally if have technical changes.
PRODUCT DESCRIPTION
Thank you for choose this BEAM 190 products, this model is the moving head light which is the
latest development of the smart, efficient products, beautiful shape, smooth R & D, combined with
the advanced technology of today's stage lighting products with international advanced electronic
control technology and excellent user-friendly industrial design , fully comply with CE standard,
accepted international standard DMX512 signal mode.
This moving head lights, use ceramic luminescent film reflector as a condenser system, coupled
with the high-quality optical lens components, broadband voltage, a clear pattern, sharp and
uniform output light efficiency. Intelligent LED display module, the English language selection
mode, intuitive operating menu, shortcut.
This Beam spot, have 16/20 international standard DMX512 channels optional Horizontal scan:
540 ° vertical scanning 270 ° (16bit precision scanning) electronic correction,
LCD display, can be
inverted 180 °, the color wheel is combined with white and 14 colors. Gobo wheel: 17 patterns +
white effect round by 8 facet prism and atomization function. 0 -100% mechanical dimmer,
support mechanical strobe and variable strobe effect, strobe macro function. The optical system of
the lens group electric focusing, the beam angle of 0 to 4° with overheating protection function.
This Moving head lights are widely used in television, disco, dance halls, nightclubs,
performances and other professional venues
BEAM 190 User Manual/Manual de uso Pag 3
EN

1. PRODUCT INTRODUCE

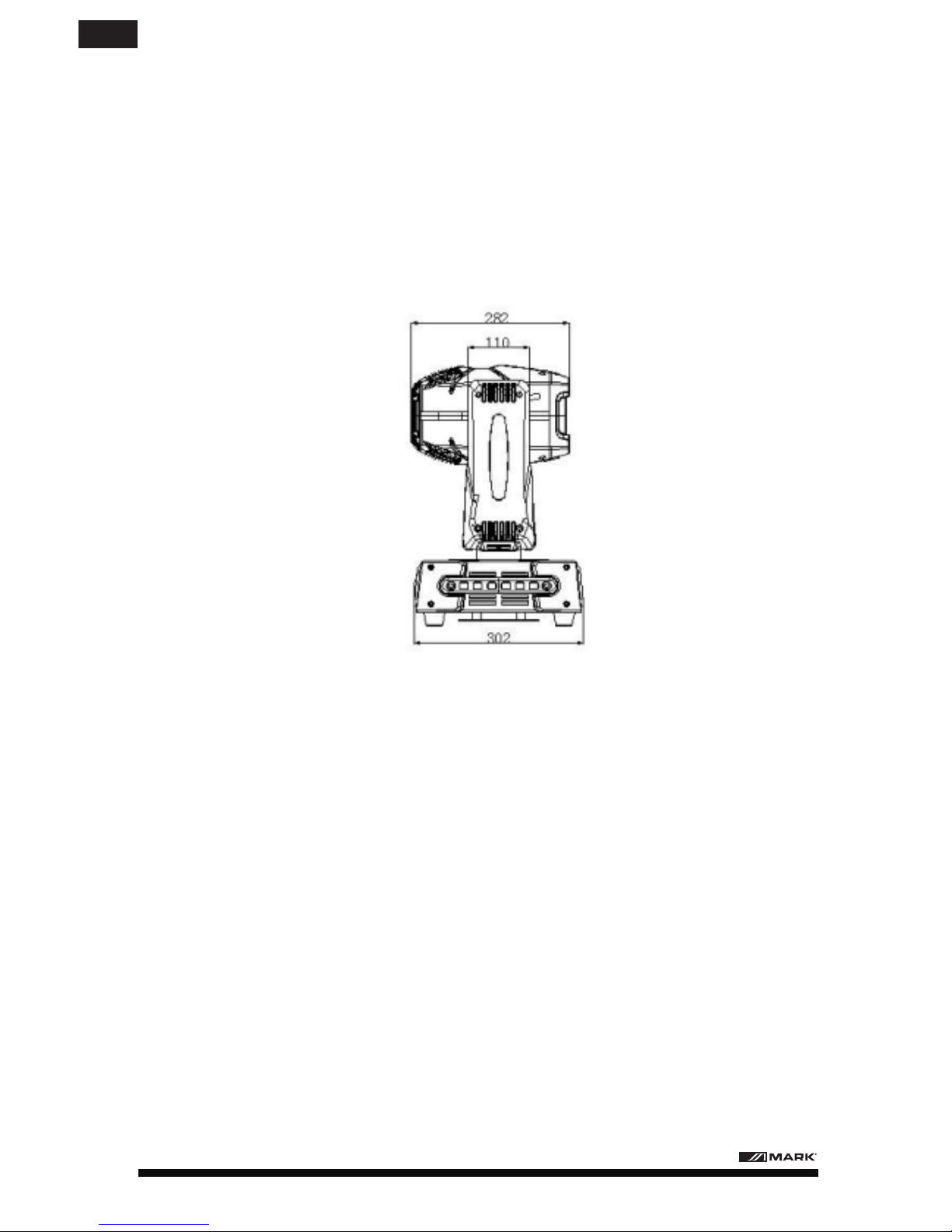

1.1 FIXTURE DIMENSIONS
Size：：302×346×502mm
Gross Weight：18.2KG
Net weight：15KG
BEAM 190 User Manual/Manual de uso Pag 4
EN

2. SAFETY INFORMATION
Safety warning:
This product is only suitable for professional use, and does not apply to security for other purposes.
After you got the lights, please check the package whether have any damage caused by
transportation. If there is any damage, do not use this fixture, and please contact the dealer or
manufacturer as soon as possible.
This product is only suitable for indoor, IP20 protection class. Lamps should be kept dry to avoid
Moisture, overheating or dusty environment. Prevent lamps come into contact with water or any
other liquid.
The use of this product should pay attention to: fire, heat, electric shock, ultraviolet radiation, the
lamp to explode or
Shedding caused serious or fatal injury.
Need to read the instructions before use energized or installing.
Follow through the operation of security methods and pay attention to the warning signs on the
specification and equipment. If you have any problem for how to safely operate the equipment.
Please contact your dealer.
BEAM 190 User Manual/Manual de uso Pag 5
EN

2.1 ANTI -HIGH TEMPERATURE
ta =40°C
Please don’t use the equipment if the temperature above 40℃
2.2 BURST PREVENTION
The lens should be changed if had damaged or any problems. Don’t change the
non-original manufacturer lens.
Len size: ￠119mm×23mm
2.3 TO PREVENT FALLING WOUNDING
Please don’t move the package by one person only.
When Hang the fixture, please must verify that the facilities to be able to withstand
the weight of the lamps at least 10 times more.
Please make sure the Mounting hardware is strong enough no any damage, and
insurance for the safety rope as auxiliary security fixed in other facilities will need to
verify before installation. Installing or removing the equipment, to make the pulley
below the work location
2.4 UV PROTECTION AND THE BULB EXPLOSION
Prohibit straight viewpoint with exposed bulbs to avoid UV damage to the eyes;
Do not use the equipment without the lens screen and the lid;
The lens and the light head covers should be timely replaced if any damage to rupture
The Fixture should be used with the protection screen together.
2.5 PREVENTION OF ELECTIC SHOCK
The electrical connection must only be carried out with corresponding qualifications;
Before installing, make sure you use the power voltage lamps must comply with the identified
power, voltage and have an overload or leakage protection;
Each lamp must be properly grounded, installed in accordance with the relevant standards;
Cut off the power when stall or replace the lamp and the fuse;
Prohibit the use of a lightning storm or wet environment.
2.6 TO PREVENT BURNING OR FIRE
1,The fixture can be mounted directly on the surface of ordinary combustible material.
2. Do not short-circuit temperature protection switch or fuse, use the specified type of fuse .
3. The equipment must be installed away from inflammable and explosive materials.
4. The equipment should be projected range of 3 meters away objects and projectiles temperature
less than 60 ° C; .
BEAM 190 User Manual/Manual de uso Pag 6
EN

5. Fan or ventilation, at least in the range of 0.5 meters can not be an obstacle.
6. Do not place any object on the lens.
7. Handling at least allow the device to cool for 20 minutes.
8. Do not replace the non-original parts.
3. PACKAGE
3.1 ATTACHMEN T
BEAM 190 packed with fly-case of one in one ,two in one ,or carton box.
Attach follow accessory.
ACCESSORY
CONTENT QUANTITY
USER MANUL 1 piece
HANG FIXTURE 2 pcs
SIGNAL CABLE 1 piece
PACAKGE SIZE
CARTON BOX 37×42×56cm
FLY-CASE 1 IN 1 44×47×72cm
FLY-CASE 2 IN 1 82×47×72cm
3.2 TRANSPORT PROTECT LOCK
In order to protect the light, there is a protect lock; During the transport , the lock will closed
keeping the item in safety state.
3.3 ABOUT PACK STAGE
1. Before packed, make sure power is off, and wait for at least 20mins for cooling down.
2. Before clean the fixture, make sure X, Y axis protect lock closed.
3. After packed by plastic bag, highlift the fixture with two handles besides the product. put
the product into the fly-case up-side-down.
4. After packed the product, put the accessory into the accessory case, then closed and lock the
fly-case.
5. Fly-case only up stacked two layers. Prohibited upside down
6. When packed with carton box, equipment should be put into the foam first, then set into a
carton, pay attention to the vertical position.
3.4 UNPACKING
Note: Before unpacking check the damage is whether due to the transportation or not, if you
find any such damage, please do not use this item, and contact with the dealer or manufacturer as
soon as possible.
1. Open the flycase, and discover the inside plastic bag.
2. High-lift the product by two handles beside the bottom base and move it out.
BEAM 190 User Manual/Manual de uso Pag 7
EN

3. Before power on, make sure you have opened the X, Y axis lock!
4、INSTALL STRANDARD
4.1 INSTALL LOCK
BEAM 190 can be placed on the stage, or mounted in an arbitrary direction of the truss. Two fast
locks system could fix the item easily .
4.2 EQUIPMENT FIXED
1. Before installation must verify the fast lock is keep in good state, and can withstand at
least 10 times the weight of product. Verify that the building can withstand at least 10
times of the total weight of the product and accessory equipments.
2. Fix the hang fixture into the hole, which located on the base of the price.
Seize handle of fasteners, clockwise rotate 1/4 turn and lock. Installed other one fastener
in the same method.
3. Using the safety cable which can withstand 10 times the weight of the equipment.
4. Make sure the X,Y protect locks are opened,
Verify that within 3 meters there is no
combustibles .
WARNING
Fixture must use two fixing devices, and make sure the fixing device have locked! And only
fully clockwise rotate 90 ° can lock the hang fixture! Do remember plus a safety rope, and
do not connect the safety rope to plastic handle. It should be connect to the hole on the base!
4.3 FIXTURE CONNECT
Attention! One product only can accept one input one output.
BEAM 190 DMX cable include 3 contact pins:
Pin 1, FOR GROUND; Pin 2 connected to the negative polarity signal; The pin 3
connected to the positive polarity signal.
DMX512 cable must use the professional shielded twisted pair cable; standard
loudspeaker cable is not reliable to control the long-range data. 24AWG cable is
suitable for more than 300 meters long-distance signal transmission and must add\
DMX 512 signal amplifier.
Do not use two outputs to separate the connection, if separate a continuous connection
to branch, DMX512 splitter is necessary.
If use the DMX512 splitter. At first connect DMX512 Splitter input terminal to
controller .And then connected from the splitter output terminal to next device.
BEAM 190 User Manual/Manual de uso Pag 8
EN

Do as above guide to connect other device, and finally coupled with terminal insertion
as following:
5、 ALTERNATING CURRENT POWER SUPPLY
5.1 VOLTAGE, POWER, FUSE SPECIFICATION
Input Voltage Total Power Frequency
110~240V 350W 50/60Hz
Fuse voltage Electronic current Specification
250V 6A 5×20
5.2 POWER PROTECT
The equipment must be operated by professionals;
Make sure that the voltage of
power supply must be comply with the voltage identified on the lamp, and must have
an overload or leakage electrical protection.
ATTENTION!
Factory has equipped the standard 3 pin plug socket. Connect the power supply as
below table.
If lamp cable is damaged, replacement should be operate by factory or qualified staff.
Any question, please contact professionals or talk to a qualified electrician.
Live wire(L) Null(N) Ground wire
RED BLUE Yellow +Green
BEAM 190 User Manual/Manual de uso Pag 9
EN

6、LAMP
6.1 LAMP DESCRIPTION
LAMP MODEL POWER OF LAMP
LIFE/HOUR
COLOR
TEMPERATURE
PHILIPS MSD 132W 6000 HOURS 9300K
OSRAM HRI 132W 6000 HOURS 9300K
YODN MSD 132W 6000 HOURS 9300K
WARNING!
There is a safety hazard or damage if install similar bulb To reduce the risk
of damage to light
,do change the lamp before using time over 90% of lamp
life .

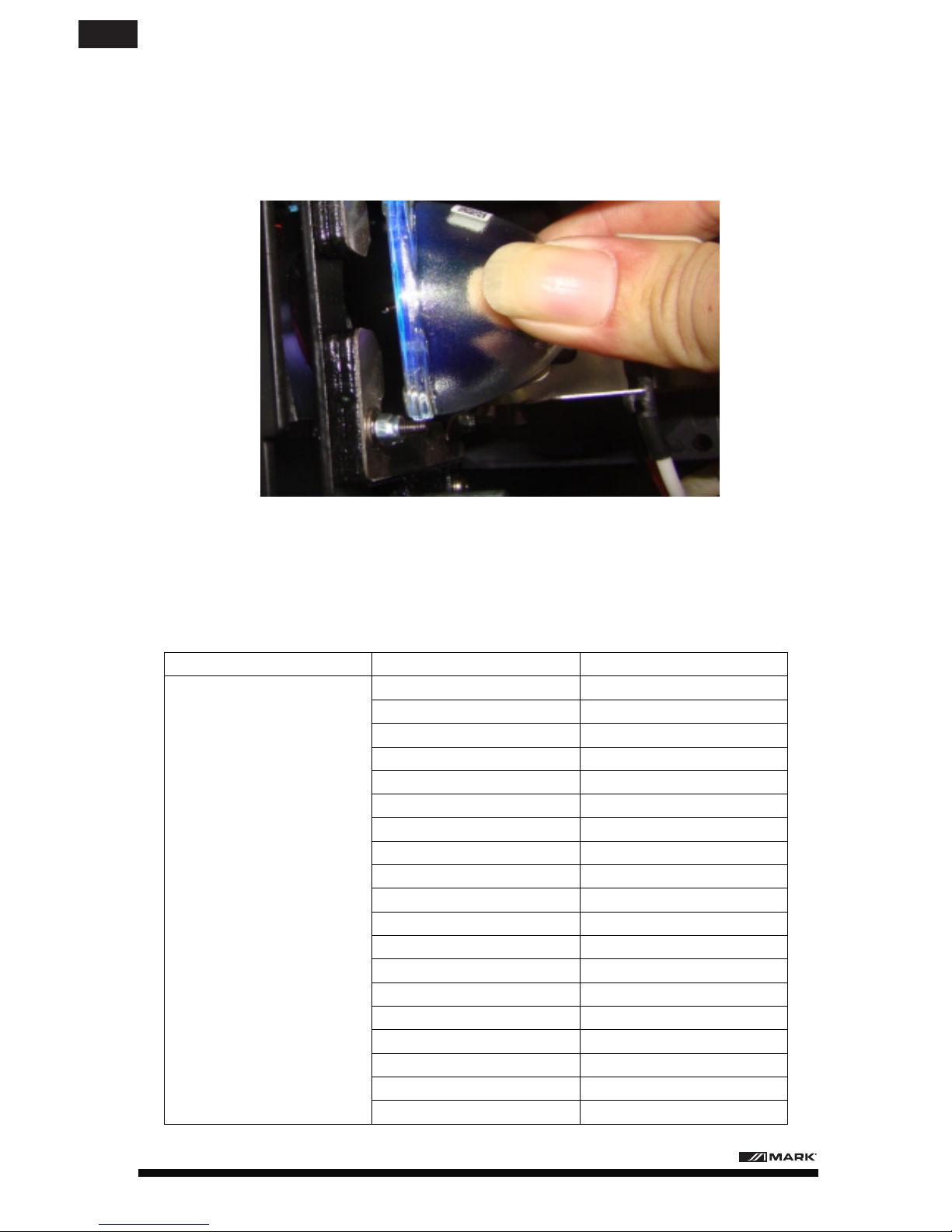

6.2 LAMP REPLACE
Attention! When replace the lamp is forbidden to touch lamp with bare hand, to
avoid the greasy dirt stains filament. filament must be kept clean
1. Disconnect the power. Before replace lamp, fixture need 20 minutes for lamp
cooling. Fasten the head with Y axis protect lock in 60 ° position.
2, Use cross screwdriver to open
the light body cover, remove the fan bracket,
pull out the bulb cable as this picture show:
BEAM 190 User Manual/Manual de uso Pag 10
EN

3. Please loose the connect wire as the following.
4. Please loose the screws installed in the metal pieces as following.
BEAM 190 User Manual/Manual de uso Pag 11
EN

5. Press the lamp reflector slightly use one finger, and press the lamp bottom slightly use another
finger. So the lamp will loose from the stand.
6, Repeat the above steps on the contrary action to install the lamp.
7. CHANNELS
Channels DMX value Detail
1CH Color
0~4 White
5~8 White＋Color 1
9~12 White 1
13~17 Color 1＋Color 2
18~21 Color 2
22~25 Color 2＋Color 3
26~29 Color 3
30~34 Color 3＋Color 4
35~38 Color 4
39~42 Color 4＋Color 5
43~46 Color 5
47~51 Color 5＋Color 6
52~55 Color 6
56~59 Color 6＋Color 7
60~63 Color 7
64~68 Color 7＋Color 8
69~72 Color 8
73~76 Color 8＋Color 9
77~81 Color 9
BEAM 190 User Manual/Manual de uso Pag 12
EN

82~85 Color 9＋Color 10
86~89 Color 10
90~93 Color 10＋Color 11
94~98 Color 11
99~102 Color 11＋Color 12
103~106 Color 12
107~110 Color 12＋Color 13
111~115 Color 13
116~119 Color 13＋Color 14
120~123 Color 14
124~127 Color 14＋Color 15
128~192 Color change from fast to slow
193~255 Color change from slow to fast
2CH Strobe
0~3 Close
4~103 Slow strobe to fast strobe
104~107 White
108~207 Fast strobe to slow strobe
208~212 White
213~225 Random slow strobe
226~138 Random medium strobe
239~251 Random fast strobe
252~255 White
3CH Dimmer 0~255 0~100% Linear
4CH Gobo
0~3 White
4~7 Gobo 1
8~11 Gobo 2
12~15 Gobo 3
16~19 Gobo 4
20~23 Gobo 5
24~27 Gobo 6
28~31 Gobo 7
32~35 Gobo 8
36~39 Gobo 9
40~43 Gobo 10
44~47 Gobo 11
48~51 Gobo 12
52~55 Gobo 13
56~59 Gobo 14
60~63 Gobo 15
64~67 Gobo 16
68~71 Gobo 17
72~113 Gobo change from fast to slow
114~117 Stop
BEAM 190 User Manual/Manual de uso Pag 13
EN

118~159 Gobo change from slow to fast
160~166 Gobo 2 shaking from slow to
fast
167~172 Gobo 3 shaking from slow to
fast
173~179 Gobo 4 shaking from slow to
fast
180~185 Gobo 5 shaking from slow to
fast
186~191 Gobo 6 shaking from slow to
fast
192~198 Gobo 7 shaking from slow to
fast
199~204 Gobo 8 shaking from slow to
fast
205~211 Gobo 9 shaking from slow to
fast
212~217 Gobo 10 shaking from slow to
fast
218~223 Gobo 11 shaking from slow to
fast
224~230 Gobo 12 shaking from slow to
fast
231~236 Gobo 13 shaking from slow to
fast
237~243 Gobo14 shaking from slow to
fast
244~249 Gobo 15 shaking from slow to
fast15
250~255 Gobo 16 shaking from slow to
fast
5CH Prism
0~127 White
128~255 Prism insert
6CH Prism Rotation
0~20 Angle 0
21~41 Angle 90
42~62 Angle 180
63~83 Angle 270
84~104 Angle 360
105~126 Angle 450
127 Angle 540
128~190 Fast to slow Rotation
191~192 Stop
193~255 Slow to fast rotation
BEAM 190 User Manual/Manual de uso Pag 14
EN

7CH Prism
0-14 white
15-32 Effect 1
33-46 Effect 2
47-63 Effect 3
64-79 Effect 4
80-95 Effect 5
95-110 Effect 6
111-125 Effect 7
126-145 Effect 8
146-159 Effect 9
160-175 Effect 10
176-190 Effect 11
191-205 Effect 12
206-220 Effect 13
221-255 Effect 14
8CH reserve
9CH Focus 0~255 0~100% Linear focus
10CH Pan 0~255 540°
11CH Pan fine 0~255 1.8°
12CH Tilt 0~255 270°
13CH Tilt fine 0~255 1.8°
14CH Macro 0~11
15CH Reset 128 Reset
16CH Lamp
63 Lamp off
178 Lamp on
8. CLEAR AND MAINTENANCE
Warning: Please make sure cut off the power before open the covers.
( Kind Remind: Non-Professional don’t do this)
1、 Cut off the power supply, cool down the lamp and open the covers.
2、 Using vacuum or pressure blows gently blow any dust and floating structures.
BEAM 190 User Manual/Manual de uso Pag 15
EN

9. PCB BOARD
Fan
Color Gobo
Prism rotate
Frost Prism Focus Shutter PAN Tilt 26V power
Color testing
Focus Thermost at DMX IN
Thermostat
Fan
Tilt Optical sensor
Tilt Magnetic sensor
PanOptical Sensor
Pan Magnetic sensor
BEAM 190 User Manual/Manual de uso Pag 16
EN

MENU
INTRODUCCIÓN...................................................................................................... 18
1. DESCRICIÓN DEL PRODUCTO................................................................................................. 18
1.1 MEDIDAS...............................................................................................................................19
2. INFORMACIÓN DE SEGURIDAD............................................................................................. 19
2.1 ALTA TEMPERATURA.............................................................................................................20
2.2 CAMBIO DE LENTES...............................................................................................................20
.
2.3 PREVENGA CAIDAS….............................................................................................................20
2.4 PROTECCIÓN UV Y EXPLOSIÓN DE LÁMPARA........................................................................21
2.5 PREVENCIÓN DE CHOQUE ELÉCTRICO ..................................................................................21
2.6 PREVENGA QUEMADURAS O FUEGO....................................................................................21
3. EMPAQUE Y TRASLADO..........................................................................................................21
3.1 ACCESORIOS …………………………................................................................................................21
3.2 SEGURO DE MOVIMIENTO PARA TRANSPORTE. .....................................................................21
3.3 DESEMPACADO. …...................................................................................................................22
3.4 GUARDADO DEL EQUIPO.........................................................................................................22
4. INSTALACION ESTANDAR…...............................................................................................…...22
4.1 INSTALACIÓN DE BRACKETS....................................................................................................22
4.2 RIGGING................................................................................................................................ 22
4.3 CONEXION............................................................................................................................. 22
5. ALIMENTACION DE CORRIENTE. .....................................................................................……23
5.1 ESPECIFICACIONES ELÉCTRICAS…............................................................................................23
5.2 CONEXION DE CA....................................................................................................................23
6. LAMPARA. .......................................................................................................................….….…24
6.1 REEMPLAZO DE LAMPARA......................................................................................................24
7. MENU DISPLAY ................................................................................................. ..........……26
8. LISTA DE CANALES DMX..................................................................................................……28
9. ESPECIFICACIONES TÉCNICAS………….........................................................................………. 31
9. LIMPIEZA Y MANTENIMIENTO………….......................................................................………. 31
BEAM 190 User Manual/Manual de uso Pag 17
ES

INTRODUCCIÓN
Para optimizar la eficiencia de este producto, por favor lea cuidadosamente este
manual de operación para familiarizarse con las operaciones básicas de su unidad.
Estas instrucciones contienen información de seguridad importante con relación al
uso y mantenimiento del producto.
1. DESCRIPCIÓN DEL PRODUCTO
Gracias por comprar productos de Iluminación Lite Tek. Cada producto ha sido
probado a fondo y enviado en perfectas condiciones de operación. Cheque
cuidadosamente que la caja de cartón donde se envía, no presente daños, esto
puede haber ocurrido durante su transporte. Si el cartón aparece dañado
inspeccione cuidadosamente su equipo por cualquier alteración y asegúrese que
todos los accesorios necesarios para operar la unidad han llegado intactos.
El BEAM 190 es una cabeza móvil inteligente. Es operado vía control DMX, y también
puede trabajar solo, manual y automáticamente.
No hay partes útiles dentro de la unidad. No intente repararlo usted mismo; si lo
hace, perderá la garantía. En el improbable caso de que su unidad requiera servicio,
por favor contacte con su distribuidor autorizado o con el fabricante.
POR FAVOR RECICLE LA ENVOLTURA DE CARTÓN LO MÁS POSIBLE
BEAM 190 User Manual/Manual de uso Pag 18
ES

1.1 MEDIDAS
Tamaño：：302×346×502mm
Peso Empacado：18.2KG
Peso del equipo：15KG
2. INFORMACIÓN DE SEGURIDAD
Personal Calificado debe ser quien transporte, acarree, instale y opere este
equipo, pero deben referirse a las instrucciones de este manual.
No intente operar esta unidad si el cable de alimentación presenta daños o
está roto. no intente remover o romper la punta de tierra física del cable de
alimentación de voltaje. esta punta es para reducir el riesgo de un choque
eléctrico o fuego en caso de un corto interno.
No remueva la tapa bajo ninguna circunstancia. No hay partes útiles dentro.
Nunca opere su unidad si la cubierta es removida.
Nunca conecte esta unidad a un dimmer.
Siempre asegúrese de utilizar esta unidad en áreas donde le permita la
ventilación adecuada, por lo menos 50 cm. de una pared.
No intente operar la unidad si está dañada.
Durante largos periodos de desuso, desconéctela de la alimentación de
voltaje.
BEAM 190 User Manual/Manual de uso Pag 19
ES

Los cables que conectan la unidad podrían ser dañados si se encuentran en el
paso de personas o vehículos.
Tenga cuidado de reiniciar 5 minutos después de apagar la lámpara. El
apagado y encendido de la lámpara con mucha frecuencia reduce la vida útil
de la lámpara.
El equipo podría necesitar servicio por personal calificado cuando:
1. El cable de alimentación eléctrica o la clavija ha sido dañada
2. El equipo ha sufrido una caída o ha sido salpicado con algún
líquido o ha sido expuesto a lluvia o humedad extrema.
3. El equipo no funciona normalmente o presenta un marcado
cambio en su funcionamiento.
Asegúrese de transportar el equipo en condiciones seguras para q no sufra
daño durante la misma.
No cargue el equipo solo de la cabeza, podría sufrir daños mecánicos
No exponga el equipo a calor excesivo, humedad y ambientes con mucho
polvo.
Guarde el empaque original si necesita enviarlo alguna vez.
No trate de hacerle cambios físicos sin la instrucción ni la supervisión de
personal calificado.
La garantía se perderá si el equipo no es operado según el manual, como
indicios de corto circuito, golpes por caída o si presenta alguna
2.1 ALTA TEMPERATURA
ta =40°C
POR FAVOR NO USE EL EQUIPO SI LA TEMPERATURA AMBIENTE EXCEDE LOS 40 ℃
2.2 CAMBIO DE LENTES
Los lentes podrían necesitar ser cambiados si son dañados o tienen algún problema,
Cámbielos solamente por el lente original.
Medidas del lente: ￠119mm×23mm
2.3 PREVENGA CAIDAS
Por favor no mueva la caja una sola persona, el estuche es muy pesado.
Cuando cuelgue un equipo, por favor verifique que será soportado por el accesorio
de montaje, truss o stand, y que no esté dañado. Así como el resto de los accesorios
de rigging.
BEAM 190 User Manual/Manual de uso Pag 20
ES
