2 Safety instructions
Please read these instructions thoroughly before you use the
device and keep them for future reference.
•Only for indoor use.
•Do not use the product in a damp environment or near water.
•Do not expose the product to extremely high or low
temperatures, strong light sources or direct sunlight.
•This product is not a toy. Keep out of reach of children.
•Never open the product: the device may contain parts with
deadly voltage.
•Repairs or service should only be performed by qualified
personnel.
•Improper use, self-installed modifications or repairs will void
any and all warranties.
•Marmitek does not accept any product responsibility for
incorrect use of the product or use other than for which the
product is intended.
•Marmitek does not accept liability for any consequential
damage other than the legal product responsibility.

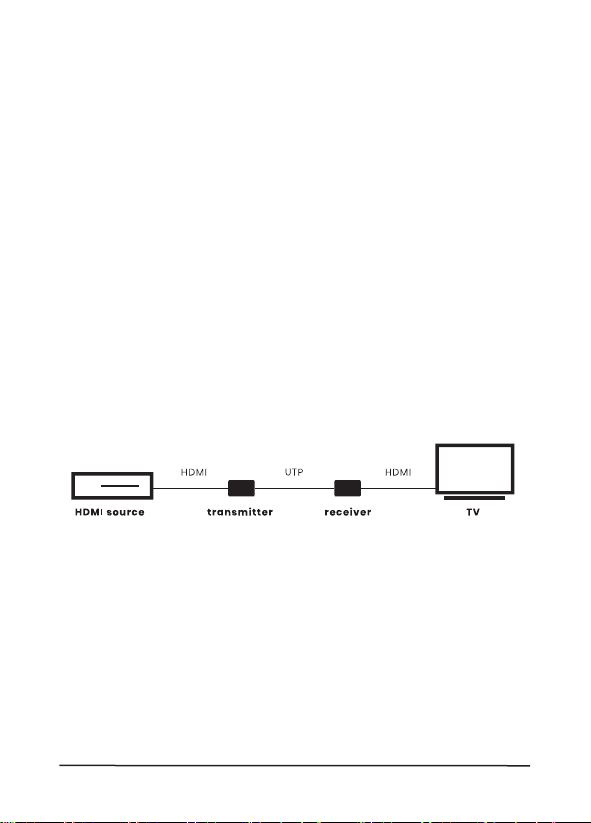

3 Your product
3.1 Introduction
Congratulations on your purchase of the Marmitek MegaView
63™. The MegaView 63™ provides a simple way to extend an
HDMI or DVI signal over a single networking cable. Extend your
HDMI cable up to 40 metres over a single networking cable!
Supports 1080p Full HD and 3D resolutions, without compression!
Watch TV programmes or films and view photos from, for
example, your digital TV decoder, media center PC or Blu-ray
player anywhere in your home on your TV or projector, in HD
quality. All our products are designed and manufactured to the
highest quality requirements.

MegaView 63™
5
ENGLISH
3.2 Benefits
•Supports 1080p Full HD and 3D resolutions, without
compression.
•Built-in Power over Cable (PoC) technology eliminates the
need for a power socket for the MegaView receiver near the
TV. (MV241)
•The MegaView transmitter is USB powered via the connected
HDMI source.
•Supports HDCP and is fully compatible with all HDMI
versions.

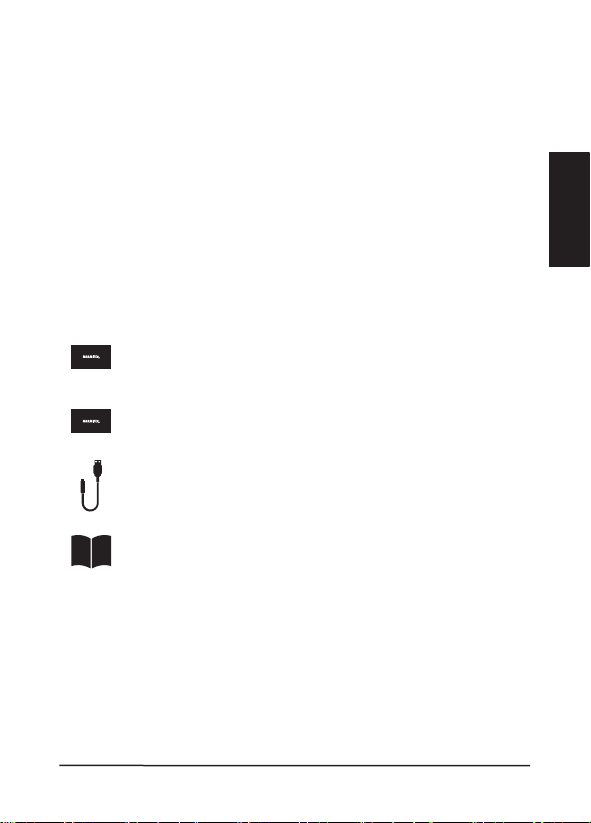

3.3 Package contents
1 x transmitter (HD transmitter)
1 x receiver (HD receiver)
1 x Micro USB-to-USB cable
1 x user manual

© MARMITEK
6
4 Getting started
4.1 Installation tips
•First, switch off all devices (TV and HDMI sources) before
connecting them to the MegaView 63™. If a device cannot be
turned off, please remove its plug from the wall socket.
•For the best picture and sound quality, only use High Speed
HDMI® certified cables.
•Please be careful when connecting your HDMI cables. These
can damage easily.
4.2 Requirements CAT5e/6 cable
•UTP, FTP or STP cable
•24AWG or lower
•Solid twisted pair
•100 ohm at 1 MHz
•RJ-45 connection according to EIA/TIA T568B standard
Please note! The CAT6 cable has better specifications than the
CAT5e, often making it possible to work with longer cable lengths.
To optimise transmission quality, use solid twisted pair CAT5e or
CAT6 cables.
4.3 Installing the transmitter and receiver

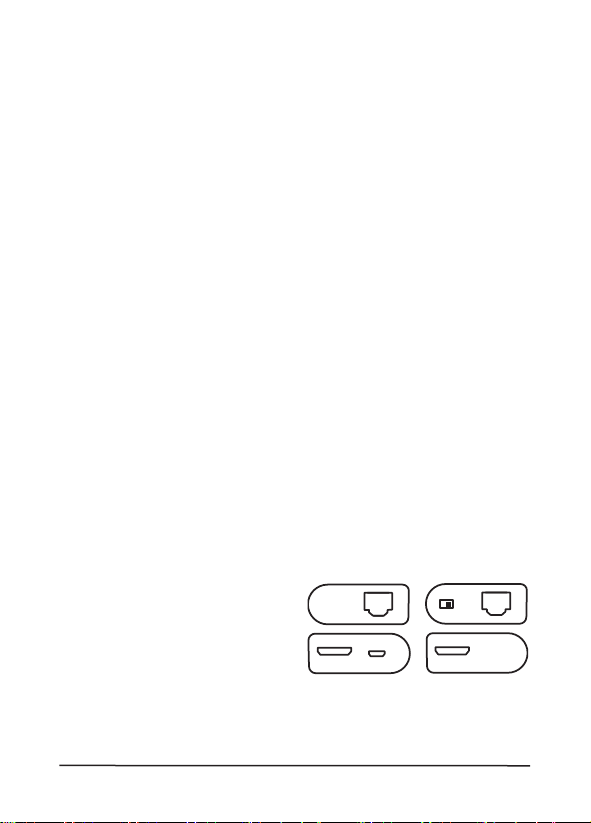

1. CAT5e/6
2. HDMI input
3. 5V DC micro USB power
4. Signal strength (equalizer)
5. HDMI output
In order to check proper functioning of the system, it is advisable
to test the set-up first using a short CAT5e/6 cable length.
transmitter receiver
1 1
4
2 3 5

MegaView 63™
7
ENGLISH

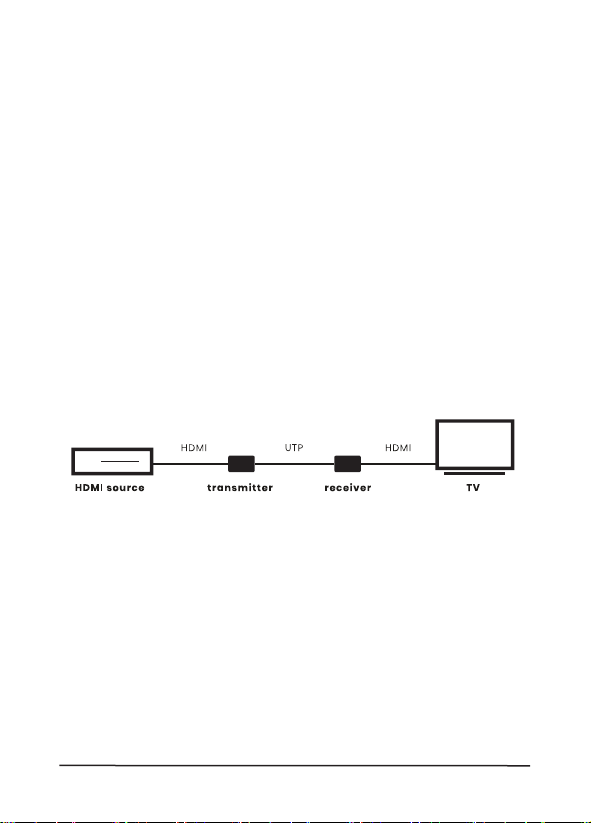

1. Switch off all devices prior to installation.
2. Connect the HDMI source (Blu-ray disc player, TV decoder,
media center PC, etc.) to the transmitter [2] using an HDMI
cable (not included).
3. Connect the receiver [5] to your TV or projector using an
HDMI cable (not included).
4. Use one CAT5e/6 networking cable to connect the
transmitter and receiver [1].
Please note! The MegaView 63™ will only work when using a
direct connection between the transmitter and the receiver and
cannot be connected to an existing home network (LAN), since
this may damage the device or your network router.
5. Connect the micro USB power cable [3] to the transmitter's
"Power" jack and use a free USB port on another device to
power the transmitter.
Please note! Do not place the transmitter or receiver in an
enclosed space such as a TV cabinet or equivalent. Provide
adequate ventilation to ensure that the product is functioning
properly and to protect against overheating.
4.4 Setting signal strength (equalizer)

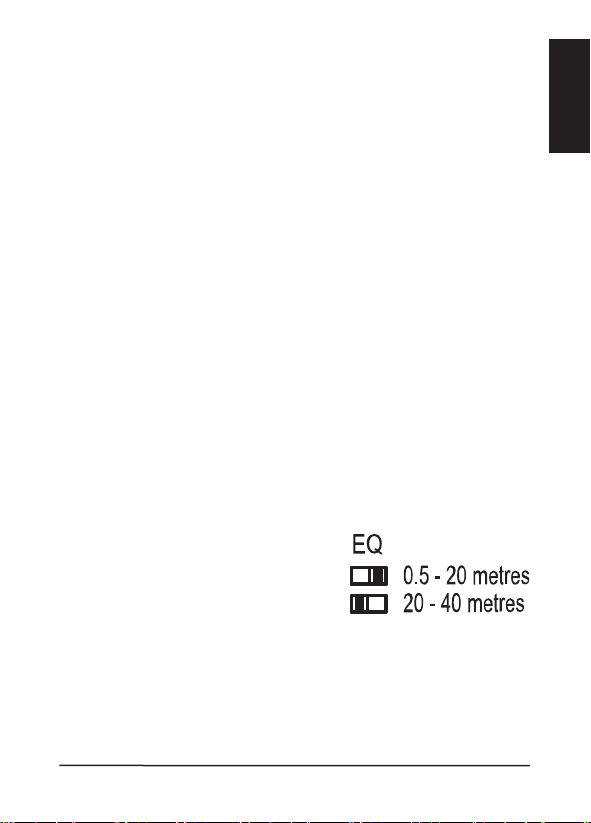

With the MegaView 63™, you can adjust the signal strength
manually, using the ''EQ'' switch [4]. This function uses 2 positions
related to the length of the CAT5e/6 cables used.
1. With the switch in the right
position, you can use a CAT5e/6
cable of between 0.5 and 20
metres.
2. With the switch in the left
position, you can use a CAT5e/6
cable of between 20 and 40 metres.

© MARMITEK
8
4.5 Installing Power over Cable (POC)
The MegaView 63™ supports bi-directional Power over Cable
technology, making it easy to provide the transmitter and receiver
with supply voltage from a single point. This eliminates the need
for a power connection for the receiver near the TV. The
transmitter provides power to the receiver using the CAT5e/6
cable. This built-in technology allows you to place the receiver out
of sight behind your TV, without the need for a power outlet.
5 Usage
1. Switch on the HDMI source (for example, a TV decoder or
multimedia PC).
2. Switch on the TV or projector and select the appropriate
input. This is usually done by pressing the A/V or EXT button
on your remote control.
3. You will immediately receive images from the connected
HDMI source.

MegaView 63™
9
ENGLISH
6 Technical specifications
Video
Video resolution Max. 1080p@60Hz
HDMI standard HDMI 1.4, EDID, DVI, all
3D formats
HDCP standards HDCP 1.4
Colour formats RGB and YCbCr 4:4:4
Colour depth 24-bit
Data transfer Without compression
Video bandwidth 4.95 Gbps
Clock frequency 165MHz
Audio
Audio formats DTS-HD Master Audio,
Dolby TrueHD, Dolby
Digital/AC3, DTS 5.1 and
PCM stereo
Transmitter
AV input 1 x HDMI input
UTP/CATx connection RJ45, EIA/TIA T568B
Dimensions (H x W x D) 16 x 63 x 37 mm
Weight 20 g
Receiver
AV output 1 x HDMI output
UTP/CATx connection RJ45, EIA/TIA T568B
Dimensions (H x W x D) 16 x 63 x 37 mm
Weight 20 g
Cable length
CAT5e/6 cable Max. 40m@1080p
HDMI cable Max. 10 metres
General
Ambient temperature 0 to +40° C
Ambient humidity 20% to 90%
Power supply 5 VDC / 1A micro USB
Power supply technology Power over cable (POC)
Specifications may change without prior notice.

© MARMITEK
10
7 Frequently asked questions (FAQs)
No (or poor) image and sound
If you experience poor or no picture after connecting the
MegaView 63™, try detecting the problem by connecting the
devices to your TV or projector one at a time. This enables you to
determine whether the problem is in the HDMI sources, the HDMI
cables, the MegaView 63™ or the TV.
•Ensure that the micro USB power cable is connected to a
free USB port of another device.
•For the best picture and sound quality, only use High Speed
HDMI® certified cables.
•Do not use HDMI cables longer than those specified in the
technical data.
•Check the HDMI cables and/or connectors for damage.
•Both the HDMI source and your TV or projector should fully
support HDMI.
No (or poor) image and sound
•Is the equalizer switch (EQ) in the correct position, as
specified in section 4.4?
•Ensure that the HDMI source is switched on.
•Only use CAT5e/6 cables, as specified in section 4.2.
•Ensure that the CAT5e/6 cable is connected well (no
breakages).
•Make sure that the maximum cable length is not exceeded.
•Prevent installing your system close to RF sources (wireless
devices) as much as possible.
•Set your HDMI source to a lower resolution, the CAT5e/6
cable used may not be able to handle the bandwidth of
higher resolutions.
Do you have any questions that are not answered here? Please
check www.marmitek.com
