Marmitek CONNECT HV15 User manual

O
NNECT HV
1
20645/20150408 • CONNECT HV15™
ALL RIGHTS RESERVED MARMITEK ©
USER MANUAL 3
GEBRAUCHSANLEITUNG 9
GUIDE UTILISATEUR 15
MODO DE EMPLEO 21
MANUALE D’ISTRUZIONI 27
GEBRUIKSAANWIJZING 33
CONNECT HV15™

© MARMITEK
2

CONNECT HV15™
3
ENGLISH
SAFETY WARNINGS
xTo prevent short circuits, this product should only be used
inside and only in dry spaces. Do not expose the
components to rain or moisture. Do not use the product close
to a bath, swimming pool etc.
xDo not expose the components of your systems to extremely
high temperatures or bright light sources.
xIn case of improper usage or if you have altered and repaired
the product yourself, all guarantees expire. Marmitek does
not accept responsibility in the case of improper usage of the
product or when the product is used for purposes other than
specified. Marmitek does not accept responsibility for
additional damage other than covered by the legal product
responsibility.
xThis product is not a toy. Keep out of reach of children.
xDo not open the product: the device may contain live parts.
The product should only be repaired or serviced by a
qualified expert.
1. INTRODUCTION
Congratulations on your purchase of the Marmitek Connect
HV15™! This device allows you to convert an HDMI signal
(720p/1080p) to an analogue VGA signal with stereo audio. This is
ideal when you want to connect an HD source with an HDMI
output to a projector or PC monitor via the VGA input. Examples
of HD sources are game consoles, such as a PlayStation or Xbox,
Blu-ray players, digital TV boxes and all other HDMI devices.
Marmitek products are manufactured with the utmost care and are
exceptionally high quality. Please read this manual carefully and
follow the instructions in order to get the best from this product.

© MARMITEK
4
2. SET CONTENT
1 x HDMI to VGA converter
1 x USB power cable
1 x User Manual
3. BENEFITS
xConvert an HDMI signal to a VGA signal with stereo audio
xNo software installation required, making it quick and easy to
use
xEnergy efficient and no external power adapter required
4. INSTALLATION
Before installation:
xTurn off all devices (monitor and HDMI source) before
connecting them to the Connect HV15™. If a device cannot
be turned off, please remove the plug from the socket.
xOnly use High Speed HDMI® certified cables for the best
picture and sound quality. Using too much force to connect
or disconnect the HDMI cables may damage them.

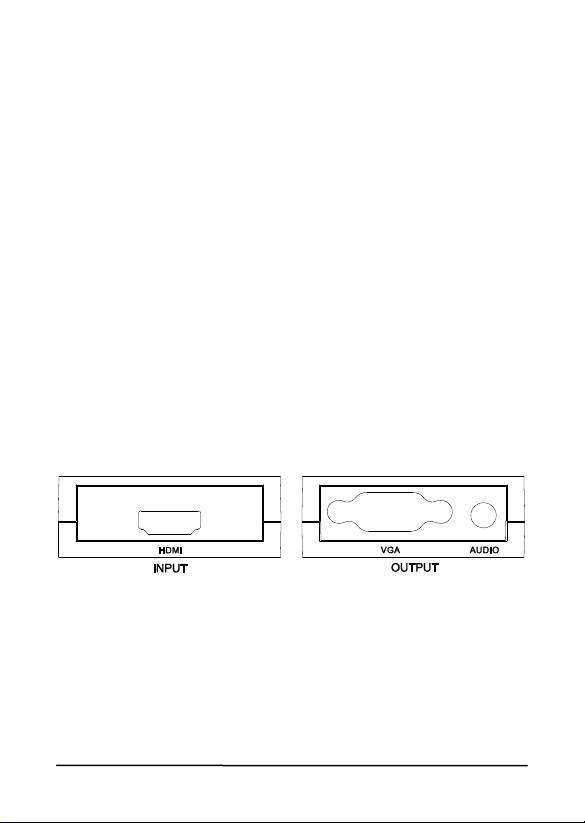

1. Use an HDMI cable to connect the HDMI source (such as a
game console, Blu-ray player or Digital TV box) to the HDMI
port marked "HDMI".
2. Use a VGA cable to connect the projector or PC monitor to
the output marked "VGA".
3. If desired, use a 3.5mm jack audio cable to connect an audio
amplifier or powered speakers to the output marked "Audio".

CONNECT HV15™
5
ENGLISH
4. The Connect HV15™ is energy efficient and is powered by
the connected HDMI devices. No power adapter is required.
5. FREQUENTLY ASKED QUESTIONS
No (or poor) image and sound
If you experience a poor picture or no picture after connecting the
HDMI converter, please try to identify the problem by connecting
the HDMI source directly to a screen (TV or projector). This allows
you to determine whether the problem is with the HDMI sources,
the HDMI cable, the HDMI converter or the screen.
xIf the connected HDMI device does not provide 5V power via
the HDMI cable, you need to power the HDMI converter via
the USB cable. Use the supplied USB power cable and plug
it into any available USB port on your other devices, or use a
standard USB power adapter.
xFor the best picture and sound quality, only use High Speed
HDMI® certified cables.
xDo not use HDMI cables longer than those specified in the
technical data.
xCheck the HDMI and VGA cables and/or connectors for
damage.
Any questions that are not answered here? Please visit
www.marmitek.com

© MARMITEK
6
6. TECHNICAL DATA
Connections
HDMI input 1 x HDMI (19-pin female)
HDMI cable length max. 15 metres
VGA output 1 x VGA
Audio output 1 x 3.5 mm jack
Video
HDTV resolutions 480p@60Hz, 576p@60Hz
720p@60Hz,1080i@60Hz,
1080p@60Hz
PC resolutions 640 x 480@60/72/75/85Hz,
800 x 600@60/72/75/85Hz,
1024 x 768@60/72/75/85Hz,
1152 x 864@75Hz,
1280 x 720@60Hz,
1280 x 768@60Hz,
1280 x 800@60Hz,
1280 x 960@60Hz,
1280 x 1024@60Hz,
1360 x 768@60Hz,
1440 x 1050@60Hz,
1440 x 900@60Hz,
1680 x 1050@60Hz,
1600 x 1200@60Hz,
1920 x 1080@60Hz
Audio
Audio output Stereo
Housing
Dimensions (D x W x H) 66 x 55 x 20mm
Weight 40g
Environment
Ambient temperature +0 to +70° C
Ambient humidity 10% to 85%
Specifications may change without prior notice.

CONNECT HV15™
7
ENGLISH
DECLARATION OF CONFORMITY
Hereby, Marmitek BV, declares that this Connect HV15™ is in compliance
with the essential requirements and other relevant provisions of the
following Directives:
Directive 2004/108/ec of the european parliament and of the council of 15
December 2004 on the approximation of the laws of the Member States
relating to electromagnetic compatibility
Directive 2006/95/EC of the European Parliament and of the Council of 12
December 2006 on the harmonisation of the laws of Member States relating
to electrical equipment designed for use within certain voltage limits
Directive 2002/95/EC of the European Parliament and of the Council of 27
January 2003 on the restriction of the use of certain hazardous substances
in electrical and electronic equipment
Commission Regulation (EC) No 278/2009 of 6 April 2009 implementing
Directive 2005/32/EC of the European Parliament and of the Council with
regard to ecodesign requirements for no-load condition electric power
consumption and average active efficiency of external power supplies
MARMITEK BV - P.O. BOX 4257 - 5604 EG EINDHOVEN –THE
NETHERLANDS

© MARMITEK
8
COPYRIGHTS
Marmitek is a trademark of Pattitude B.V.Connect HV15™ is a trademark of
Marmitek B.V. All rights reserved. Every effort has been made to ensure
that the information in this manual is accurate. Marmitek is not responsible
for printing or clerical errors. Copyright and all other proprietary rights in the
content (including but not limited to model numbers, software, audio, video,
text and photographs) rests with Marmitek B.V. Any use of the Content, but
without limitation, distribution, reproduction, modification, display or
transmission without the prior written consent of Marmitek is strictly
prohibited. All copyright and other proprietary notices shall be retained on
all reproductions. Other company and product names mentioned herein
may be trademarks of their respective companies. Mention of third-party
products is for informational purposes only and constitutes neither an
endorsement nor a recommendation. Marmitek assumes no responsibility
with regard to the performance or use of these products.
Environmental Information for Customers in the European
Union
European Directive 2002/96/EC requires that the equipment
bearing this symbol on the product and/or its packaging must
not be disposed of with unsorted municipal waste. The symbol
indicates that this product should be disposed of separately from regular
household waste streams. It is your responsibility to dispose of this and
other electric and electronic equipment via designated collection facilities
appointed by the government or local authorities. Correct disposal and
recycling will help prevent potential negative consequences to the
environment and human health. For more detailed information about the
disposal of your old equipment, please contact your local authorities, waste
disposal service, or the shop where you purchased the product.

CONNECT HV15™
9
DEUTSCH
SICHERHEITSHINWEISE
xUm Kurzschluss vorzubeugen, dieses Produkt bitte
ausschließlich innerhalb des Hauses und nur in trockenen
Räumen nutzen. Setzen Sie die Komponenten nicht Regen
oder Feuchtigkeit aus. Nicht neben oder nahe eines Bades,
Schwimmbades usw. verwenden.
xSetzen Sie die Komponente Ihres Systems nicht extrem
hohen Temperaturen oder starken Lichtquellen aus.
xBei einer zweckwidrigen Verwendung, selbst angebrachten
Veränderungen oder selbst ausgeführten Reparaturen
verfallen alle Garantiebestimmungen. Marmitek übernimmt
bei einer falschen Verwendung des Produkts oder bei einer
anderen Verwendung des Produktes als für den
vorgesehenen Zweck keinerlei Produkthaftung. Marmitek
übernimmt für Folgeschäden keine andere Haftung als die
gesetzliche Produkthaftung.
xDieses Produkt ist kein Spielzeug. Außer Reichweite von
Kindern halten.
xDas Produkt niemals öffnen: Das Gerät kann Teile enthalten,
worauf lebensgefährliche Stromspannung steht. Überlassen
Sie Reparaturen oder Wartung nur Fachleuten.
1. EINFÜHRUNG
Herzlichen Glückwunsch zum Erwerb Ihres Marmitek Connect
HV15™!. Dieses Produkt wandelt das HDMI-Signal (720p/1080p)
in ein analoges VGA Signal mit Stereo Audio um. Ideal, wenn Sie
eine HD Quelle mit HDMI Ausgang über den VGA Eingang an
einen Projektor oder PC Monitor anschließen möchten. Beispiele
von HD Quellen sind: Spielcomputer wie PlayStation und XBox,
Blu-Ray-Player, digitaler TV Decoder und alle anderen HDMI
Geräte. Die Produkte Marmiteks werden mit großer Sorgfalt
hergestellt und sind von hoher Qualität. Lesen Sie diese Anleitung
bitte sorgfältig durch und befolgen Sie die Anweisungen, um die
Möglichkeiten dieses Produkts optimal nutzen zu können.

© MARMITEK
10
2. VERPACKUNGSINHALT
1 x HDMI auf VGA Converter
1 x USB Speisungskabel
1 x Gebrauchsanleitung
3. VORZÜGE
xKonvertieren Sie ein HDMI Signal in ein VGA Signal mit
Stereo Audio
xSoftwareinstallation nicht notwendig und somit schnell und
einfach in der Verwendung.
xEnergieeffizient und benötigt keinen externen
Speisungsadapter.
4. INSTALLATION
Bevor Sie beginnen:
xSchalten Sie alle Geräte (Monitor und HDMI Quelle)
zunächst aus, bevor Sie diese an den Connect HV15™
anschließen. Entfernen Sie den Stecker aus der Steckdose,
falls dieser nicht ausgeschaltet werden kann.
xVerwenden Sie zum Erhalt einer optimalen Bild- und
Tonqualität ausschließlich High Speed HDMI® zertifizierte
Kabel. Verwenden Sie wenig Kraft, um die HDMI Kabel
anzuschließen oder loszukoppeln; diese könnten sonst
beschädigen.

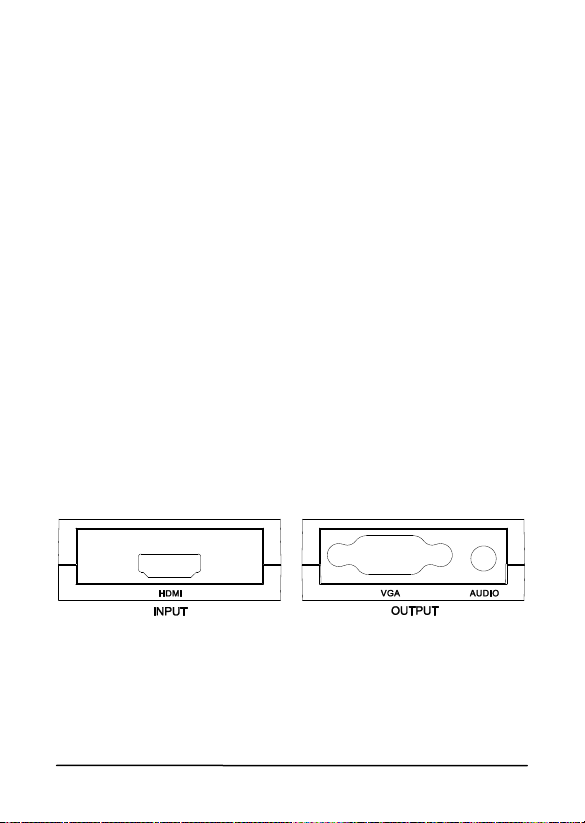

1. Schließen Sie die HDMI Quelle (wie Spielcomputer, Blu-Ray
Player und digitaler TV Decoder) mit einem HDMI Kabel an
den "HDMI“ Anschluss an.
