Marmitek GIGAVIEW 545 User manual

G
IGAVIE
W
545
20447/20120118 • GIGAVIEW 545™
ALL RIGHTS RESERVED MARMITEK ©
LAUNAMRESU
GEBRAUCHSANLEITUNG
GUIDE UTILISATEUR
MODO DE EMPLEO
MANUALE D’ISTRUZIONI
GEBRUIKSAANWIJZING
GigaView 545™
1
9
17
25
33
41
website_lr_20447_20120118_UG_124Page 1 10-2-2012 14:11:21

GIGAVIEW 545 1
ENGLISH
SAFETY WARNINGS
xTo prevent short circuits, this product should only be used inside
and only in dry spaces. Do not expose the components to rain or
moisture. Do not use the product close to a bath, swimming pool
etc.
xDo not expose the components of your system to extremely high
temperatures or bright light sources.
xDo not open the product: the device contains live parts. The
product should only be repaired or serviced by a qualified
repairman.
xIn case of improper use or if you have opened, altered and
repaired the product yourself, all guarantees expire. Marmitek
rejects responsibility in the case of improper use of the product or
when the product is used for purposes other than specified.
Marmitek does not accept liability for additional damages other
than covered by the legal product liability.
xOnly connect the adapter to the mains after checking whether
the mains voltage is the same as the values on the identification
tags. Never connect an adapter or power cord when it is
damaged. In that case, contact your supplier.
xThis product is not a toy. Keep out of reach of children.
CONTENTS
SAFETY WARNINGS..................................................................................1
CONTENTS ................................................................................................1
WIRELESS SOUND AND VISION! ..............................................................2
HOW DOES THE GIGAVIEW 545™ WORK?.............................................2
SET CONTENTS .........................................................................................2
GIGAVIEW 545 .........................................................................................3
SETTING UP THE AV TRANSMITTER ........................................................4
SETTING UP THE AV RECEIVER ................................................................5
CONNECT IR EXTENDER CABLE & SENOR (IF NECESSARY).....................6
FREQUENTLY ASKED QUESTIONS ...........................................................7
TECHNICAL DATA ....................................................................................8

© MARMITEK
2
WIRELESS SOUND AND VISION!
xWireless transmission of pictures and stereo sound through walls
and ceilings.
xCan be used with any make of DVD player, satellite receiver,
decoder, etc.
xWatch all your digital TV channels on a second TV.
xNo distortion from devices such as microwave ovens, wireless
(WiFi) networks, Bluetooth, etc. by using the 5.8 GHz frequency
band.
xMount the receiver (out of sight) behind your TV or on the ceiling
next to your projector.
HOW DOES THE GIGAVIEW 545™
WORK?
It's really simple! The set consists of a transmitter and a receiver.
Connect the transmitter to your A/V equipment (e.g. Satellite or
DVD). Then connect the receiver to your second TV. Via the infrared
extender, you can also continue to operate A/V equipment that is set
up in a different room (or in a closed cupboard) with your own
remote control.
SET CONTENTS
1 A/V Transmitter
1 A/V Receiver
2 Power adapters
1 IR Sensor Extender cable
1 IR Extender cable with 3 LEDs.
2 RCA cables (white / red / yellow)
1 SCART adapter (labelled Transmitter).
1 SCART adapter (labelled Receiver)
1 User manual

ENGLISH

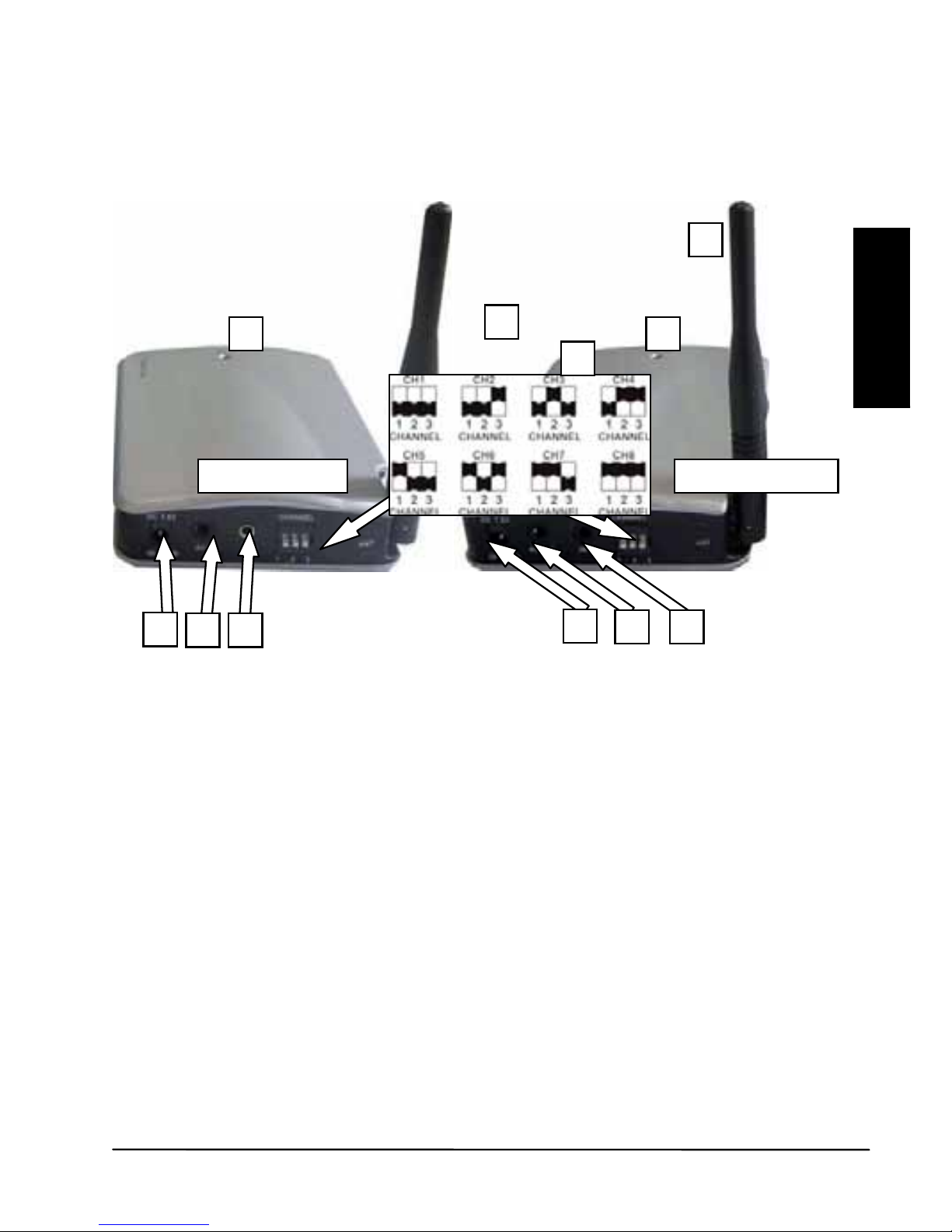

GIGAVIEW 545
6
68
8
12 3
7
A/V Transmitter A/V Receiver
14 5
1. Power adapter jack
2. AV jack Transmitter.
3. IR LED Extender jack
4. AV jack Receiver
5. IR Sensor Extender jack
6. Antenna
7. ID code switch, the AV transmitter and AV receiver have to be on
the same channel.
8. LED indicator: POWER
GIGAVIEW 545 3

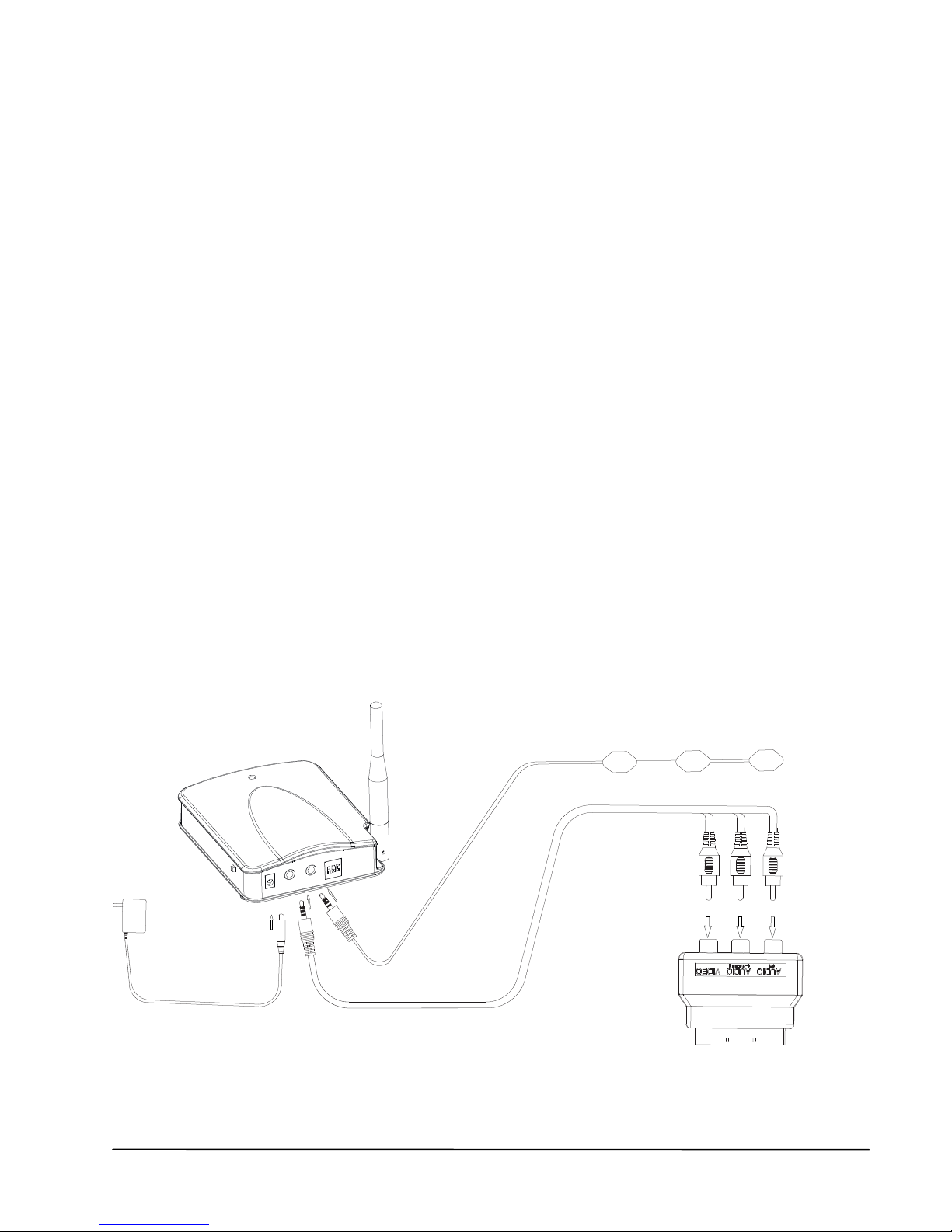

SETTING UP THE AV TRANSMITTER
1. Connect the RCA cable to the AV jack at the back of the AV
transmitter [2].
2. Connect the other end of the cable to the Audio/Video OUT jacks
of the video source you want to transmit the signal from (e.g.
your VCR, DVD, Satellite or TV: connecting the transmitter to
your VCR or Satellite receiver, allows you to choose channels
independent from your main TV). If your video source is
equipped with a SCART connector use the SCART Adapter
labelled Transmitter.
3. Switch your ID code switch [7] to CH1.
4. Switch the power slide switch to ‘OFF’.
5. Connect the DC plug of the adapter to the DC jack, [1] at the
back of the AV Transmitter and connect the adapter to an outlet.
Only use the supplied power adapter!
6. Switch the power slide switch to ‘ON’.
7. The power LED [8] will go on.
8. Position the AV transmitter in a convenient location, preferably
free on all sides. Make sure the antenna [6] is placed vertical.
© MARMITEK
4

ENGLISH
SETTING UP THE AV RECEIVER
1. Connect the RCA cable to the AV jack at the back of the AV
receiver [4].
2. Connect the other end of the A/V cables to your TV. If your TV
has a SCART connector, you may use the SCART adapter provided,
labelled “Receiver”.
3. Switch your ID code switch [7] to CH1.
4. Switch the power slide switch to ‘OFF’.
5. Connect the DC plug of the adapter to the DC jack, [1] at the
back of the AV Receiver and connect the adapter to an outlet.
Only use the supplied power adapter!
6. Switch the power slide switch to ‘ON’.
7. The power LED [8] will go on.
8. Position the AV Receiver in a convenient location, preferably free
on all sides. Make sure the antenna [6] is placed vertical.
GIGAVIEW 545 5

CONNECT IR EXTENDER CABLE &
SENOR (IF NECESSARY)
1. Plug the IR Sensor Extender cable into the IR IN connector [5] on
the GigaView 545 Receiver and place this in sight of the Remote
Control.
2. Plug the IR LED Extender cable into the IR OUT connector [3] on
the GigaView 545 Transmitter. Attach the IR LEDs to the front of
your AV devices. This will now send all received infrared
commands via the IR Sensor Extender cable.
Environmental Information for Customers in the European Union
European Directive 2002/96/EC requires that the equipment bearing this symbol
on the product and/or its packaging must not be disposed of with unsorted
municipal waste. The symbol indicates that this product should be disposed of
separately from regular household waste streams. It is your responsibility to
dispose of this and other electric and electronic equipment via designated
collection facilities appointed by the government or local authorities. Correct disposal and
recycling will help prevent potential negative consequences to the environment and human
health. For more detailed information about the disposal of your old equipment, please contact
your local authorities, waste disposal service, or the shop where you purchased the product.
© MARMITEK
6

GIGAVIEW 545 7
ENGLISH
FREQUENTLY ASKED QUESTIONS
I do not get any signal.
xCheck if the units are connected to the mains and if the channel setting
[2] is the same on both units.
xCheck if both units are in the ‘ON’ position [7].
xCheck if the receiving TV is on the correct A/V channel.
The signal received is poor.
xTry another channel (the channel settings must be the same on both
units).
xMove transmitter and/or receiver from the immediate vicinity of the
connected A/V devices. These may affect the range.
xYou are (almost) out of range.
xChanging the position of the transmitter and / or receiver a few
centimetres may rectify the problem.
xTry again with shorter distances.
The images and sound are perfect, but the infrared return signal does
not work.
Check the following:
xDepending on the local situation the A/V signal can reach further than
the signal of the IR receiver. Try again with shorter distances.
xHas the IR emitter been properly connected to the AV transmitter?
xHas the IR emitter been properly placed near the IR window of your A/V
device?
I do get images but no sound.
xThe GigaView 545 can send analogue stereo signals, such as Dolby
Surround. Digital systems such as Dolby 5.1 or Dolby Digital cannot be
transmitted.
Does the GigaView 545TM cause a conflict with my wireless network
(WLAN) ?
xNo, WiFi uses the 2.4Ghz frequency band. The GigaView 545 uses the
5.8GHz frequency band. In cases where a 2.4GHz video transmitter
experiences interference from for instance a WiFi network, the GigaView
545 can be the right solution.
Can I combine multiple receivers?
xYes. However, the signal will be the same on all receivers.
Do you still have questions?
Check out www.marmitek.com for more information.

© MARMITEK
8
TECHNICAL DATA
General specifications
Supply voltage: 100 - 240VAC 50/60Hz, 2 x DC
adapter
Operation Frequency Range: 5.725GHz ~ 5.865GHz
Channel Frequency (CH1-CH8) : 5733, 5752, 5771, 5790, 5809, 5828,
5847, 5866MHz
Transmission Range: Up to 100m free field, up to 30m
through walls and ceilings
RF Frequency IR: 433.92 MHz
IR-remote Modulation: ASK
Infrared freq. range: 32 KHz ~38 KHz
Ambient temperature: 10°C~50°C (operation)
-20°C tot +70°C (storage)
AV Transmitter
Supply voltage: DC +9V
Supply Current: 600mA
Transmit power output: 10dBm (CE), 0dBm (FCC)
Modulation: FM (video and audio)
Video Input Level: 1V p-p ᧼75 ohm
Audio Input Level: 1V p-p ᧼600 ohm (STEREO)
Antenna: Omni-directional
IR–remote IR output: 940nm with ON/OFF keying
Dimension: 90mm*60mm*22mm
Weight: 82g
AV Receiver
Supply voltage: DC +9V
Supply Current: 600mA
Sensitivity: -80dBm MIN.
Video Output Level: 1±0.2V p-p ᧼75 ohm
Audio Output Level: 1±0.2V p-p ᧼600 ohm (STEREO)
Antenna: Omni-directional
Dimension: 90mm*60mm*22mm
Weight: 95g
Specifications may be modified without prior notice.
