BoomBoom 80
3
ENGLISH
1 Table of contents
1Table of contents........................................................................3
2Safety instructions ......................................................................4
3Your product...............................................................................5
3.1 Introduction.................................................................................5
3.2 Package contents.......................................................................5
3.3 Product overview........................................................................6
3.4 LED status..................................................................................7
4Getting started............................................................................8
4.1 Connecting to your sound system ..............................................8
4.1.1 Analogue connection .....................................................8
4.2 Power supply..............................................................................8
4.3 Automatic pairing, for first use....................................................9
4.3.1 Connecting.....................................................................9
4.3.2 Disconnecting ................................................................9
4.4 Secure Simple Pairing (SSP) with NFC ...................................10
6Product details..........................................................................11
6.1 Technical specifications............................................................11
7Frequently asked questions .....................................................12
8Notification................................................................................13
8.1 Declaration of Conformity.........................................................13
8.2 Recycling..................................................................................14
8.3 Copyrights ................................................................................14

© MARMITEK
4
2 Safety instructions
Please read these instructions thoroughly before you use the
device and keep them for future reference.
xOnly for indoor use.
xDo not use the product in a damp environment or near water.
xDo not expose the product to extremely high or low
temperatures, strong light sources or direct sunlight.
xThis product is not a toy. Keep out of reach of children.
xConnect the adapter to the mains only after you have verified
that the line voltage corresponds to the value specified on
the type plates.
xNever connect a power adapter if it's damaged. In such
cases, please contact your supplier.
xDisconnect the AC/DC power adapter from the mains when
this device is not in use for prolonged time.
xNever open the product: the device may contain parts with
deadly voltage.
xRepairs or service should only be performed by qualified
personnel.
xImproper use, self-installed modifications or repairs will void
any and all warranties.
xMarmitek does not accept any product responsibility for
incorrect use of the product or use other than for which the
product is intended.
xMarmitek does not accept liability for any consequential
damage other than the legal product responsibility.

BoomBoom 80
5
ENGLISH
3 Your product
3.1 Introduction
Congratulations on your purchase of the Marmitek BoomBoom 80
with A2DP support. This Bluetooth audio receiver allows you to
play music from a sound source that is equipped with Bluetooth
technology on your sound system without having to connect the
source using cables. This could involve a PC or a laptop that has
a Bluetooth USB dongle, a mobile telephone that supports
Bluetooth, an Android telephone, an Android tablet, an iPhone an
iPad or a Mac.
You can then organise your music via the sound source without
having to walk over to the sound system.
The BoomBoom 80 has sufficient range, allowing you to organise
your music in the same or in an adjoining room.
xBluetooth Hi-fi Music Receiver
xStream your music via Bluetooth to your Hi-Fi installation.
xListen to music or internet radio from your smartphone or
(tablet) PC on your Hi-Fi installation (wirelessly).
xWorks with any audio system, iPhone dock or radio/CD
player with aux-in, line-in jack or MP3 link.
xSuitable for all Bluetooth® enabled sound sources such as
iPhone, Android phone, iPad, etc.
xUses A2DP Stereo Bluetooth technology.
xWith convenient stand-by function: always ready for instant
connection.
xSupports NFC: simply hold your NFC-enabled smartphone
near the audio receiver to connect.
xPowered by USB, either through the supplied USB power
adapter or your audio system’s USB connector.
3.2 Package contents
A. 1 x BoomBoom 80, universal Bluetooth wireless stereo
audio receiver
B. 1 x USB Power cable

© MARMITEK
6

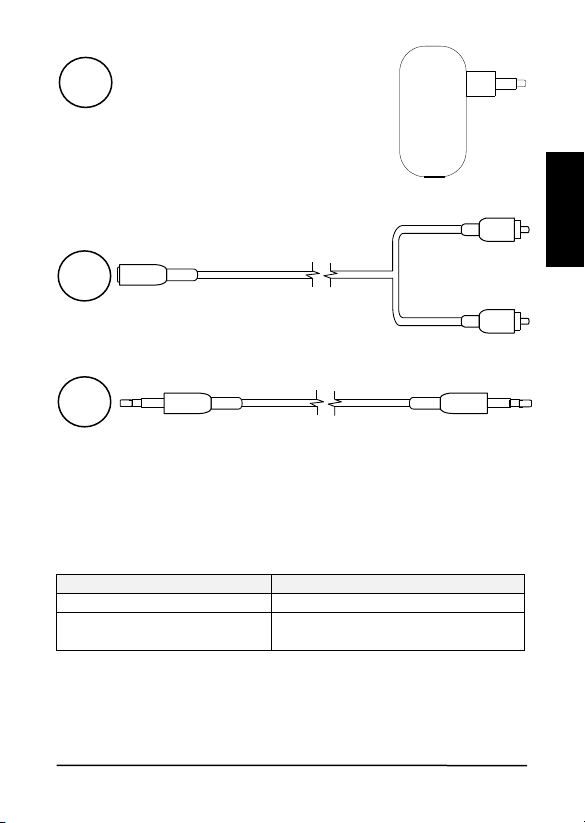

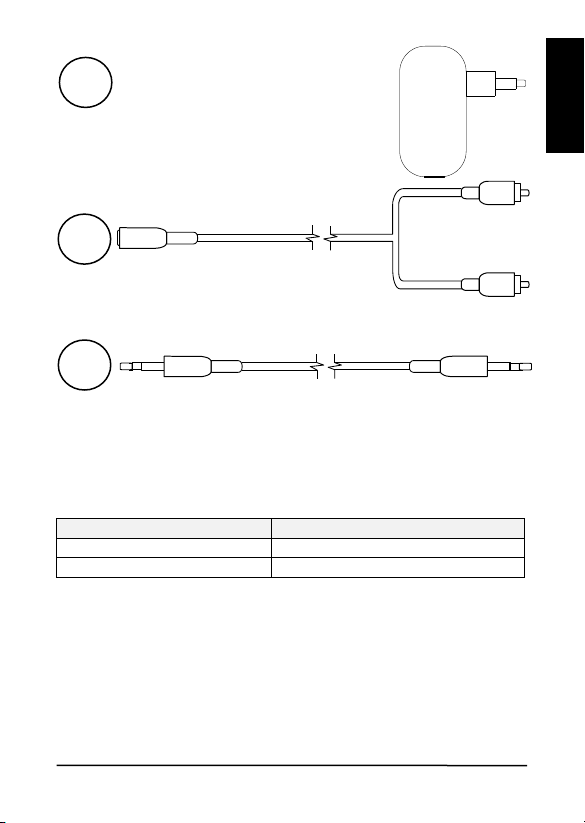

C. 1 x USB Power adapter
D. 1 x Mini Jack female to RCA converter cable
E. 1 x Stereo jack cable
F. 1 x User manual
3.3 Product overview

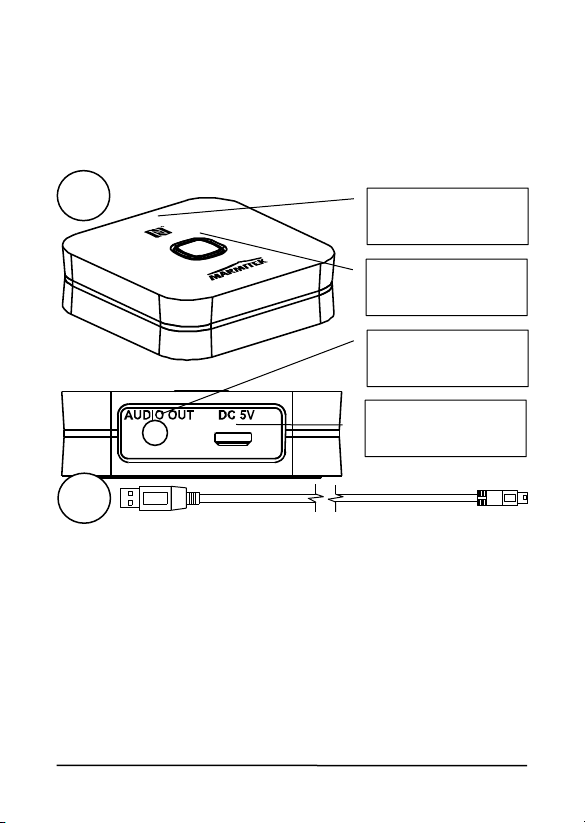

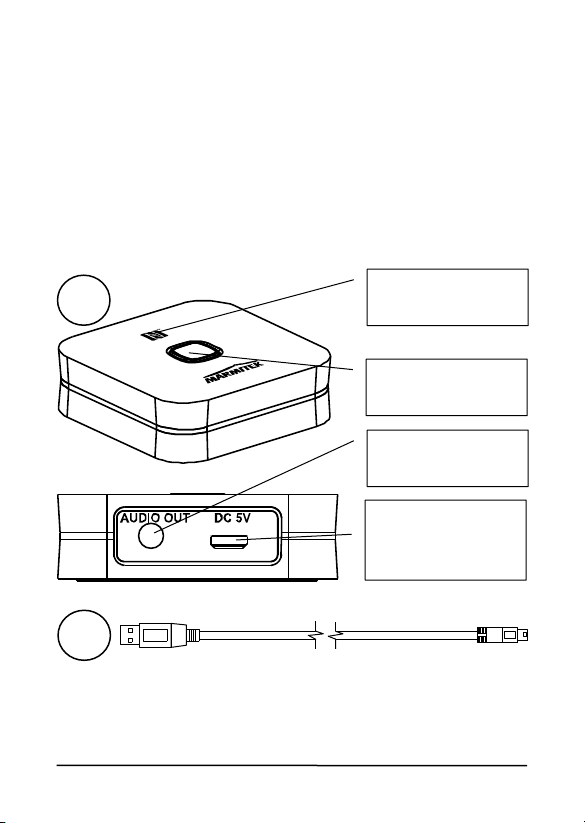

Micro USB power cable
This cable enables you to power the BoomBoom 80.
A
disconnect button
Audio cable
connector
Micro USB power
cable connector
NFC logo
B

BoomBoom 80
7
ENGLISH
USB power adapter
Connect B to A and power the BoomBoom 80
Mini-jack adapter cable
This cable enables you to connect the BoomBoom 80 to the audio
input (right-left) of your TV or audio system.
Mini-jack cable
This cable is plugged into the BoomBoom 80's audio output and is
then connected to D.
3.4 LED status
LED status
Description
Blue LED flashing
Pairing mode (1s on, 4s off)
Blue LED lit continuously
Connected
C
D
E

© MARMITEK
8
4 Getting started
Please take the following steps before using the product:
xConnect the BoomBoom 80 to your audio system
xPower the BoomBoom 80
xPair the BoomBoom 80 with a Bluetooth-enabled
smartphone
xEnjoy!
We will now explain this step by step.
4.1 Connecting to your sound system
4.1.1 Analogue connection

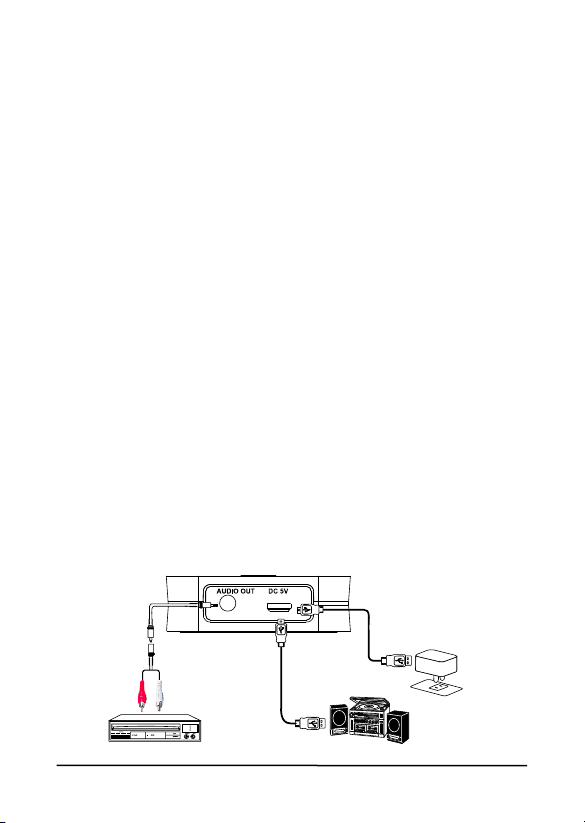

1. Connect the mini jack-plug to the AUX IN on a docking
speaker or radio/CD player, for example.
2. Use the converter cable supplied to connect the BoomBoom
80 to the AUX IN coaxial (Cinch/RCA) connection on your
sound system. Consult your sound system user’s manual for
more information on how to accomplish this.
4.2 Power supply
1. Connect the USB cable to the BoomBoom 80's micro USB
connector, the power adapter itself to an electrical outlet, or
use your audio system's USB connection if available.
2. The LED light will flash slowly to show the BoomBoom 80 is
powered and ready To be paired to your devices.
3..5 mm stereo
jack cable
Audio R-L
sound system
or

BoomBoom 80
9
ENGLISH
4.3 Automatic pairing, for first use
The BoomBoom 80 is able to remember up to 8 paired devices.
As a result, it is not necessary to pair a device every time you
connect it. If a 9th device is paired with the BoomBoom 80, the
device which has been originally paired with the BoomBoom 80
will be deleted from its memory.
1. Locate your Bluetooth music source in the vicinity of the
BoomBoom 80. The best distance is around 1 metre.
2. Ensure that the BoomBoom 80 is on.
3. The LED starts to blink blue.
4. Switch your device’s Bluetooth function on according to the
instructions of your device and go to Bluetooth settings.
5. Scan for new devices and select the name “Music Receiver”.
6. If the Bluetooth connection process requires a password,
enter “0000”. The BoomBoom 80 then connects with your
device by lighting up a steady blue LED. The connection has
now been made and your device is linked to the BoomBoom
80. You can now play and control the music in your device
on your sound system.
! You can link to up to 8 devices. However, only 1 device can be
connected to the BoomBoom 80 at one time.
4.3.1 Connecting
The BoomBoom 80, depending on the Bluetooth audio source, will
not always automatically connect to the last device it was
connected to. When connected, the blue LED light will light up.
When not connected, the blue LED light will flash at a slow rate.
Only one device can be connected at the same time to the
BoomBoom 80. Go to the device's Bluetooth settings and select
the “Music Receiver”. A connection will then be made.
4.3.2 Disconnecting
To disconnect the BoomBoom 80, for example, in order to connect
the BoomBoom 80 to another Bluetooth device, briefly press the
disconnect button in the centre of the BoomBoom 80.

© MARMITEK
10
4.4 Secure Simple Pairing (SSP) with NFC
The BoomBoom 80 is equipped with Near Field Communication.
If your phone supports NFC, check that you want to allow
applications to use NFC. Next, hold your phone close to the N
logo on the BoomBoom 80. The phone will automatically connect.
A Bluetooth connection is established.
Hold the phone again at the N logo.
The Bluetooth connection is disconnected.

BoomBoom 80
11
ENGLISH
6 Product details
6.1 Technical specifications
General specifications
Supply voltage 230VAC +10% -10% 50 Hz
DC power 5V USB-A
Power consumption < 1.5W
Bluetooth
Supported Bluetooth profiles A2DP
Supported codec SBC
Pair memory up to 8 devices
Support NFC
(Near Field Communicaton) Yes.
Electric performance RF
Bluetooth version Bluetooth 3.0 + EDR, class 2
Frequency 2402~2480 MHz
Range Up to 10 meters with Class 2> <2
connection
Up to 15 meters with Class 2> <1
connection
Output
Interface audio output Jack 3.5 mm stereo
Signal to noise ratio ≥ 80dB.
Size (L x W x H) 60 x 60 x 18 mm
Operation temperature -10°C ~ +55°C
Storage temperature -20°C ~ +60°C
In order to continue improving the product, Marmitek reserves the right to
change specifications and/or designs without prior notice.

© MARMITEK
12
7 Frequently asked questions
I can’t connect my BoomBoom 80.
Check the following:
1. Ensure that the power adapter is connected and the blue
LED flashes slowly.
2. Ensure that the Bluetooth function on your mobile telephone
is on (check your phone's manual for reference).
3. Ensure that the distance between your mobile phone and the
BoomBoom 80 is no greater than 10 metres and that there
are no large obstacles in the way.
4. Please make sure that the BoomBoom 80 is not already
connected to another device. (The blue LED lights up
continuously.)
No sound comes out of the audio installation
Ensure that the audio cable is correctly connected (AUX IN), that
the correct input has been selected on your audio installation and
that your audio system’s volume is set to the desired level.
Can I link numerous devices to my BoomBoom 80?
You can link up to 8 devices to your BoomBoom 80. You can link
up to 8 devices. However, only 1 device can be connected to the
BoomBoom 80 at one time.
The sound is distorted by a hum or interference
If you do not use an adapter to power the Boom Boom 80, but, for example,
connect it to your audio system's USB connector, the resulting ground loop
may sometimes cause a hum. In this case, use a USB power adapter.
Using a USB port from, for example, a PC may also cause interference.
Do you have any other questions that have not been resolved by
the above information? Please go to www.marmitek.com

BoomBoom 80
13
ENGLISH
8 Notification
8.1 Declaration of Conformity
Hereby, Marmitek BV, declares that this BoomBoom 80™
is in compliance with the essential requirements and other
relevant provisions of the following Directives:
Directive 2014/53/EU of the European Parliament and of the
Council of 16 April 2014 on the harmonisation of the laws of the
Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC.
Directive 2011/65/eu of the European parliament and of the
council of 8 June 2011 on the restriction of the use of certain
hazardous substances in electrical and electronic equipment.
Commission Regulation (EC) No 278/2009 of 6 April 2009
implementing Directive 2005/32/EC of the European Parliament
and of the Council with regard to eco-design requirements for no-
load condition electric power consumption and average active
efficiency of external power supplies.
You can read the full Declaration of Conformity at
http://www.marmitek.com

© MARMITEK
14
8.2 Recycling
Environmental Information for Customers in the European
Union
European Directive 2002/96/EC requires that the equipment
bearing this symbol on the product and/or its packaging must
not be disposed of with unsorted municipal waste. The symbol
indicates that this product should be disposed of separately
from regular household waste streams. It is your responsibility
to dispose of this and other electric and electronic equipment via
designated collection facilities appointed by the government or local
authorities. Correct disposal and recycling will help prevent potential
negative consequences to the environment and human health. For more
detailed information about the disposal of your old equipment, please
contact your local authorities, waste disposal service, or the shop where
you purchased the product.
8.3 Copyrights
Marmitek is a trademark of Germatron B.V.
BoomBoom 80™ is a trademark of Marmitek B.V. All rights reserved.
Every effort has been made to ensure that the information in this manual is
accurate. Marmitek is not responsible for printing or clerical errors.
Copyright and all other proprietary rights in the content (including but not
limited to model numbers, software, audio, video, text and photographs)
rests with Marmitek B.V. Any use of the Content, but without limitation,
distribution, reproduction, modification, display or transmission without the
prior written consent of Marmitek is strictly prohibited. All copyright and
other proprietary notices shall be retained on all reproductions.
Other company and product names mentioned herein may be trademarks
of their respective companies. Mention of third-party products is for
informational purposes only and constitutes neither an endorsement nor a
recommendation. Marmitek assumes no responsibility with regard to the
performance or use of these products.
Marmitek BV - PO Box 4257 - 5604 EG Eindhoven
The Netherlands

BoomBoom 80
15
DEUTSCH
1 Inhaltsverzeichnis
1Inhaltsverzeichnis.....................................................................15
2Sicherheitshinweise..................................................................16
3Ihr Produkt................................................................................17
3.1 Einführung ................................................................................17
3.2 Verpackungsinhalt....................................................................18
3.3 Produktübersicht.......................................................................18
3.4 LED Anzeige.............................................................................19
4Los geht’s .................................................................................20
4.1 Anschluss an ihre stereoanlage ...............................................20
4.1.1 Analoganschluss..........................................................20
4.2 Speisung...................................................................................20
4.3 Automatisches pairen bei inbetriebnahme: ..............................21
4.3.1 Einschalten ..................................................................22
4.3.2 Verbindung trennen .....................................................22
4.4 Secure Simple Pairing (SSP) mit NFC .....................................22
5Produktinformationen ...............................................................23
5.1 Technische Daten.....................................................................23
6Häufig gestellte fragen..............................................................24
7Hinweis.....................................................................................25
7.1 Konformitätserklärung ..............................................................25
7.2 Recycling..................................................................................26
7.3 Copyright ..................................................................................26

© MARMITEK
16
2 Sicherheitshinweise
Lesen Sie diese Gebrauchsanleitung sorgfältig durch, bevor
Sie das Gerät in Betrieb nehmen und bewahren Sie diese
Anleitung bitte für eventuelle, spätere Bedarfsfälle auf.
xAusschließlich für Verwendung in Innenräumen.
xDieses Produkt nicht in einer feuchten Umgebung oder nahe
Wasserquellen verwenden.
xSetzen Sie dieses Produkt nicht extrem hohen oder
niedrigen Temperaturen, starken Lichtquellen und direkter
Sonneneinstrahlung aus.
xDieses Produkt ist kein Spielzeug. Außer Reichweite von
Kindern halten.
xSchließen Sie den Netzadapter erst dann an das Stromnetz
an, nachdem Sie überprüft haben, ob die Netzspannung mit
dem auf dem Typenschild angegeben Wert übereinstimmt.
xSchließen Sie niemals einen Netzadapter an, wenn diese
beschädigt sind. In diesem Fall nehmen Sie Kontakt mit
Ihrem Lieferanten auf.
xEntfernen Sie den AC/DC Speisungsadapter aus der
Steckdose, wenn Sie das Gerät längere Zeit nicht nutzen.
xDas Produkt niemals öffnen: Das Gerät kann Teile enthalten,
worauf lebensgefährliche Stromspannung steht.
xÜberlassen Sie Reparaturen oder Wartung nur Fachleuten.
xBei einer zweckwidrigen Verwendung, selbst angebrachten
Veränderungen oder selbst ausgeführten Reparaturen
verfallen alle Garantiebestimmungen.
xMarmitek übernimmt bei einer falschen Verwendung des
Produkts oder bei einer anderen Verwendung des Produktes
als für den vorgesehenen Zweck keinerlei Produkthaftung.
xMarmitek übernimmt für Folgeschäden keine andere Haftung
als die gesetzliche Produkthaftung.

BoomBoom 80
17
DEUTSCH
3 Ihr Produkt
3.1 Einführung
Herzlichen Glückwunsch zum Erwerb des Marmitek BoomBoom
80 mit A2DP support. Dieser Bluetooth Audioempfänger
ermöglicht die Musikwiedergabe einer Bluetooth fähigen
Tonquelle auf ihrer Stereoanlage, ohne Ihre Tonquelle mit Kabeln
verbinden zu müssen. Das kann beispielsweise ein mit einem
Bluetooth USB Dongle versehener PC oder Laptop sein, ein
Bluetooth fähiges Mobiltelefon, Android Telefon, Android Tablet,
iPhone, iPad oder Mac.
Sie können daraufhin die Musik über Ihre Tonquelle regeln, ohne
sich zur Stereoanlage begeben zu müssen.
Der BoomBoom 80 hat genügend Reichweite, sodass Sie Ihre
Musik problemlos im selben Raum oder Nebenzimmer regeln
können.
xBluetooth Hifi Musikempfänger
xStreamen Sie Ihre Musik über Bluetooth zur Stereoanlage
xErmöglicht die Wiedergabe von Musik oder Internet-Radio
vom Smartphone, (Tablette)PC auf Ihre HiFi-Anlage
(drahtlos).
xKann mit allen Stereoanlagen, iPhone Docks oder
Radio/CD-Playern mit Aux-in, Line-in oder mp3-Link
Anschluss verwendet werden.
xGeeignet für alle Bluetooth® fähigen Tonquellen wie
iPhone, Android phone, iPad usw.
xVerwendet A2DP Stereo Bluetooth Technik.
xMit praktischer Stand-by Funktion: immer bereit, sofort zu
verbinden.
xUnterstützt NFC: Um zu verbinden halten Sie einfach Ihr
Smartphone mit NFC kurz an den Musikempfänger.
xUSB gespeist über enthaltene Netzspeisung oder über den
USB Anschluss Ihrer Hifi Anlage.

© MARMITEK
18
3.2 Verpackungsinhalt
A. 1 x BoomBoom 80, Universal Bluetooth drahtloser stereo
Audio-Empfänger.
B. 1 x Mikro USB Speisungskabel
C. 1 x USB Speisungsadapter
D. 1 x Mini-Jack Konverterkabel
E. 1 x Mini-Jack Kabel
F. 1 x Gebrauchsanleitung
3.3 Produktübersicht
Mikro USB Speisungskabel
Dieses Kabel speist den BoomBoom 80 mit Strom.
A
Trenntaste
Anschluss für das
Audiokabel
Anschluss für das
Mikro USB
Speisungskabel
NFC logo
B

BoomBoom 80
19
DEUTSCH
USB Speisungsadapter
Schließen Sie B an A an und speisen Sie den
BoomBoom 80 mit Strom.
Mini-jack adapter cable
This cable enables you to connect the BoomBoom 80 to the audio
input (right-left) of your TV or audio system.
Mini-Jack Konverterkabel
Mit diesem Kabel schließen Sie den BoomBoom 80 an den
Audioeingang (rechts-links) Ihres Fernsehers oder Ihrer
Stereoanlage an.
3.4 LED Anzeige
LED Anzeige
Beschreibung
Blaue LED blinkt
Pairing (1s on, 4s off)
Blaue LED leuchtet
kontinuierlich
Verbunden
C
D
E

© MARMITEK
20
4 Los geht’s
Befolgen Sie nachfolgende Schritte, um das Produkt in Betrieb zu
nehmen:
xSchließen Sie den BoomBoom 80 an Ihre Stereoanlage an
xSpeisen Sie den BoomBoom 80 mit Strom
xPaaren Sie den BoomBoom 80 mit einem Smartphone mit
Bluetooth
x…und fertig!
Noch einmal alles Schritt für Schritt erklärt.
4.1 Anschluss an ihre stereoanlage
4.1.1 Analoganschluss
1. Schließen Sie den Mini Buchsenanschluss beispielsweise an
den AUX IN eines Docking Lautsprechers oder Radio/CD
Player an.
2. Verwenden Sie das enthaltene Übergangskabel, um den
BoomBoom 80 an den AUX IN Cinch (RCA) Anschluss Ihrer
Stereoanlage anzuschließen. Ziehen Sie für weitere Infos die
Anleitung Ihrer Stereoanlage zurate.
4.2 Speisung
1. Schließen Sie das USB Kabel an den Micro USB Anschluss
Ihres BoomBoom 80 an und den Netzadapter selbst an eine
Steckdose oder verwenden Sie, wenn vorhanden, einen USB
Anschluss Ihrer Stereoanlage.
2. Die LED blinkt langsam um anzuzeigen, dass der
BoomBoom 80 eingeschaltet und bereit ist, um an Ihr Gerät
angeschlossen zu werden.
