Marmitek Connect 620 UHD 2 User manual

Connect 620 UHD 2.0
20673/ 20170802 • Connect 620 UHD 2.0™
ALL RIGHTS RESERVED MARMITEK ©
USER MANUAL 3
Connect 620 UHD 2.0™
GEBRAUCHSANLEITUNG 15
GUIDE UTILISATEUR 27
MODO DE EMPLEO 39
MANUALE D’ISTRUZIONI 51
GEBRUIKSAANWIJZING 63
1_voorkant_20673_20170802_UG_124Page 1 27-9-2017 9:26:36

© MARMITEK
2

Connect 620 UHD 2.0™
3
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
NEDERLANDS
ENGLISH
1 Table of contents
1Table of contents......................................................................3
2Safety instructions....................................................................4
3Your product ............................................................................5
3.1 Introduction..............................................................................5
3.2 Benefits....................................................................................5
3.3 HDMI properties.......................................................................5
3.4 Package contents.....................................................................6
4Getting started .........................................................................8
4.1 Installation tips.........................................................................8
4.2 Installation................................................................................8
5Manual or automatic switching.................................................9
6Technical specifications .........................................................10
7Frequently asked questions (FAQs) .......................................12
8Notification.............................................................................13
8.1 Declaration of Conformity.......................................................13
8.2 Recycling...............................................................................13
8.3 Copyrights..............................................................................14

© MARMITEK
4
2 Safety instructions
Please read these instructions thoroughly before you use the
device and keep them for future reference.
Only for indoor use.
Do not use the product in a damp environment or near water.
Do not expose the product to extremely high or low
temperatures, strong light sources or direct sunlight.
This product is not a toy. Keep out of reach of children.
Do not open the product: the device may contain live parts.
Keep batteries out of the reach of children. Dispose of
batteries as chemical waste. Never use old and new
batteries or different types of batteries together. Remove the
batteries when you are not using the system for a longer
period of time. Check the polarity (+/-) of the batteries when
inserting them in the product. Wrong positioning can cause
an explosion.
Connect the adapter to the mains only after you have verified
that the line voltage corresponds to the value specified on
the type plates.
Never connect a power adapter if it's damaged. In such
cases, please contact your supplier.
Repairs or service should only be performed by qualified
personnel.
Disconnect the AC/DC power adapter from the mains when
this device is not in use for prolonged time.
Improper use, self-installed modifications or repairs will void
any and all warranties.
Marmitek does not accept any product responsibility for
incorrect use of the product or use other than for which the
product is intended.
Marmitek does not accept liability for any consequential
damage other than the legal product responsibility.

Connect 620 UHD 2.0™
5
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
NEDERLANDS
ENGLISH
3 Your product
3.1 Introduction
Congratulations on your purchase of the Marmitek Connect 620
UHD 2.0™!
It allows you to use 1 cable to connect 4 HDMI sources to your
TV, without any loss of signal or encryption. It's ideal when your
TV doesn't have enough HDMI inputs, or if you want to connect
the devices to your TV using just one cable. Examples of HDMI
sources are game consoles such as a PlayStation or Xbox, Blu-
ray players, digital TV decoders and all other HDMI devices. The
Connect 620 UHD 2.0™ supports Ultra HD (4k), Full HD (1080p)
and all 3D formats, making it suitable for all your existing and
future equipment.
All our products are designed and manufactured to the highest
quality requirements. Please read this manual first and follow the
instructions in order to fully enjoy the possibilities of this product.
3.2 Benefits
Suitable for simultaneously connecting 4 HDMI devices to
your TV
Enjoy the latest Ultra HD content and watch Netflix or a Blu-
ray movie in 4K, while maintaining ultimate contrast and
beautiful colours.
Includes built-in repeater and equalizer for correcting any
signal loss.
Switches automatically and/or with remote control.
Supports HDCP 2.2 for playing protected 4K Ultra HD
content
3.3 HDMI properties
The maximum throughput speed is 18 Gbit/s (gigabits per
second). This allows HDMI 2.0 to display Ultra HD 4K
images at 60 fps (frames per second).
Suitable for the latest Ultra HD 4K60 resolution (3840 x 2160
/ 60Hz), High Dynamic Range (HDR), Deep Color and 4:4:4
chroma colours.

© MARMITEK
6
Supports all 3D formats (suitable for use with your own 3D
equipment)
Deep Color 36-bit (billions instead of millions of colours,
better reproduction of subtle differences in gradation and a
higher contrast ratio).
Supports Dolby Atmos and DTS:X and all other common
audio formats.
3.4 Package contents
A. 1 x HDMI Switcher
B. 1 x Remote Control (battery included)
C. 1 x Power Adapter
D. 1 x User Manual
Front
Rear
A
Input indicators
A
Input
selection
Connector for DC power
adapter
HDMI inputs
IR sensor

Connect 620 UHD 2.0™
7
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
NEDERLANDS
ENGLISH
Side
Remote control
Power adapter
USB voedingsadapter
Sluit B op A aan en voorzie de
BoomBoom 93 van voeding
B
C
HDMI output
Direct input
selection
Input
selection

© MARMITEK
8
4 Getting started
4.1 Installation tips
Turn off all devices (TV and HDMI sources) before
connecting them to the Connect 620 UHD 2.0™. If a device
cannot be turned off, please remove the plug from the
socket.
Only use High Speed HDMI® certified cables for the best
picture and sound quality. Using too much force to connect
or disconnect the HDMI cables may damage them.
Please be careful when connecting your HDMI cables. These
damage easily.

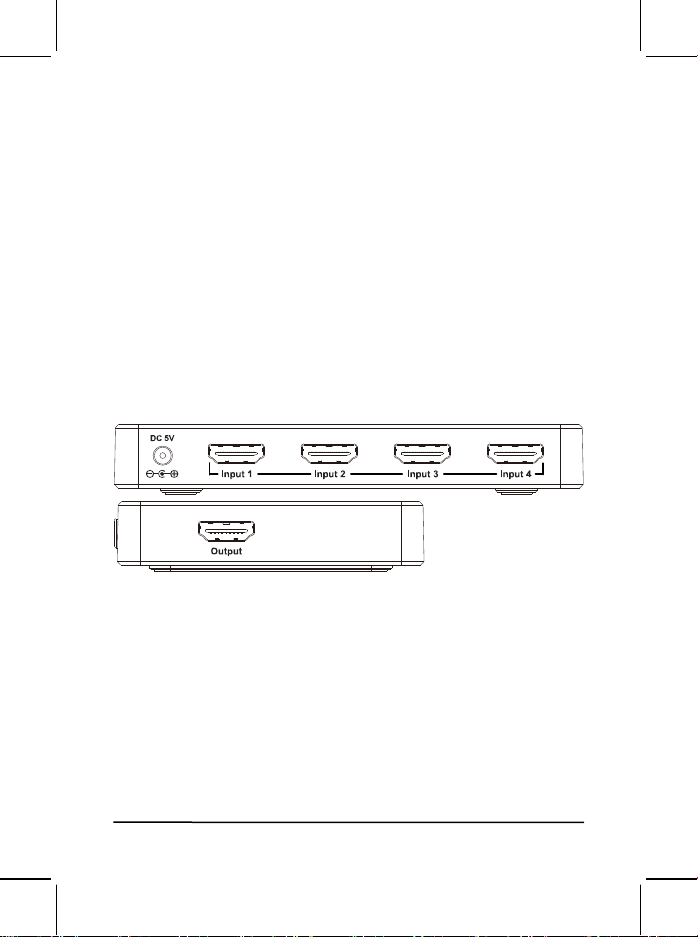

4.2 Installation
1. Use an HDMI cable to connect the HDMI sources (such as a
game console, Blu-ray player or digital TV decoder) to the
HDMI ports marked "Input".
2. Use an HDMI cable to connect the TV to the HDMI port
marked "Output".
3. Connect the power adapter to the "DC 5V" and insert the
plug into the socket.
4. Pull the plastic strip from the remote control's battery
compartment to activate the battery and remove the
protective film from the top.

Connect 620 UHD 2.0™
9
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
NEDERLANDS
ENGLISH
5 Manual or automatic switching
The Connect 620 UHD 2.0™ allows you to choose which HDMI
source is displayed on the TV. If you turn on one of the HDMI
sources, it will automatically switch to the correct input. If multiple
HDMI sources are turned on, the Connect 620 UHD 2.0™ will
automatically switch to the HDMI source that was activated last.
To deactivate or reactivate automatic switching, press the input
selection button on the remote control for 3 seconds. Input lights 3
and 4 will light up briefly to confirm. If you want to
manually select another HDMI
source, repeatedly press the
input selection button on the
remote control briefly until you
arrive at the right input, or use
the direct input selection
buttons (IN1 to IN4) to switch to
the required input directly. Alternatively, you can
use the "Select" button at the front of the
Connect 620 UHD 2.0™.
Note: Automatic switching must be supported by the HDMI
source. If it is not supported, you should manually select the
appropriate HDMI source.
Direct input
selection
Input
selection

© MARMITEK
10
6 Technical specifications
Connections
HDMI input 4 x HDMI (19-pin female)
HDMI output 1 x HDMI (19-pin female)
HDMI cable length max. 15 metres
Video
Supported resolutions 4K
(4096x2160)@24/30/50/60Hz,
480i~1080p@50/60Hz,1080p
@120Hz and
3D@1080p/60Hz.
Supported PC resolutions max. QSXGA
(2560x2048@60Hz).
HDMI standards HDMI 2.0b, HDR, CEC, EDID,
DVI, all 3D formats and Deep
Color 36-bit.
HDCP standards HDCP 2.2 and HDCP 1.4
Colour formats RGB and YCbCr 4:4:4, 4:2:0
or 4:2:2.
Colour depth max. 36-bit.
Throughput speed max.18 Gbit/s.
Clock frequency max. 600 MHz.
Audio
HDMI audio formats DTS-HD Master Audio, Dolby
TrueHD,
Dolby Atmos, DTS:X, Dolby
Digital/ AC3,
DTS 5.1 and PCM stereo.
Housing
Dimensions (H x W x D) 120 x 78 x 17 mm
Weight 210 g
Environment
Ambient temperature +0 to +40° C

Connect 620 UHD 2.0™
11
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
NEDERLANDS
ENGLISH
Ambient humidity 20% to 90%
Power
External power adapter 100-240VAC @50-60Hz,
5VDC @ 1A
Specifications may change without prior notice.

© MARMITEK
12
7 Frequently asked questions (FAQs)
No (or poor) image and sound
If you experience poor or no picture after connecting the HDMI
switcher, please try to identify the problem by connecting the
devices to your screen (TV, monitor or projector) one by one. This
allows you to determine whether the problem is with the HDMI
sources, the HDMI cables, the HDMI switcher or the screen.
Make sure the power adapter is connected and plugged in.
For the best picture and sound quality, only use High Speed
HDMI® certified cables.
Do not use HDMI cables longer than those specified in the
technical data.
Check the HDMI cables and/or connectors for damage.
Both the HDMI source and your screen should fully support
HDMI.
Check that your HDMI sources and screen support HDCP
2.2 (High Bandwidth Digital Content Protection) copy
protection.
Incorrect 3D display
Please check whether the HDMI source is set to display 3D
and/or it is set to automatic.
Both the HDMI source and your HD screen should support
the same 3D formats.
Please check that 3D is displayed correctly by connecting the
HDMI source directly to the HD display with an HDMI cable.
Do you have any other questions that have not been resolved by
the above information? Please go to www.marmitek.com

Connect 620 UHD 2.0™
13
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
NEDERLANDS
ENGLISH
8 Notification
8.1 Declaration of Conformity
Hereby, Marmitek BV, declares that this Connect 620
UHD 2.0™ is in compliance with the essential
requirements and other relevant provisions of the
following Directives:
Directive 2004/108/EC of the European Parliament and of the
Council of 15 December 2004 on the approximation of the laws of
the Member States relating to electromagnetic compatibility
Directive 2006/95/EC of the European Parliament and of the
Council of 12 December 2006 on the harmonisation of the laws of
Member States relating to electrical equipment designed for use
within certain voltage limits
Directive 2011/65/EU of the European Parliament and of the
Council of 8 June 2011 on the restriction of the use of certain
hazardous substances in electrical and electronic equipment
Commission Regulation (EC) No 278/2009 of 6 April 2009
implementing Directive 2005/32/EC of the European Parliament
and of the Council with regard to ecodesign requirements for no-
load condition electric power consumption and average active
efficiency of external power supplies
8.2 Recycling
Environmental Information for Customers in the European
Union. European Directive 2002/96/EC requires that the
equipment bearing this symbol on the product and/or its
packaging must not be disposed of with unsorted municipal waste.
The symbol indicates that this product should be disposed of
separately from regular household waste streams. It is your
responsibility to dispose of this and other electric and electronic
equipment via designated collection facilities appointed by the
government or local authorities. Correct disposal and recycling will
help prevent potential negative consequences to the environment
and human health. For more detailed information about the
disposal of your old equipment, please contact your local

© MARMITEK
14
authorities, waste disposal service, or the shop where you
purchased the product.
8.3 Copyrights
Marmitek is a trademark of Germatron B.V. Connect 620 UHD
2.0™ is a trademark of Marmitek B.V. All rights reserved. Every
effort has been made to ensure that the information in this manual
is accurate. Marmitek is not responsible for printing or clerical
errors. Copyright and all other proprietary rights in the content
(including but not limited to model numbers, software, audio,
video, text and photographs) rests with Marmitek B.V. Any use of
the Content, but without limitation, distribution, reproduction,
modification, display or transmission without the prior written
consent of Marmitek is strictly prohibited. All copyright and other
proprietary notices shall be retained on all reproductions. Other
company and product names mentioned herein may be
trademarks of their respective companies. Mention of third-party
products is for informational purposes only and constitutes neither
an endorsement nor a recommendation. Marmitek assumes no
responsibility with regard to the performance or use of these
products.
Marmitek BV - PO Box 4257 - 5604 EG Eindhoven
The Netherlands

Connect 620 UHD 2.0™
15
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
NEDERLANDS
DEUTSCH
1 Inhaltsverzeichnis
1Inhaltsverzeichnis...................................................................15
2Sicherheitshinweise ............................................................... 16
3Ihr Produkt .............................................................................17
3.1 Einführung..............................................................................17
3.2 Verwendbarkeit......................................................................17
3.3 HDMI eigenschaften...............................................................18
3.4 Verpackungsinhalt..................................................................19
4Los geht’s ..............................................................................21
4.1 Bevor Sie beginnen................................................................21
4.2 Installation..............................................................................21
5Von Hand oder automatisch schalten.....................................22
6Technische Daten..................................................................23
7Häufig gestellte Fragen (FAQs)..............................................24
8Hinweis ..................................................................................25
8.1 Konformitätserklärung............................................................25
8.2Recycling...............................................................................26
8.3 Urheberrechte........................................................................26

© MARMITEK
16
2 Sicherheitshinweise
Lesen Sie diese Gebrauchsanleitung sorgfältig durch, bevor
Sie das Gerät in Betrieb nehmen und bewahren Sie diese
Anleitung bitte für eventuelle, spätere Bedarfsfälle auf.
Ausschließlich für Verwendung in Innenräumen.
Dieses Produkt nicht in einer feuchten Umgebung oder nahe
Wasserquellen verwenden.
Setzen Sie dieses Produkt nicht extrem hohen oder
niedrigen Temperaturen, starken Lichtquellen und direkter
Sonneneinstrahlung aus.
Dieses Produkt ist kein Spielzeug. Außer Reichweite von
Kindern halten.
Das Produkt niemals öffnen: Das Gerät kann Teile enthalten,
worauf lebensgefährliche Stromspannung steht.
Halten Sie die Batterien außerhalb der Reichweite von
Kindern. Liefern Sie die Batterien als chemischen Kleinabfall
ein. Verwenden Sie niemals alte und neue oder
unterschiedliche Typen von Batterien durcheinander. Wenn
Sie das System längere Zeit nicht benutzen, entfernen Sie
die Batterien. Achten Sie beim Einlegen der Batterien auf die
Polarität (+ / -): Ein falsches Einlegen kann zu
Explosionsgefahr führen.
Schließen Sie den Netzadapter erst dann an das Stromnetz
an, nachdem Sie überprüft haben, ob die Netzspannung mit
dem auf dem Typenschild angegeben Wert übereinstimmt.
Schließen Sie niemals einen Netzadapter an, wenn diese
beschädigt sind. In diesem Fall nehmen Sie Kontakt mit
Ihrem Lieferanten auf.
Überlassen Sie Reparaturen oder Wartung nur Fachleuten.
Entfernen Sie den AC/DC Speisungsadapter aus der
Steckdose, wenn Sie das Gerät längere Zeit nicht nutzen.
Bei einer zweckwidrigen Verwendung, selbst angebrachten
Veränderungen oder selbst ausgeführten Reparaturen
verfallen alle Garantiebestimmungen.

Connect 620 UHD 2.0™
17
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
NEDERLANDS
DEUTSCH
Marmitek übernimmt bei einer falschen Verwendung des
Produkts oder bei einer anderen Verwendung des Produktes
als für den vorgesehenen Zweck keinerlei Produkthaftung.
Marmitek übernimmt für Folgeschäden keine andere Haftung
als die gesetzliche Produkthaftung.
3 Ihr Produkt
3.1 Einführung
Herzlichen Glückwunsch zum Erwerb Ihres Marmitek Connect 620
UHD 2.0™!
Sie können 4 HDMI Quellen mit 1. Kabel an Ihren Fernseher
anschließen, ohne jeglichen Signal- oder Verschlüsselungsverlust.
Ideal, wenn Ihr Fernseher zu wenig HDMI Eingänge hat oder
wenn Sie die Geräte mit nur 1. Kabel an Ihren Fernseher
anschließen möchten. Beispiele von HDMI Quellen sind:
Spielcomputer wie PlayStation und XBox, Blu-Ray-Player,
digitaler TV Decoder und alle anderen HDMI Geräte. Der Connect
620 UHD 2.0™ unterstützt Ultra HD (4k), Full HD (1080p) und alle
3D Formate und ist somit für alle heutigen und zukünftigen Geräte
geeignet.
Alle von Marmitek entwickelten und hergestellten Produkte
entsprechen den höchsten Qualitätsanforderungen. Lesen Sie
diese Anleitung bitte sorgfältig durch und befolgen Sie die
Anweisungen, um die Möglichkeiten dieses Produkts optimal
nutzen zu können.
3.2 Verwendbarkeit
Geeignet, um 4 HDMI Quellen zugleich an Ihren Fernseher
anzuschließen.
Profitieren Sie von den neuesten Ultra HD Inhalten und
sehen Sie Netflix oder Blu-Ray Filme in 4K ohne jeglichen
Kontrastverlust und in wunderbaren Farben.
Mit eingebautem Repeater und Equalizer zum Korrigieren
eines eventuellen Signalverlustes.
Schaltet automatisch und/oder mit Fernbedienung.

© MARMITEK
18
Unterstützt HDCP 2.2 zum Abspielen von gesichertem 4K
Ultra-HD Inhalt.
3.3 HDMI eigenschaften
Der maximale Datendurchsatz beträgt 18 Gbit/s (Gigabit pro
Sekunde). Somit kann HDMI 2.0, Ultra HD 4k Aufnahmen in
60 BpS (Bilder pro Sekunde) wiedergeben Unterstützt alle
3D Formate (geeignet für Verwendung mit Ihren eigenen 3D
Geräten).
Geeignet für die neueste Ultra HD 4K60 Auflösung (3840 x
2160 / 60 Hz), High Dynamic Range (HDR), Deep Color und
4:4:4 Chroma Farben.
Deep Color 36-Bit (Milliarden anstatt Millionen Farben,
bessere Wiedergabe von subtilen Farbwerten und höheres
Kontrastverhältnis).
Unterstützt Dolby Atmos und DTS:X und alle übrigen,
gängigen Audioformate.

Connect 620 UHD 2.0™
19
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
NEDERLANDS
DEUTSCH
3.4 Verpackungsinhalt
A. 1 x HDMI Swicher
B. 1 x Fernbedienung (inkl. Batterie)
C. 1 x Speisungsadapter
D. 1 x Gebrauchsanleitung
Vorderseite
Rückseite
A
Inputindikatoren
A
Input-Auswahl
Anschluss für den DC
Speisungsadapter
HDMI Eingänge
IR Sensor

© MARMITEK
20
Seitenfläche
Fernbedienung
Speisungsadapter
USB voedingsadapter
Sluit B op A aan en voorzie de
BoomBoom 93 van voeding
B
C
HDMI Ausgang
Sofort- Input
Indikatoren
Input Auswahl
