Martin CleanScrape Small Cleaner User manual

CleanScrape®
Small Cleaner
Operator’s Manual
M4082

Important
MARTIN ENGINEERING HEREBY DISCLAIMS ANY LIABILITY FOR: DAMAGE DUE TO
CONTAMINATION OF THE MATERIAL; USER’S FAILURE TO INSPECT, MAINTAIN AND TAKE
REASONABLE CARE OF THE EQUIPMENT; INJURIES OR DAMAGE RESULTING FROM USE OR
APPLICATION OF THIS PRODUCT CONTRARY TO INSTRUCTIONS AND SPECIFICATIONS
CONTAINED HEREIN. MARTIN ENGINEERING’S LIABILITY SHALL BE LIMITED TO REPAIR
OR REPLACEMENT OF EQUIPMENT SHOWN TO BE DEFECTIVE.
Observe all safety rules given herein along with owner and Government standards and regulations. Know
and understand lockout/tagout procedures as defined by American National Standards Institute (ANSI)
z244.1-1982, American National Standard for Personnel Protection - Lockout/Tagout of Energy Sources -
Minimum Safety Requirements and Occupational Safety and Health Administration (OSHA) Federal
Register, Part IV, 29 CFR Part 1910, Control of Hazardous Energy Source (Lockout/Tagout); Final Rule.
The following symbols may be used in this manual:
DANGER
!
Danger: Immediate hazards that will result in severe personal injury or death.
WARNING
!
Warning: Hazards or unsafe practices that could result in personal injury.
CAUTION
!
Caution: Hazards or unsafe practices that could result in product or property damages.
IMPORTANT
Important: Instructions that must be followed to ensure proper installation/operation of equipment.
NOTE
Note: General statements to assist the reader.

Martin Engineering M4082-01/22 iCleanScrape®Small Cleaner
Table of Contents
Section Page
List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
List of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Installations without chutework . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Belt cleaner inspection access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Materials required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Before Installing Belt Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installing Belt Cleaner and Tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Locating belt cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing tensioner mount plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installing tensioner on outside chute wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Installing tensioner on inside chute wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Installing tensioner mount plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Installing tensioner on inside chute wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Tensioning cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
After Installing Belt Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Weekly Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Part Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Table of Contents

Martin Engineering M4082-01/22 ii CleanScrape®Small Cleaner
List of Figures
Figure Title Page
1 Belt Cleaner Mounting Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Typical Belt Cleaner Mounting Positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 Low Product Flow Belt Cleaner Mounting Positions . . . . . . . . . . . . . . . . . . . . . . . 6
4 Installations with Wide Chute Walls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5 Belt Cleaner Location and Chute Wall Cutouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6 Installing Fixed Point Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
7 Tensioner Mount Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8 Tensioner Mount Plate Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
9 Installing Tensioner on Outside Chute Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
10 Installing Tensioner on Inside Chute Wall. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
11 Multi-Functional Tensioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
12 Installing Multi-Functional Tensioner on Inside Chute Wall . . . . . . . . . . . . . . . . . 17
13 Measure Cleaner Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
14 CleanScrape®Small Cleaner, P/N C1CSXRXXXXXX . . . . . . . . . . . . . . . . . . . . . 25
15 Martin®Conveyor Products Warning Label, P/N 23395 . . . . . . . . . . . . . . . . . . . . 26
List of Tables
Table Title Page
I CleanScrape®Conveyor Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
II CleanScrape®Small Cleaner Tensioning Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
III Part Numbers for CleanScrape®Small Cleaner, P/N C1CSXRXXXXXX . . . . . . . 25
List of Figures/Tables

Martin Engineering M4082-01/22 1CleanScrape®Small Cleaner
Introduction
Introduction
General CleanScrape®is a Pre-Cleaner which is installed diagonally across the
discharge pulley and forms a three dimensional curve. The cleaner has a
matrix of tungsten carbide scrapers incorporated into the main rubber body
during the vulcanization process. It is tensioned against the belt at an
extremely low contact pressure. On a dual-cleaner system, a Secondary
Cleaner is installed immediately following the Pre-Cleaner to remove
stubborn material left on the conveyor belt. If a Pre-Cleaner cannot be used
because of space limitations, Secondary Cleaners can be installed alone.
Multiple Pre-Cleaners and/or Secondary Cleaners may be required to clean
the belt. If the material-handling process or product could be affected by
contamination from the use of these belt cleaners, the user is responsible for
taking the necessary steps to prevent contamination. Consult Martin
Engineering or a representative for alternate belt cleaners or belt cleaner
locations to use where contamination may be an issue.
Installations
without chutework
These procedures were written for equipment that is being installed on
enclosed pulley chutework. If the pulley is not enclosed, the equipment should
be installed using the best available field resources and methods to ensure that
the critical dimensions are followed for proper installation.
Belt cleaner
inspection access
If the belt cleaner is installed on enclosed pulley chutework, at least one
Martin®Inspection Door should be installed. Martin®Inspection Doors are
available from Martin Engineering or a representative.
References The following documents are referenced in this manual:
• American National Standards Institute (ANSI) z244.1-1982, American
National Standard for Personnel Protection - Lockout/Tagout of Energy
Sources - Minimum Safety Requirements, American National Standards
Institute, Inc., 1430 Broadway, New York, NY 10018.
• Federal Register, Volume 54, Number 169, Part IV, 29 CFR Part 1910,
Control of Hazardous Energy Source (Lockout/Tagout); Final Rule,
Department of Labor, Occupational Safety and Health Administration
(OSHA), 32nd Floor, Room 3244, 230 South Dearborn Street, Chicago,
IL 60604.
•Martin®Inspection Door Operator’s Manual, P/N M3891
Materials required Installation of this equipment requires the use of standard hand tools, grinder,
welder, and cutting torch.
Table I. CleanScrape®Conveyor Requirements
Cleaner
Type
Head Pulley Diameter Belt Width Maximum Belt Speed
Min. Max. Vulcanized Splice Mechanical Splice
Small 300 mm
(12 in.)
550 mm
(22 in.)
400–1000 mm
(18–48 in.)
6 m/s
(1200 Ft/Min)
4m/s
(800 Ft/Min)

Martin Engineering M4082-01/22 2CleanScrape®Small Cleaner
Safety All safety rules defined in the above documents and all owner/employer safety
rules must be strictly followed when working on the belt cleaner.
DANGER
!
Do not touch or go near the conveyor belt or conveyor
accessories when the belt is running. Your body or clothing
can get caught and you can be pulled into the conveyor,
resulting in severe injury or death.
DANGER
!
Before installing, servicing, or adjusting the belt cleaner, turn
off and lockout / tagout / blockout / testout all energy sources
to the conveyor and conveyor accessories according to ANSI
standards. Failure to do so could result in serious injury or
death.
DANGER
!
If this equipment will be installed in an enclosed area, test the
gas level or dust content before using a cutting torch or
welding. Using a torch or welding in an area with gas or dust
may cause an explosion resulting in serious injury or death.
Follow local confined space procedures.
WARNING
!
Before using a cutting torch or welding the chute wall, cover
the conveyor belt with a fire retardant cover. Failure to do so
can allow the belt to catch fire. Follow local fire watch
procedures.
WARNING
!
Remove all tools from the installation area and conveyor belt
before turning on the conveyor. Failure to do so can cause
serious injury to personnel or damage to the belt and
conveyor.
WARNING
!
Cleaner can be heavy and may require two people to lift.
Attempting to lift the belt cleaner without assistance could
result in injury.
Introduction

Martin Engineering M4082-01/22 3CleanScrape®Small Cleaner
Before Installing Belt Cleaner
IMPORTANT
The delivery service is responsible for damage occurring in
transit. Martin Engineering CANNOT enter claims for
damages. Contact your transportation agent for more
information.
1. Inspect shipping container for damage. Report damage to delivery service
immediately and fill out delivery service’s claim form. Keep any damaged
goods subject to examination.
2. Remove belt cleaner assembly from shipping container.
3. If anything is missing contact Martin Engineering or a representative.
DANGER
!
Before installing, servicing, or adjusting the belt cleaner, turn
off and lockout / tagout / blockout / testout all energy sources
to the conveyor and conveyor accessories according to ANSI
standards. Failure to do so could result in serious injury or
death.
4. Turn off and lockout / tagout / blockout / testout energy source according
to ANSI standards (see “References”).
DANGER
!
If this equipment will be installed in an enclosed area, test the
gas level or dust content before using a cutting torch or
welding. Using a torch or welding in an area with gas or dust
may cause an explosion resulting in serious injury or death.
Follow local confined space procedures.
5. If using a cutting torch or welding, test atmosphere for gas level or dust
content. Cover conveyor belt with fire retardant cover.
CAUTION
!
Ensure conveyor chute remains unplugged. A plugged
conveyor chute may cause cleaner to damage belt.
NOTE
The chute wall that the tensioner will be located on is referred
to as the “operator side.” The other side of the chute is
referred to as the “far side.”
NOTE
The installation instructions in this manual are the preferred
methods for the most common installations. Contact Martin
Engineering for alternative installation options.
Before Installation

Martin Engineering M4082-01/22 4CleanScrape®Small Cleaner

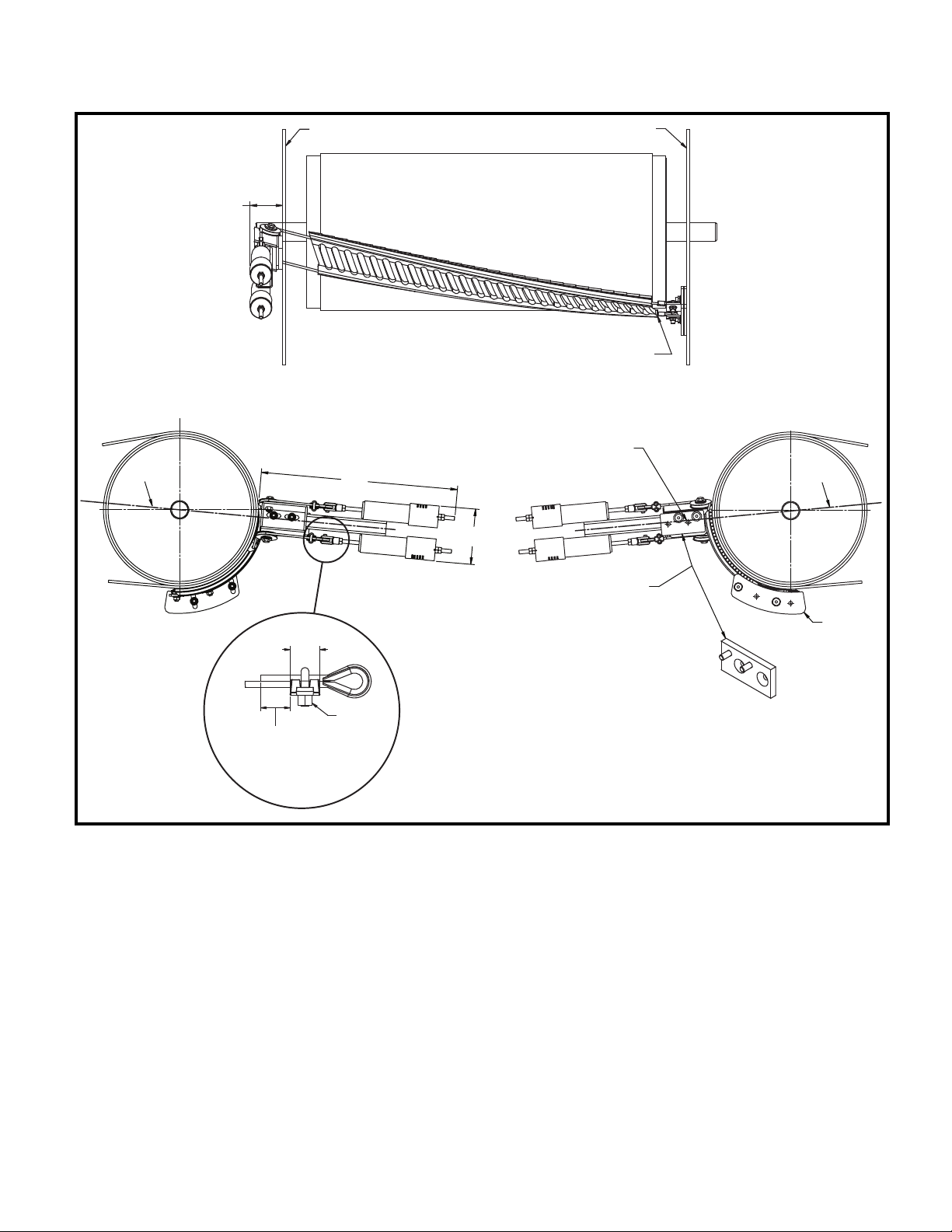

Figure 1. Belt Cleaner Mounting Orientation
IMPORTANT
The CleanScrape®carbide scrapers are molded into the
rubber body of the cleaner at a slight angle creating a serrated
cleaning edge. For effective cleaning, the cleaner can only be
mounted in orientation shown.
6. Inspect belt cleaner mounting area for possible obstructions that could
interfere with proper mounting. Refer to following guidelines:
a. Ensure cleaner does not lie in path of material unloading from
conveyor belt.

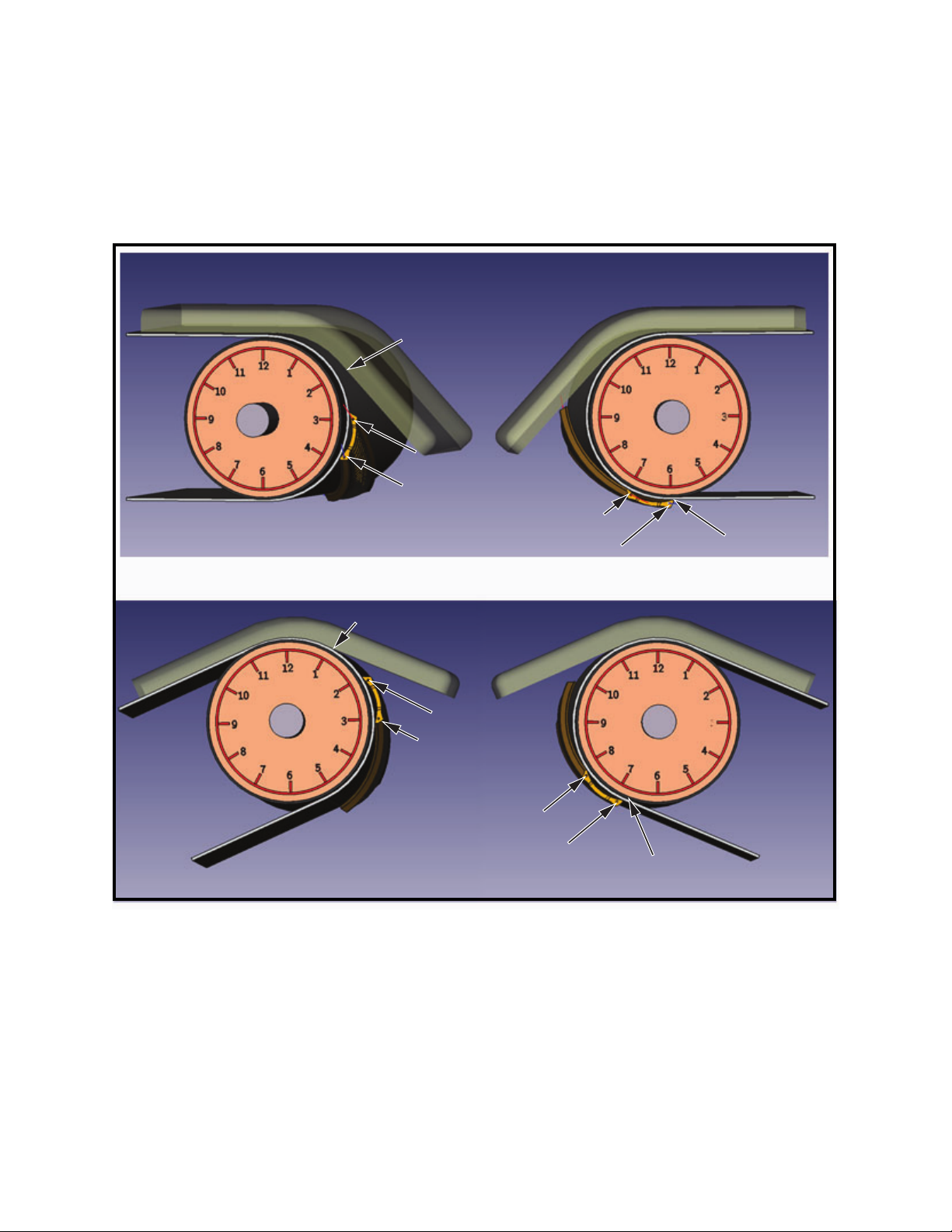

b. The top side of cleaner should be no less than the 2 o’clock position.
Material could strike the back of the cleaner causing wear which will
lead to premature failure.
c. The ideal installation angle is 17°–18°. Installation angles of 15°–21°
are acceptable. Higher angles lead to increased wear on the blade.
d. Belt width must not exceed a ratio of 3:1 to the head pulley diameter.
For example, the maximum belt width for a conveyor with a 300 mm
(12 in.) head pulley is 900 mm (36 in.).
e. Chute walls must be strong enough to not flex as tension is applied to
cleaner. If chute wall flexes inadequate tension may be applied to
cleaner resulting in poor cleaning performance. Additional chute wall
structure support may be added to prevent chute wall from flexing.
f. The distance between the cleaner and the chute wall should be
minimized. Martin Engineering recommends keeping the distance to
150mm (6 in.) maximum per side (see Figure 4). Excess cable could
result in vibration that could damage the belt or the cleaner. If
necessary, build a sub-wall to support the tensioners in the proper
position. Consult Martin Engineering for installation assistance if
parameters fall outside of this range.
g. For typical installations, start with the bottom rope in the 6 o’clock
position. The exact positioning of the top rope is a result of the
installation angle.
h. For belts with low product flow, lower the top rope until cleaner is out
of material path. Cleaner angle must be 15° or greater.
Correct Mounting Position Incorrect Mounting Position
Before Installation

Martin Engineering M4082-01/22 5CleanScrape®Small Cleaner
7. Lack of service can contribute to poor belt cleaning performance. Follow
local guidelines for access:
(1) Clearance for service outside the chute must be at least equal to the
belt width.
(2) Cleaners must have service platforms. Cleaners should be
mounted at least 600 mm (24 in.) above the work platform.
Figure 2. Typical Belt Cleaner Mounting Positions
Belt Exit PointBelt Exit Point
Belt Exit PointBelt Exit Point
Top RopeTop Rope
Top RopeTop Rope
Bottom RopeBottom Rope
Bottom RopeBottom Rope
Bottom RopeBottom Rope
Top RopeTop Rope
Top RopeTop Rope
Bottom RopeBottom Rope
ProductProduct
DischargeDischarge
PointPoint
Product Discharge PointProduct Discharge Point
Before Installation

Martin Engineering M4082-01/22 6CleanScrape®Small Cleaner
Figure 3. Low Product Flow Belt Cleaner Mounting Positions
Belt Exit PointBelt Exit Point
Belt Exit PointBelt Exit Point
Top RopeTop Rope
Top RopeTop Rope
Belt WrapBelt Wrap
ProductProduct
DischargeDischarge
PointPoint
ProductProduct
DischargeDischarge
PointPoint
Before Installation

Martin Engineering M4082-01/22 7CleanScrape®Small Cleaner

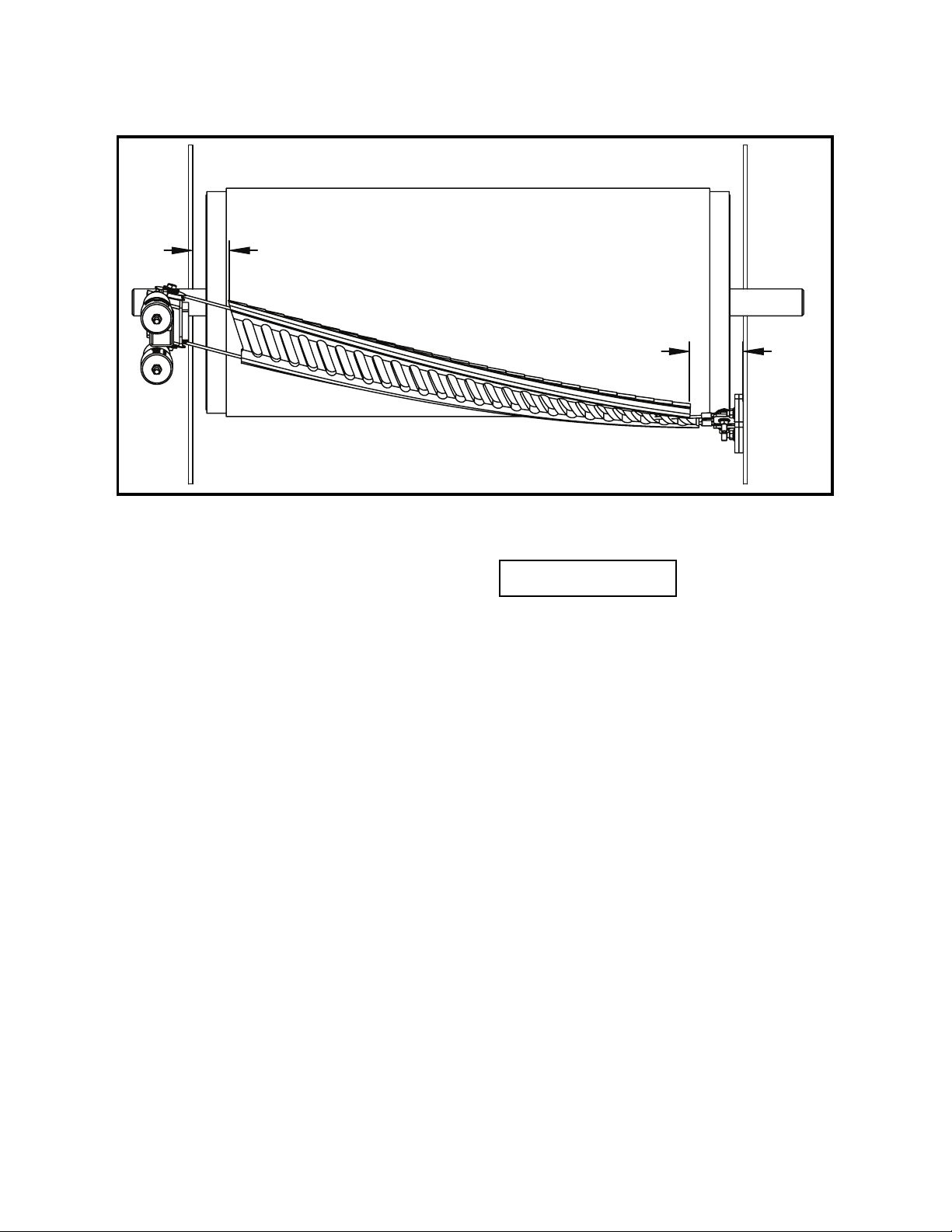

Figure 4. Installations with Wide Chute Walls
IMPORTANT
The maximum distance between chute wall and edge of blade
is 150 mm (6 in.). Excess free cable causes too much vibration
resulting in damage to cleaner and components. If necessary,
build a sub wall to support the tensioners.
150 mm (6 in.)
Maximum
150 mm (6 in.)
Maximum
Before Installation

Martin Engineering M4082-01/22 8CleanScrape®Small Cleaner
Installing Belt Cleaner & Tensioners
Figure 5. Belt Cleaner Location & Chute Wall Cutouts
Locating belt
cleaner
1. On both sides of chute, find pulley center point (A).
2. Measure radius of head pulley including lagging and belt thickness (B).
3. On the far side of chute, start from center point (A), measure the total
distance calculated in step 2 (B + 13 mm [1/2 in.]), and draw an arc on
chute wall.
4. On the operator side of chute, start from center point (A), draw an arc on
chute wall with a radius of (B + 13 mm [1/2 in.]). Draw an additional arc
on chute wall with a radius of (B + 28.7 mm [1-1/8 in.]).
B
A
BELT TRAVEL
17°–18°
Conveyor Center Line
Head Pulley
Center Line
30
(1.18)
60
(2.36) 96
(3.78)
39
(1.52)
13
(.51)
Fixed Point Bracket
BELT TRAVEL
Head Pulley
Center Line
13
(.51)
90.4
(3.56)
9.7
(.38)
Locate the tensioner mount plate
based on 17° angle starting at fixed
point bracket. Both upper corners
should touch the 28.7 mm (1.13in.)
radius off the belt surface.
Ø38
(1.50)
A
B
28.7
(1.13)
Center Line
of Tensioner
Dimensions–mm (in.)
Installation

Martin Engineering M4082-01/22 9CleanScrape®Small Cleaner
5. On the far side of chute:
a. If bolting fixed point bracket to chute wall, do the following:
(1) Position fixed point bracket on far side chute wall as shown in
Figure 5. Align bolt hole on bracket with head pulley center line.
(2) Mark bracket hole locations.
(3) Drill or cut two 12.7 mm (1/2-in.) holes for screws in far side chute
wall.
(4) Mount fixed point bracket to inside of far side chute wall using
countersunk screws and nuts.
b. If welding fixed point bracket to chute wall, do the following:
(1) Position fixed point bracket on far side chute wall as shown in
Figure 5. Align bolt hole on bracket with head pulley center line.
(2) Weld bracket to chute wall. Weld completely around bracket. Do
not skip weld.
Figure 6. Installing Fixed Point Bracket
c. Install bracket (A) using nuts (B). Hand tighten nuts.
d. Attach cleaner to far side bracket by inserting hex head screw and large
flat washer (C) through cable eyelet (D) and fastening with flat washer
and nut (E). Hand tighten nuts.
A. Bracket
B. Nut (2 used)
C. Allen Head Screw and Large Flat
Washer (2 used)
D. Cable Eyelet (2 used)
E. Flat Washer and Nut (2 used)
A
B
C
E
F
D
Installation

Martin Engineering M4082-01/22 10 CleanScrape®Small Cleaner

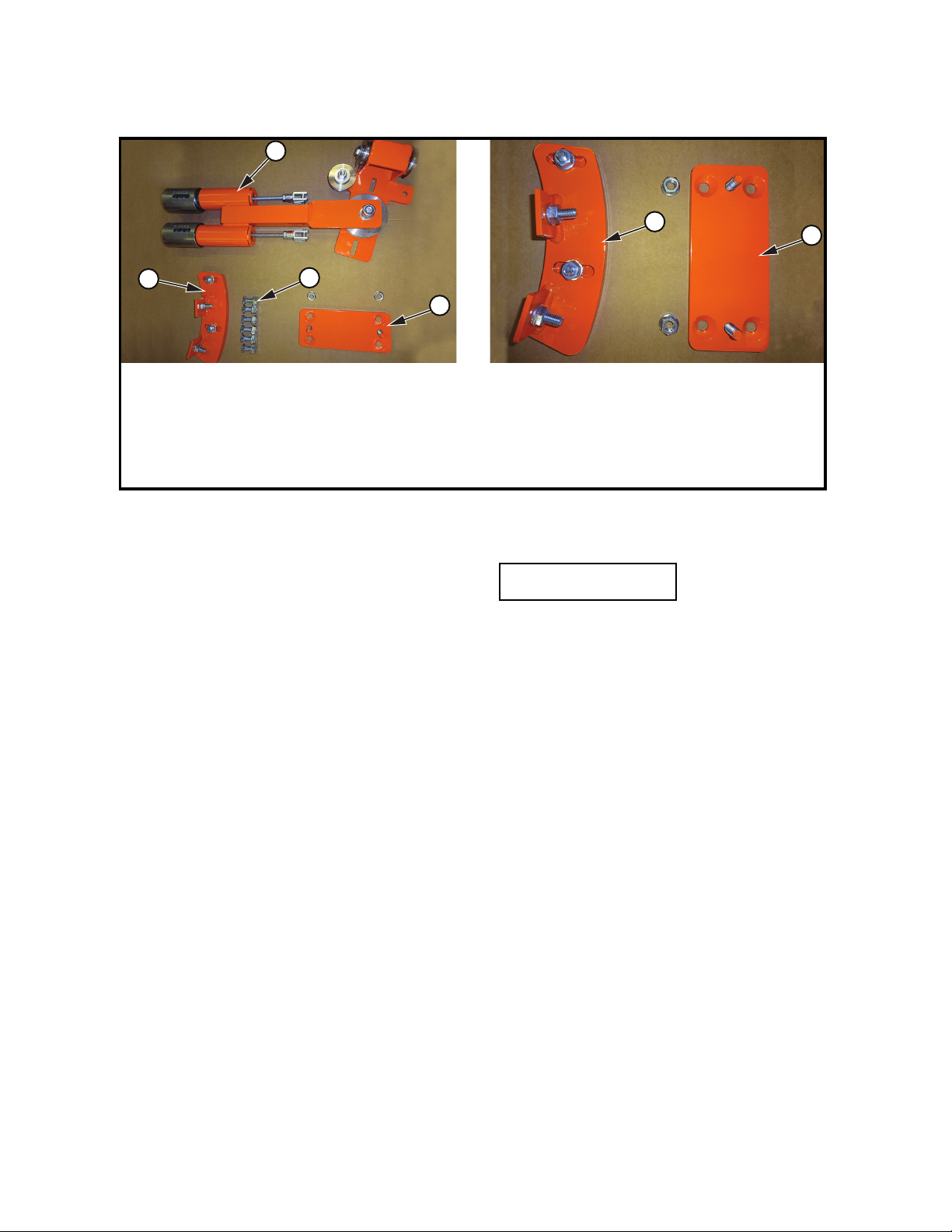

Figure 7. Tensioner Mount Plates
BBA
DC
EC
F
CC
E
FF
A. Tensioner Assembly
B. Fixed Point
C. Outside Mounting Plate
D. Mounting Hardware
E. Inside Mounting Plate
F. Nut (2 used)
Installation

Martin Engineering M4082-01/22 11 CleanScrape®Small Cleaner
Installing
tensioner mount
plate
IMPORTANT
Tensioners used with CleanScrape®Small Cleaners can be
installed on either the inside or the outside of the chute wall.
Tensioners are shipped with the inside mounting plate (E)
installed. If the application requires tensioners to be mounted
on the outside of the chute wall, the outside mounting plate (C)
must be used.
NOTE
Standard tensioner mounting location is on the outside of
chute wall.
1. Determine if tensioner will be mounted on the inside or outside of chute
wall.
2. If the tensioner will be installed on the outside of chute wall, the tensioner
mount plate must be changed as follows:
a. Remove nuts (F).
b. Remove inside mounting plate (E) from tensioner assembly (A).
c. Install outside mounting plate (C) on tensioner assembly.
d. Install and tighten nuts (F).
Figure 8. Tensioner Mount Plate Verification
CAUTION
!
The correct mounting plate must be used or damage to cleaner
will result. Using the incorrect mounting plate results in cable
being cut by roller and ultimately cleaner failure.
Correct Mounting Plate Incorrect Mounting Plate
Installation

Martin Engineering M4082-01/22 12 CleanScrape®Small Cleaner

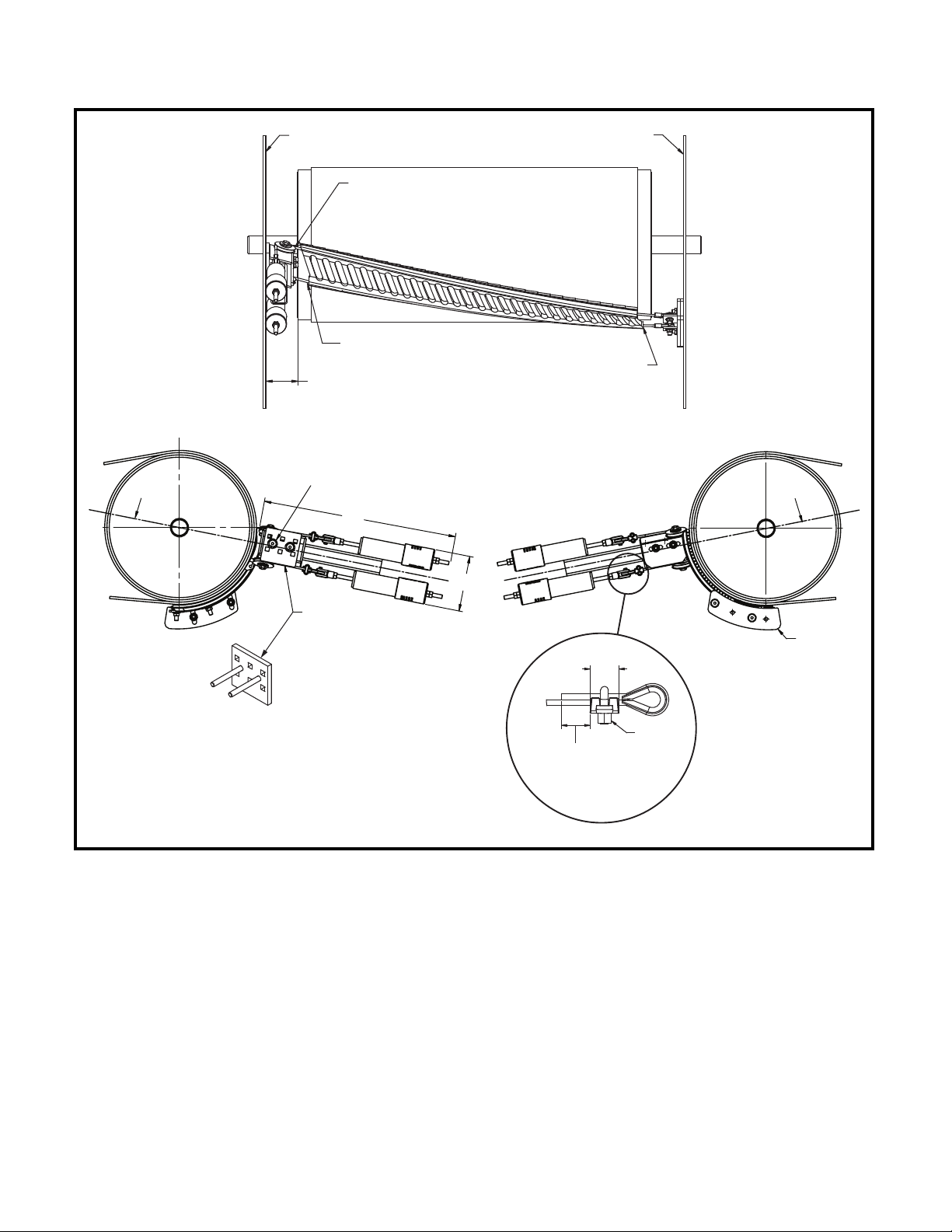

Figure 9. Installing Tensioner on Outside Chute Wall (Standard Installation)
Chute Wall Chute Wall
90
(3.55)
Use acable clip at this
location to hold the
blade in place.
If bolting tensioner to the
chute wall locate the holes
from the mounting plate.
Location will vary with head pulley sizes.
Use the tensioner mounting plate
for outside the chute wall mounting.
The inside the chute wall mounting
plate should be removed and isnot
used in thisapplication.
Clamp
Base
Width
Minimum cable past
the clamp base
should be at least
the clamp base width.
Torque nuts
to 10 Nm
7.5 ft lbs.
Outside Mounting Plate
Fixed Point
Mount Bracket
151
(5.96)
545
(21.44)
Centerline of
Te n sioner
Centerline of
Te n sioner
Dimensions–mm (in.)
Installation

Martin Engineering M4082-01/22 13 CleanScrape®Small Cleaner
Installing
tensioner on
outside chute wall
1. For installations on the outside of the chute wall:
a. Mark chute wall cutouts as shown in Figure 5.
b. Make sure centerline of tensioner intersects axis of pulley.
c. Cut holes in chute wall. Remove burrs and sharp edges.
d. Install outside mounting plate on tensioner. See Figure 7.
(1) Remove nuts (F).
(2) Remove inside mounting plate (E) from tensioner assembly (A).
(3) Install outside mounting plate (C) on tensioner assembly.
(4) Install and tighten nuts (F).
e. Position tensioner in desired location free from obstructions as shown
in Figure 9. Make sure cleaner cables will not rub on chute wall
cutouts. Reposition tensioner or enlarge cutouts as required.
f. Mark location of tensioner mounting plate.
g. Remove mounting plate from tensioner.
h. Bolt or weld mounting plate in location marked in Step 1.e.
i. Install tensioner onto mount plate.
2. Measure approximate cable length required and cut cable.
3. Assemble cable eyelet and clamp as shown in Figure 9.
4. Torque nuts on clamp to 10 Nm (7.5 ft lbs).
5. Attach each cable to tensioner.
6. Tighten tensioner adjustment nuts until cleaner is held firmly to belt.
7. Center cleaner on pulley and install a cable clamp on the far side upper
cleaner cable. This clamp keeps the cleaner centered on the belt.
8. For reversing operation, use two clamps. One on the operator side and one
on the far side.
9. Adjust fixed point bracket and tensioner bracket, so outer two elements
on each side are away from the belt. Increase the number of elements off
the belt as necessary in order to ensure the mechanical splices will pass.
10. Tighten all fasteners on fixed point brackets and tensioner mounts.
11. Tension cleaner according instructions in Tensioning cleaner.
Installation

Martin Engineering M4082-01/22 14 CleanScrape®Small Cleaner
Figure 10. Installing Tensioner on Inside Chute Wall
Chute Wall
91
(3.58)
Use acable clip at this
location to hold the
blade in place.
Chute Wall
If bolting tensioner to the
chute wall locate the holes
from the mounting plate.
Location will vary with head pulley sizes.
Use the tensioner mounting plate
for inside the chute wall mounting.
The outside the chute wall mounting
plate isnot used in thisapplication.
545
(21.44)
156
(6.13)
Locate tensioner according to 17° angle.
Clamp
Base
Width
Minimum cable past
the clamp base
should be at least
the clamp base width.
Torque nuts
to 10 Nm
(7.5 ft lbs).
Inside Mounting Plate
Fixed Point
Mount Bracket
Centerline of
Te n sioner
Centerline of
Te n sioner
For reversing belts, add a
cable clip at thislocation
to hold the blade in place.
Dimensions–mm (in.)
Installation

Martin Engineering M4082-01/22 15 CleanScrape®Small Cleaner
Installing
tensioner on inside
chute wall
1. For installations on the inside of the chute wall:
a. Make sure centerline of tensioner intersects axis of pulley.
b. Position tensioner in desired location free from obstructions as shown
in Figure 9.
c. Mark location of tensioner mounting plate.
d. Remove mounting plate from tensioner.
e. Bolt or weld mounting plate in location marked in Step 1.e.
f. Install tensioner onto mount plate.
2. Measure approximate cable length required and cut cable.
3. Assemble cable eyelet and clamp as shown in Figure 9.
4. Torque nuts on clamp to 10 Nm (7.5 ft lbs).
5. Attach each cable to tensioner.
6. Tighten tensioner adjustment nuts until cleaner is held firmly to belt.
7. Center cleaner on pulley and install a cable clamp on the far side upper
cleaner cable. This clamp keeps the cleaner centered on the belt.
8. For reversing operation, use two clamps. One on the operator side and one
on the far side.
9. Adjust fixed point bracket and tensioner bracket, so outer two elements
on each side are away from the belt. Increase the number of elements off
the belt as necessary in order to ensure the mechanical splices will pass.
10. Tighten all fasteners on fixed point brackets and tensioner mounts.
11. Tension cleaner according instructions in Tensioning cleaner.
Installation

Martin Engineering M4082-01/22 16 CleanScrape®Small Cleaner
Figure 11. Multi-Functional Tensioner
Installing
tensioner mount
plate
IMPORTANT
When the multi-functional tensioner is used with
CleanScrape®Small Cleaners, tensioner must be installed on
the inside of the chute wall. Tensioners are shipped with the
inside mounting plate (C) installed.
AA
BD
C
C
B
A. Tensioner Assembly
B. Fixed Point
C. Inside Mounting Plate
D. Mounting Hardware
Installation
