Martin Mania PR1 User manual

Mania PR1
user manual

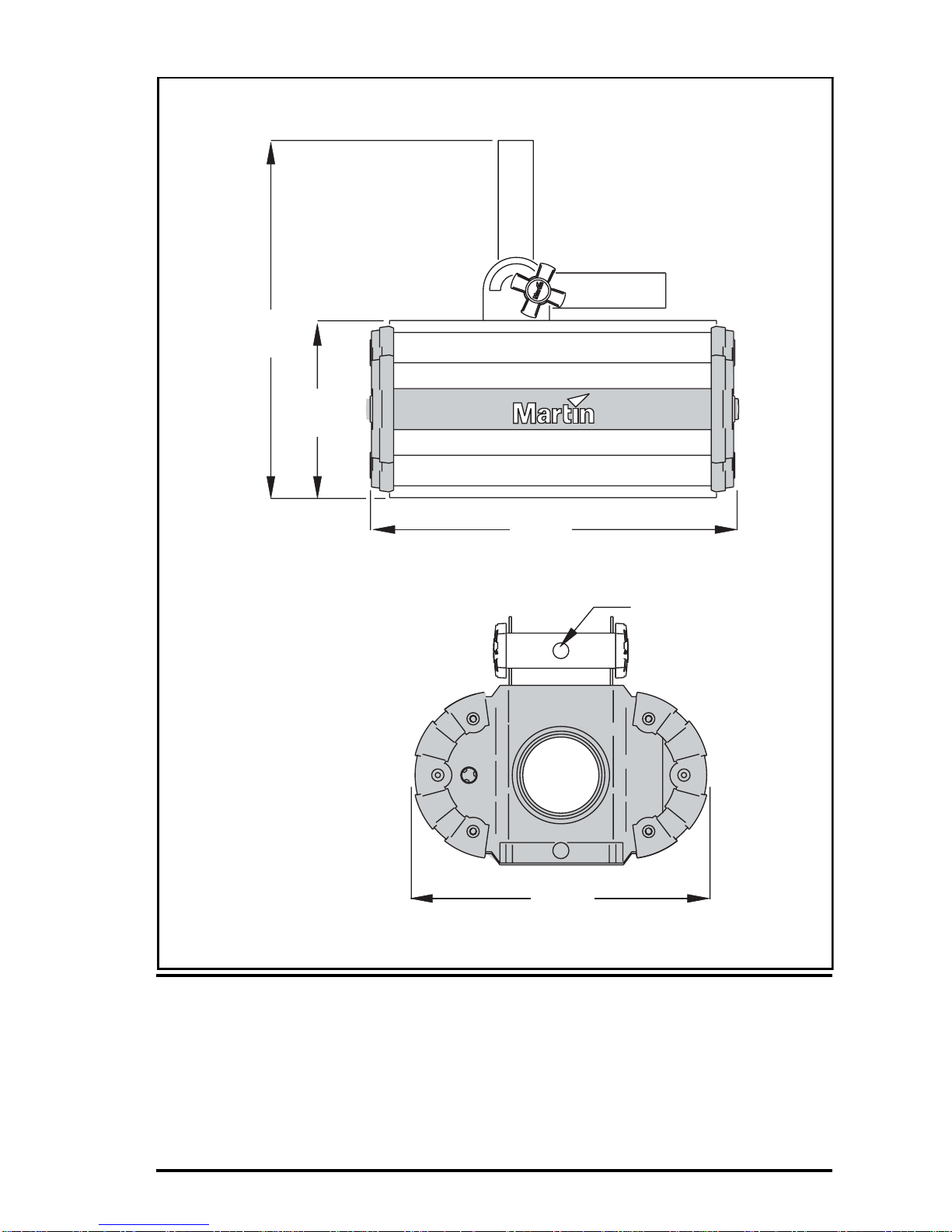

Measurements are expressed in millimeters.
340
158
315
290
Ø13
© 2003-2004 Martin Professional A/S, Denmark.
All rights reserved. No part of this manual may be reproduced, in any form or by any means,
without permission in writing from Martin Professional A/S, Denmark.
Printed in China.
P/N 35000148, Rev. B.

3
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Mania PR1 overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Overhead mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installing a gobo/texture glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installing a color filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Focusing the Mania PR1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Gobo rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Remote control operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Basic service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Lamp maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Reconfiguring the beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Lens assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Replacing the mains fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4 Mania PR1 user manual

Introduction 5
I NTRODUCTION 1
Thank you for selecting a Martin Mania PR1. The Mania PR1 is a gobo
projector with a motorized rotating gobo. Gobo rotation speed and
direction can be adjusted, and a remote control is supplied with the
product. The beam angle can be adjusted from 25° to 32°. A 43° beam
angle can also be obtained using a separately available accessory.
SAFETY INFORMATION
Warning! This product is not for household use. It presents risks of
lethal or severe injury due to fire and heat, electric shock, and
falls.
Read this manual before powering or installing the fixture, follow the
safety precautions listed below and observe all warnings in this manual
and printed on the fixture. If you have questions about how to operate the
fixture safely, please contact a Martin distributor for assistance. Refer any
service operation not described in this manual to a qualified technician.
Do not modify the fixture or install other than genuine Martin accessories
and upgrade kits.
Refer servicing to qualified personnel.
Maximum ambient temperature Ta= 40°C(104°F).
See serial label for replacement fuse size and lamp type.
Suitable for mounting on normally flammable surfaces.
Do not look directly into the light.
Risk of fire, electrical shock and burns.
Use only in dry locations.
For indoors use only.
Do NOT block exhaust vents.

6 Mania PR1 user manual
Shields, lenses or ultraviolet screens must be changed if they become
visibly damaged to the extent that their effectiveness is impaired, for
example, by cracks or deep scratches.
The lamp must be changed if it becomes damaged or thermally deformed.
If the external power cord of this luminaire is damaged, it must be
replaced by a special cord exclusively available from your Martin dealer.
Avoiding electric shocks
Warning Always disconnect from mains power before replacing the
lamp, fuses, or any part, and when not in use.
• Before operation ensure that factory setting of voltage and frequency
match local power supply.
• Always ground (earth) the fixture electrically.
• Use only a source of AC power that complies with local building and
electrical codes and has both overload and ground-fault protection.
• Do not expose the fixture to rain or moisture.
• Never operate the fixture with missing or damaged lenses and/or covers.
Protecting yourself and others from burns and fire
Warning Hot lamp. The exterior of the fixture can become hot. Allow to
cool for at least 20 minutes before handling or opening.
• Surface temperature under steady state condition = 95°C (203° F).
• Minimum distance to flammable material = 0.3 m (1 ft).
• Minimum distance to illuminated surface 1.0 m (3.3 ft).
• Never attempt to bypass the thermostatic switch or fuses. Always replace
defective fuses with ones of the specified type and rating.
• Ensure that the air flow through vents is free and unobstructed.
• Provide a minimum clearance of 0.1 meters (4 inches) around air vents.
• Never place filters or other materials over the lens or in the optical path.
• The exterior of the fixture can become hot. Allow the fixture to cool for at
least 20 minutes before handling.
• Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C
(104° F).
• Do not stare directly into the light.
• Never operate the fixture without all lenses and covers installed: an
unshielded lamp emits dangerous UV radiation that can cause burns and
eye damage.

Introduction 7
Preventing injuries due to falls
• When suspending the fixture above ground level, verify that the structure
can hold at least 10 times the weight of all installed devices.
• Verify that all external covers and rigging hardware are securely fastened
and use an approved means of secondary attachment such as a safety
cable.
• Block access below the work area whenever installing or removing the
fixture.
UNPACKING
The packing material is carefully designed to protect the fixture during
shipment - always use it to transport the fixture.
The Mania PR1 is packaged with the following:
• 3-wire power cable
• User manual
• Blue-hued texture glass
• Steel gobo with Martin logo
• Remote control unit with 5-metre (16.4 ft) RJ-45 cable
• White glove with Martin logo

8 Mania PR1 user manual

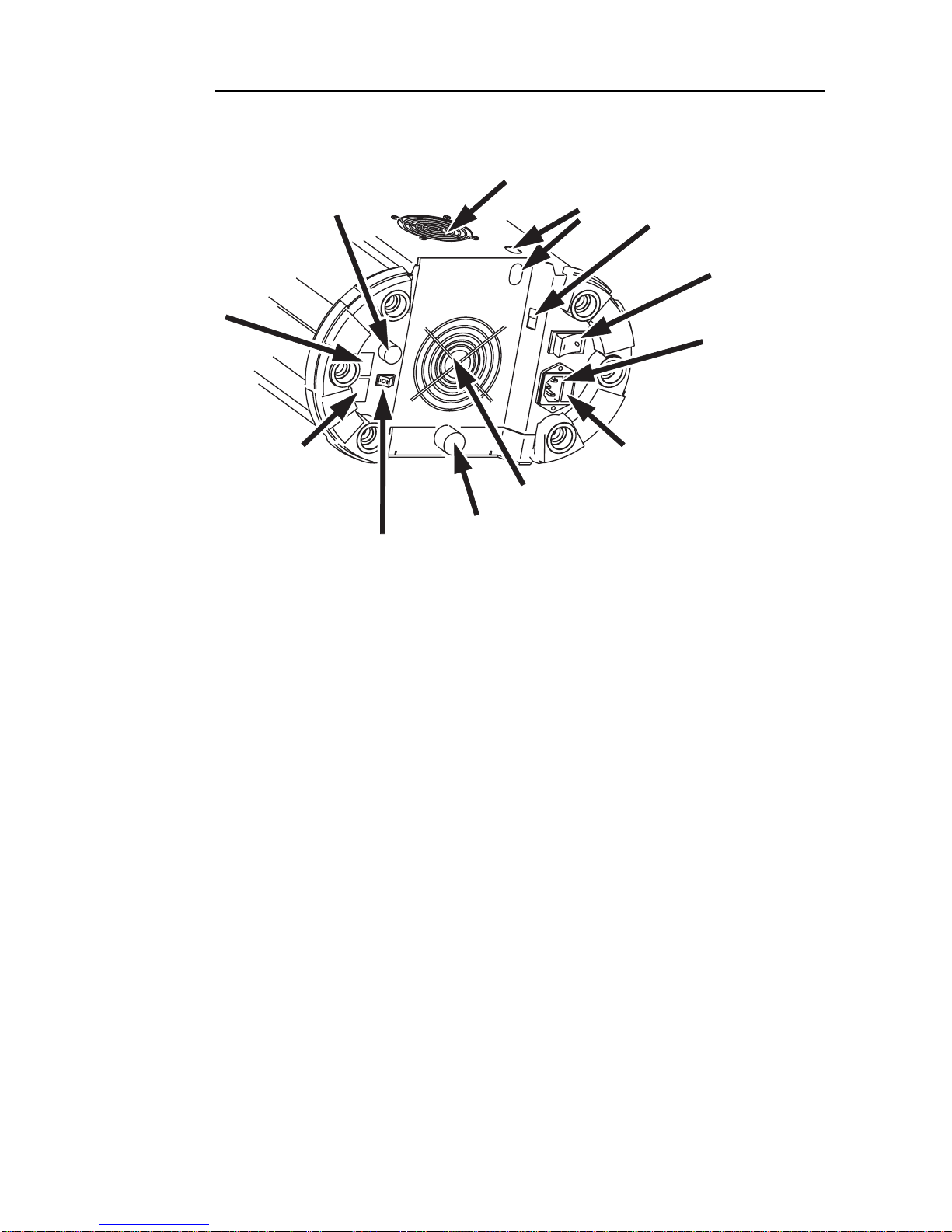

MANIA PR1 OVERVIEW
Cooling vent
Safety cable attachment eye
AC supply setting
Mains switch
Mains socket
Fuse holder
Cooling fan
Thumb screw (cover lock)
Gobo rotation direction switch
Remote control input
Gobo rotation speed
Remote control output

Installation 9
I NSTALLATION 2
AC POWER
Before operation, ensure that factory setting of voltage and frequency
match local power supply.
Always ground (earth) the fixture electrically.
Use only a source of AC power that complies with local building and
electrical codes and has both overload and ground-fault protection.
Note: If the external power cord of this luminaire is damaged, it
must be replaced by a special cord exclusively available from
your Martin dealer.
Configuring for local mains power
The Mania PR1 has a switch-selectable power supply that can operate in
the following voltage ranges at 50-60 Hz:
• 115 - 120 volts (setting 115)
• 220 - 240 volts (setting 230)
Warning Do not operate the fixture on a power supply that falls outside
of these ranges.
Select the operating range using the red AC supply switch at the rear of
the fixture.
AC supply setting

10 Mania PR1 user manual
Installing a plug on the mains lead
Warning! For protection from dangerous electric shock, the fixture must
be grounded (earthed). The AC mains supply must have
overload and ground-fault protection.
Important! Verify that the feed cables are undamaged and rated for the
current requirements of all connected devices before use.
The fixture’s mains lead may require a grounding-type cord cap that fits
your power distribution cable or outlet. Consult a qualified electrician if you
have any doubts about proper installation.
Following the cord cap manufacturer’s instructions, connect the
appropriate wires to ground (earth), live, and neutral. The following table
shows some common wire identification schemes.

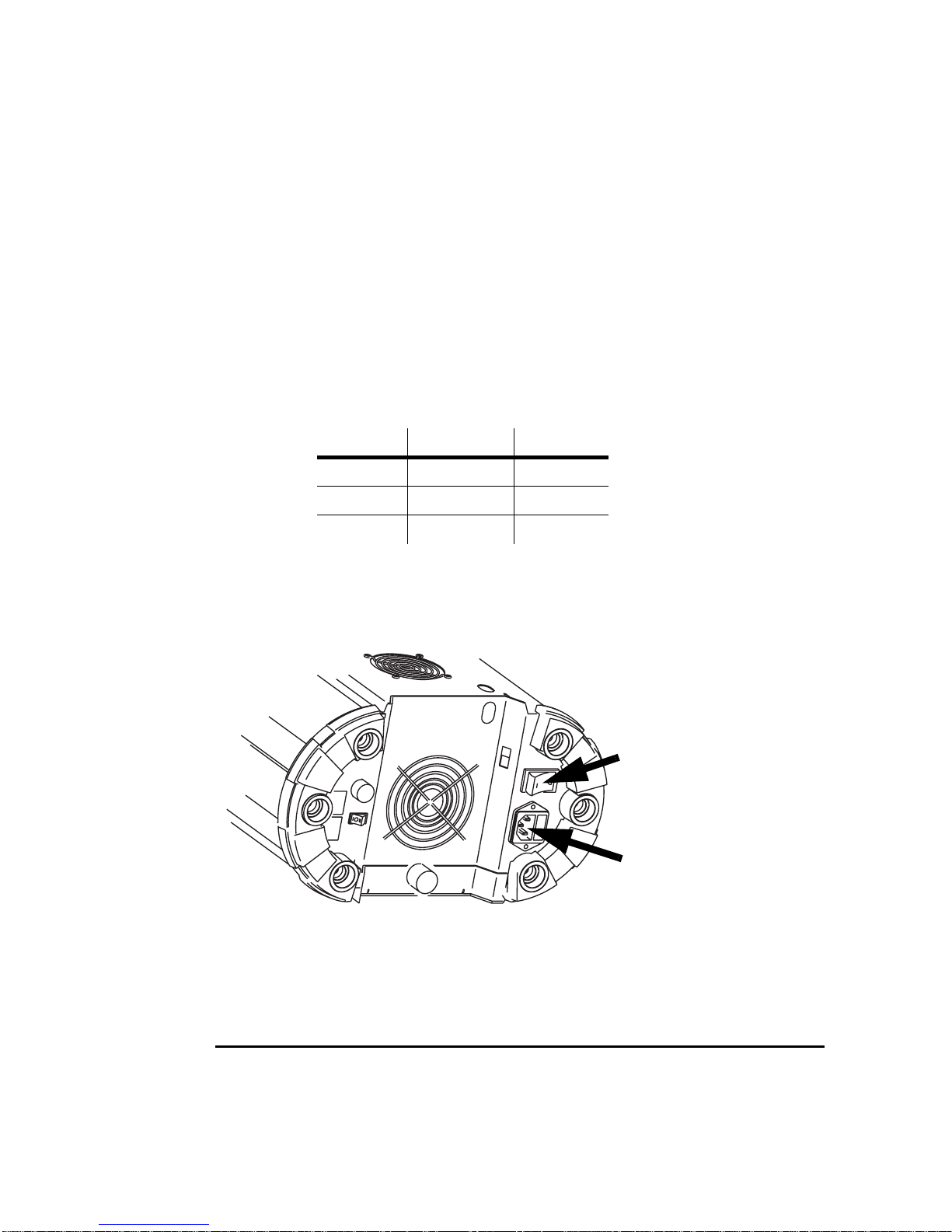

To apply power:
1 Connect the mains power cable.
2 Turn the power on using the mains switch.
OVERHEAD MOUNTING
The Mania PR1 is designed to be hung overhead with a clamp (not
included).
Function Wire (EU) Wire (US)
live brown black
neutral blue white
ground yellow/green green
Mains socket
Mains switch

Installation 11
Warning! Block access below the work area before proceeding.
Always use a secure means of secondary attachment.
For indoors use only.
To hang the Mania PR1 on an overhead support:
1 Verify that the structure can support at least 10 times the weight of all
installed fixtures, clamps, cables, auxiliary equipment, and other items.
2 If hanging the fixture with a rigging clamp, verify that the clamp is
undamaged and is designed for the fixture’s weight. Bolt the clamp
securely to the mounting bracket on the fixture with a grade 8.8
(minimum) M12 bolt and lock nut, or as recommended by the clamp
manufacturer, through the clamp hole in the mounting bracket.
3 If permanently installing the fixture, verify that the hardware (not included)
and mounting surface can bear at least 10 times the fixture’s weight.
4 Working from a stable platform, clamp or fasten the fixture to the
structure.
5 Install a safety cable that can hold at least 10 times the weight of the
fixture through the safety cable attachment point on the fixture.
6 Loosen the swivel locks, tilt the fixture to the desired angle, and retighten.
7 Verify that the fixture is at least 1 meters (3.3 ft.) from the surface to be
illuminated and at least 0.3 meters (1 ft.) from any combustible materials.
Verify that the clearance around the air vents is at least 0.1 meters (4 in.).

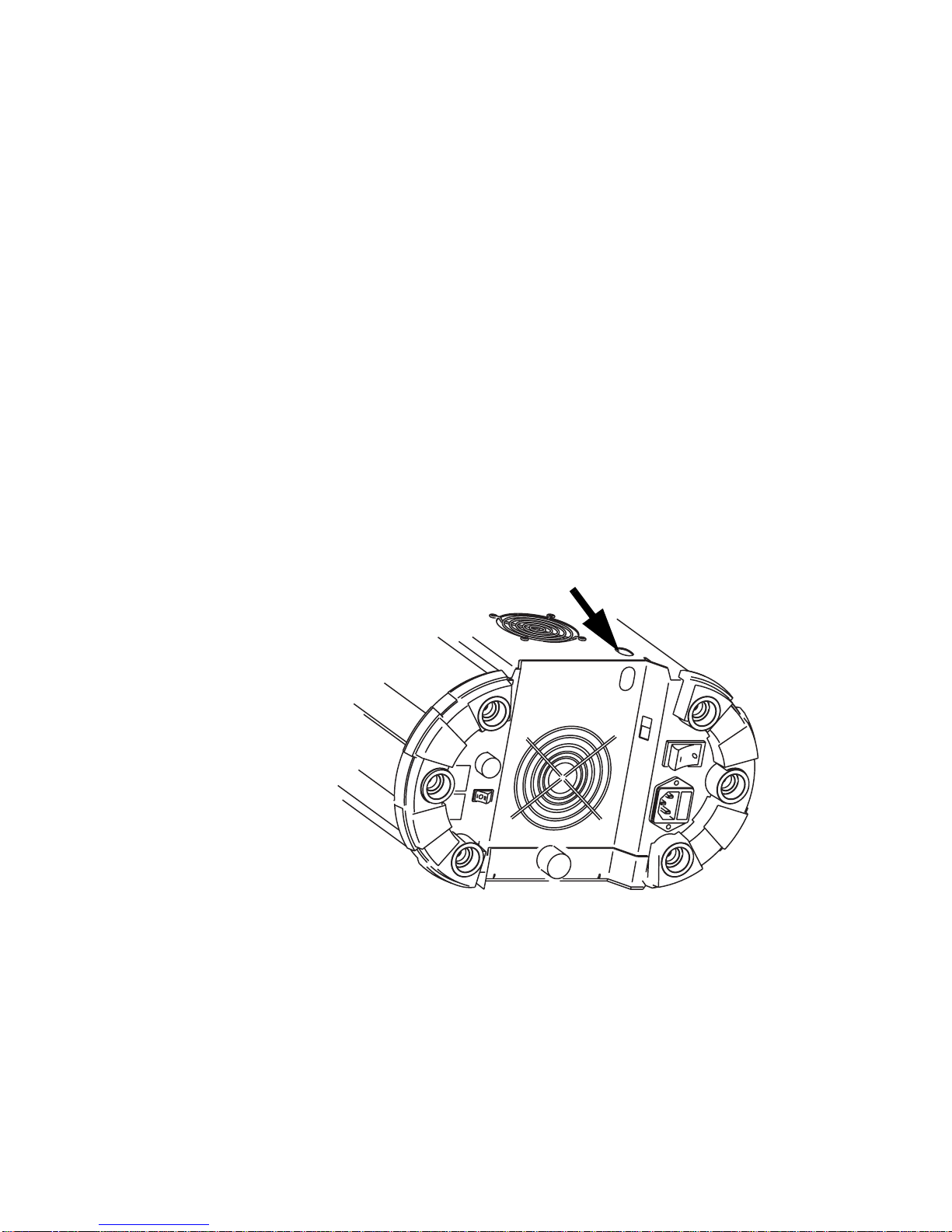

Safety cable attachment point

12 Mania PR1 user manual
O PERATION 3
The lamp will light when the mains switch at the rear of the fixture is turned
on.
Important! This fixture is designed for use with a gobo and/or structured
glass filter. Do not use it without either a gobo or a filter
installed. Doing so may cause heat damage that is not covered
by the product warranty.
INSTALLING A GOBO/TEXTURE GLASS
The fixture comes with a:
• Red-hued texture glass (installed)
• Blue-hued texture glass
You can install standard size D gobos with a maximum image diameter of
40 mm (1.6 in.).

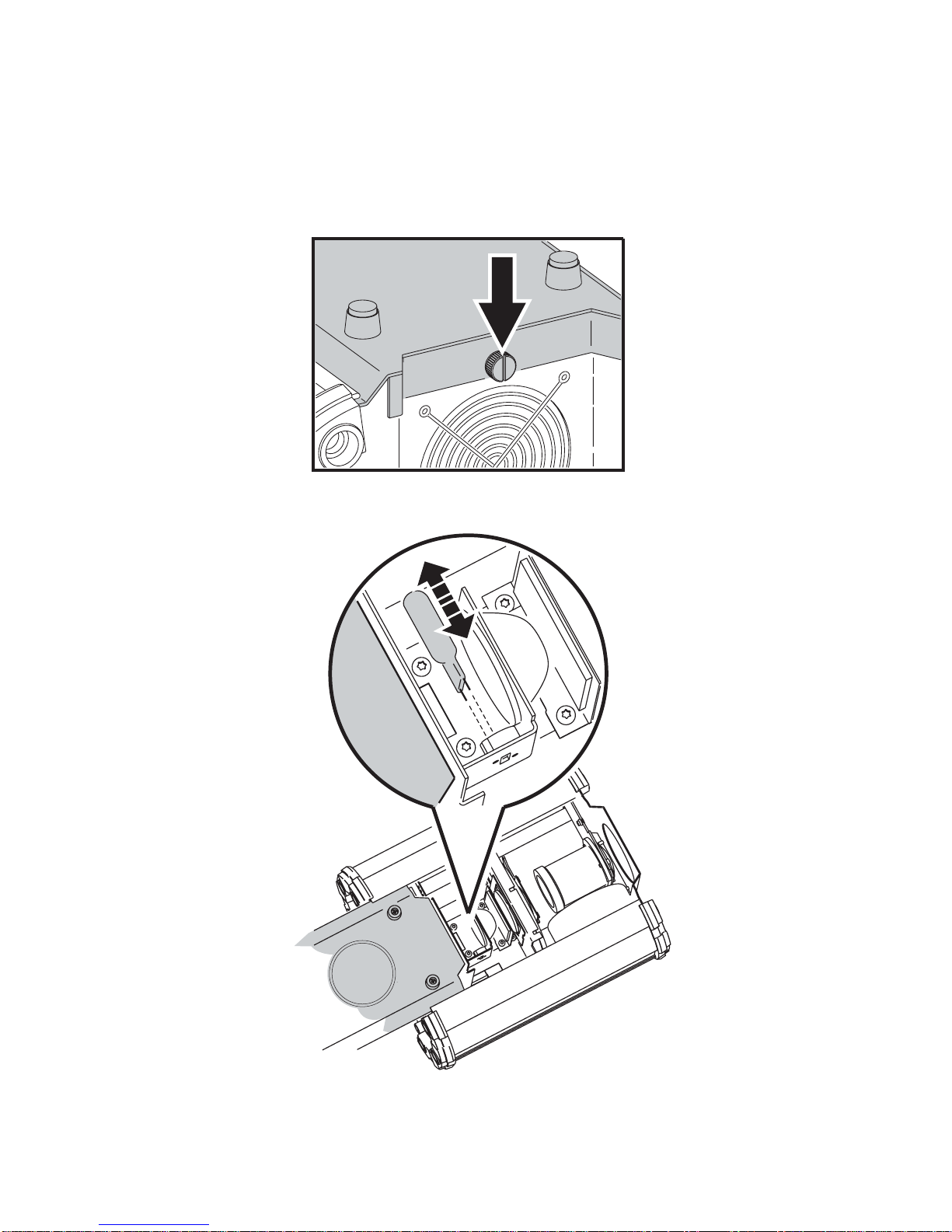

To change the gobo/texture glass:
1 Switch the mains power off and allow the fixture to cool for 20 minutes.
2 Unscrew the gobo access hatch on the top of the fixture.

Operation 13
3 Lift the gobo holder out of the fixture.

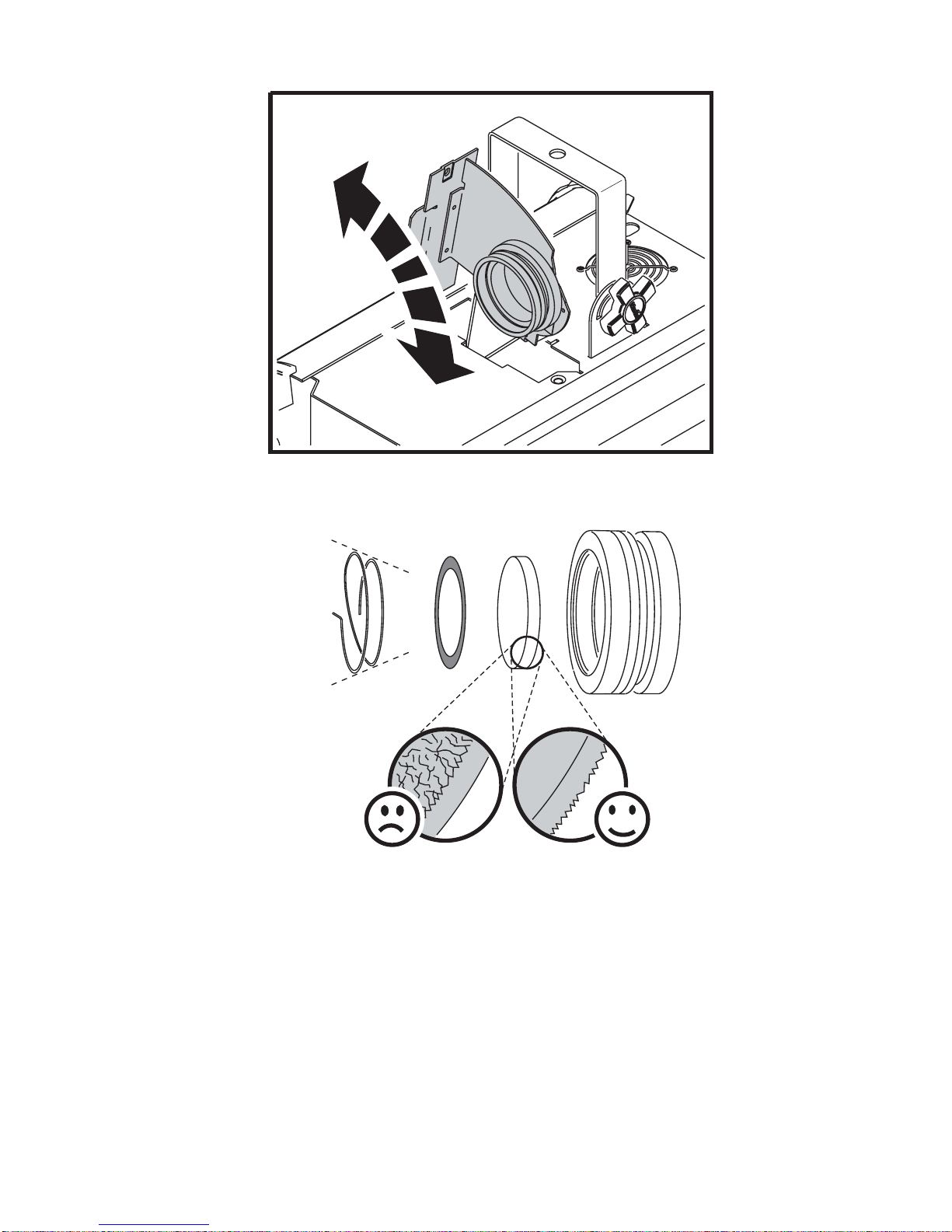

4 The gobo/texture glass is held in place by a steel spring. Remove the
spring to remove the gobo/texture glass that is presently installed.
5 Install the replacement gobo or textured glass. Note that the coated or
textured side should face the lamp.
6 Replace the gobo holder, and screw the access hatch closed, before
applying power.
Lamp side
Front lens side

14 Mania PR1 user manual
INSTALLING A COLOR FILTER
You can install a color filter in the slot that can be found on the lamp side
of the gobo holder. This slot can hold a 51 x 54 mm (2 x 2.1 in.) filter with a
thickness of between 1.1-2.0 mm (0.05-0.08 in.).
FOCUSING THE MANIA PR1

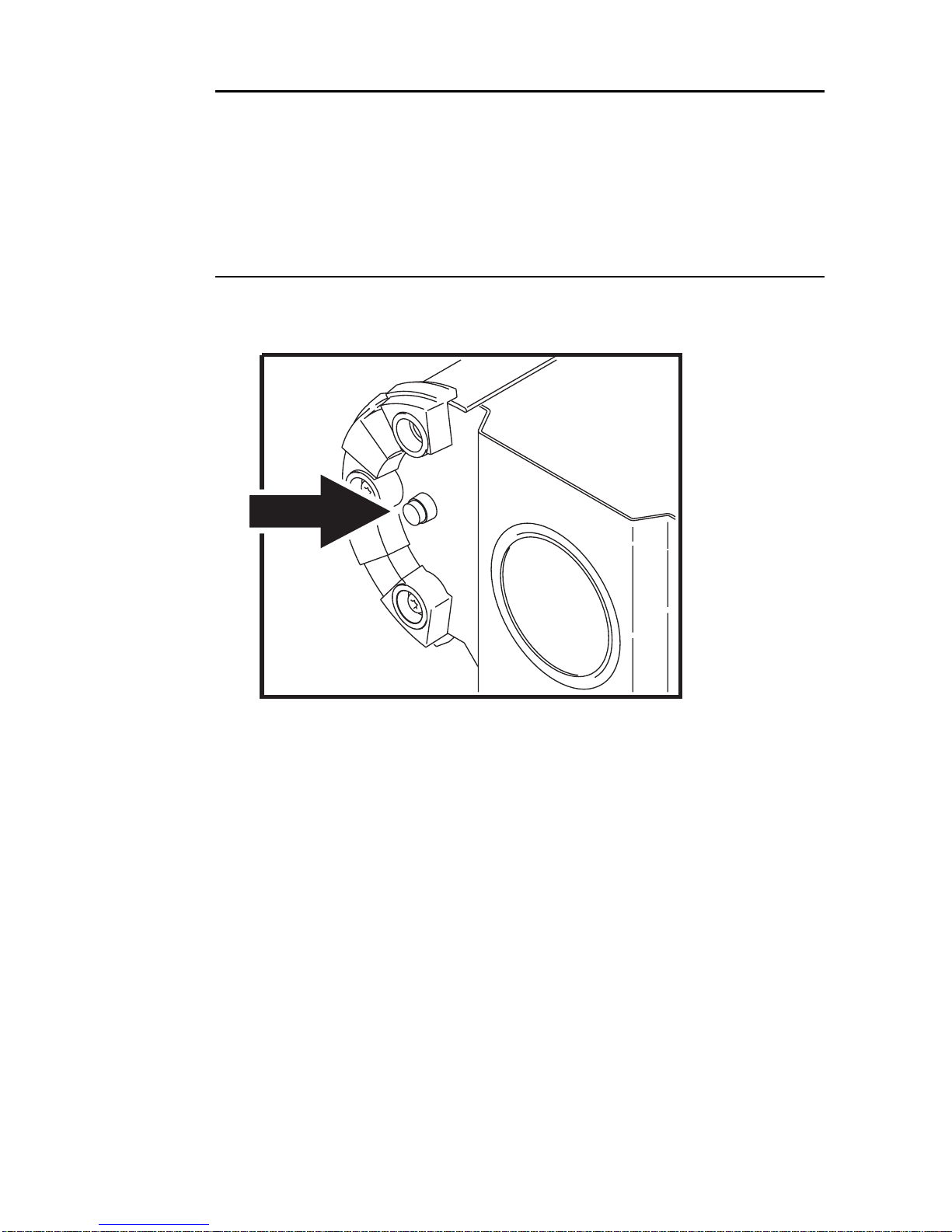

The focus is adjusted using the dial next to the lens. Twist the dial until a
sharp image is acquired.

Operation 15

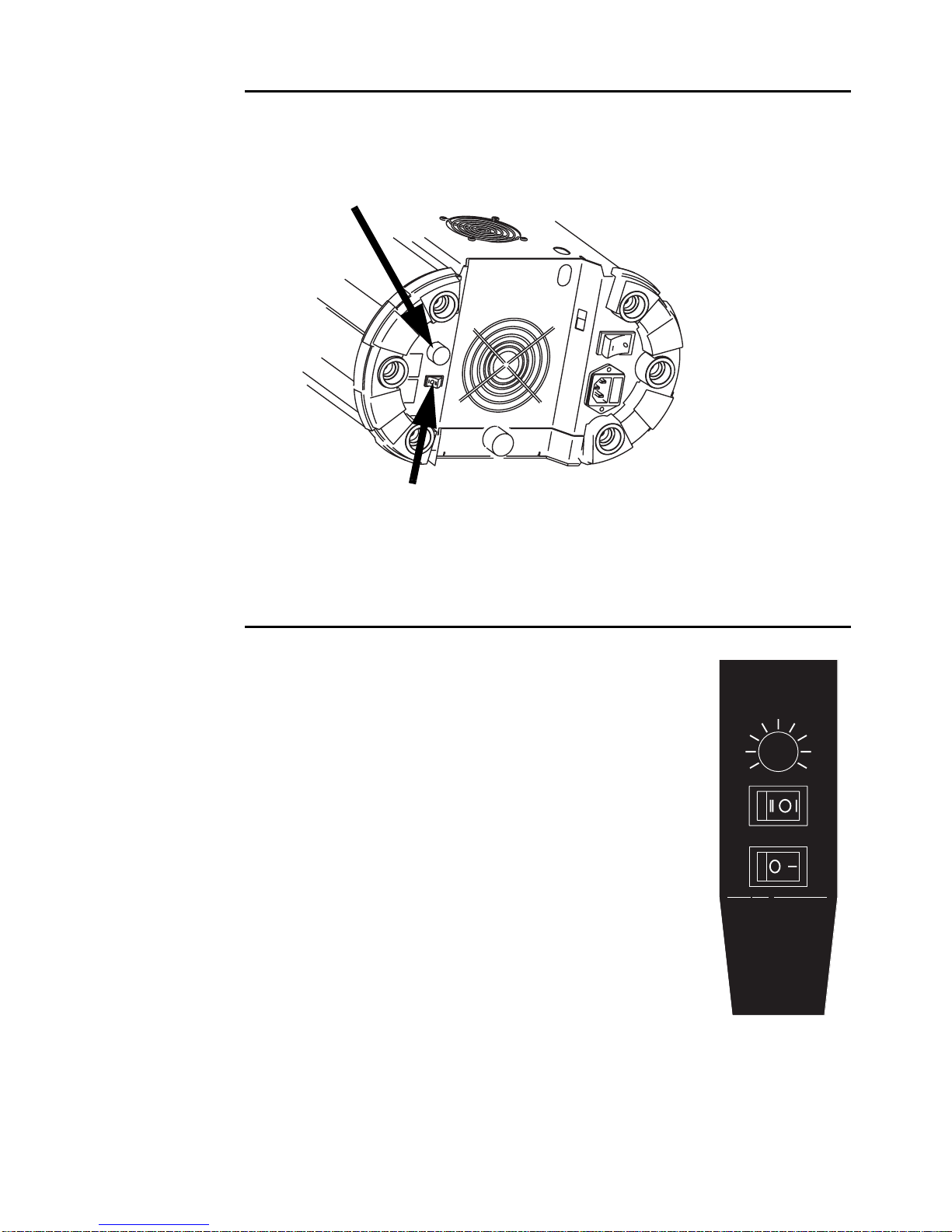

GOBO ROTATION
You can adjust the speed and direction of the gobo rotation using the
controls at the rear of the fixture.
REMOTE CONTROL OPERATION
The remote control unit can control up to four daisy-
chained Mania PR1s. Connect the remote control to
the RJ-45 In connector on the first Mania PR1 fixture
and connect successive fixtures using the RJ-45 Out
connector.
The maximum cable length between daisy-chained
fixtures is 10 metres (33 ft).
Gobo rotation direction switch
Gobo rotation speed
Rotation direction
Rotation direction
Rotation speed
Rotation speed
Mains switch
Mains switch
FastSlow

16 Mania PR1 user manual
B ASIC SERVICE 4
This chapter describes the maintenance procedures that you can perform
yourself.
Warning The exterior of the fixture can become hot. Always disconnect
the fixture from AC power and allow to cool for at least 20
minutes before handling or opening.
CLEANING
Regular cleaning of the elements in the optical path, as well as the air
vents, is vital to maintaining the operational quality of the Mania PR1.
Important! Excessive dust, smoke fluid, and particulate buildup degrades
performance and causes overheating and damage to the
fixture that is not covered by the warranty.
Cleaning the air vents and fan
To maintain adequate cooling, dust must be cleaned from the air vents
periodically. Remove dust from the air vents with a soft brush, cotton
swab, vacuum, or compressed air.
Cleaning optical components
Clean the optical components regularly. The presence of smudges or dust
on optical surfaces can reduce the strength of the light output and the
quality of the effects.
Use care when cleaning optical components and work in a clean, well lit
area. The coated surfaces are fragile and easily scratched. Do not use
solvents that can damage plastic or painted surfaces.
1 Disconnect the fixture from power and allow it to cool for 20 minutes.

Basic service 17
2 Remove the thumb screw holding the cover in place.
3 Slide the fixture cover open.
4 Vacuum or gently blow away dust and loose particles with compressed
air.
5 Remove stuck particles with an unscented tissue or cotton swab
moistened with glass cleaner or distilled water. Do not rub the surface: lift
the particles off with a soft repeated press.
6 Remove smoke, and other, residues with cotton swabs or unscented
tissues moistened with isopropyl alcohol. A commercial glass cleaner may
be used, but residues must be removed with distilled water. Clean with a
slow circular motion from center to edge. Dry with a clean, soft and lint-
free cloth or compressed air.
7 Close the fixture cover and tighten the thumb screw, taking care not to
trap any loose wires.
LAMP MAINTENANCE
Warning Isolate electrically before re-lamping. The lamp must be
changed if it becomes damaged or thermally deformed.
Caution Hot lamp.
Important The Mania PR1 is supplied with a Philips 6958 24V 250W 10H
lamp (Martin P/N 97000115) with an average life of 1000 hours.
The fixture must only be used with this lamp. Using any other

18 Mania PR1 user manual
lamp type may damage the fixture and will invalidate the
product warranty.
Installing a lamp in the Mania PR1
1 Disconnect the fixture from power and allow it to cool for 20 minutes.
2 Remove the thumb screw holding the cover in place.
3 Slide the fixture cover open.
4 Gently grasp the bulb as close to the base as possible and lever it out of
the bulb socket.

Basic service 19
5 Replace the bulb. Use only a Philips 6958 24V 250W 10H lamp (Martin
P/N 97000115).
Warning Installing any other lamp may damage the fixture!
6 Close the fixture cover and tighten the thumb screw, taking care not to
trap any loose wires.
7 Reapply power to the fixture.
RECONFIGURING THE BEAM
The Mania PR1 is supplied with an adjustable lens module allowing the
beam angle to be set to either 25° or 32°. A 43° beam angle converter is
also available from your Martin dealer as an accessory.
The lens is factory-set to 25°, but this can be changed to 32° as follows.
You will need a 2mm Allen key for this operation.
To reconfigure the lens:
1. Disconnect the fixture from power and allow it to cool for 20 minutes.
2. Turn the fixture over and remove the thumb screw holding the cover in
place.
3. Slide the fixture cover open.
4. Turn the focus knob clockwise as far as it will go. This will move the
lens module towards the front of the fixture, giving enough space to
remove the lens module.

20 Mania PR1 user manual
5. The lens module has a
bayonet-type fitting.
Working through the
front aperture of the
fixture, loosen – but do
not remove – the three
2mmAllenboltsaround
the lens.
6. Working inside the fixture, grasp the lens module and twist it
counterclockwise so that it is released from the mounting screws. Lift
the lens module out of the fixture.
